Morimoto Mini Stage III Kit (H1) step by step with pics!

Discussion in 'Lighting' started by stattonmw, Feb 28, 2012.

  1. May 3, 2013 at 6:00 AM
    #161
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    29,095
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    I hope so, I'm back to halogens and it's like someone turned off the lights! :goingcrazy: I had considered (and even mentioned above) not putting the projectors back into the truck but rather on the bike but after a week of not having them, I definitely miss them!

  2. May 3, 2013 at 7:52 AM
    #162
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    29,095
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Just got off the phone with TRS. I have a new trick to get the solenoids so they don't stick, a new reflector bowl coming (warranty) and I had to buy another shroud (I must have over-tightened one of them on my original install because it was cracked when I took it apart).

    Decisions, decisions... Tear down the truck again and put the kit back in the truck or give the bike a badass lighting upgrade :cool:

  3. May 3, 2013 at 7:34 PM
    #163
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,477
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Be sure to post that up with photos if you can.

    I'm not looking forward to opening my housings up again, and if I do, I definitely want to fix it right. I've just been avoiding using my high beams.

  4. May 6, 2013 at 5:27 AM
    #164
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    29,095
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Will do, Adam told me to bend the 'ears' near the solenoid to 90 degrees and that helps free up operation and reduces the chance of them sticking on the high beams. I was away all weekend so I wasn't able to do anything with them. Once I figure out what 'ears' he was talking about and get everything fixed, I'll take pictures and post up.

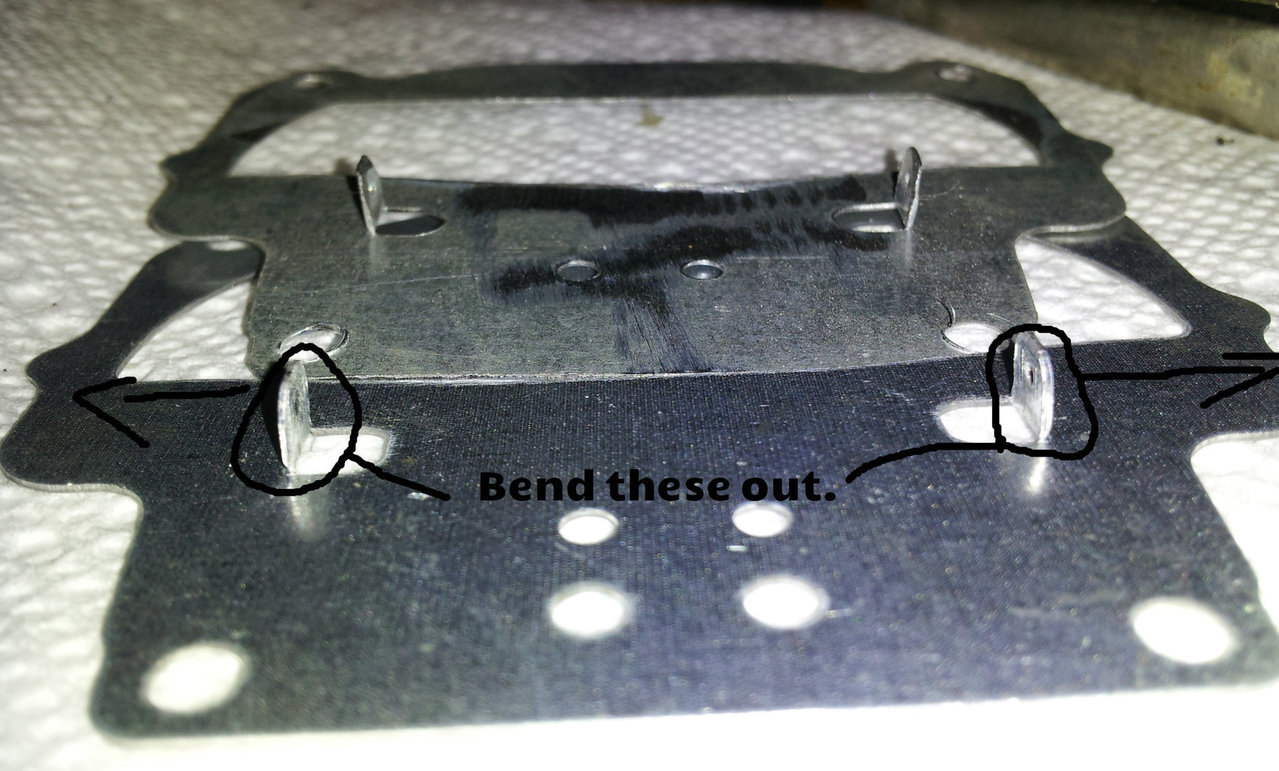

    EDIT: Did some searching and found this on HID Planet. This is the fix TRS mentioned regarding the shield sticking in the high beam position:
    [​IMG]

    Last edited: May 6, 2013
  5. May 6, 2013 at 8:11 PM
    #165
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,477
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Perfect!

  6. Jun 6, 2013 at 11:36 AM
    #166
    black_magic2010

    black_magic2010 Well-Known Member

    Joined:
    Apr 13, 2010
    Member:
    #35195
    Messages:
    264
    Gender:
    Male
    South Texas
    Vehicle:
    10 Tacoma TRD Sport DBL Cab
    I'm about to wire up my kit. Only question I have is how does the high beam activate on the passenger side? I can't figure out how to connect the solenoid to the harness.

  7. Jun 6, 2013 at 11:47 AM
    #167
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    29,095
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    The passenger OEM plug is unused with these kits. You plug the kit into the driver's side plug and TRS's wiring harness controls both headlights. The TRS wiring harness is pretty self explanatory, it should have come with stickers on every lead telling you what plugs into what.

  8. Jun 6, 2013 at 7:04 PM
    #168
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,477
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Two connectors on the harness.
    The one that says "Projector" plugs into the high beam solenoid. The other one plugs into the ballast and the ballast plugs into the light.

    Cut off the grounding lugs on the harness and SOLDER the harness onto a piece of 12ga wire. Run that back and ground it to the lug by the battery with the rest of your body ground items. The bolts on the radiator support are very unreliable ground sources, and 9 times out of 10, problems with HID installations are due to bad grounding.

  9. Jun 7, 2013 at 4:53 AM
    #169
    black_magic2010

    black_magic2010 Well-Known Member

    Joined:
    Apr 13, 2010
    Member:
    #35195
    Messages:
    264
    Gender:
    Male
    South Texas
    Vehicle:
    10 Tacoma TRD Sport DBL Cab
    Thanks for the advice..I will definitely cut the ground and run it back to the ground near the battery.

  10. Jun 27, 2013 at 9:17 PM
    #170
    ncooper

    ncooper Well-Known Member

    Joined:
    Apr 4, 2013
    Member:
    #101362
    Messages:
    46
    Gender:
    Male
    First Name:
    Nick
    Bay Area
    Vehicle:
    2013 MGM DCSB TRD SPORT 4x4
    5100's @ 1.75, ride rite airbags, borla exhaust, headlight retrofit
  11. Jul 5, 2013 at 1:31 PM
    #171
    bravosvo

    bravosvo Active Member

    Joined:
    Feb 6, 2010
    Member:
    #30871
    Messages:
    35
    Gender:
    Male
    Do both (2) of the silicone o-rings get use for the projector installation? I'm find that if I use both, I cannot get the last ring (that holds the bulb in place) screwed down tight enough to keep the bulb firmly seated.

  12. Jul 5, 2013 at 4:20 PM
    #172
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    29,095
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    You use one silicone ring on each projector.

  13. Jul 5, 2013 at 5:00 PM
    #173
    bravosvo

    bravosvo Active Member

    Joined:
    Feb 6, 2010
    Member:
    #30871
    Messages:
    35
    Gender:
    Male
    Ok, because the projectors came with 2 per (minus the large one for the front in the bowl). I couldn't see how someone could use 2 on the backside. I used 1 that mates up against the bulb.

  14. Jul 5, 2013 at 5:55 PM
    #174
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    29,095
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Oh, I thought you were talking about the large ones for the front of the bowl... I'm not sure what you have in your kit. I don't remember another set of washers.

  15. Aug 2, 2013 at 10:49 AM
    #175
    brochacho

    brochacho Well-Known Member

    Joined:
    Feb 27, 2013
    Member:
    #98619
    Messages:
    147
    Gender:
    Male
    First Name:
    Ryan
    Troutdale, OR
    Vehicle:
    09' Double Cab 4x4 TRD Offroad
    5100's @ .85 w/Eibach coils, Wheelers 2" AAL, 17x8 MK6 wheels, 255/75/17 KM1's
  16. Aug 2, 2013 at 12:54 PM
    #176
    stattonmw

    stattonmw [OP] Well-Known Member

    Joined:
    Feb 10, 2011
    Member:
    #50926
    Messages:
    436
    Gender:
    Male
    First Name:
    Statton
    Redmond, WA
    Vehicle:
    2014 DCLB Tacoma TRDsport
    5" RCD Lift TOYO ATII Extreame 295/70R18 XD Addict wheels Factory toyota side steps TRD exhaust
    Time to start my FXR retro! Hope this turns out as well as these did!

  17. Oct 31, 2013 at 7:23 PM
    #177
    2011TacoBeav

    2011TacoBeav Well-Known Member

    Joined:
    Aug 22, 2011
    Member:
    #62165
    Messages:
    215
    Gender:
    Male
    First Name:
    Bret
    Oregon
    Vehicle:
    2012 Sr5 v6 auto DCSB
    Self made rear bumper Colormatched Bush Wackers CB Center console lock box Camo seat covers Weathertech Digi blk Bilstein 5100s set at .85 Eibach coils LR UCAs Rear 1.5" block
  18. Oct 31, 2013 at 7:50 PM
    #178
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,477
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
  19. Oct 31, 2013 at 8:02 PM
    #179
    2011TacoBeav

    2011TacoBeav Well-Known Member

    Joined:
    Aug 22, 2011
    Member:
    #62165
    Messages:
    215
    Gender:
    Male
    First Name:
    Bret
    Oregon
    Vehicle:
    2012 Sr5 v6 auto DCSB
    Self made rear bumper Colormatched Bush Wackers CB Center console lock box Camo seat covers Weathertech Digi blk Bilstein 5100s set at .85 Eibach coils LR UCAs Rear 1.5" block
    Thanks Rich!

    My roommate convinced me to install his used minis and I had no idea which harness to get considering they are coming out of an Acura. haha

  20. Nov 1, 2013 at 4:28 AM
    #180
    AbstraKt

    AbstraKt Member

    Joined:
    Oct 31, 2013
    Member:
    #115620
    Messages:
    20
    Gender:
    Male
    +1

    can't wait to get mine in
