Motorcycle in the bed

Discussion in '2nd Gen. Tacomas (2005-2015)' started by VolcomTacoma, Mar 12, 2012.

  1. Mar 12, 2012 at 3:25 PM
    #1
    VolcomTacoma

    VolcomTacoma [OP] Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    17,297
    Gender:
    Male
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    Hey guys, Just had a quick question, I've got a 2011 DBSB, annnnnd with my toolbox in the back, when i load my bike in the back of the short bed, my back wheel basically will be about 4 inches past my tailgate with it down. Now, I've got a pretty good bike ramp...

    My question is, is there any I can just slide my ramp up under the tire while its hanging off the tailgate, and have it all strapped down, so the bike is essentially still on the ramp and hanging off the end of the tail gate?

    A) is that illegal?
    B) I will have many many straps tieing it down and keeping it stable
    C) Is there anything else instead of the ramp I can use for this?

    I know it seem like alot of work for all of this, but having to take the tool box out everytime I want to haul the bike up to OC is a hassle!

    Also, does anyone have any experience with the Hitch motorcycle carriers? I have the fully upgraded tow package and all that, so I guess that would work, I just get nervous thinking about my entire bike only attached to me tow hitch lol!

    Oh and I have a @005 Triumph Sprint ST 1050, about 530ish wet weight. Slowly trying to drop weight on it...

  2. Mar 12, 2012 at 3:30 PM
    #2
    LAoffroadin

    LAoffroadin BURY ME WITH MY TACO!!

    Joined:
    Feb 28, 2012
    Member:
    #73783
    Messages:
    1,771
    Gender:
    Male
    First Name:
    Joshua
    Northwest
    Vehicle:
    2012 offroad 4x4
    ICON stage 5 coilers w/ ICON ucas, dakar leaf pack with Fox rears, k&n cai, LED cab light, raceline 16 inch wheels , toyo m/t 33",painted front yota emblem gloss white, retrofit headlights with mirrimoto 3 " lenses running the 6k headlights. Bhlm, bestopper, wet okole seat covers (max 4), weather tech mats,winch with piaa fogs. All pro apex front bumper. Sliders etc
    anythingpertruding 12 inches off the back of a vehicle in louisiana must have some sort of caution device on it such as a red towel or extra brake light. it is legal but must be made clearl visible that you made an effort to show the car behind you that the whell/ etc is sticking out. im not exactly sure what your asking regarding the ramp but best thing is to post pics. my dads a cop, and im sure theres a few cops on here that would love to help..

  3. Mar 12, 2012 at 3:36 PM
    #3
    12coma4wd

    12coma4wd Member

    Joined:
    Feb 8, 2012
    Member:
    #72386
    Messages:
    7
    Gender:
    Male
    First Name:
    Rob
    Clemson S.C.
    Vehicle:
    2012 trd sport 4wd
    I would just take the tool box out when hauling the bike

  4. Mar 12, 2012 at 3:38 PM
    #4
    LAoffroadin

    LAoffroadin BURY ME WITH MY TACO!!

    Joined:
    Feb 28, 2012
    Member:
    #73783
    Messages:
    1,771
    Gender:
    Male
    First Name:
    Joshua
    Northwest
    Vehicle:
    2012 offroad 4x4
    ICON stage 5 coilers w/ ICON ucas, dakar leaf pack with Fox rears, k&n cai, LED cab light, raceline 16 inch wheels , toyo m/t 33",painted front yota emblem gloss white, retrofit headlights with mirrimoto 3 " lenses running the 6k headlights. Bhlm, bestopper, wet okole seat covers (max 4), weather tech mats,winch with piaa fogs. All pro apex front bumper. Sliders etc
    or there is this option ....

  5. Mar 12, 2012 at 3:48 PM
    #5
    VolcomTacoma

    VolcomTacoma [OP] Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    17,297
    Gender:
    Male
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    Ugh, I know, that's what I usually do, but it's just a hassle lol, having to take the toolbox out, and then hauling it up to my apartment and putting out on the patio..

    Mainly what I'm asking is if i can use the ramp as a sort of bed extender, I think it'll work, but will have to anchor the ramp down really tight as well as the bike.

    I'm pretty sure CA has laws about things extending out as well, I was already planning on hanging some sort red rag or flag or something off the back of the bike. Just wasn't sure if that was legal to even have it hanging off the tailgate like that or not

  6. Mar 12, 2012 at 4:45 PM
    #6
    korslite

    korslite Well-Known Member

    Joined:
    Jun 17, 2010
    Member:
    #39084
    Messages:
    618
    Gender:
    Male
    First Name:
    Justin
    Bellingham, WA
    Vehicle:
    DCLB Sport
    FOX 2.5 RR's, TC UCAs, TC Spindle Gussets, Allpro Expedition leaf pack, Fox 2.O RR w/ Comp adjusters, 17" ATX Artillery, BFG AT 285's, de-scooped, custom sliders, custom bedrack, Brute Force Fab bumpers, Smittybilt XRC8 winch, ARB locked Rear diff
    I'm assuming this is a dirt bike not a street bike... I really hope it is. I cannot imagine putting any type of bike in a SB with a toolbox, the bed is only 5' to begin with.:eek:

    Might be hard on the rear end but have you looked into a hitch carrier if it is indeed a dirt bike you are hauling?

    Like this...
    [​IMG]

  7. Mar 12, 2012 at 4:53 PM
    #7
    VolcomTacoma

    VolcomTacoma [OP] Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    17,297
    Gender:
    Male
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    Its a sport bike, wet weight of about 530 lbs. Without the toolbox it fits fine, i think the edge of the back tire is like an inch off the tailgate (not the wheelbase). I'm looking into ways to carry the bike without having to remove my toolbox.

  8. Mar 12, 2012 at 4:57 PM
    #8
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    30,822
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Bike is a 1,000cc race-style bike. Light but I wouldn't want it hanging off the back end like that. OP, either remove the tool box or get a trailer.

  9. Mar 12, 2012 at 5:04 PM
    #9
    VolcomTacoma

    VolcomTacoma [OP] Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    17,297
    Gender:
    Male
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    Sigh, Yea, these hitch ones make me SUPER nervous, Don't think I could ever get one of those.

    However, wondering if anyone read some more about using my ramp as a bed/tailgate extender, obviously a bit more work, having to get the bike up and then lifting the bike to push the ramp up and in...

  10. Mar 12, 2012 at 5:12 PM
    #10
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    30,822
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    You could do what you're talking about but there are a few things to consider... You'd want a ramp with some sort of V-channel, or a way to keep the rear tire centered instead of just on a flat ramp. You'll also want the ramp secured in the bed so it can't slide side to side or slide out the back. Ideally, if I were to make something like this, I'd use a metal C-channel and find a way to secure it in using ratchet straps or a use the bed bolts to create a secure mounting system.

  11. Mar 12, 2012 at 5:14 PM
    #11
    VolcomTacoma

    VolcomTacoma [OP] Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    17,297
    Gender:
    Male
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement

    That's a super good idea, I wonder if i can get my fab guy to basically just make me something that I can mount to my 2 back bed bolts that just extends like a foot past the tailgate. just throw it on, have the ramp go to the extender, get bike up on it. Thanks for the brain storming!

    would basically be a T. flat plate to mount to bed bolts, C rail at center going out past tailgate...

    O=======O
    | |
    | |
    | |
    | |
    | |

    that kinda thing...

  12. Mar 12, 2012 at 5:16 PM
    #12
    VolcomTacoma

    VolcomTacoma [OP] Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    17,297
    Gender:
    Male
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    crap those are supposed to be centered lol

  13. Mar 12, 2012 at 5:22 PM
    #13
    spidy3

    spidy3 Well-Known Member

    Joined:
    Jan 26, 2011
    Member:
    #49989
    Messages:
    246
    Gender:
    Male
    First Name:
    Dom
    Upstate NY
    Vehicle:
    01 DC TRD V6
    stock
    pic of toolbox in truck from back with tailgate open please...

    maybe you can get a piece of metal or even diamond plate and have it cover most of your bed and go about 5" past tailgate? put a hinge on it someplace so you can leave it in there and close tailgate. Maybe in same shape as a bedrug so front wheel will hold it down. You could try and get longer bed bolts so you can bolt whatever u use down to the bed and it wont move around. just some thoughts

  14. Mar 12, 2012 at 5:25 PM
    #14
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    30,822
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Yeah, something like that. I'd imagine you want something you could put the ramp at the end of, so you could run the bike up the ramp and it'd be in position. Probably want it fairly easy to remove unless you spend a lot of itme hauling your bike.

    Just a thought, you might want to reinforce your tailgate while you're at it. That will put a substantial point load in the middle of the tailgate.

    Here's an idea:
    2"x2"x1/4" angle iron across the tailgate, welded to a c-channel that extends from about a foot or 2 inside the bed to whatever length you need it behind the tailgate. That way the heavy tailgate reinforcement would be build into that c-channel motorcycle hauling contraption and not on the truck full time. I don't know how you secure the front part to hold it down though but you could put a loop on the back and a simple strap to the D-rings on the bottom of the bed to hold it forward.

  15. Mar 12, 2012 at 5:57 PM
    #15
    WVtriple

    WVtriple Well-Known Member

    Joined:
    Jan 20, 2009
    Member:
    #12778
    Messages:
    316
    Gender:
    Male
    First Name:
    Anthony
    WV eastern panhandle
    Vehicle:
    07 DC TRD Sport
    Satoshi grill mod, Redline Tuning Hood struts and tailgate E-Z down, HID headlights and fogs, LED tail lamp upgrade, TRD exhaust, FJ TRD Anthracite Wheels, T-REX eyelids, power sunroof, 5100 Billies and ToyTec AAL, K&N drop-in, TRD seatcovers, Weathertech floor mats, Fog light any-time mod, Pop-n-lock, slotted front rotors with ceramic pads, BenWa power rear slider mod, blackout badges, and blacked out center stack and console. 7" HID's behind the grill. LED light bar in the lower grill. Trailer plug relocate. Auxiliary reverse LED's wired in to be manual or auto on when in reverse.
    Ask me how I know. Or you could somehow fabricate a wheel chock to the front of the ramp with the supports on each side, kind of like you wanted your diagram to be. Once the front wheel locks in, side everything forward, end of the ramp comes up,and secure it down!?, or do like my lazy ass and opt for the utility trailer converted into a bike hauler. Sorry, I was probably no help at all.

  16. Mar 12, 2012 at 6:40 PM
    #16
    swain00

    swain00 Well-Known Member

    Joined:
    Jan 21, 2012
    Member:
    #71120
    Messages:
    55
    Gender:
    Male
    First Name:
    Mark
    Greencastle, PA
    Vehicle:
    16 Trd off road Dcsb manual

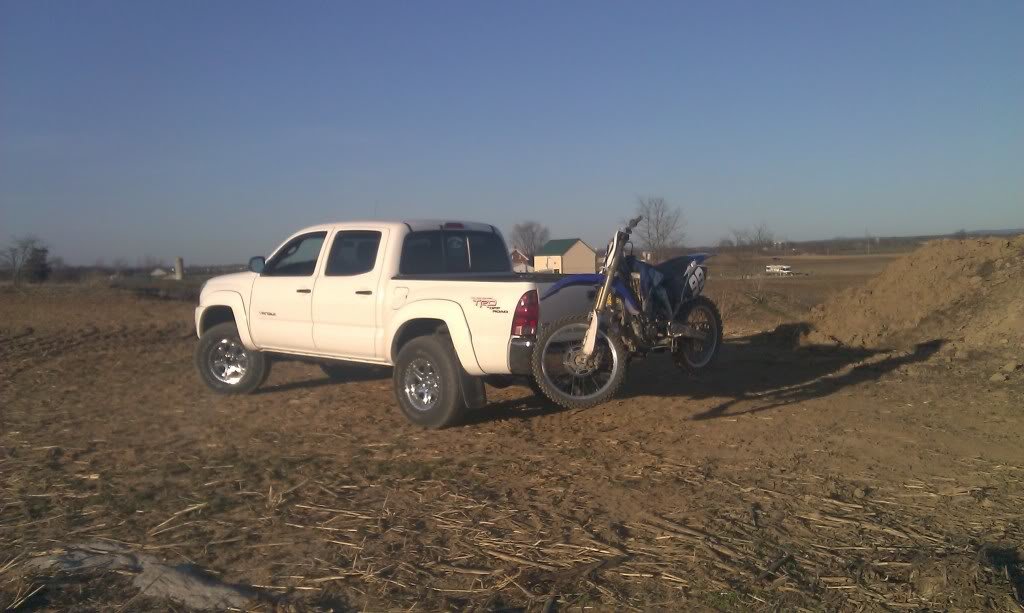

    Heres what i use.
    [​IMG]

  17. Mar 12, 2012 at 7:04 PM
    #17
    korslite

    korslite Well-Known Member

    Joined:
    Jun 17, 2010
    Member:
    #39084
    Messages:
    618
    Gender:
    Male
    First Name:
    Justin
    Bellingham, WA
    Vehicle:
    DCLB Sport
    FOX 2.5 RR's, TC UCAs, TC Spindle Gussets, Allpro Expedition leaf pack, Fox 2.O RR w/ Comp adjusters, 17" ATX Artillery, BFG AT 285's, de-scooped, custom sliders, custom bedrack, Brute Force Fab bumpers, Smittybilt XRC8 winch, ARB locked Rear diff
    I personally would not haul my sport bike in a short bed often. That's just me though. I like my bike too much and paid too much for it to let it hang out the back of my truck goin down the road. There are foldable bike trailers that store easy and haul 2 or 3 bikes. That's what I would look into OP. Even with my long bed my rear tire is near the edge of the bed and the tailgate doesnt close if the bike is sitting straight and not angled.

  18. Mar 12, 2012 at 7:17 PM
    #18
    VolcomTacoma

    VolcomTacoma [OP] Well-Known Member

    Joined:
    May 25, 2011
    Member:
    #57205
    Messages:
    17,297
    Gender:
    Male
    Vehicle:
    2015 TRD Sport 4x4 6 Speed Supercharged
    Front- Camburg 4x4 Long Travel 2.5" King Coilovers 2.5" King Triple Bypasses Wheelers Superbumps Rear- DMZ SUA 16" 3.0 King Triple Bypasses 3" 2.0 Fox bumps Wheels and Tires- 295/75/16 Toyo ATII XTREME SCS SR8 Dark Matte Bronze 16" Lighting- (2) 30" Combo light bars (4) Iggycorp diffused pods Tepui Ayer TRD Supercharger URD Mark III 3" Exhaust URD 4x4 Y Pipe URD CAI URD 2.85 Stealth Pulley Hurst Core Shifter with Hurst T URD Stage 3 clutch URD Lightweight flywheel URD Throw out bearing upgrade AEM Wideband AFR Gauge Speedhut Boost Gauge Craven Speed Flex Pod mount Weathertech Floor Liners BAMF Sliders Ultragauge sPod SE ARB CKMTA12 Hella Supertone horns Relentless Tailgate Reinforcement
    Yea, I really only haul it maybe once a month about 100 miles. Im with you, i love my bike,but i haul it for a canyon ride with a friend up north and then don't want to be stuck on a bike all weekend. I fully plan on getting a trailer if some sort, some day, but right now I live in an apartment, so I have no room to store a trailer. This foldable ramp/bed extender idea intrigues me though

  19. Mar 13, 2012 at 5:51 AM
    #19
    CtTaco

    CtTaco Well-Known Member

    Joined:
    May 4, 2008
    Member:
    #6392
    Messages:
    630
    Gender:
    Male
    First Name:
    Eric
    Connecticut
    Vehicle:
    2010 4x4 Doublecab Sport Longbed Supercharged
    3" lift, Tundra wheels with BFG ATKO's, Viper Remote starter TRD Supercharger
    With a shortbed truck, Id be more concerned about weight sitting on and bouncing on the already weak tailgate on our trucks. Everytime i load up my 1098 i watch the tailgate flex and it only weighs about 400lbs. Can you pull the toolbox and leave it at a friends house or something?

  20. Mar 13, 2012 at 5:52 AM
    #20
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    30,822
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    What's wrong with hauling a motorcycle in a short bed?? :confused: If it's tied in properly, there's no difference between the bike being in the bed vs. flat bed trailer. The bike is actually better protected in the bed vs. an open trailer because it's not eating all the rocks and dirt your rear tires kick up. I used to haul my bike all the time in a short bed and the rear tire ends up being on the tailgate. I made a chock for the front tire so it can't turn, use 4 good straps and the bike doesn't move at all. Maybe I'm missing something but I love my bike and never saw an issue hauling it in a short bed...
