Mounting 30 inch LED lightbar in lower valence

Discussion in '1st Gen. Tacomas (1995-2004)' started by BrannigansLaw, Oct 28, 2021.

  1. Oct 28, 2021 at 11:18 AM
    #1
    BrannigansLaw

    #1
    BrannigansLaw [OP] Well-Known Member

    Joined:
    Apr 15, 2014
    Member:
    #127709
    Messages:
    66
    Gender:
    Male
    First Name:
    Charles
    San Diego
    Vehicle:
    04 4x4 TRD
    $90 30" Light Bar, SWATOW INDUSTRIES 168W 30" Single Row LED Light Bar w/Wiring Black Cover Offroad Driving Light Bumper Bar for Truck Jeep Toyota Chevy Ram UTV
    Amazon.com: SWATOW INDUSTRIES 30 Inch LED Light Bar Kit 120W Single Row Light Bar with Wiring Harness Black Cover Spot Flood Combo Off Road Driving Light Fog Light Slim LED Bar for Truck UTV ATV RZR 4x4 Boat : Everything Else

    Anyone know what I would have to do in order to mount this behind the OEM front valence? Would those brackets work? Or are there any lightbars that fit in that area that bolt right up without any modification?

    Thanks TW!

    BrannigansLaw, Oct 28, 2021
    #1
  2. Oct 28, 2021 at 12:29 PM
    #2
    tacojim02

    #2
    tacojim02 Well-Known Member

    Joined:
    Sep 20, 2019
    Member:
    #305825
    Messages:
    183
    Gender:
    Male
    Puxico, Missouri
    Vehicle:
    02 dbl cab trd
    2in suspension lift
    I would say it is very doable. But you would probably have to cut the valance out a little in the back and modify the brackets. Just saying.

    tacojim02, Oct 28, 2021
    #2
  3. Oct 28, 2021 at 2:08 PM
    #3
    SellyKlater

    #3
    SellyKlater Well-Known Member

    Joined:
    Feb 8, 2017
    Member:
    #210037
    Messages:
    753
    Gender:
    Male
    First Name:
    Ryan
    Ponce Inlet, Fl
    Vehicle:
    2004 Tacoma 3.4L Double Cab TRD
    3" ome lift 883. Fnfx pros.

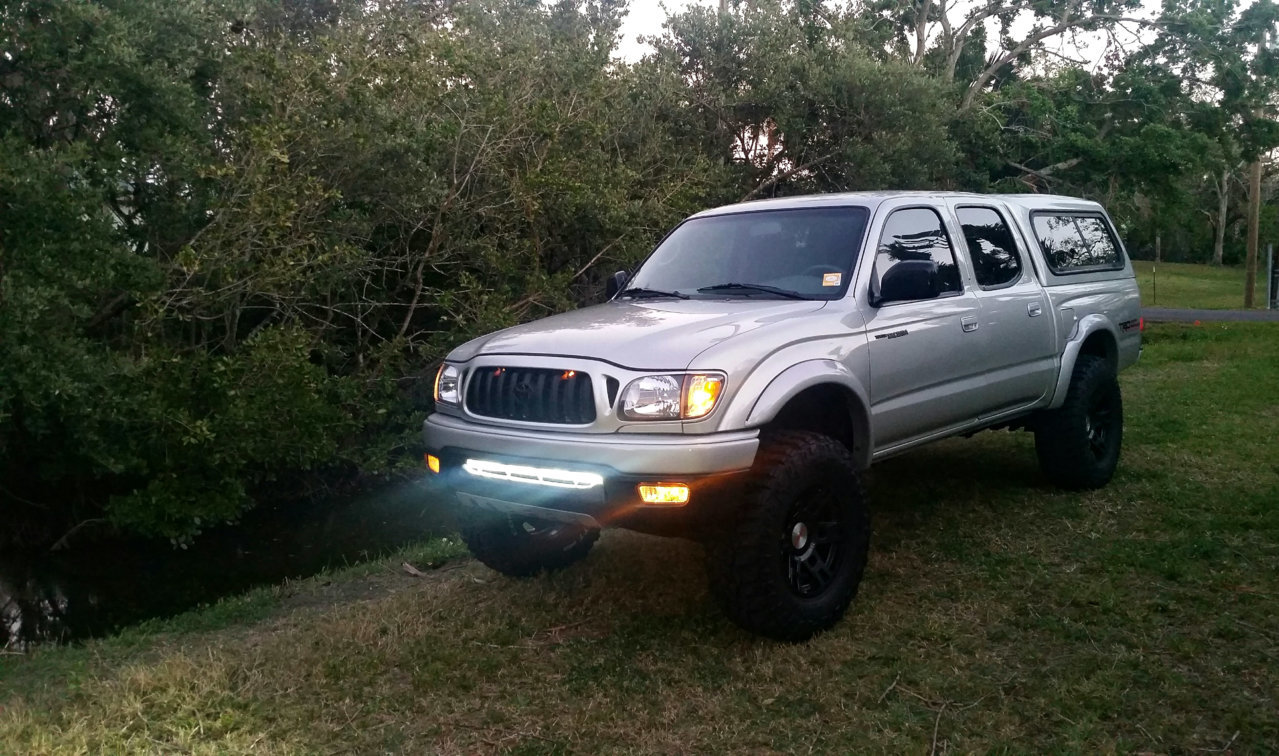

    I mounted a 31" in there. Fit right in behind the valence. No cutting, just took the bumper off and put it back on. I made some L brackets out of some 1 inch scrap aluminum.

    Last edited: Oct 28, 2021
    SellyKlater, Oct 28, 2021
    #3
    TWJLee and sonofdad like this.
  4. Oct 28, 2021 at 2:17 PM
    #4
    BrannigansLaw

    #4
    BrannigansLaw [OP] Well-Known Member

    Joined:
    Apr 15, 2014
    Member:
    #127709
    Messages:
    66
    Gender:
    Male
    First Name:
    Charles
    San Diego
    Vehicle:
    04 4x4 TRD
    Nice, that looks excellent.
    From how you describe it, pretty easy mount job?

    BrannigansLaw, Oct 28, 2021
    #4
  5. Oct 28, 2021 at 2:23 PM
    #5
    SellyKlater

    #5
    SellyKlater Well-Known Member

    Joined:
    Feb 8, 2017
    Member:
    #210037
    Messages:
    753
    Gender:
    Male
    First Name:
    Ryan
    Ponce Inlet, Fl
    Vehicle:
    2004 Tacoma 3.4L Double Cab TRD
    3" ome lift 883. Fnfx pros.
    Yea basically the frame is about 32 inches apart in the section. You might have to test fit how close to mount the light bar near the radiator. But that size Bar should fit right in between the frame.

    SellyKlater, Oct 28, 2021
    #5
  6. Oct 28, 2021 at 2:27 PM
    #6
    sonofdad

    #6
    sonofdad Member

    Joined:
    Apr 15, 2015
    Member:
    #153245
    Messages:
    11
    Gender:
    Male
    Vehicle:
    2001 Tacoma TRD Xtra Cab
    ditto what @SellyKlater did above.
    installed an LED light bar last year.
    ordered
    $45 Nilight LED Light Bar 32" 180W Spot Flood Combo LED Driving Lamp Roof Bumper Off Road Lights LED Work Light Led Pods for Trucks Pickup SUV ATV UTV Boat,2 Years Warranty
    this light bar and
    $14 Nilight Wiring Harness Kit 14AWG Heavy Duty 12V On-Off Switch Power Relay Blade Fuse for Off Road LED Work Light Bar-ONE Lead,2 Years Warranty
    this harness. it was 32" in width. it barely fit behind the valence ... no cutting of the plastic required.
    i had to make my own brackets as well. it wasn't super difficult and am happy how it turned out.

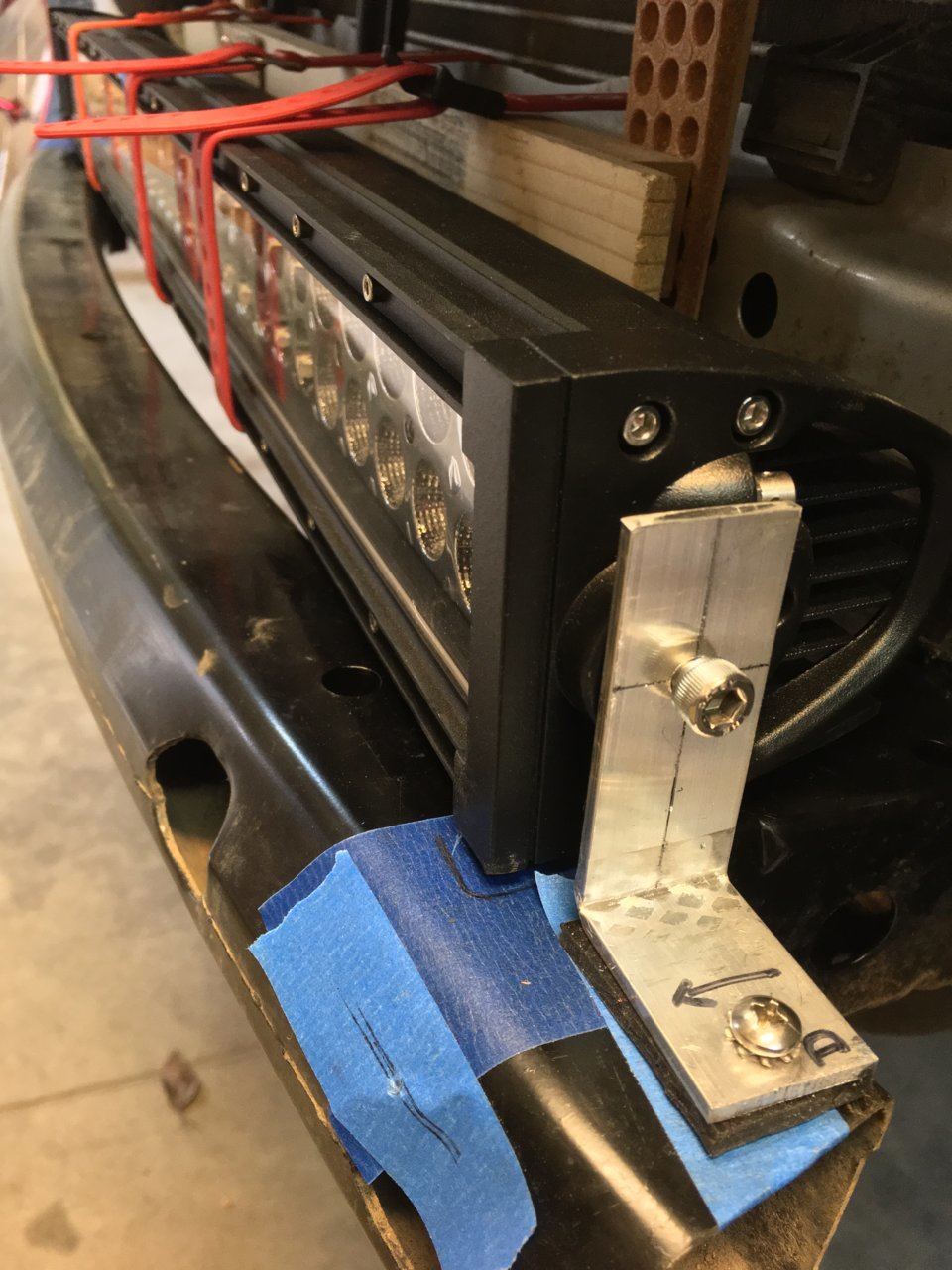

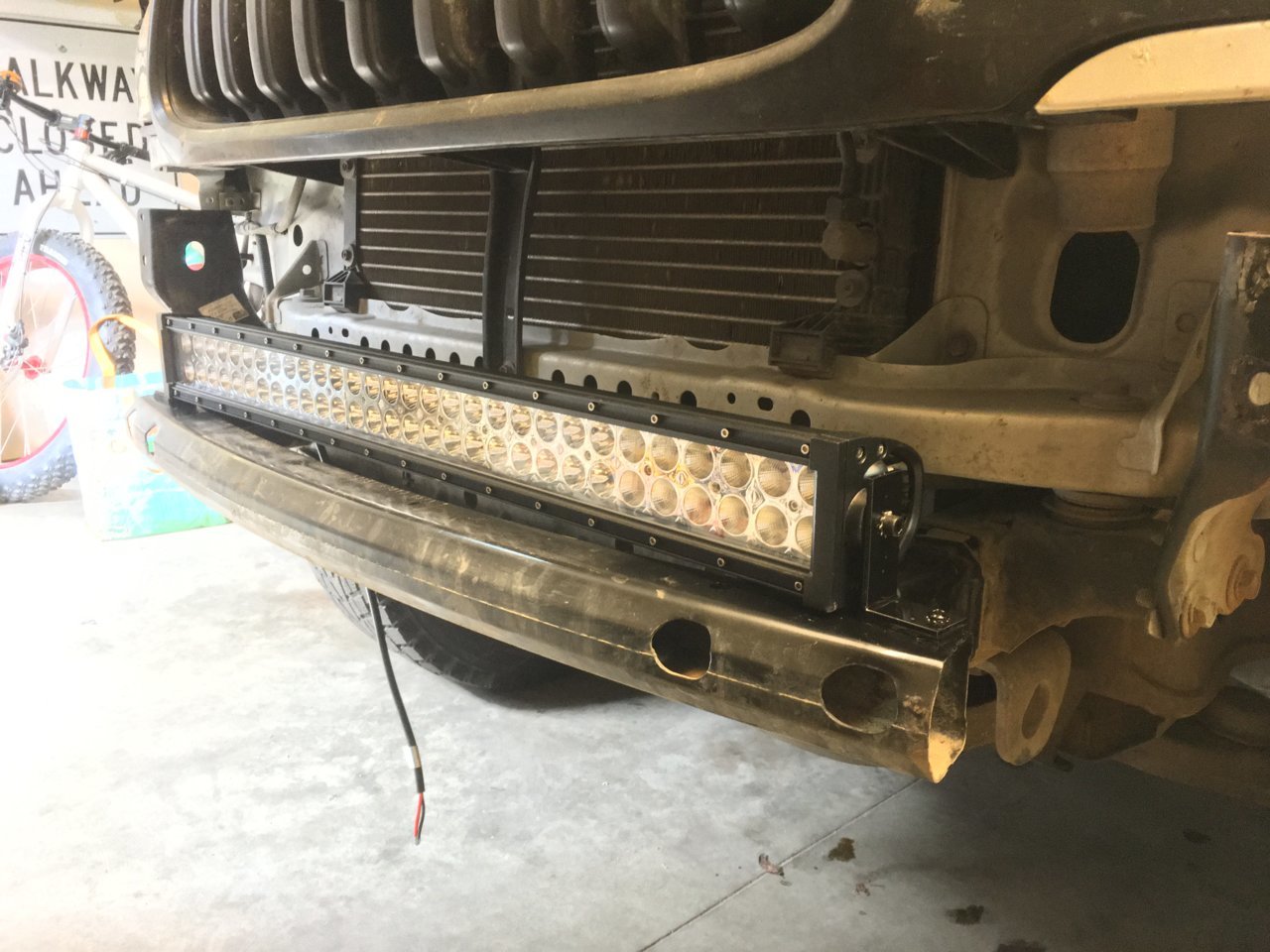

    some pics of the install attached.


    Last edited: Oct 28, 2021
    sonofdad, Oct 28, 2021
    #6
    joe25rs, SellyKlater, TWJLee and 1 other person like this.
  7. Oct 28, 2021 at 6:59 PM
    #7
    GyvesHD

    #7
    GyvesHD Well-Known Member

    Joined:
    Oct 2, 2019
    Member:
    #306947
    Messages:
    144
    Gender:
    Male
    First Name:
    Edgar
    Vehicle:
    2000 Toyota Tacoma SR5 4X4
    I had a dual row light bar tucked behind but I switched to a single row style. More light output. Don’t have pictures of the brackets I made but wasn’t hard at all


    GyvesHD, Oct 28, 2021
    #7
  8. Oct 28, 2021 at 7:17 PM
    #8
    Old green toyota

    #8
    Old green toyota Well-Known Member

    Joined:
    Jul 12, 2020
    Member:
    #334200
    Messages:
    730
    Sacramento,CA
    Vehicle:
    99 2.7 4x4 Standard cab
    Oil leaks
    If the brackets it comes with are too tall, cut them down and re drill the center hole. Or just make your own. The hardest part will be cleanly mounting the switch

    Old green toyota, Oct 28, 2021
    #8
  9. Oct 29, 2021 at 8:10 PM
    #9
    Tacomasaurus Rex

    #9
    Tacomasaurus Rex Well-Known Member

    Joined:
    Aug 31, 2019
    Member:
    #303875
    Messages:
    614
    Gender:
    Male
    First Name:
    Brian
    Vehicle:
    2003 Black Tacoma 4x4 TRD fully Automatic

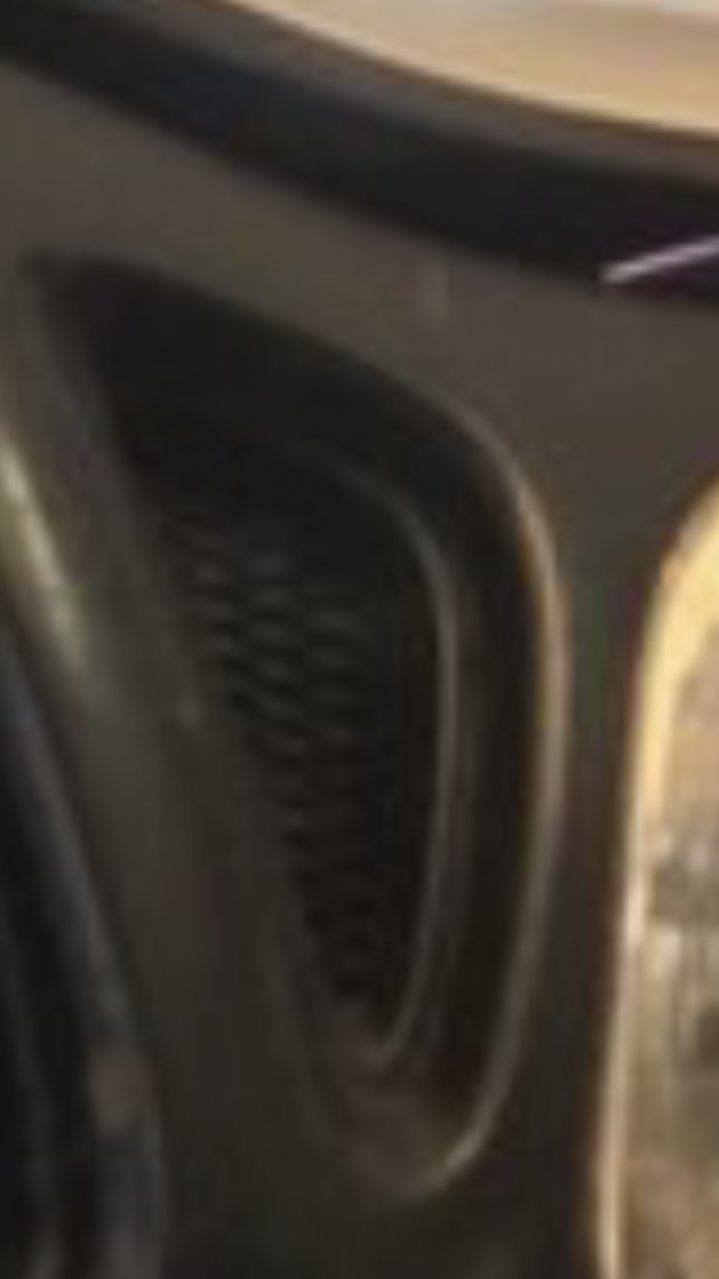

    Very nice I’ll have to do that! Kind of thought it’d be interesting to mount a light in side of these triangle shaped areas on grill. However it wouldn’t gain you much light…

    Tacomasaurus Rex, Oct 29, 2021
    #9
  10. Mar 23, 2024 at 11:07 AM
    #10
    Krugermeier

    #10
    Krugermeier Active Member

    Joined:
    Mar 14, 2024
    Member:
    #445860
    Messages:
    28

    I’m going to buy your same bar and harness. I want to ask, is there any reason I SHOULDN’T run the 378 watt option they have versus the 180 watt?

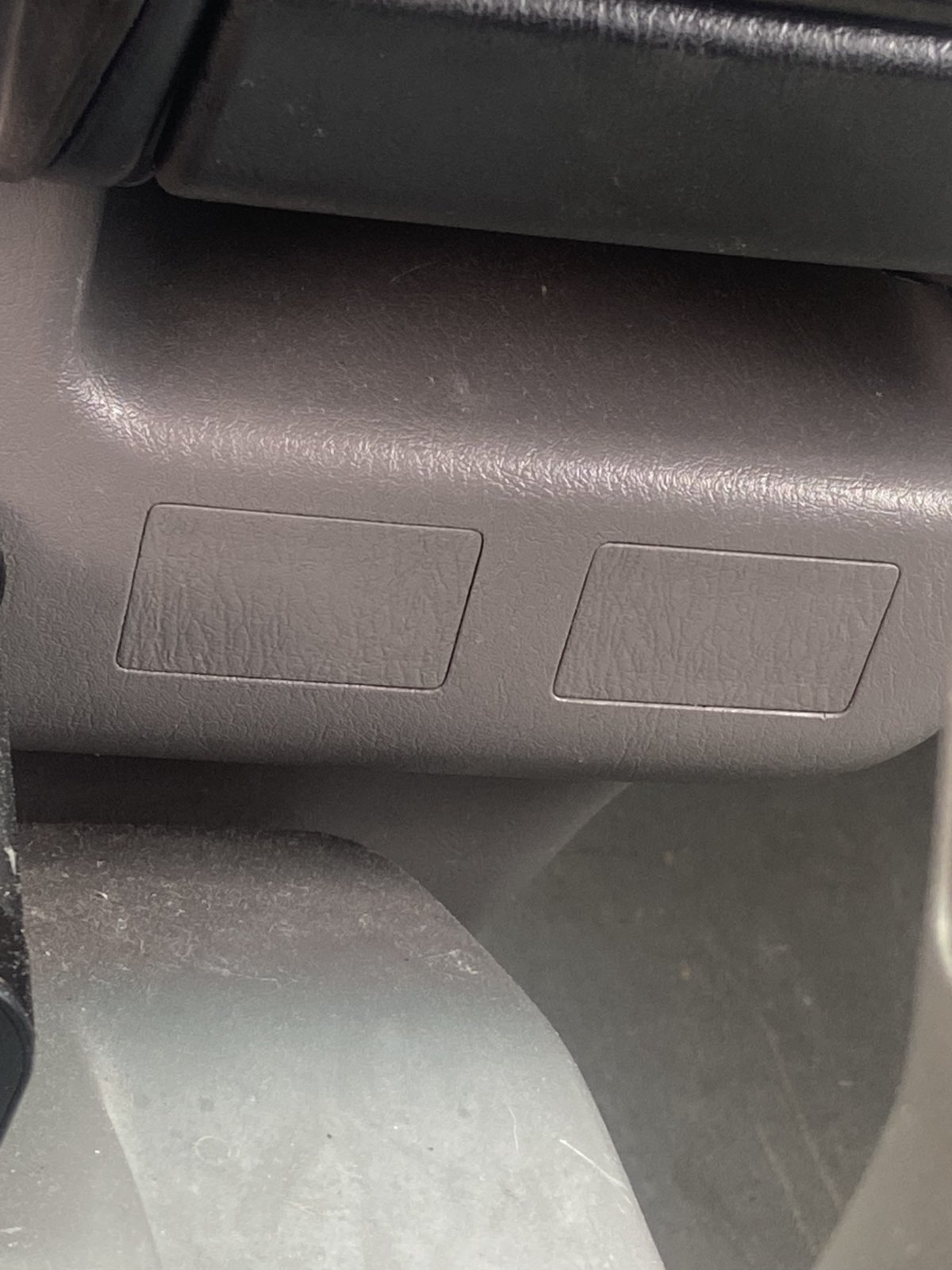

    also, when it comes to the harness, the on/off switch is a circular red one. Can I change the switch to rectangular so that it fits flush in the pre-existing dash switch mounts?
    $14 Nilight Wiring Harness Kit 14AWG Heavy Duty 12V On-Off Switch Power Relay Blade Fuse for Off Road LED Work Light Bar-ONE Lead,2 Years Warranty
    https://www.amazon.com/dp/B073XMM3T5


    Krugermeier, Mar 23, 2024
