Mounting 30" LED bar behind grill

Discussion in 'Lighting' started by MarkM, Jan 25, 2013.

  1. Jan 25, 2013 at 6:22 PM
    #1
    MarkM

    MarkM [OP] Well-Known Member

    Joined:
    Dec 10, 2012
    Member:
    #92796
    Messages:
    127
    Gender:
    Male
    First Name:
    Mark
    Indiana
    Vehicle:
    2013 SR5 4X4
    3" Ultimate lift
    Anyone have any pics of a 30" bar behind the grill?

  2. Jan 25, 2013 at 9:27 PM
    #2
    Glocker23

    Glocker23 Rubber Side Down

    Joined:
    Jan 12, 2008
    Member:
    #4206
    Messages:
    668
    Gender:
    Male
    CT
    Vehicle:
    2012 DCSB Sport
    Debadged, Emergency response lights, Tonneau cover, Grillcraft MX grill, OKLED 20" light bar in grill
    Not yet. Waiting for a warm up to tear into it. I can't wait to get my grillcraft put in with light in back

  3. Jan 25, 2013 at 9:30 PM
    #3
    ToyotaKTMracing

    ToyotaKTMracing The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
  4. Feb 13, 2013 at 7:07 PM
    #4
    PCHearn

    PCHearn Well-Known Member

    Joined:
    Jan 6, 2011
    Member:
    #48807
    Messages:
    146
    Gender:
    Male
    First Name:
    Patrick
    Moore, OK
    Vehicle:
    11 PreRunner SR5
  5. Feb 14, 2013 at 9:58 PM
    #5
    eric3187

    eric3187 Well-Known Member

    Joined:
    Jun 15, 2012
    Member:
    #80723
    Messages:
    599
    Gender:
    Male
    i have 2 stacked 21" behind my grill, i can snap a picture tomorrow so you can see how a 30" may or may not fit.

  6. Feb 15, 2013 at 9:33 AM
    #6
    PCHearn

    PCHearn Well-Known Member

    Joined:
    Jan 6, 2011
    Member:
    #48807
    Messages:
    146
    Gender:
    Male
    First Name:
    Patrick
    Moore, OK
    Vehicle:
    11 PreRunner SR5
    Eric - Great. Please post the picture. And did you wire yours up to your headlight wires? Would you explain how you hooked yours up? Thanks.

  7. Feb 15, 2013 at 9:54 AM
    #7
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,092
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod
  8. Feb 15, 2013 at 10:03 AM
    #8
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,092
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DC Pyrite Mica
    Baby seat mod
  9. Feb 15, 2013 at 10:25 AM
    #9
    eric3187

    eric3187 Well-Known Member

    Joined:
    Jun 15, 2012
    Member:
    #80723
    Messages:
    599
    Gender:
    Male
    i wired them up the way everyone will say not to.. haha
    battery-inline fuse-25amp switch-lights-ground i choose not to use a relay. pictures will be up momentarily

  10. Feb 15, 2013 at 10:37 AM
    #10
    eric3187

    eric3187 Well-Known Member

    Joined:
    Jun 15, 2012
    Member:
    #80723
    Messages:
    599
    Gender:
    Male

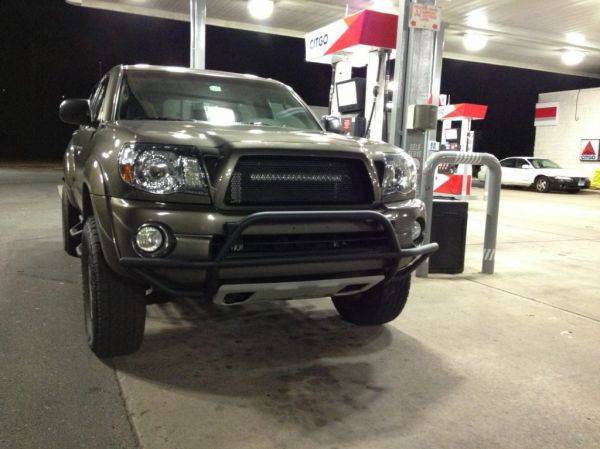

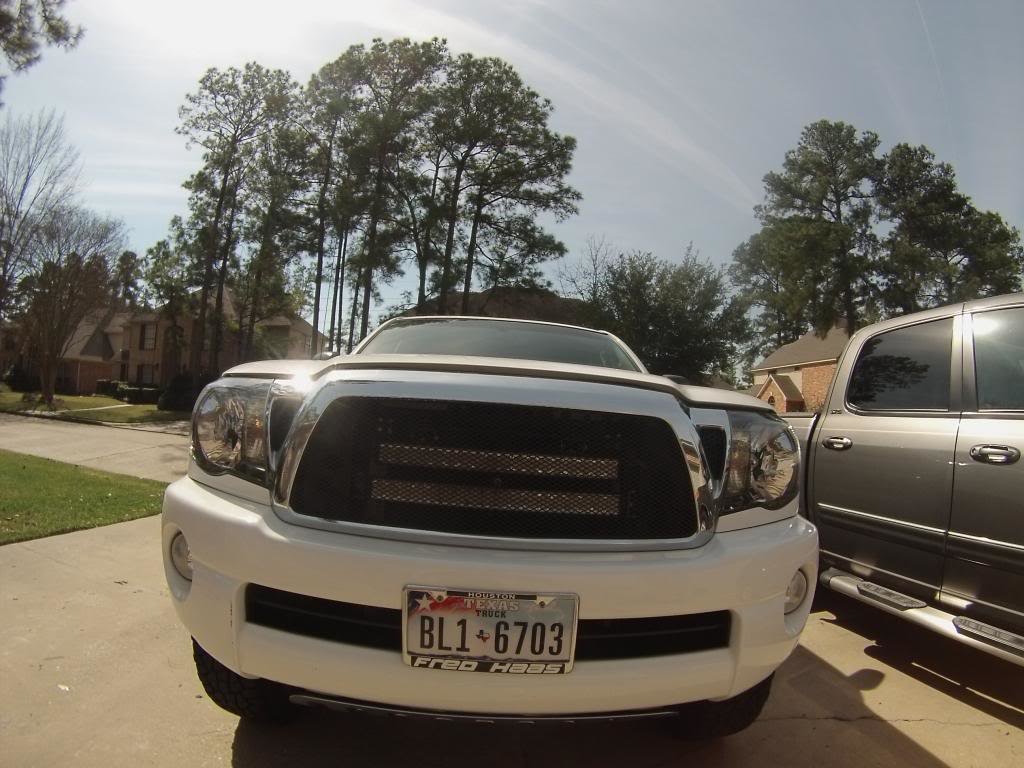

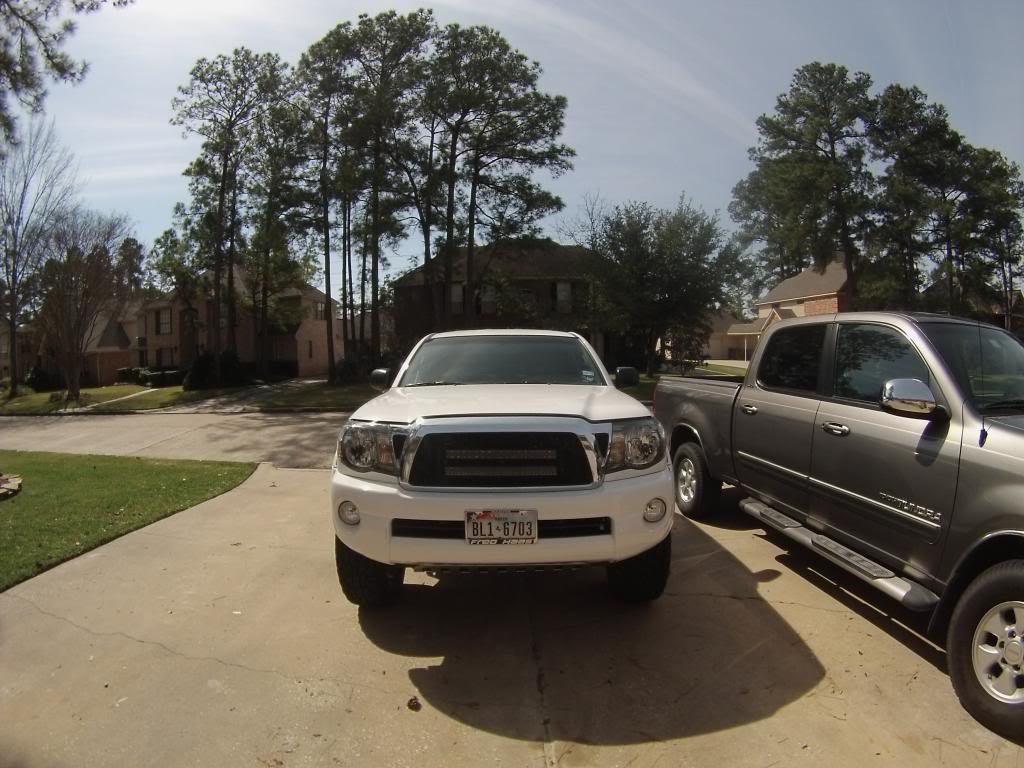

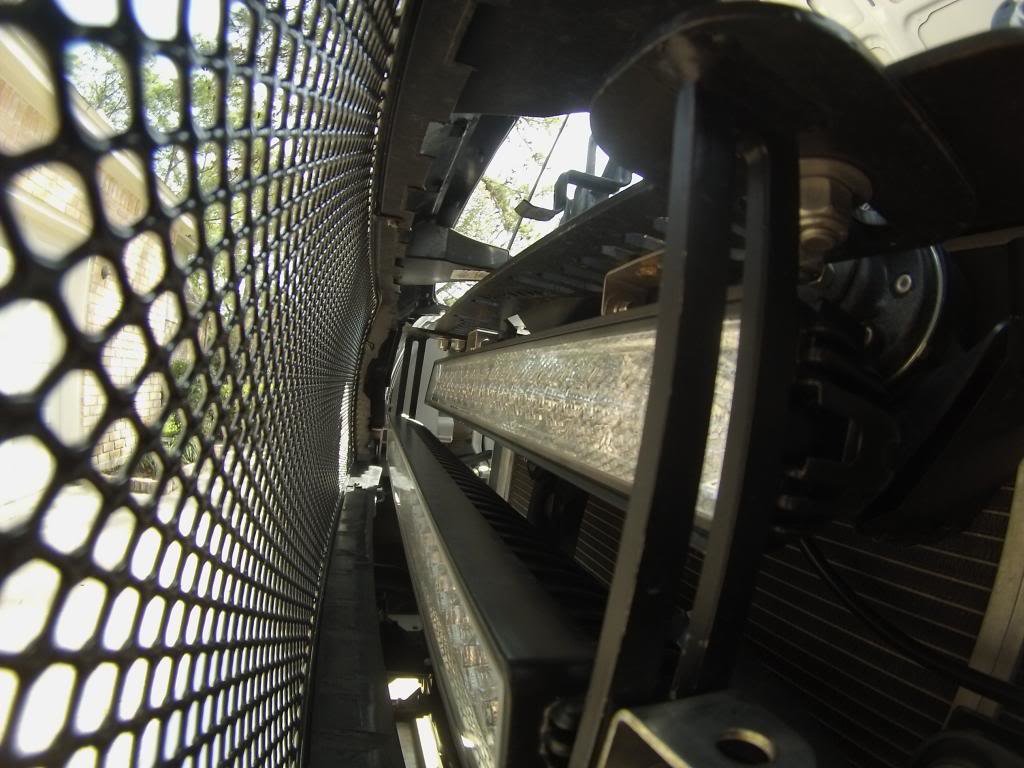

    BAMF light mount

    [​IMG]

    [​IMG]

    [​IMG]

  11. Feb 16, 2013 at 7:55 PM
    #11
    PCHearn

    PCHearn Well-Known Member

    Joined:
    Jan 6, 2011
    Member:
    #48807
    Messages:
    146
    Gender:
    Male
    First Name:
    Patrick
    Moore, OK
    Vehicle:
    11 PreRunner SR5
    "i wired them up the way everyone will say not to.. haha
    battery-inline fuse-25amp switch-lights-ground i choose not to use a relay. pictures will be up momentarily"

    Eric - I want to wire mine up simply like that (but no switch). I want them to come on when I turn on my headlights. Any suggestions how I wire the LEDs to work this way? Thanks.

  12. Feb 16, 2013 at 9:09 PM
    #12
    eric3187

    eric3187 Well-Known Member

    Joined:
    Jun 15, 2012
    Member:
    #80723
    Messages:
    599
    Gender:
    Male

    i would advise against that, as some state laws do not allow for "off road" or auxiliary lights to be on while driving on a public road.

    but to safely do it, i am not sure, as it may overload the headlight switch or something.

  13. Feb 16, 2013 at 9:34 PM
    #13
    2000GTacoma

    2000GTacoma Well-Known Member

    Joined:
    Jan 29, 2011
    Member:
    #50183
    Messages:
    2,183
    Gender:
    Male
    Snow Hill NC
    Vehicle:
    00 Tacoma Ext. 3.4L SR5
    Use a relay that is triggered by say your highbeams. When you flick highbeams on the relay is closed and your leds come on. Relay carries load highbeams just supply enough power to close a relay which is very little. You can also run the relay through a 3 way switch and your highbeams. One position the leds come on with highbeams. 2nd position they do not come on at all. 3rd position they come on regardless of headlights on or not or truck on or not.
