Mudflaps for 2nd Gen. on the cheap: $35 complete!

Discussion in 'Detailing' started by BryWi, Feb 8, 2011.

  1. Feb 8, 2011 at 3:36 PM
    #1
    BryWi

    BryWi [OP] Psalm 109:8

    Joined:
    Dec 5, 2010
    Member:
    #47177
    Messages:
    1,769
    Gender:
    Male
    Earth
    Vehicle:
    2011 TRD off-road DC SB w/JBL
    5100s, black valance
    Right from the start, I didn't like my "4x4" flaps on my new Taco. They were too big and I figured that inevitably they would get broken or cracked. I took them off first thing when I took delivery.

    I was going to go flapless, but once I saw the road wash on the truck and thought about possible road debris to the drivers behind me I reconsidered. I then started looking for something in the middle that gave some degree of protection.

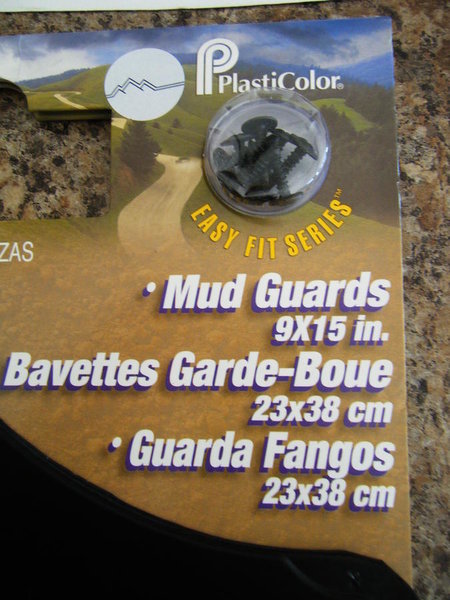

    Picked these mudflaps up at Advanced Auto Parts, and got the hardware from Lowe's. Everyone should have access to those two places if interested in this cheapo alternative to OEM.

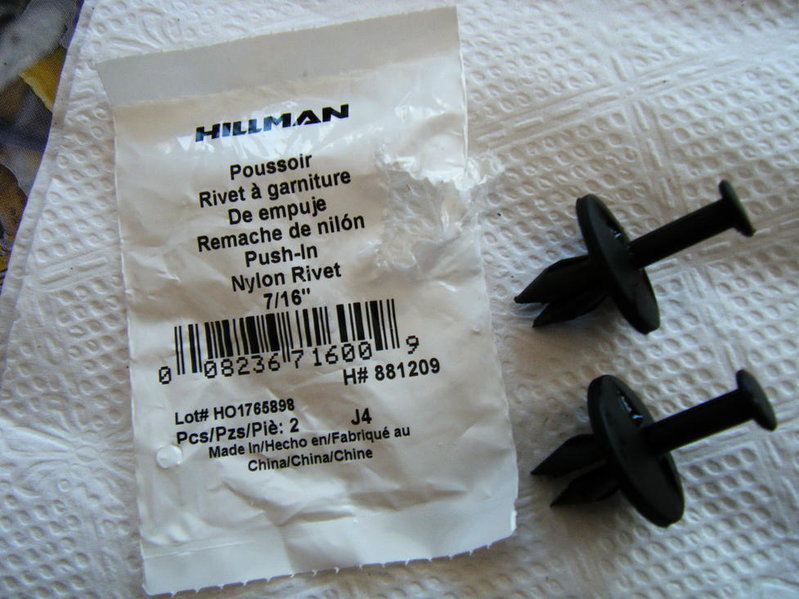

    The mudflaps were $13.50 a pair, and the push rivets were $1.04 per pair. You'll need six pairs to do all four. The whole job, tax included, was less than $35.

    The toughest part was making the template for drilling the holes in the flaps. You then secure them with the nylon rivets in the factory holes in the fender flares.

    This isn't really a tutorial, just some pics of the finished job and the parts so you know what you need.

    If I can do it, you know it's an easy job...:homer:

    Tools needed: Drill with 5/16 bit to drill hole in flaps; hammer; level, if you choose to use one. But the flap is slightly rounded, so it probably won't work well. I just eyed it up.

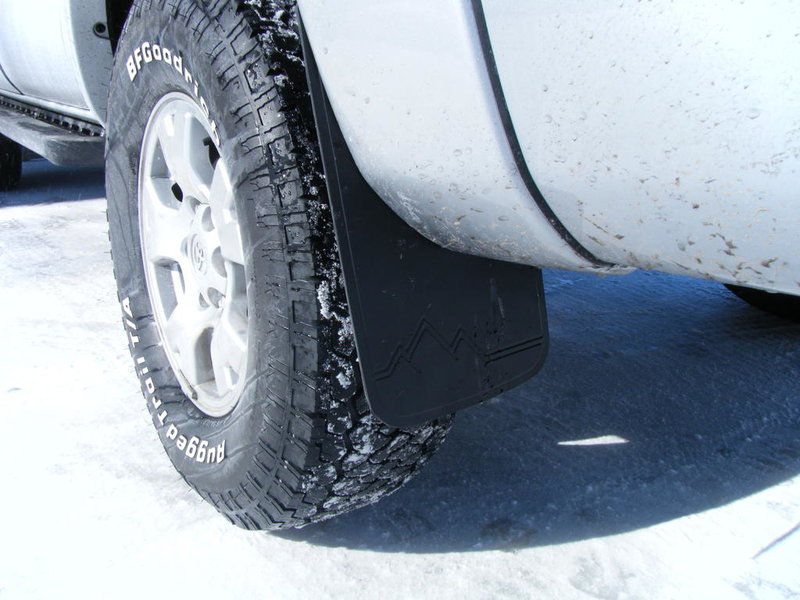

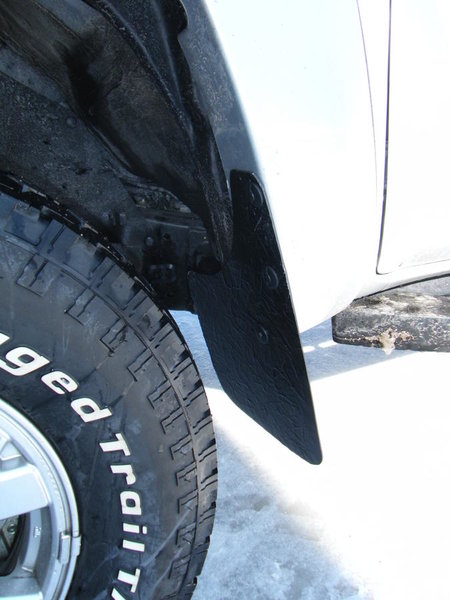

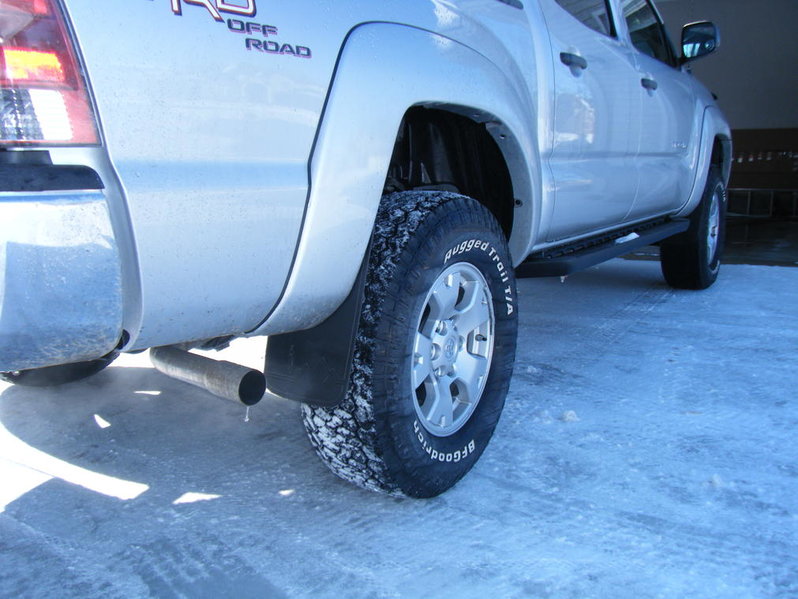

    Here's the pics:






  2. May 2, 2011 at 8:47 PM
    #2
    rightspy

    rightspy Junior Modder

    Joined:
    Apr 3, 2009
    Member:
    #15518
    Messages:
    55
    Gender:
    Male
    TRD CAI, Gibson exhaust, AR Mojave, Bilstein 5100
    These are what kind of style Toyota should have done in the first place. Nice project.:)

  3. May 2, 2011 at 8:56 PM
    #3
    dlalien

    dlalien Well-Known Member

    Joined:
    Apr 17, 2010
    Member:
    #35495
    Messages:
    58
    Gender:
    Male
    First Name:
    Jose
    North Hollywood CA
    Vehicle:
    08 TRD Sport DCLB 4WD, Tow package
    How mutch do ypu want for your old mud flaps

  4. May 3, 2011 at 8:20 AM
    #4
    rightspy

    rightspy Junior Modder

    Joined:
    Apr 3, 2009
    Member:
    #15518
    Messages:
    55
    Gender:
    Male
    TRD CAI, Gibson exhaust, AR Mojave, Bilstein 5100
    I haven't comitted to selling them. I want to see how bad my rockers get.

  5. May 3, 2011 at 10:33 AM
    #5
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,185
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Is 7/16" the exact size of the original rivet?

  6. Aug 18, 2011 at 7:47 PM
    #6
    tacomunchkin

    tacomunchkin Well-Known Member

    Joined:
    Aug 4, 2010
    Member:
    #41244
    Messages:
    63
    Gender:
    Male
    Navarre FL
    Vehicle:
    2010 TRD Offroad
    2010 4x4 Offroad TRD Crew cab 4.0 TRD Cat-Back exhaust CAI Avid offroad sliders and light bar PIAA 520 ATP lamps Leer bed shell

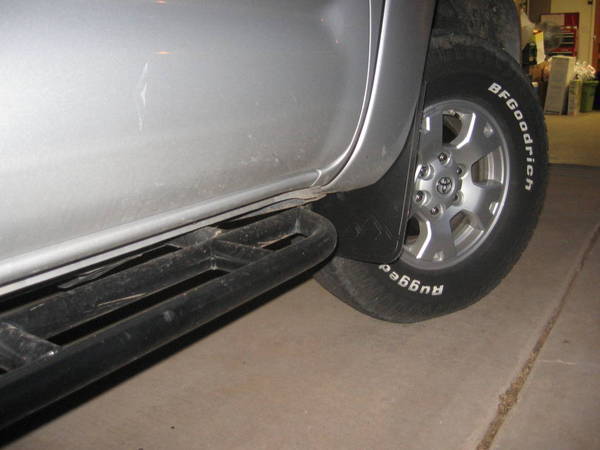

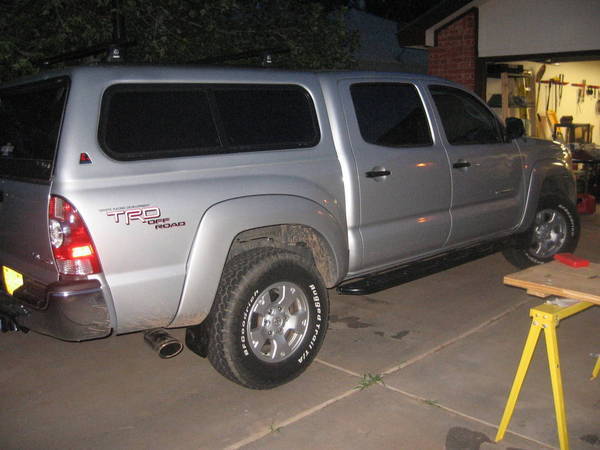

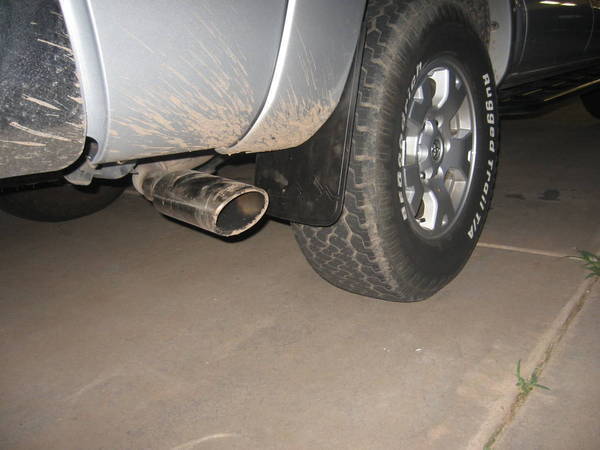

    I went ahead and swapped out my mudflaps and I'm liking how it turned out. It wasn't to hard only took me about 45 min to complete. If your lucky enough to have the original mud flaps, it makes it a lot easier to mark the holes for installation. If your not that lucky, find a friend with the original flaps and pop them off and use them to mark the holes.

    [​IMG]
    [​IMG]
    [​IMG]
