Multiple splices in taillight harness

Discussion in '1st Gen. Tacomas (1995-2004)' started by TACOTU3, Dec 8, 2023.

  1. Dec 8, 2023 at 3:59 PM
    #1
    TACOTU3

    TACOTU3 [OP] Well-Known Member

    Joined:
    Jul 29, 2021
    Member:
    #372633
    Messages:
    1,426
    Vehicle:
    2000 Xtracab V6 4x4 TRD

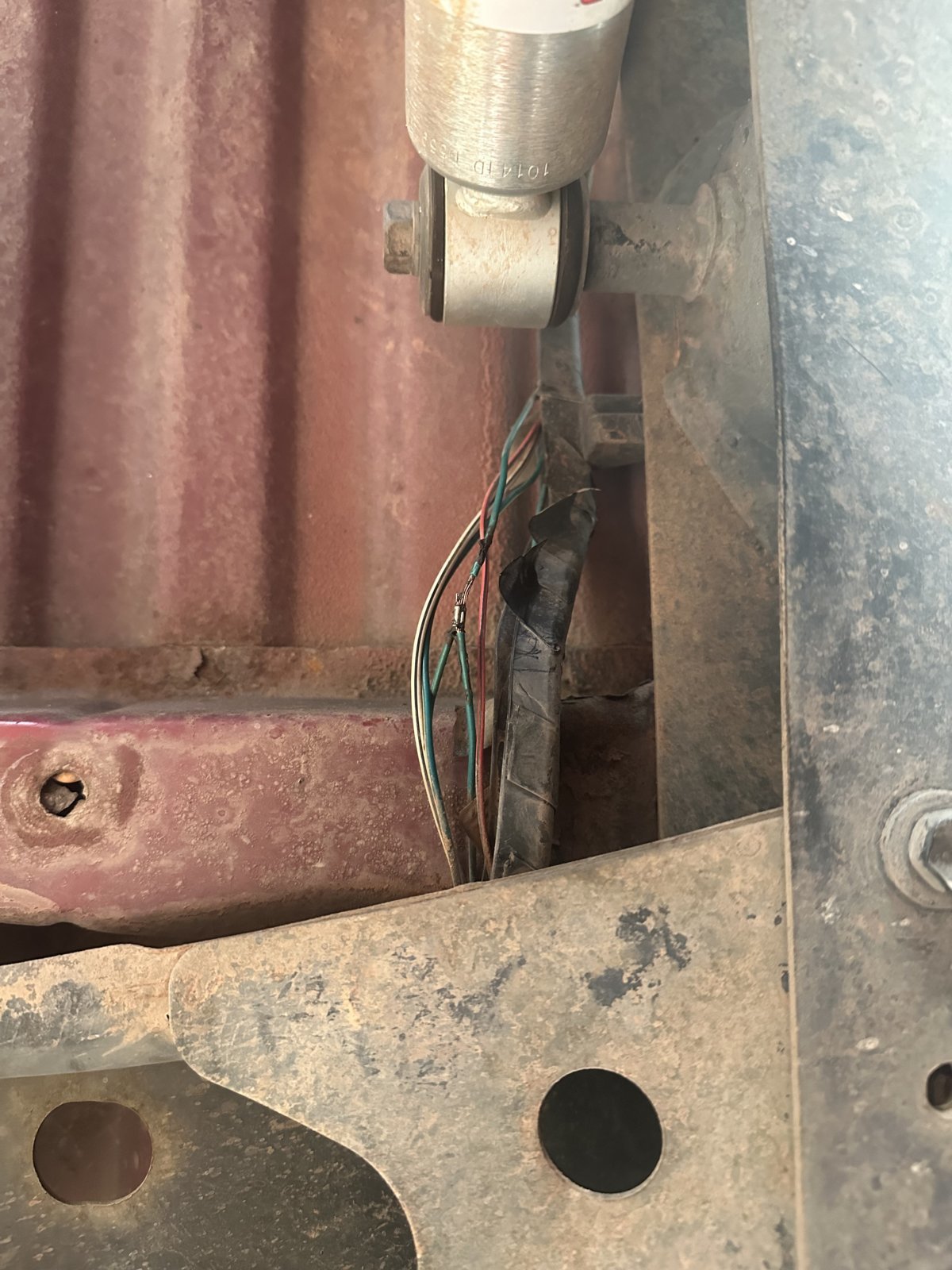

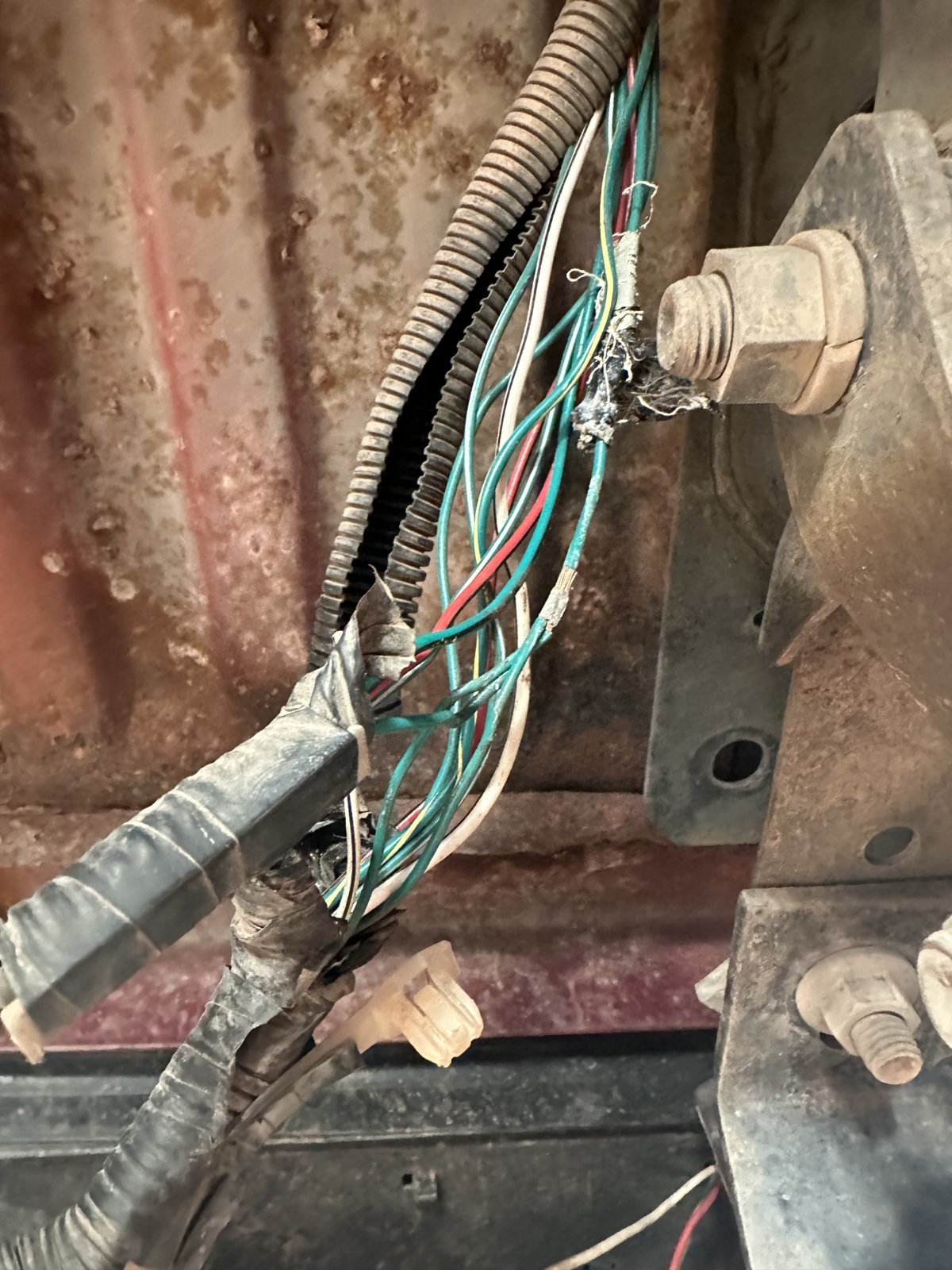

    Seeking guidance please. My left running light on my 2000 SR5 has been inoperable for some time and I went hunting for the reason why today. While searching for damage I found two (IMO shoddy looking) splices in the green running light wire, one near the shock and the other near the bumper where the harness routes to the passenger side. The first splice sends one green wire directly to the right running light and another down to the second splice; the second splice has three wires, one to each license plate light and one to the left running light.

    Are these factory or did the PO do some creative wiring? Voltage checks out fine at each splice but I found my left running light damage further downstream where the insulation melted and fuzed to another wire, so I question if it is safe.

    If this is what it is supposed to look like and the melted wire was an anomaly, is there a good way to seal these waterproof, since it’s too late to get some insulated heat shrink around it?

    Tagging @TnShooter since I’ve seen you in a lot of these taillight wiring threads!

    Thanks everyone!

    IMG_0879.jpg IMG_0880.jpg

  2. Dec 8, 2023 at 4:13 PM
    #2
    0xDEADBEEF

    0xDEADBEEF Swaying to the Symphony of Destruction

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    19,845
    Vehicle:
    2000 reg cab 4x4 flatbed MT
    liquid electrical tape is about the best you can do if you don’t want to disassemble. i’d probably clean it up good, double check it all works, then coat in liquid electrical tape and wrap in good regular electrical tape.

    Bivouac and TACOTU3[OP] like this.
  3. Dec 8, 2023 at 4:20 PM
    #3
    TACOTU3

    TACOTU3 [OP] Well-Known Member

    Joined:
    Jul 29, 2021
    Member:
    #372633
    Messages:
    1,426
    Vehicle:
    2000 Xtracab V6 4x4 TRD
    Thank you, I didn’t know that was even a thing!

  4. Dec 8, 2023 at 4:35 PM
    #4
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,356
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    TACOTU3[OP] likes this.
  5. Dec 8, 2023 at 4:38 PM
    #5
    undisider

    undisider Member

    Joined:
    Sep 26, 2023
    Member:
    #434341
    Messages:
    20
    First Name:
    Nathaniel
    Vehicle:
    2x 99 tacos
    one "stock" TRD one lifted/locked, supercharged SR5
    To answer your original question yes those are factory splices. As to how best to seal them up Toyota usually just uses some good electrical tape and an even tight wrap of it. Liquid electrical tape would probably do well though I've never used it.

    TACOTU3[OP] likes this.
  6. Dec 8, 2023 at 4:42 PM
    #6
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,356
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    I usually wrap the splices in electrical tape and then put wire loom over the taped section. Followed by spiral layer of tape over the loom.

    TACOTU3[OP] likes this.
  7. Dec 8, 2023 at 4:59 PM
    #7
    TACOTU3

    TACOTU3 [OP] Well-Known Member

    Joined:
    Jul 29, 2021
    Member:
    #372633
    Messages:
    1,426
    Vehicle:
    2000 Xtracab V6 4x4 TRD
    Thanks everyone! My biggest fear was that this was someone’s half-assed fix, was not safe, and the reason for the melted insulation/fuzed wires down stream…

    If this is factory then I’ll just patch it up as best I can and try not to think about it, LOL!

    This community is awesome, thanks again!
