My 02 SR5 4WD Build - "T. Belle"

Discussion in '1st Gen. Builds (1995-2004)' started by deez, Feb 10, 2013.

  1. Mar 25, 2013 at 8:16 PM
    #41
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    219
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    3/25/13

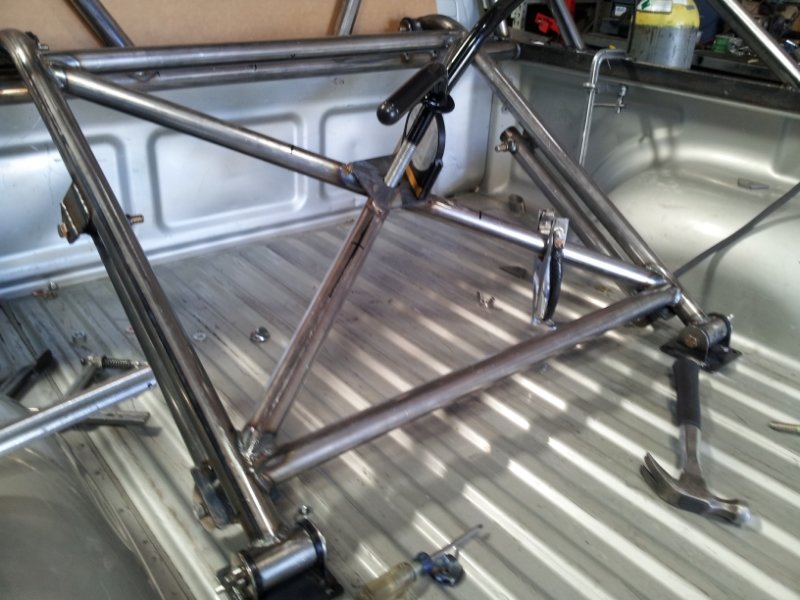

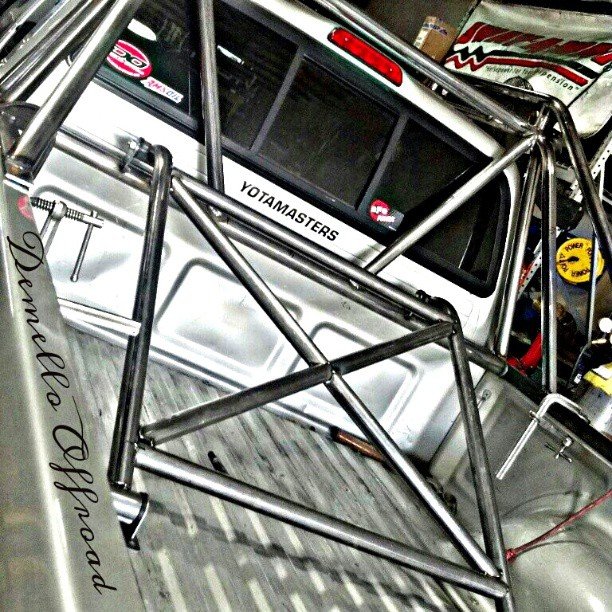

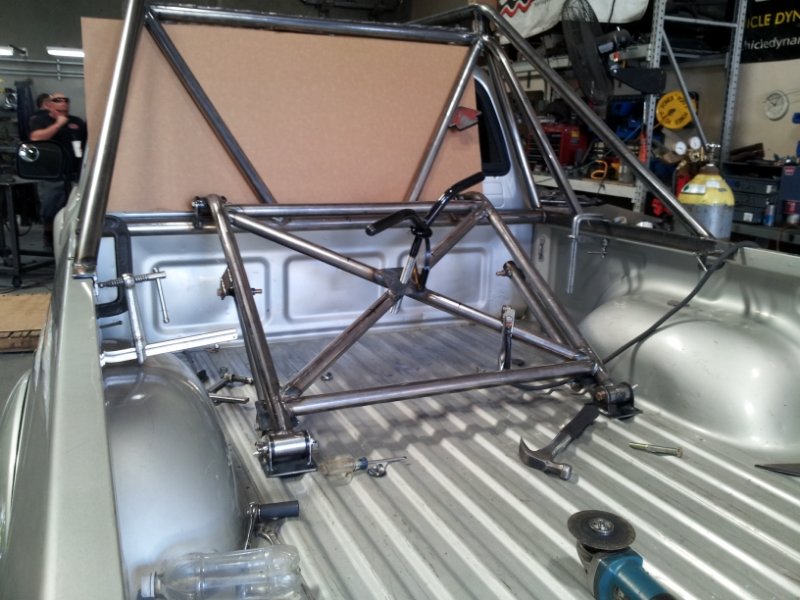

    Sneak peek of spare tire carrier...

    [​IMG]

    The carrier will be able to lift up and lock in the horizontal position for full access to bed, if needed.

    Last edited: Mar 25, 2013
  2. Mar 26, 2013 at 8:25 AM
    #42
    DD03SR5

    DD03SR5 Well-Known Member

    Joined:
    Nov 20, 2009
    Member:
    #26269
    Messages:
    195
    Gender:
    Male
    First Name:
    Derek
    Ontario,Canada
    Vehicle:
    03 SR5 4X4
    Deckplate,5100's,eibach's,Wheelers AAL,
    Subbed truck is looking sweet man!

  3. Mar 28, 2013 at 2:51 PM
    #43
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    219
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    Thank you, DD03SR5!

  4. Mar 28, 2013 at 3:23 PM
    #44
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    219
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    3/28/13

    Stopped by Demello today to pick up wheel spacers for the FJ.

    Wow, Belle's rack (pun intended) is looking good. Photos below.

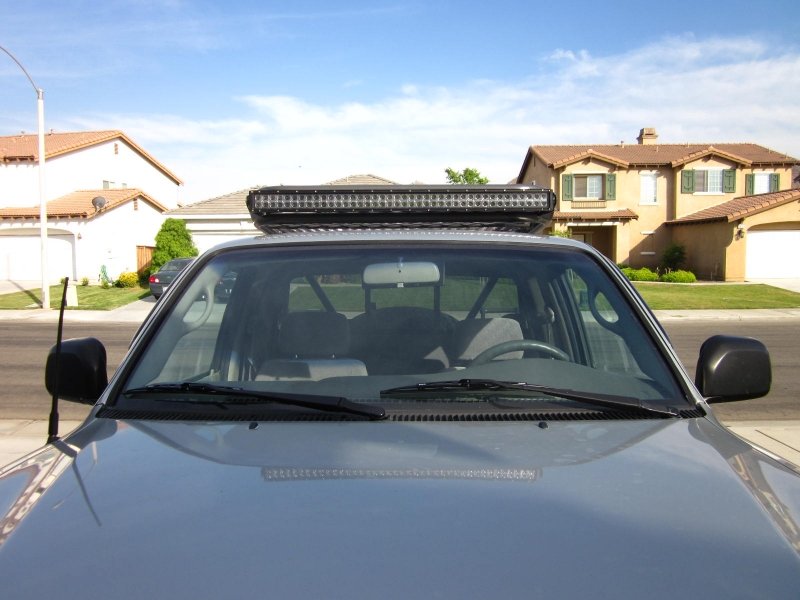

    42" ELS Atlas LED light bar and mesh floor.

    [​IMG]

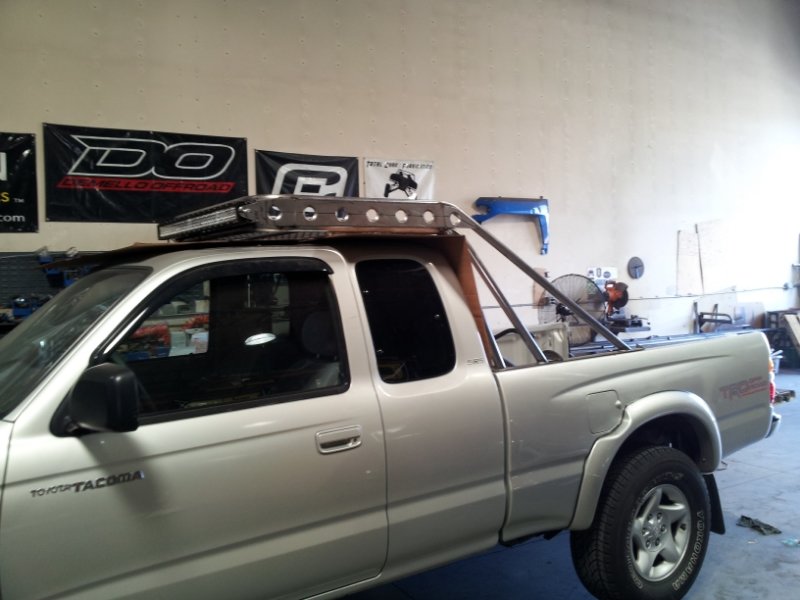

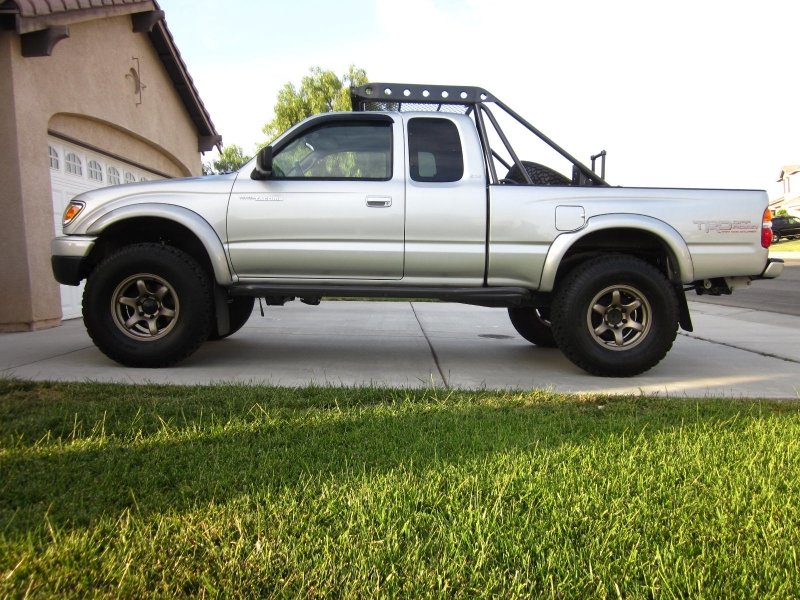

    Side profile (sunroof can still be opened).

    [​IMG]

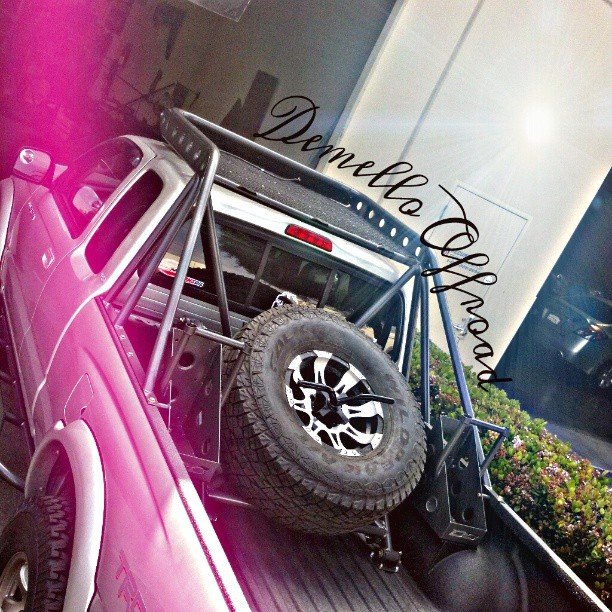

    Swing-up spare tire carrier.

    [​IMG]

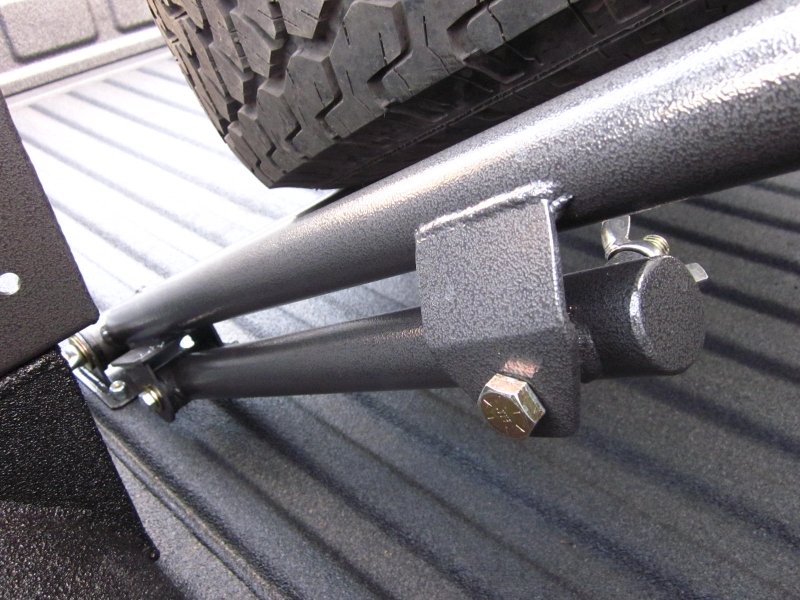

    To lock the swing-up carrier in the "up" position, support legs fold down and secure to the floor mounts.

    [​IMG]

    Nearly complete. All that's left are two (2) removable Jerry can carriers (one above each wheel well), some weld-on tabs (for lights, antenna, etc.) and of course, powder-coating.

    Suspension work should commence, once rack is ready for PC. My guess is next wk, hopefully.

    Last edited: Mar 29, 2013
  5. Mar 28, 2013 at 3:57 PM
    #45
    07COMA801

    07COMA801 TOYOTA.. Because barbie drives a jeep..

    Joined:
    Sep 23, 2012
    Member:
    #87546
    Messages:
    817
    Gender:
    Male
    First Name:
    Kris
    salt lake city
    Vehicle:
    07 Indigo Ink DCSB TRD OR
    ARB/OME 3" lift kit- (886 coil/springs-Dakar leaf pack)- 265/75r16 Toyo open Country M/T's - Stock 16" Toyota Wheels painted black - Full Size Spare W/a steele rim- B.A.M.F Slider W/Kickout (Bolt on)- Tint all round including windshield - Tint headlights and taillights - Bed lined grill surround and rear bumper - Color matched Toyota emblem - OEM Mud Flaps cut in half- Ultragauge - Cobra Radar Detector - Cheap Front seat covers/steering wheel cover - Remote Engine Start - Diff Breather Mod - Tailgate lock mod
    i love both the Fj and the Taco man great work!!:D

  6. Mar 28, 2013 at 5:09 PM
    #46
    mudpuppet

    mudpuppet Must pay wife for safe passage

    Joined:
    Apr 10, 2010
    Member:
    #34971
    Messages:
    212
    Gender:
    Male
    First Name:
    Mark
    Somewhere between where Arizona blows and Texas su
    Vehicle:
    Lunar Mist Metallic 03 Taco, X-CAB 4X4 TRD
    American Racing 16X8 Bully Nerf Bars, Toytec 3" w/ Eibach Coils 5100's, Dakars, Poly steering bushings, billet x-cab window latch, XM, trenz billet upper grille, billet lower grille, TRD Skid Plate
    The quality of the rack and welding really looks sharp. I continue to enjoy the evolution of this build.

  7. Apr 5, 2013 at 2:25 PM
    #47
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    219
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    Thanks, guys. Fortunately, Demello is local and great to deal with, making it easier to achieve my builds.

    4/05/13

    Checked in on Belle's progress today. Rear suspension is complete; front is in progress (gussets) and should be all done early next wk. Some photos below.

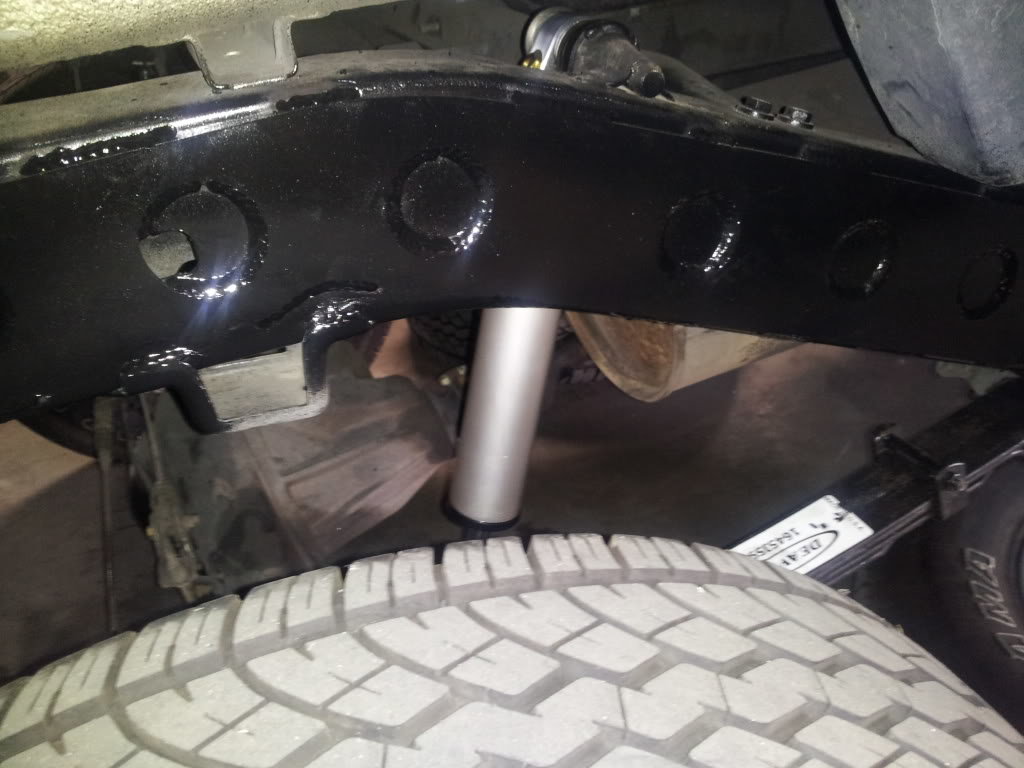

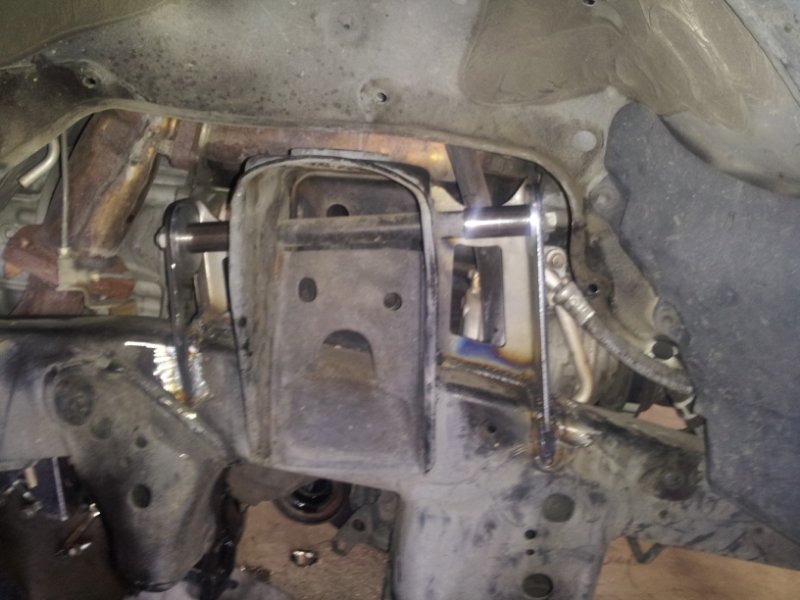

    Reinforced rear frame and Icon v2.0 rear shock

    [​IMG]

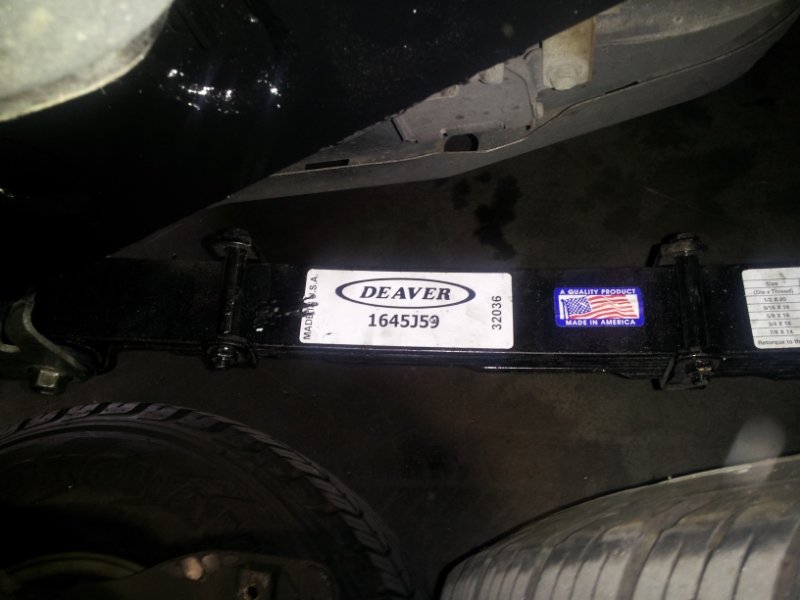

    Deaver J59 8-Leaf Springs

    [​IMG]

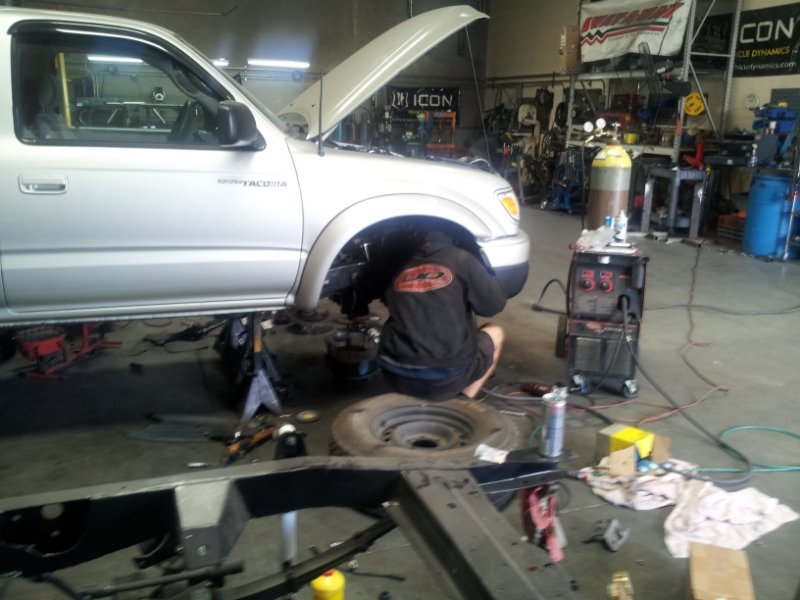

    Cy welding gussets

    [​IMG]

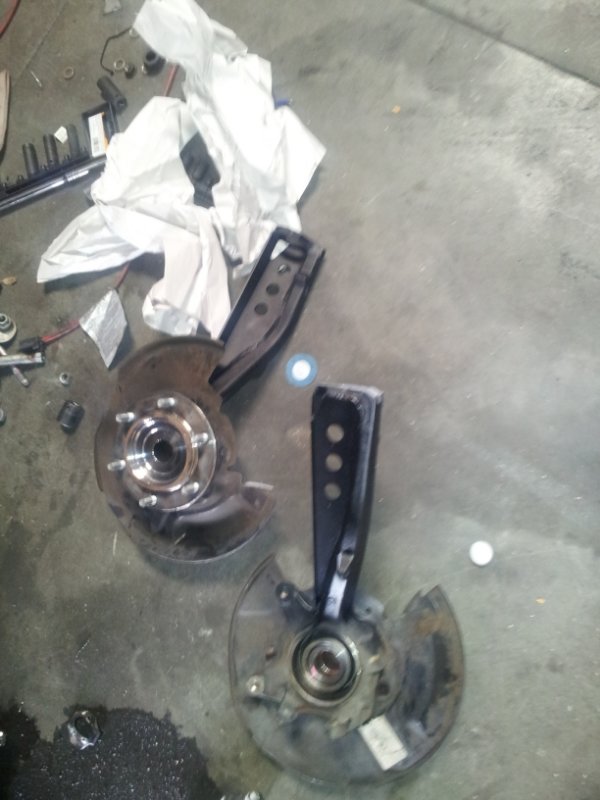

    Total Chaos gusseted spindles

    [​IMG]

    Total Chaos gusseted upper coil bucket

    [​IMG]

    Unfortunately, no photos of the final rack build (was at the powder-coater, along with sliders). Should be ready for install next wk.

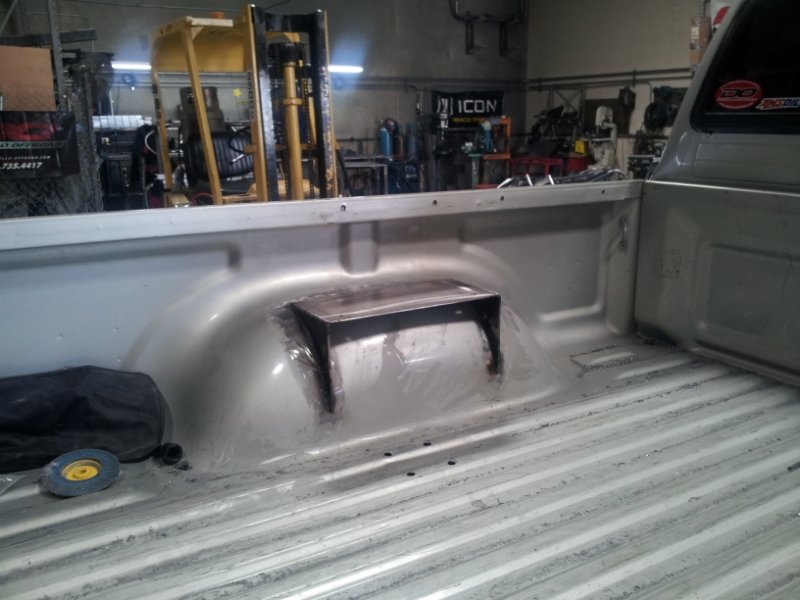

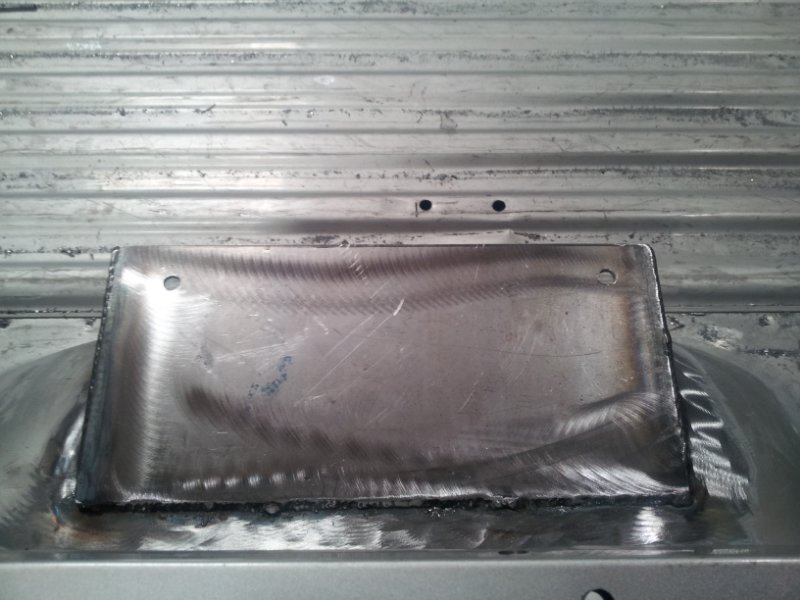

    Jerry can carrier support bases were welded on to each wheel well.

    [​IMG]

    [​IMG]

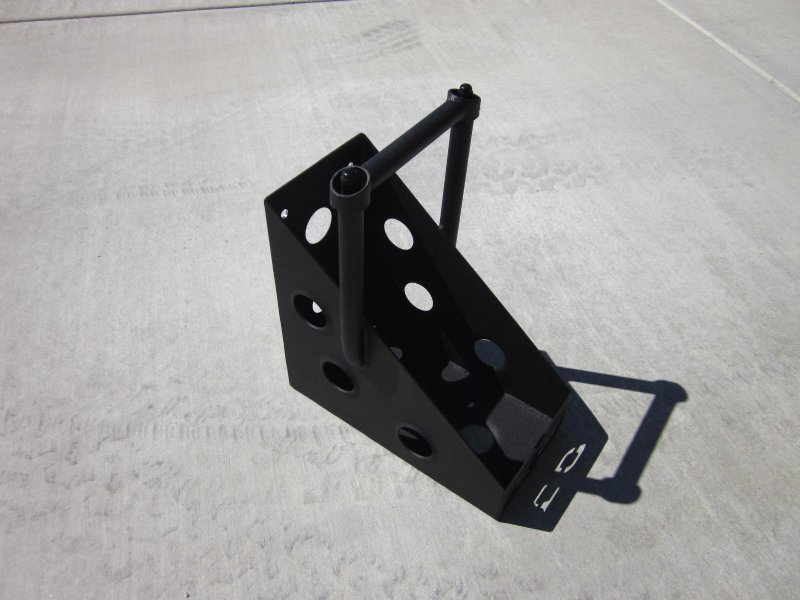

    What the Demello Jerry can carriers will look like (this one is from my FJ).

    [​IMG]

    The bed will be Line-X'd before rack is installed.

    Last edited: Apr 6, 2013
  8. Apr 6, 2013 at 5:12 PM
    #48
    jkirkpatrick

    jkirkpatrick Well-Known Member

    Joined:
    Feb 29, 2012
    Member:
    #73869
    Messages:
    530
    Gender:
    Male
    First Name:
    Jason
    Edmonton
    Vehicle:
    2000, build thread soon
    Stealth sub box, total stereo overhaul, 883 OME with Nitros, Dakars, All Pro bumper, Engo 10,000lb winch w/ synthetic line, ARB rear locker, All Pro full skids, All Pro sliders, 7069 Pro Comp with 285/75/16 Duratracs, front sway bar disconnects, CBI rear bumper
    Wow! Great build! Can't wait to see what bronze looks like on the truck!!

  9. Apr 11, 2013 at 2:22 PM
    #49
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    219
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    4/10/13

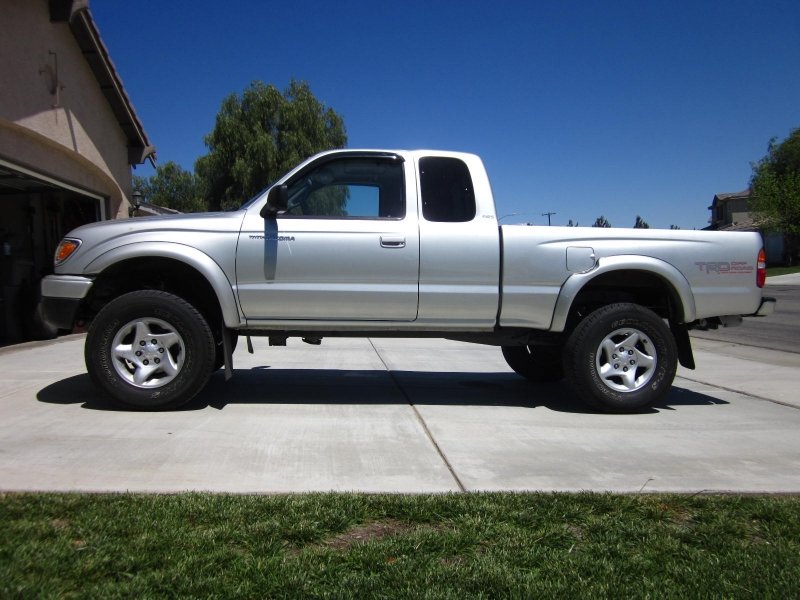

    With Belle's suspension and alignment complete, I was able to take Belle home for a few days to get Line-X'd. Rack and sliders were still at the powder-coater, but scheduled for delivery to Demello later on.

    90+ miles of driving during the day allowed me a lot of seat-time in the new set-up. All I can say is WOW! Rides and handles like a new truck again (definitely better than new OEM). She even sounds new (no more squeaks, clunks, etc). I'm especially impressed with the Icon/Deaver set-up in the rear.

    I expected the ride to be better obviously, but I didn't know how good it'd be. I guess it's like sex - you know/heard it's good...but you don't know just how good it is, until you've had it.

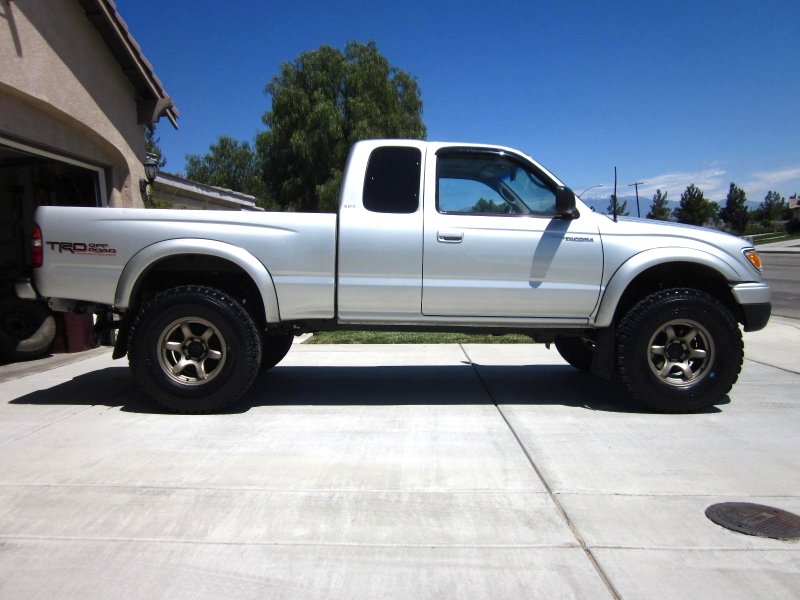

    As she currently sits, the rear is slightly higher than the front. The addition of the rack and spare should help level her out.

    [​IMG]

    Line-X appt is scheduled for Tue 8am. After which, I return her to Demello for rack and slider install, and front bumper fab.

    Last edited: Apr 11, 2013
  10. Apr 11, 2013 at 2:36 PM
    #50
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    219
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    Thanks jkirkpatrick! I couldn't wait either...

    4/11/13

    With Belle in temporary custody, I paid a cold visit to my local America's Tires to see, if by chance, they had any 285/75/16s in stock.

    No luck with my first choice (Nitto Terra Grappler A/Ts). But, BFG T/A KOs (second choice) were (not surprisingly).

    Ugh, I couldn't wait any longer. Boom. Done.

    [​IMG]

    IFS set-up

    [​IMG]

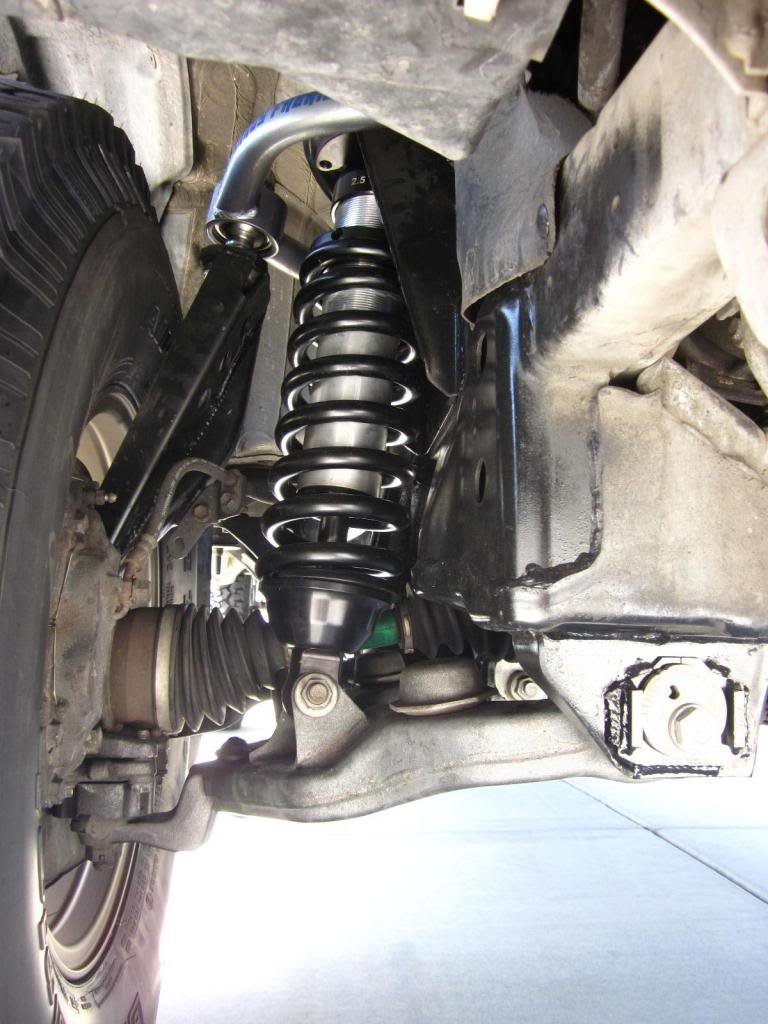

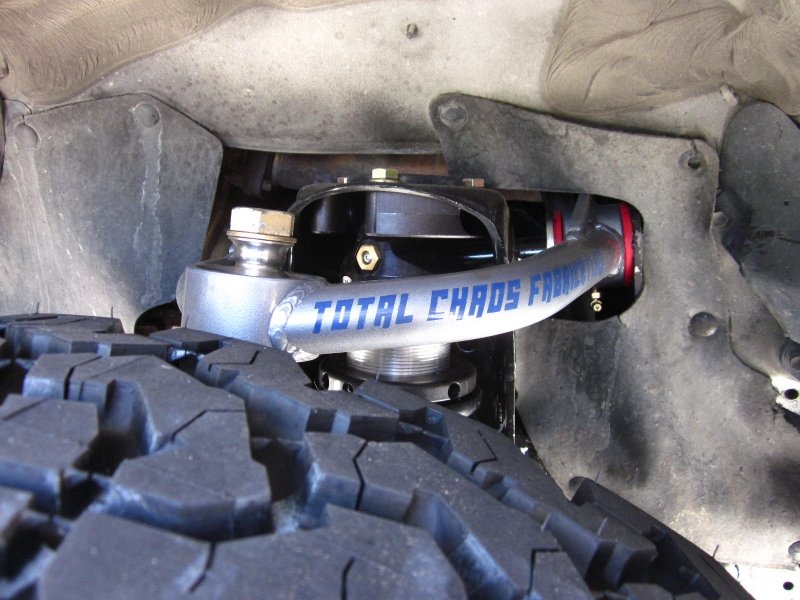

    TC Uni-ball UCA and Icon 2.5 Extended Travel Coilover

    [​IMG]

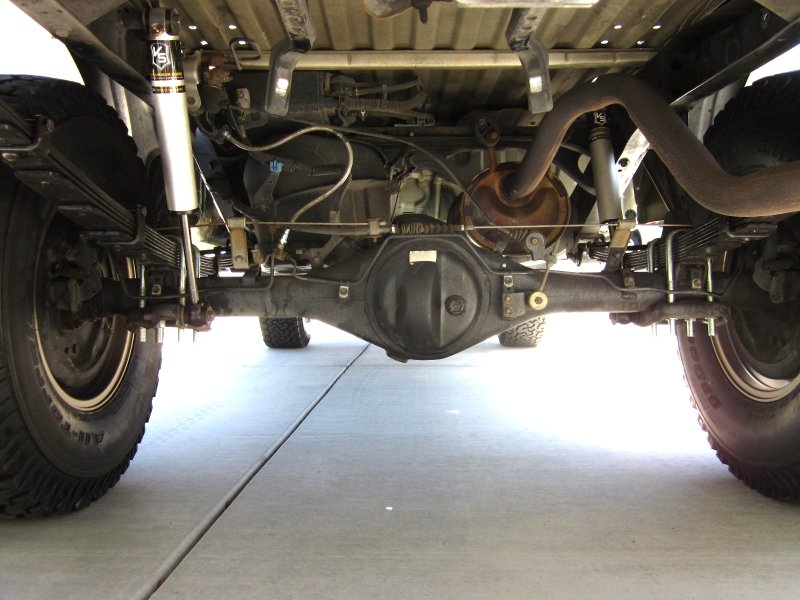

    Rear set-up

    [​IMG]

    Ahh, much better...

    Last edited: Apr 11, 2013
  11. Apr 11, 2013 at 2:38 PM
    #51
    mudpuppet

    mudpuppet Must pay wife for safe passage

    Joined:
    Apr 10, 2010
    Member:
    #34971
    Messages:
    212
    Gender:
    Male
    First Name:
    Mark
    Somewhere between where Arizona blows and Texas su
    Vehicle:
    Lunar Mist Metallic 03 Taco, X-CAB 4X4 TRD
    American Racing 16X8 Bully Nerf Bars, Toytec 3" w/ Eibach Coils 5100's, Dakars, Poly steering bushings, billet x-cab window latch, XM, trenz billet upper grille, billet lower grille, TRD Skid Plate
    The 285's look great. Any rubbing issues? Are you going to have to do any trimming (i.e. the pinch weld or fenders).

  12. Apr 11, 2013 at 3:20 PM
    #52
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    219
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    Thanks, mudpuppet!

    No rubbing during the 6 mile drive home, even with the old set of wheels/Yokohamas in back. Jason (Demello) didn't think rubbing would be an issue with this set-up, so we'll see.

    More driving in various conditions is needed (especially after the addition of the rack), before I'm convinced that it'll be a non-issue.

  13. Apr 11, 2013 at 4:32 PM
    #53
    mudpuppet

    mudpuppet Must pay wife for safe passage

    Joined:
    Apr 10, 2010
    Member:
    #34971
    Messages:
    212
    Gender:
    Male
    First Name:
    Mark
    Somewhere between where Arizona blows and Texas su
    Vehicle:
    Lunar Mist Metallic 03 Taco, X-CAB 4X4 TRD
    American Racing 16X8 Bully Nerf Bars, Toytec 3" w/ Eibach Coils 5100's, Dakars, Poly steering bushings, billet x-cab window latch, XM, trenz billet upper grille, billet lower grille, TRD Skid Plate
    Good info Deez. I am sure you have proper backspacing on your 16 inch wheels 4" or 4.5". From the pictures they clear the UCA's really well. Hoping to install my 3" toytec lift, LR control arms and Dakar rear leafs the weekend of the 20th. Since we have similar trucks, it makes me even more excited to finish my lift after looking at those pics with the 285's. Look for a build page hopefully by the end of the month.

    The rack should only add weight to the rear and only affect rubbing if you really stuff it flexing. I see the most common problems on this site from people at the pinch weld and some trimming inside the lower part of the fender well.

  14. Apr 11, 2013 at 6:30 PM
    #54
    423 TACO

    423 TACO Well-Known Member

    Joined:
    Jun 15, 2012
    Member:
    #80752
    Messages:
    2,515
    Gender:
    Male
    First Name:
    Daniel
    Anchorage,AK/ Dunlap,TN
    Vehicle:
    13 MGM Sport 6sp AC
    Looks great with the lift and wheel/tire combo! Representing lunar mist like a beast!

  15. Apr 11, 2013 at 8:32 PM
    #55
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    219
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    Looks like I spoke too soon :mad:.

    Went for a 20+ mile cruise around the outskirts of town to do a more thorough evaluation, and discovered there is slight rubbing of front tires against the frame when steering wheel is at full lock.

    The inner rear edge of tires are barely catching the frame. I'll probably try out some wheel spacers to see if that eliminates the issue.

    BS = 4.5" with a 0 offset

    Agreed with the flexing part - I can definitely see some rubbing there. No Black Diamond trails with her (that's for the FJ). Any offroading will be for camping/shooting/misc outdoor activities, so I should be ok.

    Nice, I'd imagine similar results and improvement in ride/handling with your new set-up. You must be super anxious! I'll be sure to check out your build page when it's up.

    Thanks, 423 TACO! Once bumper/rack/sliders are on, she'll be in full beast mode :D haha

    Last edited: Apr 15, 2013
  16. Apr 16, 2013 at 7:46 PM
    #56
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    219
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list

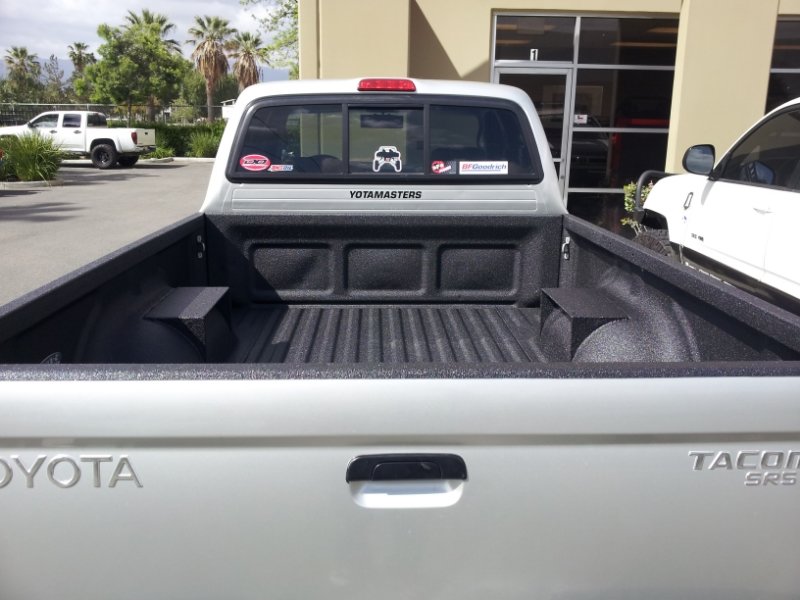

    Got Belle Line-X'd at Empire Line-X (in Rancho Cucamonga) this morning and dropped her back off at Demello.

    I'm pretty impressed with the results, better than expected actually.

    [​IMG]

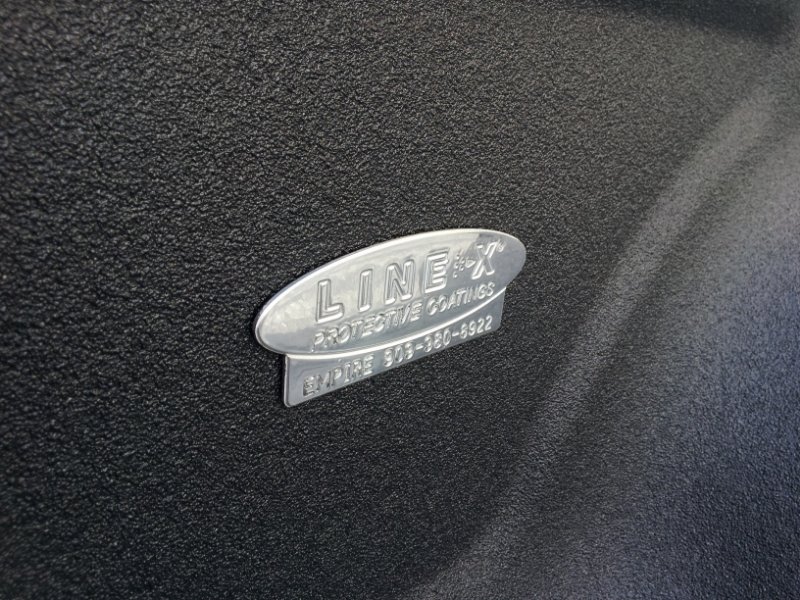

    Line-X emblem

    [​IMG]

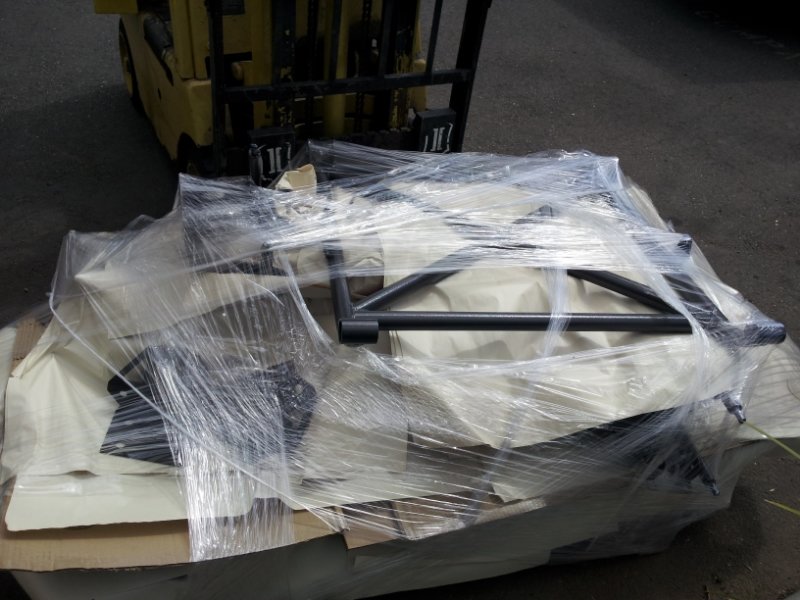

    Rack and sliders from the powdercoater, wrapped on the pallet.

    [​IMG]

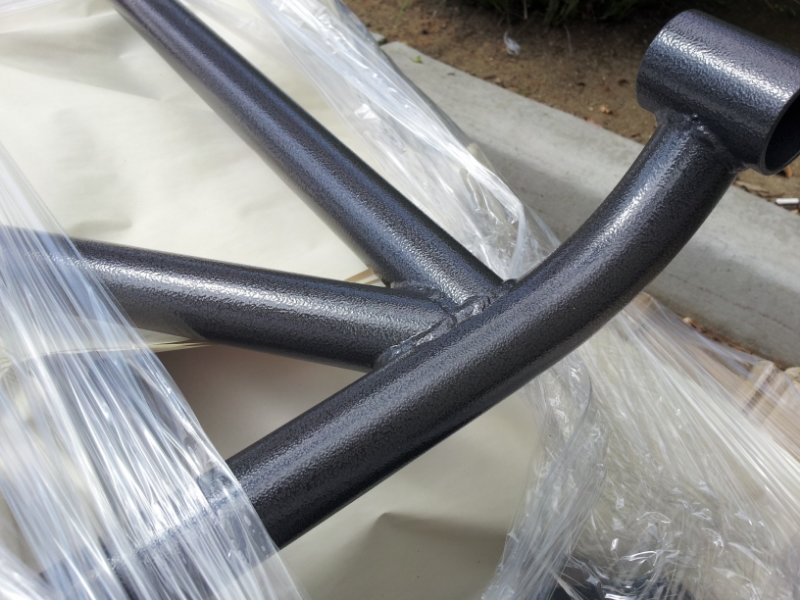

    Close-up of the PC (Hammertone Gray and Black)

    [​IMG]

    No idea on front bumper ETA. IIRC, Demello has never made a plate bumper for the 1st Gen Taco, so they're going to modify an FJ plate bumper to fit.

    Once done, bumper will get the same Hammertone Gray/Black PC finish.

    Last edited: Apr 17, 2013
  17. Apr 25, 2013 at 6:59 PM
    #57
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    219
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    4/25/13

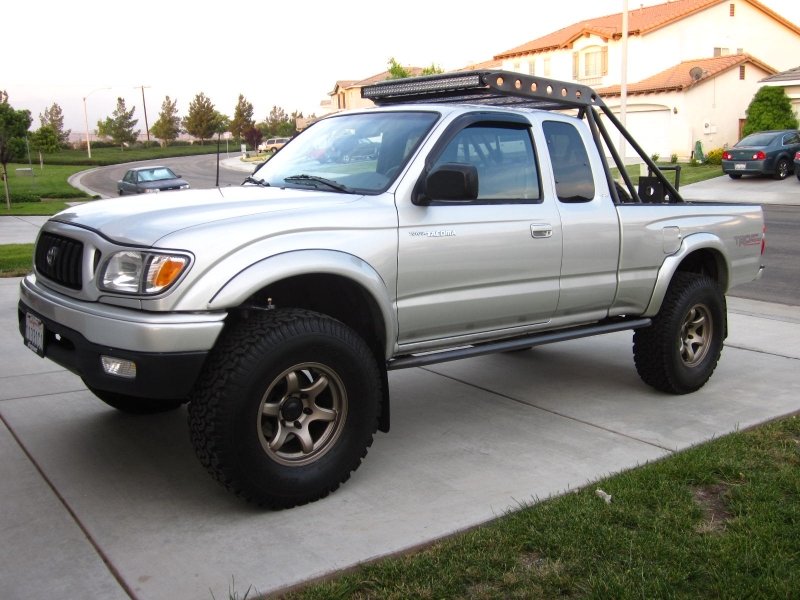

    Good news - Rack was installed and sliders welded on.

    [​IMG]

    Bad news - Front bumper has been delayed. Their laser cutter guy is backed up, so hopefully another 1-2 wks before the pieces are ready.

  18. Apr 25, 2013 at 7:18 PM
    #58
    Box Rocket

    Box Rocket just trying to help

    Joined:
    Mar 1, 2010
    Member:
    #32389
    Messages:
    6,033
    Gender:
    Male
    First Name:
    Adam
    Syracuse, Utah
    Vehicle:
    2003 TRD DoubleCab
    lift, tires, armor and stuff
    Looks great!

  19. May 4, 2013 at 4:38 PM
    #59
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    219
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    Thanks, Box Rocket! I wish she was a DC like yours!

    5/04/13

    Since Demello had some downtime, I took Belle home for the wkend for some much-needed Q/T.

    Finally! After a nearly 3 month hiatus (see Post #24), I finished the door speaker swap today. Only broke 1 door clip total...not bad.

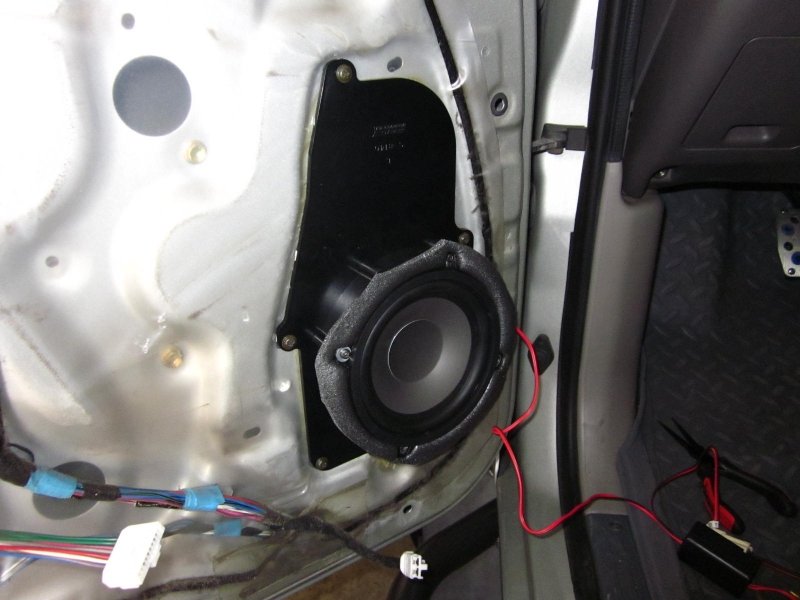

    Driver-side 5.25" driver installed with 6.5" XTC baffle (excess trimmed). For tweeter photos, see Post #24.


    [​IMG]

    Crossovers are mounted to the inside of each door panel with 3M VHB tape (not shown).

    Much better sound quality and clarity now with just the MBQs installed. But, now there's too much mid/highs. Definitely need some bass to balance it out. When I have more time, I'll eventually swap out the rears with Infinity Kappa 5x7"s (currently sitting in my garage) and upgrade the head-unit to a single-DIN Alpine (from Crutchfield).

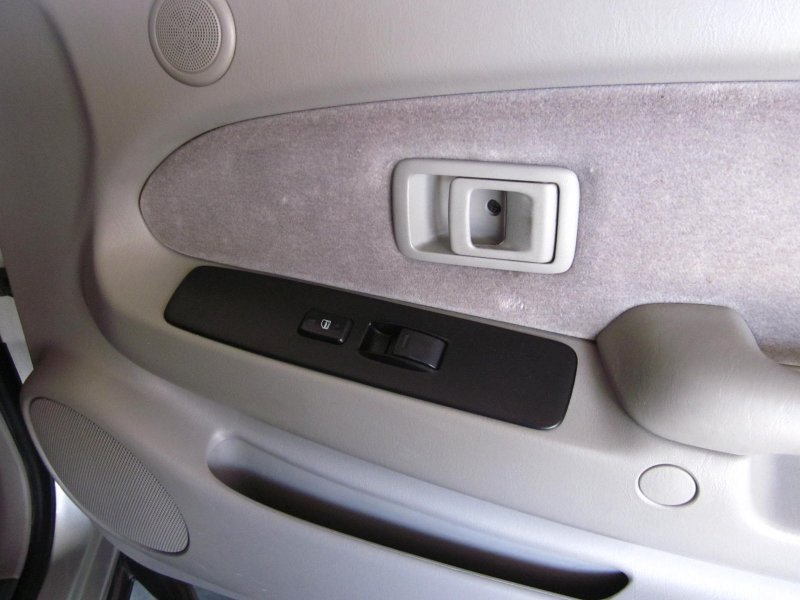

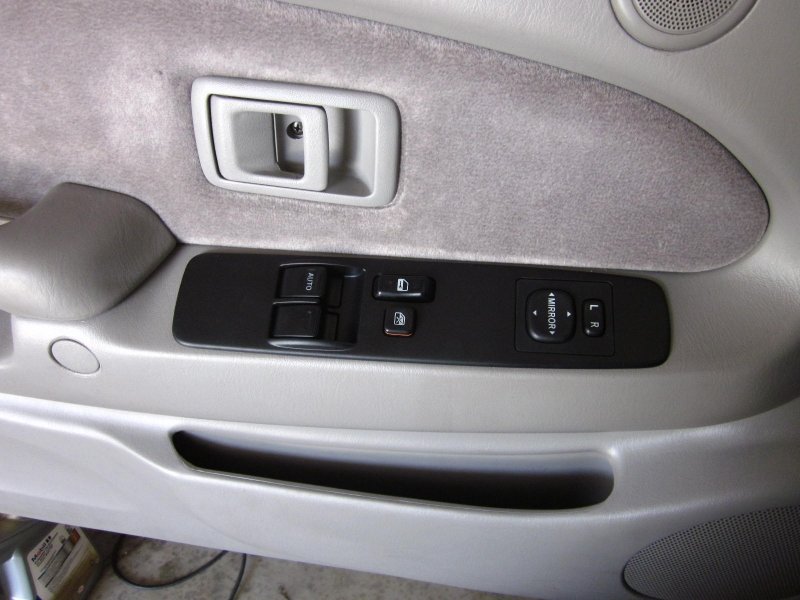

    While I was at it, I used this opportunity to paint the switch bezels black. IMO, they look better now, since they tie in nicely with the black dash/stereo console. I'm inspired to paint more trim pieces black.

    [​IMG]

    [​IMG]

    Last edited: May 23, 2013
  20. May 4, 2013 at 4:52 PM
    #60
    deez

    deez [OP] Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96701
    Messages:
    219
    Gender:
    Male
    First Name:
    Darren
    The I.E. - SoCal
    Vehicle:
    2002 V6 SR5 TRD 4WD
    Too many to list
    Also used this opportunity to take some photos of the new rack.

    [​IMG]

    [​IMG]

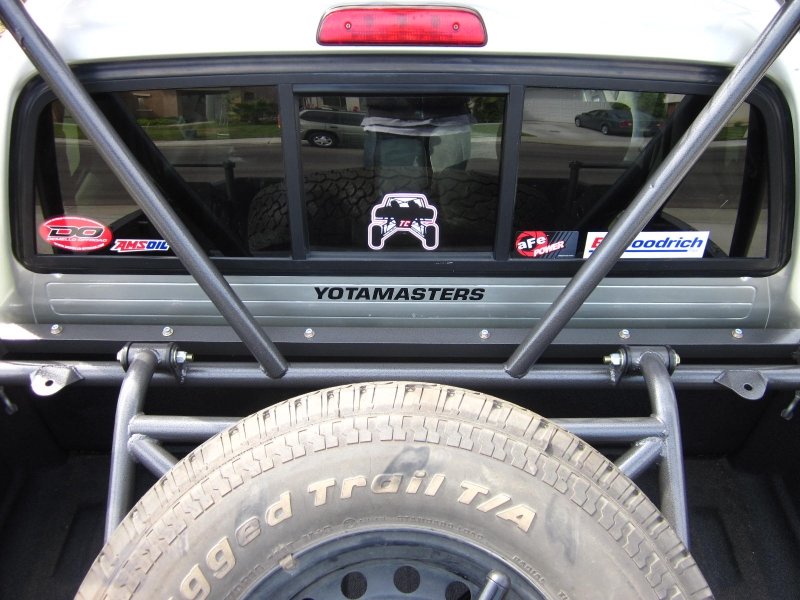

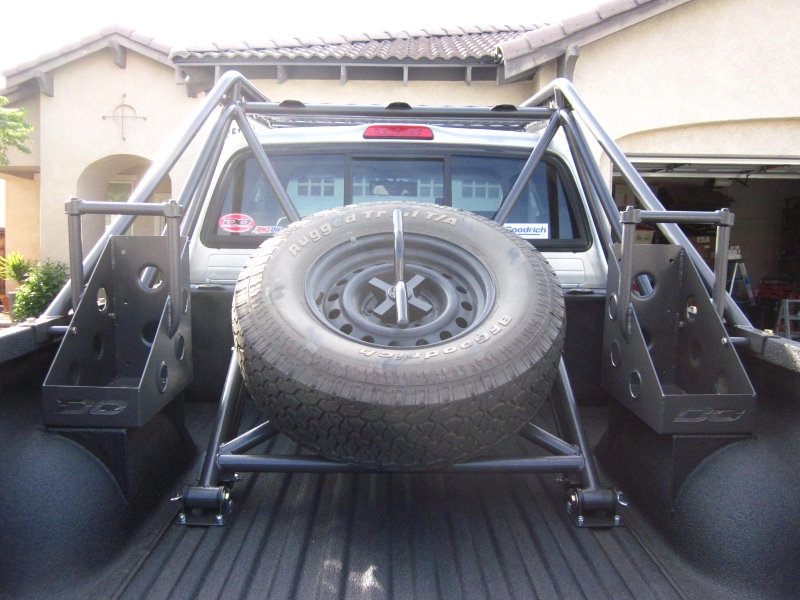

    Swing-up spare carrier and removable Jerry can carriers

    [​IMG]

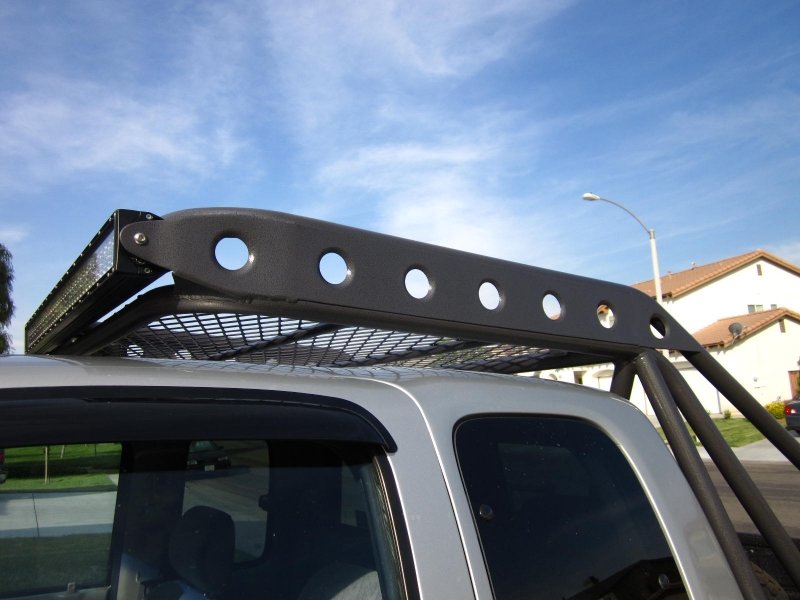

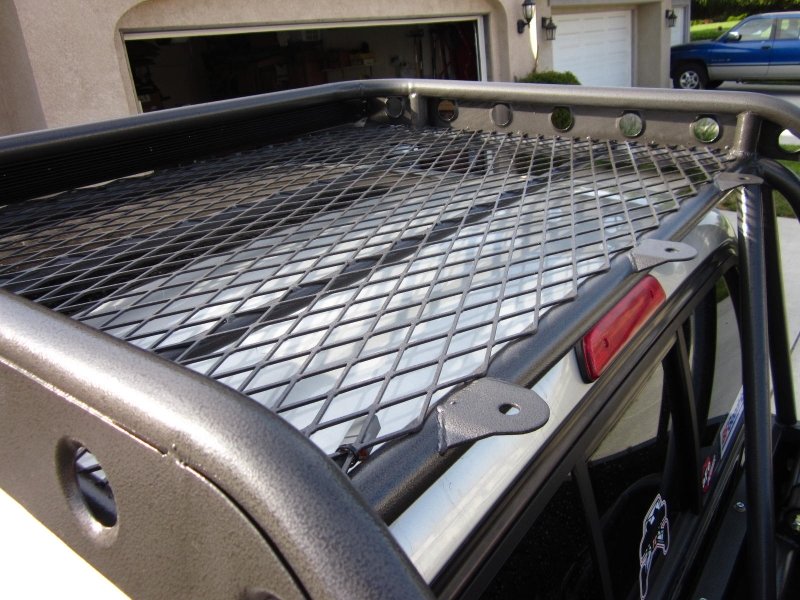

    Roof rack and rear light tabs

    [​IMG]

    Jerry can carrier with lock bar

    [​IMG]

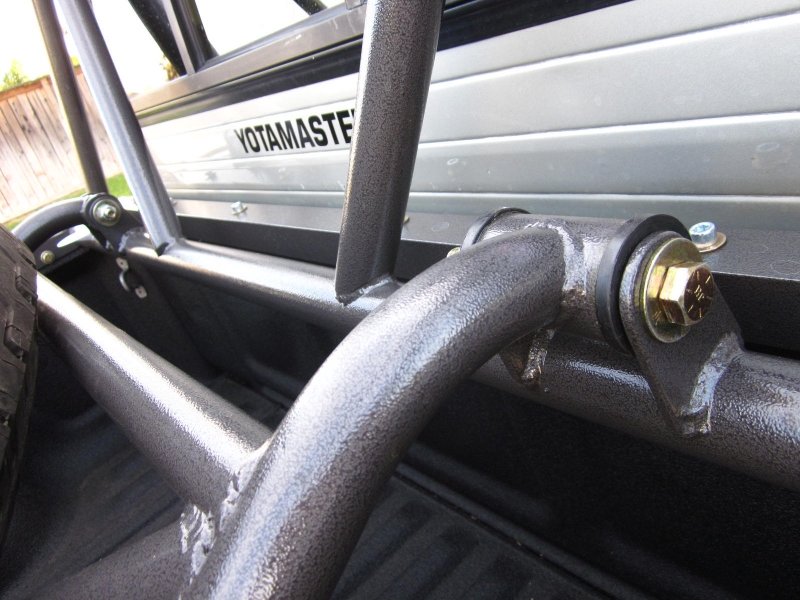

    Swing-up hinges and tabs for CB Firestik and Ham radio antenna

    [​IMG]

    [​IMG]

    Swing-up support leg

    [​IMG]

    [​IMG]

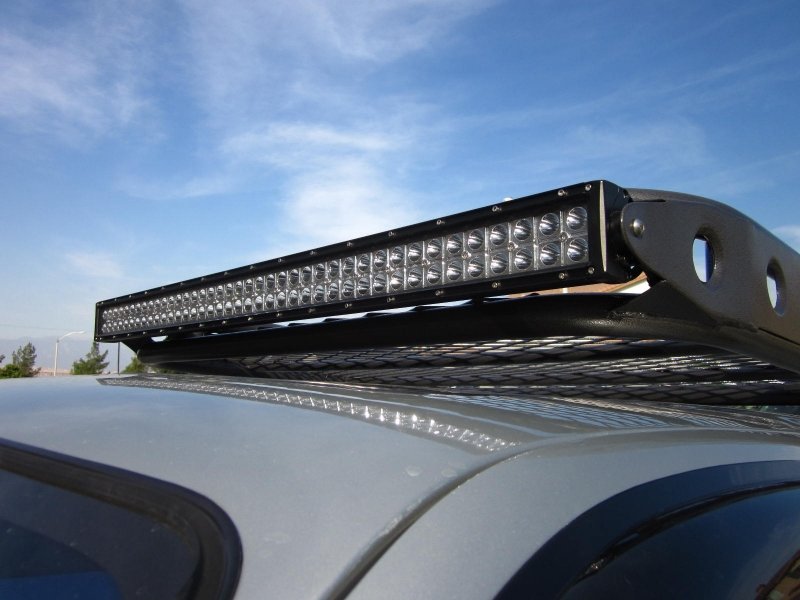

    42" ELS Atlas LED

    [​IMG]

    [​IMG]

    Last edited: May 5, 2013
