My 12V MOD

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Aalders, Jun 19, 2009.

?

What do you think?

  1. Looks good would do it the same way.

    66 vote(s)
    83.5%
  2. Looks good but i would have done it different

    9 vote(s)
    11.4%
  3. Looks bad

    0 vote(s)
    0.0%
  4. I cant believe you cut a hole in your bed!!!

    4 vote(s)
    5.1%
  1. Jun 19, 2009 at 10:48 AM
    #1
    Aalders

    Aalders [OP] Well-Known Member

    Joined:
    Jan 30, 2009
    Member:
    #13129
    Messages:
    208
    Gender:
    Male
    First Name:
    Logan
    Dover, Delaware
    Vehicle:
    2009 Double Cab TRD off road
    Pop-n-Lock Tlailgate handle, TSB Rear Leafs, 12V bed outlet, Back up camera in mirror mod, Roof Rack, TRD Exhaust, Front Skid Plate, Running Boards, 4 100w KC SlimLites, Westin brush guard, Fog lights in the bed pockets, extra D rings in the bed, Fog light mod, seat belt chime mod, 75,000 candlepower StreamLight rechargeable flashlight
    I always thought it was weird that toyota put 110 in the bed but forgot to put 12v especially when it is so cheap to do. so i decided to fix that.

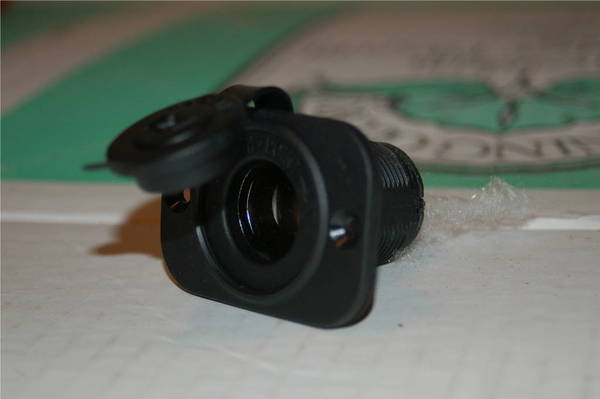

    I ordered this 12V Marine grade cigarette outlet from Amazon for $6
    [​IMG]

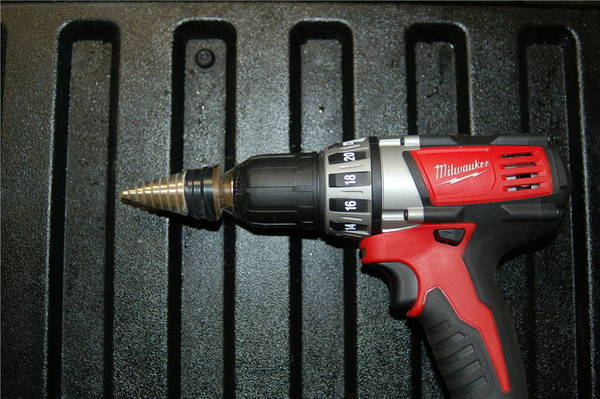

    The first thing i did when i got the outlet was to run over to our local Harbor Freight and pick up this step drill bit for $15. I used electrical tape to mark off where to stop. i drilled a 1-1/8in hole.
    [​IMG]
    I figured i should place to outlet as close to the tailgate as possible so that i could use it with my electric winch for my John boat. i figured it would look best right in the middle of the area where it slants inwards toward the tailgate.
    [​IMG]

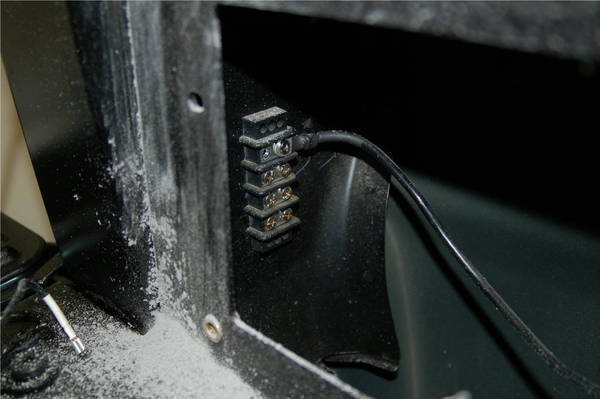

    I had already placed a power block behind the left bed pocket from my previous bed light mod and used that for my + power feed. I ran 8ga wire i got at Lowes from the battery through the frame and up into the fender and then fused it with a 80amp fuse.
    [​IMG]

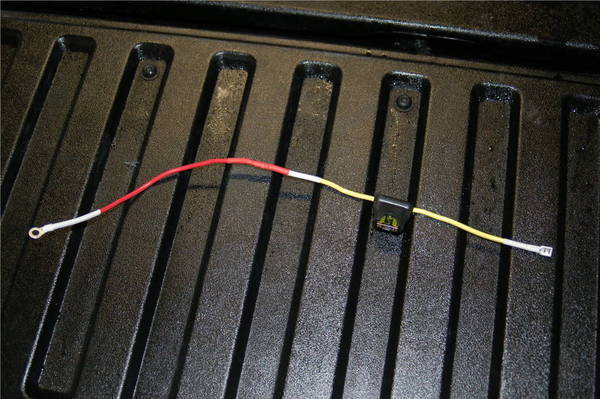

    I purchased a inline fuse holder and a 30amp fuse form Walmart for $2. I extended it with some 12g wire, put some ends on the end, and shrunk wrapped the connections.
    [​IMG]

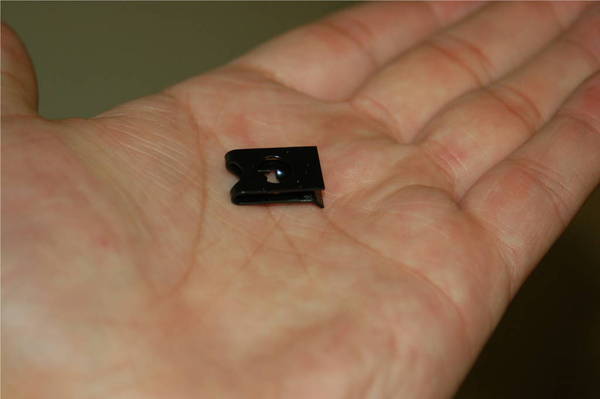

    To put the outlet in i decided that i would use some little clips that came with a pair of Infinity speakers i purchased a few years ago so that i wouldn't run the risk of striping out the thin bed wall.
    [​IMG]

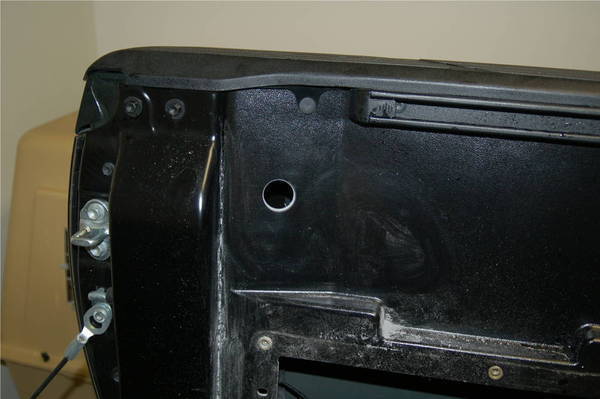

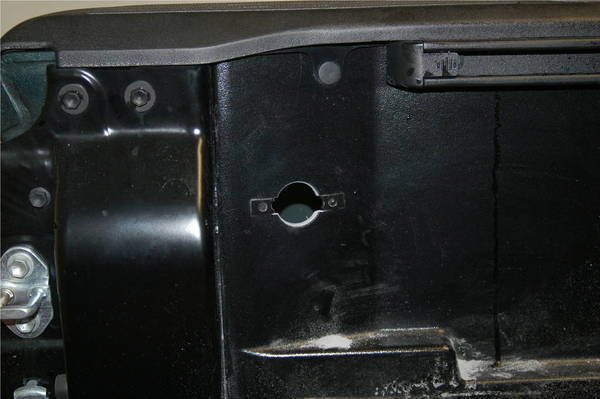

    in order to install the clips in the right position to line up with the holes on the outlet i knocked out the side of the hole with a square file i also got a Harbor Freight.
    [​IMG]
    Next thing was to wire it up! i put power to the power block and ran the ground to a bolt under the rear bumper sorry this is the only thing i forgot to take a picture of.... go figure. use your imagination.
    [​IMG]

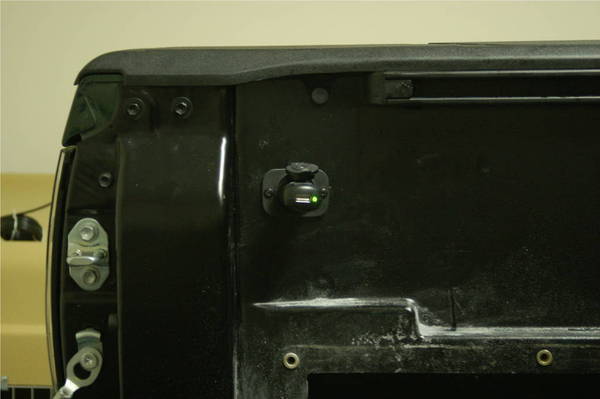

    After i installed the hardware it was time to a test. the only thing i had at the time was this usb converter
    [​IMG]

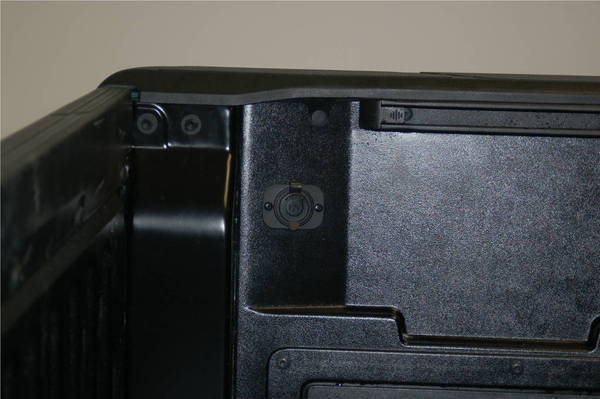

    After that i cleaned everything up and was left with this.... the finished product.
    [​IMG]
    Total Cost around 8 dollars in parts and 15 dollars in tools!

    Toynado likes this.
  2. Jun 19, 2009 at 11:00 AM
    #2
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,303
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    looks great, very professional install.

    Although, I haven't found a need for a 12v power source outside of the cab...

  3. Jun 19, 2009 at 11:14 AM
    #3
    Simon2150

    Simon2150 Well-Known Member

    Joined:
    Dec 22, 2008
    Member:
    #11809
    Messages:
    1,042
    Gender:
    Male
    Austin, TX
    Vehicle:
    06 Tacoma DoubleCab V6 SR5
    You got skills! Nicely done!

  4. Jun 19, 2009 at 11:15 AM
    #4
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,277
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    nice install

  5. Jun 19, 2009 at 11:22 AM
    #5
    Yuma Taco

    Yuma Taco Well-Known Member

    Joined:
    May 23, 2009
    Member:
    #17562
    Messages:
    314
    Gender:
    Male
    First Name:
    Lee
    Yuma, Az
    Vehicle:
    09 PreRunner DC TRD
    35% tint windows, OEM black running boards, OEM black roof rack, Foglight mod, De-badged & Sockmonkey Horns decals added, Two ammo box storage units (removed), 110 volt & 12 volt outlets for back seat area, EGR Slimline inchannel visors (all windows), Fold-A-Cover G4, Tonneau, Bedmat.
    You'r what makes this site great. Neet ideas and real answers.

    Yuma Taco,

  6. Jun 19, 2009 at 11:36 AM
    #6
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    112,751,639
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2019 Rubicon 4 Door,
    4.10 gears, sliders, and lots of buttons.
    well Done!

  7. Jun 19, 2009 at 11:38 AM
    #7
    hillbillytaco

    hillbillytaco HOT!!

    Joined:
    Oct 2, 2008
    Member:
    #9647
    Messages:
    2,379
    Gender:
    Male
    First Name:
    Jeremy
    westbyGodvirginia
    Vehicle:
    06 impulse red trd off road dc v6 6spd
  8. Jun 19, 2009 at 11:40 AM
    #8
    Incognito

    Incognito No better friend, no worse enemy

    Joined:
    May 25, 2009
    Member:
    #17626
    Messages:
    13,751
    Gender:
    Male
    VA
    Vehicle:
    2012 Pyrite AC TRD OR
    Spacer lift, bumper stickers, ejector seat, etc.
    Great job!

  9. Jun 19, 2009 at 1:00 PM
    #9
    longbow

    longbow I see you now..................

    Joined:
    Jun 26, 2008
    Member:
    #7586
    Messages:
    4,029
    Gender:
    Male
    First Name:
    Bill
    Indiana
    Vehicle:
    05 Tacoma Silver Mica TRD 4 Door
    Toy-tec Coil over lift, Eibach 700 lb springs, Sway bar relocate, Total Chaos UCA's, Moto metal wheels, BFG mudterrians, HID, custom 3 piece grill, Highlift jack w/custom mount, Highlift jack cover, bed matt, de-badged 100%, storage box lock mod, using defrost w/o AC mod, short antenna mod, horn re-locate, Tire Gate flat spare tire mount, engine cover painted, bed light (1) mod, wreck bar carrier, Blue Sea 5026 fuse block, center console outlet, flash light mod, Blue Sea inline fuse, Shrockworks sliders, All-Pro front bumper, Piaa 510 driving lights, Warn shackles front, Kennesaw rear bumper, "Tag Boltz" plate lights, Warn shackles rear, Warn M8000 winch, devil horns, BHLM, weathech liners front and rear.....T.W. sticker of course. Custom Sock bed decal for Michele
    very clean install, looks like it came that way.
    Great job.........:thumbsup:

  10. Jun 19, 2009 at 1:18 PM
    #10
    FlawedXJ

    FlawedXJ mall crawlin', web wheelin', concrete cowboy

    Joined:
    Oct 28, 2008
    Member:
    #10334
    Messages:
    5,955
    Gender:
    Male
    First Name:
    Paul
    NorAla
    Vehicle:
    13 F150 FX4, 99 jeep xj, 04 msm miata
    I actually have a jeep now. Imagine that.
    looks good man. I put mine inside one of the cubbys with an on off switch but yours looks like it came like that.

  11. Jun 19, 2009 at 1:28 PM
    #11
    brian

    brian Another Traitor

    Joined:
    Apr 15, 2009
    Member:
    #16011
    Messages:
    7,549
    Gender:
    Male
    Elizabeth City, NC
    Vehicle:
    2017 F-250 Powerstroke
    Good job. I wouldn't really have a use for it personally, but a good idea nonetheless. Just make sure you throw some kind of water displacing grease on it to prevent corrosion. Marine grade or not, it will corrode after awhile. Rep added.

  12. Jun 19, 2009 at 2:28 PM
    #12
    george3

    george3 Well-Known Member

    Joined:
    Jun 8, 2008
    Member:
    #7173
    Messages:
    4,568
    New Jersey
    Vehicle:
    2008 2.7 Manual Trans Tacoma
    Seat belt beeper, Cabelas (Weathertech) floor liner gray, Covercraft Seat Savers in Taupe, Protecta Heavy Duty Rubber Truck Bed Mat, Pop n Lock PL5200, Pace Edwards Full Metal JackRabbit, Wolverine oil pan heater, Scangauge2, afe pro dry s filter, Remote Underbody 4 Piece LED Light Kit (White) used as Bed light, DIY Washable Cabin Air Filter, PA15-TOY, 4x4 Illuminated Switch, full synthetic, Redline Tuning Hood Support, Smittybilt Nerf Steps black powder-coated
    Beautiful work and I like the power block, you have the wiring half done for the next project, but I would like to know what do you use it for?

  13. Jun 19, 2009 at 2:37 PM
    #13
    tacomaman06

    tacomaman06 Carolina Alliance: Enforcer

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,212
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '16 Tundra TRD Pro
    getting there....
    great mod man. very well done.

  14. Jun 19, 2009 at 3:09 PM
    #14
    ST77

    ST77 Wandering doesn't mean you're lost

    Joined:
    Apr 16, 2009
    Member:
    #16048
    Messages:
    2,851
    Gender:
    Male
    First Name:
    Brian
    Sandy, Or
    Vehicle:
    2018 TRD OR DCSB
    Bone Stock
    Well done! Great write up as well!

  15. Jun 19, 2009 at 4:23 PM
    #15
    Aalders

    Aalders [OP] Well-Known Member

    Joined:
    Jan 30, 2009
    Member:
    #13129
    Messages:
    208
    Gender:
    Male
    First Name:
    Logan
    Dover, Delaware
    Vehicle:
    2009 Double Cab TRD off road
    Pop-n-Lock Tlailgate handle, TSB Rear Leafs, 12V bed outlet, Back up camera in mirror mod, Roof Rack, TRD Exhaust, Front Skid Plate, Running Boards, 4 100w KC SlimLites, Westin brush guard, Fog lights in the bed pockets, extra D rings in the bed, Fog light mod, seat belt chime mod, 75,000 candlepower StreamLight rechargeable flashlight

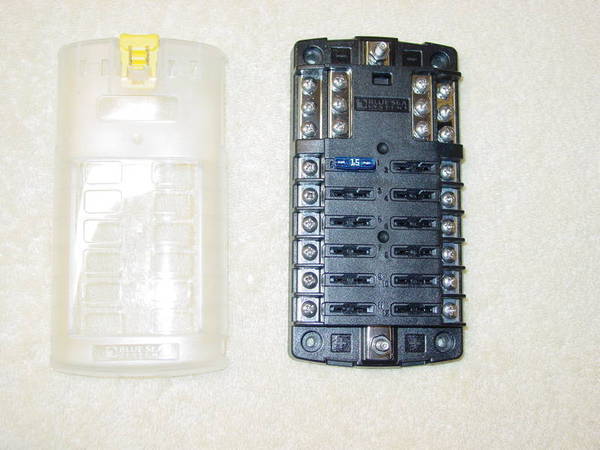

    thanks guys for all your feedback. im going to replace the power block with a blue sea power Fuse block like this one soon just to make it neater and allow for easyer future mods
