    Hello all, been reading here on TW for some time just waiting to get a Tacoma of my own. Finally got one at the right price and got right to it. Some history on the truck. It's a 2006 Tacoma DCLB 4x4 Sport pkg. Already had a Revtek spacer lift installed. One of my main uses for this truck is to take a few friends on long road trips to go camping/fishing/exploring. So I wanted to make a bed rack to accommodate my roof top tent. I came up with a drawing on Gimp with help from a side view pic of Kenny650s' tacoma since I didn't have my truck yet at the time, (hope that's ok). I added the things I want on the truck: Demello bumper, custom bed rack, Rtt, and a wind fairing to help me think it'll help with mpg. Here's the goal: This is not a truck of mine, just a photoshop image.

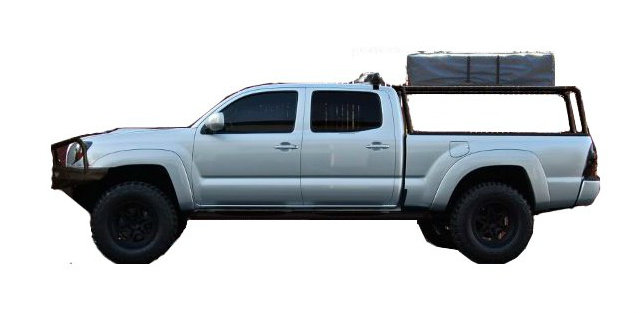

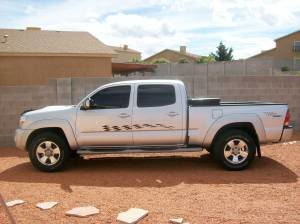

    So first things first, this is a pic of the ad I found of the truck since I didn't take a decent pic of when I first bought it.
    I guess the first mod I did was removed the checkered go fast decals. Looks much cleaner.

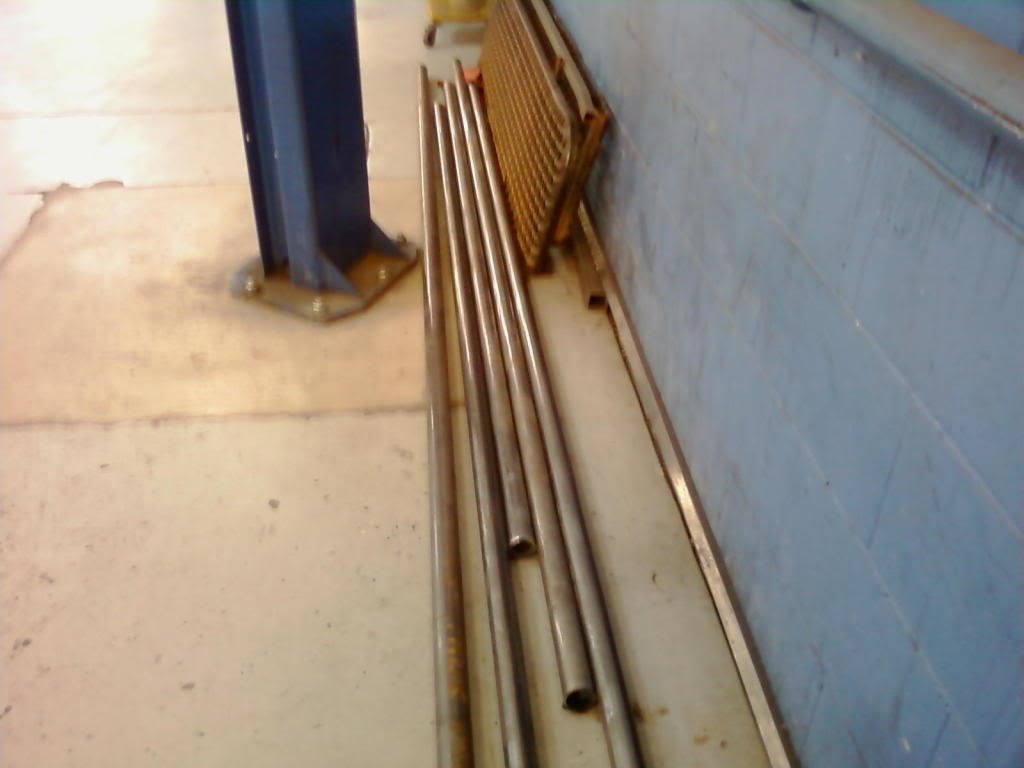

    The start of the bed rack. Went to the local steel place to get my estimated materials. 50' of .120 wall 1 3/4" tubing and 20' of 3x3" angle steel.

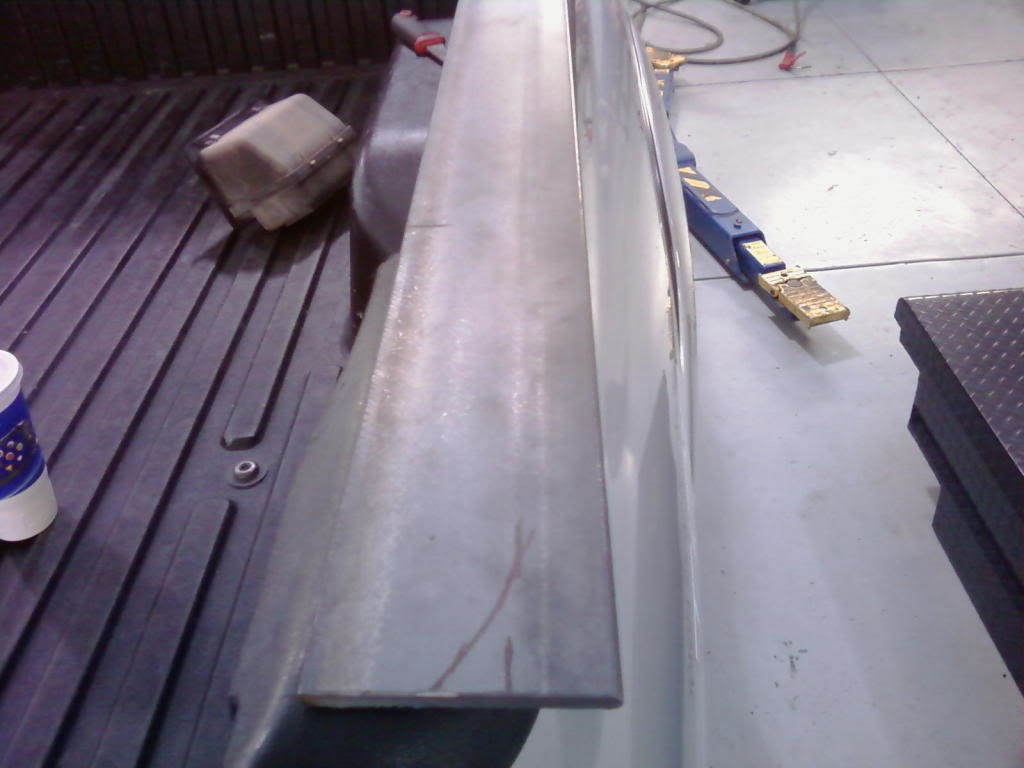

    First step, make the base. Cutting the angle steel in half, I measured how long the verticle portion will be and cut where the bed isn't straight with a plasma cutter.

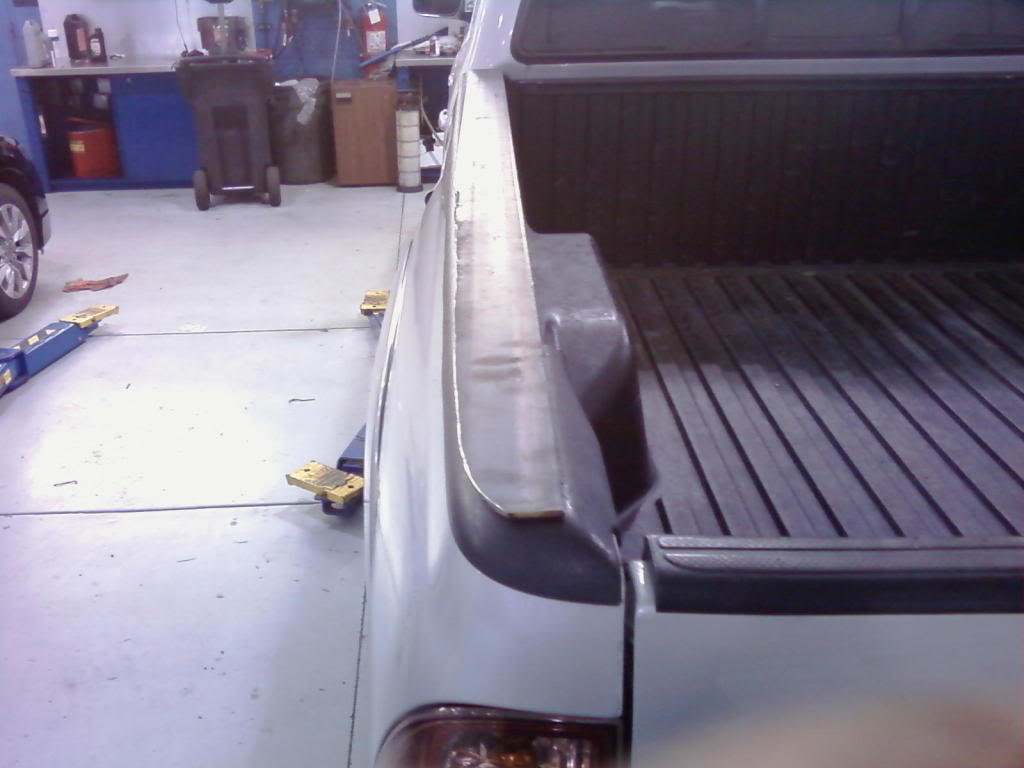

    Then marked and cut the shape of the bed rails for a clean look.

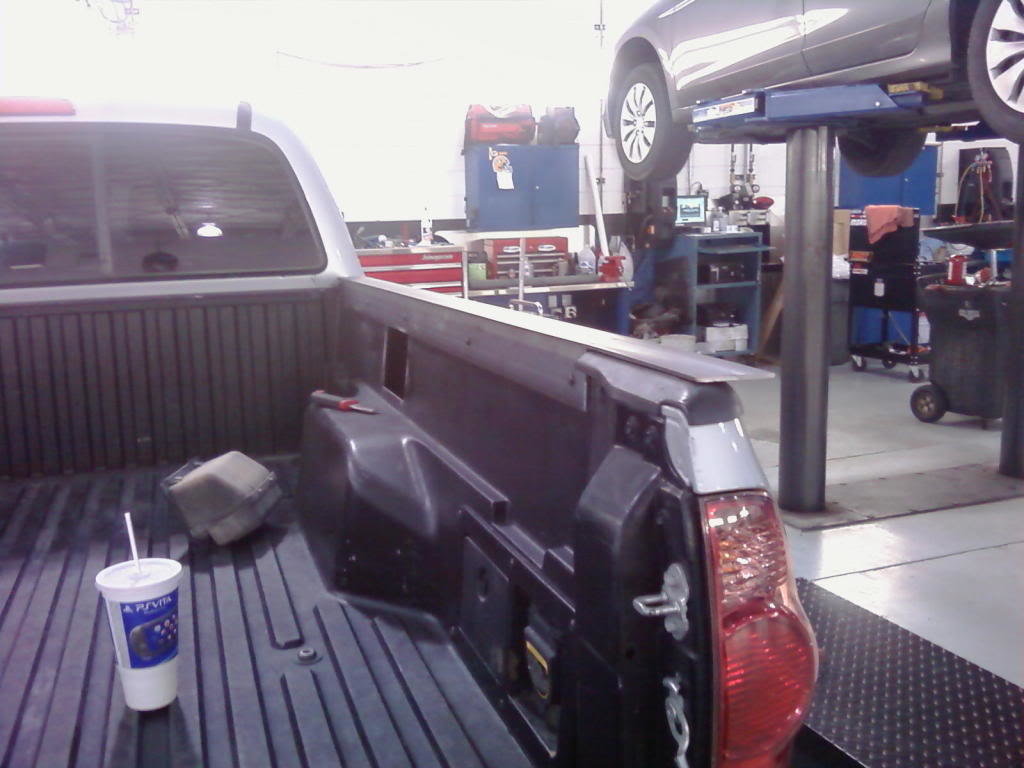

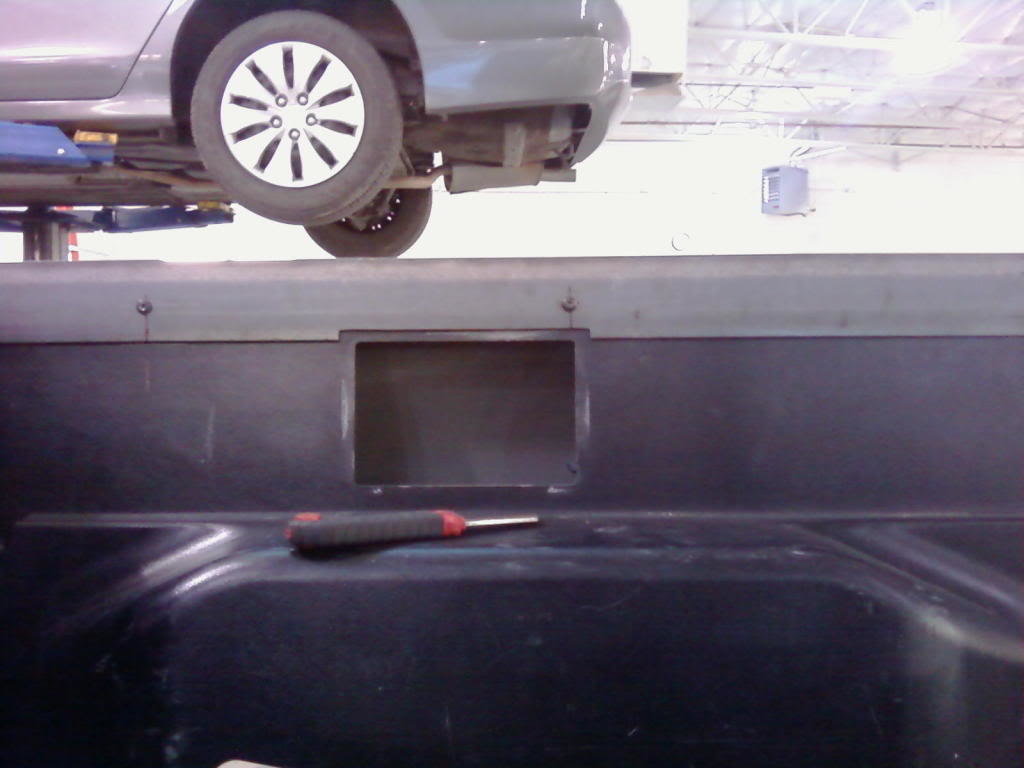

    The side bed storage pockets contacted the base material just a hair, so I notched the base to clear.
    The base is bolted down utilizing the torx bolts that hold the tie down rails. The rails will not be sacrificed, simply bolt them over the base.

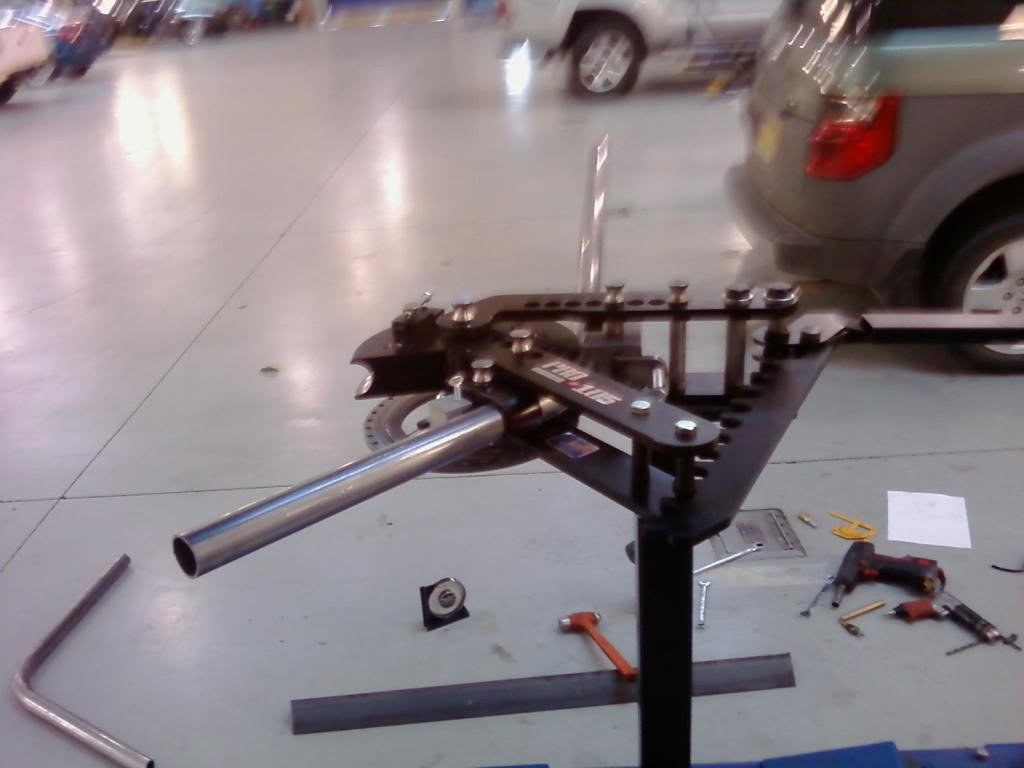

    I have a pro tools 105 bender at work and got permission to mount it on the alignment rack. Making the first bend. (Sorry, all pics taken with a pre- smartphone camera)0206021526_24b4e7165fb77e9063a268864c24abd245636c6c.jpg

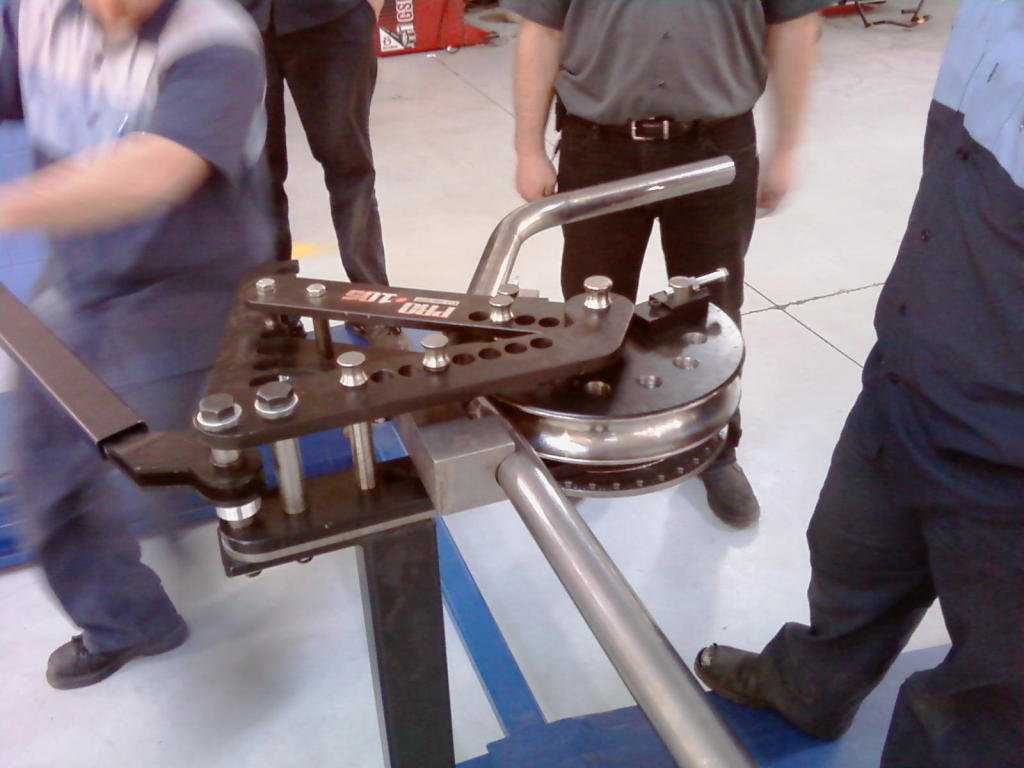

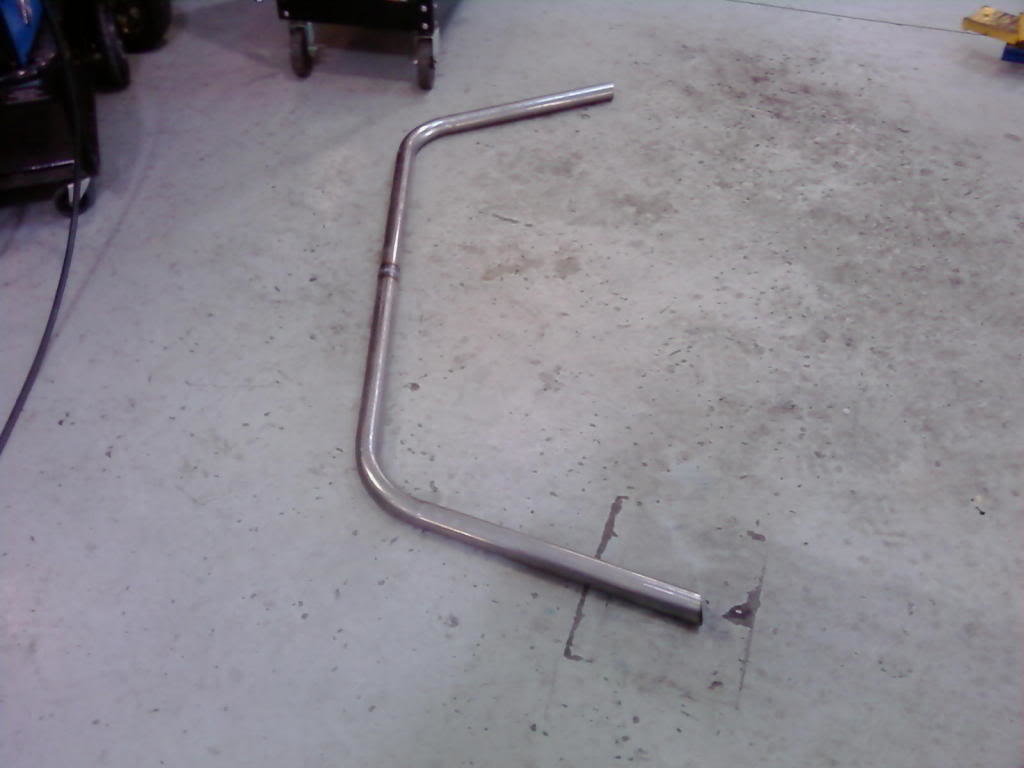

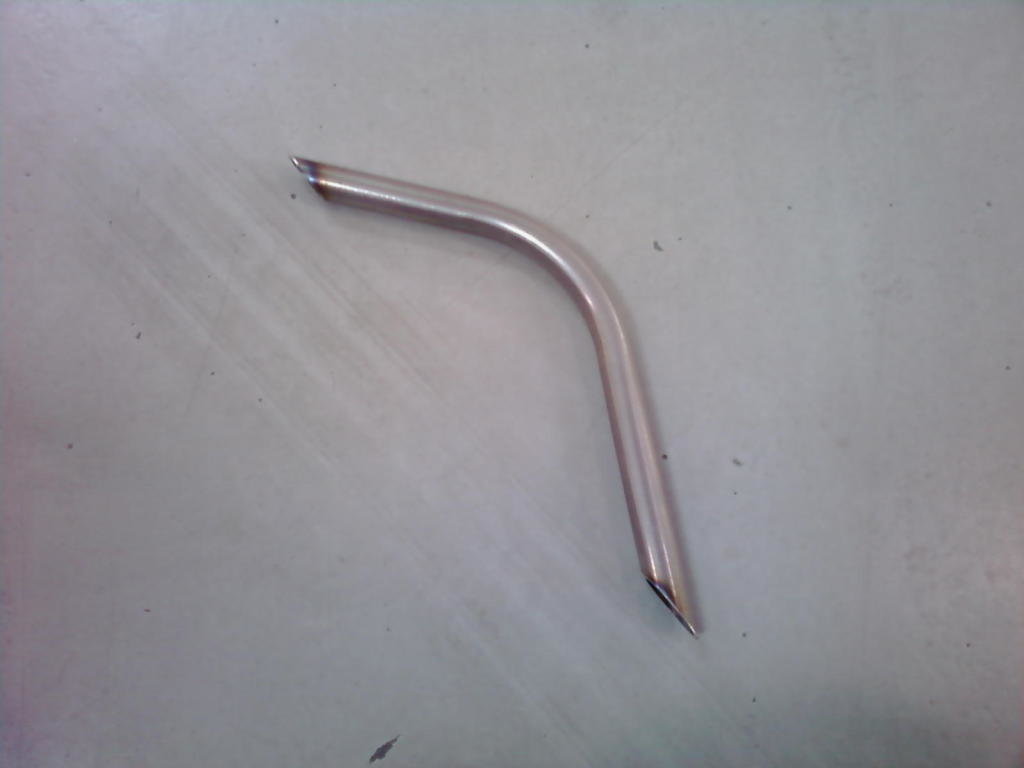

    Being a rookie to the bender, when it came for the second bend for the front/main hoop, we bent the tube in the wrong spot. Should have inserted the tube the other way:rolleyes: To minimize the waste of material, I decided to just cut the first bend at the half way point in the middle and simply make a duplicate bend and weld them together. My coworker brought by his TIG welder to stitch it together.

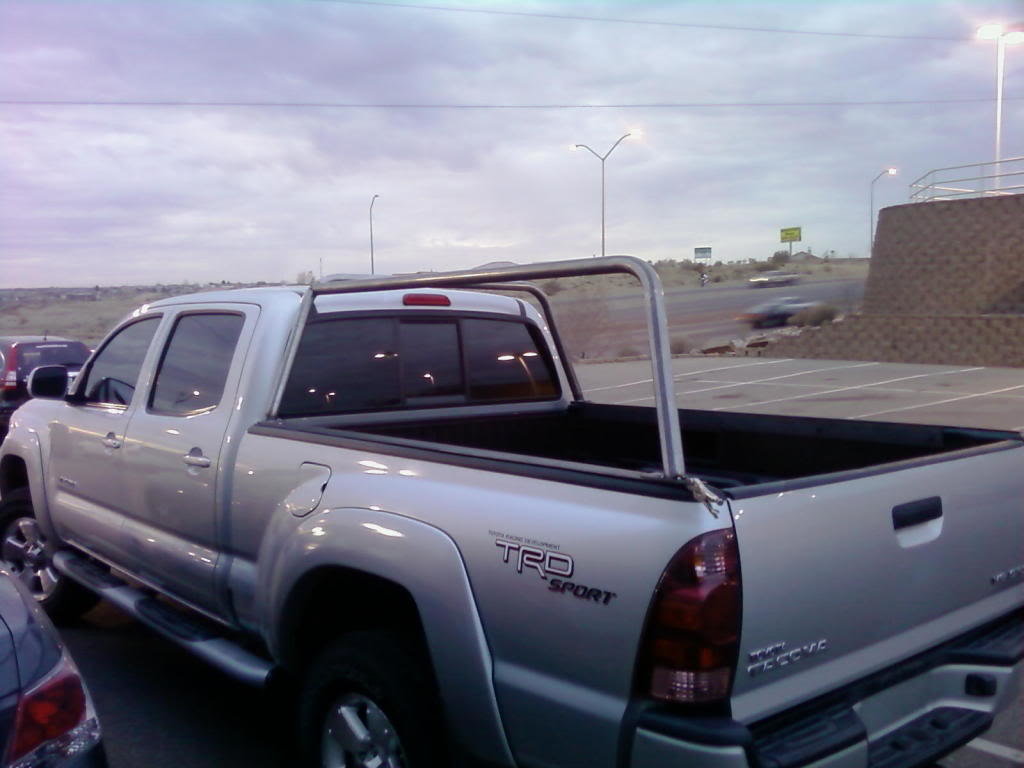

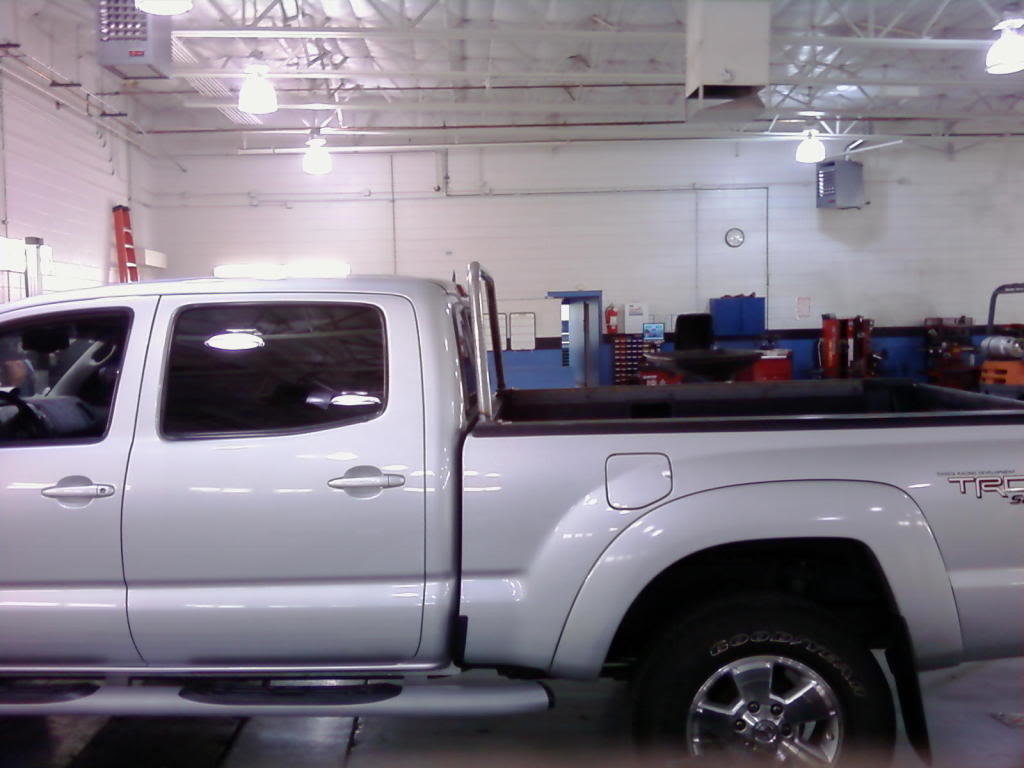

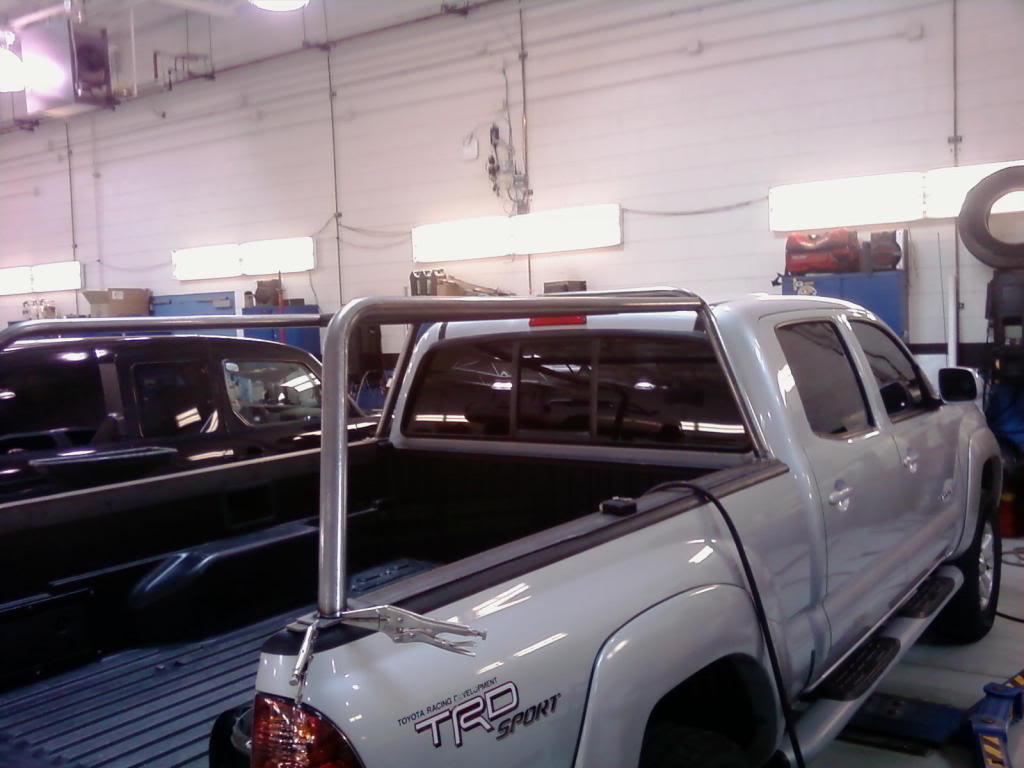

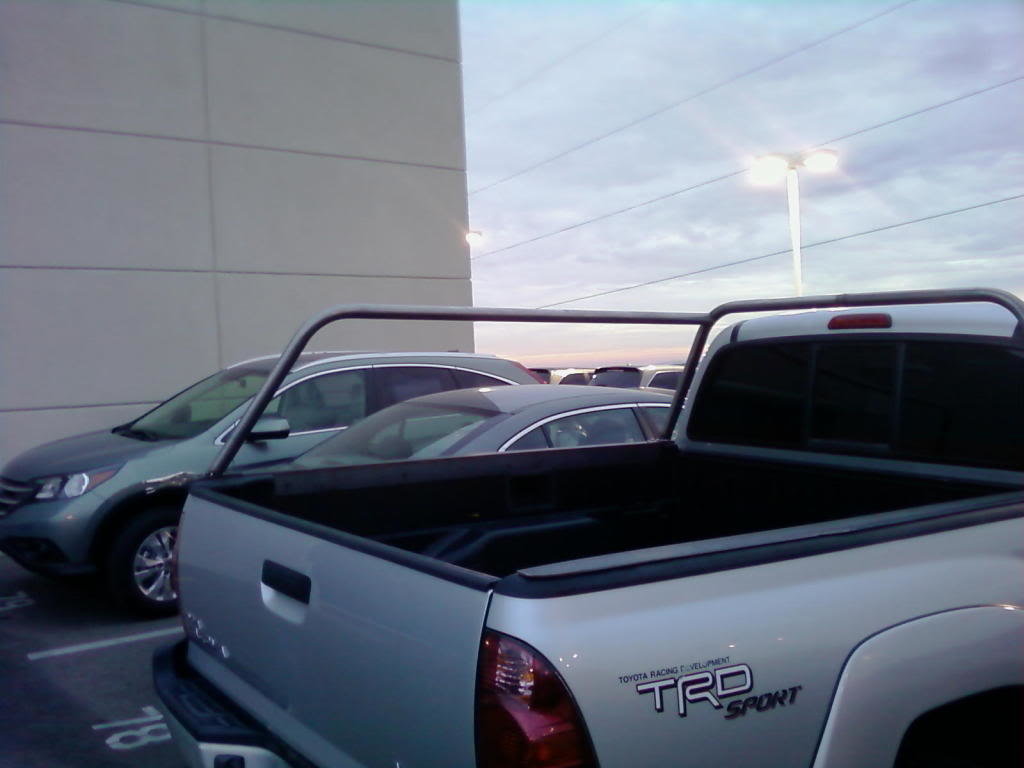

    After checking the fitment and level of the main hoop, we made a plate for the legs of the hoop and welded them on. Placed it on the base and drilled holes through both the plate and base. Then welding nuts on the underside of the base to be able to quickly bolt the rack on without having to fight the base and remove the rails.

    Mountaineers11 likes this.
  2. Feb 22, 2012 at 10:57 PM
    #2
    Olavity13

    Olavity13 [OP] Member

    Joined:
    Feb 22, 2012
    Member:
    #73408
    Messages:
    9
    Gender:
    Male
    First Name:
    Ollie
    Rio Rancho
    Vehicle:
    2006 DCLB 4x4 Sport
    Revtek lift, hand built bed rack, Demello Offroad bumper.

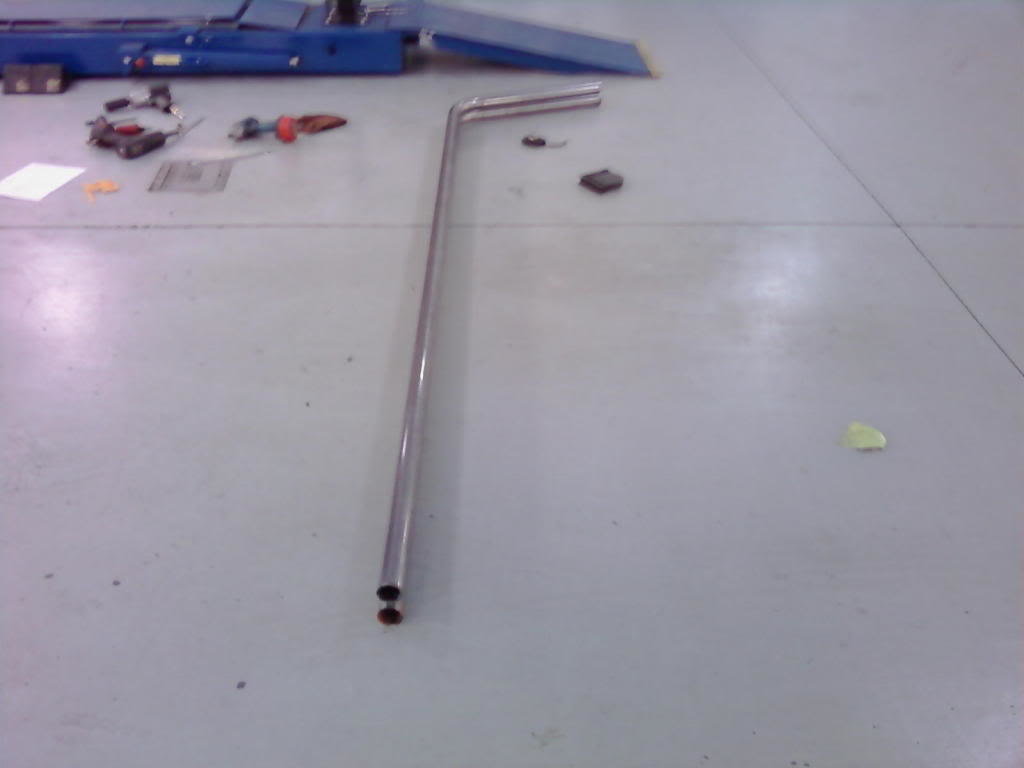

    Since the bender was already setup, I made the bends for the rear hoops to get ready to cut and weld on.

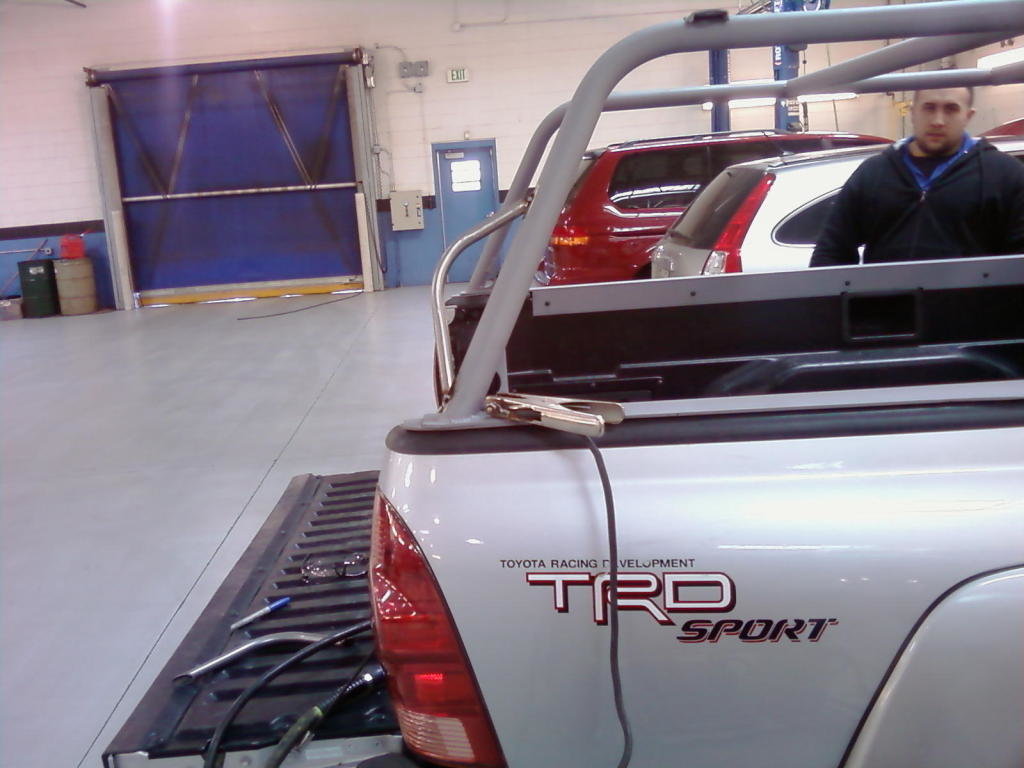

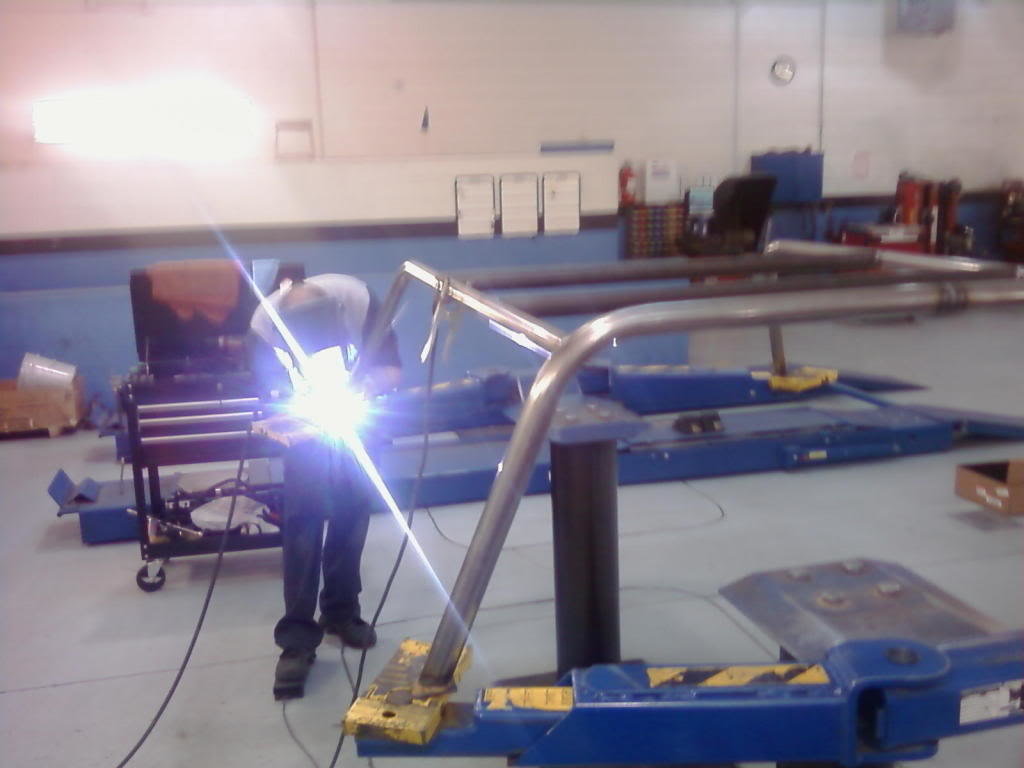

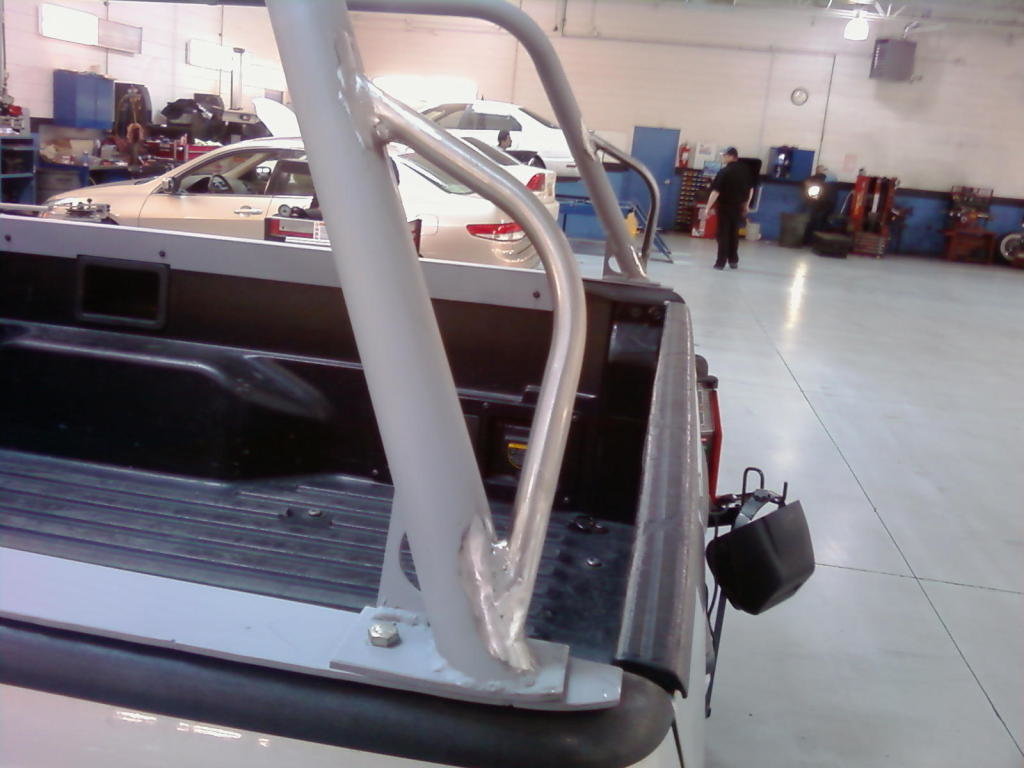

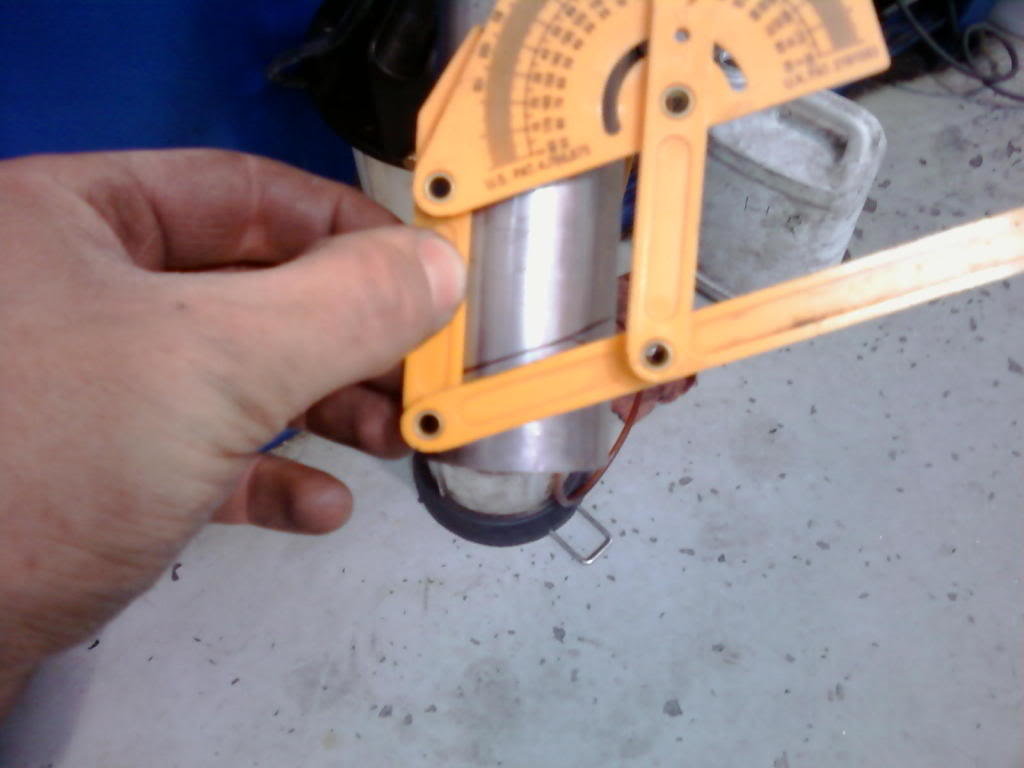

    After holding the rear hoops up to mark for the correct height, I used my harbor freight protractor/angle tool to mark my leg to cut parallel to the base.

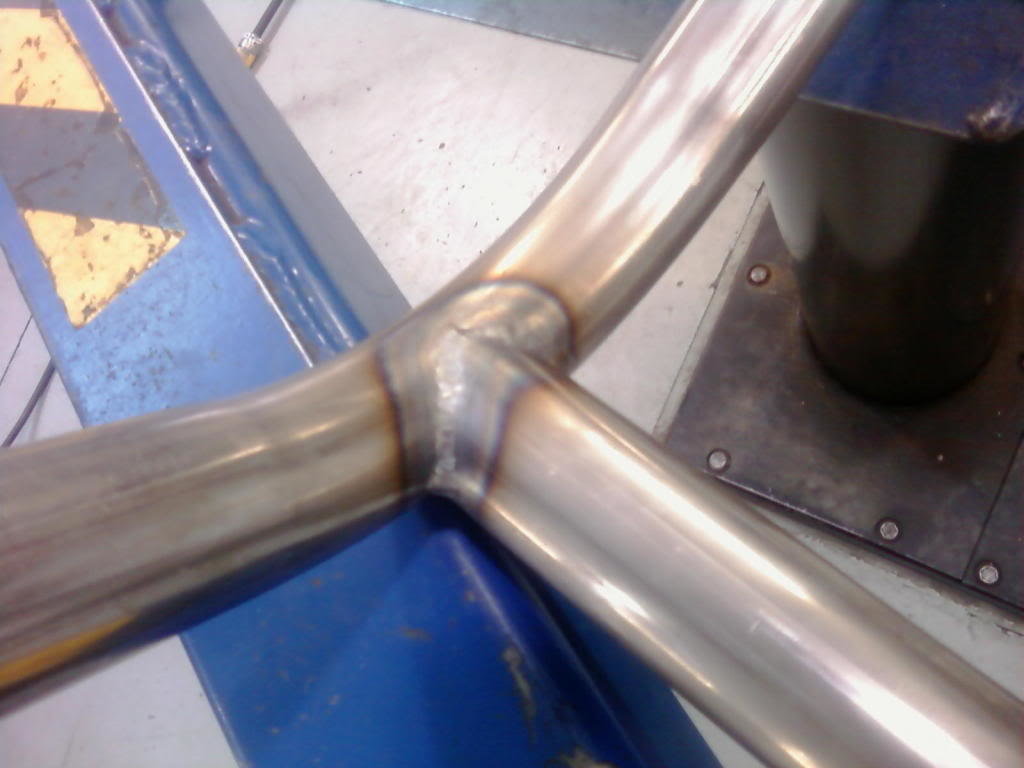

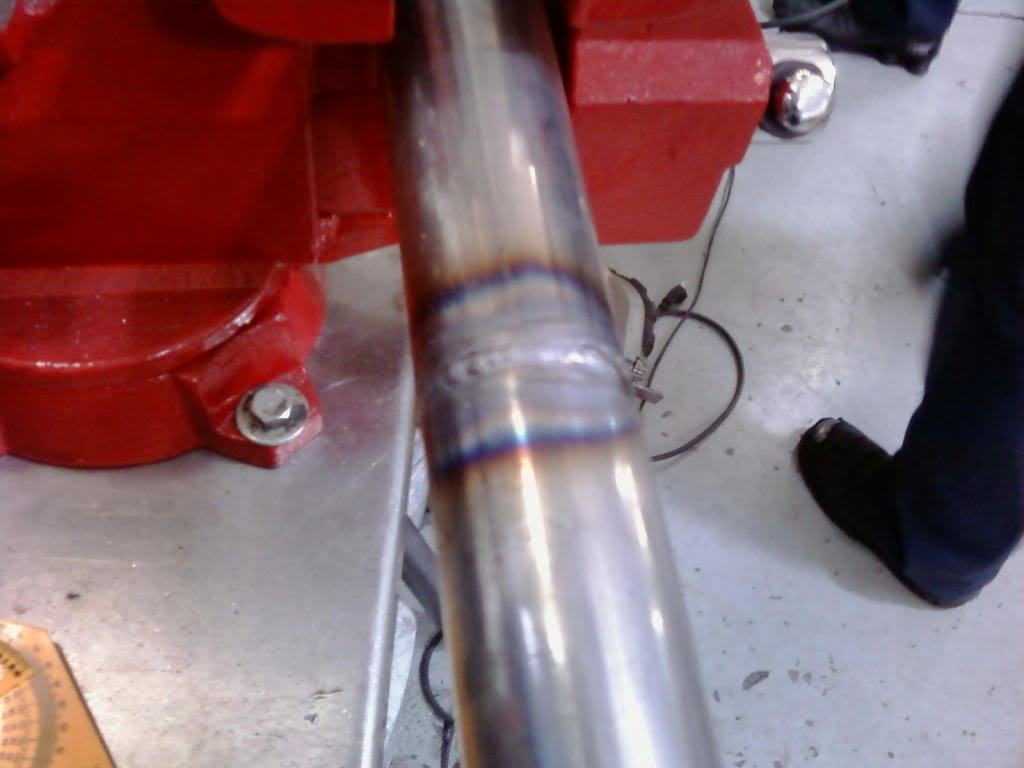

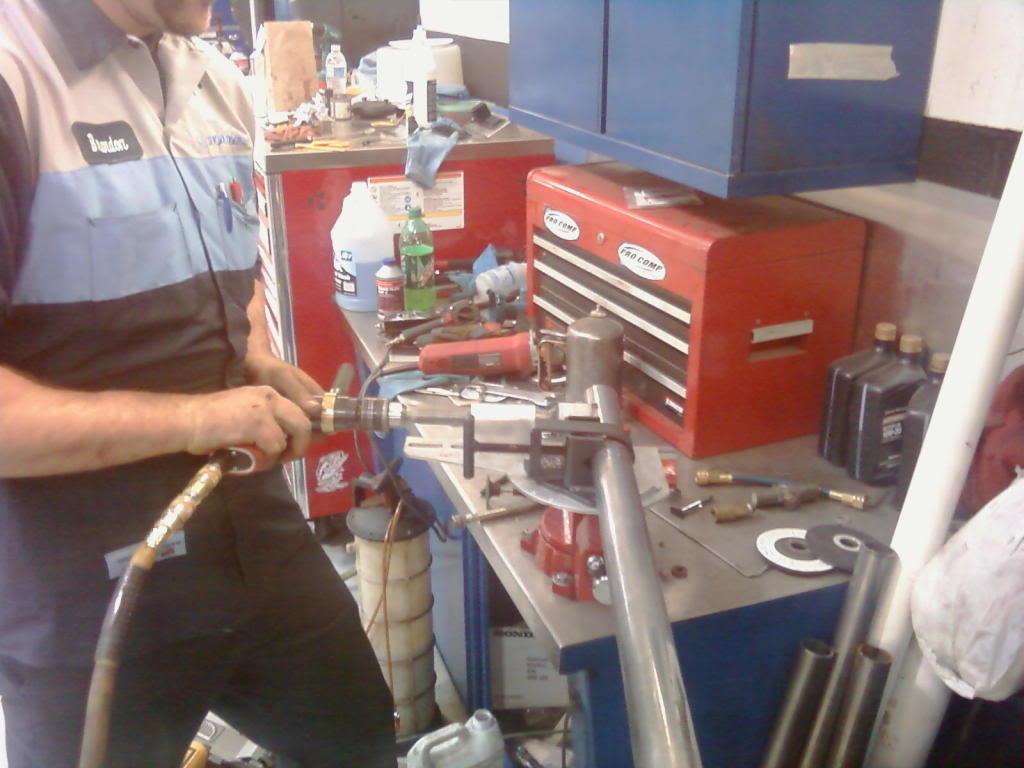

    Its good to have a coworker who fabricated turbo kits prior to working here with me. He happened to have a tube notcher and portaband saw lying around at the house.

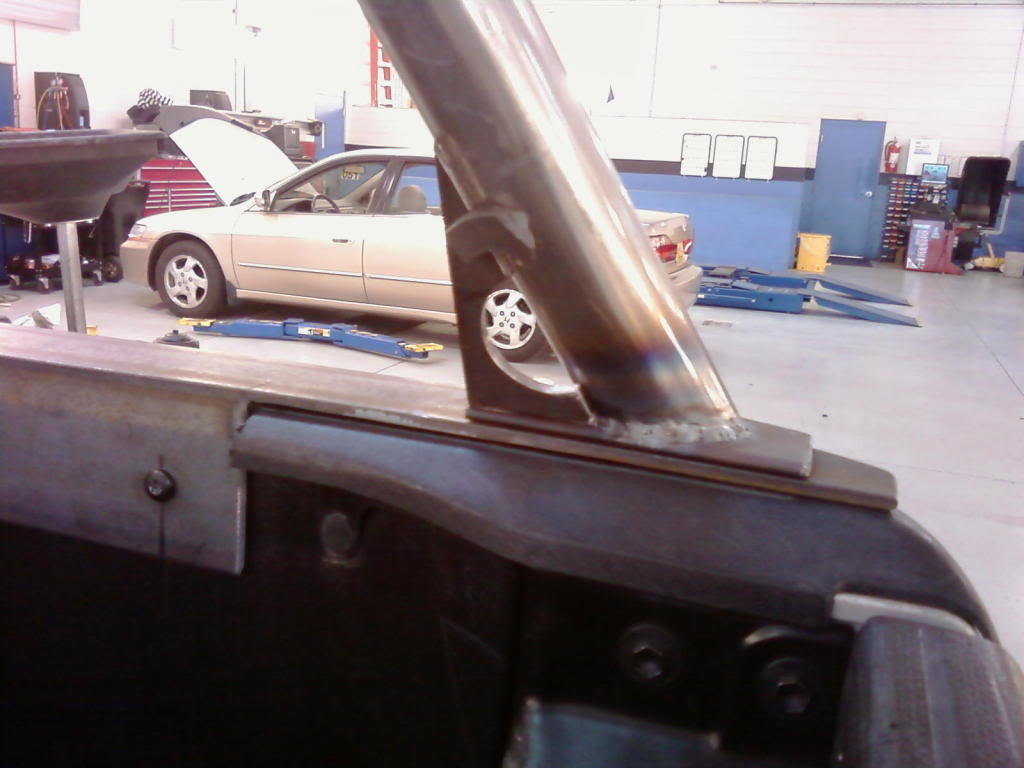

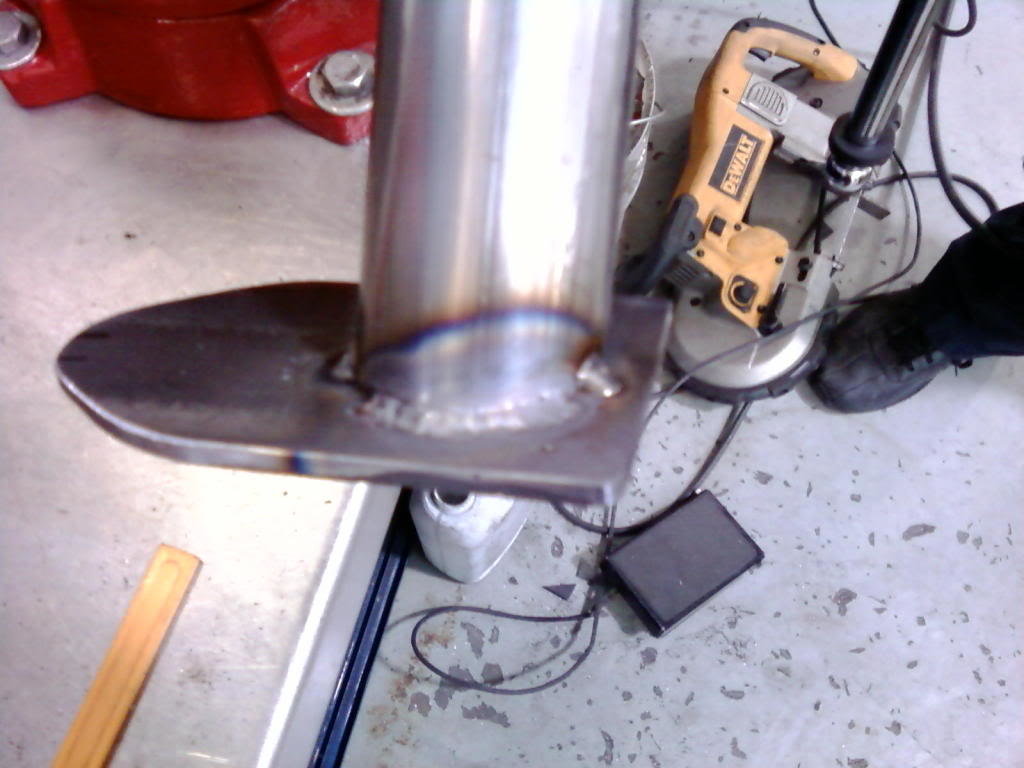

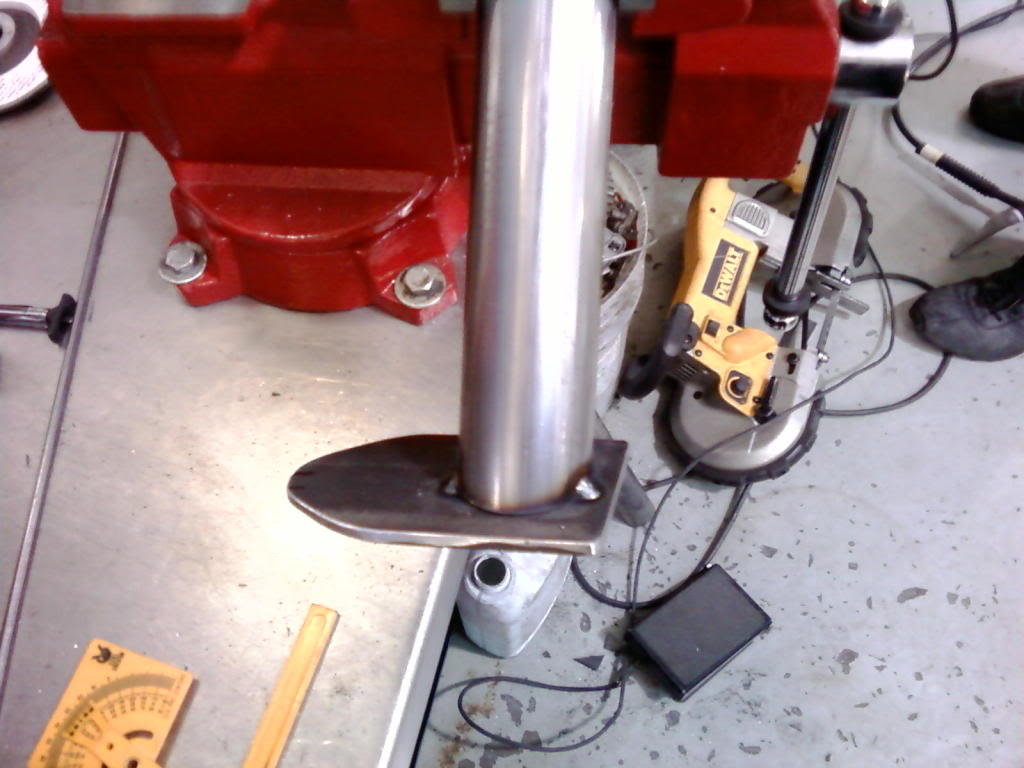

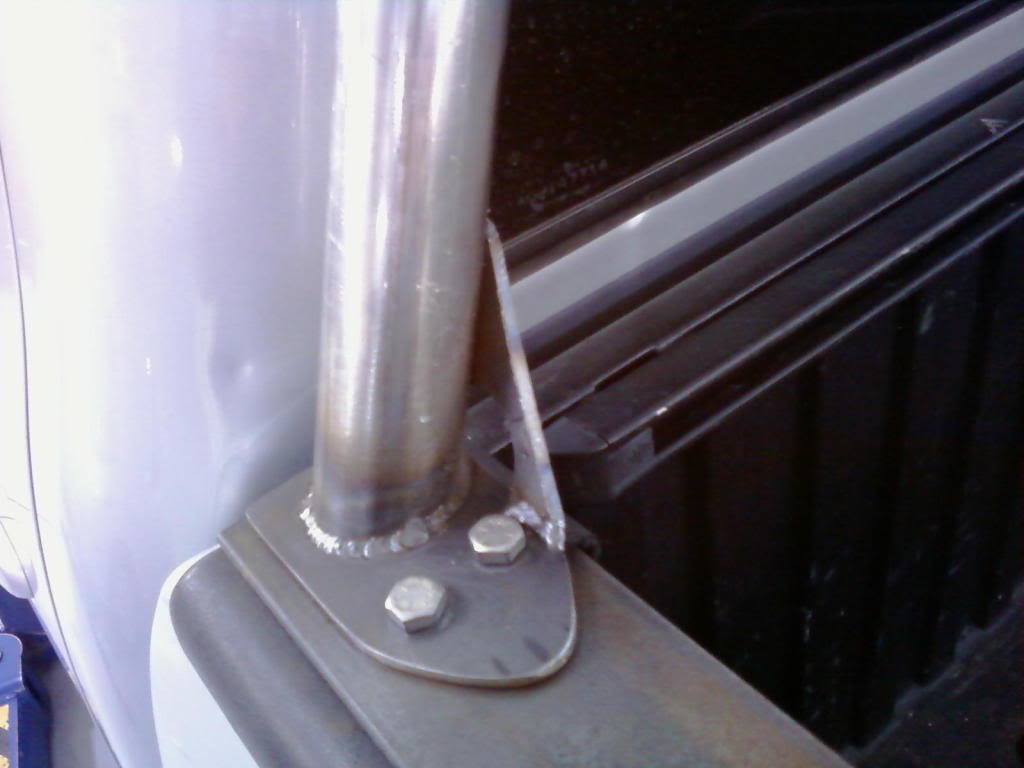

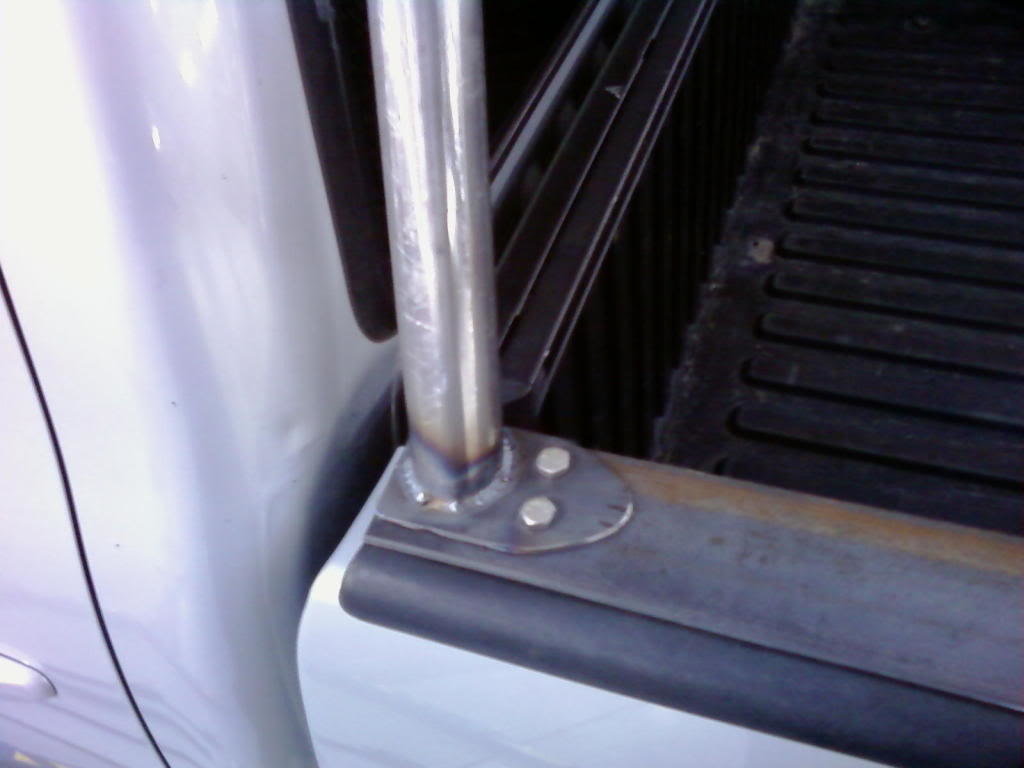

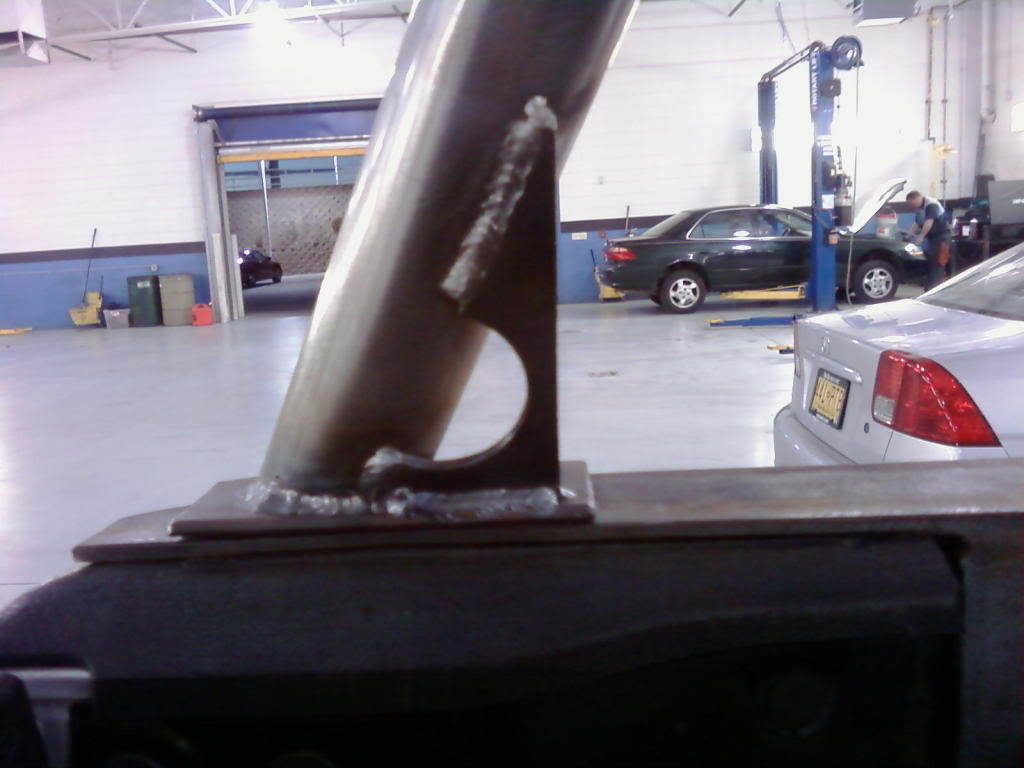

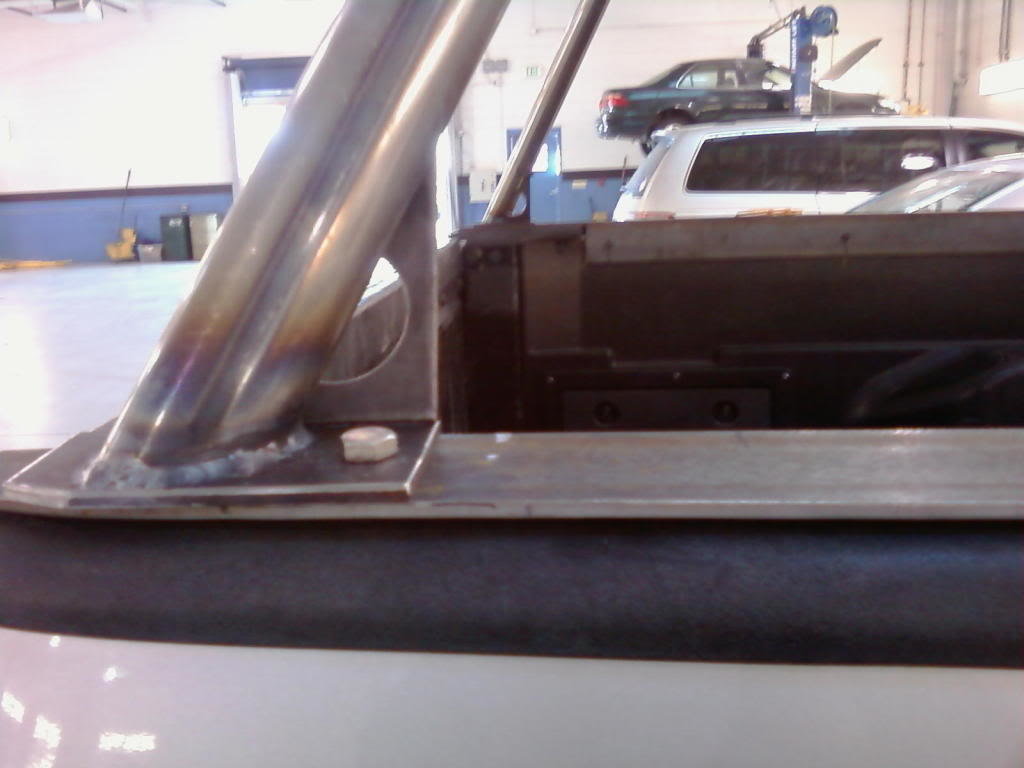

    Made base plates for the legs and drilled them ready to be bolted in. One rear hoop tacked in place.
    And both in place.

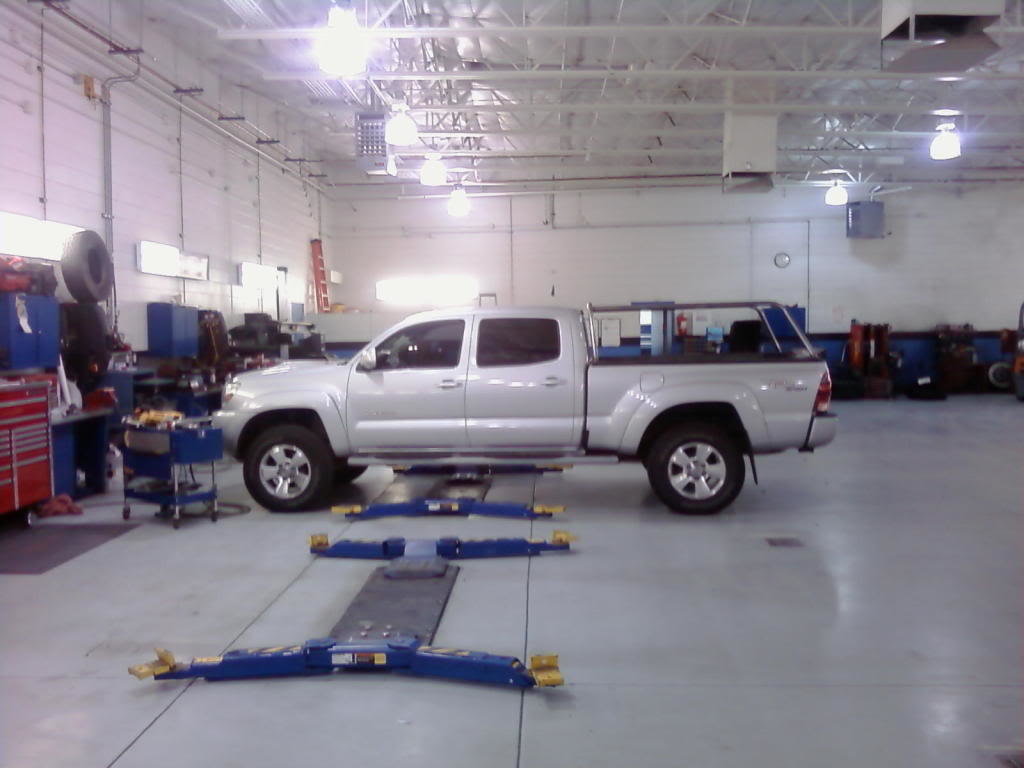

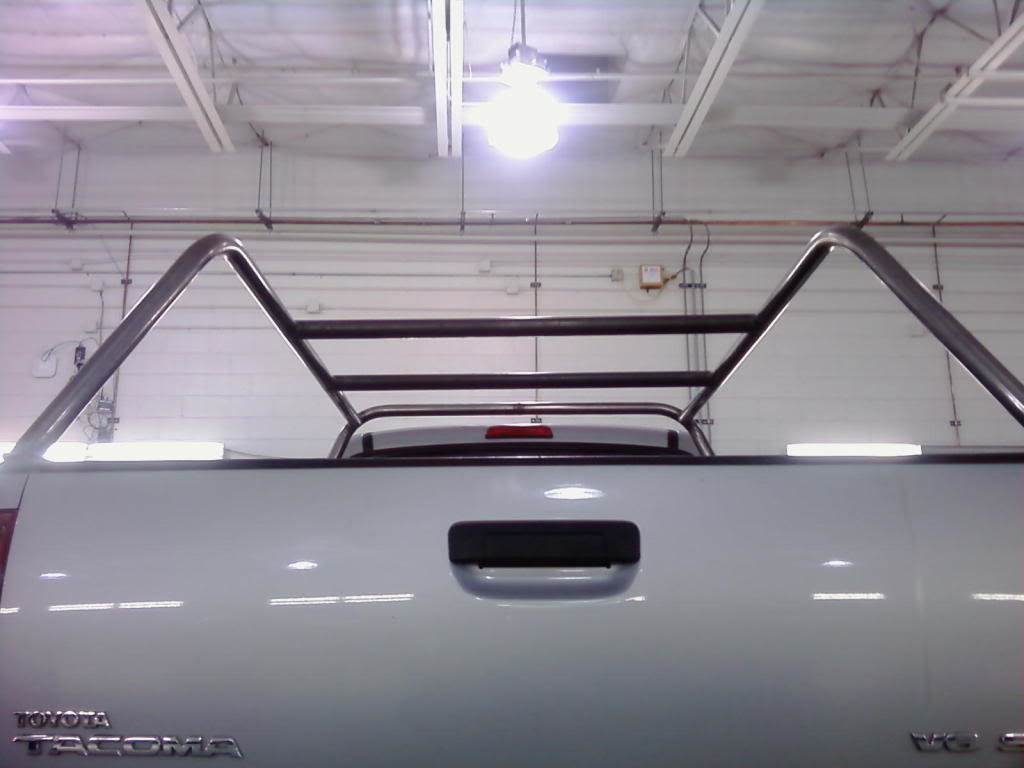

    This pic appears the rack is getting taller towards the rear, but I assure you, its an illusion.

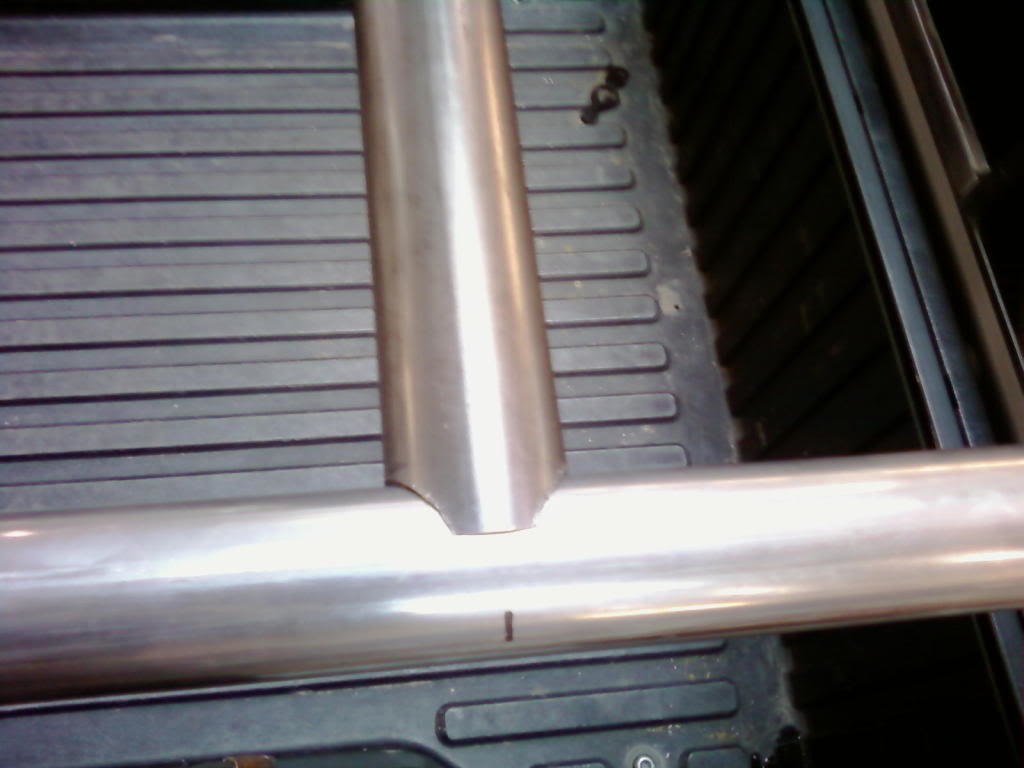

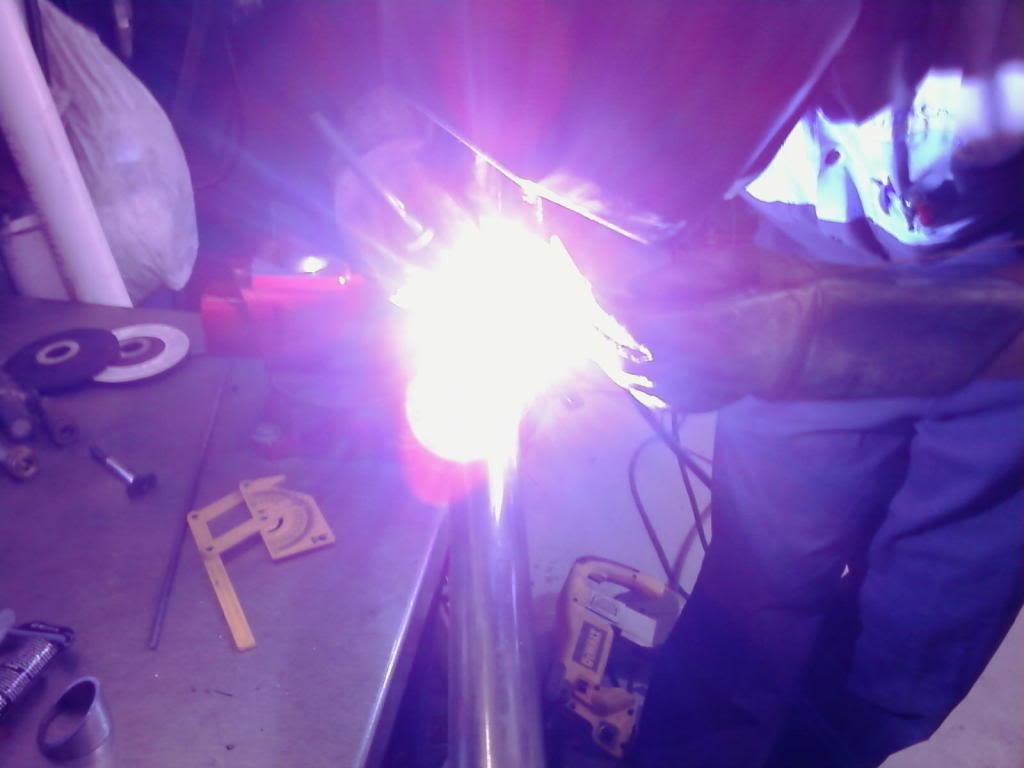

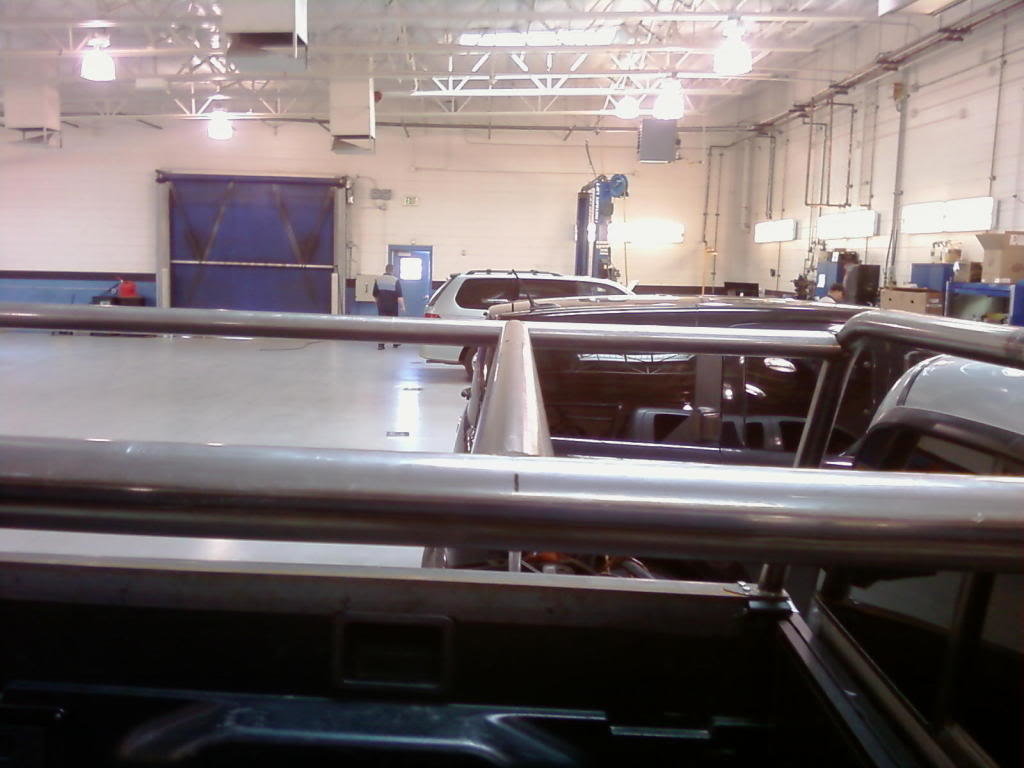

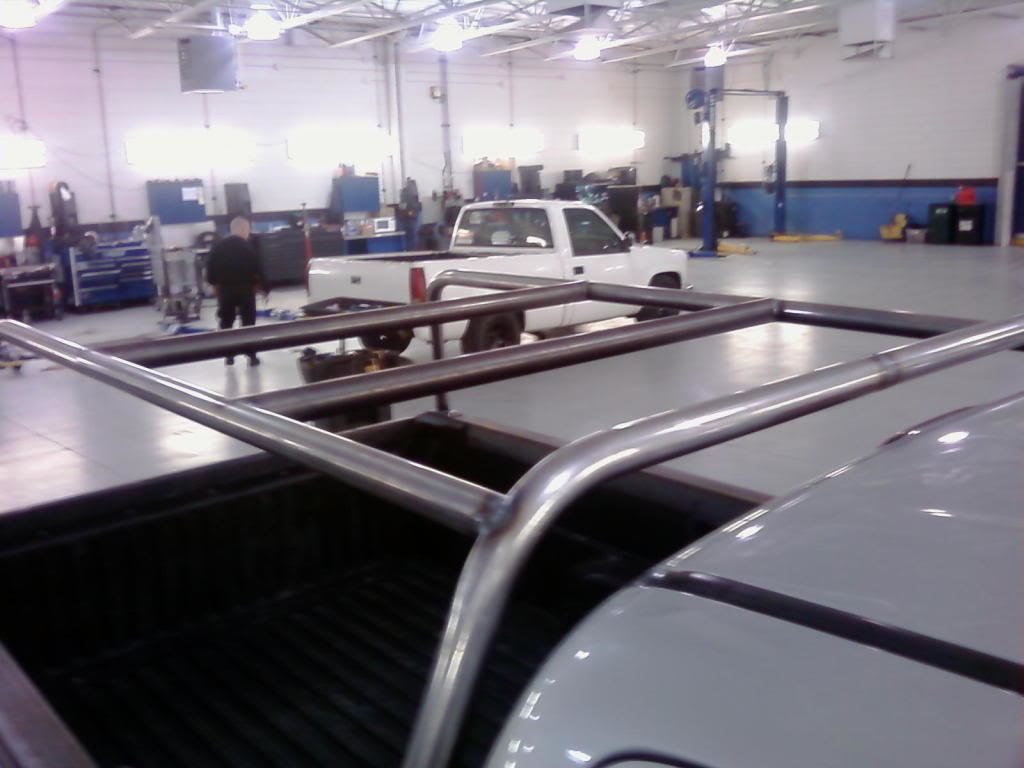

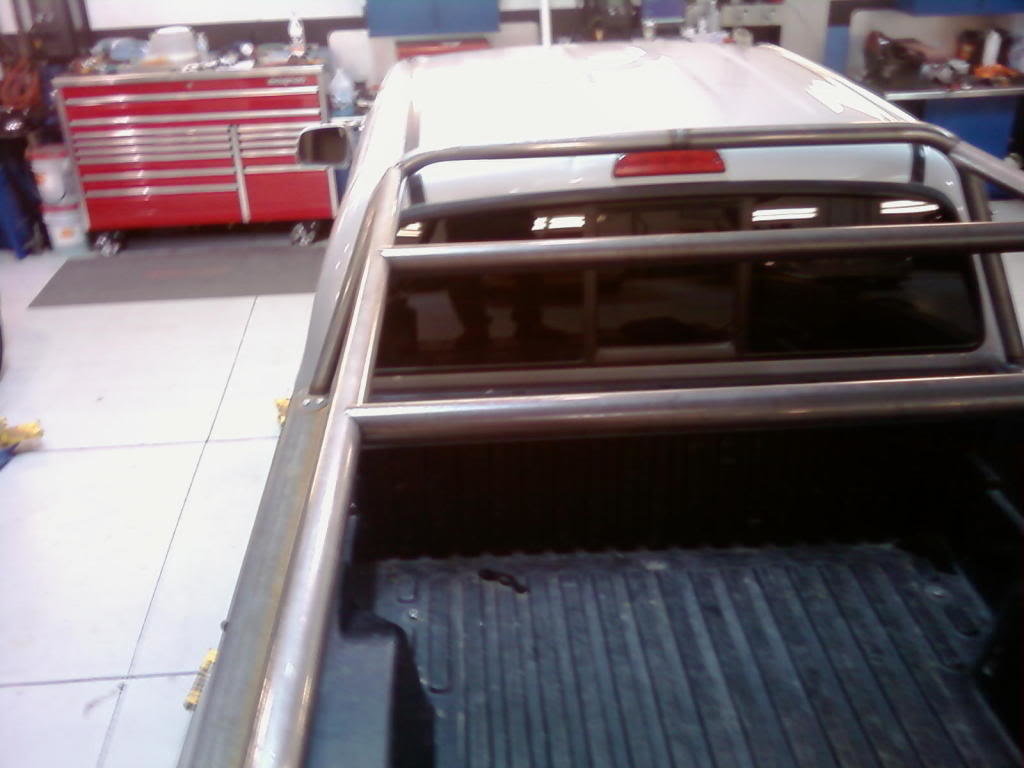

    Once the rear hoops were tacked in place, it was time for cross bars. The steel place ended up giving us one 10' section that was just larger than the rest and luckily it worked out perfect for the job.

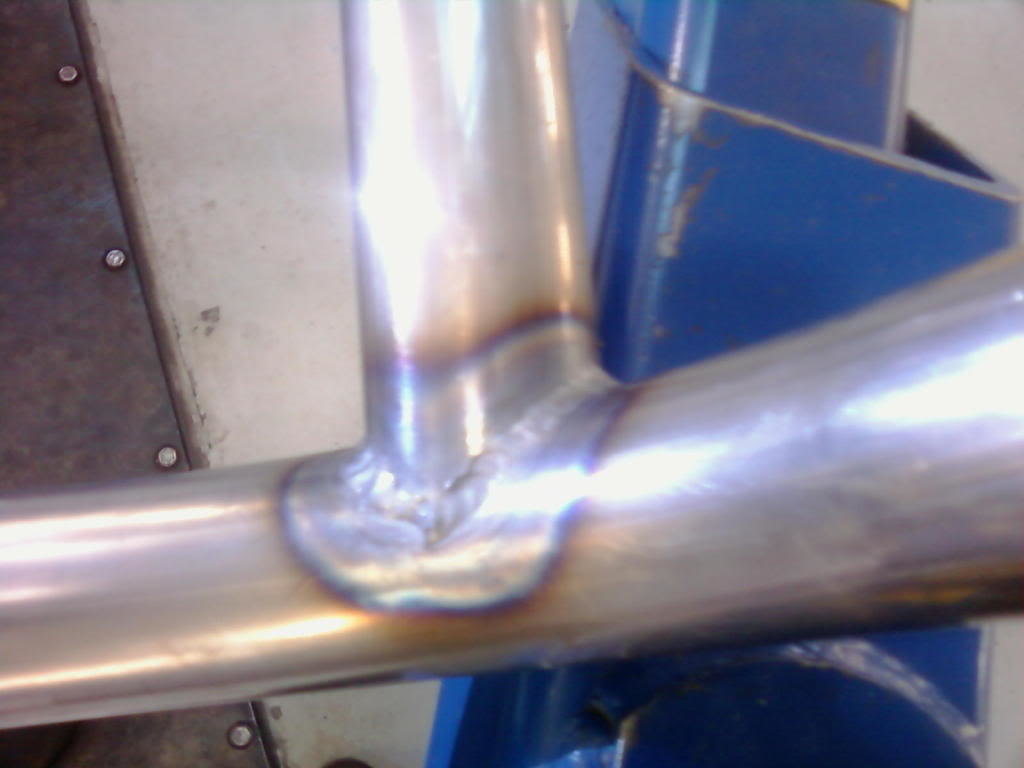

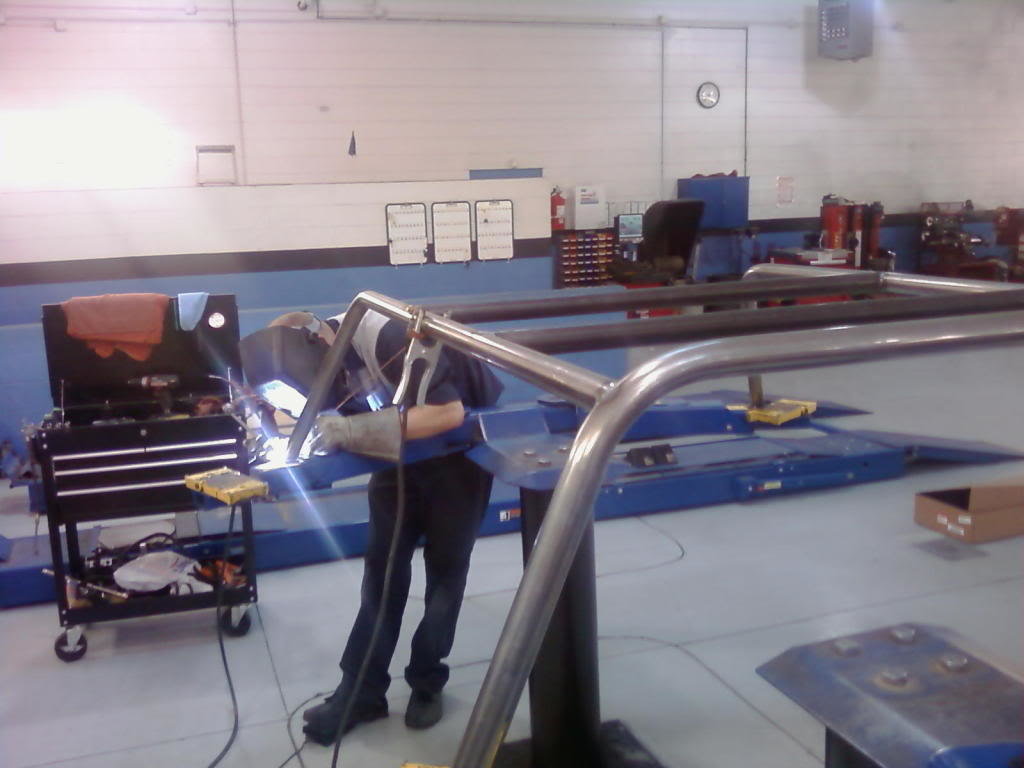

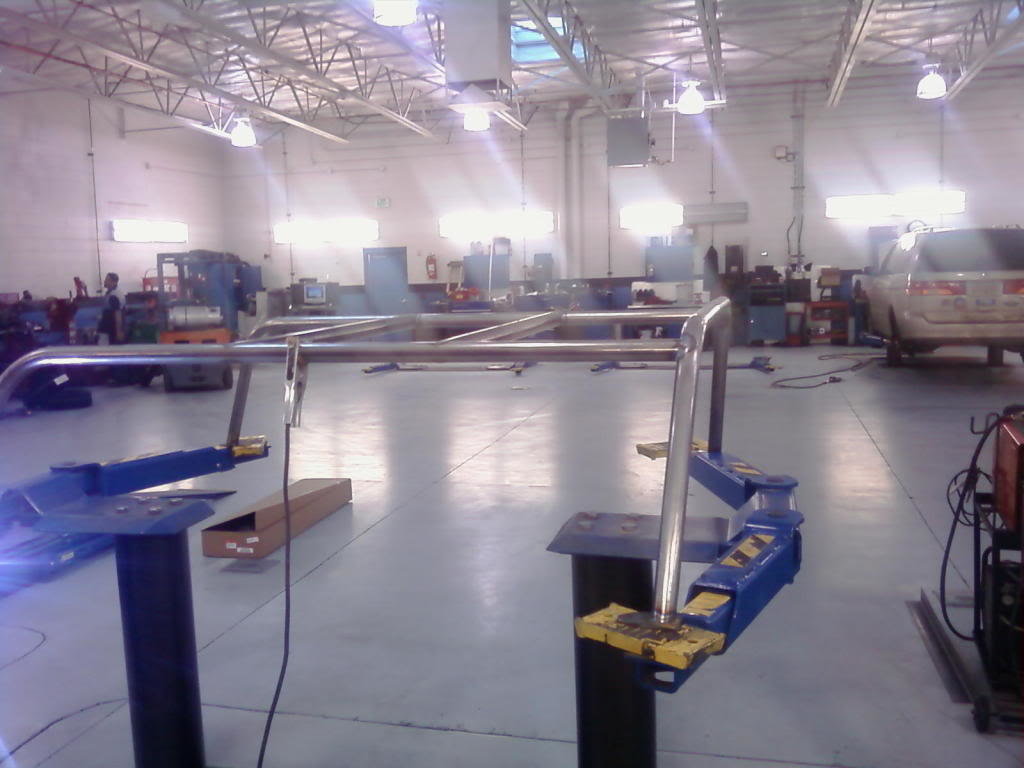

    After all was confident it was square, we tacked it up and took it off for complete welding.
    Almost finished!
    I decided I wanted additional tiedown locations so I used a hole saw on flat plate and cut to fit the corners and welded them in.

  3. Feb 22, 2012 at 11:17 PM
    #3
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,373
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    This rack is awesome man. Did you just start it?

  4. Feb 22, 2012 at 11:18 PM
    #4
    Papa Tac

    Papa Tac Adjunct Anarchist

    Joined:
    Sep 11, 2010
    Member:
    #43091
    Messages:
    300
    Gender:
    Male
    First Name:
    Papa Tac
    Codroy Valley, Newfoundland
    Vehicle:
    '10 Ned Ludd Edition
    Pupped my ride - Dog bench, Black stock rims, Tail Gate antitheft mod, Bed storage and sleeping platform, Action Cap w/Yakima rack and Rola basket, Seatbelt chime off, Tentasaurus
    Mmmm, that's nice
    Great work, man!

  5. Feb 22, 2012 at 11:22 PM
    #5
    S7ICKlVlAN

    S7ICKlVlAN Cpt. Bubbleguts

    Joined:
    May 15, 2009
    Member:
    #17250
    Messages:
    1,372
    Gender:
    Male
    First Name:
    Dave
    Hawaii
    Vehicle:
    2012 TRD Sport DCSB
    TRD badged | Hunting Cage | Smoked Tails | LED Everything | Slim Cubby HID bi-xenon's | Spidertrax 1.25" | BHLM | FLM | S2000 Ant | 20% Shade | PL 8521 | OME 885 | Bilstein 5100's | Toytec 2" AAL | FN 18x9" Bronze BFD's | 275/65-18 Duratrac's | Wrinkle Red Valve Covers | 3M Di-Noc Wrapped Interior | Kode MB Push Button Ignition | Relentless Sliders | URD TCAI | Mr.Marv Enclosure | Arc Audio 10" | Hybrid Audio Clarus F/R | Alpine PDX-5 | Alpine INE-S920HD
    Nice fab work and welds bro!

  6. Feb 22, 2012 at 11:23 PM
    #6
    rleeharris

    rleeharris "Old Timer," compliments of 11Taco2.7

    Joined:
    Jan 16, 2011
    Member:
    #49326
    Messages:
    1,229
    Gender:
    Male
    First Name:
    Bob
    San Antonio, Texas
    Vehicle:
    '11 Tundra Crew Max TRD Off Road
    Looking awesome so far! Kudos, Sir.

  7. Feb 22, 2012 at 11:29 PM
    #7
    Olavity13

    Olavity13 [OP] Member

    Joined:
    Feb 22, 2012
    Member:
    #73408
    Messages:
    9
    Gender:
    Male
    First Name:
    Ollie
    Rio Rancho
    Vehicle:
    2006 DCLB 4x4 Sport
    Revtek lift, hand built bed rack, Demello Offroad bumper.
    I was thinking of other things I could possibly want on the rack before I gave it a final paint/liner finish. So I then thought about a place to mount lights.

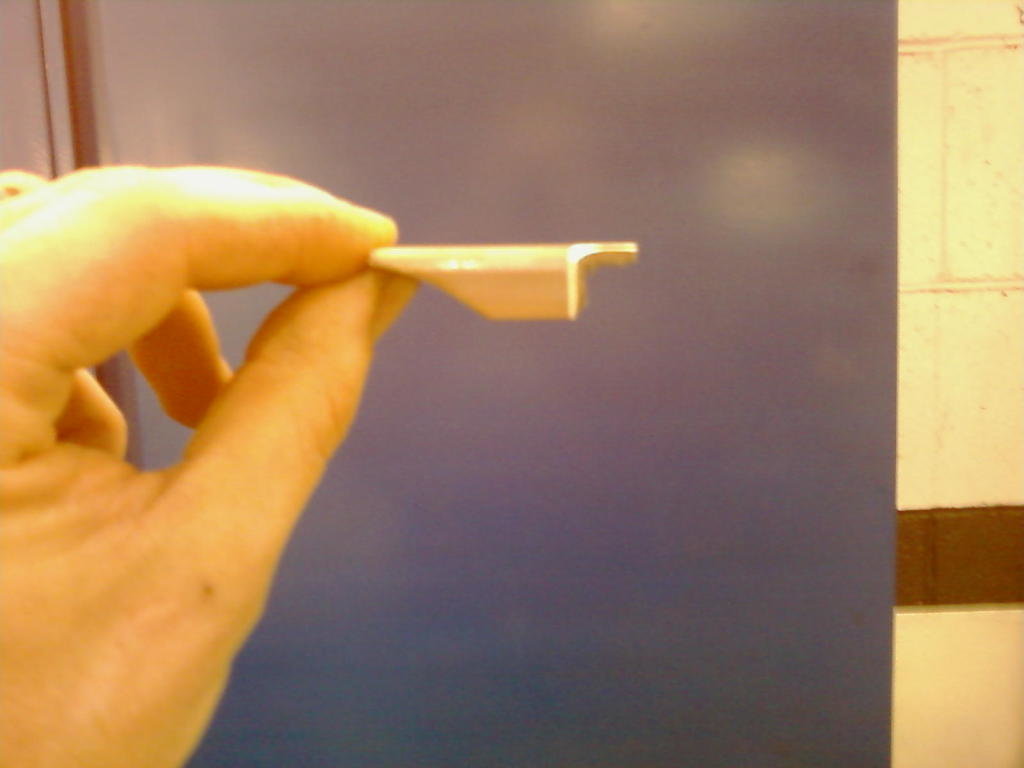

    Found the perfect steel channel at home depot for under $10 and started cutting. Ended up making a total of eight tabs.

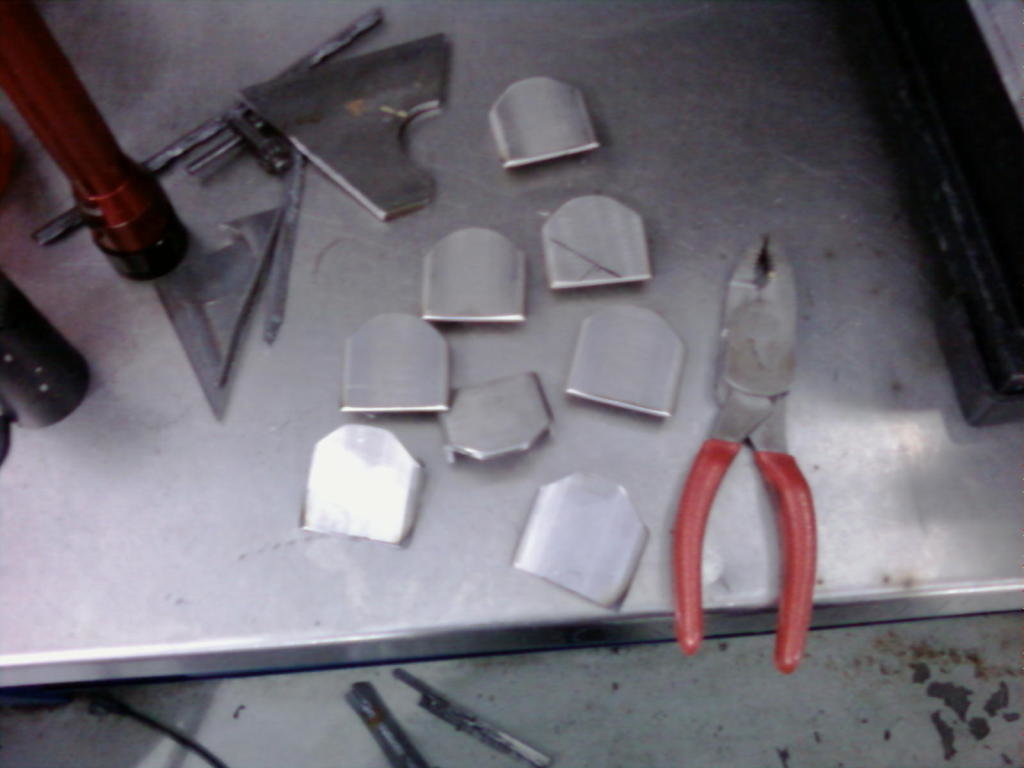

    Used a belt sander to shape the tab to fit the tubing nicer.

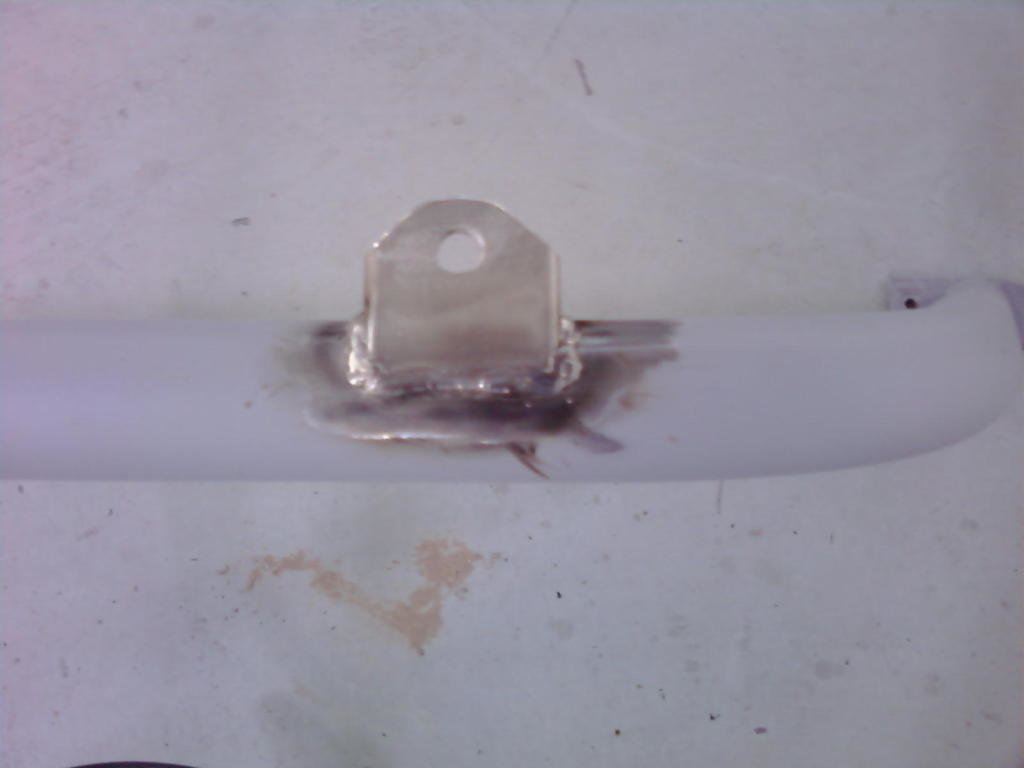

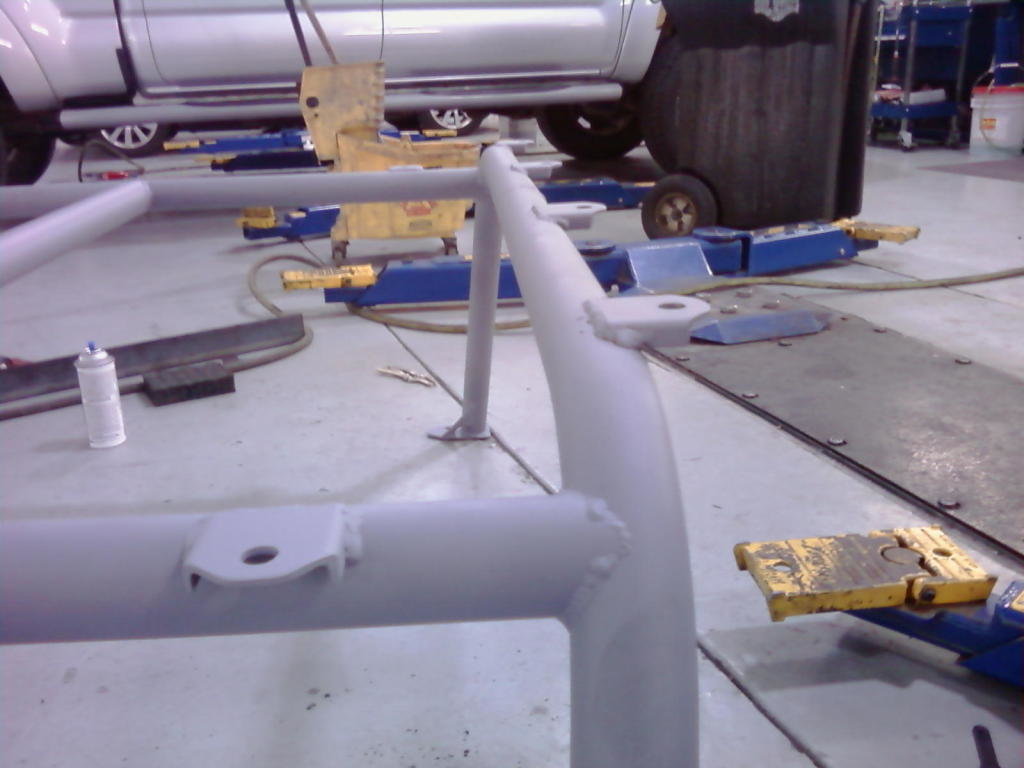

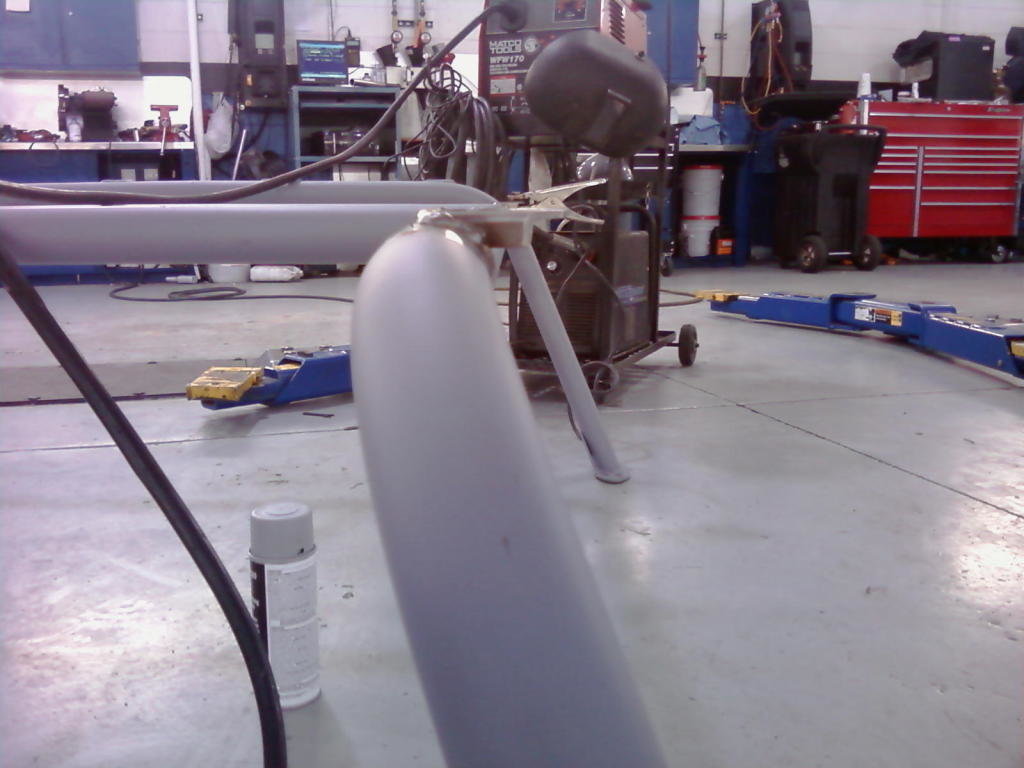

    I decided to locate four tabs on the front main hoop and two tabs on each rear hoops.
    I have four HID offroad lights on order through my dealership and will mount on the front tabs. I plan to drill just behind the tabs for hidden wire routing through the hoop.
    Got bored looking and researching for the best finish for the rack and decided the rack needed some handles in the back.
    Started with a 3/4" tube I also found at home depot. My coworker also had a small woodward fab tube bender lying around and made a bend to see how it would look.

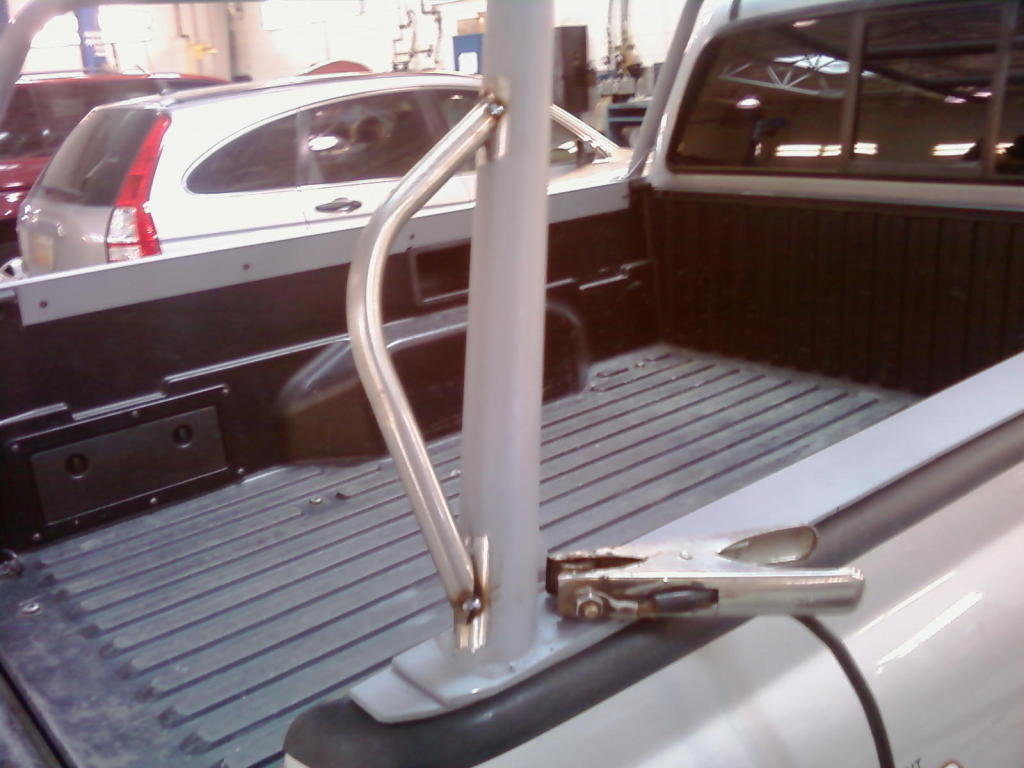

    Tack welded and turned out better than I had expected.
    Welded them both in place and smoothed out to prevent any chance of injury.

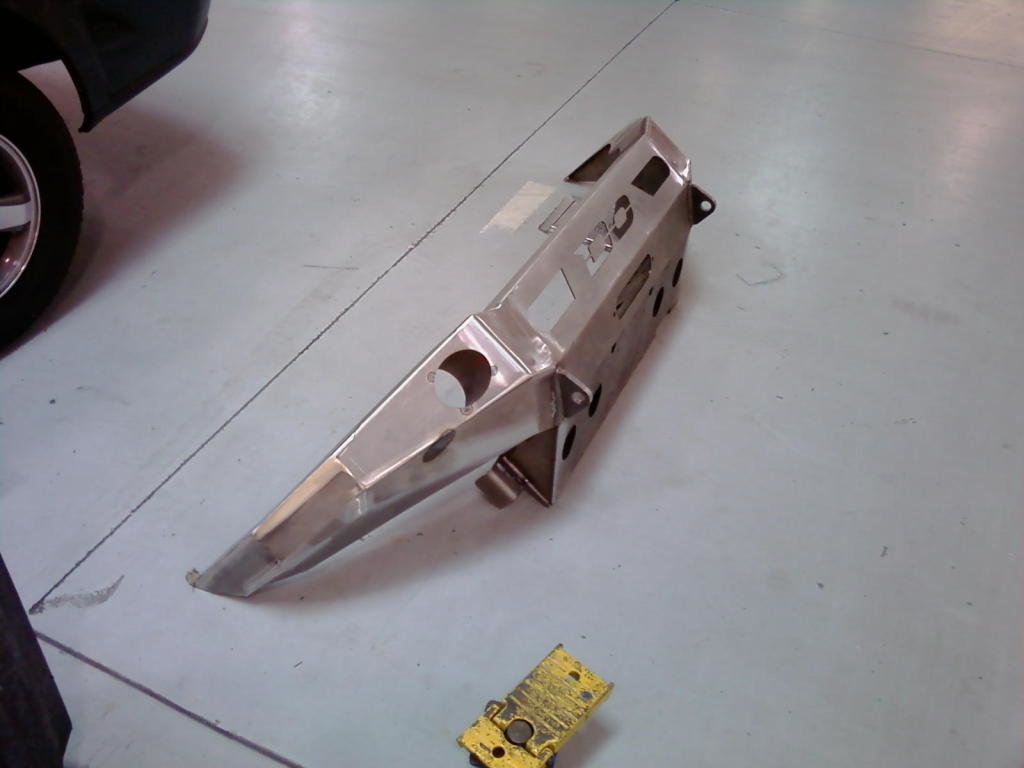

    Used part of my tax return to buy a Demello bumper.I really like the look of the three hoop version so in an effort to save money I ordered it without a coating and no hoops.
    This thing is beefy and fit perfectly without a fight. Didn't install the other brackets in order to save the hassle of taking it all off to paint it once the hoops are done.

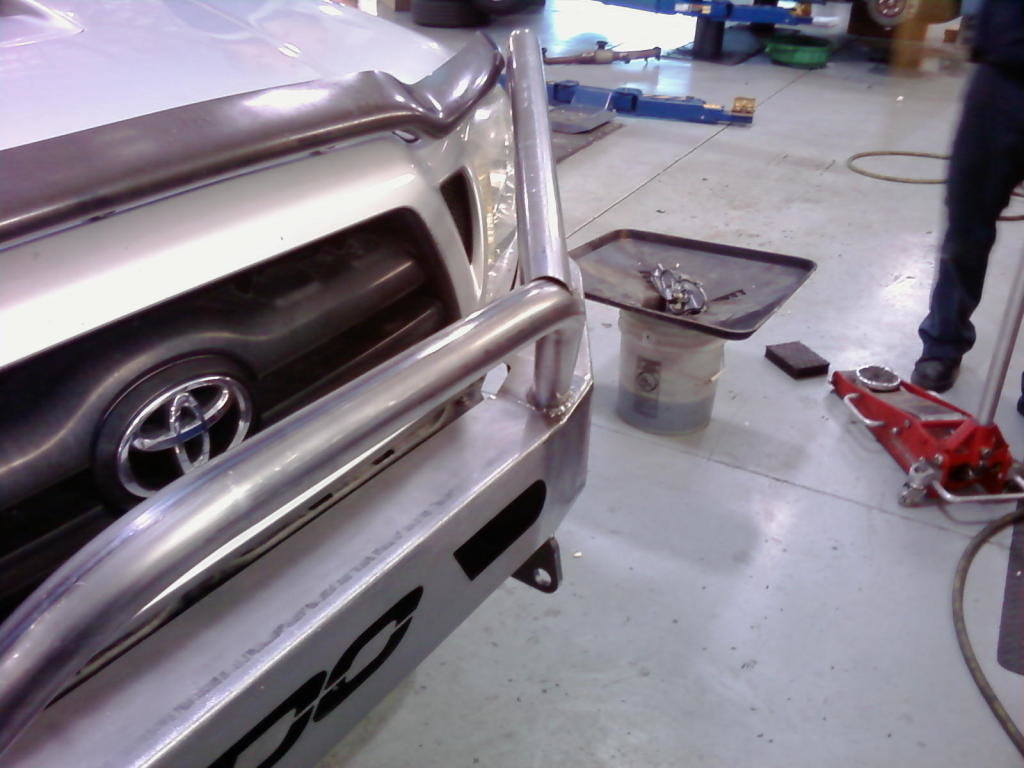

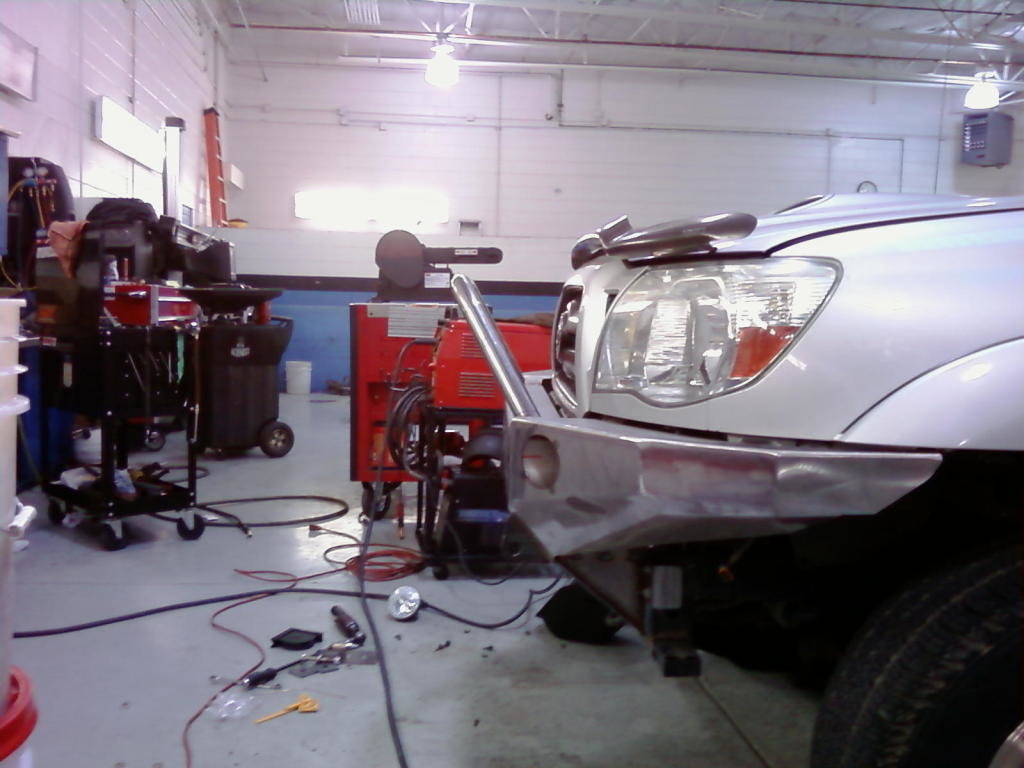

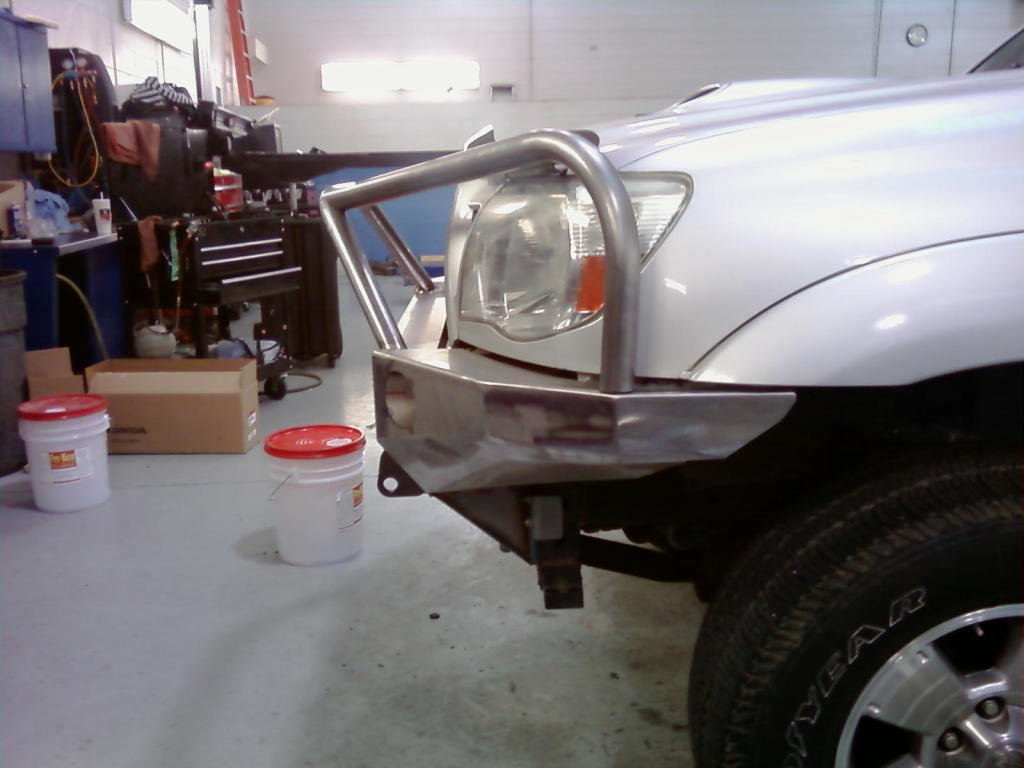

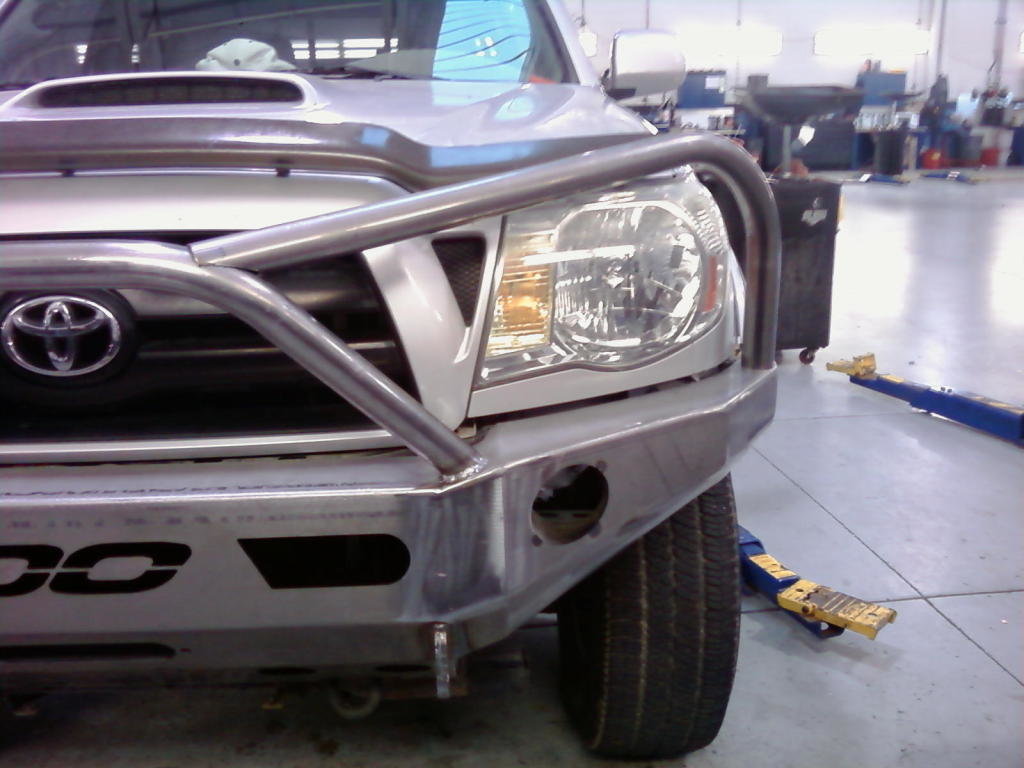

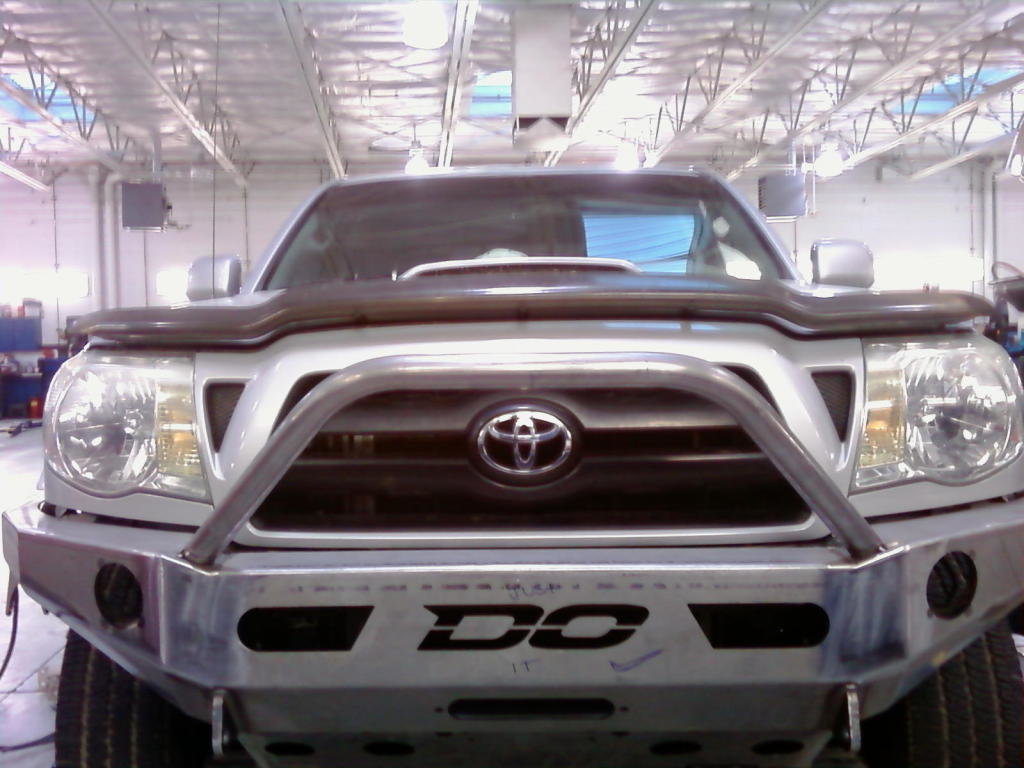

    Bent some of the remaining tubing for the center hoop of the bumper.
    Tacked in place.
    The center hoop sticks out further than the pictures I have seen, but I like the look.
    Next was the outer hoops. Bent and cut to fit where I liked it.
    And that's where the build is for the time being. The time it took to build the rack and bumper hoops was about two weeks time in our spare time. Luckily/unfortunately It was slow at work for the most part so I had alot of spare time the last two weeks.

  8. Feb 22, 2012 at 11:47 PM
    #8
    surferkid

    surferkid Zombie Killer

    Joined:
    Aug 25, 2011
    Member:
    #62373
    Messages:
    260
    Gender:
    Male
    San Marcos, CA
    Vehicle:
    07 SR5 4x4 2.7 5spd
    camper, thule board racks, wet okole seat covers, AFE dry filter, smittybilt light bar
    that is awesome man! you are a master fabricator those welds are clean!

  9. Feb 22, 2012 at 11:53 PM
    #9
    Krazie Sj

    Krazie Sj Resident Jackass

    Joined:
    Oct 9, 2008
    Member:
    #9849
    Messages:
    13,754
    Gender:
    Male
    First Name:
    Power Serge
    LV-426 (Acheron)
    Vehicle:
    07 TRD Off Road 4x4
    Borla Catback Exhaust, Airaid Short Ram Intake, 285x75R16 Mickey Thompson MTZs, 16" Konig Countersteer rims, ARB Bumper, All Pro LT w/Walker Evan Shocks front and back, All Pro expedition leaf pack, 10,000lb Superwinch, Intake Manifold Spacer, Bed Rack with ARB RTT, Rotopack and Hi Lift mounted, Husky Liner mats and an air freshener from 1995.
    This is an impressive build. Max Kudos.

  10. Feb 23, 2012 at 12:02 AM
    #10
    Twistedfreedom

    Twistedfreedom welcome to the incredibuild

    Joined:
    Sep 12, 2011
    Member:
    #63386
    Messages:
    8,797
    Gender:
    Male
    First Name:
    Adam
    Seattle
    Vehicle:
    in progress
    modded the F*ck out
    These are the best three posts I've ever seen

  11. Feb 23, 2012 at 12:17 PM
    #11
    Olavity13

    Olavity13 [OP] Member

    Joined:
    Feb 22, 2012
    Member:
    #73408
    Messages:
    9
    Gender:
    Male
    First Name:
    Ollie
    Rio Rancho
    Vehicle:
    2006 DCLB 4x4 Sport
    Revtek lift, hand built bed rack, Demello Offroad bumper.
    Thanks. Started it at the beginning of this month.

    That is awesome.
    Thanks for all the kind words, I hope to finish the outer hoops today. We'll see.

  12. Feb 23, 2012 at 8:36 PM
    #12
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,373
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    Where do you work?

  13. Feb 23, 2012 at 9:02 PM
    #13
    griffin407c

    griffin407c Well-Known Member

    Joined:
    Oct 18, 2009
    Member:
    #24489
    Messages:
    581
    Gender:
    Male
    First Name:
    Ryan
    Upstate NY
    Vehicle:
    '12 DCLB MGM 4x4 Sport w/Entune
    3" Revtek Lift
    i like it. good job

  14. Feb 23, 2012 at 9:04 PM
    #14
    Bengland25

    Bengland25 Never Forget! 343

    Joined:
    Nov 17, 2011
    Member:
    #67192
    Messages:
    1,937
    Gender:
    Male
    First Name:
    Bradley
    Southern California
    Vehicle:
    09 Tacoma TRD
    MB Chaos 6 17" wheels, BF Goodrich All-Terrain TA/KO LT265-70R17, Anytime Fog Lights, Anytime Backup Camera, Bed Lights, Tailgate Lock, Light bar with 3 Hella 700FF's, Realtree Camo arm-rests, Anytime DTRL (With Switch), Blue Seas Fuse Block and Circuit Breaker, Custom Bed Light-Bar, Cobra 29 LTD Chrome, 4' Firestik, Masterlock Hitch Key Safe, Bed Storage Compartment Locks, Custom Shovel Bracket Mount, Flag Pole Mount (RED SOLO CUP FLAG!), DIY Washable Cabin Filter, URD MAF Cal., Homelink Garage Door Opener, Volant CAI w/ Ram Scoop, AeroTurbine 3030XL, URD Short Throw Shifter, Custom Satoshi, Blitzpro 21S, 2 Blitzpro 6LZ's, Blitzpro 6D, BAMF Sliders
    That rack is awesome man! looks really good! You should start selling these things, i bet a lot of guys would love to get this!!

  15. Feb 23, 2012 at 9:08 PM
    #15
    sytfu510

    sytfu510 INSTAGRAM: sytfu510

    Joined:
    Aug 27, 2011
    Member:
    #62453
    Messages:
    4,669
    Gender:
    Male
    First Name:
    Alex
    Bay Area
    Vehicle:
    06 DBL Cab Long Bed TRD Sport
    Dirt Designs LT kit DMZ LT Kit TRD Supercharger SCS Wheels BAMF
    judging by the uniforms, Honda.

    Great work OP! looking forward to seeing the finished product.

  16. Feb 23, 2012 at 9:09 PM
    #16
    Rupp1

    Rupp1 "If you can dodge a wrench, you can dodge a ball."

    Joined:
    Jun 9, 2011
    Member:
    #58019
    Messages:
    1,959
    NC
    Vehicle:
    2015 DCSB OR Auto Silver Sky 4x4
    Like it! :thumbsup:

  17. Feb 23, 2012 at 9:10 PM
    #17
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    5,202
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Excellent work! Keep 'em coming!

  18. Feb 23, 2012 at 9:30 PM
    #18
    berg2065

    berg2065 Well-Known Member

    Joined:
    Jul 17, 2011
    Member:
    #60035
    Messages:
    115
    Gender:
    Male
    Phoenix
    Vehicle:
    11 reg cab 4x4
    5100's set at .85,eibachs, LR uca's, toytec 1.5" aal, ride rite bags, receiver hitch, ARE cap with bedrug, Thule rack, wet-okole cover, ultragauge, kenwood dnx5180 navi/receiver, ss rubi404 running factory doors and JL8
    congrats on your new tacoma and can't wait to see this build progress. Nice work OP.

  19. Feb 23, 2012 at 10:36 PM
    #19
    Leer

    Leer Well-Known Member

    Joined:
    Jan 6, 2008
    Member:
    #4113
    Messages:
    191
    Gender:
    Male
    First Name:
    Lee
    Hilo / Oahu
    Vehicle:
    08 Tacoma 4x4
    Just....WOW!

  20. Feb 24, 2012 at 8:54 AM
    #20
    Olavity13

    Olavity13 [OP] Member

    Joined:
    Feb 22, 2012
    Member:
    #73408
    Messages:
    9
    Gender:
    Male
    First Name:
    Ollie
    Rio Rancho
    Vehicle:
    2006 DCLB 4x4 Sport
    Revtek lift, hand built bed rack, Demello Offroad bumper.
    sytfu510 got it right. I work at a Honda dealership.
