My 50W FX-R Retrofit Build

Discussion in 'Lighting' started by viperstd, Nov 9, 2011.

  1. BenJammn5

    BenJammn5 RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,414
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    It's always something, right? :mad:

  2. viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    4 days later I put the first headlamp assemble back together at 2230. All buttoned up with new butyle rubber. ... I went to aim her and... the adjustment screw female half stripped out.... FML

  3. viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    mad props to those people that get good enough at this to crank out a set in 6 hours. I am at 4 days and counting on the first one. ... having a parts bin would have helped a lot!

    I swear I'm not inept. I can build a motor in my sleep, CAD/CAM, I'm an engineer, I used to teach composites manufacturing, but DAMN!

  4. AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,343
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    whats going on man =\ ...

  5. MC1983

    MC1983 Well-Known Member

    Joined:
    May 3, 2009
    Member:
    #16728
    Messages:
    270
    Gender:
    Male
    First Name:
    Mark
    Indianapolis, IN
    Vehicle:
    2005 DC LB PreRunner Sport
    It will all be worth it in the end. I was debating between the FX-R and the miniD2s and I went with the miniD2s just for ease. Now after seeing more pictures of output, I want to upgrade to the FX-R. Where are you in MD, I'd like to take a look at yours in person when you get them all done.

  6. AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,343
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
  7. BenJammn5

    BenJammn5 RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,414
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    Yes, really, I feel your pain believe me. The balljoint socket that allows the shield to pivot horizontally and vertically kept popping off when I adjusted mine. The top screw that adjust's horizontally was maxed out clock-wise and was putting too much pressure on the joint, thus popping it out.

    What exactly do you mean it half stripped out? Before you cooked the light and put it all back together, did you cut the excess part of the screw? I know it's difficult, but maybe a picture would help.

    4 days? that's nothing. I've been at this retrofit for a month.

  8. AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,343
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    just to add on to the excess part of the screw. All four of my screws were shortened using dremel then to seal the small gaps and ensure the nut doesnt get loose, JB Weld

    [​IMG]


  9. viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    Don't tell me 4 months! Argg. Haha :cheers:

    With the way the projector is mounted the adjustment screws are about in the middle. The L/R screw is cheated to the right though.

    The black plastic tab that the adjuster screws screw into completely stripped out for the Up/Down adjustment. I think it happened in the open when I baked it back together.

    When I pulled it back apart last night I used 100% silicon caulking to bill those adjsuter tabs. I will drill a small hole into it and allow the bolt to grab whats left of the original threads and hopefull get enough purchase on the silicon. If it doesn't look like that will work I think I will need to JBweld them and drill and tap holes :s.

    do you mean did I cut the excess off of the bolts that hold the projector into the bowl? I cut the top ones since they could hit something, but I never trimmed the bottoms. They looked like they cleared. I will check it when I get home and cut them if I need. The white 'ball socket" tab has been staying put, thankfully.

    I live/work in the far south of SoMD. But would be willing to meet up somewhere reasonable for a Tacoma day once the truck is all back together.

    Frustration? :D
    I pulled them back apart last night at 2300. I will investigate after work today.

  10. viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs

    Damn dude! so much cleaner than mine! I'll get some new pics up tonight.

  11. AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,343
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    thanks :) some pics would help !


  12. BenJammn5

    BenJammn5 RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,414
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    ^Seriously, that is entirely too clean looking AnT. Jelly. I'll show pics of mine later..

  13. AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,343
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    :) thanks guys

    check out my sig for some more pics if you'd like... the reflector bowl shaved as well so the projector sits compltely on it..vice on the grooves and what not of the bowl.


  14. AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,343
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    i believe the main purpose of the shroud is to cover up the projector, not to fit into the bowl!

    how come you cut the metal tabs off :confused:
    curious to see the pics when u get home.....


  15. viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    I cut the metal tabs off the bottom of the projector so that the shroud would actually clear the projector and cover it up the way it was advertised to.

    here you can see before shaving the tabs:
    [​IMG]

    And here is after. (This is an older pic. I actually shaved them down to the point where there is barely a crescent from the original holes. I drilled the new holes in the very corner of the tab.)
    [​IMG]

    I shaved part of the shroud to clear the reflector bowl too. It touches in about 7 places. I thought about making a clay mold to do a full impression and get a "perfect" fit between the bowl and shroud but couldn't justify the time or cost in clay when you have to look very hard to see a gap at all (its only a 1-2mm in most places and is black on black).



    In other news, I didn't get around to taking any photos tonight snice I got home from work so late... but I fixed the stripped adjuster screw tabs and re-assembled the first headlight! I remounted it for a final check on the truck and it looks pretty damn solid! I drove it around the neighborhood to see how 50W of FX-R was. It is very nice. I'm actually a little disappointed in the light output but I think I've been staring at them in a white-walled room for too long and was expecting the sun. Also, I think the one 50W HID is outshining both of the factory headlights combined. The highbeam is pretty sweet. I'm really looking forward to seeing it with both!

  16. viperstd

    viperstd [OP] Tacoma convert

    Joined:
    May 21, 2009
    Member:
    #17487
    Messages:
    380
    Gender:
    Male
    Maryland
    Vehicle:
    09 4x4 TRD SR5 DC LB
    AllPro Front and Rear trail armor & full skid plates, Demello Hybrid Rock Crushers, Old Man Emu suspension, Warn 8000# winch, PIAA SMR fogs, perforated + heated leather seats, in-dash DVD/NAV/Sound, RE subs
    Been a little slow with the build the last few days. I'm waiting for my new ballast and projector shield to arrive from TRS. The ballast was sparking on the surface. TRS customer service was great. They had me cut the wires and send them a pic with the ballast destroyed and they dropped a new one in the mail the same day.

    The shield in one of the projectors was giving a shit cutoff. I snapped a cell phone pic of that and sent it to TRS and they dropped a new shield in the mail too. Im' hoping the new parts arrive today so I can finish this build up this weekend. I have 600 miles of driving to do Monday.

    Overall, I don't like the naming of the products implying they are Japanese when it is obviously chinese crap, and the build quality is fairly low... however, the performance seems good so far and with painless returns and group buy prices it is hard to beat.

    Last night I trimmed the other shroud and got a good fit in the reflector bowl and painted all the surfaces black. The pictures would look the same as those already posted.

    I do have 2 questions
    What does everyone do with the rubber boot in the back to 'waterproof' the headlight assembly. The Bulb base and connector seem 100% incompatible with rubber boot :-/.

    When wiring them up, are you guys installing inline fuses with the included harness? The harness uses the stock wiring to trigger the relays to fire the lights and highbeams.

  17. AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,343
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.
    for the rubber boot, you need to cut it to make the hole a bit bigger... if you can wait a few hours till i get home, i can take pics of before, during and after...i have a pair that i need to cut/modify.

    im not adding any fuses or anything to whatever has been provided with the harness.. just plug it all and fire em up..


  18. BenJammn5

    BenJammn5 RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,414
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    I trimmed the hole with a razor blade, it's more of a dust cover than a water resistant cover.

    For the high beam connection I spliced the high beam connector off my H4 philips HID bulb (what I had before a D2S retrofit) and connected it the FX-R high beam wires for a plug-n-play fit.

    True thing about the Morimoto's being chinese quality in terms of build, but they do perform extremely well. The shield inside one of my projectors got stuck halfway down and I had to go in with a screw driver to pop it back up. Haven't had the problem since..

  19. AsianAnts

    AsianAnts just an AnT

    Joined:
    Dec 30, 2010
    Member:
    #48438
    Messages:
    6,343
    Gender:
    Male
    First Name:
    AnT
    Southern California (San Diego County)
    Vehicle:
    2011 PreRunner TRD Sport L/B Grey Metallic
    -Satoshi Grille Upper/Lower/Triangles -LED Map Lights, LED Dome Light, LED License Plate Lights -No front license -Wet Okole -Weather Techs (digi) -Running Boards -Bed Extender -AFE Cold Air Intake 2SI Dry Filter -Tailgate Hose-Clamp Mod, Tailgate washer Mod -Combi chain lock on bed extender -no chime w/ key in ignition & open door -Fog Light anytime -Slim Cubby's 3kHID fog -bumper plugs -keyhole plug -TRD license plate frame -combi-lock storage -rear TSB -window tint -camera mod -Painted radiator/engine covers -LS460 RetroFit -Bed Tie-Downs -LED Gauge Cluster, radio, clock and AC -Bed Mat -Extra DRings -Painted center console, radio unit, ac panel, overhead console.

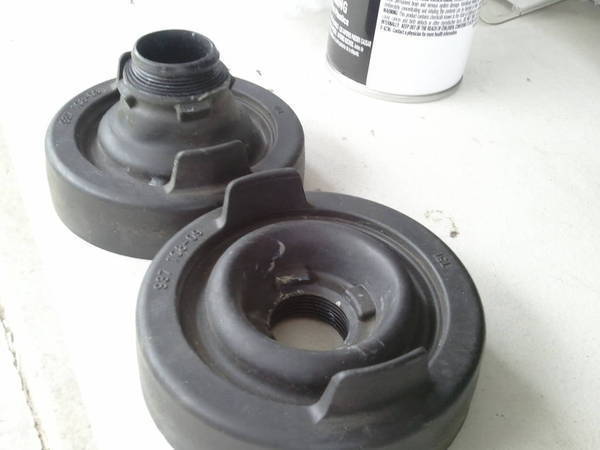

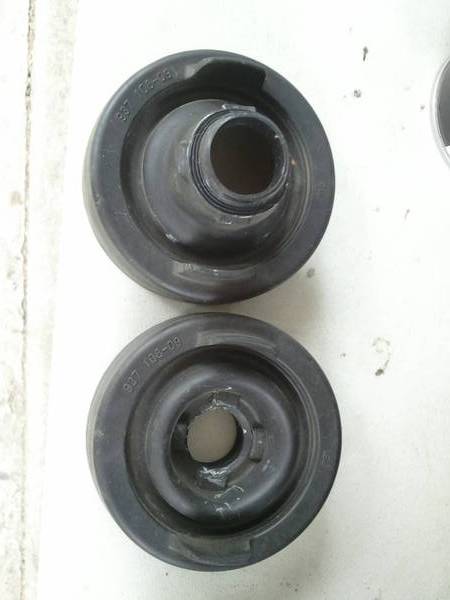

    rubber boot. popped it inside out and starting cutting along the 4 notches.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  20. stunt man hans

    stunt man hans displaced viking living in new jersey

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,647
    Gender:
    Male
    First Name:
    hans
    south jersey
    Vehicle:
    2010 tacoma reg cab 4x4 5spd 4cyl
    undercover se, pop&lock tailgate, rallye 1000 hela black magic lights, black grill craft grill lower. twm m1 abrams shift knob, ap ubolt flip kit & ifs high clearance skid , timbren bumpstops, pro comp 3 inch lift, goodrich ss braklines front and rear, lr uca's, customlightz.com fx-r 55 watt retrofit, ARB deluxe bull bar, vision-x solstice pods, black wet okole seat cover,weather tech digital floor mats window visors toyota hood guard, safari snorkel, full bed rug, full putco led swap hd led flasher cf18-08, pioneer bluetooth ipod navigation double din headunit, flowmaster 40 muffler custom center outlet exhaust, regear and arb lockers, arb rear bumper if they ever fucking release one lol and arb sliders coming soon as well as a new line-xtra paint job!
    300 degrees is to hot for the headlight you will weaken the rear of the housing ie the gray plastic for sure making it brittle.

    i hope this was a typo you probably should have used a heat gun thats how i did all of mine.
