My AC Controls Light Mod - How To

Discussion in 'Lighting' started by m3zy6, Aug 3, 2010.

  1. m3zy6

    m3zy6 [OP] Well-Known Member

    Joined:
    Jul 18, 2010
    Member:
    #40389
    Messages:
    329
    Gender:
    Male
    Savannah, GA
    Vehicle:
    07 AC TRDOR 4x4 6spd

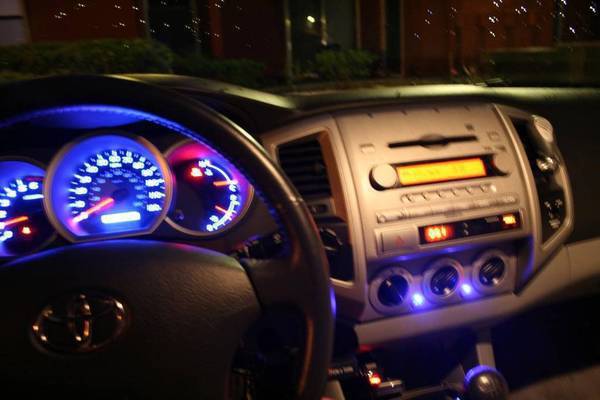

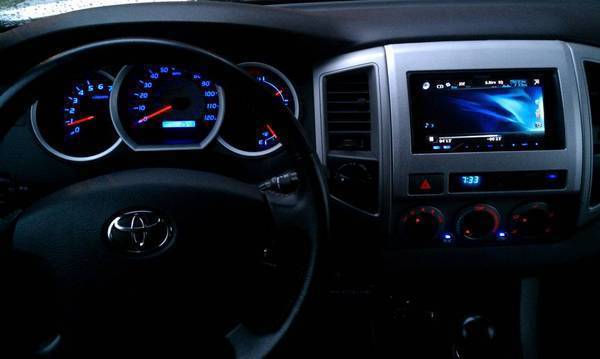

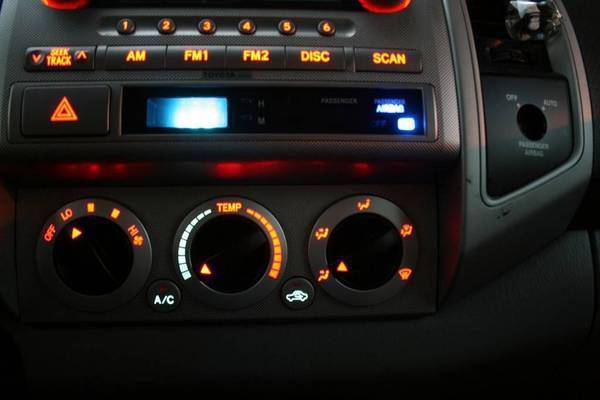

    I figured I should edit in a preface with a shot of my completed blue and red dash, completely amber free -
    (click on the pic below, and then click on the pic that opens to see the full size version)
    [​IMG]

    I only want to change one thing. I am looking for a clearer/darker blue tint for the clock. I use the term "looking" loosely though, if I come across something better I'll change it, but I'm not actively searching. I am going to get my windows re-tinted this week, so maybe I'll find something there.

    The mods are in this post, #1, and post #10.
    ________________________________________________________________________________________________


    OK, so earlier I posted about a mod to the AC controls, but I wasn't sure what I was going to do. This is a walk through of what I ended up doing.

    EDIT- For additional views of the AC control check this thread - http://www.tacomaworld.com/forum/lighting/106324-ac-controls-disassembly-pics.html

    First thing, changing the LEDs.
    Get two 3mm 3v LEDs in your chosen color for the AC and air recirculate buttons. I went with blue.

    [​IMG][​IMG]

    Completely open up the AC control until you are looking at the circuit board.

    [​IMG]

    [​IMG]

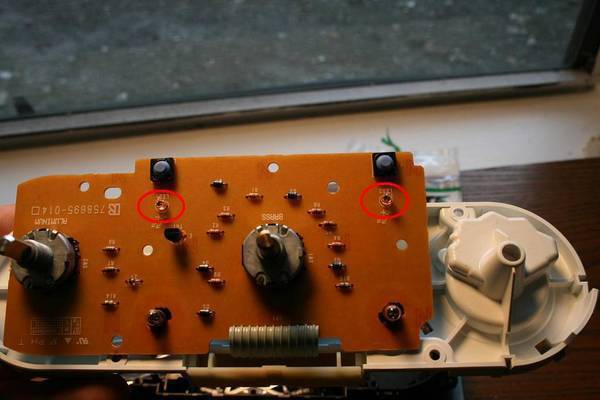

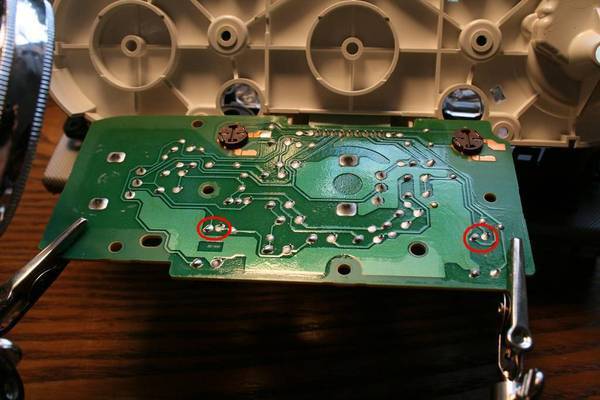

    Remove the two amber LEDs.

    [​IMG]

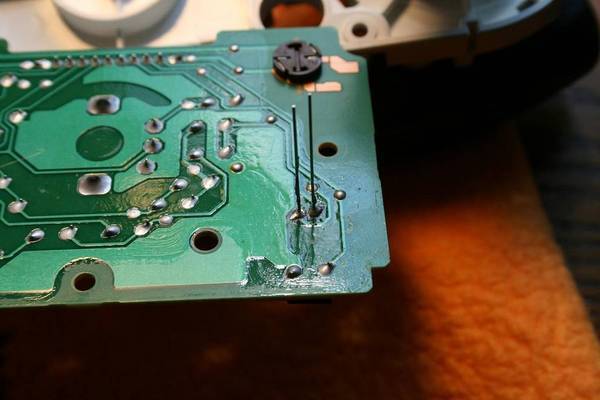

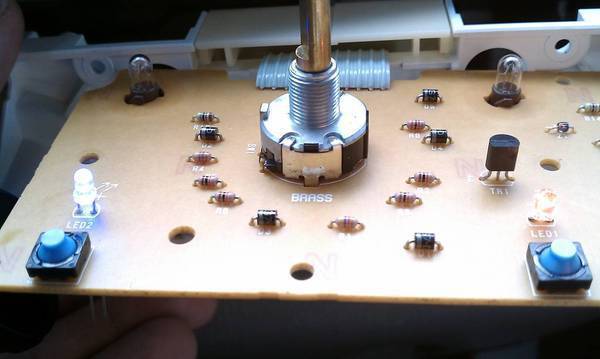

    Install your two new LEDs, maintaining correct polarity. The base on my LEDs had a flat side to help with this, the red backwards "D" indicates the correct way.

    [​IMG]

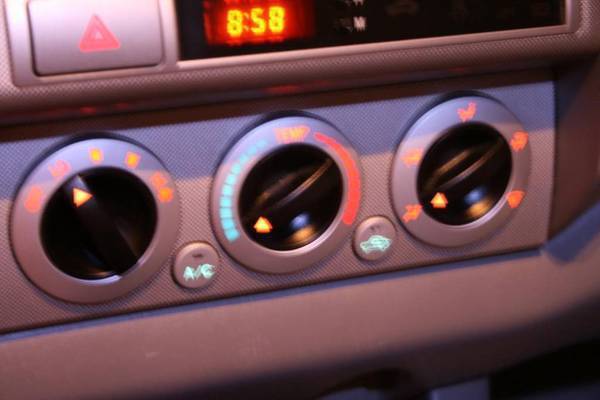

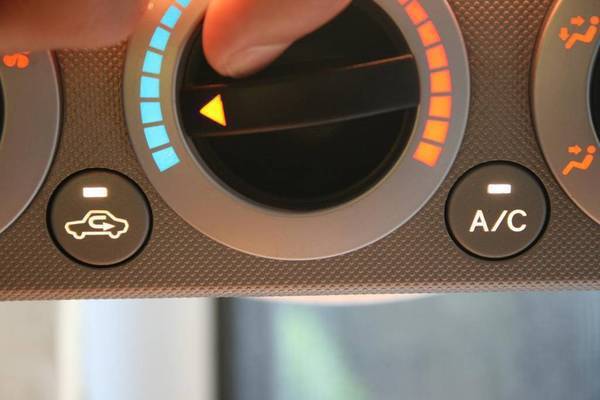

    I swapped one out, and then checked it in the truck to make sure I was doing it right. I would suggest doing this. You don't have to reassemble the whole thing, just the fan control knob on the left.

    [​IMG]


    -Now, if you just wanted to do the LED swap you're done. But if you want to change the color of the buttons keep going

    Now, as I'm sure you've read, the AC control face is painted on, so there isn't a way (yet) to change that color to anything other than red.

    The buttons are also painted, but....the amber paint is on the backside, which means you can strip it without touching the silver face.

    I used a Dremel to carefully, CAREFULLY take off the amber paint.

    EDIT - Aquilla1 found a safer/easier way to do it.
    [​IMG]

    [​IMG]

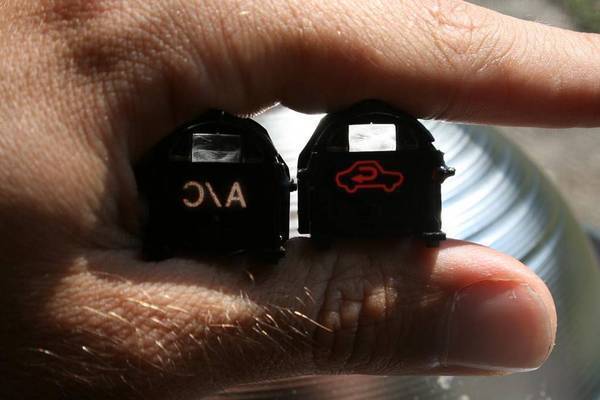

    Yep, that's a before and after.

    [​IMG]

    Yes, it is completely clear. Yes, you can make the buttons any color you want (providing you have a way to tint them that color.) I kept the blue theme going.

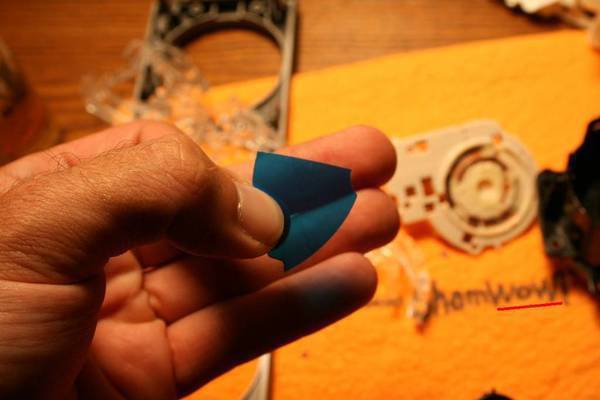

    I looked around the house and found an old binder divider with a blue tab.

    [​IMG]

    I then cut it and glued it into the back side of the buttons.

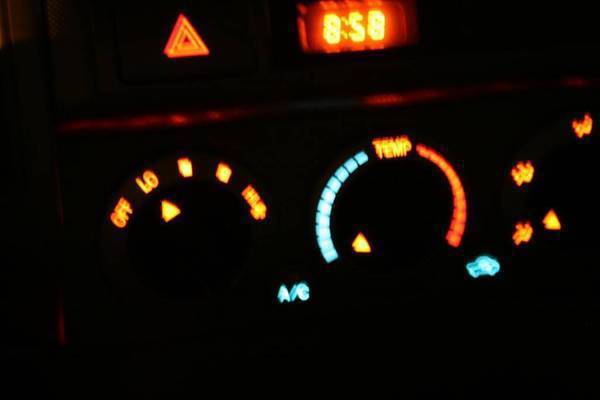

    All of this has led to this -

    [​IMG]

    [​IMG]

    [​IMG]
    ------------------------------------------------------------------------------------

    The blue LEDs are sweet, but the real star it the blue backlight. It is the exact same color as the blue on the temp dial. I love it.

    I am only about half done. I still need to make the dial pointers blue, and the face backlight a deep red. The clock assembly is getting a blue makeover too. Once thats done it will be a perfect match to my cluster. I have a new radio HU on the way too so that will match as well.

    I will continue to update as I finish up the things I listed.
    Thanks!

  2. JAG

    JAG Well-Known Member

    Joined:
    Oct 9, 2008
    Member:
    #9847
    Messages:
    1,771
    Bump for sticky!

  3. SlurpeeBlueMetallic

    SlurpeeBlueMetallic FFFFFFUUUUUUUUUUUUUUU...

    Joined:
    Jun 23, 2009
    Member:
    #18825
    Messages:
    1,666
    Gender:
    Male
    Sweet, added to my LED bookmarks to keep track of it for when I have a free weekend.

    Rep!

  4. Kritter

    Kritter Member

    Joined:
    Jul 20, 2010
    Member:
    #40483
    Messages:
    14
    Gender:
    Male
    Vehicle:
    06 4x4 SR5 crew cab long bed
    Tint, stereo, and stock size black GEAR wheels, BLHLM, tinted tail and 3rd brake light, satoshi grill mod, tactical redeployment lights under back bumper. fog light anytime mod. HID's,
    bump...
    props dude

  5. m3zy6

    m3zy6 [OP] Well-Known Member

    Joined:
    Jul 18, 2010
    Member:
    #40389
    Messages:
    329
    Gender:
    Male
    Savannah, GA
    Vehicle:
    07 AC TRDOR 4x4 6spd

    Thanks guys!

    Hopefully I can finish today, but Im not holding my breath. I still need to track down some red tint film and some blue plexi.
    Will update once there is an update.:)

  6. Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,109
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
    props man!

  7. flightcancled

    flightcancled Addicted

    Joined:
    Feb 7, 2010
    Member:
    #30917
    Messages:
    1,471
    Gender:
    Male
    Syracuse NY/ Nantucket MA
    Camper top with racks, Custom fogs behind lower bumper. Interior LED lighting, Rock Lights, Hella 500s with upraged bulbs behind black billet grill, AAL, Front 5100s
    Nice! I totally forget how I made mine blue, but nice work!

  8. CRfofiddyF

    CRfofiddyF Well-Known Member

    Joined:
    Apr 27, 2010
    Member:
    #36081
    Messages:
    159
    Gender:
    Male
    AZ
    Vehicle:
    07 TRD DC 75Kmi
    Great write up! can you give the LED specs of the new ones and where you got them?
    Thanks!

  9. m3zy6

    m3zy6 [OP] Well-Known Member

    Joined:
    Jul 18, 2010
    Member:
    #40389
    Messages:
    329
    Gender:
    Male
    Savannah, GA
    Vehicle:
    07 AC TRDOR 4x4 6spd
    [​IMG]

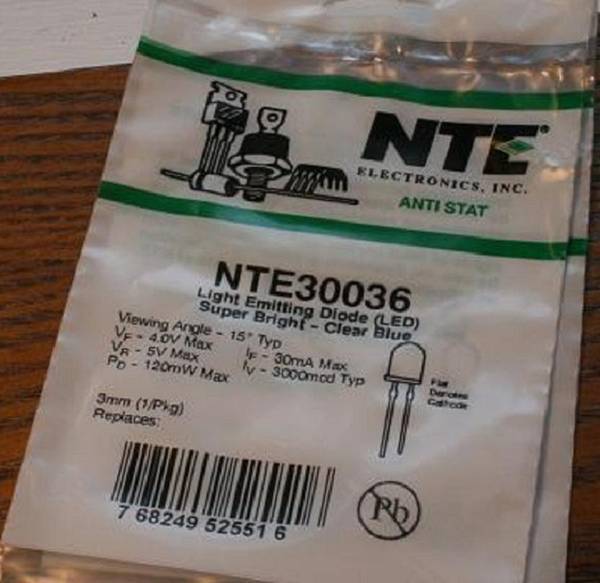

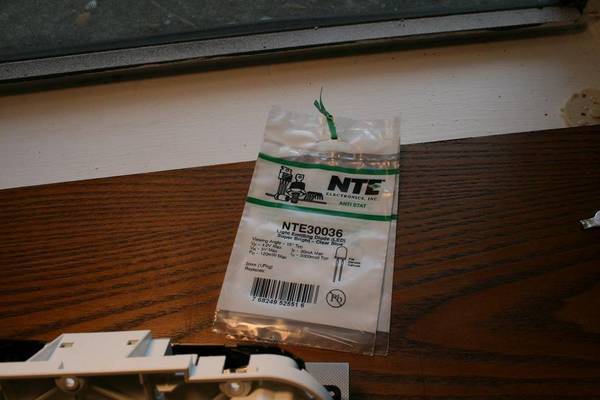

    flightcancled pointed me in the right direction, but I was unable to fine the 3mm, 3v LEDs he suggested in my area. I found these in a local electronics place called Practical Electronics. Just look in your yellow pages and find someplace that sells individual, small electronic components and they should have some.

  10. m3zy6

    m3zy6 [OP] Well-Known Member

    Joined:
    Jul 18, 2010
    Member:
    #40389
    Messages:
    329
    Gender:
    Male
    Savannah, GA
    Vehicle:
    07 AC TRDOR 4x4 6spd
    Ok, so I had more time today to figure out the red backlight for the AC controls, and the blue changes for the clock assembly.

    I started the red backlight process first -

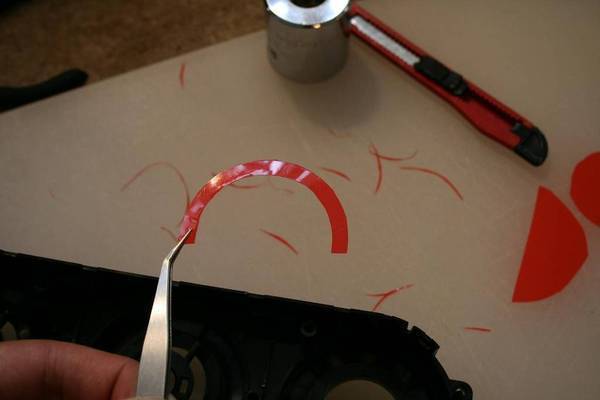

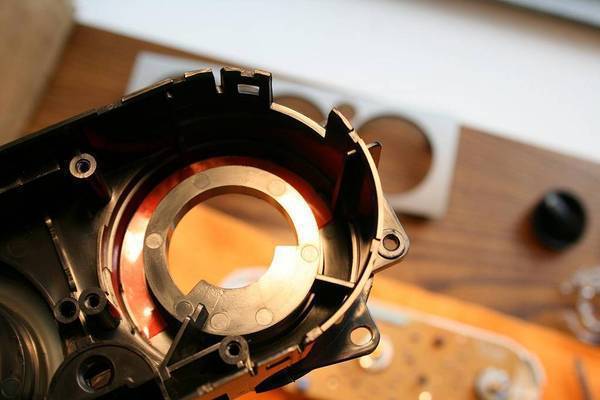

    I got a red see-through from Staples and cut it to fit in the back of the bezel

    [​IMG]
    [​IMG]

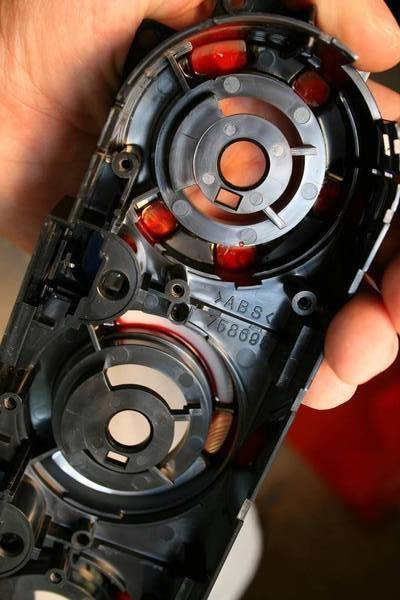

    This ended up not being red enough for me, so I pulled open a red sharpie and put a really thick coat of permanent red in the back of the bezel indicators.

    [​IMG]
    [​IMG]


    I then glued the clear red plastic over the red sharpie. It is hard to capture it in the pics, but its as red as the red indicator on the temperature control knob.

    ------------------------------------------------------------------------------------------------------------------------------------------



    I started on the clock next.

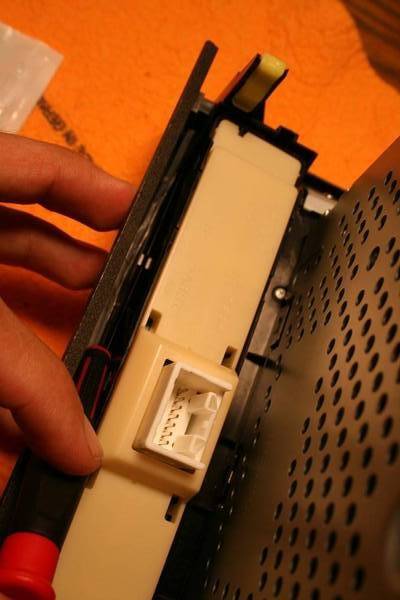

    Its kinda tricky to get out of the bracket. There are about six clips that you have to work to get it out, just be careful.

    [​IMG]

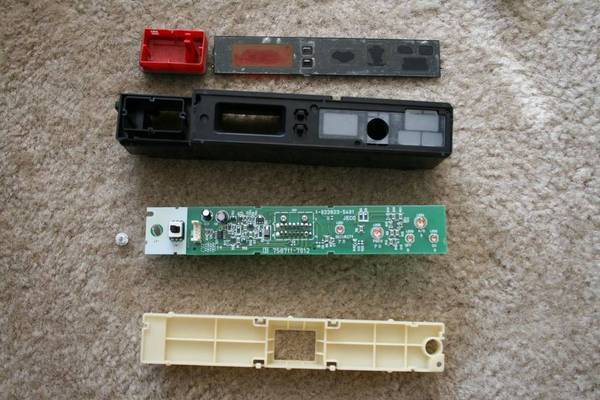

    Once you slide it out you can open it up and you'll have this -

    [​IMG]

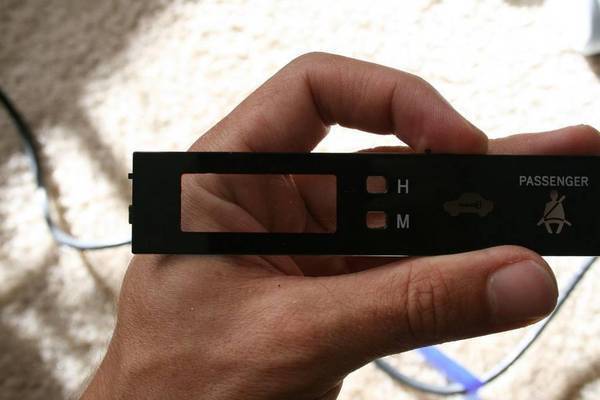

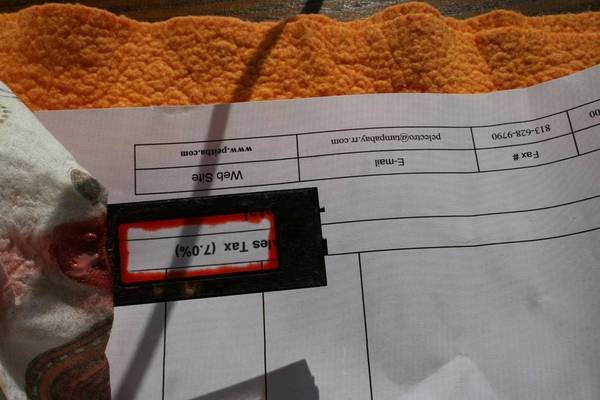

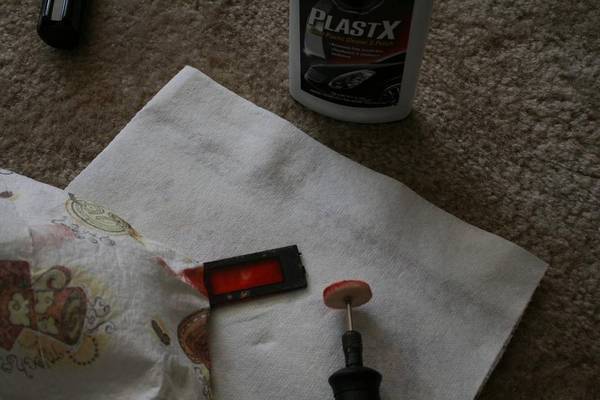

    The face isn't held on by anything other than adhesive, just carefully pull it off. Grab some light plastic polish and a Dremel and start taking off the amber film on the back of the clock window.

    Be very patient, don't bear down or work too fast. Use a lot of the plastic polish so you don't build up too much friction. It will take quite a while, but eventually you will start making progress. It is very easy to score the plastic by rushing, so don't. This is the easiest place to mess up. Since you cant just buy the face, and the whole assembly costs about $200, it is a very expensive mistake.

    [​IMG]


    About halfway there -

    [​IMG]

    And all done -

    [​IMG]

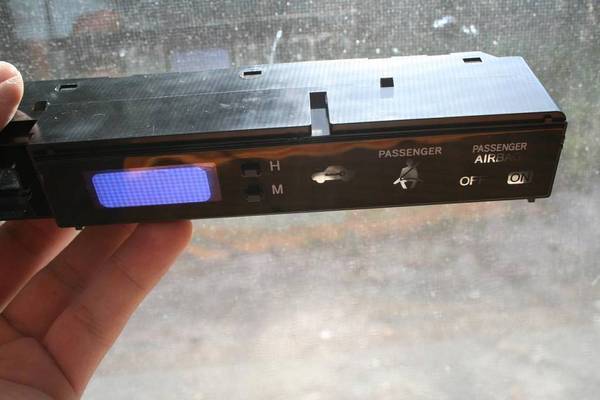

    Now cut out a piece of your tenting material (a blue folder for me) and stick it to the back of the clock window.

    [​IMG]
    [​IMG]

    -----------------------------------------------------------------------------------------------------------------------------------------


    Now its time to swap out the amber passenger airbag LEDs for some blue ones.

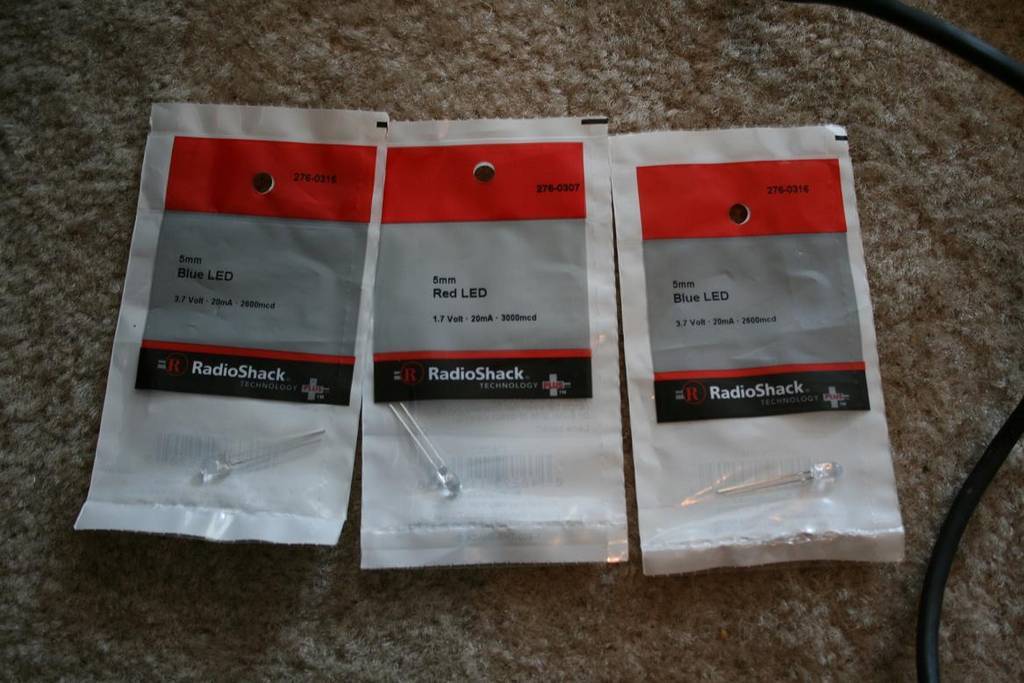

    Get some LEDs. I used some 5mm's from Radioshack-

    [​IMG]

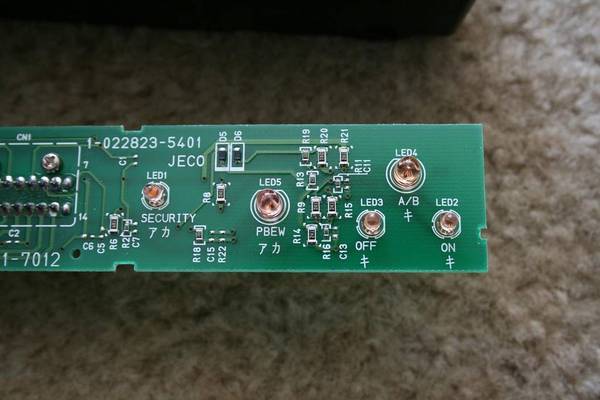

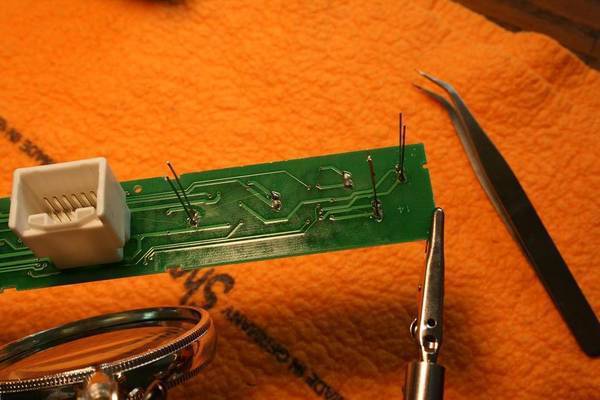

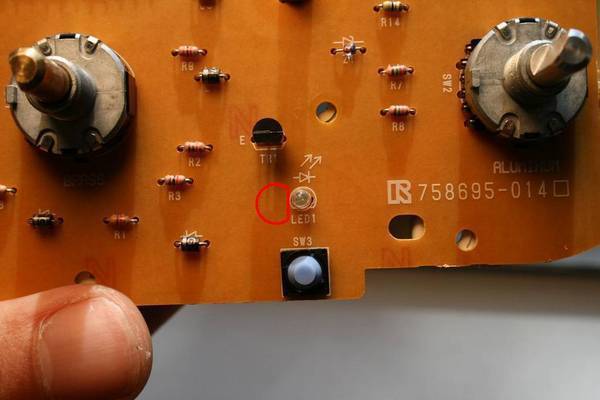

    I am swapping the "on" (LED2) and the "airbag" (LED4) LEDs with blue ones, and the red security (LED1) LED with a brighter red one.
    EDIT
    - The red LED in the picture ended up being dimmer than the stock one, so I switched back.

    [​IMG]
    [​IMG]

    That gives us this -

    [​IMG]

    ---------------------------------------------------------------------------------------------------------------------

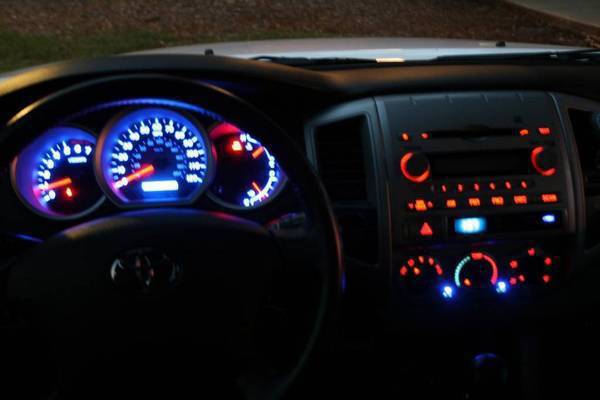

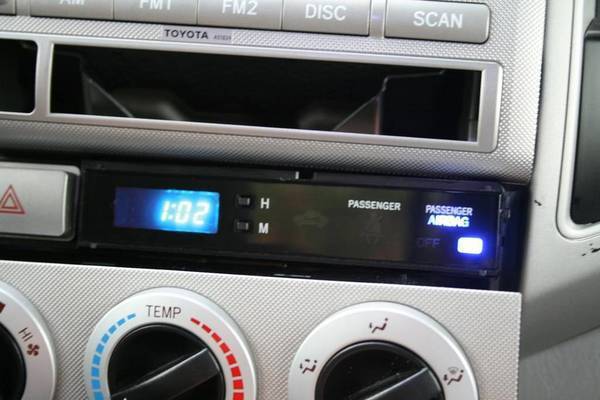

    Put it all together and it looks like this. Please keep in mind that my camera skills suck, so the colors aren't right. The AC controls are really red, and the clock isn't washed out like it is in the pics.

    [​IMG]
    [​IMG]

  11. c.coulby

    c.coulby Well-Known Member

    Joined:
    Aug 22, 2010
    Member:
    #42066
    Messages:
    357
    Gender:
    Male
    First Name:
    Cameron
    Summerville, Georgia
    Vehicle:
    2009 TRD Sport
    the guages.. are those stock colors or did you mod them?

  12. memario1214

    memario1214 Vivid Illumination Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    12,949
    Gender:
    Male
    First Name:
    Colton
    MT recently relocated to Willmar, MN
    Vehicle:
    05 Dub Cab TRD Sport 4x4
    TRD Cold Air Intake, rear cat delete with Aero Turbine 2525, Maglite mount mod, white LED's all around, white gauges w/blue needles, Tinted Tails, Morimoto 32" XBAR LED Bar, Truxedo Lo-Pro QT Tonneau, Pioneer AVIC X-920 BT touchscreen, FX-R Retrofit, LR UCAs, OME 3" Lift w/ Dakar leafs, DTLT Headers, Walbro 255 fuel pump, TRD S/C, Hankook Dynapro ATM tires
  13. BravesFan

    BravesFan The MOST Badass Offroad Truck

    Joined:
    Jul 28, 2009
    Member:
    #20300
    Messages:
    1,150
    Gender:
    Male
    First Name:
    Rob
    Brentwood, TN
    Vehicle:
    09 Super rock crawler
    He modded them

  14. Primersinmyshoe

    Primersinmyshoe Old Sheepdog

    Joined:
    Jun 13, 2010
    Member:
    #38855
    Messages:
    746
    Gender:
    Male
    St. Louis, MO
    Vehicle:
    gray, shiny, dependable
    Glock 36, spare mag
    Great mod. Reps to you

  15. lilgerber

    lilgerber Well-Known Member

    Joined:
    Nov 23, 2008
    Member:
    #10974
    Messages:
    435
    Gender:
    Male
    fresno ca
    Vehicle:
    06 4x4 speedway blue
    flowmaster40,vloant intake,king coilovers,TC UCA's,3inch lift,billet grill,chrome handles,stero system.motometals 951 285/17/70
    i need to do this . or you should start a service on here and do for members $$$

  16. 06aztaco

    06aztaco Screw you guys, I'm going home.

    Joined:
    Mar 10, 2010
    Member:
    #32969
    Messages:
    120
    Gender:
    Male
    First Name:
    Cole
    Phx AZ
    Vehicle:
    06 Prerunner 2.7
    what kind of rotary bit did you use for the clock?

  17. m3zy6

    m3zy6 [OP] Well-Known Member

    Joined:
    Jul 18, 2010
    Member:
    #40389
    Messages:
    329
    Gender:
    Male
    Savannah, GA
    Vehicle:
    07 AC TRDOR 4x4 6spd

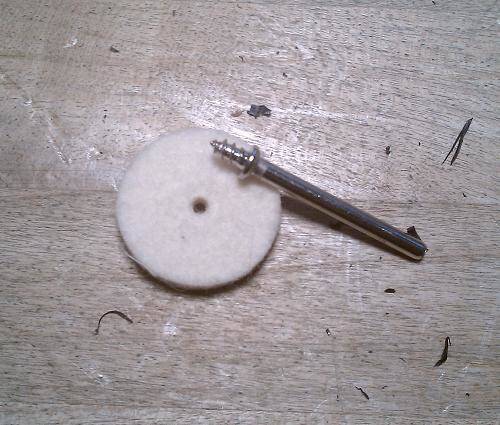

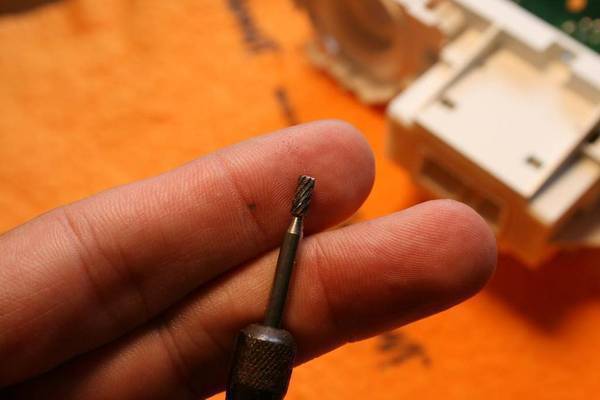

    Its the standard large polishing wheel. I went with it because it gives/flexes more than the smaller ones, so your less likely to apply to much pressure.
    However, you can still mess up using this bit. I dug in slightly once, but thankfully its toward the border and not really noticeable.
    [​IMG]
