    Quick Links: Wiring for Dummies!!! Help us solve some basic/common electrical issues Relay holder 02 sensors - what to get TRANSMISSION . Transmission coolers for all Toyotas ... Write up with many pictures Electronics whiz types - can anyone help me figure out how to wire this switch? Can you Connect a BS ML-ACR to a Bus Bar? Wiring Layout Help Needed.

My Differential Breather Mod Photos

Discussion in 'Technical Chat' started by David K, Sep 5, 2010.

Page 14 of 34
  1. Oct 5, 2012 at 9:50 AM
    #261
    PerfectTekniq

    #261
    PerfectTekniq I'm undefeated in the UFC.

    Joined:
    Feb 22, 2011
    Member:
    #51683
    Messages:
    9,942
    Gender:
    Male
    First Name:
    Pepe Silvia
    Claremont, CA
    Vehicle:
    2009 Super White 4x4 DC SB Sport
    AllPro Front, AllPro Rear w/ wraps, AllPro IFS Skid, 5100 w/ 885's upfront, Duratracs, Front Superbumps, BuiltRight UCAs, Dakar Leaf Pack, Extended 5100's, AllPro Flip Kit, Rear Superbumps, Extended SS brake lines WeatherTech Floormats, TRD Intake, ScanGaugeII, TRD SoCal, Grillcraft, Wet Okoles, Cobra 75 w/ 4' whip
    No locker here and I ordered the exact parts in OP.

    PerfectTekniq, Oct 5, 2012
    #261
  2. Oct 5, 2012 at 9:56 AM
    #262
    jonny

    #262
    jonny Betty White Edition Heep ZJ

    Joined:
    Jun 21, 2007
    Member:
    #1887
    Messages:
    8,349
    Gender:
    Male
    First Name:
    John
    same part # even worked on my old @ss 90 4runner rear end :thumbsup:
    transfered it from my old FJC/sans the locker breather :laugh:

    jonny, Oct 5, 2012
    #262
  3. Oct 11, 2012 at 3:09 PM
    #263
    CowboyTaco

    #263
    CowboyTaco $20 is $20

    Joined:
    Aug 19, 2010
    Member:
    #41928
    Messages:
    6,797
    Gender:
    Male
    North Georgia
    Vehicle:
    11 TRD Sport
    This question could be a little 'tarded...:cool:

    ...but what is the purpose of the teflon tape?:confused:

    I assume to get a better seal, but it seems like it would tear when tightening it down (possibly making things worse). i don't have any experience with teflon tape, so this could be a very ignorant question. Why not just screw the union adapter? I saw someone say they wouldn't want to overtighten it, but surely tightening til it stops spinning freely and then another quarter turn wouldn't over torque it....right?

    CowboyTaco, Oct 11, 2012
    #263
  4. Oct 11, 2012 at 3:43 PM
    #264
    David K

    #264
    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    12,407
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    Teflon tape (or paste) is the method that PREVENTS leaking past the threads. Anyone working with water, gas or other pipelines wrap teflon tape or paste on the threads before screwing the pipe and/or fittings together. If you don't use a thread sealant then you can expect leaks. The exception is if it is a 'surface sealed' instead of a 'thread sealed' connection, in which case a washer or gasket is the sealing agent between the two parts, as in a garden hose to a hose bib.

    You risk breaking the part if you over-tighten to stop a leak, when teflon will stop the leak with little more than hand tight application.

    David K, Oct 11, 2012
    #264
  5. Oct 11, 2012 at 4:11 PM
    #265
    fletch aka

    #265
    fletch aka www.BeLikeBrit.org

    Joined:
    Jan 4, 2009
    Member:
    #12223
    Messages:
    7,079
    Gender:
    Male
    First Name:
    Gary
    Left Coast
    Vehicle:
    09 Magnetic Gray TRD OffRoad
    TRD cat back exhaust, TRD Cold Air Intake, differential breather mod' Hellwig rear sway bar, 16x8 TRD Ivan Stewart's, Michelin LTX A/T2, DTRL Stealth Mode Mod, custom "Texas Edition" shift knob, Sock's "Classic" bedside decals, MetalMiller custom grill emblem, 20% front tinted windows, tinted taillights, Viper alarm, ScanGauge II, Flyzeye Designs V2W Tacoma Interior LED lighting, de-mud flapped, de-badged, extra D-rings under bed bolts, WeatherTech ED floor mats, G4 Elite Fold a Cover ,Toyota bed mat, tailgate theft deterrent device and absolutely no plasti-dip!
    I just did the breather mod but added my own spin to it.
    The company I work for allows me access to all sorts of cool stuff, I could have gone the easy route using the Toyota OEM parts #
    $14 90404-51026 Intake Air Control Valve Union
    90404-51026 Camry union and
    $8 90930-03136 Toyota Breather Plug - 90930-03136
    90930-03136 breather union but decided to try a different approach.
    From my work I bought a 1/8" BSPT 1/4" brass hose barb (not pictured), this threads into the rear differential, this is the same thread pitch as the Toyota OEM breather. I also picked up a brass bulk head fitting, 90 degree elbow and a breather vent.

    [​IMG]

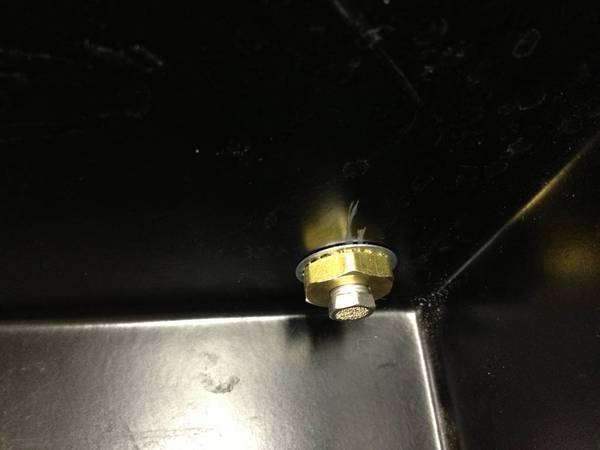

    bulk head fitting, vent and 90 deg elbow, I had already installed the BSPT hose adapter when I decided to take the picture.

    [​IMG]

    [​IMG]

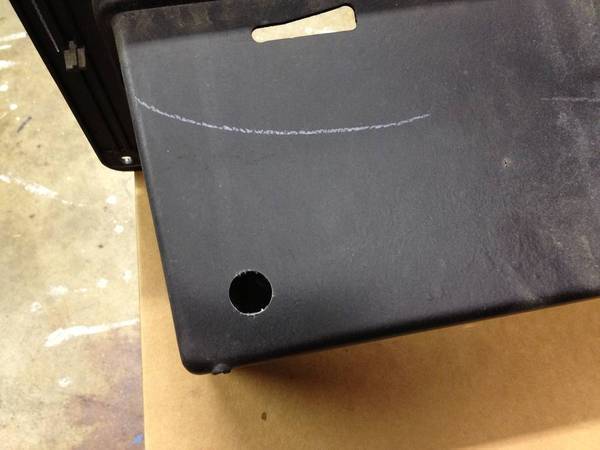

    I decided on the large cubby for the mounting location, I drilled a 3/4" hole and installed the bulk head fitting, vent and elbow.

    [​IMG]

    [​IMG]

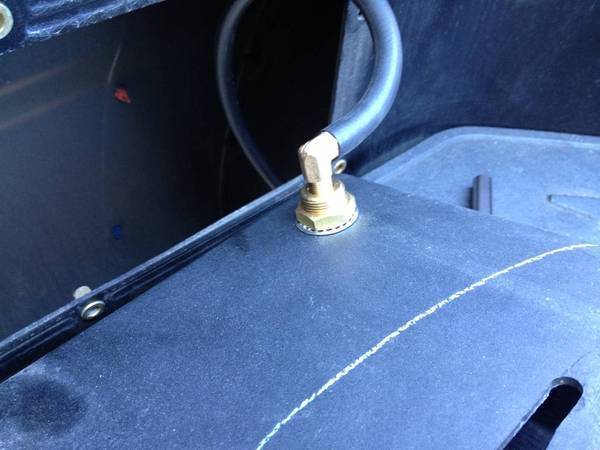

    I installed the hose and ran along the top of the frame leaving enough slack for rear end travel. I like how clean it looks.

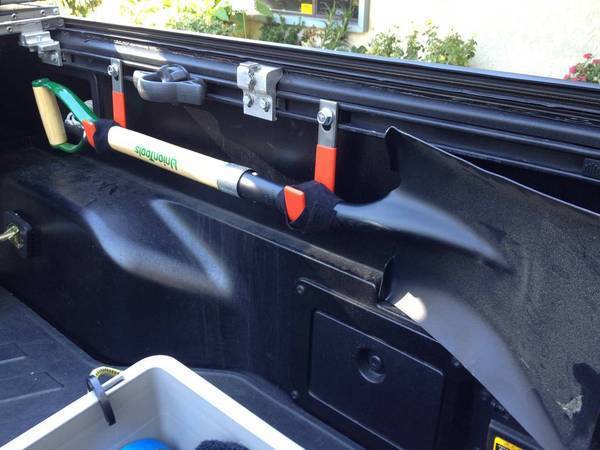

    I also picked up some slotted t-nuts and a couple of vinyl coated J hooks and mounted my shovel.

    [​IMG]

    [​IMG]

    I used Velcro straps to hold the shovel in place.

    Parts list from McMaster-Carr Supply.

    For the breather mod
    1075T71 BSPT hose barb
    5454k86 bulk head fitting
    53525k11 90 degree elbow
    9833k21 vent
    5288k114 hose

    For the shovel mount
    90526a592 slotted t-nuts
    1730a91 J hook
    92323a551 3/8-16 serrated flange cap screws.

    fletch aka, Oct 11, 2012
    #265
    2WD and Sanman like this.
  6. Oct 11, 2012 at 4:59 PM
    #266
    CUtacomaTIGER

    #266
    CUtacomaTIGER Unprofessional Driver

    Joined:
    Jul 23, 2011
    Member:
    #60412
    Messages:
    382
    Gender:
    Male
    San Diego
    Vehicle:
    '01 4X4 SR5 Chrome Stepside
    Black Wheels Tow Hitch w/4 Pin Weathertech Floor Mats Flowmaster Deck Plate Mod Window Tint Rear Diff Breather Mod Blacked out Badges Window Rain Guards Bed Liner
    CUtacomaTIGER, Oct 11, 2012
    #266
  7. Oct 11, 2012 at 6:00 PM
    #267
    fletch aka

    #267
    fletch aka www.BeLikeBrit.org

    Joined:
    Jan 4, 2009
    Member:
    #12223
    Messages:
    7,079
    Gender:
    Male
    First Name:
    Gary
    Left Coast
    Vehicle:
    09 Magnetic Gray TRD OffRoad
    TRD cat back exhaust, TRD Cold Air Intake, differential breather mod' Hellwig rear sway bar, 16x8 TRD Ivan Stewart's, Michelin LTX A/T2, DTRL Stealth Mode Mod, custom "Texas Edition" shift knob, Sock's "Classic" bedside decals, MetalMiller custom grill emblem, 20% front tinted windows, tinted taillights, Viper alarm, ScanGauge II, Flyzeye Designs V2W Tacoma Interior LED lighting, de-mud flapped, de-badged, extra D-rings under bed bolts, WeatherTech ED floor mats, G4 Elite Fold a Cover ,Toyota bed mat, tailgate theft deterrent device and absolutely no plasti-dip!
    fletch aka, Oct 11, 2012
    #267
  8. Oct 12, 2012 at 10:06 AM
    #268
    David K

    #268
    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    12,407
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    Gary, that looks like a sweet set up... Could you add photos of the breather tube from the differential to the storage box?

    David K, Oct 12, 2012
    #268
  9. Oct 12, 2012 at 2:49 PM
    #269
    CowboyTaco

    #269
    CowboyTaco $20 is $20

    Joined:
    Aug 19, 2010
    Member:
    #41928
    Messages:
    6,797
    Gender:
    Male
    North Georgia
    Vehicle:
    11 TRD Sport

    Cool. Thanks.

    That's kinda what I figured; but again, I've never used it before, so i have little (or no) experience with it.

    CowboyTaco, Oct 12, 2012
    #269
  10. Oct 16, 2012 at 5:34 PM
    #270
    fletch aka

    #270
    fletch aka www.BeLikeBrit.org

    Joined:
    Jan 4, 2009
    Member:
    #12223
    Messages:
    7,079
    Gender:
    Male
    First Name:
    Gary
    Left Coast
    Vehicle:
    09 Magnetic Gray TRD OffRoad
    TRD cat back exhaust, TRD Cold Air Intake, differential breather mod' Hellwig rear sway bar, 16x8 TRD Ivan Stewart's, Michelin LTX A/T2, DTRL Stealth Mode Mod, custom "Texas Edition" shift knob, Sock's "Classic" bedside decals, MetalMiller custom grill emblem, 20% front tinted windows, tinted taillights, Viper alarm, ScanGauge II, Flyzeye Designs V2W Tacoma Interior LED lighting, de-mud flapped, de-badged, extra D-rings under bed bolts, WeatherTech ED floor mats, G4 Elite Fold a Cover ,Toyota bed mat, tailgate theft deterrent device and absolutely no plasti-dip!
    I'll take some pictures when I get home from work tomorrow.

    If anyone interested, I have the parts below available.

    [​IMG]

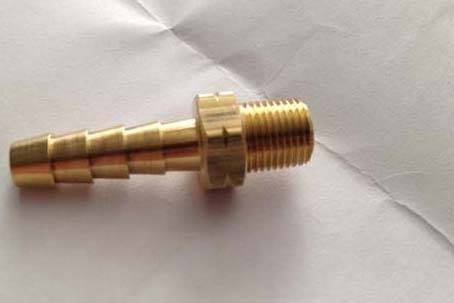

    I have four or five of these 1/8" BSPT x 1/4" hose union fitting. This is the exact thread pitch of the Camry union#
    $14 90404-51026 Intake Air Control Valve Union
    90404-51026
    that everyone uses for the breather mod, I was charging $6.00 shipped, now due to PayPal being so F'n greedy my price shipped is
    $6.50, sorry for the increase.


    [​IMG]

    I also have four each case hardened black oxide steel partial thread T-slot nuts. These are the perfect fit for our bed rails. Bolt size is 3/8-16, I went with the partial thread as I didn't want the bolt damaging the rail if it was to long. I will include one 3/8-16 x 5/8" hex flange head cap screw with each T-nut. $5.50 each shipped, I was selling these for $5.00 shipped, now due to PayPal being so F'n greedy my price shipped is $5.50, sorry for the increase.

    [​IMG]

    Last edited: Mar 1, 2013
    fletch aka, Oct 16, 2012
    #270
  11. Oct 16, 2012 at 6:50 PM
    #271
    Junya808

    #271
    Junya808 Well-Known Member

    Joined:
    Mar 28, 2012
    Member:
    #75765
    Messages:
    194
    Gender:
    Male
    Maui, Hawaii
    Vehicle:
    2012 Tacoma OR 4X4
    Suspension Fronts: Icon Coil Overs Total Chaos UCA Rear: Icon shocks with resivior Icon aal. Interior: Wet okole seat covers Led map and dome lights Lighting: Slimcubby hid 6000k Slimcubby hid fogs 3000k Led parking lights Led license plate lights Led Switchbacks Misc. Mods Rear diff. Breather Mod
    Subd

    Junya808, Oct 16, 2012
    #271
  12. Oct 18, 2012 at 6:59 PM
    #272
    HedgehogOutdoors

    #272
    HedgehogOutdoors Well-Known Member

    Joined:
    Mar 12, 2012
    Member:
    #74782
    Messages:
    146
    Gender:
    Male
    First Name:
    John
    CT
    Vehicle:
    '98 4runner SR5
    Would anyone happen to know if the union and breather mentioned by OP are compatible with a 3rd gen 4runner?

    HedgehogOutdoors, Oct 18, 2012
    #272
  13. Oct 18, 2012 at 7:11 PM
    #273
    PerfectTekniq

    #273
    PerfectTekniq I'm undefeated in the UFC.

    Joined:
    Feb 22, 2011
    Member:
    #51683
    Messages:
    9,942
    Gender:
    Male
    First Name:
    Pepe Silvia
    Claremont, CA
    Vehicle:
    2009 Super White 4x4 DC SB Sport
    AllPro Front, AllPro Rear w/ wraps, AllPro IFS Skid, 5100 w/ 885's upfront, Duratracs, Front Superbumps, BuiltRight UCAs, Dakar Leaf Pack, Extended 5100's, AllPro Flip Kit, Rear Superbumps, Extended SS brake lines WeatherTech Floormats, TRD Intake, ScanGaugeII, TRD SoCal, Grillcraft, Wet Okoles, Cobra 75 w/ 4' whip
    Jonny (one page back) swapped the fittings from his 2010 FJ to his '90 4runner.
    Not sure if that will help you.

    PerfectTekniq, Oct 18, 2012
    #273
  14. Oct 18, 2012 at 7:29 PM
    #274
    HedgehogOutdoors

    #274
    HedgehogOutdoors Well-Known Member

    Joined:
    Mar 12, 2012
    Member:
    #74782
    Messages:
    146
    Gender:
    Male
    First Name:
    John
    CT
    Vehicle:
    '98 4runner SR5
    Thanks, completely missed that, sorry. I'll look into it, that way I don't have to dig around for different part numbers lol

    HedgehogOutdoors, Oct 18, 2012
    #274
  15. Oct 19, 2012 at 1:22 PM
    #275
    monsterkx2fiddy

    #275
    monsterkx2fiddy Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74357
    Messages:
    1,137
    Gender:
    Male
    Birthplace of Davy Crockett
    I got some light duty tubing at lowes. And realized that a bush or something might tear it. Where can I but some heavy duty that's not yellow?

    monsterkx2fiddy, Oct 19, 2012
    #275
  16. Oct 19, 2012 at 1:25 PM
    #276
    PAlittlematty

    #276
    PAlittlematty "the soulless ginger"

    Joined:
    Dec 6, 2010
    Member:
    #47260
    Messages:
    4,309
    Gender:
    Male
    First Name:
    Matt
    Beech Creek, PA
    Vehicle:
    I miss my taco
    OME Lift, 885 Coils, 13MM Top Spacer, Dakar Leafs, DSM UCAs, Homeroshi Flush Mount Grille, WeatherTech Digifit Mats, Bestop Super Top, Toyota Bed Extender, Clevice Receiver 1990 SR5 3.slow SAS 5” Leafs, high pinion diff, 37” PBRs, MC rear, AP front bumpers, 5.29s, locked
    Use air hose.

    PAlittlematty, Oct 19, 2012
    #276
  17. Oct 19, 2012 at 1:40 PM
    #277
    monsterkx2fiddy

    #277
    monsterkx2fiddy Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74357
    Messages:
    1,137
    Gender:
    Male
    Birthplace of Davy Crockett
    Where can I find that? Lol I went to lowes and home depot. Only thick hose I could find was the yellow one like op or orange. Looking for red or black.

    monsterkx2fiddy, Oct 19, 2012
    #277
  18. Oct 19, 2012 at 1:41 PM
    #278
    PAlittlematty

    #278
    PAlittlematty "the soulless ginger"

    Joined:
    Dec 6, 2010
    Member:
    #47260
    Messages:
    4,309
    Gender:
    Male
    First Name:
    Matt
    Beech Creek, PA
    Vehicle:
    I miss my taco
    OME Lift, 885 Coils, 13MM Top Spacer, Dakar Leafs, DSM UCAs, Homeroshi Flush Mount Grille, WeatherTech Digifit Mats, Bestop Super Top, Toyota Bed Extender, Clevice Receiver 1990 SR5 3.slow SAS 5” Leafs, high pinion diff, 37” PBRs, MC rear, AP front bumpers, 5.29s, locked
    Auto parts store

    PAlittlematty, Oct 19, 2012
    #278
  19. Oct 19, 2012 at 1:49 PM
    #279
    monsterkx2fiddy

    #279
    monsterkx2fiddy Well-Known Member

    Joined:
    Mar 6, 2012
    Member:
    #74357
    Messages:
    1,137
    Gender:
    Male
    Birthplace of Davy Crockett
    Gahhhh. I hate the auto parts stores. biggest rip off imo. Charge double walmart or online. Last week I picked up this grabber tool for 2$ at lowes went into advanced same thing 12$

    monsterkx2fiddy, Oct 19, 2012
    #279
  20. Oct 20, 2012 at 1:09 AM
    #280
    BenMara

    #280
    BenMara That Asian RedNeck

    Joined:
    Apr 14, 2011
    Member:
    #54903
    Messages:
    1,944
    Gender:
    Male
    First Name:
    Ben
    Belton, SC
    Vehicle:
    2011 DC 4x4 SCed
    TRD Blower, Ham Radio, DBA T2 Rotors
    Northern Tool, Tractor Supply, Habor Fright

    BenMara, Oct 20, 2012
    #280
