Discussion in 'Technical Chat' started by David K, Sep 5, 2010.

  1. Jan 31, 2013 at 1:50 PM
    #301
    BostonBilly

    BostonBilly Well-Known Member

    Joined:
    Jan 11, 2012
    Member:
    #70435
    Messages:
    8,136
    Gender:
    Male
    Easton
    Vehicle:
    2015 Jeep Wrangler Sahara
    I ordered the parts this afternoon. I will get them after work, I just have to pick up the fuel line. Has anyone used the extra fuel line for the oil filter drain

  2. Feb 2, 2013 at 10:11 AM
    #302
    derrenwd

    derrenwd Member

    Joined:
    Dec 13, 2009
    Member:
    #27460
    Messages:
    18
    Gender:
    Male
    ontario canada
    Vehicle:
    2005 trd offroad 6 speed
    k&n intake, banks cat back, 3 inch block lift with rear aal, MagnaFlow "Direct fit headers and cats" URD short throw shifter kit
    is the breather the same place on the trd off roads 2005 ?

  3. Feb 2, 2013 at 11:48 AM
    #303
    Gabe911

    Gabe911 Well-Known Member

    Joined:
    Jan 17, 2012
    Member:
    #70850
    Messages:
    251
    Gender:
    Male
    FLORIDA
    Vehicle:
    10 PreRunner MGM
    Debadged, Rear TSB, Blue LED dome and Bright White Map Lights, Hard Top Tonneau Cover, OME885 coils (no top plate spacers)OME shocks and struts, 1.5" AAL for TSB Rear,285/70/17 Trail Grapplers, 17x9 XD Addicts with 4.5 bs, Black 4" exhaust tip, Bed pocket lights, rear diff breather Mod
    Yes

  4. Feb 2, 2013 at 12:00 PM
    #304
    fletch aka

    fletch aka www.BeLikeBrit.org

    Joined:
    Jan 4, 2009
    Member:
    #12223
    Messages:
    7,103
    Gender:
    Male
    First Name:
    Gary
    Left Coast
    Vehicle:
    09 Magnetic Gray TRD OffRoad
    TRD cat back exhaust, TRD Cold Air Intake, differential breather mod' Hellwig rear sway bar, 16x8 TRD Ivan Stewart's, Michelin LTX A/T2, DTRL Stealth Mode Mod, custom "Texas Edition" shift knob, Sock's "Classic" bedside decals, MetalMiller custom grill emblem, 20% front tinted windows, tinted taillights, Viper alarm, ScanGauge II, Flyzeye Designs V2W Tacoma Interior LED lighting, de-mud flapped, de-badged, extra D-rings under bed bolts, WeatherTech ED floor mats, G4 Elite Fold a Cover ,Toyota bed mat, tailgate theft deterrent device and absolutely no plasti-dip!
  5. Feb 2, 2013 at 12:14 PM
    #305
    derrenwd

    derrenwd Member

    Joined:
    Dec 13, 2009
    Member:
    #27460
    Messages:
    18
    Gender:
    Male
    ontario canada
    Vehicle:
    2005 trd offroad 6 speed
    k&n intake, banks cat back, 3 inch block lift with rear aal, MagnaFlow "Direct fit headers and cats" URD short throw shifter kit
  6. Feb 2, 2013 at 12:18 PM
    #306
    BostonBilly

    BostonBilly Well-Known Member

    Joined:
    Jan 11, 2012
    Member:
    #70435
    Messages:
    8,136
    Gender:
    Male
    Easton
    Vehicle:
    2015 Jeep Wrangler Sahara
    Wish you posted before I bought from Toyota. I looked local for the Brass 1/8" BSPT (British Standard Pipe Thread) no one had them

  7. Feb 4, 2013 at 10:03 AM
    #307
    cverneau

    cverneau Well-Known Member

    Joined:
    Feb 22, 2011
    Member:
    #51619
    Messages:
    282
    Gender:
    Male
    First Name:
    Craig
    Cheshire, CT.
    Vehicle:
    11 Access Cab 4cyl 4x4 Auto
    AVS In-Channel Window Deflectors, AVS Rear Window Sun/Rain Deflector, EGR Front Hood Deflector, Weathertech Digital Fit Floor Liners With TRD Off Road Decals, TonnoPro Tri-Fold Cover, Coverking Black Neoprene Front Seat Covers & Front & Rear Center Console Covers, Black With Red Stitched TRD Head Rest Covers, Rear Grey Neoprene Wet Okole Seat Covers, Black Front Door Handle Pull Covers, Husky Custom Molded Mud Flaps, Devil Horns Of Fire On Satoshi, 7" Off Road Lights Mounted Behind Grill, Pop N Lock 5300, Seatbelt Chime Off, Interior & Exterior Led's, Cubby & Drink Holder Amber LED's, Infinity Reference #9633 6X9 Front Speakers, Solar-Gard HP Smoke 35% Tint, De-badged & Pinstripe Removal, Sun Visor Stickers Removed, Illuminated 4x4 Switch, ImMrYo Rear-View Mirror Lift Bracket, Ultragauge, TRD Aluminum Skid Plate, Bed Storage Cubby Locks Mod, Additional D-Rings In Bed, Rubber Bed Mat, Intermittent Wiper Stalk, Black Vinyl Arm Rest Mod, Secondary Air Filter Removal Mod, Spare Tire Rod Alignment Tube Mod, 14" Antenna Mod, Tailgate Theft Mod, DTRL Wire Jumper Mod, Parking Lights As Turn Signals Mod, Under Hood LED Strip Lighting Mod, 30 Watt Reverse Bulbs, PIAA 510's With LED's In Fog Locations, Cree LED Flood lights In Rear Bumper, Burner Bedlights In Bed Cubby's, Avid Light Bar, Horn Relocation Mod, Rear TSB Springs, Bilstein 5100's on all four corners - front set at 0.85", Cooper Discoverer ATP - 265-75R/16, Pioneer AVH-X3700BHS Head Unit With Microbypass, Added USB Charging Ports Under Dash.
    Okay - I've read both of the major threads on this mod and will be doing this soon, but here's my confusion:

    Some people use union p/n 90404-51026 (1/4" barb) and this seems to thread down all the way to the nut.
    Some people use union p/n 90404-51319 (3/8" barb) and this seems to thread in but has quite a few threads still showing.
    Both of the above p/n's are metal and have 1/8" NPT threads and everyone's using teflon tape for installation.

    The poster above me has used a brass fitting with 1/8" BSPT threads with no problems. If the threads are BPST threads, then people using the 1/8" NPT fitting may run into problems down the road.

    In reading all of the postings with regards to this mod, the majority of people have no problems, but some have had the fittings not thread in correctly, not been able to tighten the fitting or they have been loose and wobbly, and in one case, not been able to remove the loose fitting after installing it.

    Everyone seems to have an opinion, due to what worked for them, but does anyone know - definitively - what the thread should be on this fitting and which part should be used??

  8. Feb 4, 2013 at 3:05 PM
    #308
    ImpulseRed008

    ImpulseRed008 Gone But Not Forgotten

    Joined:
    Sep 9, 2008
    Member:
    #9104
    Messages:
    41,709
    Gender:
    Female
    First Name:
    Susan
    SC
    Vehicle:
    08 PreRunner SR5 V6 w/tow pkg
    OEM SS tube steps, Access LE tonneau cover, pop n'lock, AVS in-channel vent visors, stubby antenna, Wet Okole seat covers, bed mat, rear diff breather mod, 4 extra d rings in bed, K&N air filter.
    Buy both, take yours out and compare the threads to the new one's. Return the other one. :notsure:

    I got the one listed in the first post and it worked

  9. Feb 4, 2013 at 3:07 PM
    #309
    BostonBilly

    BostonBilly Well-Known Member

    Joined:
    Jan 11, 2012
    Member:
    #70435
    Messages:
    8,136
    Gender:
    Male
    Easton
    Vehicle:
    2015 Jeep Wrangler Sahara
    Sounds like good advise. I also bought what was listed in the first post and came home from work today with plans to do it but my daughters car took priority

  10. Feb 4, 2013 at 5:57 PM
    #310
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,622
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    The 'union' part I used had the same threads as the factory valve/breather I took off the differential.

  11. Feb 4, 2013 at 6:59 PM
    #311
    CUtacomaTIGER

    CUtacomaTIGER Unprofessional Driver

    Joined:
    Jul 23, 2011
    Member:
    #60412
    Messages:
    380
    Gender:
    Male
    Clemson
    Vehicle:
    '01 4X4 SR5 Chrome Stepside
    Black Wheels Window Rain Guards Bed Liner Tow Hitch w/4 Pin Weathertech Floor Mats Flowmaster Deck Plate Mod Window Tint Rear Diff Breather Mod Blacked out Badges
    I believe the threads on toyotas use BSPT not NPT

    this sources confirm my thoughts some what:
    -http://www.tacomaworld.com/forum/1st-gen-tacomas/15223-diy-differential-breather-extension-3.html
    -http://www.youtube.com/watch?v=hXqzJJtKW7A
    -http://www.fjcruiserforums.com/forums/engine-performance/111727-oil-pressure-kit-connection.html
    -http://www.4crawler.com/4x4/CheapTricks/WaterProofing.shtml

    BadBrains likes this.
  12. Feb 9, 2013 at 9:07 AM
    #312
    Hylandr18

    Hylandr18 New Member

    Joined:
    Jan 8, 2013
    Member:
    #94737
    Messages:
    2
    Gender:
    Male
    First Name:
    AL
    New York
    Vehicle:
    Tacoma Sport
    Fog light bypass,TPMS bypass,LED cap lights
    My son burned up his rear differential in his 2005 because this vent became clogged.He traded it in for a 2013 so, I'm glad I joined this forum and came across this post.Thank You very much as this will probably save me $ in the future Very helpful!

  13. Feb 12, 2013 at 12:21 PM
    #313
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,622
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Yes, much harder to clog it up if it is up inside the storage compartment and not down in the mud!

  14. Mar 1, 2013 at 12:08 PM
    #314
    akaryanreynolds

    akaryanreynolds STRIKER TRD

    Joined:
    Jul 31, 2012
    Member:
    #83823
    Messages:
    524
    Gender:
    Male
    First Name:
    Ryan
    Los Angeles
    Vehicle:
    2012 DCLB MGM TRD Sport 4x4
    Debadged, Tint, Euro Antenna, OEM Roofracks, OEM skid plate, SMD LED interior lighting, AFE ProDry Drop-in, FX-R 6000K headlights w XB halos, VHT taillights, Fog light mod, Flyzeye V2W, T-Rex T1 Eyelids by Toyota Man, King 2.5 resis Front and Back, Devil Horns by Andres, Redline Hood Struts, PIAA 2500K H11 Fog Bulbs, Escort 9500ix, Ultra Gauge, Cobra 75 WXST, Firestik II w/ Quick Disconnect & Spring
    Payment sent for Bass union

  15. Mar 5, 2013 at 1:27 PM
    #315
    LoadedTaco

    LoadedTaco Kick A$$ Member

    Joined:
    Aug 21, 2012
    Member:
    #85218
    Messages:
    2,844
    Gender:
    Male
    First Name:
    Peter
    Burr Ridge Il
    Vehicle:
    2012 Red Baja
    What size are the hose claps for this?

    I just ordered
    90404-51026
    90930-03136

    I am hoping I don't have to order 90404-51319 instead.

    Last edited: Mar 5, 2013
  16. Mar 5, 2013 at 11:35 PM
    #316
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,622
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags

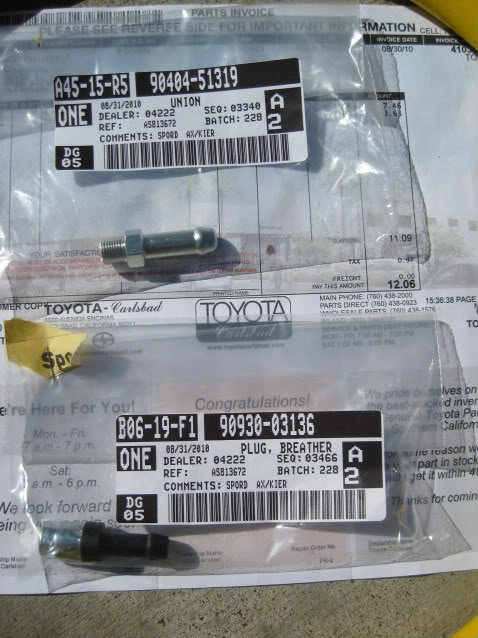

    On the opening post, I took a photo of the parts bag, so nobody would get the wrong number...

    [​IMG]

    On the first page of this thread is a photo of all the parts I bought, including a package of hose clamps... ones that will fit 1/2" to 1" diameter hoses... here's a close up of the end, in the compartment:

    [​IMG]

  17. Mar 12, 2013 at 9:27 AM
    #317
    LoadedTaco

    LoadedTaco Kick A$$ Member

    Joined:
    Aug 21, 2012
    Member:
    #85218
    Messages:
    2,844
    Gender:
    Male
    First Name:
    Peter
    Burr Ridge Il
    Vehicle:
    2012 Red Baja

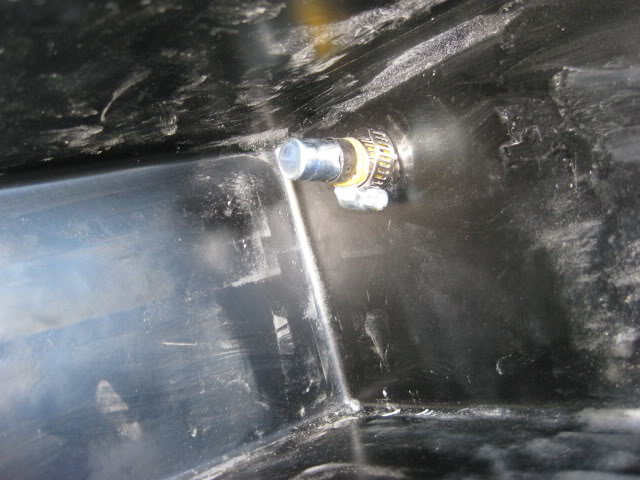

    Just completed this today! Thanks for the write up!

    [​IMG]

    [​IMG]

  18. Apr 2, 2013 at 5:26 PM
    #318
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,622
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    You get an A !

  19. May 21, 2013 at 9:33 PM
    #319
    DoorDing

    DoorDing Intentionally obtuse

    Joined:
    Sep 7, 2012
    Member:
    #86445
    Messages:
    30,325
    Gender:
    Male
    Bodie, CA
    Vehicle:
    2017 RC Off-Road 3.5WD
    yes
    I finished the thread and this is as good a reason for a timely bump as anything.

    The Trail-Gear Creeper Breather addresses the second point ^^^ by collapsing as needed. As long as the bellows remains flexible, airtight, and has sufficient volume, it'll work fine. I'd have to have some proof of steam issues before intentionally damaging a sealed bellows. My main concern with this part is the life span of the rubber. Fuel hose is cheap and lasts a very long time.

    [​IMG]

    The T-G part seems like a good solution, but I'm going with the hose. I ordered the parts from David's OP and should have them installed soon. I'll be crossing the Fremont river in a few weeks, and don't want to worry about water contamination.

  20. Jun 2, 2013 at 10:34 AM
    #320
    Pearcem87

    Pearcem87 Well-Known Member

    Joined:
    May 5, 2013
    Member:
    #103539
    Messages:
    137
    Gender:
    Male
    Vehicle:
    2013 TRD Off Road
    Did anyone ever get confirmation on whether or not the e-locker breather needs to be moved as well? It might have been in the 17 pages, but I easily could have missed it. Just waiting on the parts to do this mod next weekend.
