Discussion in 'Technical Chat' started by David K, Sep 5, 2010.

  1. Sep 7, 2010 at 10:30 PM
    #21
    stmpjmpr

    stmpjmpr Well-Known Member

    Joined:
    Jun 2, 2010
    Member:
    #38246
    Messages:
    1,975
    Gender:
    Male
    First Name:
    Jimmy
    So Orange County, Ca
    Vehicle:
    2014 Tacoma Sport MGM 4X4
    I also need 2 do this.

  2. Sep 7, 2010 at 10:31 PM
    #22
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,514
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
  3. Sep 8, 2010 at 7:06 PM
    #23
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,077
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    In following the various breather/ scuba threads, it can be confusing when reading about the 'E-locker breather'... It seems that the Tacoma does NOT have one, but the FJ Cruisser does... Why is that, and what bearthes on an e-locker motor? It is bolted onto the differential, and the differential has a breather... ??

  4. Sep 8, 2010 at 7:08 PM
    #24
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,078
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen, good driver mod.
    I really need to do this

  5. Sep 8, 2010 at 7:21 PM
    #25
    senna

    senna Well-Known Member

    Joined:
    May 5, 2009
    Member:
    #16855
    Messages:
    391
    Gender:
    Male
    San Jose CA.
    Vehicle:
    09 DBL CAB TRD-OR OME shocks 885 and AAL
    I'm pretty sure they all (e/lockers)have them, my son has an old front e/locker and it has a breather. I think the difference between the FJ and the Tacoma is the FJ has a check valve and the tacoma goes into the cross member, although when I blew into the fitting in the cross memmber it seemed to have resistance.
    I base the FJ info on some photos I saw on another thread.

  6. Sep 8, 2010 at 7:24 PM
    #26
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,078
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen, good driver mod.
    so for the Off road version we have two rear dif breathers?

  7. Sep 8, 2010 at 7:31 PM
    #27
    senna

    senna Well-Known Member

    Joined:
    May 5, 2009
    Member:
    #16855
    Messages:
    391
    Gender:
    Male
    San Jose CA.
    Vehicle:
    09 DBL CAB TRD-OR OME shocks 885 and AAL
    Technically no, there is a rear diff breather and a e/locker breather, the diff is 5/16 hose the locker is 5/32 so half the size.

  8. Sep 9, 2010 at 7:34 AM
    #28
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,078
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen, good driver mod.
    ^ so then that would be a yes. So when I do this mod I will need to do two breather mods....right?

  9. Sep 9, 2010 at 8:01 AM
    #29
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,077
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Somehow, I don't think so... in the other thread on doing the mod, the e-locker was not shown getting a tube added to it. The FJ Cruiser is different than the Tacoma, and it does have a second breather (diff. and e-locker). If the Taco had two breathers on the rear end, it would have been spelled out in the other thread. At least I hope that is the case... otherwise, I guess I drop the spare tire again and find out what parts to order!??

  10. Sep 9, 2010 at 8:52 AM
    #30
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,078
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen, good driver mod.
    shit im confused.

  11. Sep 9, 2010 at 2:37 PM
    #31
    senna

    senna Well-Known Member

    Joined:
    May 5, 2009
    Member:
    #16855
    Messages:
    391
    Gender:
    Male
    San Jose CA.
    Vehicle:
    09 DBL CAB TRD-OR OME shocks 885 and AAL
    What other thread are you referring to :confused:

  12. Sep 9, 2010 at 2:43 PM
    #32
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,416
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    the one linked on pg 1, post 8..................

    I routed mine to the gas door area up even higher when I did this mod (not even gettin near goin thru that much water...on purpose)..............checking for pic....................nice write up pics

  13. Sep 9, 2010 at 2:59 PM
    #33
    JasoTaco

    JasoTaco Well-Known Member

    Joined:
    Jan 25, 2010
    Member:
    #30057
    Messages:
    2,008
    Gender:
    Male
    First Name:
    Jason
    Salt Lake City, Utah
    Vehicle:
    09 Tacoma TRD Off Road
    ToyTec Ultimate 3" Lift -TSB Rear springs - TRD Cold Air Intake - TRD Skid Plate - Total Chaos Upper Control Arms - 2 Hella Rallye 4000 lights (130W Bulbs) - Clear Bra - Under Coat - Bed extener - Toyota Bed Mat - Weathertech floor mats - Tailgate hose clamp & washer mod - PIAA Fog Lights - ScanGauge II - Beefed Sliders - Differential Breather Mod - Heated Seats - All-Pro Bumper - Warn M8000 Winch with wireless controls - Boztec Diff Skid - ATO skids
    Nice write up. Rep for you.

  14. Sep 9, 2010 at 4:53 PM
    #34
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,416
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    Found my pics from mod day. Never uploaded them. Just pitchin in, no takeover intended,lol..........

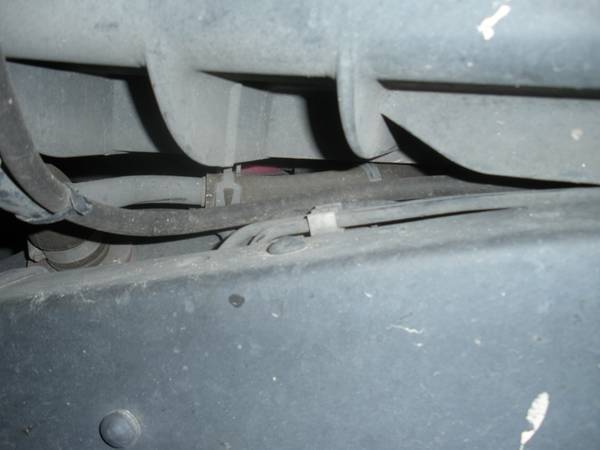

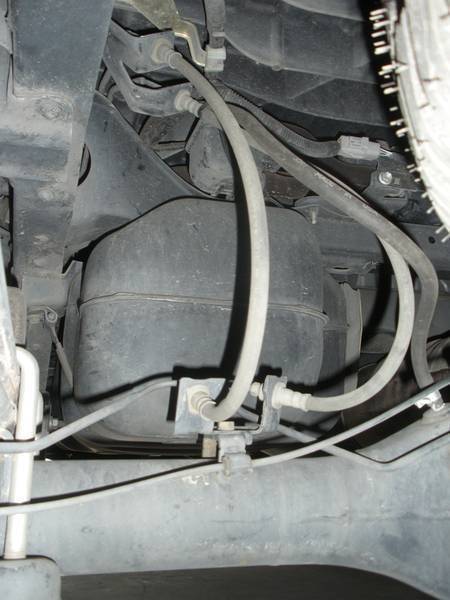

    Top to bottom
    [​IMG]
    Followed the gas line down. Only 1 ziptie
    [​IMG]
    Then followed the brake lines
    [​IMG]
    Left a bit of slack and there we go
    [​IMG]

  15. Sep 9, 2010 at 6:21 PM
    #35
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,077
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Okay, before I drove off to install some sprinkler valves today (hooray work), I crawled under my taco and found a TINY 1/8" rubber tube coming up from the E-Locker and goinig into the frame cross member... Is THAT a breather tube? If so, it is routed higher up than the differential and probably out of harms way in most water crossings? Where does it go from inside the frame cross member, or is the breather inside, there?

    I am still wonder why an electric motor needs a breather tube???

  16. Sep 9, 2010 at 6:46 PM
    #36
    senna

    senna Well-Known Member

    Joined:
    May 5, 2009
    Member:
    #16855
    Messages:
    391
    Gender:
    Male
    San Jose CA.
    Vehicle:
    09 DBL CAB TRD-OR OME shocks 885 and AAL
    I blew through the hose while it was connected to the cross member and it had resistance, like the valve you put on the diff breather, that no longer is a check valve.

    As far as it being routed up high enough, I would just rather not have to second guess that out on the trail, I know it is the same height as the other.

    Why it needs it? I couldn't find an answer either.

  17. Sep 9, 2010 at 6:53 PM
    #37
    MountainEarth

    MountainEarth Well-Known Member

    Joined:
    Feb 1, 2010
    Member:
    #30519
    Messages:
    2,494
    Gender:
    Male
    First Name:
    Bryan
    CO
    Vehicle:
    2010 TRD OR Access
    Leer 100XR Shell, BedRug mat - comfy sleeping, GT Covers microfiber seat covers, BFG All Terrains 265/70r16, Dashmat, Antennax 13" shorty antenna, Weathertech liners, Ultra Gauge, Avid Light Bar, PIAA 520 ATPs, one old dog
    Great pics +1 rep

  18. Sep 11, 2010 at 12:19 PM
    #38
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,077
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    Thanks...

    Where are all the Toyota Techies.. I am still wanting the facts on the e-locker breather... Where does that tiny rubber tube go once inside the cross member?

  19. Sep 11, 2010 at 1:14 PM
    #39
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,078
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen, good driver mod.
    I pm'd chris4x4 about it but he said he would need pics before he could speculate as to what/where/why

  20. Sep 11, 2010 at 7:10 PM
    #40
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    9,077
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Cibie Halogen. Bilstein 5100s Ride Rite Air Bags
    If he needs pics to know what an e-locker breather is, then he isn't the tech I think I am seeking for an answer.

    Thanks, anyway!

To Top
