My Differential Breather Mod Photos

Discussion in 'Technical Chat' started by David K, Sep 5, 2010.

  1. Sep 11, 2010 at 7:17 PM
    #41
    macgyver

    macgyver Well-Known Member

    Joined:
    Aug 14, 2009
    Member:
    #21173
    Messages:
    3,606
    Gender:
    Male
    First Name:
    Brad
    Canton, GA
    Vehicle:
    '13 Tundra double cab SR5 4x4
    I need to do this to mine as well.

  2. Sep 12, 2010 at 8:24 AM
    #42
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,887
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
  3. Sep 12, 2010 at 8:33 AM
    #43
    08WhiteTRD

    08WhiteTRD Well-Known Member

    Joined:
    Jun 3, 2008
    Member:
    #7063
    Messages:
    964
    Gender:
    Male
    First Name:
    Benjamin
    Marysville, NorCal
    Vehicle:
    2008 White 4x4 TRD Sport
    Fox Suspension 2.5 Front and 2.0 Rear, All-Pro Skids, BAMF LCA Skid, Leer 100R, Scangauge II, WeatherTech Floorliners, WeatherTech window visors, Satoshi grill with HomerTaco mesh, Sockmonkey Tailgate Decal, BHLM, Center Console lock, ImMrYo Rear-view bracket, Rally Armor mud flaps, Crawford Eco-Block, USA-Spec PA-15
    This is on my list for next weekend.

  4. Sep 22, 2010 at 9:05 AM
    #44
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,887
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.

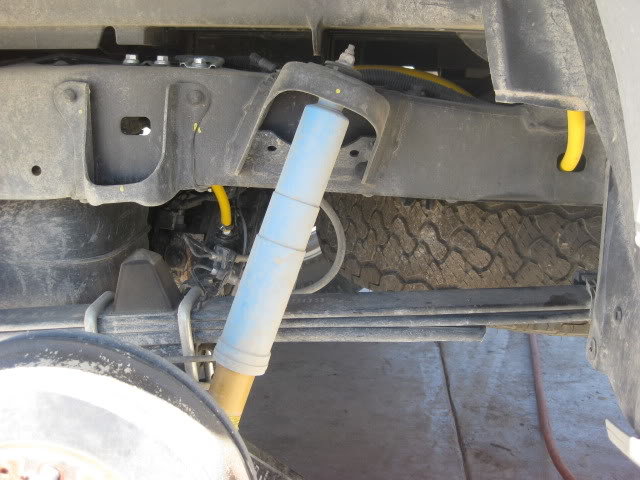

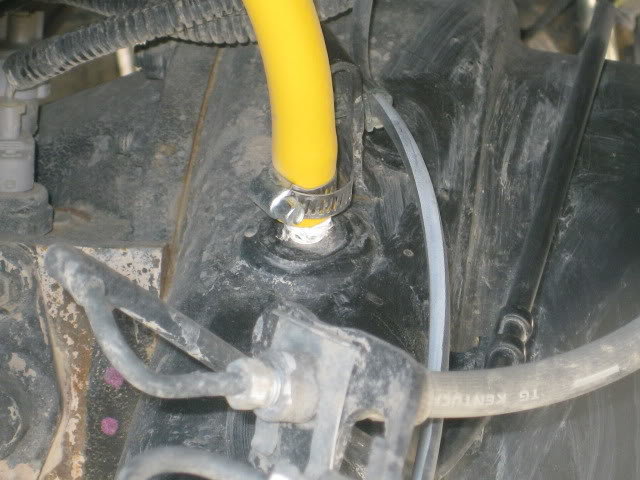

    Last Saturday while in Baja, the Rugged Trail (Fail) T/A with only 16,000 miles on it got a rock puncture on a graded road... Had it patched in El Rosario, and took a couple photos of my breather tube when the tire was removed...

    [​IMG]

    [​IMG]

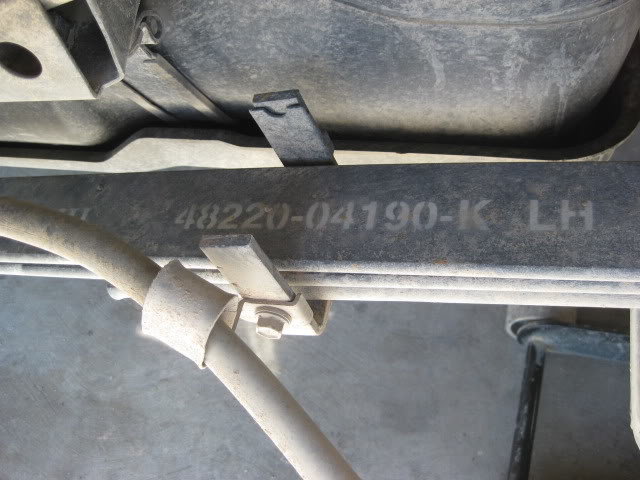

    Here is also the stock 3 leaf spring on my 2010 (Baja, Mexico built Tacoma) that doesn't bottom out, like the 3 leaf spring on my 2005 Tocoma did...

    [​IMG]

  5. Sep 22, 2010 at 3:30 PM
    #45
    senna

    senna Well-Known Member

    Joined:
    May 5, 2009
    Member:
    #16855
    Messages:
    391
    Gender:
    Male
    San Jose CA.
    Vehicle:
    09 DBL CAB TRD-OR OME shocks 885 and AAL
    David, I may be on the wrong track here, but, I took special care to make sure that there were no low spots in my breather hose. The chances however remote, are that, if you do get fluid above the low spot in the hose, you no longer have an open breather. I guess it would be kind of like those bellows breathers, the pressure could just push the fluid up :D.

    I don't know, maybe much to do about nothing.:confused:

  6. Sep 22, 2010 at 4:09 PM
    #46
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,887
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    Maybe a good point... I think if a vacuum was strong enough to suck in water past the axle seal, it would be easier to first suck back any fluid sitting in the tube. I don't think there are in low dips in the run, anyway.

    I would enjoy hearing from the experts...

  7. Sep 23, 2010 at 11:05 AM
    #47
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,111
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
    the experts have concluded there needs to be more sucking :eek:


    no homo

  8. Oct 29, 2010 at 11:05 AM
    #48
    Crom

    Crom Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,181
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Last year I some research on whether or not the electric diff lock really had a breather in the Tacoma. My research was inconclusive. I couldn't find much in the FSM. I was aware that the FJ had one though. Here are some documents from the 2006 FSM

    R.M. 2006 Differential: Differential Lock System: Parts Location (Tacoma)
    R.M. 2006 Differential: Differential Lock System: System Diagram, On-Vehicle Inspection, Inspection (Tacoma)

    I really would like a definitive answer on whether or not there is one.

  9. Oct 29, 2010 at 11:19 AM
    #49
    757southpaw

    757southpaw Well-Known Member

    Joined:
    Nov 12, 2009
    Member:
    #25845
    Messages:
    1,743
    Gender:
    Male
    First Name:
    Jay
    757
    Vehicle:
    07' DC LB TRD Sport 4x4
    BAK BakFlip Tonneau cover, 30% front tinted windows, AVS vent shades, Black Billet Grill,Pop& Lock, secondary air filter removed, Goodyear Duratrac's, Billies @ 2.5" on front, Billies on back w/ 1.5" AAL, Toytec Diff drop, NOKYA Hyper Yellow fog light bulbs, LaminX Weathertechs, Rear diff breather mod, BHLM
    me too

  10. Oct 30, 2010 at 9:10 AM
    #50
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,887
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    Crom, there is a smaller rubber tube that comes off the e-locker and disappears into the frame... This is much higher than the rear differential stock breather's location... What happens to that tube once in the frame cross member is unknown... Because of A-TRAC, if the e-locker fails it isn't going to stop me... but if the rear diff. fails, well... that is a problem and not cheap, so the breather mod for it was important.

    The yellow tube is sold at Lowe's... go buy 6 feet of it now, so you will have it... in case they stop selling it!

  11. Nov 22, 2010 at 8:22 PM
    #51
    ruslanus

    ruslanus Well-Known Member

    Joined:
    May 5, 2010
    Member:
    #36608
    Messages:
    323
    Gender:
    Male
    First Name:
    Rus
    Wasilla, AK
    Rear diff breather relocate, CB, weather tech floor mats, rain guards EGR, DTRL stealth mode switch, removed mud flaps, SnugTop Rebel camper shell, Airflow America snorkel
    Just did mine. Only I used a clear tube, thought it would be nice to be able to see what's going on inside.
    Thanks to OP's easy to follow install steps!


  12. Nov 22, 2010 at 8:30 PM
    #52
    ruslanus

    ruslanus Well-Known Member

    Joined:
    May 5, 2010
    Member:
    #36608
    Messages:
    323
    Gender:
    Male
    First Name:
    Rus
    Wasilla, AK
    Rear diff breather relocate, CB, weather tech floor mats, rain guards EGR, DTRL stealth mode switch, removed mud flaps, SnugTop Rebel camper shell, Airflow America snorkel
    I noticed when I dropped my spare for this mod, there was some wear on the tire side wall from rubbing on the frame. Did anyone else notice that when you took your spare down?


  13. Nov 22, 2010 at 8:31 PM
    #53
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,256
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    They have stopped selling it. At least at my local Lowes. After lifting I decided I wanted more slack in the tubing so went and picked up another section of the stuff from Lowes. The stock on the shelf was the same color as red clay.

    But, I now know for sure I have enough slack for axle travel.

    And man...now that I have the TSB springs with an AAL, those stock leafs look awful small...glad they don't bottom out, but I'm still not crazy about the look.


    One word of caution for people: If you are not using high pressure hose or fuel line for this mod, I would be worried about tearing/punctures from trail debris, or kinking during enthusiastic suspension flex. The high pressure hosing really is the way to go...it's almost impossible to kink and is very cut/tear resistant. Fuel line is essentially the same thing in a smaller diameter. Back when I originally did this in August '09, I determined it was by far the best stuff for the job:

    [​IMG]

  14. Nov 22, 2010 at 11:12 PM
    #54
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,887
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    Yes Russ, I saw the rub wear on the spare... another reason for turning it over besides access to the air fill valve stem.

    I agree with jandrews in that the clear tube may not be tough enough for flying rocks, sticks, etc. Keep an eye on it and let us know how it does... Glad you found my idea of where to put the breather made sense, as well!

  15. Nov 23, 2010 at 1:20 PM
    #55
    ruslanus

    ruslanus Well-Known Member

    Joined:
    May 5, 2010
    Member:
    #36608
    Messages:
    323
    Gender:
    Male
    First Name:
    Rus
    Wasilla, AK
    Rear diff breather relocate, CB, weather tech floor mats, rain guards EGR, DTRL stealth mode switch, removed mud flaps, SnugTop Rebel camper shell, Airflow America snorkel
    It was the easiest to route to :) I am planning on replacing the clear tube with a more durable one. I just used the clear tube to see if there wouldn't be too much condensation that could cause problems.

  16. Nov 23, 2010 at 5:11 PM
    #56
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,887
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    GOOD WORK!

    Let us know what you see...

  17. Nov 23, 2010 at 5:54 PM
    #57
    kinkrider101

    kinkrider101 Well-Known Member

    Joined:
    Sep 29, 2009
    Member:
    #23497
    Messages:
    2,698
    Gender:
    Male
    santa barbara
    Vehicle:
    2007 cummins/2007 tacoma
    wheels and tires
    does the oil get sucked up in the tube? if i need to change me diff oil will it spill out the hose?

  18. Nov 23, 2010 at 5:58 PM
    #58
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,887
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    Only in the vacuum of outer space...

    Umm, only if you do the job with your truck upside down!

  19. Dec 2, 2010 at 12:30 AM
    #59
    ruslanus

    ruslanus Well-Known Member

    Joined:
    May 5, 2010
    Member:
    #36608
    Messages:
    323
    Gender:
    Male
    First Name:
    Rus
    Wasilla, AK
    Rear diff breather relocate, CB, weather tech floor mats, rain guards EGR, DTRL stealth mode switch, removed mud flaps, SnugTop Rebel camper shell, Airflow America snorkel
    so, after a week or so of running the clear tube I have not seen any condensation in the tube and I went ahead and bought 6' of 5/16 fuel line from Auto Zone and replaced the clear tube with a more durable one. It actually looks like it's factory installed now. Love this mod for the peace of mind it gives me. Not that I cross high water every day, but if I had to, I know I'm covered.

  20. Dec 4, 2010 at 8:12 AM
    #60
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,887
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    Good job!
