Discussion in 'Technical Chat' started by David K, Sep 5, 2010.

Page 4 of 34
  1. Dec 4, 2010 at 9:15 AM
    #61
    David K

    #61
    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    12,357
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    Thanks... I have seen those photos before... On the Tacoma, the E-locker breather has a tube already and is routed up into the cross member and out of sight. While extending it up higher or joining it with the bigger differential tube (as shown in the FJ pics) would be fine... It is already much higher than the stock differential breather which was only 18" off the ground.

    Going into a water crossing that is 18 inches deep isn't all that unusual. So, the need to raise it up was serious... as I got water into mine when the truck was only 5 months old. Changing it to a 2 way breather also will prevent the real cause of contamination: vacuum suction past the axle seals during a sudden temperture differential (hot gears in cold water). Anyway, if the rear e locker failed on the trail... it wouldn't hurt the '09 + Tacomas too much, since we have A-TRAC whick is akin to lockers front and rear.

    David K, Dec 4, 2010
    #61
  2. Feb 13, 2011 at 11:02 PM
    #62
    David K

    #62
    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    12,357
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    Has all the newer TW members done this easy mod? The ones who could someday drive in water 18" or deeper, that is...

    David K, Feb 13, 2011
    #62
  3. Mar 24, 2011 at 6:43 PM
    #63
    ink junky

    #63
    ink junky I love tacos too!!!

    Joined:
    Jan 27, 2010
    Member:
    #30142
    Messages:
    5,582
    Gender:
    Male
    First Name:
    TACO LOVER
    TEXAS
    Vehicle:
    2010 4x4 trd off road DC,
    Aero turbine 2525, Snorkel, AFE pro dry drop in filter, BFG 33s, spydertraxwheel spacers :/. Debadged, rebadged black, TW sticker :D, bed lights, rod holders, OEM roof rack, Complete OME lift, bed lined fenders. Armor Tech Off road wrap around HC rear bumper w/ tire carrier swing out. Relentless front aluminum bumper. Le Devil Horns (_)
    sub'd for future reference :D

    ink junky, Mar 24, 2011
    #63
  4. Jul 15, 2011 at 12:49 PM
    #64
    TnRedNeck721

    #64
    TnRedNeck721 Nick Namer

    Joined:
    Mar 10, 2011
    Member:
    #52731
    Messages:
    23,846
    Gender:
    Male
    First Name:
    Zach
    TN
    Vehicle:
    07 TRD off road 4WD
    No mud flaps, plasti dipped emblems, and rear bumper, Weather tech digital fit, Bed mat from tractor supply. Pioneer 4400BH head unit. B.A.M.F bed rail tie downs. AVS vent visors.
    TnRedNeck721, Jul 15, 2011
    #64
  5. Jul 15, 2011 at 1:22 PM
    #65
    Richard Cranium

    #65
    Richard Cranium The lice...they hate the sugar

    Joined:
    Dec 9, 2010
    Member:
    #47434
    Messages:
    2,489
    Gender:
    Male
    First Name:
    Ted
    Omaha, NE
    Vehicle:
    2013 Raven FR-S
    Forever sideways and smiling :D
    Richard Cranium, Jul 15, 2011
    #65
  6. Jul 15, 2011 at 1:27 PM
    #66
    TnRedNeck721

    #66
    TnRedNeck721 Nick Namer

    Joined:
    Mar 10, 2011
    Member:
    #52731
    Messages:
    23,846
    Gender:
    Male
    First Name:
    Zach
    TN
    Vehicle:
    07 TRD off road 4WD
    No mud flaps, plasti dipped emblems, and rear bumper, Weather tech digital fit, Bed mat from tractor supply. Pioneer 4400BH head unit. B.A.M.F bed rail tie downs. AVS vent visors.
    sorry the 19th. and ok good. i just need to get the hose. i think i have claps and wire ties.

    TnRedNeck721, Jul 15, 2011
    #66
  7. Jul 15, 2011 at 1:30 PM
    #67
    aficianado

    #67
    aficianado Well-Known Member

    Joined:
    Oct 27, 2009
    Member:
    #25015
    Messages:
    8,111
    Gender:
    Male
    bay area, california
    Vehicle:
    2006 access cab. 4x4, TRD-OR + 2023 TRD off-road.
    back to bone stock.
    i need to do this.

    i've gone thru water, not that deep..but it makes me think, "i need to do this"

    i'll drop by toyota today to see if they have the parts.

    aficianado, Jul 15, 2011
    #67
  8. Jul 15, 2011 at 1:30 PM
    #68
    tacokid09

    #68
    tacokid09 it's about the off-road miles

    Joined:
    Mar 5, 2011
    Member:
    #52405
    Messages:
    7,026
    Gender:
    Male
    First Name:
    Brian aka B-Lang
    San Luis Obispo, CA
    Vehicle:
    2010 Tundra
    subbed

    tacokid09, Jul 15, 2011
    #68
  9. Jul 15, 2011 at 1:31 PM
    #69
    TnRedNeck721

    #69
    TnRedNeck721 Nick Namer

    Joined:
    Mar 10, 2011
    Member:
    #52731
    Messages:
    23,846
    Gender:
    Male
    First Name:
    Zach
    TN
    Vehicle:
    07 TRD off road 4WD
    No mud flaps, plasti dipped emblems, and rear bumper, Weather tech digital fit, Bed mat from tractor supply. Pioneer 4400BH head unit. B.A.M.F bed rail tie downs. AVS vent visors.
    they told me that it is a specialty item and that they have to order them. but maybe you’r will have them in stock.

    TnRedNeck721, Jul 15, 2011
    #69
  10. Jul 15, 2011 at 6:00 PM
    #70
    David K

    #70
    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    12,357
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags

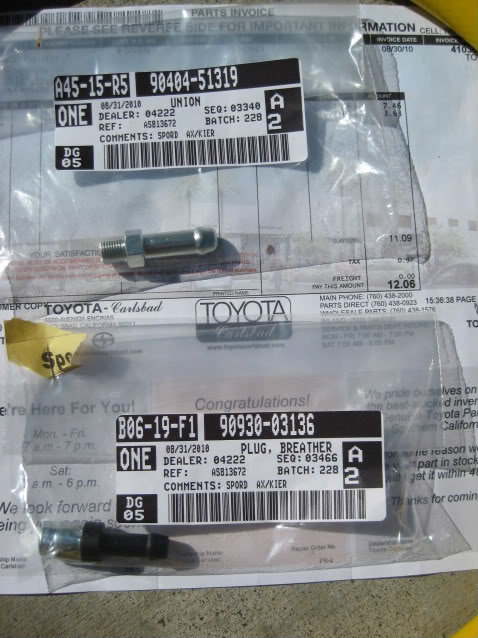

    On the first page of this thread I provided ALL details and even a photo of the parts from Toyota with part numbers...


    My dealer needed to order them from the regional warehouse... took like a day to get in!

    This is very easy... seriously.

    David K, Jul 15, 2011
    #70
  11. Jul 15, 2011 at 6:05 PM
    #71
    Texoma

    #71
    Texoma IG: Triple C Chop Shop

    Joined:
    Feb 1, 2011
    Member:
    #50374
    Messages:
    18,767
    Gender:
    Male
    First Name:
    Chris(Topher)
    Lago Vista, TX
    Vehicle:
    10 Taco 4x4
    A bunch a cool stickers, a bada ass MetalMiller Tx Longhorns grill emblem painted Hemi Orange, JBA long tube headers with o2 sims, Diff breather mod, Red LED interior lights, Fancy head unit that plays ipod n movies, Also DIY install factory stuff like, factory cruise control, factory intermittent wipers, OME nitro struts with 886x springs and toy tec top plate, JBA high caster UCA's for better alignmnet and dey beefier too, Old Man Emu Dakar leaf springs in da rear with the gear, U bolt flipper, Ivan Stewart TRD rims with 33" K Bro 2's, some bad ass weather tech floor liners so I don't muck up my interior, an ATO shackle flipper for mo travel in da rear wit the gear, also super shiny Fox 2.0 shocks back there too, all sorts of steal armor for bouncing off of the rocks like demello sliders, AP front skid, trans skid, n transfer skid, demello gas tank skid, and a tough as nails ARB bumper with warn 8k winch, I'm sure there's more
    Amazing:eek:

    Texoma, Jul 15, 2011
    #71
  12. Jul 24, 2011 at 11:20 PM
    #72
    David K

    #72
    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    12,357
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    and easy, too!

    David K, Jul 24, 2011
    #72
  13. Jul 24, 2011 at 11:43 PM
    #73
    Redgrom

    #73
    Redgrom http://www.tacomaworld.com/forum/2nd-gen-builds/29

    Joined:
    Feb 11, 2010
    Member:
    #31150
    Messages:
    1,717
    Gender:
    Male
    First Name:
    Brent
    san clemente
    Vehicle:
    4x4 taco and 96 ford bronco
    ATO front skid (need more but icon's might fail if I hang anything else from my truck) All-Pro front bumper thanks to a good deal here and a pesky encounter with a rock or 20, total chaos uppers.
    :popcorn:

    Redgrom, Jul 24, 2011
    #73
  14. Jul 25, 2011 at 3:26 AM
    #74
    T@co_Pr3runn3r

    #74
    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    14,582
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    IMO, it's as good for keeping pressures low for longer seal life as it is good for keeping water out. The pressure relief happens much more often than I drive in water that deep........

    T@co_Pr3runn3r, Jul 25, 2011
    #74
  15. Jul 25, 2011 at 9:08 AM
    #75
    David K

    #75
    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    12,357
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    Interesting point... the stock rear breather is really a PRESSURE RELIEF VALVE, as it only opens to atmosphere when pressure inside the diff. exceeds the spring force holding the valve closed.

    The front differential has a true breather (two way opening, lets pressure out... and if a vacuum is created by dipping in cool water, it lets air into the diff. to break the vacuum)!

    This mod really is installing a true breather on the rear differential, in place of the pressure relief valve, but at a higher location to prevent water from getting in.

    David K, Jul 25, 2011
    #75
    AbunaiTaco likes this.
  16. Jul 25, 2011 at 9:32 AM
    #76
    BlueT

    #76
    BlueT Well-Known Member

    Joined:
    Mar 30, 2009
    Member:
    #15341
    Messages:
    5,615
    Gender:
    Male
    NorthEast
    Vehicle:
    07 Dbl Cab LB with LSD
    I moded 1999 Taco so much it had turned to Land Cruiser
    Yeah but don't forget front and rear seals are different.

    BlueT, Jul 25, 2011
    #76
  17. Jul 25, 2011 at 9:41 AM
    #77
    David K

    #77
    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    12,357
    Gender:
    Male
    Pala Mesa, California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 4 Cree LED lamps Bilstein 5100s Ride Rite Air Bags
    BlueT, did you mean to quote him ^ ? Otherwise, what seals?

    David K, Jul 25, 2011
    #77
  18. Jul 25, 2011 at 9:49 AM
    #78
    Manwithoutaplan

    #78
    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    54,604
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    Just by Curiosity how much did the dealer charge for these parts????

    Manwithoutaplan, Jul 25, 2011
    #78
  19. Jul 25, 2011 at 9:52 AM
    #79
    Manwithoutaplan

    #79
    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    54,604
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    ok my bad i see the recipt behind the parts. Hey christen did you put it in the same spot as david???

    Manwithoutaplan, Jul 25, 2011
    #79
  20. Jul 25, 2011 at 9:58 AM
    #80
    Manwithoutaplan

    #80
    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    54,604
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    that is not a bad idea because that is higher to :D. I just order my parts.

    Manwithoutaplan, Jul 25, 2011
    #80
