Discussion in 'Technical Chat' started by David K, Sep 5, 2010.

  1. Aug 26, 2011 at 1:34 PM
    #141
    Crom

    Crom Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,223
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA HD UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Use 6' of 1/4" fuel line, that stuff is bomber tough!


  2. Aug 26, 2011 at 2:16 PM
    #142
    tacoteacher

    tacoteacher Well-Known Member

    Joined:
    Mar 13, 2010
    Member:
    #33144
    Messages:
    1,216
    Gender:
    Male
    socal
    Vehicle:
    05 SR5 access cab 4wd
    Stock for now
    Howdy fellow taco dudes. David K shows union part #90404-51026, while Crom shows #90404-51319. Why the difference? Are they interchangeable?

  3. Aug 26, 2011 at 2:33 PM
    #143
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,897
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    As the others did, I left some slack in the hose for axle flex, off roading... It is thick rubber and not against anything sharp. However, nothing wrong with examining it from time to time.

  4. Aug 26, 2011 at 2:34 PM
    #144
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,897
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    Crom's looks the same as what I used... I show the package from Toyota on the first photos... you can see the part number.

  5. Aug 26, 2011 at 2:43 PM
    #145
    Crom

    Crom Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,223
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA HD UCA's & OME 885 Coils and nitrochargers, Dakar leaf packs, u-bolt flip, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    I used David's part numbers when I ordered mine and I told the dealer how much they should cost based on David's cost and it was no problem.

  6. Aug 26, 2011 at 2:47 PM
    #146
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,897
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    [​IMG]

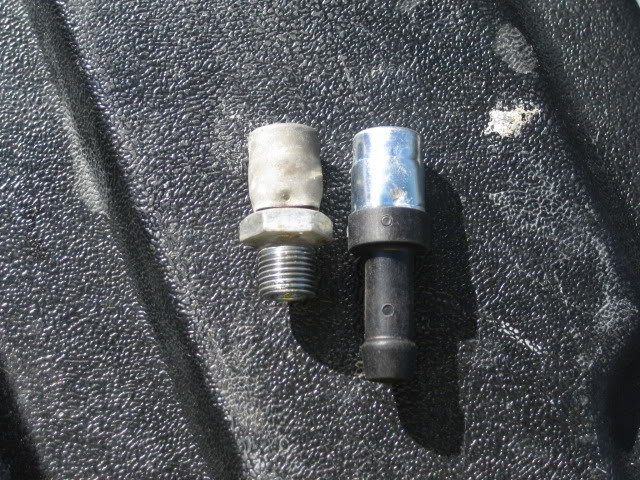

    Top thing is the 'union' that goes on the differential where the stock breather was. (-51319)

    Bottom thing is the 2-way breather that also is used for the front differential. (-03136)

  7. Aug 26, 2011 at 2:50 PM
    #147
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,897
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    No, here is my photo from this thread's first page:

    [​IMG]

  8. Aug 26, 2011 at 3:13 PM
    #148
    tacoteacher

    tacoteacher Well-Known Member

    Joined:
    Mar 13, 2010
    Member:
    #33144
    Messages:
    1,216
    Gender:
    Male
    socal
    Vehicle:
    05 SR5 access cab 4wd
    Stock for now
    Ok. I'll go with David's part #s and cost. Thanks.

  9. Aug 30, 2011 at 10:27 AM
    #149
    Armsmaster

    Armsmaster Well-Known Member

    Joined:
    Mar 30, 2011
    Member:
    #54055
    Messages:
    63
    Gender:
    Male
    First Name:
    Bill
    New Jersey
    Vehicle:
    2006 TRD Sport 4x4 longbed
    Pro Comp 3 inch Lift, Total Chaos Upper Control Arm, and more to come...

    Great Job... Thanks for the info...:cool:

  10. Aug 30, 2011 at 11:14 AM
    #150
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,897
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    You are welcome...

    I re-reading my procedures, I see I wasn't totally clear on how the contamination occurs. The stock breather is about 18" above ground, but when you go into water that deep, your axles are underwater first... and it is past the axle seals where muddy water can enter the diff. from a vacuum that a one way breather (the stock one) does not prevent.

    Using the front style diff. breather mounted up higher, prevents a vacuum and thus there is no trend to suck water past the axle seals and into the diff. Water does not enter through the stock breather, unless it is defective because it is a spring loaded, one way, exhaust valve.

  11. Aug 30, 2011 at 6:21 PM
    #151
    Canuckwithatruck

    Canuckwithatruck Well-Known Member

    Joined:
    Dec 21, 2010
    Member:
    #48033
    Messages:
    48
    Gender:
    Male
    First Name:
    Ross
    Bow Lake, Alberta
    Vehicle:
    2006 TRD Sport
    OME 885 Coils Light Racing UCA's Dakar Leaf Pack
    Being that I am from Canada I have concerns that in the cold winter months condensation would form inside of the "breather hose" subsequently freeze up and then not allow for proper flow. Does anyone else see this as a concern?

  12. Aug 30, 2011 at 8:38 PM
    #152
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,897
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    So what do you do with the front breather?

    Remember, we are only duplicating on the rear what Toyota already does on the front.

    If having a 2 way breather was 'bad', then Toyota would have an issue with EVERY 4WD Toyota that has a factory front breather on the end of a tube.

  13. Aug 30, 2011 at 8:49 PM
    #153
    DubVtundy

    DubVtundy ERMAHGERD

    Joined:
    May 30, 2010
    Member:
    #38082
    Messages:
    1,440
    Gender:
    Male
    First Name:
    Thayer
    Keyser West Virginia
    Vehicle:
    2010 white double cab
    8 inch alcan custom leaf packs, ome 885's powdercoated white, bilstein 5100's all the way around with 12 inch travel on the rear, Light Racing Upper Control Arms, Sway bar removed, 17x9 kmc strike. 35x12.50 nitto Trail Grapplers. Satoshi Grill made by (homertaco), Black Headlight housings,retrofits, Tinted Tailights, color matched grill, Bought a TRD sport hood,elite off road front plate bumper,elite off road sliders, 13% tint on the front windows, 5% on top of the facotry rear windows and back glass, 5% tint stip across the windshield, Lo Pro Truxedo tonneu cover, Herculiner bed liner, Weather Tech Window Visors, Exhaust- Flowmaster Super 44 dumped above rear axle, Maglight Mount on side of drivers seat, Scangauge II, Mossy Oak Camo Seat Covers, Weather Tech Floor mats, Spatter painted A-Pillars, Spatter painted headunit trim and shifter trim, Headunit= Pioneer 4300 double din touch screen, Speakers- Precision Power 3 way component stage, Precision Power 8 i
    subbed doing this this weekend ordered my parts today

  14. Aug 30, 2011 at 9:02 PM
    #154
    stunt man hans

    stunt man hans displaced viking living in New Hampshire

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,648
    Gender:
    Male
    First Name:
    hans
    THE LIVE FREE OR DIE STATE
    Vehicle:
    2010 tacoma reg cab 4x4 5spd 4cyl
    undercover se, pop&lock tailgate, rallye 1000 hela black magic lights, black grill craft grill lower. twm m1 abrams shift knob, ap ubolt flip kit & ifs high clearance skid , timbren bumpstops, pro comp 3 inch lift, goodrich ss braklines front and rear, lr uca's, customlightz.com fx-r 55 watt retrofit, ARB deluxe bull bar, vision-x solstice pods, black wet okole seat cover,weather tech digital floor mats window visors toyota hood guard, safari snorkel, full bed rug, full putco led swap hd led flasher cf18-08, pioneer bluetooth ipod navigation double din headunit, flowmaster 40 muffler custom center outlet exhaust, regear and arb lockers, arb rear bumper if they ever fucking release one lol and arb sliders coming soon as well as a new line-xtra paint job!
    great write up i ordered my parts from toyota and had the mod done before irene hit us saturday.

    lol i thought i better get off my ass and do this seeing as how i have a snorkel and the rear breather would kill any chance of a water crossing either elective or due to an emergency situation.

    the union though after i wrapped it in some teflon tape seems like it could be a bit tighter let me know if they are supposed to be that way.

  15. Aug 30, 2011 at 9:12 PM
    #155
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,897
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    Mine felt 'normal' screwing it in by hand... snug fit and then a partial turn with the wrench... maybe 3 wraps of teflon tape on the threads.

  16. Aug 30, 2011 at 9:22 PM
    #156
    stunt man hans

    stunt man hans displaced viking living in New Hampshire

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,648
    Gender:
    Male
    First Name:
    hans
    THE LIVE FREE OR DIE STATE
    Vehicle:
    2010 tacoma reg cab 4x4 5spd 4cyl
    undercover se, pop&lock tailgate, rallye 1000 hela black magic lights, black grill craft grill lower. twm m1 abrams shift knob, ap ubolt flip kit & ifs high clearance skid , timbren bumpstops, pro comp 3 inch lift, goodrich ss braklines front and rear, lr uca's, customlightz.com fx-r 55 watt retrofit, ARB deluxe bull bar, vision-x solstice pods, black wet okole seat cover,weather tech digital floor mats window visors toyota hood guard, safari snorkel, full bed rug, full putco led swap hd led flasher cf18-08, pioneer bluetooth ipod navigation double din headunit, flowmaster 40 muffler custom center outlet exhaust, regear and arb lockers, arb rear bumper if they ever fucking release one lol and arb sliders coming soon as well as a new line-xtra paint job!
    same for me mine just didn't go completely tight. thought it might be wrong but idk its on there i don't think i could get it off with my hands thats for sure.

    either way great write up buddy this completed my snorkel set-up i began back in june. i read your thread and said to myself i had better get on this in case something happened with the storm.

    btw how did you find out which union would work with the rear diff meaning how did you come across the part number?

  17. Aug 31, 2011 at 5:45 AM
    #157
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,322
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    I think there is only a difference in the nipple size on the union parts. One has thinner size than the other but the threaded part is the same. So the hose fits tight on the breather if it fits the smaller union but both union and breather are same size using the other union part number.

  18. Aug 31, 2011 at 7:44 AM
    #158
    David K

    David K [OP] Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,897
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    Mine wasn't the first thread on this mod, the older thread had part numbers... it was just getting so long and another set of numbers got flashed about... I like to de-confuse things with clear answers (not always possible)! I thought if I took a photo of the bag with the parts in it, who could mistake those numbers!? Yet, in this thread, somebody did!!! LOL

  19. Aug 31, 2011 at 5:52 PM
    #159
    PerfectTekniq

    PerfectTekniq I'm undefeated in the UFC.

    Joined:
    Feb 22, 2011
    Member:
    #51683
    Messages:
    6,074
    Gender:
    Male
    First Name:
    Pepe Silvia
    Claremont, CA
    Vehicle:
    2009 Super White 4x4 DC SB Sport
    AllPro Front, AllPro Rear w/ wraps, AllPro IFS Skid, 5100 w/ 885's upfront, Front Superbumps, BuiltRight UCAs, Dakar Leaf Pack, Extended 5100's, AllPro Flip Kit, Rear Superbumps, Extended SS brake lines WeatherTech Floormats, TRD Intake, ScanGaugeII, TRD SoCal, Grillcraft, Wet Okoles, Cobra 75 w/ 4' whip
    I figured I'd swing by Redlands Toyota to see if maybe they had a breather and union hanging around. Sure enough some guy ordered it like 4 days ago and never picked it up so I bought the current ones and they ordered another set for Mr. No Show.

    Working late tonight so I didn't think I would have a chance to get the house, did a quick Google search for "hose" and turns out a place across of the cul-de-sac i work at carried everything else I needed, and got it for free since I've helped them with things in the past. :D

    Might get a chance to do this tonight. :)

  20. Sep 1, 2011 at 4:32 AM
    #160
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,322
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    Who?
