My DIY ambience lighting

Discussion in 'Lighting' started by tacomawhite, Jan 21, 2014.

  1. Jan 21, 2014 at 10:27 AM
    #1
    tacomawhite

    tacomawhite [OP] Active Member

    Joined:
    Jul 25, 2013
    Member:
    #109029
    Messages:
    42
    Gender:
    Male
    Vehicle:
    07 PreRunner White
    Been looking around at adding some ambience lighting in the cab to help illuminate the cup holder / console area. My Pilot has this from factory and I like it so...

    So I found some pre-wired, thin strip LED's that stick right under the radio/clock console and ran it into the crack above the temp controls. I wired them to the 12v ignition that's wired to the radio for now. It's a bit bright so looking to add a dimmer. Any suggestions would help.

    Here are the LED's: http://www.superbrightleds.com/moreinfo/led-wired-bolts/little-dot-smd-led-accent-light/639/

    Here's a couple of pics:



  2. Jan 21, 2014 at 3:00 PM
    #2
    yellowrubiu

    yellowrubiu Well-Known Member

    Joined:
    Dec 30, 2011
    Member:
    #69678
    Messages:
    254
    Gender:
    Male
    Empire State
    Vehicle:
    2012 DCSB 4x4 SR5

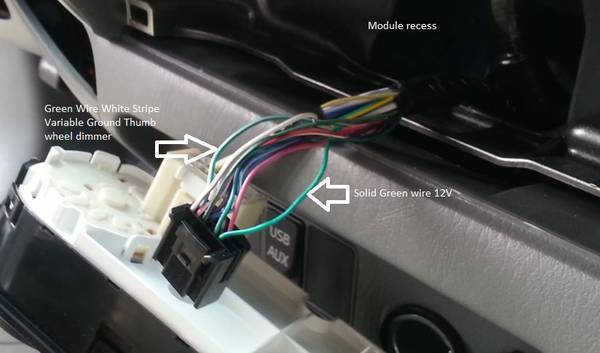

    You may want to try wiring them up to the dash light source on the black plug behind the temperature controls. This will allow you dim them using the dimmer for the dash lights.

    Here is a link to a pic from another thread showing the details...
    [​IMG]

  3. Jan 22, 2014 at 12:59 PM
    #3
    tacomawhite

    tacomawhite [OP] Active Member

    Joined:
    Jul 25, 2013
    Member:
    #109029
    Messages:
    42
    Gender:
    Male
    Vehicle:
    07 PreRunner White
    Excellent, thanks!

  4. Jan 23, 2014 at 5:36 AM
    #4
    Gene563

    Gene563 Well-Known Member

    Joined:
    Jul 27, 2008
    Member:
    #8171
    Messages:
    294
    Gender:
    Male
    First Name:
    Eugene
    Lanoka Harbor, NJ
    Vehicle:
    08 Double Cab, LB, TRD Sport
    TRD catback exhaust, Undercover hard tonneau, Vent visors, Husky liners, customized seat covers, front license plate bracket, rear suspension TSB, Eibach springs w 5100s@0, & General Grabber AT2 (265.70.17).
    Nice idea, I like that ... although a bit bright. Please post how the dimmer controls work out.
    My wife's Highlander has a recessed, hidden LED that shines on the console. I had been wondering how to do something like that.

  5. Jan 24, 2014 at 8:40 AM
    #5
    Oregon TRD

    Oregon TRD "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    11,440
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Mall Krawler
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
  6. Jan 27, 2014 at 8:14 AM
    #6
    tacomawhite

    tacomawhite [OP] Active Member

    Joined:
    Jul 25, 2013
    Member:
    #109029
    Messages:
    42
    Gender:
    Male
    Vehicle:
    07 PreRunner White
    I tried running the positive to the green/white wire yesterday and I don't think that's the correct wire for my 07. I tried looking for the hot with my voltmeter but maybe I'm doing something wrong. Didn't have much time so gonna mess with it some more this week.

    Thanks RAPR. You've got some cool stuff there.

  7. Jan 28, 2014 at 3:24 PM
    #7
    Gene563

    Gene563 Well-Known Member

    Joined:
    Jul 27, 2008
    Member:
    #8171
    Messages:
    294
    Gender:
    Male
    First Name:
    Eugene
    Lanoka Harbor, NJ
    Vehicle:
    08 Double Cab, LB, TRD Sport
    TRD catback exhaust, Undercover hard tonneau, Vent visors, Husky liners, customized seat covers, front license plate bracket, rear suspension TSB, Eibach springs w 5100s@0, & General Grabber AT2 (265.70.17).
    According to Yellowrubiu's post, the "green/white" is the variable ground. The solid green is the hot (12v) lead.
    I checked your link and ordered a couple of the Cool White, spot LEDs in the link. You mentioned strips, but the link shows the single spots. What did you actually use and what color ... they look blue. I'm going to try one or 2 of the spot LEDs, hopefully to created a slight glow in the dark. I don't want it to be distracting at night.

  8. Jan 30, 2014 at 2:30 PM
    #8
    tacomawhite

    tacomawhite [OP] Active Member

    Joined:
    Jul 25, 2013
    Member:
    #109029
    Messages:
    42
    Gender:
    Male
    Vehicle:
    07 PreRunner White
    I used the little dot SMD light. It has a wide angle. I've been too busy to mess with it this week, but I'll update when I do.
