MY DUAL XHD7714 Head Unit Install

Discussion in 'Audio & Video' started by armstrsm, Mar 27, 2011.

  1. Mar 27, 2011 at 10:53 AM
    #1
    armstrsm

    armstrsm [OP] Well-Known Member

    Joined:
    Aug 16, 2007
    Member:
    #2450
    Messages:
    245
    Gender:
    Male
    First Name:
    Sean
    Little Rock, AR
    Vehicle:
    07' Double Cab 4x4 SR5 TRd OffRoad
    AVS Vent Visors, AVS Bug Shield, Locks On Bed storage, Weathertech floor liners, Access roll up tonneau, Dual Head unit, illuminated 4x4 switch, Devil Horns

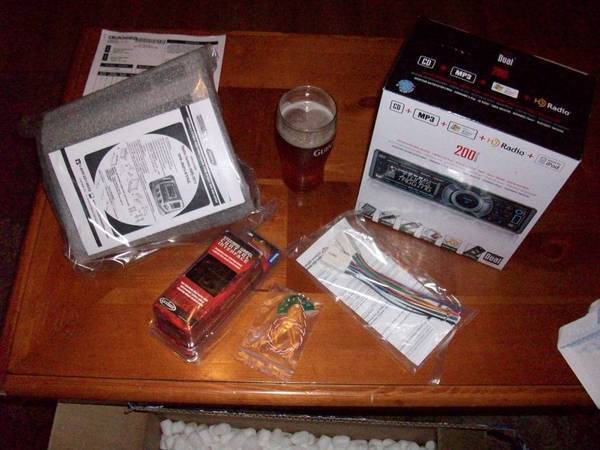

    I Have been wanting to an Ipod capability to my stock unit, but after lots of research. I decided to by a new head-unit, so I purchased the Dual XHD 7714 head-unit from Crutchfield.

    I went with the XHD because it had Ipod Capability, built in HD radio (awesome), and Built in Bluetooth (for Calls and music streaming). Along with the Dual receiver i purchased the Axess steering wheel control adapter. The Metra Dash kit came for free!! All together $250!!

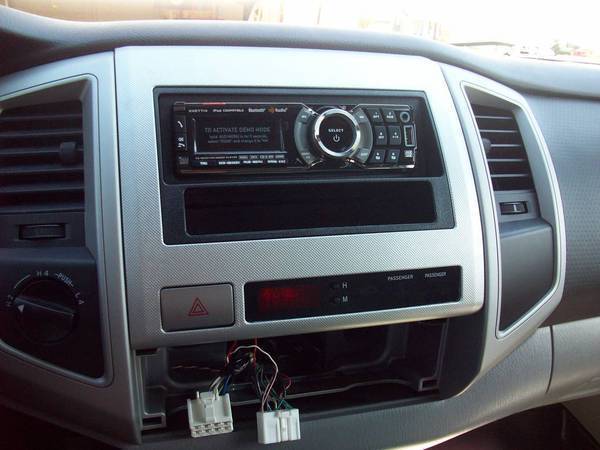

    [​IMG]

    Also in the middle is the 4X4 illumination switch from rcbs204

  2. Mar 27, 2011 at 10:53 AM
    #2
    armstrsm

    armstrsm [OP] Well-Known Member

    Joined:
    Aug 16, 2007
    Member:
    #2450
    Messages:
    245
    Gender:
    Male
    First Name:
    Sean
    Little Rock, AR
    Vehicle:
    07' Double Cab 4x4 SR5 TRd OffRoad
    AVS Vent Visors, AVS Bug Shield, Locks On Bed storage, Weathertech floor liners, Access roll up tonneau, Dual Head unit, illuminated 4x4 switch, Devil Horns

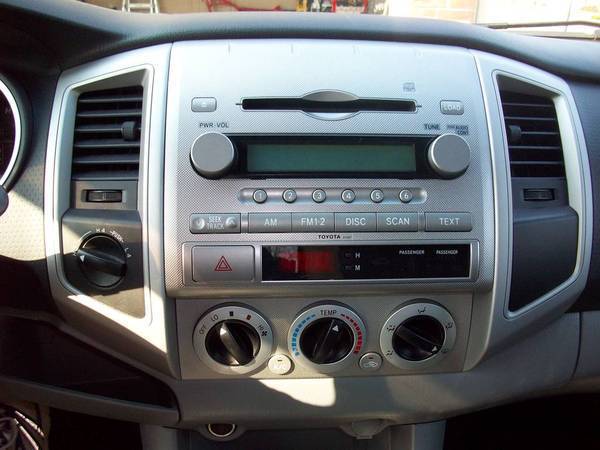

    The Before
    [​IMG]

    And After
    [​IMG]

  3. Mar 27, 2011 at 11:02 AM
    #3
    armstrsm

    armstrsm [OP] Well-Known Member

    Joined:
    Aug 16, 2007
    Member:
    #2450
    Messages:
    245
    Gender:
    Male
    First Name:
    Sean
    Little Rock, AR
    Vehicle:
    07' Double Cab 4x4 SR5 TRd OffRoad
    AVS Vent Visors, AVS Bug Shield, Locks On Bed storage, Weathertech floor liners, Access roll up tonneau, Dual Head unit, illuminated 4x4 switch, Devil Horns
    Started of course with the AC control unit
    pulled out all the control knobs and gently pried it off.
    [​IMG]

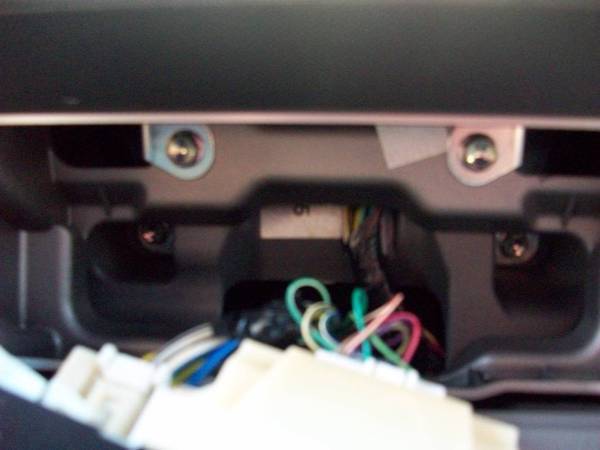

    the four bolts in this pic attached the stock unit to the dash.

    [​IMG]

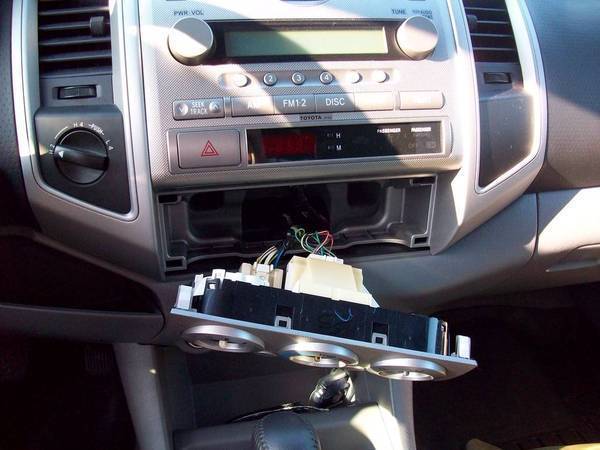

    she pretty much popped right out after that

    [​IMG]

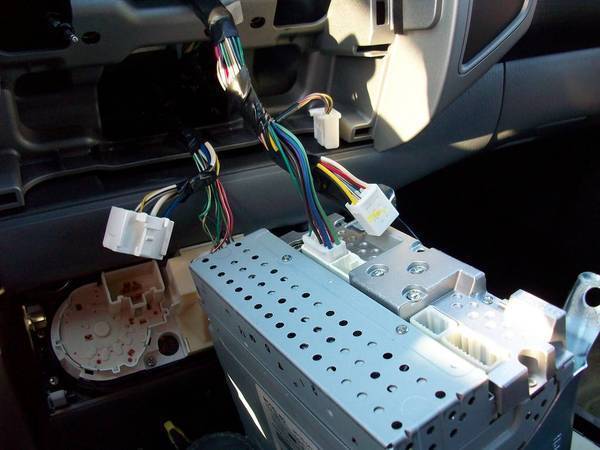

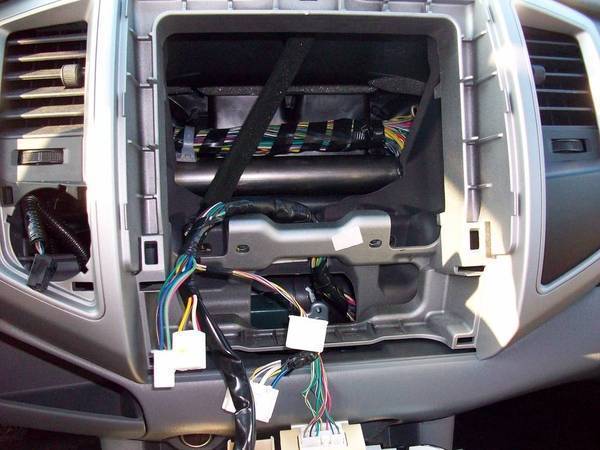

    then unhooked all the wires

    [​IMG]

  4. Mar 27, 2011 at 11:03 AM
    #4
    armstrsm

    armstrsm [OP] Well-Known Member

    Joined:
    Aug 16, 2007
    Member:
    #2450
    Messages:
    245
    Gender:
    Male
    First Name:
    Sean
    Little Rock, AR
    Vehicle:
    07' Double Cab 4x4 SR5 TRd OffRoad
    AVS Vent Visors, AVS Bug Shield, Locks On Bed storage, Weathertech floor liners, Access roll up tonneau, Dual Head unit, illuminated 4x4 switch, Devil Horns

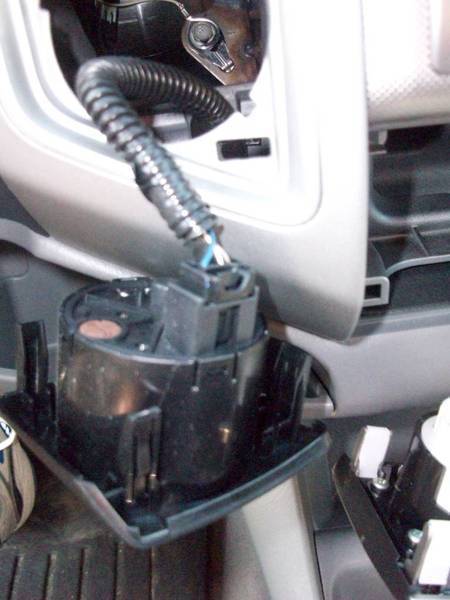

    cant forget the 4X4 switch

    [​IMG]

    used a flat blade to pry it off

  5. Mar 27, 2011 at 11:09 AM
    #5
    armstrsm

    armstrsm [OP] Well-Known Member

    Joined:
    Aug 16, 2007
    Member:
    #2450
    Messages:
    245
    Gender:
    Male
    First Name:
    Sean
    Little Rock, AR
    Vehicle:
    07' Double Cab 4x4 SR5 TRd OffRoad
    AVS Vent Visors, AVS Bug Shield, Locks On Bed storage, Weathertech floor liners, Access roll up tonneau, Dual Head unit, illuminated 4x4 switch, Devil Horns

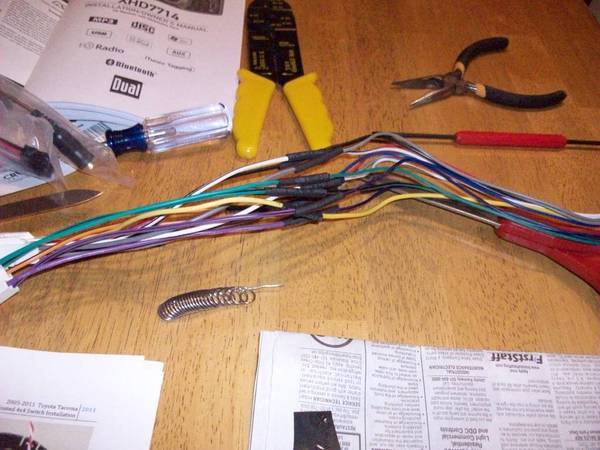

    I soldered all the wiring and wrapped them in heat shrink tubing

    [​IMG]

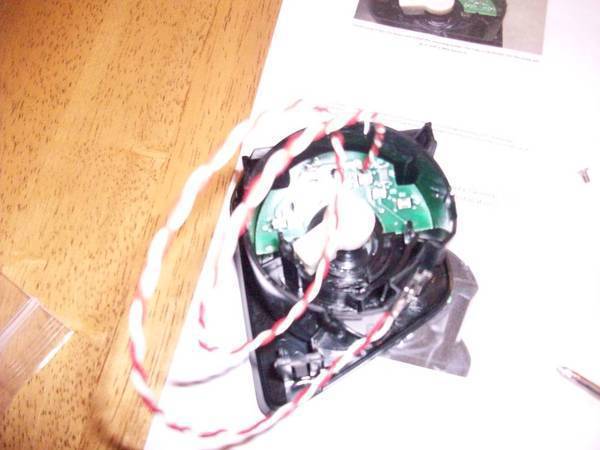

    then added my 4x4 lighting unit into the switch

    [​IMG]

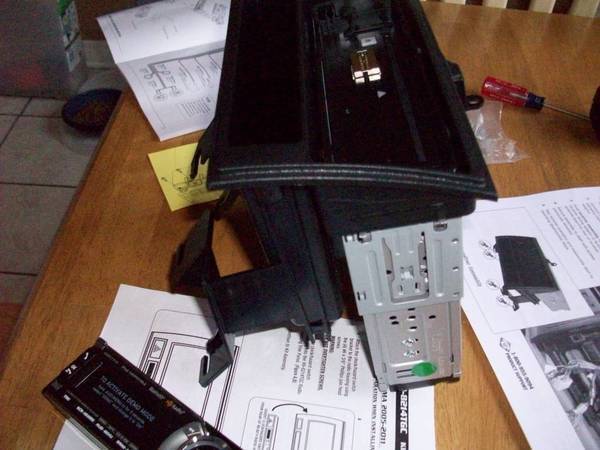

    then built up the new receiver and dash kit

    [​IMG]

  6. Mar 27, 2011 at 11:16 AM
    #6
    armstrsm

    armstrsm [OP] Well-Known Member

    Joined:
    Aug 16, 2007
    Member:
    #2450
    Messages:
    245
    Gender:
    Male
    First Name:
    Sean
    Little Rock, AR
    Vehicle:
    07' Double Cab 4x4 SR5 TRd OffRoad
    AVS Vent Visors, AVS Bug Shield, Locks On Bed storage, Weathertech floor liners, Access roll up tonneau, Dual Head unit, illuminated 4x4 switch, Devil Horns

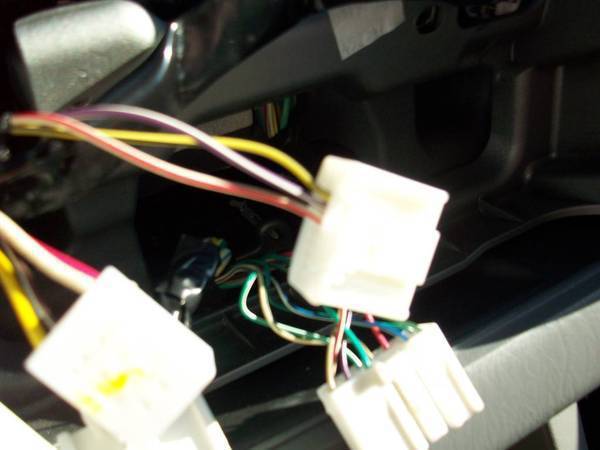

    the plug in the middle with the purple red and yellow wiring is the stock steering wheel control unit. I had to clip off the plug and used those wires to connect to the Axxes control plug. (forgot to get a good picture of that) The toughest part was soldering these wires while they where in the Taco.

    [​IMG]

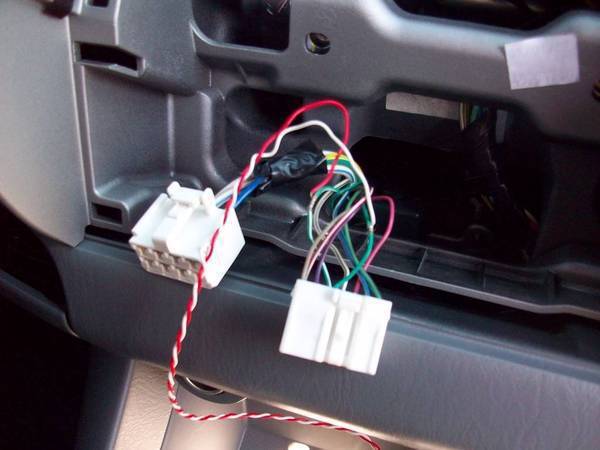

    The red and white wires are for the 4X4 switch. I tapped into the AC lighting wires.

    [​IMG]

  7. Mar 27, 2011 at 11:21 AM
    #7
    armstrsm

    armstrsm [OP] Well-Known Member

    Joined:
    Aug 16, 2007
    Member:
    #2450
    Messages:
    245
    Gender:
    Male
    First Name:
    Sean
    Little Rock, AR
    Vehicle:
    07' Double Cab 4x4 SR5 TRd OffRoad
    AVS Vent Visors, AVS Bug Shield, Locks On Bed storage, Weathertech floor liners, Access roll up tonneau, Dual Head unit, illuminated 4x4 switch, Devil Horns
    After the soldering was done. Everything popped right back in no problem!

    [​IMG]

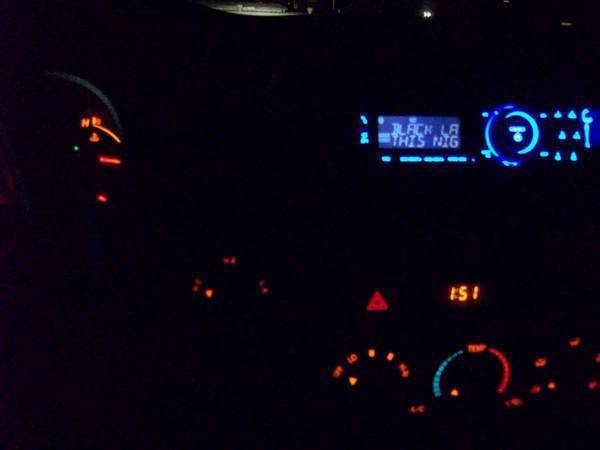

    Everything works

    [​IMG]

  8. Mar 27, 2011 at 11:29 AM
    #8
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,307
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    I'm lost.....what's up with the 4x4 switch? I think I missed something. I like the radio

  9. Mar 27, 2011 at 11:41 AM
    #9
    armstrsm

    armstrsm [OP] Well-Known Member

    Joined:
    Aug 16, 2007
    Member:
    #2450
    Messages:
    245
    Gender:
    Male
    First Name:
    Sean
    Little Rock, AR
    Vehicle:
    07' Double Cab 4x4 SR5 TRd OffRoad
    AVS Vent Visors, AVS Bug Shield, Locks On Bed storage, Weathertech floor liners, Access roll up tonneau, Dual Head unit, illuminated 4x4 switch, Devil Horns
    while i had everything opened up i did rcbs204 4x4 Illuminated Switch! modification.:cool:

  10. Mar 27, 2011 at 11:51 AM
    #10
    mattg43

    mattg43 Well-Known Member

    Joined:
    Feb 22, 2011
    Member:
    #51640
    Messages:
    846
    Gender:
    Male
    First Name:
    Matt
    Texas
    Vehicle:
    08 Prerunner SR5 DC
    SwingCase, driver side. PVC Bike rack. Aftermarket stereo.
    Good job. Looks nice, got any better pictures of it in the day time?

  11. Mar 27, 2011 at 11:54 AM
    #11
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,307
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    Oooooohhhhhh I thought it had something to do with the radio
