My FX-R Projector Retro...

Discussion in 'Lighting' started by TBK224, Nov 9, 2010.

  1. Nov 9, 2010 at 10:17 PM
    #1
    TBK224

    TBK224 [OP] ~THE LIGHT GUY~ Vendor

    Joined:
    Oct 25, 2009
    Member:
    #24887
    Messages:
    793
    Gender:
    Male
    First Name:
    Tim
    Phoenix, AZ
    Vehicle:
    BADASS TACO
    6" Pro Comp Stage One Lift Kit and 35" Toyo Open Country M/T's riding on 18" XD Addict Wheels
    Please read post 48 on page 3 for information on pricing!

    Ok, so I finally decided to pull the trigger and start my projector retro.

    First, I started by ordering brand new housings. Yes...I got the eGay housings. I figured projectors were going in them so any problems with aiming/sealing shouldn't be an issue after I got done with them.

    Next, it was time to order all the projector parts. I called TRS (The Retrofit Source) and Nate helped with all the ordering. I got the FX-R Stage III kit with 4300k D2S bulbs, morimoto ballasts, gatling shrouds, and a wiring harness.

    I dealt with both Nate and Matt during the process and they were both a great help. They answered all my questions and had everything shipped out right away. I have nothing but good things to say about TRS.

    After getting all the parts it was time for the build to begin.

    Pics:

    [​IMG]

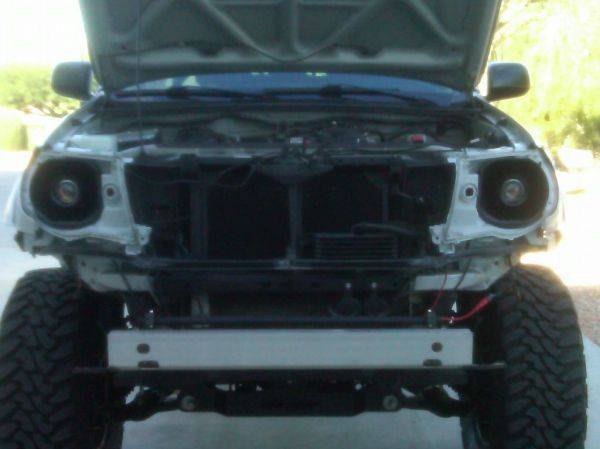

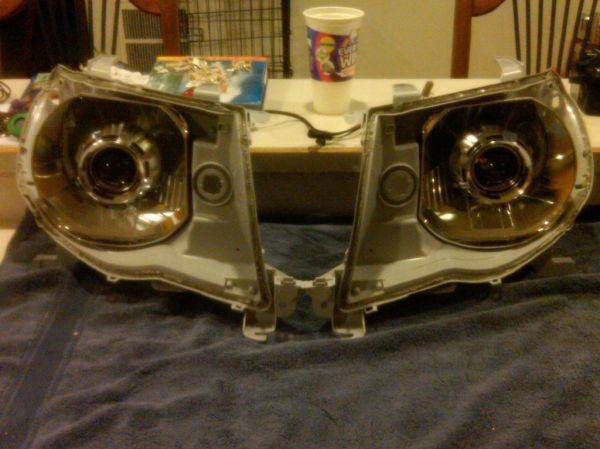

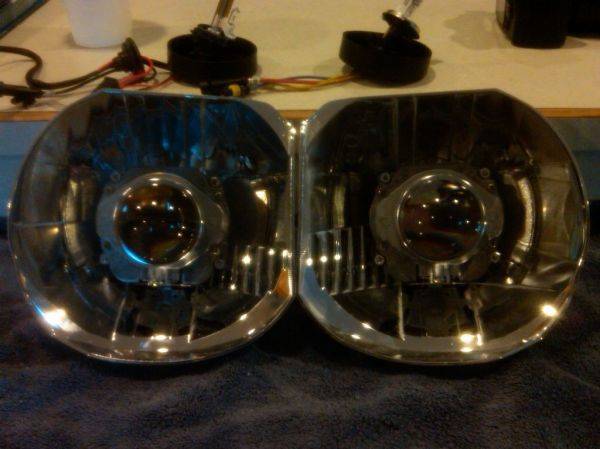

    Projectors temporarily mounted in reflector bowls.
    [​IMG]

    [​IMG]

    [​IMG]

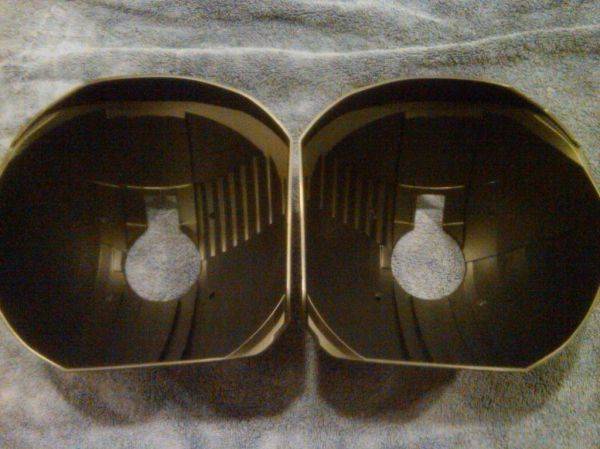

    After getting the cut offs close to where I wanted them it was time to pull everything apart so I could paint the shrouds and reflector bowls.
    [​IMG]

    [​IMG]

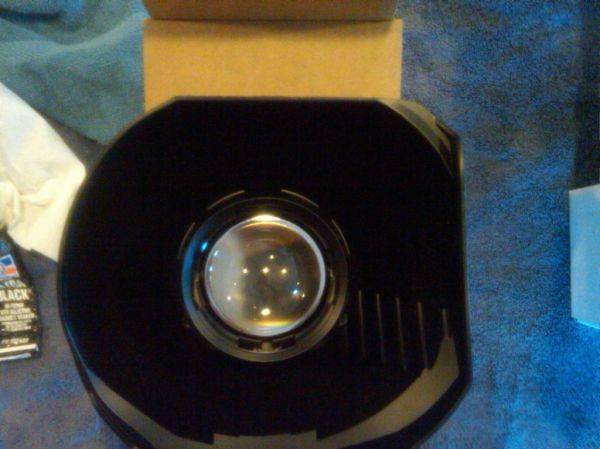

    Once the paint dried it was time to put them back together and re-align everything.
    [​IMG]

    After I got the cut offs right where I wanted them I epoxy glued the projectors and nuts so that nothing would come loose. At this point, everything was permanent.

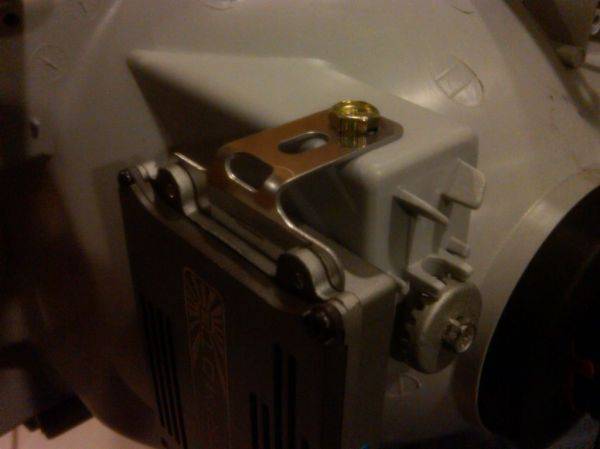

    While the epoxy resin was drying I mounted the morimoto ballasts to the housings.
    [​IMG]

    [​IMG]

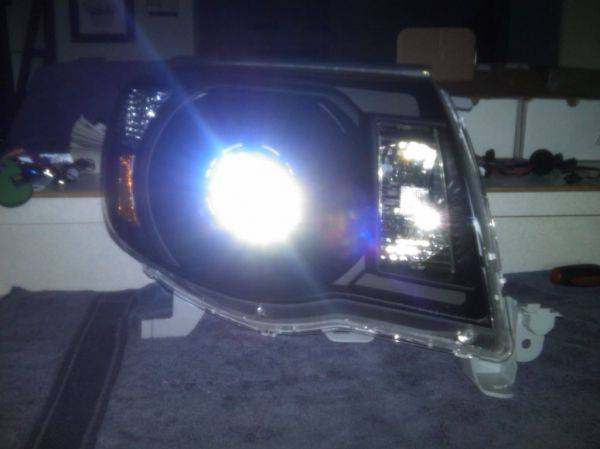

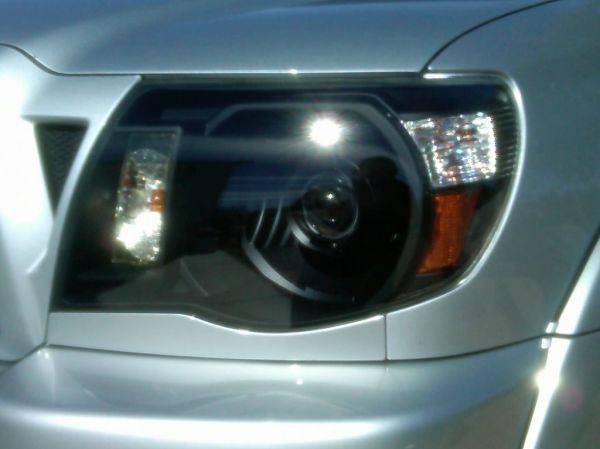

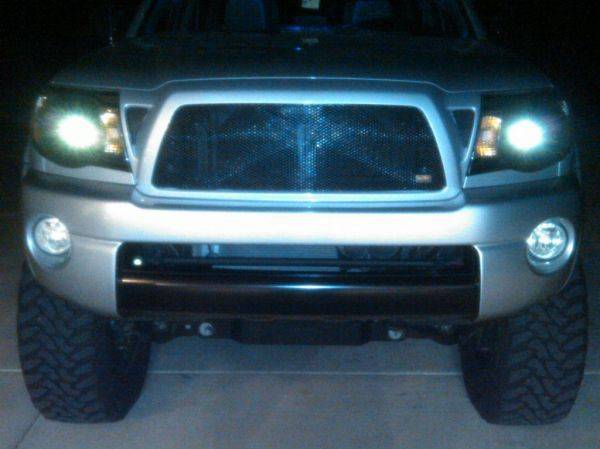

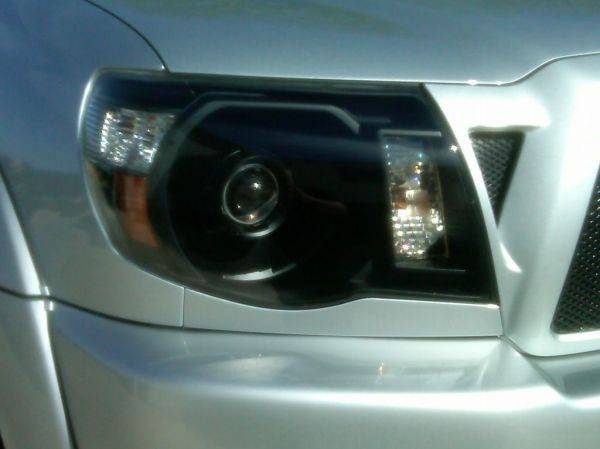

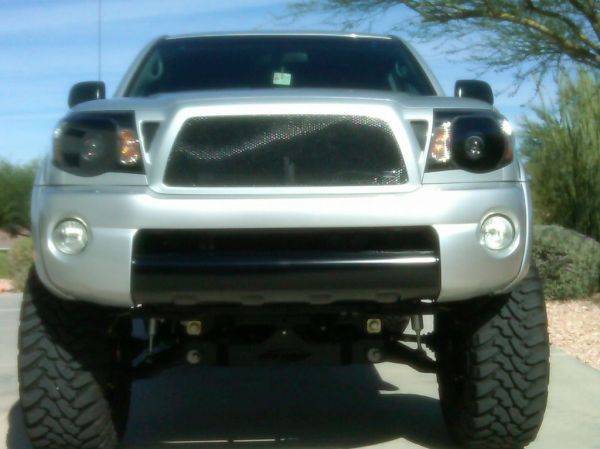

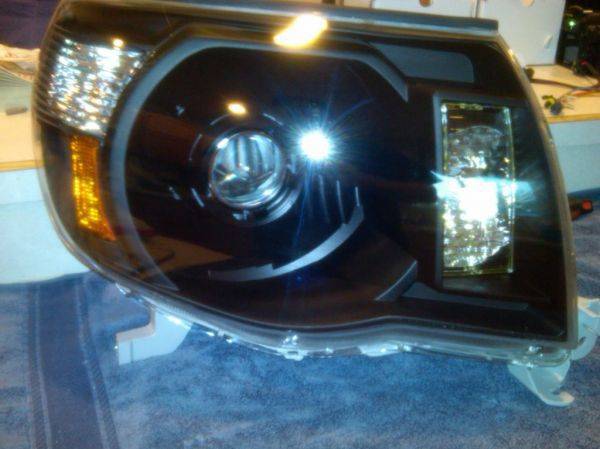

    Here are the rest of the pics of the finished lights...
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Here are the pictures of the cut offs during alignment and after everything was said and done.

    Low beams before adjustment...
    [​IMG]

    High beams...
    [​IMG]

    More cut off pics...

    Still needed some adjustment.
    [​IMG]

    Here is the final cut off after I was done with all adjustments. Dont mind the height, I was going up my drive way.
    [​IMG]


    Pictures dont do these lights any justice. They are very bright and cover a LOT of area. The high beams are far brighter than any other stock headlights I have ever seen.

    Well, now that I finally got around to doing the write-up on this retro...lets hear what everyone thinks. :D

  2. Nov 9, 2010 at 10:21 PM
    #2
    rab89

    rab89 Well-Known Member

    Joined:
    Jan 14, 2009
    Member:
    #12578
    Messages:
    5,506
    Gender:
    Male
    First Name:
    Ross
    Kelowna b.c canada
    Vehicle:
    2012 DCLB
    Grillcraft mx black upper and lower BHLM with Gloss black 265 70 17 bfg a/t center console light mini mag mounted in center console debadged bed lights 35W 5000k HID's
    looks awesome man! do mine? :)

  3. Nov 9, 2010 at 10:25 PM
    #3
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,232
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    See Build in Sig
    They look so badass bro, the entire way to tucson I kept staring at them in my mirror haha we gotta do mine before you move:(

  4. Nov 9, 2010 at 10:27 PM
    #4
    STR8_BEAST

    STR8_BEAST MASTER CHIEF

    Joined:
    Dec 28, 2009
    Member:
    #28323
    Messages:
    1,581
    Gender:
    Male
    First Name:
    Collin
    HB, SoCal
    Vehicle:
    07 PRERUNNER TRD OR
    K&N CAI, MAGNAFLOW EXHAUST, MASSIVE SOUND SYSTEM, KENWOOD DNX 7140, WINDOW TINTS, REAR TSB, FRONT COIL SPACER, SATOSHI MOD, BHLM, WHITE CALIPERS, CB RADIO W/4FT FIRESTIK, MAGLITE MOD
    looks awesome man. my retro kit has been sitting in the garage begging me to work on them :laugh:



    how'd you paint the reflector bowls, with krylon fusion?

  5. Nov 9, 2010 at 10:52 PM
    #5
    TBK224

    TBK224 [OP] ~THE LIGHT GUY~ Vendor

    Joined:
    Oct 25, 2009
    Member:
    #24887
    Messages:
    793
    Gender:
    Male
    First Name:
    Tim
    Phoenix, AZ
    Vehicle:
    BADASS TACO
    6" Pro Comp Stage One Lift Kit and 35" Toyo Open Country M/T's riding on 18" XD Addict Wheels
    PM sent.

  6. Nov 9, 2010 at 10:54 PM
    #6
    TBK224

    TBK224 [OP] ~THE LIGHT GUY~ Vendor

    Joined:
    Oct 25, 2009
    Member:
    #24887
    Messages:
    793
    Gender:
    Male
    First Name:
    Tim
    Phoenix, AZ
    Vehicle:
    BADASS TACO
    6" Pro Comp Stage One Lift Kit and 35" Toyo Open Country M/T's riding on 18" XD Addict Wheels
    Thanks man. Quit buyin random shit and order the parts already. lol You need these and the LED bars for the valance. Lets get the ball rollin. haha :D

  7. Nov 9, 2010 at 10:54 PM
    #7
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    Looks great man. I want to do this mod in the future I just have to decide if I want to attempt it myself or have someone do it.

  8. Nov 9, 2010 at 10:58 PM
    #8
    TBK224

    TBK224 [OP] ~THE LIGHT GUY~ Vendor

    Joined:
    Oct 25, 2009
    Member:
    #24887
    Messages:
    793
    Gender:
    Male
    First Name:
    Tim
    Phoenix, AZ
    Vehicle:
    BADASS TACO
    6" Pro Comp Stage One Lift Kit and 35" Toyo Open Country M/T's riding on 18" XD Addict Wheels
    Thanks. Pull the parts out and get those puppies mounted. They are night and day difference. I used high temp engine paint. I can post a pic of the exact stuff I used tomorrow. I wasnt sure if the fusion would hold up to the heat so I used the high temp paint instead. I have used it on other projects in the past and it holds up very well. I also scotch brighted the bowls before to give the paint a rough textured surface to adhere to. Good prep and plenty of coats is the key. Also, allow plenty of time in between to let the paint dry.

  9. Nov 9, 2010 at 11:01 PM
    #9
    Sabre

    Sabre Well-Known Member

    Joined:
    Oct 7, 2010
    Member:
    #44356
    Messages:
    2,588
    Gender:
    Male
    First Name:
    Kyle
    Fullerton, CA Stationed in Seattle, WA
    Vehicle:
    2009 DC 4x4
    icon 2.5 coilovers, color match grill, DDM tuning 5k headlights and fogs, lower valence painted
    sick i wanna do mine down the line

  10. Nov 9, 2010 at 11:01 PM
    #10
    TBK224

    TBK224 [OP] ~THE LIGHT GUY~ Vendor

    Joined:
    Oct 25, 2009
    Member:
    #24887
    Messages:
    793
    Gender:
    Male
    First Name:
    Tim
    Phoenix, AZ
    Vehicle:
    BADASS TACO
    6" Pro Comp Stage One Lift Kit and 35" Toyo Open Country M/T's riding on 18" XD Addict Wheels
    Thanks alot. Its not the easiest thing to do, but its also not to hard. It is very slow and time consuming though, so if you dont have much patience I would definitely consider letting someone else tackle it for you. If you decide to go that route, let me know. I will be doing this retro for members for a fee. :D

  11. Nov 9, 2010 at 11:37 PM
    #11
    tacovic

    tacovic Well-Known Member

    Joined:
    Oct 13, 2009
    Member:
    #24279
    Messages:
    666
    Gender:
    Male
    MN/WI
    Vehicle:
    00 4x4 TRD
    stock for now
    would you do a 1st gen?

  12. Nov 9, 2010 at 11:56 PM
    #12
    TBK224

    TBK224 [OP] ~THE LIGHT GUY~ Vendor

    Joined:
    Oct 25, 2009
    Member:
    #24887
    Messages:
    793
    Gender:
    Male
    First Name:
    Tim
    Phoenix, AZ
    Vehicle:
    BADASS TACO
    6" Pro Comp Stage One Lift Kit and 35" Toyo Open Country M/T's riding on 18" XD Addict Wheels
    I have had a few people ask me about first gens. I wouldnt mind doing them, the only problem is I do not have a first gen available to work with. I would need the vehicle to mount the lights to get the cut offs just right. Without actually mounting them in the truck I dont see how I could get the cut offs perfectly level.

  13. Nov 9, 2010 at 11:59 PM
    #13
    TRDguyKC

    TRDguyKC Well-Known Member

    Joined:
    Sep 18, 2008
    Member:
    #9316
    Messages:
    998
    Gender:
    Male
    First Name:
    Kris
    Glendale, AZ
    It turned out great! good job

  14. Nov 10, 2010 at 12:11 AM
    #14
    TBK224

    TBK224 [OP] ~THE LIGHT GUY~ Vendor

    Joined:
    Oct 25, 2009
    Member:
    #24887
    Messages:
    793
    Gender:
    Male
    First Name:
    Tim
    Phoenix, AZ
    Vehicle:
    BADASS TACO
    6" Pro Comp Stage One Lift Kit and 35" Toyo Open Country M/T's riding on 18" XD Addict Wheels
    Thanks Kris. I really like the way they turned out. The ouput on them is incredible. We need to get another wheelin trip together. The last one was pretty fun.

  15. Nov 10, 2010 at 1:34 AM
    #15
    TucsonMike

    TucsonMike Blank

    Joined:
    Oct 29, 2009
    Member:
    #25090
    Messages:
    649
    Gender:
    Male
    First Name:
    Mike
    Tucson, AZ
    Vehicle:
    2005 SR5 prerunner
    Yellow fogs,Stock 16" in black, 30" LED bar lower grill
    Looks nice. I want that along with hid fogs the light bar you have etc. lol

  16. Nov 10, 2010 at 1:40 AM
    #16
    TBK224

    TBK224 [OP] ~THE LIGHT GUY~ Vendor

    Joined:
    Oct 25, 2009
    Member:
    #24887
    Messages:
    793
    Gender:
    Male
    First Name:
    Tim
    Phoenix, AZ
    Vehicle:
    BADASS TACO
    6" Pro Comp Stage One Lift Kit and 35" Toyo Open Country M/T's riding on 18" XD Addict Wheels
    Lets order it all!! Its kinda like a band-aid, if you do it all at once and do it fast it wont hurt as bad. lol

  17. Nov 10, 2010 at 1:42 AM
    #17
    TucsonMike

    TucsonMike Blank

    Joined:
    Oct 29, 2009
    Member:
    #25090
    Messages:
    649
    Gender:
    Male
    First Name:
    Mike
    Tucson, AZ
    Vehicle:
    2005 SR5 prerunner
    Yellow fogs,Stock 16" in black, 30" LED bar lower grill
    Ok you tell the wife that and if she is ok with it then I will :eek:

  18. Nov 10, 2010 at 1:53 AM
    #18
    TBK224

    TBK224 [OP] ~THE LIGHT GUY~ Vendor

    Joined:
    Oct 25, 2009
    Member:
    #24887
    Messages:
    793
    Gender:
    Male
    First Name:
    Tim
    Phoenix, AZ
    Vehicle:
    BADASS TACO
    6" Pro Comp Stage One Lift Kit and 35" Toyo Open Country M/T's riding on 18" XD Addict Wheels
    Thats the beauty of not being married...lol:p

  19. Nov 10, 2010 at 4:56 AM
    #19
    neslerrah

    neslerrah Who needs 4WD?

    Joined:
    Feb 18, 2008
    Member:
    #4803
    Messages:
    6,722
    Gender:
    Male
    First Name:
    Harrelsen
    Tucson
    Vehicle:
    5 lug BEAST!
    Secondary air filter removed, elbow mod, BFG KM2 (33x10.5R15), American Racing Mojaves, Debadged, BHLM, Dome Light MOD (Blue), Hella 500 behind recessed Satoshi Grille, Kenwood headunit, Sockmonkey 'TACOMA' Decals, Readylift 5-lug SST, Rear Shocks - Bilstein TRD, Dynomax Super Turbo #17748, DDM Slim Ballast HID Kit H4 Hi/Lo -35W 6000K in headlights, Apexcone Raptor HID Kit H3 - 35W 6000K in Hella 500s, aFe CAI #51-10762, WeatherTech Floorliner, 200W Smart AC Inverter

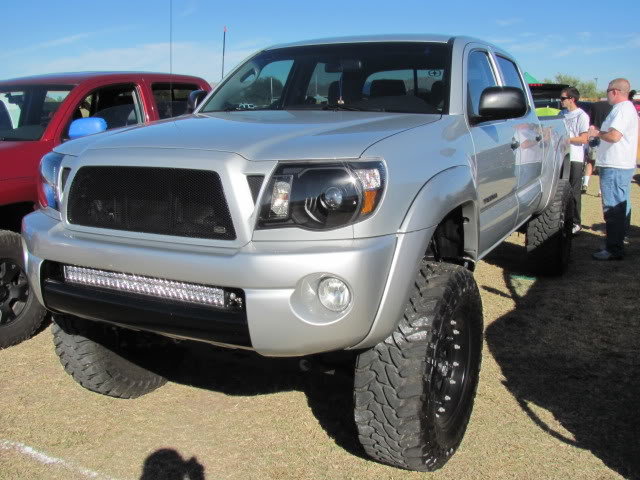

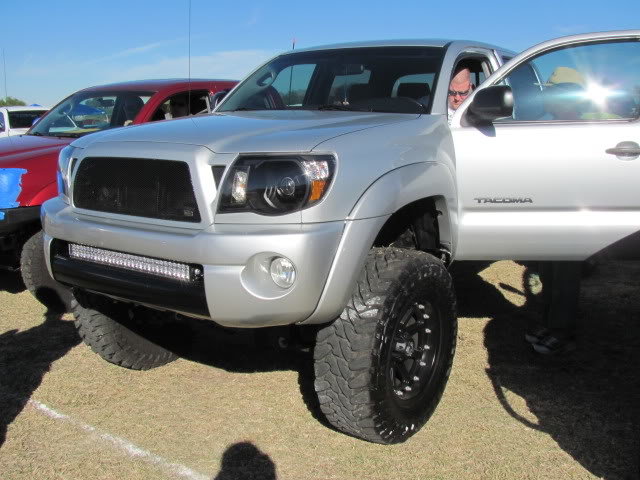

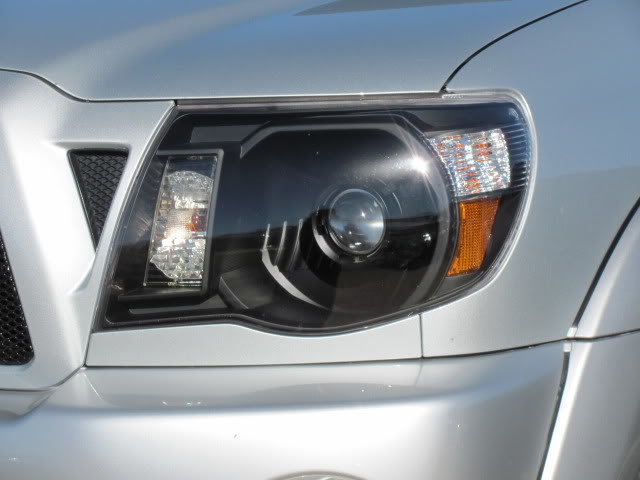

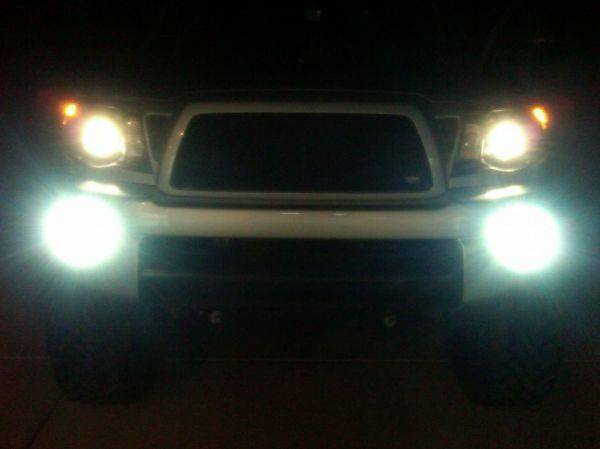

    Here are some more pictures.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  20. Nov 10, 2010 at 6:42 AM
    #20
    Bama_TACO

    Bama_TACO ROLL TIDE!!!!!!!

    Joined:
    Aug 3, 2010
    Member:
    #41157
    Messages:
    1,020
    Gender:
    Male
    Winfield, AL
    Vehicle:
    2006 PreRunner Double Cab TRD SPORT
    Looks really nice. One question. Which bulb did you go with, the Morimoto or Phillips 85122+? I can tell you from my experience that the Phillips bulb is a much better and brighter bulb than the Morimoto. I ran the Morimotos for a couple of months and made the switch to the Phillips bulbs a couple of weeks ago.
