My Gage Cluster blue LED swap!!! 2003 tacoma 1st gen

Okay so I was inspired by other guys on the site to swap out the LED lights in the gage cluster. I didn't order them from superbrightleds.com but it is a good idea to.. got mine on ebay in a set of 10 for about $8. I know other people have their threads about it with their own pictures and such but everyone is different so I am posting my own mini dash build.

I won't be showing you how to take the dash apart but pretty much you need to take most everything else off in order to get to the dash. I'll leave that part for you to figure out.

Started with this mess (if you're an unorganized person, lay out all the bolts on a piece of paper and write what goes where, or take pictures to make it easier to put all back together.)



Once you get your cluster out of the truck this is what you will have, infront you also see my new blue #194 LED lights (Be careful when taking out the cluster because in mine there were three big clusters of wires plugged into it but they unplugged easily.)

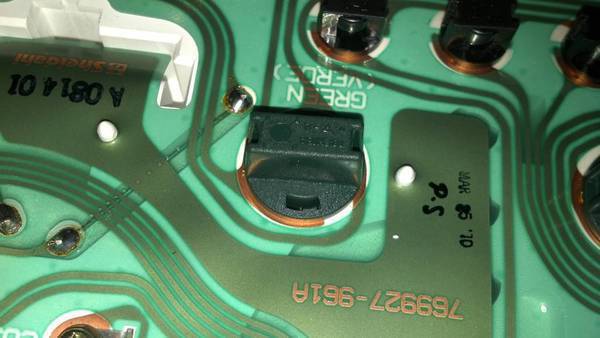

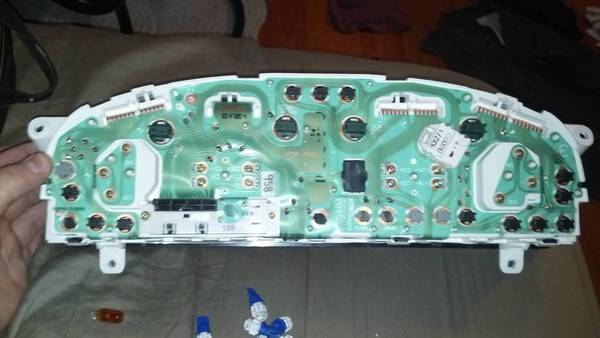

This is the back of the cluster. There are four lights total that you need to change and they are the four big green circles you see on the back of the cluster. They are real easy to take out you just twist them and the socket pops out with the light plugged into it.

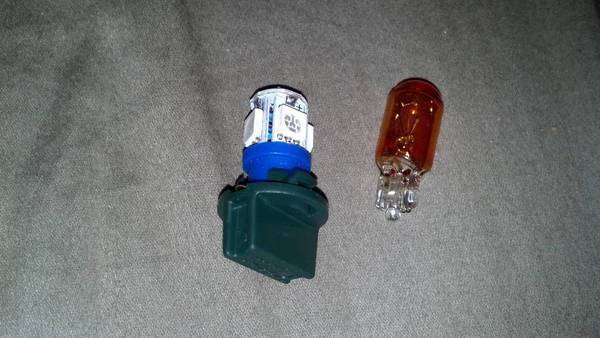

Pull the old orange (or whatever color you have maybe green) light out of the green socket



Plug the new light into the socket



Put the green socket back into the back of the cluster and make sure it is in and twisted the opposite way it came out so that it stays in.



NOTE!!!!!!! MUST READ!!!!!
When you have put the four new lights into the cluster, plug the gage cluster in and MAKE SURE EACH LIGHT WORKS! If you put the sockets back into the gage cluster the wrong way then they will not turn on! Luckily I tested it myself before putting my truck back together because only one of the lights was in the right way. I am saving you a lot of time by telling you this because trust me it would not be fun to take it apart again after seeing only half of your gage cluster work.

Okay now that i'm done with that.. here is the final view



Next I plan on ordering the smaller bulbs that go in my heater knob cluster or whatever it's called so that they match the blue lights in my gages.

Hope this thread helps and thanks for looking!
