My "LAST TRD" build

Discussion in '2nd Gen. Builds' started by cjimenRR, Apr 16, 2013.

  1. Apr 16, 2013 at 1:08 PM
    #1
    cjimenRR

    cjimenRR [OP] Be Good or Be Good At It

    Joined:
    Jul 13, 2009
    Member:
    #19648
    Messages:
    816
    Gender:
    Male
    North Hollywood, Ca
    Vehicle:
    12' Sport DC,LB, 4x4
    So finally got some free time to do a write up for what I call my Last TRD. I've had more cars than I can remember in my 20's and as I got closer to my 30's I spent more money than I can remember on various cars so i decided I needed to grow up and keep 1 car till I at least pay it off.

    Sold this baby (would have been payed off long time ago if i kept it) [​IMG]

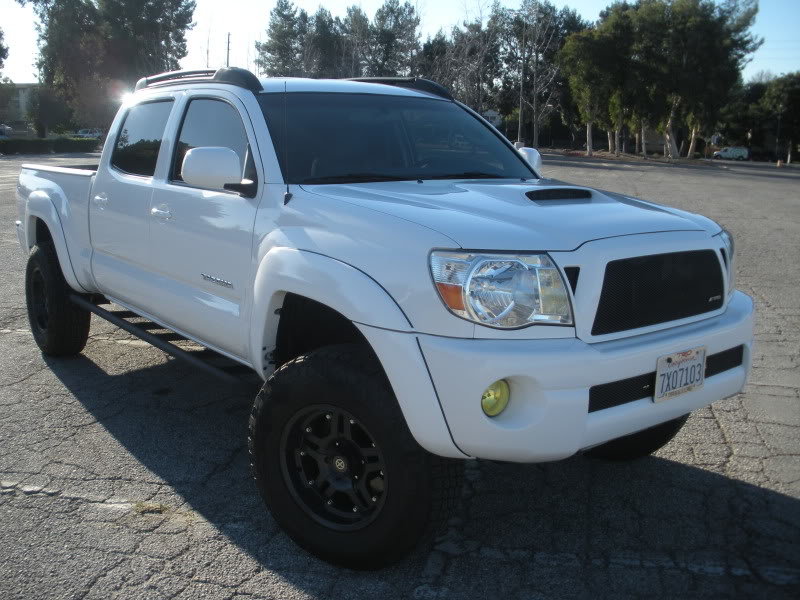

    Got this next (lasted 4 months in it and lost my ass selling it)
    [​IMG]

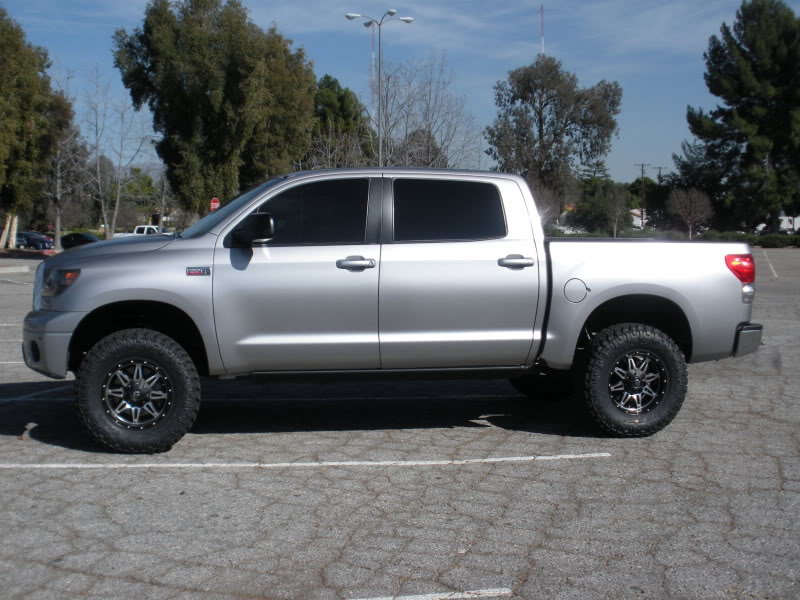

    This was next and built the ish out of it but made it too big for my daily driver
    [​IMG]

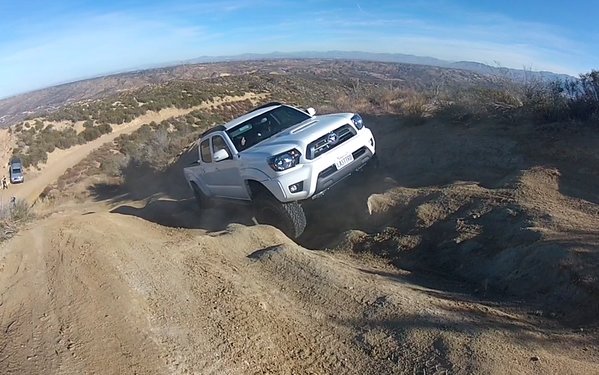

    And this is me now (for a while too)
    [​IMG]

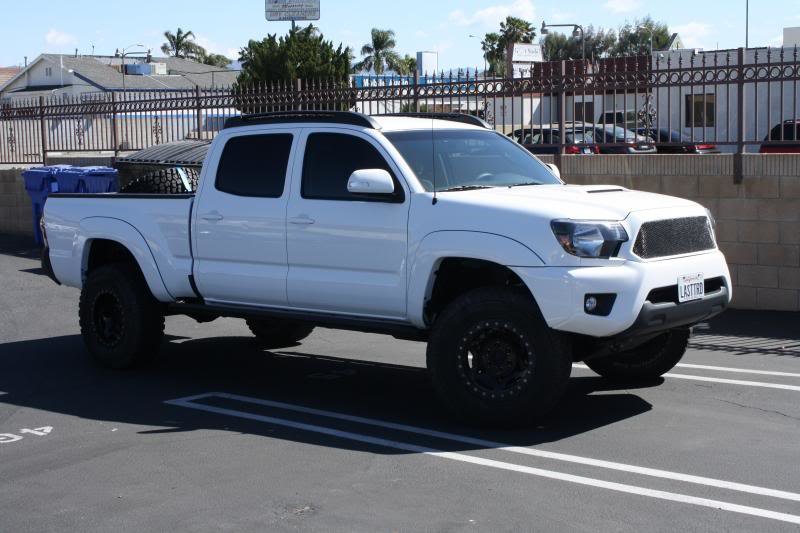

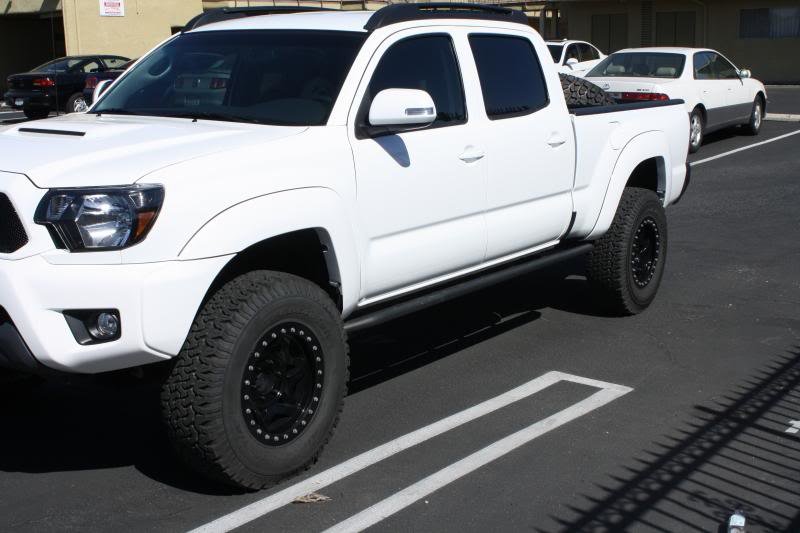

    2012 Tacoma Sport 4X4 Long Bed
    Paid $34.2K OTD
    Mods to date roughly $10k

    Suspension:
    *Front: Icon standard coil overs with King's 650lb springs, Total Chaos upper control arms, 1/2 inch Toytec spacer on driver side to fix famous Taco lean

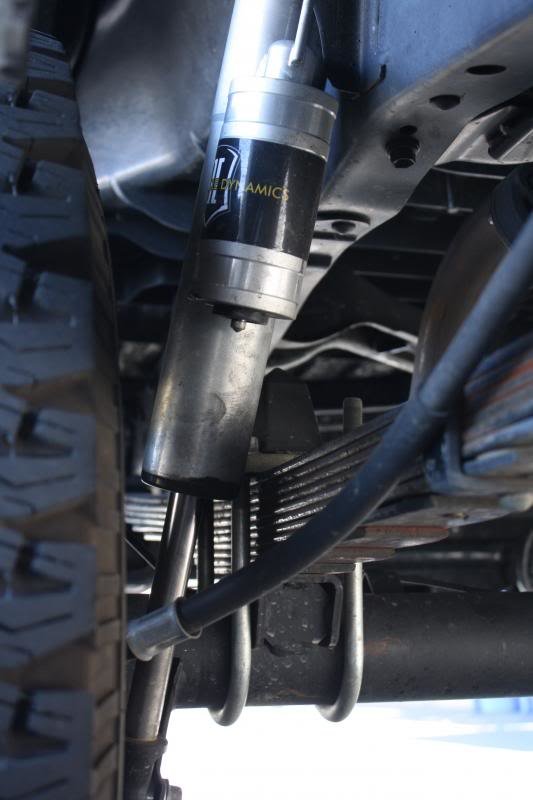

    *Rear: Icon 2.5 piggyback reservoir shocks (normally used on 4Runners), ALL-Pro standard leaf pack, U-Bolt flip kit, ALL-Pro extended brake lines
    [​IMG]
    [​IMG]

    Wheels/Tires:
    *Walker Evans with simulated Beadlocks (all 5 rims) 17 X 8.5, 4.5 backspacing, and 0 offset
    *BFG ALL Terrain 285/70/17
    *ALL-Pro 1.25 wheel spacers in the front only
    [​IMG]

    Armor:

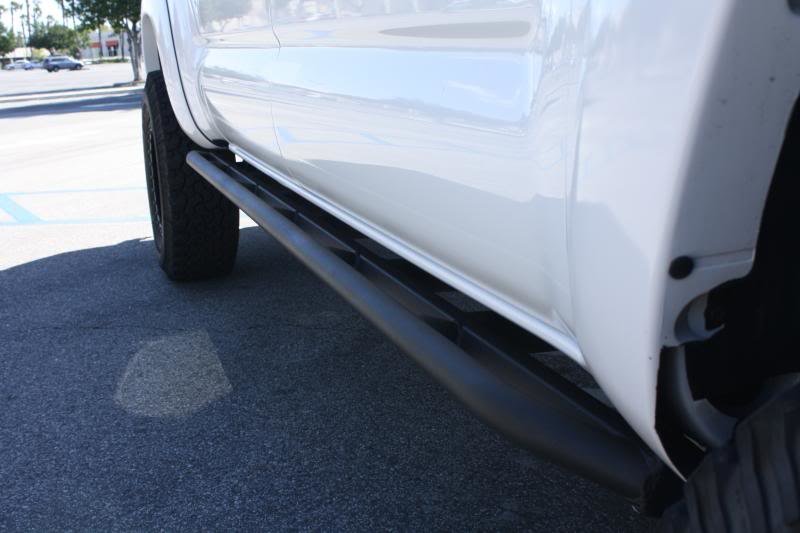

    Demello weld on sliders with no kickout

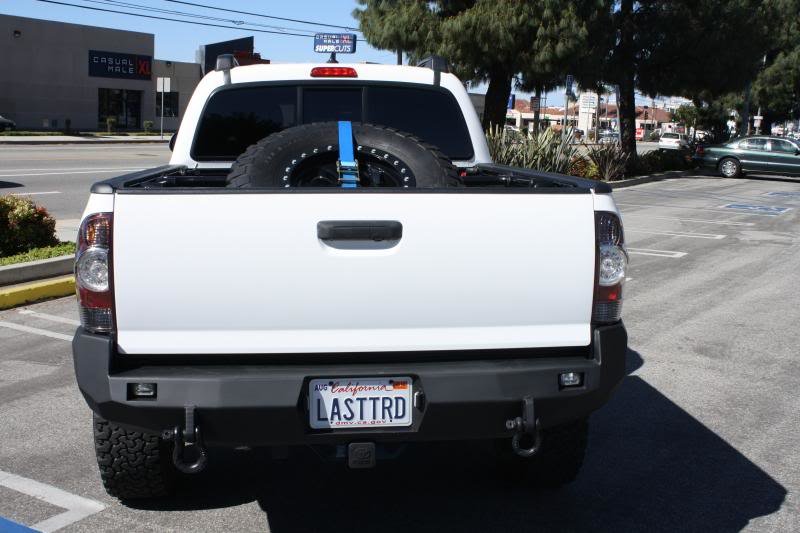

    Road Armor rear bumper

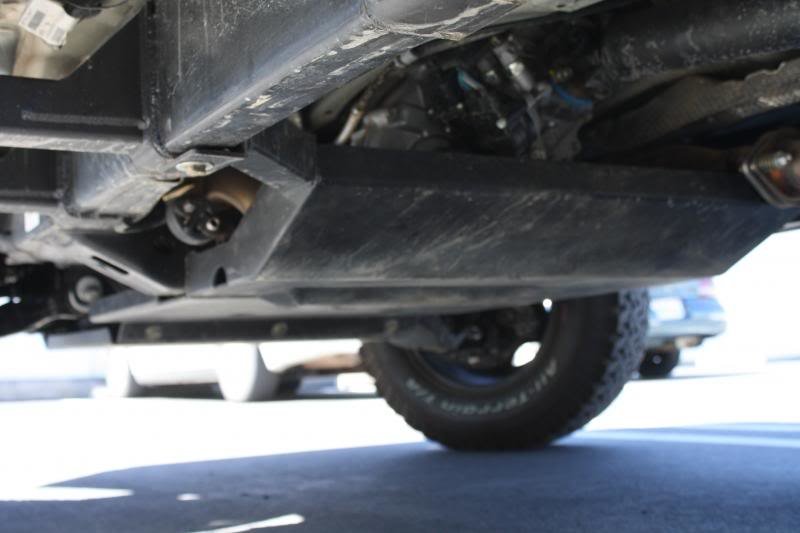

    Pelfrey skids (IFS, Transmission, Transfer case)
    [​IMG]
    [​IMG]
    [​IMG]

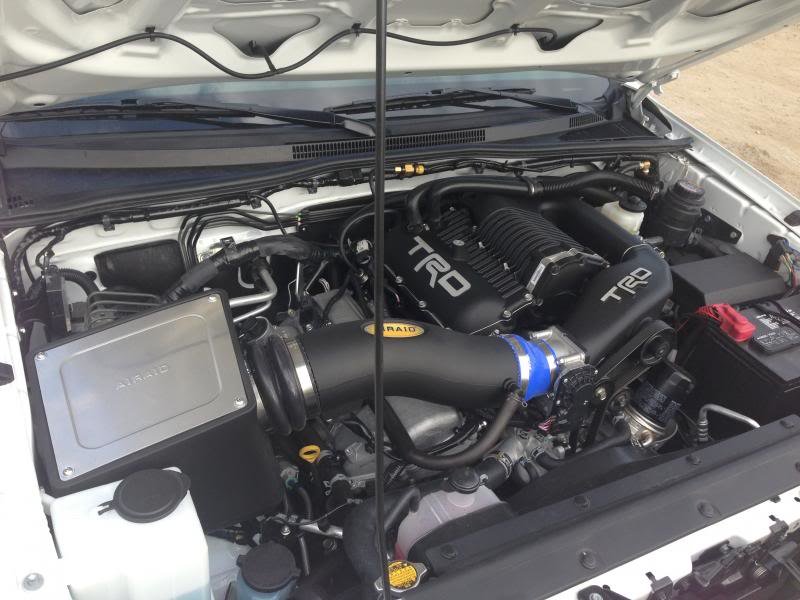

    Engine:
    AirRaid intake
    TRD Supercharger
    TRD exhaust
    URD Stealth 2.85 pulley
    URD Fuel Pump kit
    TTC Performance oil catch can
    [​IMG]
    [​IMG]

    Interior:

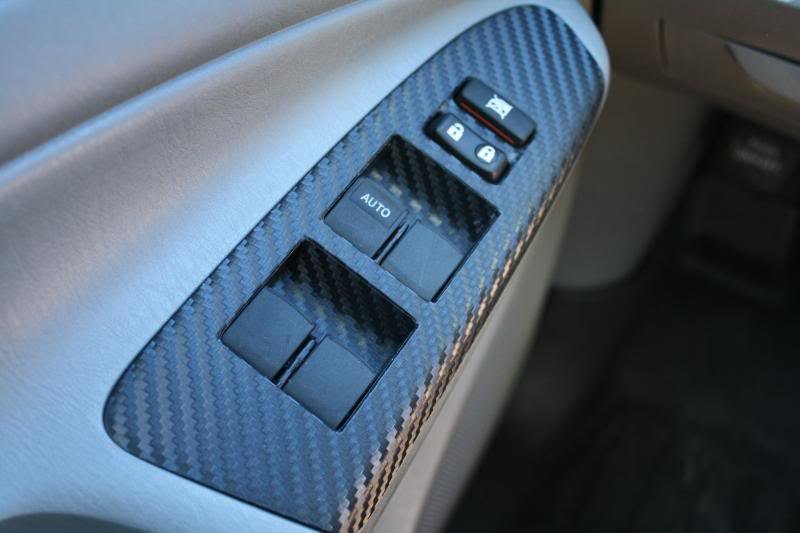

    3M carbon fiber wrap on window switches only
    [​IMG]

    Misc:

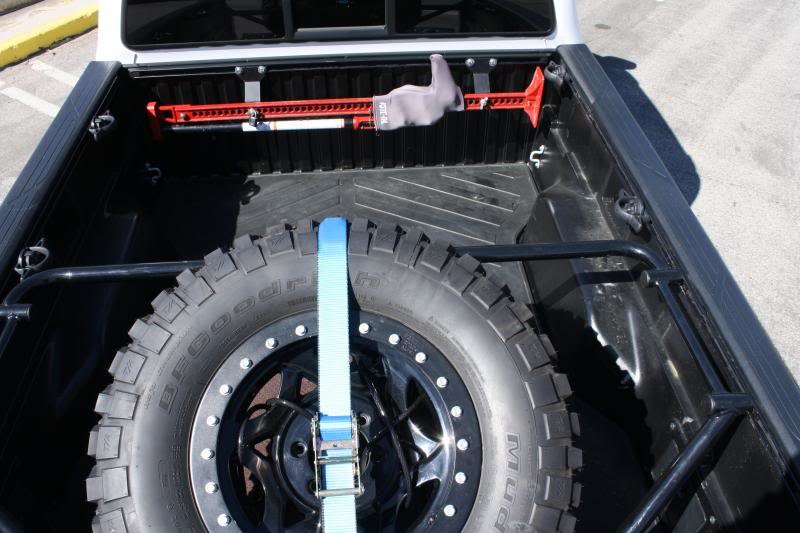

    N-Fab tire carrier and Hi-lift jack with ATO bed mounts
    BHLM

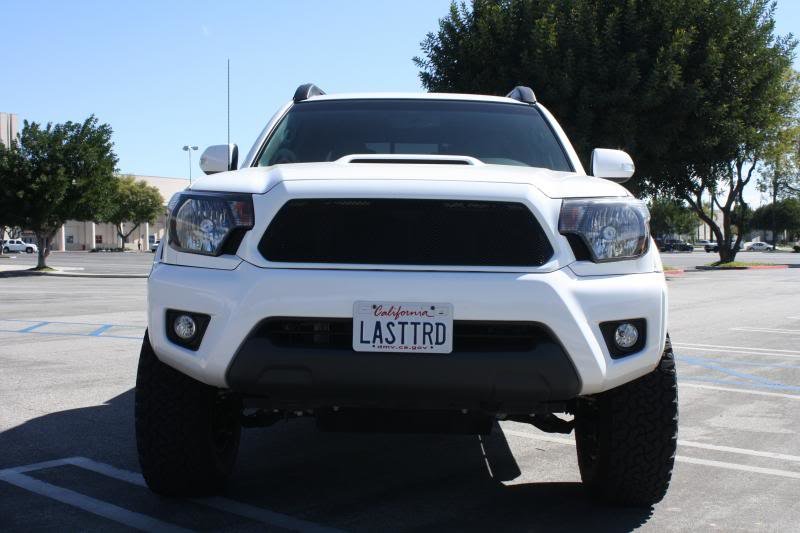

    GRilleCraft upper mesh
    Turned off DRL's to avoid melting the lenses
    SlimCubby 4300 HID Kit
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]

    My wish list:
    Projector Headlights
    Pelfrey front bumper
    Re-gearing front and rear to 4.88's

    Last edited: Apr 18, 2013
  2. Apr 16, 2013 at 1:24 PM
    #2
    SconnieHailer

    SconnieHailer PutterClutch

    Joined:
    Aug 26, 2012
    Member:
    #85590
    Messages:
    6,817
    Gender:
    Male
    First Name:
    Marc
    Lander, Wyoming
    Vehicle:
    2012 TRD Off Road Double Cab V6 6Speed
    Nice. Good looking white truck ;)

  3. Apr 16, 2013 at 1:39 PM
    #3
    Onetime27

    Onetime27 Well-Known Member

    Joined:
    May 22, 2012
    Member:
    #79325
    Messages:
    204
    Gender:
    Male
    First Name:
    Joe
    Tanasbourne Area
    Vehicle:
    TRD Sport
    BHLM, 3" Revtech lift, 1.25" Spidertraxx spacers in front, N-Fab steps, Wicked Flow muffler dumped at rear axle, 886 Reverse Light Mod, de-badged
    Good looking truck man! I'm jealous of your roof racks haha I need to get some soon.

    I did some carbon fiber wrap on some interior parts a few months ago and I'm baffled at how smooth you got the wrap to tuck in under the window regulators. Mine looked so bad I cut it off at the bend.

  4. Apr 16, 2013 at 1:42 PM
    #4
    cjimenRR

    cjimenRR [OP] Be Good or Be Good At It

    Joined:
    Jul 13, 2009
    Member:
    #19648
    Messages:
    816
    Gender:
    Male
    North Hollywood, Ca
    Vehicle:
    12' Sport DC,LB, 4x4
    a lot of cussing, time and burnt finger tips. I used a hairdryer and got the film as hot as I could for it to form on the contours. The spots in between the actual switches I did cut them up into small pieces

  5. Apr 16, 2013 at 1:51 PM
    #5
    Fireguy25

    Fireguy25 Member

    Joined:
    Mar 30, 2013
    Member:
    #100914
    Messages:
    5
    Gender:
    Male
    First Name:
    Jason
    Southeast
    Vehicle:
    2013 DC Baja Supercharged
    Baja package, supercharger, trd performance pads, trd shift knob, weather tech mats, front brush guard, bed mat, leather seating upgrade with heated front seats, with more to come.
    Beautiful truck! Really like what you have done with it.

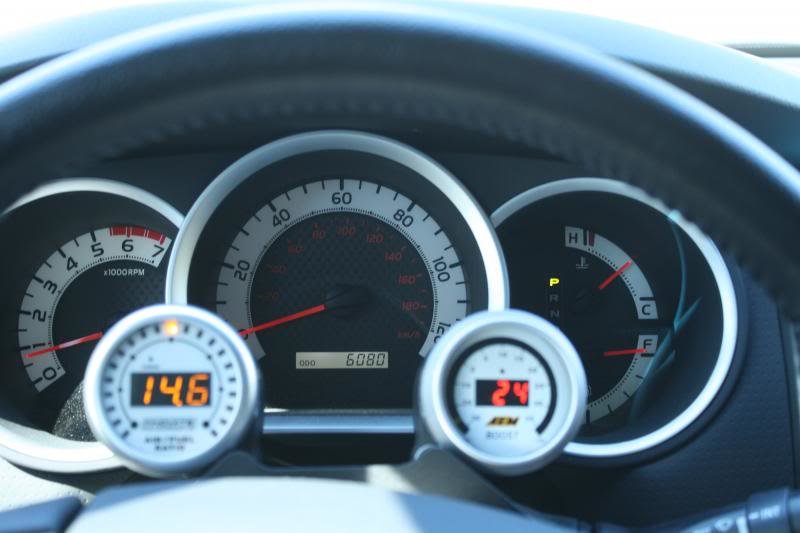

    Curious about what guages you are using to monitor the SC and what kind of headaches you went through installing them? Do you like the mount you are using for the guages.

    Also is the URD pully worth it on the SC?

    Last edited: Apr 16, 2013
  6. Apr 16, 2013 at 3:07 PM
    #6
    cjimenRR

    cjimenRR [OP] Be Good or Be Good At It

    Joined:
    Jul 13, 2009
    Member:
    #19648
    Messages:
    816
    Gender:
    Male
    North Hollywood, Ca
    Vehicle:
    12' Sport DC,LB, 4x4
    installing the gauges was straight forward and about the only tough part was removing the pass. side exhaust manifold to have the bung welded in.

    As far as the URD pulley I can't say for sure since the supercharger I purchased was used and already had the pulley installed so I have nothing to base off of

  7. Apr 16, 2013 at 3:13 PM
    #7
    Sje1124

    Sje1124 Well-Known Member

    Joined:
    Nov 1, 2010
    Member:
    #45564
    Messages:
    3,462
    Gender:
    Male
    First Name:
    Sean
    Oklahoma / Louisiana
    Vehicle:
    2010 DBL Cab TRD OR 4x4 W/ JBL
    Just a few
    Great looking truck man!

  8. Apr 17, 2013 at 3:44 PM
    #8
    cjimenRR

    cjimenRR [OP] Be Good or Be Good At It

    Joined:
    Jul 13, 2009
    Member:
    #19648
    Messages:
    816
    Gender:
    Male
    North Hollywood, Ca
    Vehicle:
    12' Sport DC,LB, 4x4
    Thanks!

  9. Apr 17, 2013 at 6:20 PM
    #9
    krob32

    krob32 Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73075
    Messages:
    1,345
    Gender:
    Male
    First Name:
    Kelly
    Ft. Belvoir, VA / Asheville, NC
    Vehicle:
    2012 MGM TRD Sport DCLB
    WeatherTec Digi Liners, AVS Bugflector II, TRD FJ SE Anthracite Rims, Goodyear DuraTrac 265/75/16, AVS In-Channel Wind Deflectors, Extang Solid Fold, Pop & Lock, Color Match Grill Emblem (Anthracite), Plasti Dip Emblems, Tacoma Bed Mat, Tacoma Door Sill Protectors, ToyTec Ultimate Lift Kit, ICON UCAs, Wet Okoles, Sockmonkey 3rd Brake Light Cover, LED Hood/Bed Lighting w/ OTRATTW Switches, Famous Fabrication Sliders, Sockmonkey TRD Bed Decal, Proven Design 4x4 Mudflaps, BenWA's Rear Power Sliding Window, Jasper Off Road 6" Reverse LED Pod, ImMrYo Rear View Mirror Bracket, GrillCraft w/ Black Mesh and color matched Land Cruiser Emblem, LED Tail Lights.
    Nice! DCLB FTW.

  10. Apr 17, 2013 at 6:21 PM
    #10
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    22,171
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    ^^

  11. Apr 18, 2013 at 6:18 PM
    #11
    MGMAddict

    MGMAddict Well-Known Member

    Joined:
    Dec 15, 2011
    Member:
    #68806
    Messages:
    56
    Gender:
    Male
    First Name:
    Matt
    Doylestown,PA
    Vehicle:
    TRD Sport
    Bilstein ULC
    Great looking truck man.Are you running spacers for look or clearance?

  12. Apr 18, 2013 at 7:58 PM
    #12
    cjimenRR

    cjimenRR [OP] Be Good or Be Good At It

    Joined:
    Jul 13, 2009
    Member:
    #19648
    Messages:
    816
    Gender:
    Male
    North Hollywood, Ca
    Vehicle:
    12' Sport DC,LB, 4x4
    I'm only running a spacer on the driver side to fix the taco "lean" so I don't have to crank the shit out of the coil over. Even with the spacer I'm still almost 1/2 inch shorter compared to the pass. side

  13. Apr 18, 2013 at 8:07 PM
    #13
    veronatii

    veronatii Well-Known Member

    Joined:
    Nov 27, 2011
    Member:
    #67795
    Messages:
    65
    Gender:
    Male
    First Name:
    Spencer
    Santa Barbara
    Vehicle:
    '13 4x4 SW DCLB Sport, '72 BMW 2002Tii
    Beautiful truck! An inspiration for mine.

  14. Apr 18, 2013 at 9:17 PM
    #14
    uscg2008

    uscg2008 Well-Known Member

    Joined:
    Nov 6, 2009
    Member:
    #25537
    Messages:
    2,898
    Gender:
    Male
    First Name:
    coby
    KODIAK, AK! originally from Huntington Beach, CA
    Vehicle:
    06 trd sr5 four door 4x4
    CLICK ON SIGNATURE>>>>
    Damn that truck is so freaking nice! AWSOME work bub, lovin the set up. Do you have 14" coils?

  15. Apr 18, 2013 at 9:22 PM
    #15
    cjimenRR

    cjimenRR [OP] Be Good or Be Good At It

    Joined:
    Jul 13, 2009
    Member:
    #19648
    Messages:
    816
    Gender:
    Male
    North Hollywood, Ca
    Vehicle:
    12' Sport DC,LB, 4x4
    Appreciate that! Ya, the springs are 14'' so I wouldn't have to crank the coil overs so much

  16. Apr 18, 2013 at 9:38 PM
    #16
    Datsik

    Datsik Well-Known Member

    Joined:
    Aug 16, 2011
    Member:
    #61799
    Messages:
    1,366
    Gender:
    Male
    San Diego
    Vehicle:
    2012 4x4 Sport
    Stock
    Awesome job man looks great. Does your hilift rattle at all?

  17. Apr 19, 2013 at 10:26 AM
    #17
    MGMAddict

    MGMAddict Well-Known Member

    Joined:
    Dec 15, 2011
    Member:
    #68806
    Messages:
    56
    Gender:
    Male
    First Name:
    Matt
    Doylestown,PA
    Vehicle:
    TRD Sport
    Bilstein ULC
    I ment hub spacers

  18. Apr 19, 2013 at 1:26 PM
    #18
    uscg2008

    uscg2008 Well-Known Member

    Joined:
    Nov 6, 2009
    Member:
    #25537
    Messages:
    2,898
    Gender:
    Male
    First Name:
    coby
    KODIAK, AK! originally from Huntington Beach, CA
    Vehicle:
    06 trd sr5 four door 4x4
    CLICK ON SIGNATURE>>>>
    Ya I need to order myself some cause I have a lot of preload already on mine and I still might add an arb bumper

  19. Apr 19, 2013 at 4:23 PM
    #19
    cjimenRR

    cjimenRR [OP] Be Good or Be Good At It

    Joined:
    Jul 13, 2009
    Member:
    #19648
    Messages:
    816
    Gender:
    Male
    North Hollywood, Ca
    Vehicle:
    12' Sport DC,LB, 4x4
    Thanks! That's your old intake too. Ya, I just noticed it rattles from time to time I'm probably gonna just buy the clamps to mount it to my tire carrier

  20. Apr 19, 2013 at 4:24 PM
    #20
    cjimenRR

    cjimenRR [OP] Be Good or Be Good At It

    Joined:
    Jul 13, 2009
    Member:
    #19648
    Messages:
    816
    Gender:
    Male
    North Hollywood, Ca
    Vehicle:
    12' Sport DC,LB, 4x4
    Clearance, with the 4.5 back spacing the caliper would touch the rim under certain driving conditions
