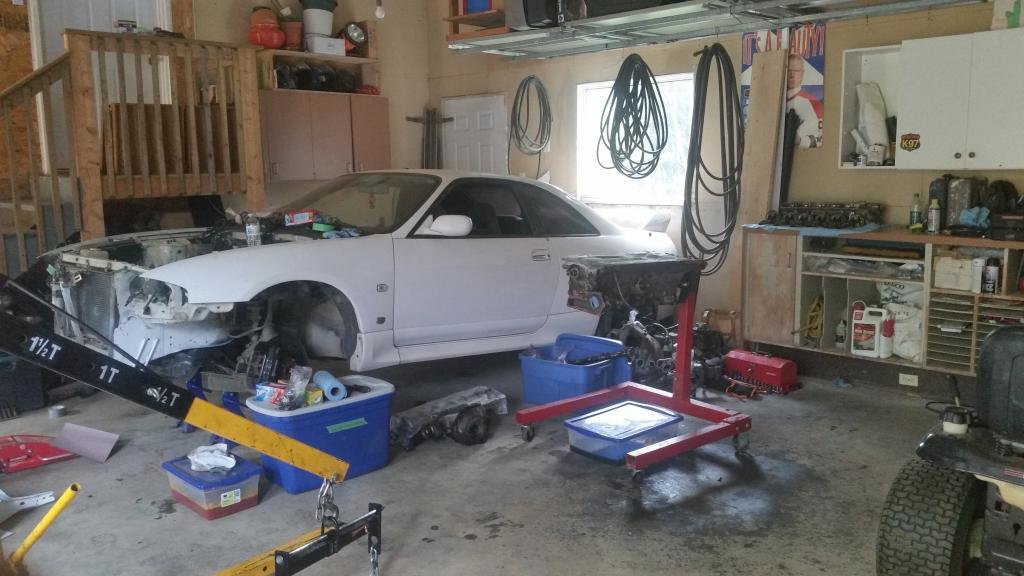

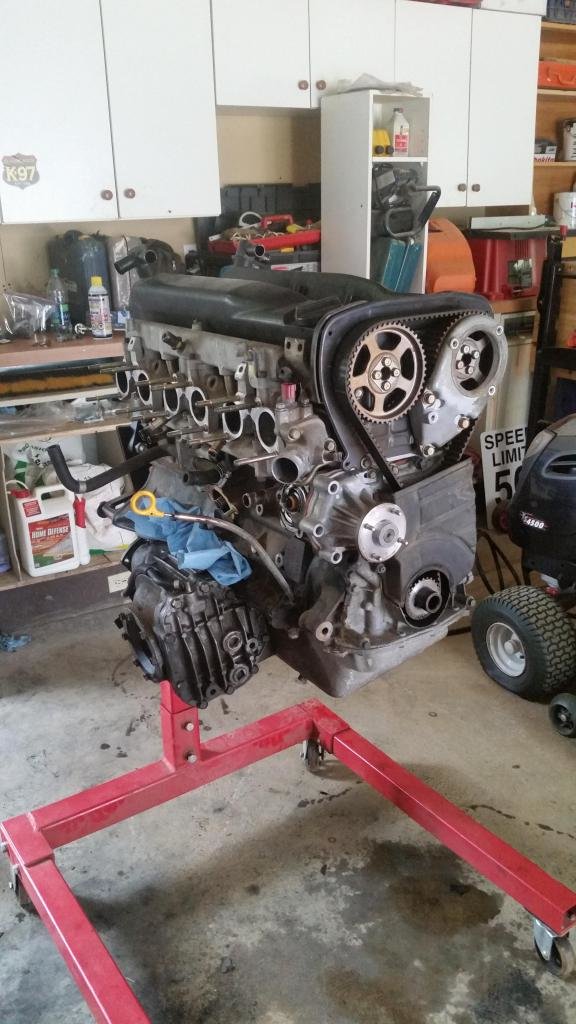

    Well another day with the skyline

    Let The Engine Strip Down Commence


    So start taking the main crankshaft pulley with the the timing belt and cam gears. Then the intake manifold with the cam covers after with the cams. By the time you know it the head is off and it's looking like this

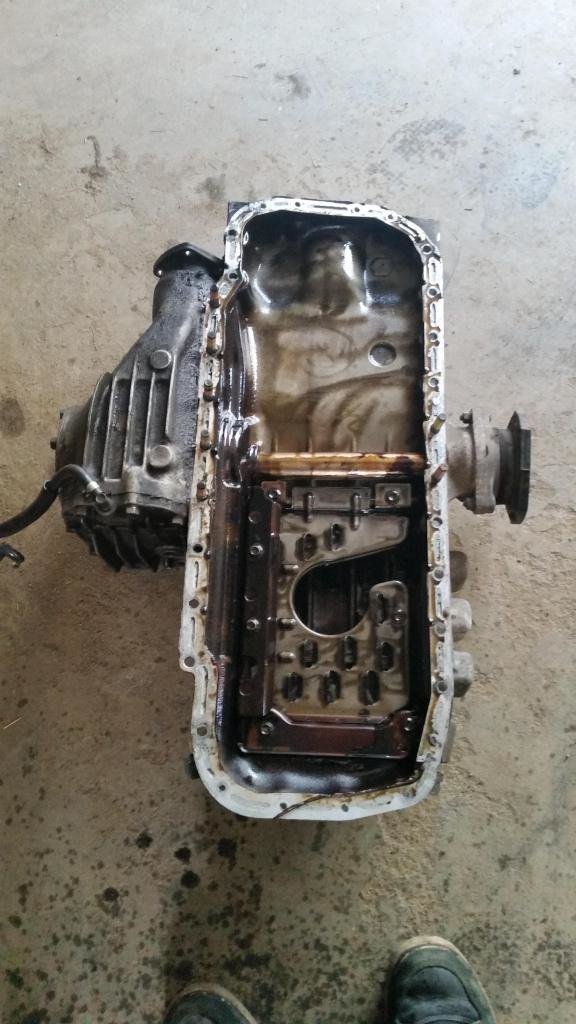

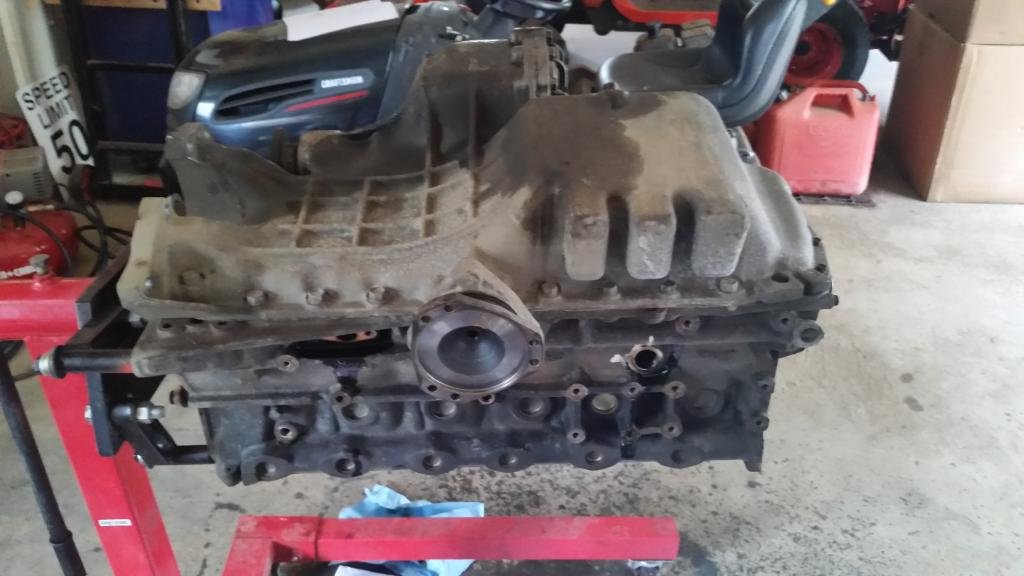

    Now was time to take the oil pan off. You can see in the picture below that the front diff is connected to the oil pan. The whole reason why the engine came out for a blown diff.


    Engine oil pan off and sitting on the ground, then the pic on the engine

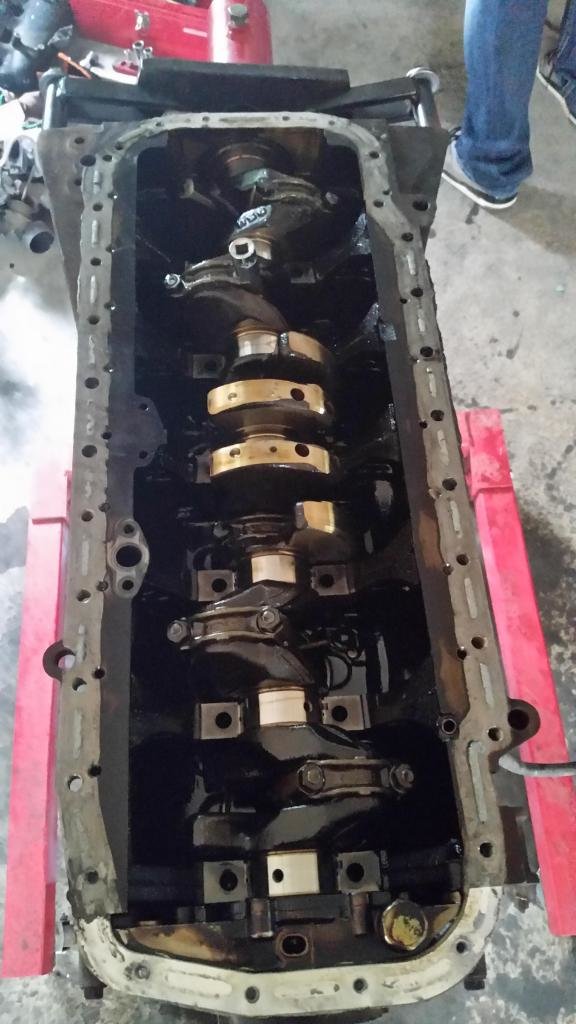

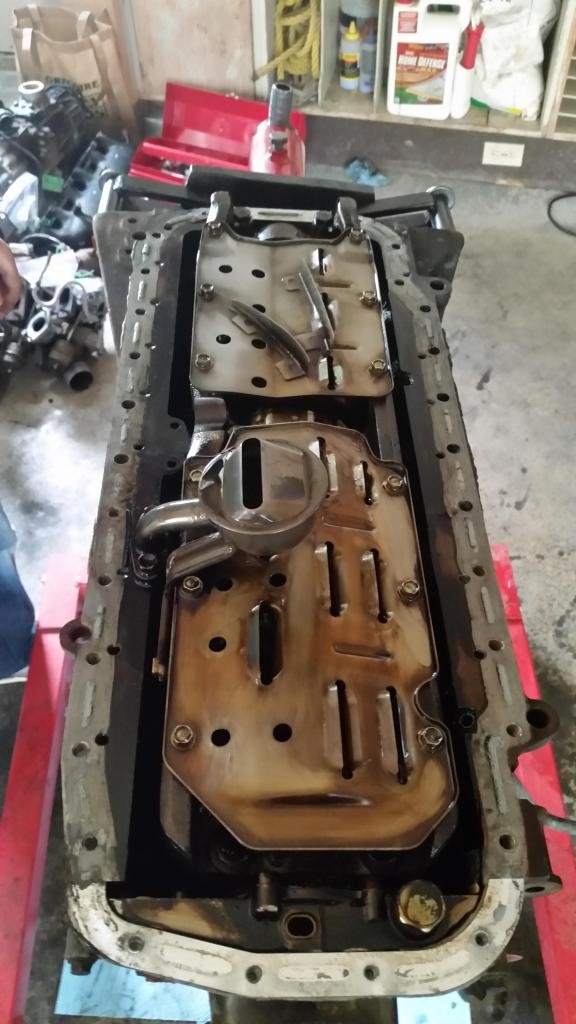

    Main lower bearing brace removed with all the baffling

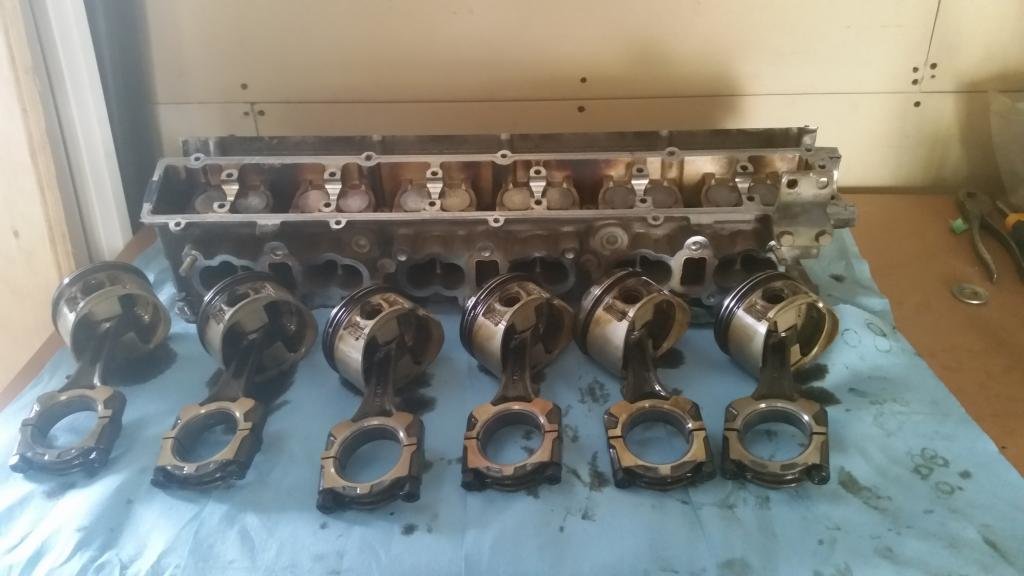

    And finally got all the pistons out sitting pretty on the bench


    So another day done with everything almost everything dis-assembled. All that's gotta be done is cleaning and take a closer look at my front diff



  2. Aug 29, 2014 at 7:10 PM
    #62
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,949
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    1990 Chevy Siveraydo
    245k+ miles, rust, working AC, bald eagles
    Awe yeah. This just got good.:D

  3. Aug 29, 2014 at 7:27 PM
    #63
    1993t100

    1993t100 I'm lost

    Joined:
    Nov 11, 2013
    Member:
    #116388
    Messages:
    4,656
    Gender:
    Male
    First Name:
    Big Sexy
    Nebraska
    Vehicle:
    2012 Tacoma AC 4x4
    Buncha junk
    OH
    MY
    GAWD

    :jerkoff:

  4. Aug 29, 2014 at 9:00 PM
    #64
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever [OP] Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    436
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build
    Literally took a year to get here finally!

    Thanks man, I sure hope everything goes well too. Nice car to show lol

  5. Aug 29, 2014 at 9:20 PM
    #65
    SconnieHailer

    SconnieHailer PutterClutch

    Joined:
    Aug 26, 2012
    Member:
    #85590
    Messages:
    9,299
    Gender:
    Male
    First Name:
    Marc
    Wyoming
    Vehicle:
    2012 TRD Off Road Double Cab V6 6Speed
    subd :D

    Nice r33!

  6. Aug 31, 2014 at 3:38 PM
    #66
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever [OP] Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    436
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build

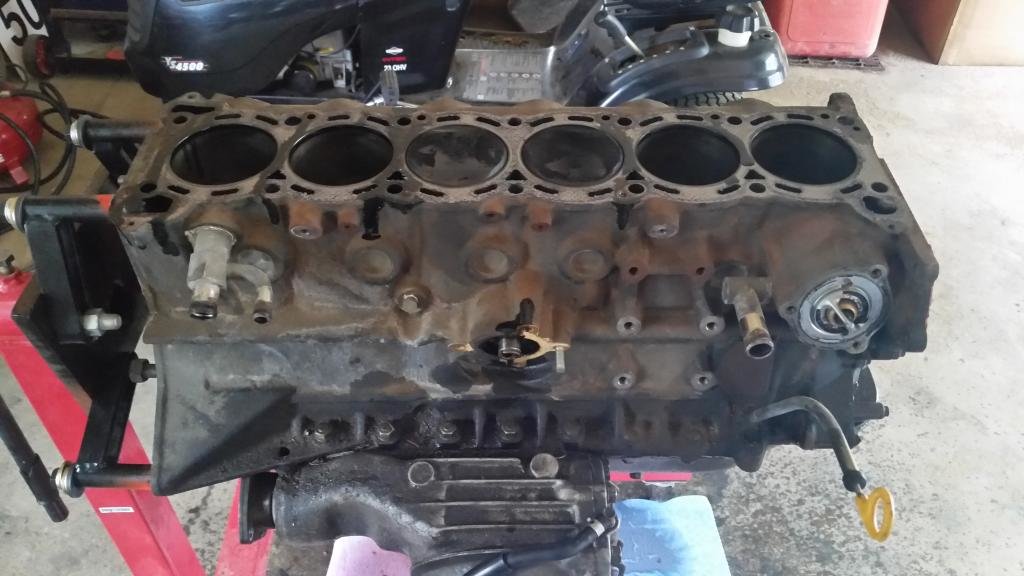

    Well got around to removing the crank shaft from the block including the oil pump

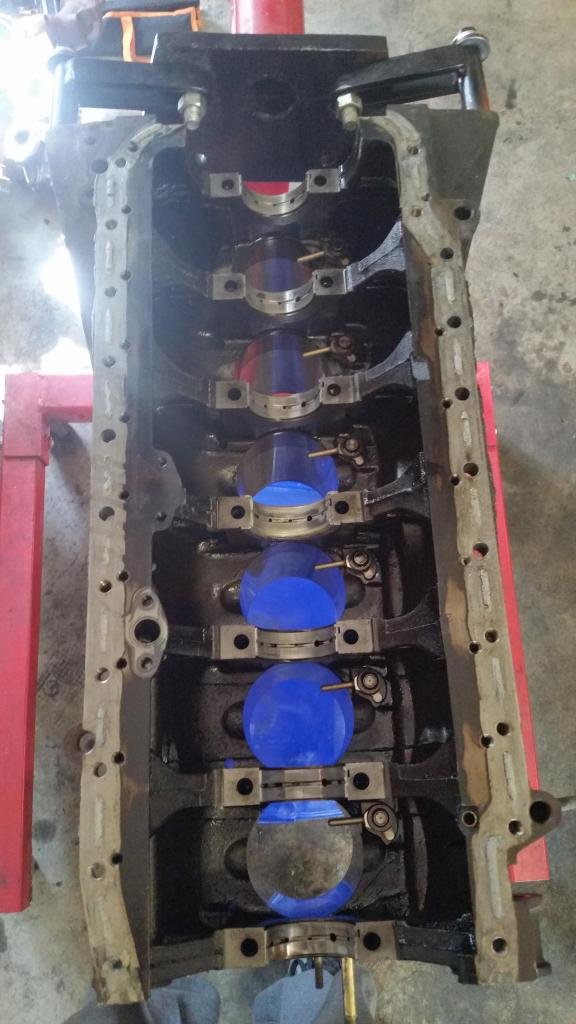

    Inspected all the bearing journals and the cylinder bores. All looks well without the need of re-boring the cylinders so im pretty happy about that

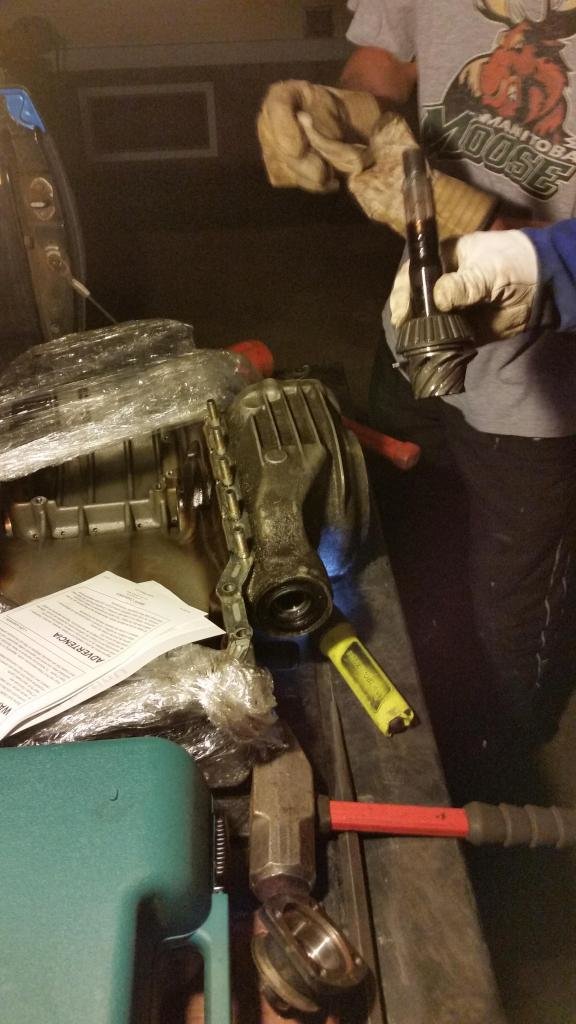

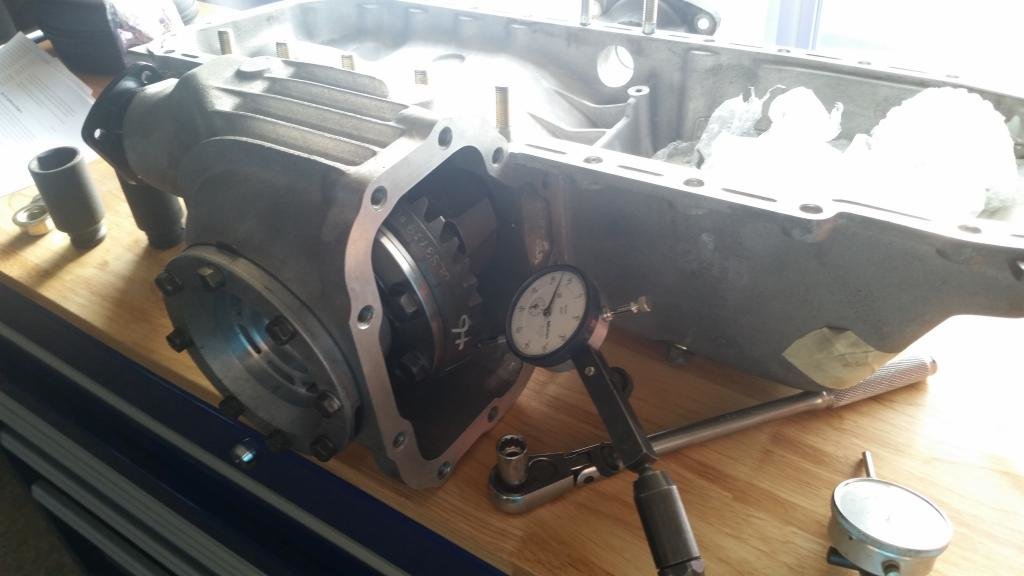

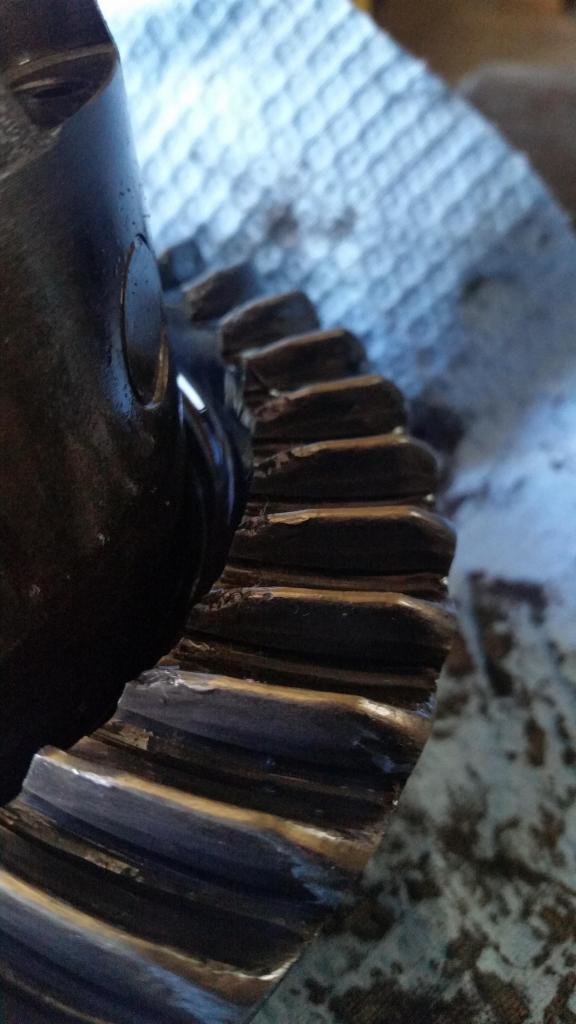

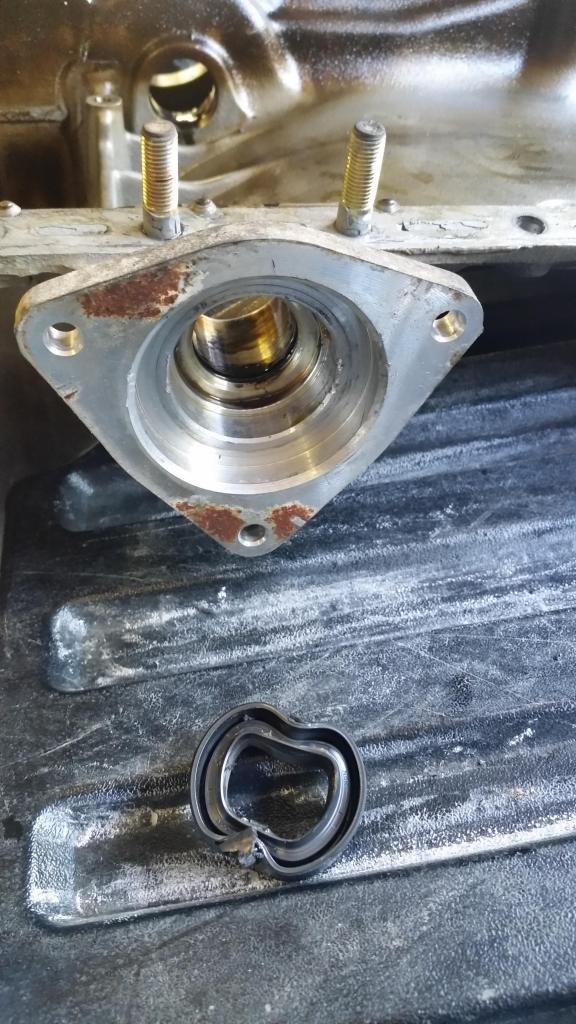

    So now it was time to inspect my front diff so here we go. Took off the front cover and the side cover to where it seal on the side. Split the flange and removed the whole extended shaft



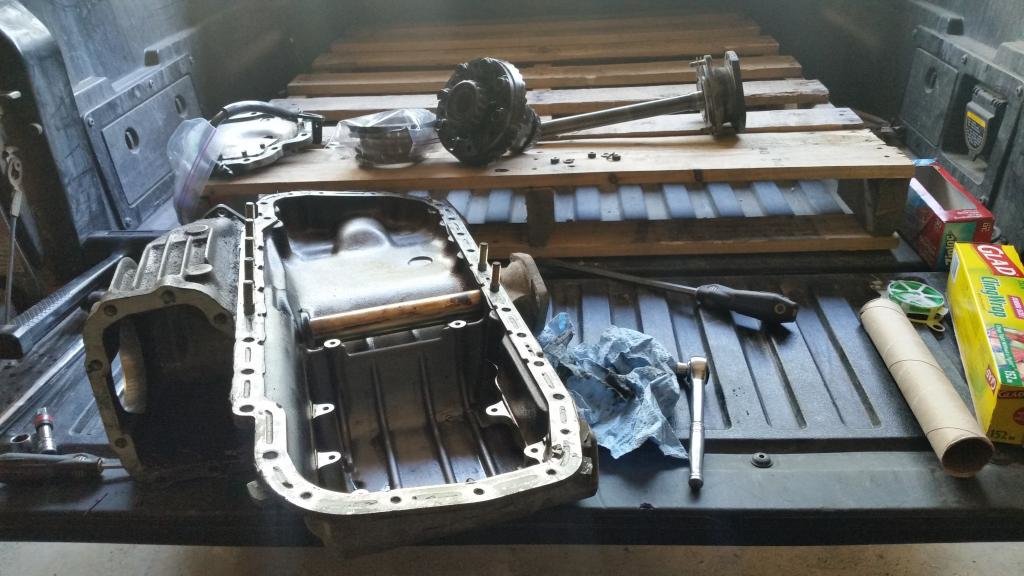

    Once that was out it was a little bit of manoeuvering to get the diff out

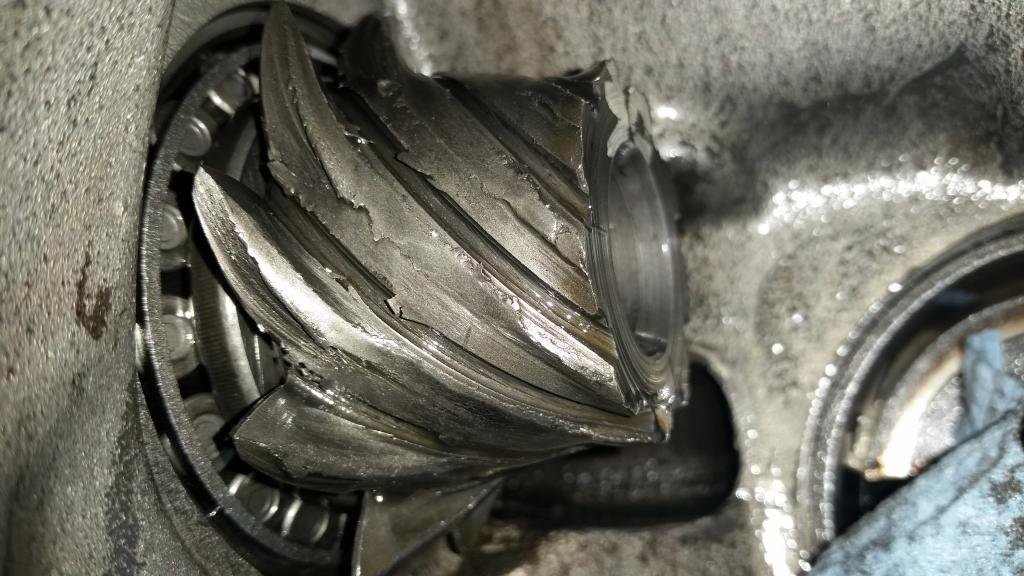

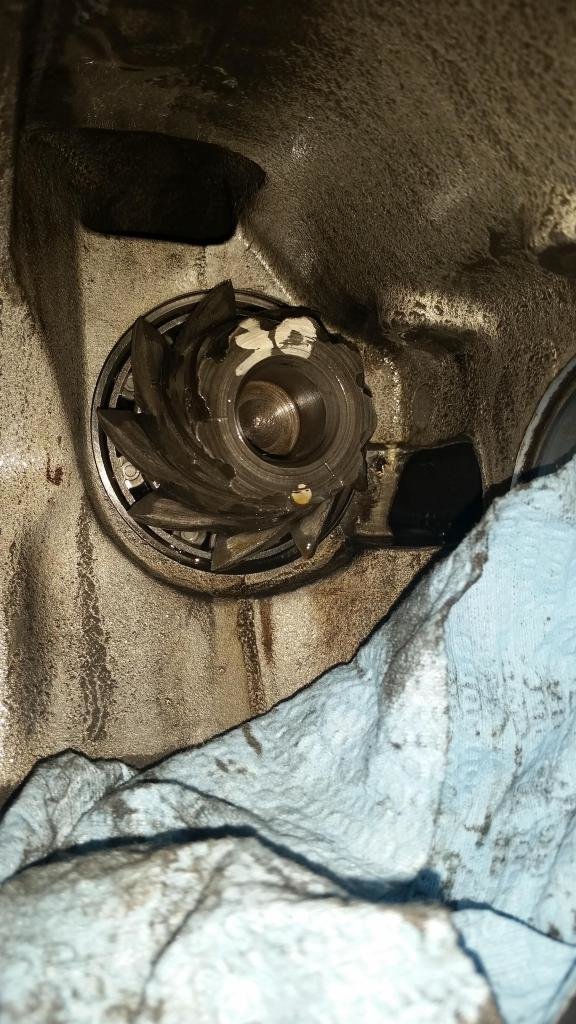

    Here's the whole reason why the engine came out (don't mean to keep repeating myself but ive got proof of what happened now) Pictures will do the talking




    Now no one in my town will clean up the oil pan or the engine block so i'll be driving down to the bigger city down south for the shop im bringing my engine parts can do the following jobs for me

    -Balance the crankshaft
    -Clean and flux coat (check for cracks) the oil pan
    -Clean and flux coat (check for cracks) the engine block
    -Deck and re-hone engine block

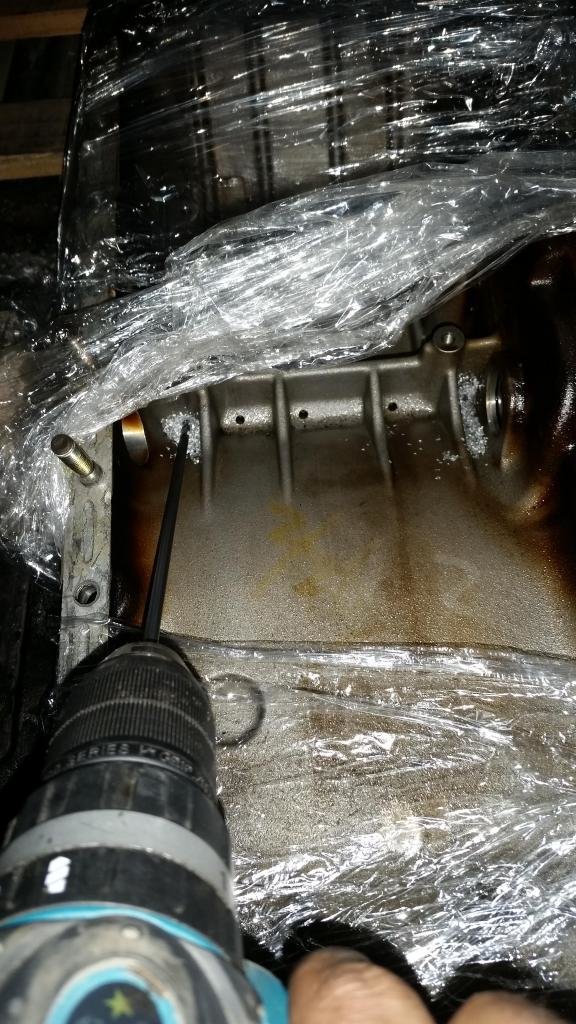

    So pretty much saran-wrapped the oil pan, engine block and lower bearing brace and in the Tacoma it goes for a road trip down south for next weekend

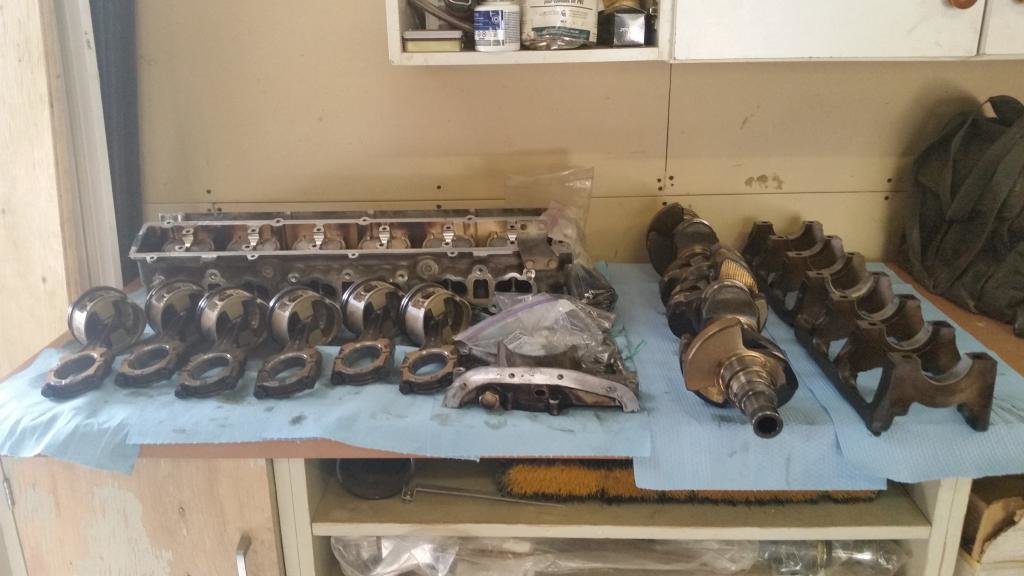

    There you go for all you readers. Everything dismantled and now we can start the re-building phase of things for then engine and a new front diff

    Last edited: Aug 31, 2014
  7. Aug 31, 2014 at 5:56 PM
    #67
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,949
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    1990 Chevy Siveraydo
    245k+ miles, rust, working AC, bald eagles
    Awesome, I'm doing basically the same thing with my corolla. The 3TC is about a million times simpler though :laugh:

    Sorry if I missed it but are you planning on replacing the pistons/rods for more boost?

  8. Aug 31, 2014 at 6:06 PM
    #68
    AR15xAR10

    AR15xAR10 #blackriflesmatter

    Joined:
    Apr 13, 2013
    Member:
    #102024
    Messages:
    46,236
    Gender:
    Male
    Heh, wouldn't you like to know
    Vehicle:
    08 SR5 4x4 V6 IndigoInkPearl ACLBFTMFW
    TSB leafs, rear 5100s, front 5100s with OME883x coils set on 0" and Headstrong Offroad driver's side spacer, 1k rear SumoSprings. Mobtown Offroad Ifs and Trans skids (steel). Cooper ST Maxx in LT265/70R17 E on 17x8 FN Konig Six Shooters in Gunmetal Grey. WeatherTech Floor liners front and rear(grey) with TRD Sport badges, AVS in channel vent visors, OEM Bed Mat, TRD (oiled) air filter, ultragauge MX1.3 with trans temp, remote start, OEM Tow Package hitch, 4pin OEM harness, Chrome bumper plasti derp'd matte black, Grom Ipod interface, quickfists on custom bedrail mount to hold axe/shovel, EBC Dimpled/slotted sport rotors with Duralast Gold ceramic low dust pads, Rokblokz regular mud flaps with black hardware, Superbrightleds map and dome LED lights, led marker lights, fog light anytime mod, rear diff breather relocation mod, redline tuning Elite stainless hood struts, AFE Mach Force XP 2.5" catback, Ionic Soft Trifold Tonneau, OEM LED tail lights, amazon LED reverse light mod, FULL synthetic fluids (BG Racing/Mobil 1), TOYWERX thin lip satoshi, Trail Toys gas tank skid, TRD Shift knob, BAMF behind the grill light bar mount, K&N Washable Cabin air filter, and many STEEKERS.
    ME GUSTA

  9. Aug 31, 2014 at 6:14 PM
    #69
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever [OP] Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    436
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build
    Oh yeah I bet it's much easier haha

    It's on my first page why I wanna build my motor but no worries, I haven't really explained to much on exactly why anyways

    The stock engine can handle 500 hp but your pushing it and you better have a great tune to run that but before you even hit 500 you have to replace the head gasket to a metal one

    I'd like to hit somewhere between 500 - 600 hp reliably so a full forged bottom end is an overkill but I'll have a bullet proof bottom end. I'd like to hit a minimum of 20 psi with the new turbos so we'll see where this goes

    Still don't have a plan for the engine head haha

  10. Sep 7, 2014 at 8:48 AM
    #70
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever [OP] Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    436
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build

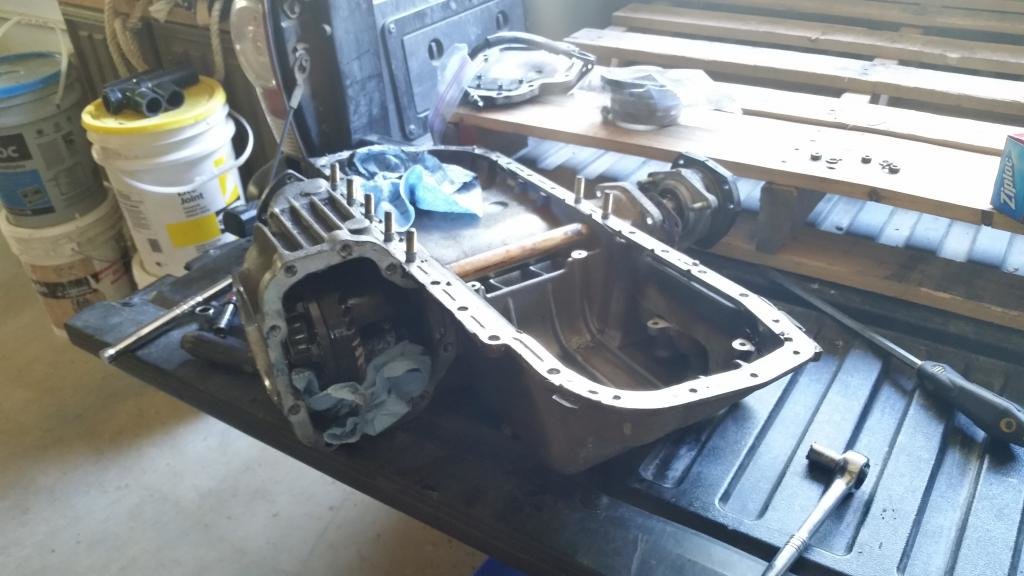

    Time to take apart everything in the diff which included that smaller axle/shaft, bearings and seals. Got a hand from my old man on this one!



    Before i went down south to the shop a good friend of mine already has the tomei baffle installed which he told me the drain back hole in the oil pan have to be enlarged as part of the instructions. I did just that but needed one hell of a long bit to get the far side of the hole since the drill would hit the side before the bit would go through


    After the mod i left the next day to drop off my block and oil pan. Got news that the balancing required all of the rotating assembly which is pistons, rods, crankshaft, harmonic balancer and flywheel. Well shucks thats gonna have to wait for later until i get the pistons, rods and harmonic balancer!


    * * * * *​


    Back at home with the one day trip. That amde for a long day driving in the taco. So back at home and at the car again.

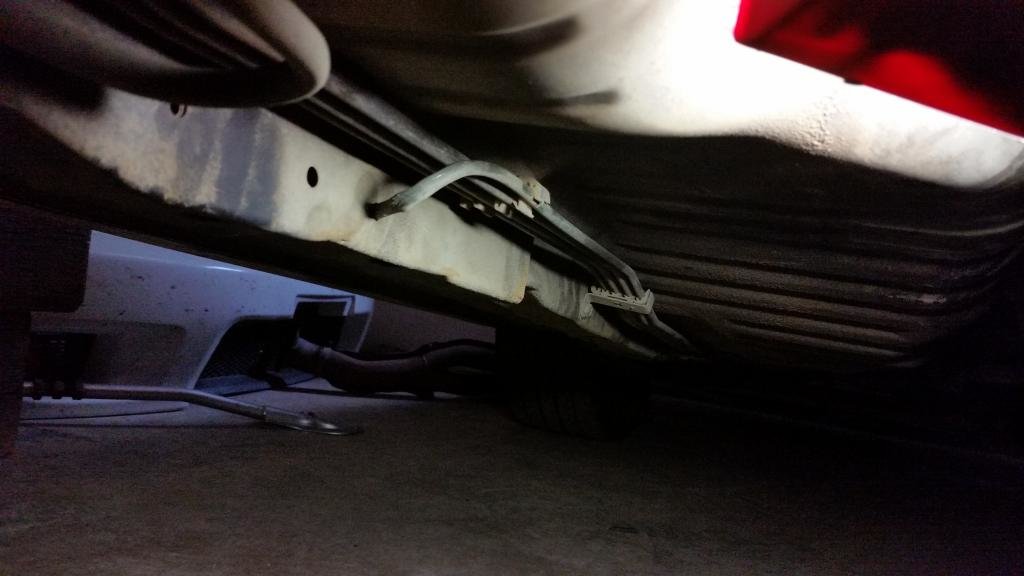

    Theres this charcoal canister in the engine bay which is used for emissions purposes which is getting deleted (EVERYONE gets rid of these)

    So with the canister out already when i pulled the engine it was just lines left over. It was easy as snip, cut pull out haha


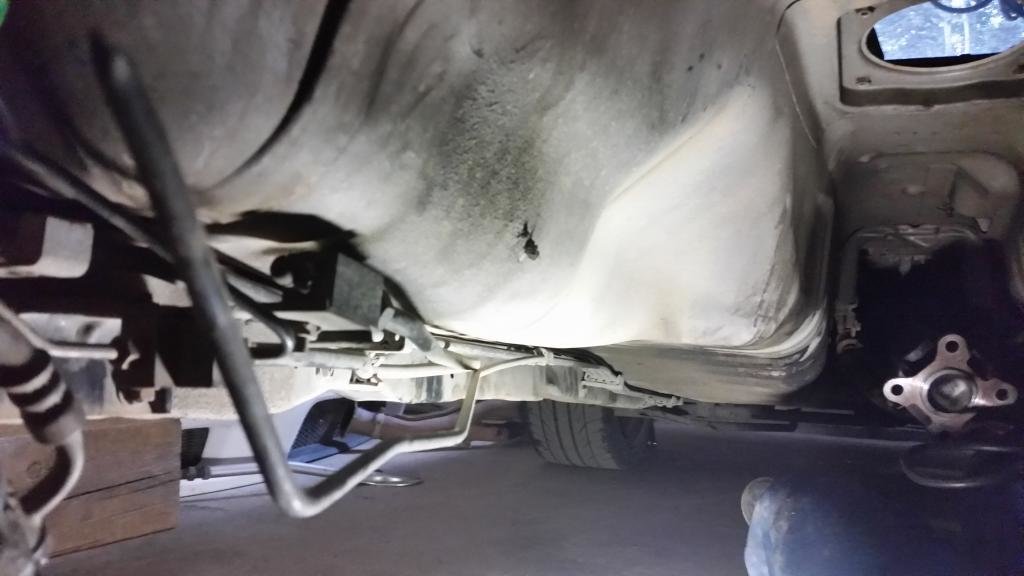

    There is one issue though the canister see'e which is fuel vapors from the gas tank which is the line in the pic above. So snip and cut again half way down the frame of the car and bend it back into the frame.



    So thats all I've got for now until i hear back from the shop with my block and oil pan. Still figuring out what to do with my head. Still have yet to order any pistons, rods or bearings. So next update might be in a couple of weeks or so

    Last edited: Sep 7, 2014
  11. Sep 9, 2014 at 9:38 AM
    #71
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever [OP] Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    436
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build
    The shop I brought my block to are big into making big block V8's. They have seen the inline 6 blocks before and they're all old guys working in the shop so I'm sure they have plenty of experience. I'll see how they do with the machining on my block.

    Until I hear from them is when I can start ordering any kind of parts for the block

  12. Sep 9, 2014 at 12:47 PM
    #72
    Z E R 0

    Z E R 0 Well-Known Member

    Joined:
    Nov 25, 2013
    Member:
    #117319
    Messages:
    364
    Gender:
    Male
    California
    Vehicle:
    14 PreRunner TRD Sport
  13. Sep 9, 2014 at 3:36 PM
    #73
    steve o 77

    steve o 77 braaap

    Joined:
    Nov 29, 2009
    Member:
    #26726
    Messages:
    19,949
    Gender:
    Male
    First Name:
    Steven
    In a corn field, OH
    Vehicle:
    1990 Chevy Siveraydo
    245k+ miles, rust, working AC, bald eagles
    Oops.

    Well that sounds awesome. Looking forward to the 4 wheel burnout videos!

  14. Sep 9, 2014 at 5:20 PM
    #74
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever [OP] Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    436
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build
    no worries man

    haha oh yeah! that will be a time! I've got a friend who owns the identical car as me with a built engine and he can spin in 1st on all fours! The shitty thing is that he ran into the same front diff issue as me with to many launches at the drag strip

  15. Sep 11, 2014 at 9:45 AM
    #75
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever [OP] Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    436
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build
    Nice story and I'm sure that's a lesson learned

    That's a good thing my friend that has the front diff issue tows his car down since home is around 450KM away. Me and my other friend we drove to the same track with both our skylines for the circuit racing and not the drag strip. I brought pretty much all my tools and some spare parts in case we did break down. Luckily nothing big happened other then a leaking fuel line :$

  16. Sep 27, 2014 at 7:56 AM
    #76
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever [OP] Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    436
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build
    Well even after a couple weeks things are slowed down. Manage to work some OT for the upcoming bills I've got coming haha

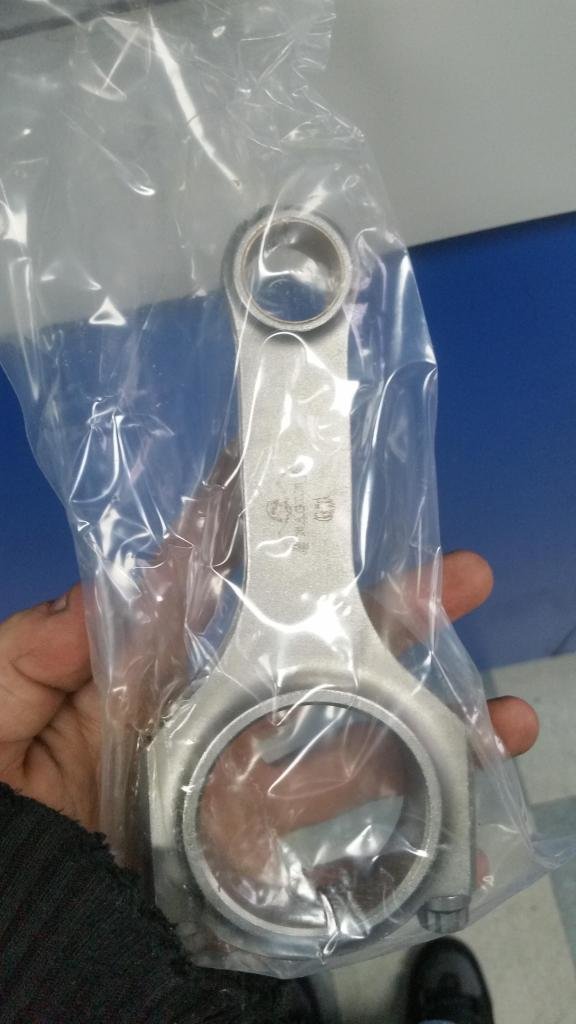

    So the block is still in the shop since they found my cylinders to be tapered and needed to be re-bored to next size. So 86.5mm pistons it is. They have ordered the CP pistons and Eagle Rods, soon to order ACL bearings. Shop is still waiting on mail to get my pistons in, but I did get to check out my beautiful con rods


    On this weekend I got off from work and not working the OT, I dropped off my flywheel, my ATI Harmonic Dampener and crankshaft off for everything can get balanced

    So now the shop pretty much has my entire bottom end and it's simply a waiting game now. So who knows when the next update on this build will be. Stay Tuned! :D

    Last edited: Sep 27, 2014
  17. Sep 29, 2014 at 1:12 PM
    #77
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever [OP] Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    436
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build
    Yes those rods are very strong! Rated up to 1200 HP lol

    Yeah the rebuild is gonna take a while so it is a winter project, sure hope everything falls into place with the car when spring comes around

  18. Dec 20, 2014 at 3:28 PM
    #78
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever [OP] Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    436
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build
    Well a nice 4 month wait and I finally got my block back, to bad I was in such a rush to get mounted and wrapped I nearly forgot to take a picture. I had a long day and drive so you guys will eventually see the block all done lol

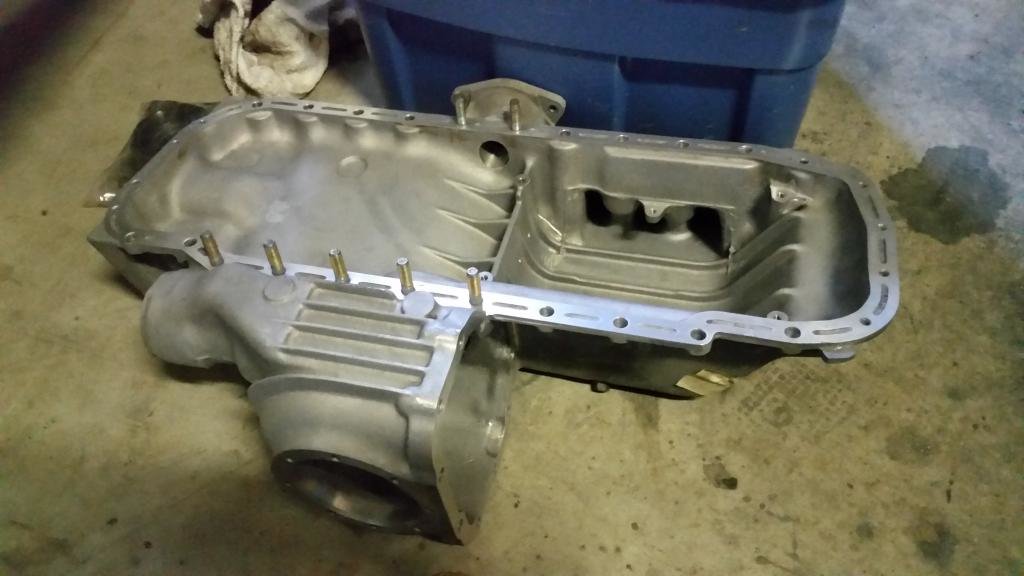

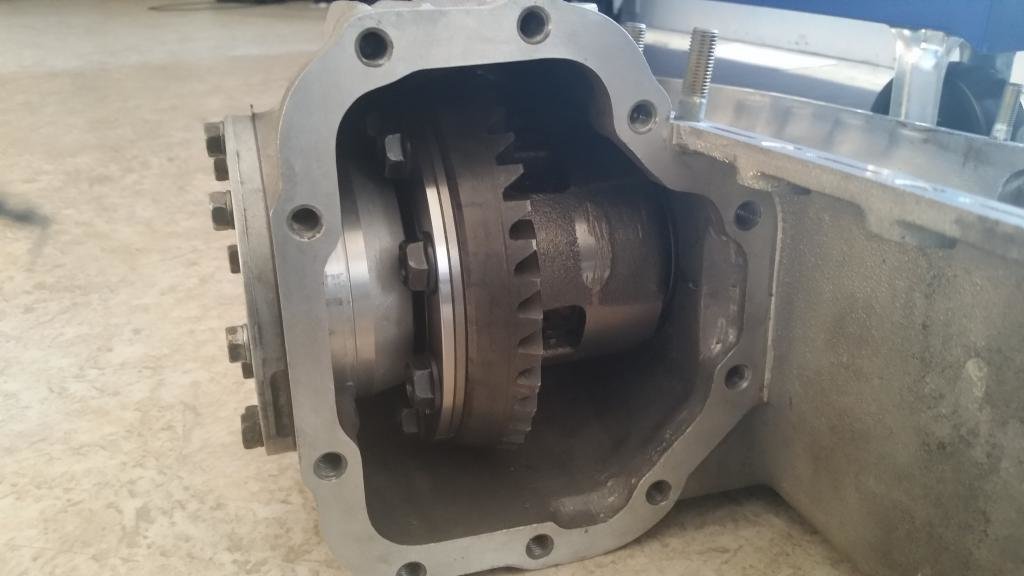

    The Oil Pan looks sooo fresh!

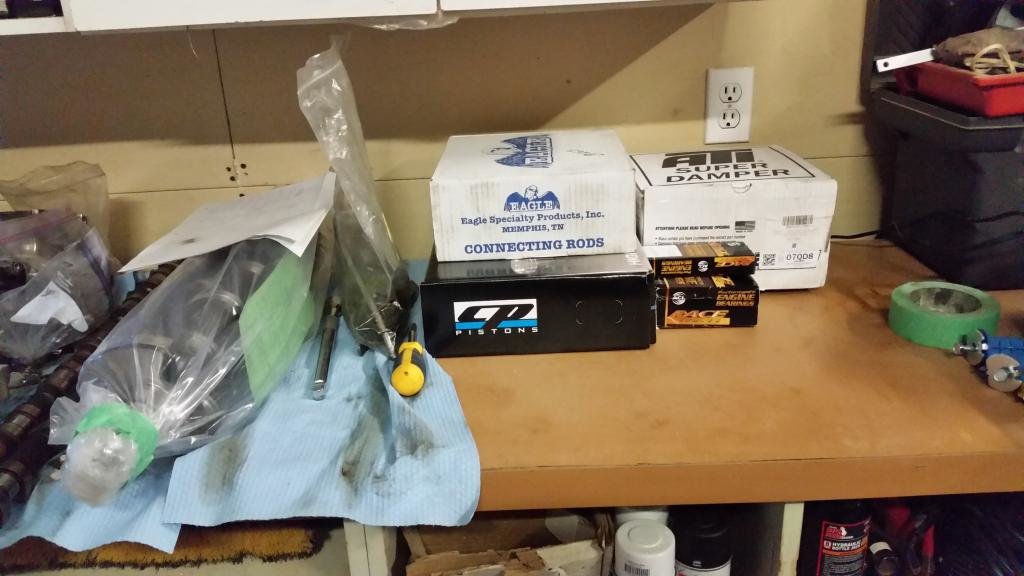

    With that said got all my other parts (pistons, rods and bearings) just need to order a new set of ARP main bolts but there's still so much to do while I wait for them to come in the mail! Got the crankshaft back in there too!



  19. Dec 20, 2014 at 4:07 PM
    #79
    AR15xAR10

    AR15xAR10 #blackriflesmatter

    Joined:
    Apr 13, 2013
    Member:
    #102024
    Messages:
    46,236
    Gender:
    Male
    Heh, wouldn't you like to know
    Vehicle:
    08 SR5 4x4 V6 IndigoInkPearl ACLBFTMFW
    TSB leafs, rear 5100s, front 5100s with OME883x coils set on 0" and Headstrong Offroad driver's side spacer, 1k rear SumoSprings. Mobtown Offroad Ifs and Trans skids (steel). Cooper ST Maxx in LT265/70R17 E on 17x8 FN Konig Six Shooters in Gunmetal Grey. WeatherTech Floor liners front and rear(grey) with TRD Sport badges, AVS in channel vent visors, OEM Bed Mat, TRD (oiled) air filter, ultragauge MX1.3 with trans temp, remote start, OEM Tow Package hitch, 4pin OEM harness, Chrome bumper plasti derp'd matte black, Grom Ipod interface, quickfists on custom bedrail mount to hold axe/shovel, EBC Dimpled/slotted sport rotors with Duralast Gold ceramic low dust pads, Rokblokz regular mud flaps with black hardware, Superbrightleds map and dome LED lights, led marker lights, fog light anytime mod, rear diff breather relocation mod, redline tuning Elite stainless hood struts, AFE Mach Force XP 2.5" catback, Ionic Soft Trifold Tonneau, OEM LED tail lights, amazon LED reverse light mod, FULL synthetic fluids (BG Racing/Mobil 1), TOYWERX thin lip satoshi, Trail Toys gas tank skid, TRD Shift knob, BAMF behind the grill light bar mount, K&N Washable Cabin air filter, and many STEEKERS.
  20. Jan 6, 2015 at 9:08 PM
    #80
    ToyotaTacoma4Ever

    ToyotaTacoma4Ever [OP] Get Boosted

    Joined:
    Sep 26, 2012
    Member:
    #87783
    Messages:
    436
    Gender:
    Male
    First Name:
    Eric
    Alberta
    Vehicle:
    Supercharged Tacoma Sport
    Check Out The S/C Build

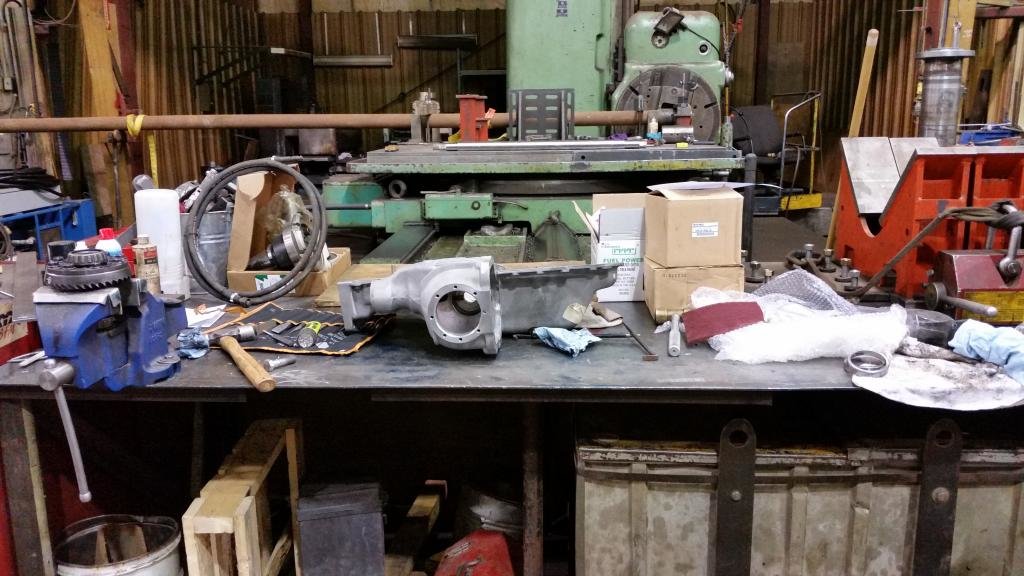

    Not a whole much of an update here, figured i would start tackling my front diff. Thanks to my old man for letting me bring my oil pan to his shop to make it easier to work on! i do say removing the outer races on the bearings inside was not very fun since they are in there pretty tightly

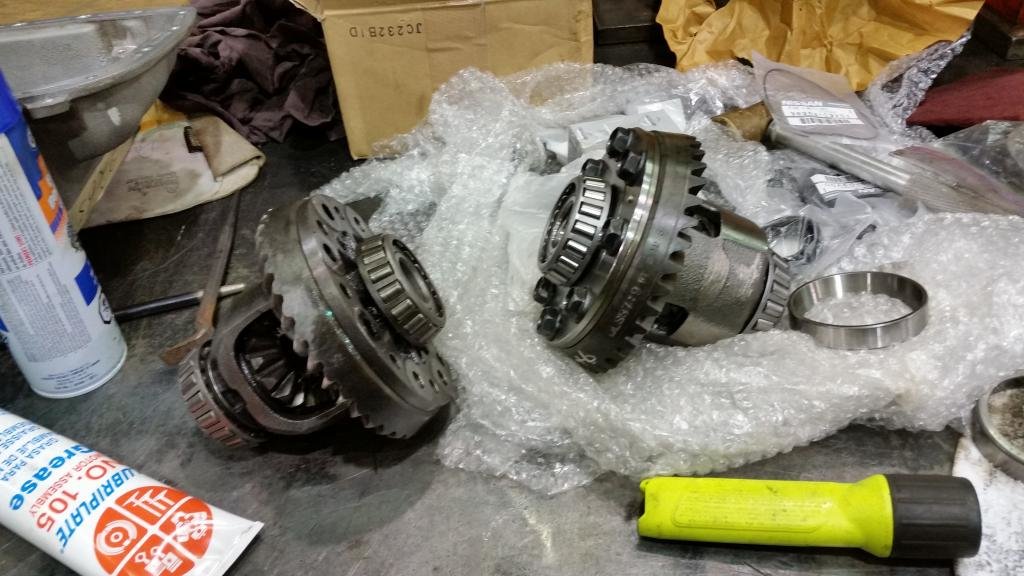

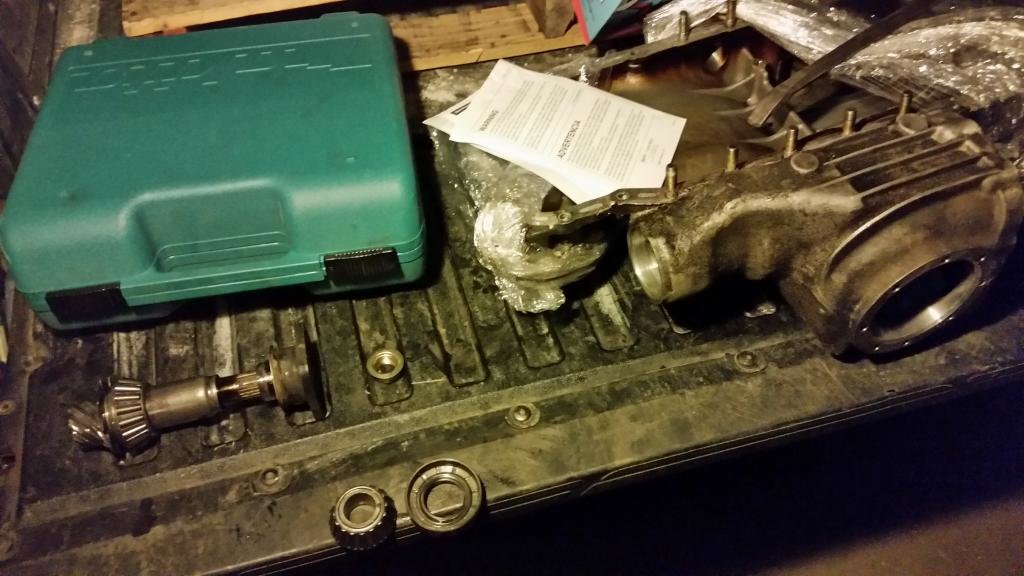

    So first started off by installing the new crown gear and bearings on the new LSD diff. Old one is on the left, new one is right in picture
