My on-board air setup

Discussion in '2nd Gen. Tacomas (2005-2015)' started by JTech, Mar 29, 2009.

  1. Mar 29, 2009 at 5:38 PM
    #1
    JTech

    JTech [OP] Well-Known Member

    Joined:
    Feb 22, 2009
    Member:
    #13951
    Messages:
    120
    Gender:
    Male
    Phoenix, Arizona
    Vehicle:
    Silver 09 Double Cab 4x4 Sr5 Off-Road
    Locking Bed Boxes, built in air compressor, Husky Liners(not really a mod but I love them)
    So probably a month after I got my truck I really wanted to do a mod on it. I had my air compressor which i normally just kept in the truck with me and decided why not mount it and run some air line. So here is what I did. (regrettably I did not take pictures while I did it but here are the after shots)

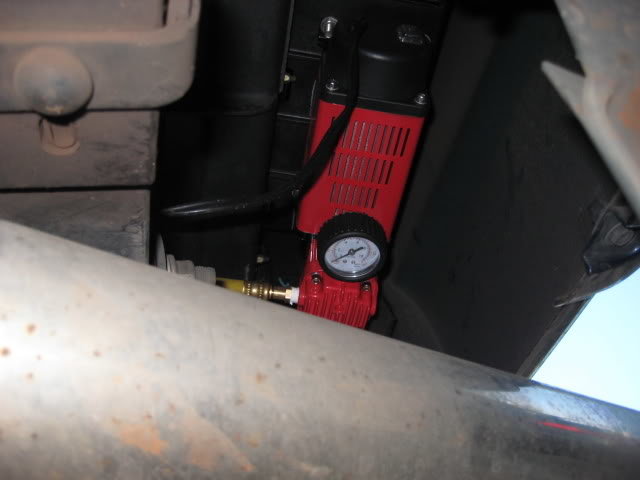

    So the first thing was to make a couple brackets to hold it and then mount it in the engine compartment in that HUGE space toyota left for us. One thing I didn't think of was the vibrations. I hard mounted the compressor to the metal without anything to dampen so I ended up having to take it off and put some rubber in between the metal pieces. Nice thing was there were so many un-used hole I did not have to drill any new ones.


    The next thing was to modify the compressor. The compressor is a Master Flow QMax that you used to be able to get at AutoZone or Costco for $25. I don't think anyone sells them anymore and I got mine on ebay for $20. The compressor works great for tires and will fill all 4 in about 10 minutes without overheating. The issue is that the coupler it comes with is not standard :(... so I had to take it off, drill the hole larger, tap it, and then put standard couplers on. I also added a pressure relief valve, pressure valve, and splitter.


    I ran air hose from one of the splitters down through the frame to the larger bed box on the drivers side and installed a quick coupler there. I left the other part of the splitter open so I can connect my air hose to either the front or the back of the truck. I carry a 25' air hose with a tire chuck in the truck for whenever I need to air up.



    So yeah that is my on board air set-up. I hardwired the compressor to the battery so I can use it anytime I want. Let me know what you all think!


    O I also installed new tie down points in bed today :D so here are some pictures of that too.


  2. Mar 29, 2009 at 5:42 PM
    #2
    gavonder

    gavonder She's Kickass!

    Joined:
    Dec 13, 2007
    Member:
    #3825
    Messages:
    377
    Gender:
    Male
    Bethel, Ct
    Vehicle:
    08 TRD Sport Access Cab
    Sunroof, Leer Cap w/ Thule rack, Factory Running Boards, Fog Light Mod, Hood Struts, Scangauge, w/homemade mirror mount, AC/Defrost mod, Rear Spring TSB, TRD Center Caps
    That's a cool setup. Nice idea.

    Is that tie down on the side wall of the bed? It's a little hard to figure out.

    GA

  3. Mar 29, 2009 at 7:18 PM
    #3
    JTech

    JTech [OP] Well-Known Member

    Joined:
    Feb 22, 2009
    Member:
    #13951
    Messages:
    120
    Gender:
    Male
    Phoenix, Arizona
    Vehicle:
    Silver 09 Double Cab 4x4 Sr5 Off-Road
    Locking Bed Boxes, built in air compressor, Husky Liners(not really a mod but I love them)
    Its on top of the wheel well, not on the side wall. The side wall did not seem as sturdy as the top of the wheel well

  4. Mar 29, 2009 at 7:21 PM
    #4
    tacomaman06

    tacomaman06 Carolina Alliance: Lead, follow, or get the hell o Staff Member

    Joined:
    May 1, 2007
    Member:
    #1475
    Messages:
    26,305
    Gender:
    Male
    First Name:
    Will
    York,South Carolina
    Vehicle:
    '13 Silverado ext cab
    great setup man!!! that will come in very handy in lots of situations!

  5. Mar 29, 2009 at 7:23 PM
    #5
    Tacoma Tom

    Tacoma Tom Well-Known Member

    Joined:
    Mar 14, 2009
    Member:
    #14726
    Messages:
    51
    Gender:
    Male
    Sunny Arizona
    Vehicle:
    07 DBL TRD
    So what can you run on a compressor that size? flow rate?

    Great install, great idea

  6. Mar 29, 2009 at 8:05 PM
    #6
    JTech

    JTech [OP] Well-Known Member

    Joined:
    Feb 22, 2009
    Member:
    #13951
    Messages:
    120
    Gender:
    Male
    Phoenix, Arizona
    Vehicle:
    Silver 09 Double Cab 4x4 Sr5 Off-Road
    Locking Bed Boxes, built in air compressor, Husky Liners(not really a mod but I love them)
    I have really only used it to air up tires, and it works great for that. To use tools I would think you would need to hook a tank up to it. here are the specs:
    [FONT=Arial, Helvetica, sans-serif]Maximum Air Flow: 72 Liters Per Minute (this works out to about 2.54 CFM according to my calculations)
    Maximum Voltage: 13.8 Volts
    Maximum Amps: 30A
    Horsepower: 1/3
    Maximum Working Pressure: 120 PSI
    Maximum Restart Pressure: 150 PSI
    Maximum Operation Temp: 140°F
    Minimum Operating Temp: -67°F
    Maximum Continuous Cycle Time: 40 mins. @ 40 PSI @ 75°F
    [/FONT]

  7. Mar 29, 2009 at 8:20 PM
    #7
    Tacoma Tom

    Tacoma Tom Well-Known Member

    Joined:
    Mar 14, 2009
    Member:
    #14726
    Messages:
    51
    Gender:
    Male
    Sunny Arizona
    Vehicle:
    07 DBL TRD
    Thanks for the information

  8. Mar 29, 2009 at 8:23 PM
    #8
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,192
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    Wow, I have the exact same compressor installed in the left side bed compartment. I mounted a 3 gal. air tank under the bed on the right side.

    Ok, tomorrow I will have to take some pics to show you.

  9. Mar 29, 2009 at 9:43 PM
    #9
    JTech

    JTech [OP] Well-Known Member

    Joined:
    Feb 22, 2009
    Member:
    #13951
    Messages:
    120
    Gender:
    Male
    Phoenix, Arizona
    Vehicle:
    Silver 09 Double Cab 4x4 Sr5 Off-Road
    Locking Bed Boxes, built in air compressor, Husky Liners(not really a mod but I love them)
    Thanks for the feedback! I am glad there are people out there who appreciate this stuff as much as I do. my fiancee just rolls her eyes when i try to tell her about it.


    I can't wait to see them. i never thought of putting it back there. When I make sliders i want to seal them off and make them into tanks.

  10. Mar 30, 2009 at 12:57 PM
    #10
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,192
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road

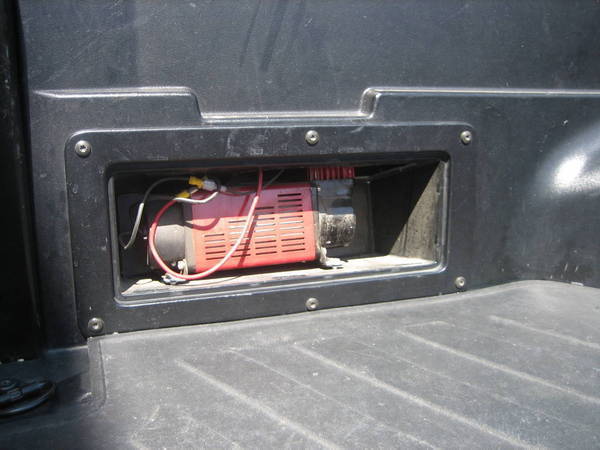

    Here is my setup. Its been 2 years since I installed everything so its very dirty.
    [​IMG]

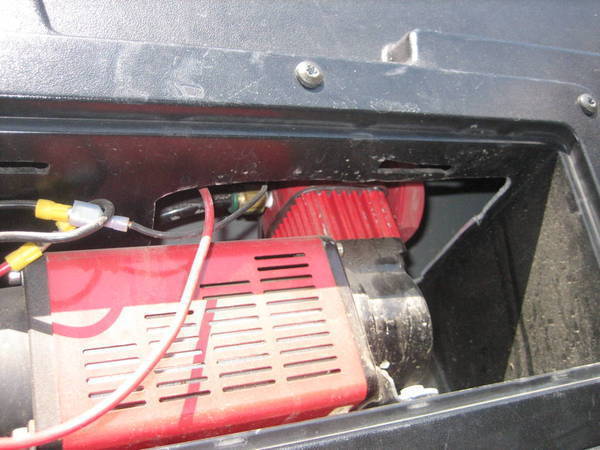

    I trimmed the top of this compartment and the top of the compressor sticks out, but there is plenty of room above and below this compartment.
    [​IMG]

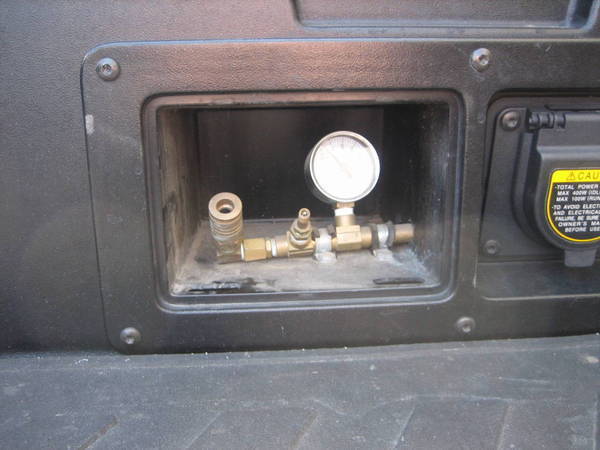

    The other compartment has the connectors.
    [​IMG]

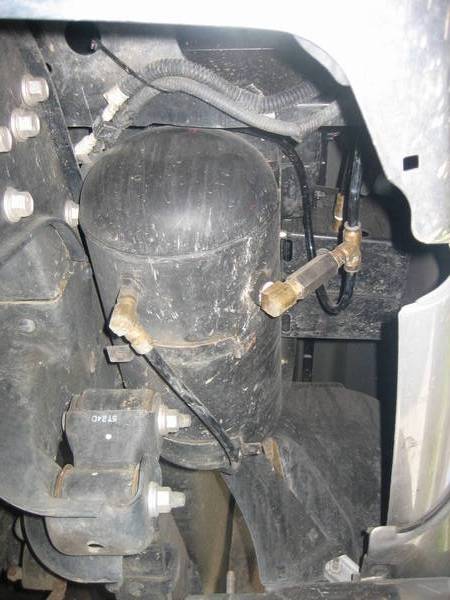

    Here is the air tank
    [​IMG]
    [​IMG]

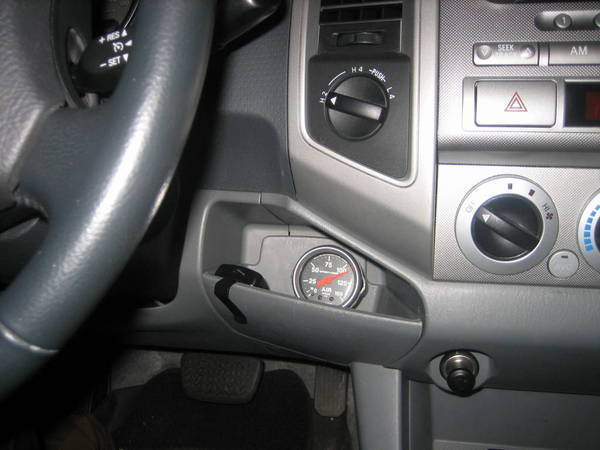

    I installed a in-cab air gauge. I use an air horn, so I must always have some air pressure.
    [​IMG]

    Here are the air horns I mounted between the grill and the radiator. If you want more pics of this install let me know.
    [​IMG]

  11. Mar 30, 2009 at 2:22 PM
    #11
    Brunes

    Brunes abides. Staff Member

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,727
    Gender:
    Male
    First Name:
    Rotorhead
    Big Easy, USA
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit Upcoming: ATO Gas Tank Skid and Sliders w/ kickout. ATO Shackle Flip Kit. Down the line: Front/Rear ARB Lockers w/ OBA. 4.56 Gears
    Wow...That's an AWESOME set up- What are the dimensions of the tank??

  12. Mar 30, 2009 at 3:07 PM
    #12
    JTech

    JTech [OP] Well-Known Member

    Joined:
    Feb 22, 2009
    Member:
    #13951
    Messages:
    120
    Gender:
    Male
    Phoenix, Arizona
    Vehicle:
    Silver 09 Double Cab 4x4 Sr5 Off-Road
    Locking Bed Boxes, built in air compressor, Husky Liners(not really a mod but I love them)
    Wow that is awesome! That puts mine to shame! Nice job. If i ever get enough time and money i want a train horn and then i would add a tank like you have.

    Do you just turn the compressor on when you need more air in the tank? or did you somehow hook up a pressure switch to sense when the tank needs more air?

  13. Mar 30, 2009 at 3:15 PM
    #13
    silver07taco

    silver07taco Well-Known Member

    Joined:
    Apr 27, 2008
    Member:
    #6241
    Messages:
    4,558
    Gender:
    Male
    First Name:
    COIL
    Maryland
    Vehicle:
    13 Tundra RCSB 5.7 4x4,07 Tacoma AC 4.0 4x4
    2013 Tundra RCSB 5.7 4x4, 2007 Tacoma AC 4.0 4x4
    Looking good, Nice work

  14. Mar 30, 2009 at 3:57 PM
    #14
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,192
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    At first I added a pressure switch (on at 90 psi and off at 125 psi) but that compressor gets to about 120 and has trouble going over 125. So I just added a manual switch. The compressor goes from 0 to 120 in about 5 mins but from 120 to 125 takes 10 mins... Also, I had to get a check valve, because the valves on that compressor will not hold air. I put the check valve on where the compressor line connects to the tank.

    I will have to measure the tank to give you the dimensions.

  15. Mar 30, 2009 at 4:45 PM
    #15
    surfsupl

    surfsupl Well-Known Member

    Joined:
    Jan 8, 2008
    Member:
    #4161
    Messages:
    8,568
    Gender:
    Male
    First Name:
    Gregg
    WestCoast
    Vehicle:
    I DONT CARE IF IT'S A RE-POST
    Rear Diff Breather~ 5100's ~Fog Light Anytime~Tint~TRD Seat Covers~Weather Tech's~Pioneer H.U.~Lift~Eibach Springs~LED's......blah...blah...blah
    Nice setup. I was looking @ a similar setup this weekend for around 70.00...........(claims to air up a suv/truck tire in 3-4 minutes?) Nice job!:thumbsup:

  16. Mar 31, 2009 at 8:39 PM
    #16
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,192
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    Its 15 x 7 1/2 inches

    I think its about 3 gal.

  17. Apr 29, 2009 at 12:22 AM
    #17
    toku58

    toku58 Well-Known Member

    Joined:
    Oct 10, 2008
    Member:
    #9882
    Messages:
    1,028
    Gender:
    Male
    HAWAII
    Vehicle:
    4x4 Beast!
    6" Fabtech Stage II, 17x9" Centerline Eclipse rims, with 12.5x35x17" BFG KM2's. On board air system,Toyota skid plate, spidertrax wheel spacers, TRD CAI w/AFE ProDry filter (21-90045),Flowmaster Dual exhaust, GrillCraft grill w/custom emblem, Custom Shifter, BushWacker fender flares, Hood struts, Underhood lights, TW driveshaft, Wet Okole seat covers, Dashlight mod, Many other little things to make the truck complete!
    Can I play!

    Here's mine!
    Compressor (Same as everyone else) Bolted under the storage compartment.

    [​IMG]

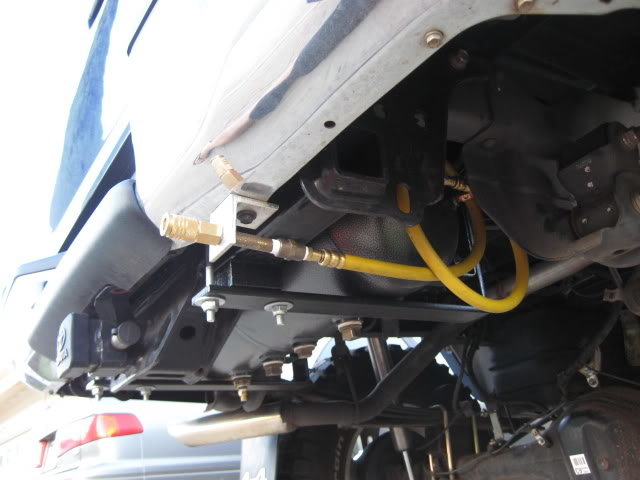

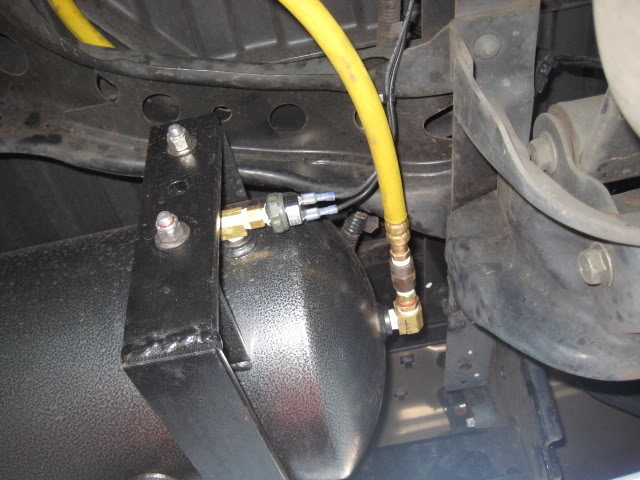

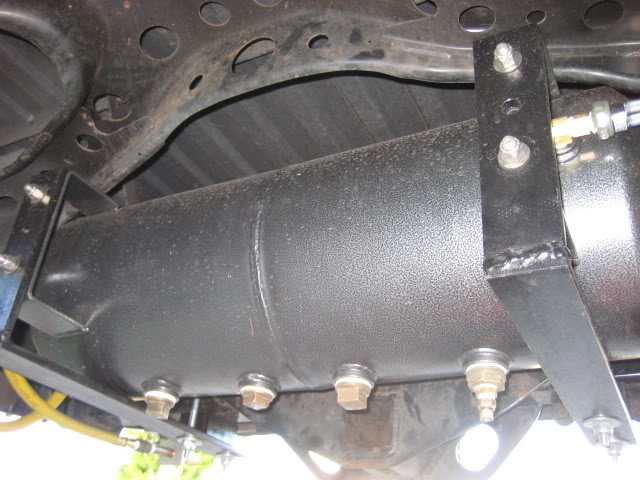

    9 gal tank bolted up to the Tow hitch.
    [​IMG]

    [​IMG]

    [​IMG]

    The 9 gal tank gives me more than enough air reserve to run all my air tools. Everything is "bolt on". And cost me less than $100.

  18. Apr 29, 2009 at 12:36 AM
    #18
    Killer Red Taco

    Killer Red Taco NorCal Rock Whore

    Joined:
    Aug 25, 2008
    Member:
    #8749
    Messages:
    1,757
    Gender:
    Male
    First Name:
    Whatsurname
    BFE–Norcal
    Vehicle:
    007 Tacoma A/C TRD O/R Impulse Red 4x4
    Bilstein 5100 on front at 1.75 setting • 5100 on back• K&N Air Filter• TRD Seat Covers• Day Time Running Lights• Foglights Anytime• Hella 500 lights in grille• Rear TSB Springs• Alternative Locker Mod• CB and 4 ft firestick II• Billet Grille• Kid puke in the back!• 265/75R16 Goodyear MT/R• 16" Devino wheels• Hose Clamp Mod• Revenge Fab Sliders• No Sway Bar• A Hottie as Copilot
    To the OP where are all the brake lines at? My truck has a huge ABS setup where your compressor is.

    [​IMG]

  19. Apr 29, 2009 at 1:58 AM
    #19
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,192
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    Looks good. I wanted a larger tank for mine, but did not want to remove the spare tire. Where did you put your tire?

    The 2009's have the ABS on the drivers side.

  20. Apr 29, 2009 at 6:04 AM
    #20
    Killer Red Taco

    Killer Red Taco NorCal Rock Whore

    Joined:
    Aug 25, 2008
    Member:
    #8749
    Messages:
    1,757
    Gender:
    Male
    First Name:
    Whatsurname
    BFE–Norcal
    Vehicle:
    007 Tacoma A/C TRD O/R Impulse Red 4x4
    Bilstein 5100 on front at 1.75 setting • 5100 on back• K&N Air Filter• TRD Seat Covers• Day Time Running Lights• Foglights Anytime• Hella 500 lights in grille• Rear TSB Springs• Alternative Locker Mod• CB and 4 ft firestick II• Billet Grille• Kid puke in the back!• 265/75R16 Goodyear MT/R• 16" Devino wheels• Hose Clamp Mod• Revenge Fab Sliders• No Sway Bar• A Hottie as Copilot
    WTF, that sucks cause I have been eyeing that spot but my damn abs crap takes up to much space.
