My Take on a Trail Gear Bumper

Discussion in '1st Gen. Tacomas' started by MatthewMay1, Aug 5, 2013.

  1. Aug 5, 2013 at 9:31 PM
    #1
    MatthewMay1

    MatthewMay1 [OP] I'm an amateur professional.

    Joined:
    Nov 21, 2011
    Member:
    #67486
    Messages:
    5,009
    Gender:
    Male
    First Name:
    Matthew
    The Lone Star Republic
    Vehicle:
    01 Tacoma TRD 4x4 v6
    Lots 'o stuff. Look at my build! -->
    I had always dreamed of a plate bumper. I really wanted an Elite, but I could not afford it. I then looked at the All Pro APEX bumper, but still couldn't afford it. I then decided to go with a Trail Gear Low-Profile bumper with the light hoop. After looking at other people's trucks with the bumper, I decided to put some diamond plate on the top to fill it in. The rest is history!

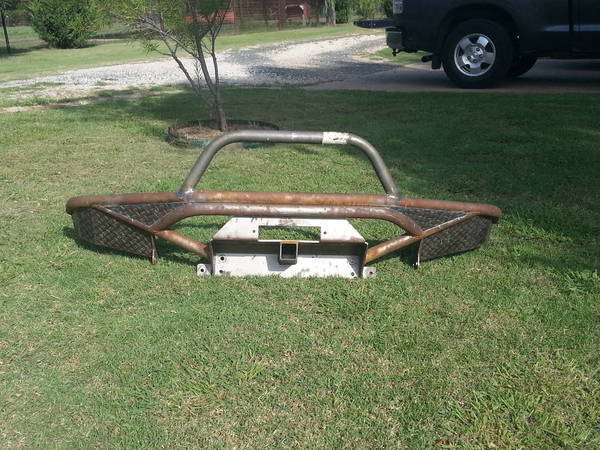

    Here is the bumper when I brought it home!

    [​IMG]

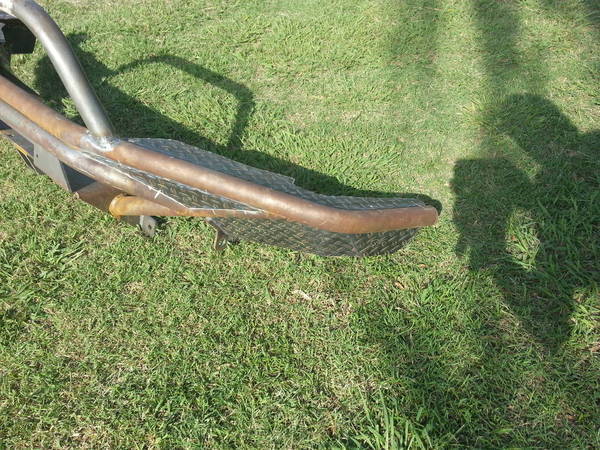

    First thing on the agenda was to get the light bar welded on.

    [​IMG]


    Next, came the top plates. I don't have a picture of my mock up cardboard, but here's this.

    Driver side:
    [​IMG]

    Passanger side:
    [​IMG]

    Now was about the time when i started getting ideas. I didn't like being able to see the washer fluid container and didn't want to modify it. More plate!!! But first, mock-ups!

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    After doing all that to both sides, i had tons of plate left. I decided to fill in the smaller triangles on the front. I forgot to take close-up photos of those at the time. They can be seen in the finished product photos. Here, we are welding in the plate permanently.

    [​IMG]

    [​IMG]


    Now the bumper is all finished! Some before powder coat glamour shots...

    [​IMG]

    [​IMG]

    [​IMG]


    Off to the powder coater! I decided to take my wheels at the same time since the paint I put on them last year had started to flake off and they looked really bad.

    [​IMG]


    Everything is finished! I went with a light textured black for the bumper and a non-textured satin black for the wheels. Great combo in my opinion.

    [​IMG]

    [​IMG]

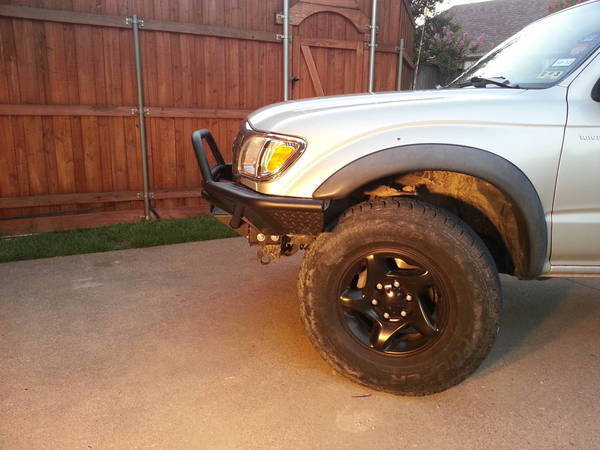

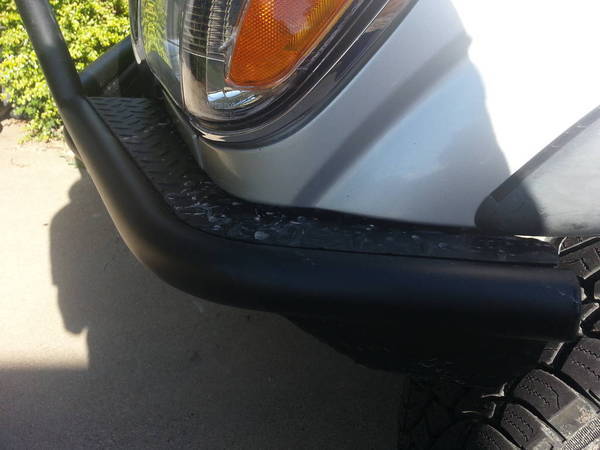

    Got everything mounted back up! I love how it all turned out! And yes, I know the skid plate isn't there. I have to find some new bolts to mount it up with.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Got a little dirty!
    [​IMG]

    And just because i can.......
    [​IMG]

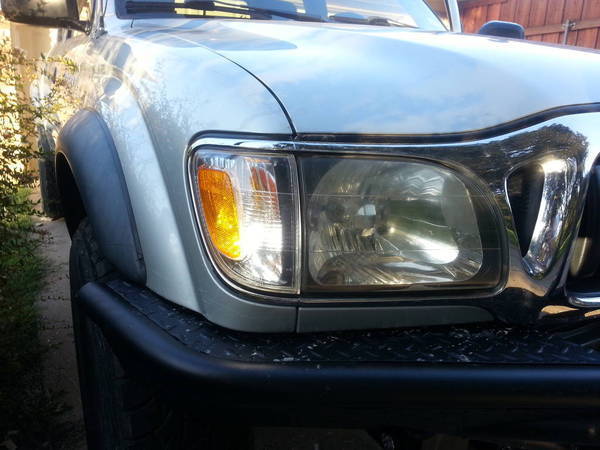

    I also did the "fog light mod"...sort of. I moved my turn signals to the corner lights and secured them with plastic weld and epoxy. Pics to come later. I also trimmed the plastic inside the wheel wells that extended too far. Thanks for looking!



    EDIT:
    Here are some pictures showing my turn signal switchbacks. This is the guide I used to do it. http://www.tacomaworld.com/forum/1st-gen-tacomas/186115-free-blinker-light-relocation-mod.html

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

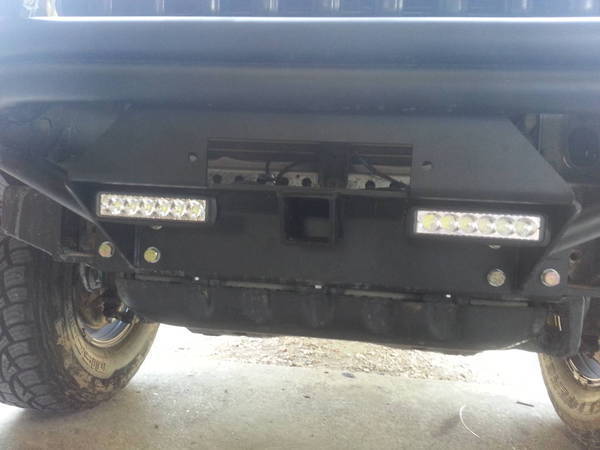

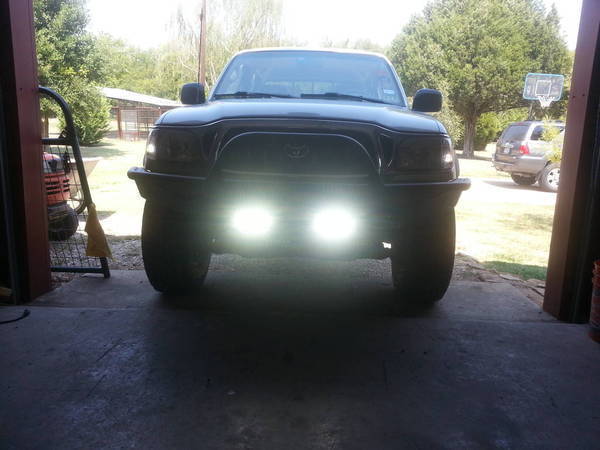

    Just got my LED fog lights installed. Wired them to a Toyota fog light switch in place of a blank. They are so bright!

    [​IMG]
    [​IMG]
    [​IMG]

    They are just as bright as the reflection of the sun off the hood!
    [​IMG]



    UPDATE:

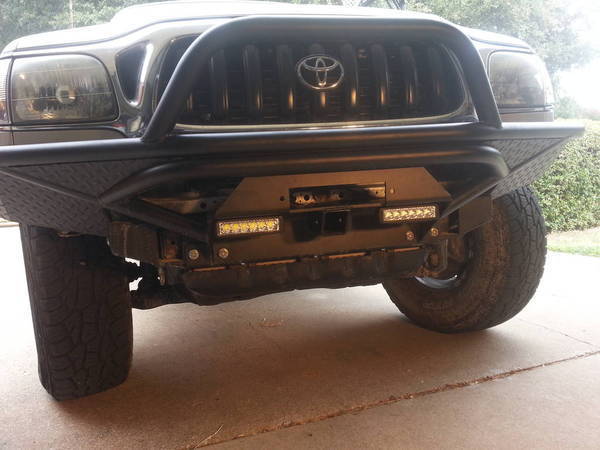

    I got my Warn XD9000i installed! Did quite a bit of trimming in order to get it to fit.
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Oct 22, 2013
