Really dig the delphi sealed terminal unit.

Got a direct link?

I am in need of that for my gauges.



http://www.dirtboundoffroad.com/accessories/aux-relay-fuse-panel/

That is the fuse panel and terminals. (note that the seals that they sent to me did not fit the box and I had to order new ones)

I used Weatherpack 280 connectors and terminals/seals for the harness

Justin



Sweet truck man. Never seen this build before!



Excellent! Saved that to my favorites.



Thanks its a slow build, so I dont update it too often.

Time is tight nowadays...

Justin

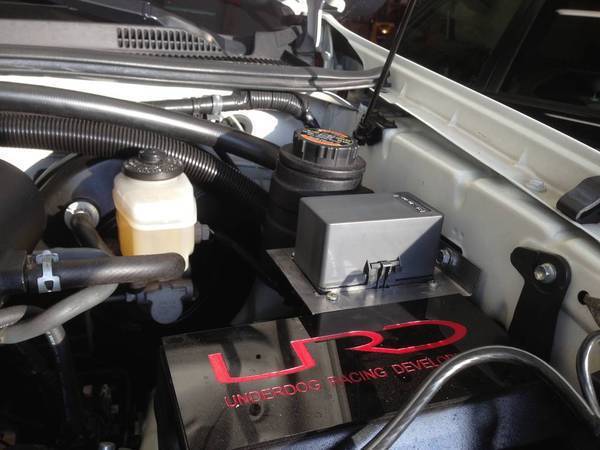

made the mount for the fuse box today



16 ga sheet metal worked out really nice.

just need to finish it ( round sharp corners etc) and paint it and it can go back in when I have all the other wiring done

Justin



I have a template and extra steel....

Justin



Yeah, I have steel left from the one I made for my blue sea. I would like to do what you did, but doubt I will. I am too lazy to rewire everything



this whole project will take time for me. I wont want to have to rewire in the future (add wires to loom ). I think I am going to go ahead a wire a reverse light circuit in and run the wires to the rear bumper and leave them. Then I can just add the fuse and plug in the lights in the future and be good to go.

I am going to put a breaker on this as well. just need to come up with one. I might make another one to hold a it as well. I forgot about it when I made the one pictured

Justin

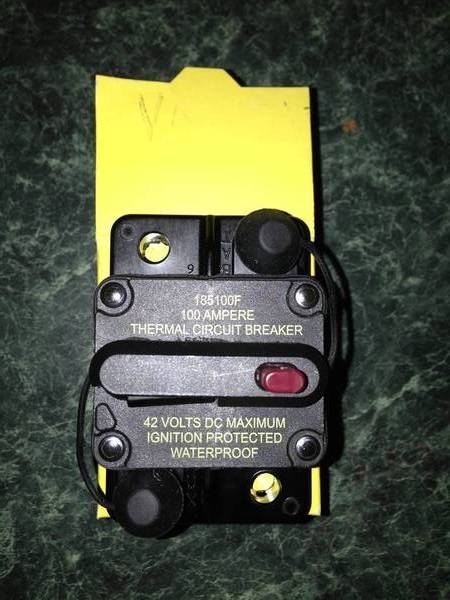

Scored this off ebay for 15 bucks. Cooper Bussmann 100 amp breaker.

Now I need to make a new mounting plate for the fuse box and the breaker.

Anyone want this other one?

Justin



On board air install started today

150 psi 100% DC VIAIR system.

I wanted to get the tank and compressor under the bed, and I dont have a spare under there, so there is plenty of room. I dont like the idea of mounting it through the bed, so I decided to build a nice crossmember for it

all 1" .120 wall tubing

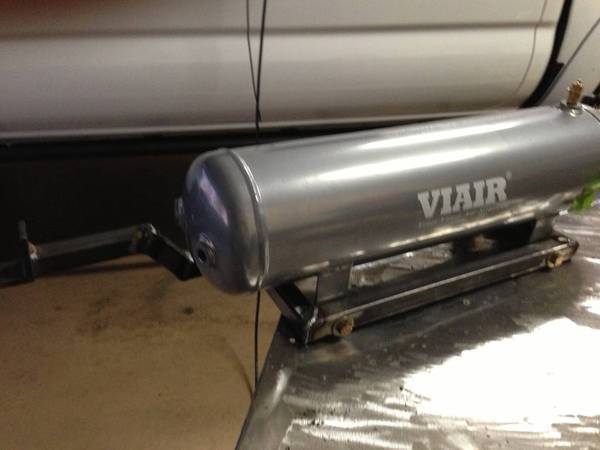

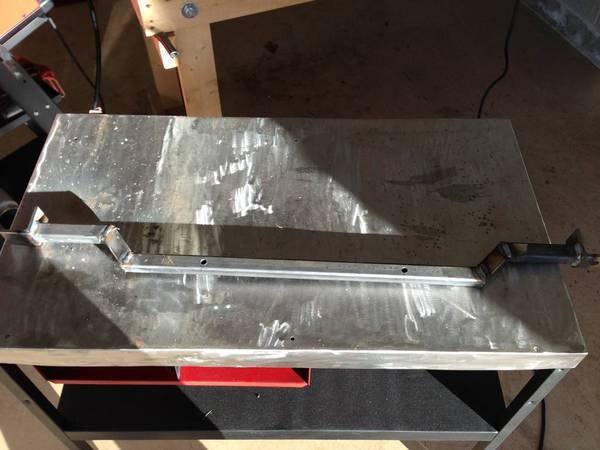

cross member in the works



I was originally going to build two cross members like that, but after I got one attached, It was sturdy as hell and I decided to just box around the tank



All grade 8 hardware.

It attaches to the frame with 2 1/2" grade 8 bolts ( had to drill two holes) I also cut the little alignment tabs for the factory spare off ( dont need them anyway)

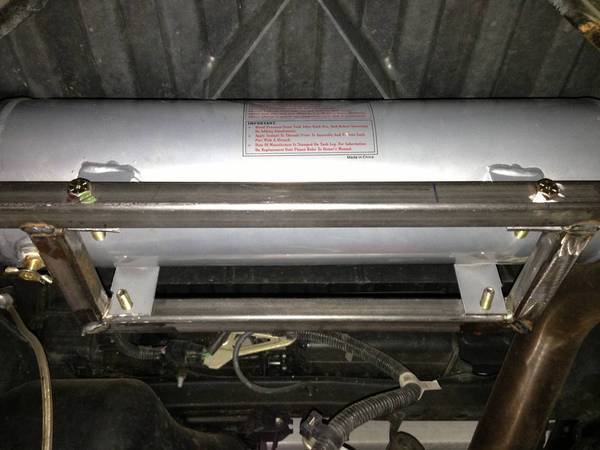

about 3/8" clearance to the bottom of the bed. I cut the bottom of the feet off as well ( dont need them with the bolts going through the side.

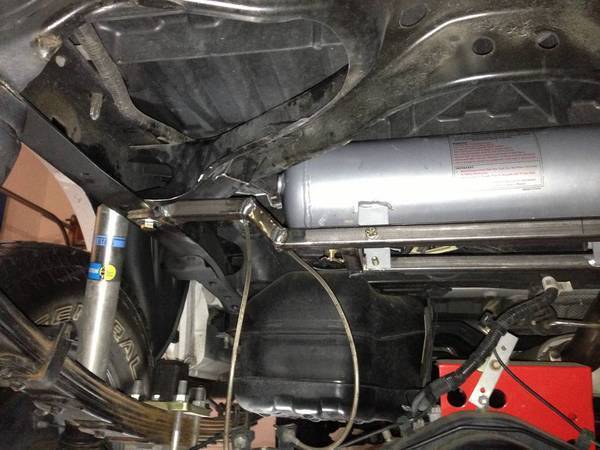

and a shot with the frame mount



All iphone pics and its dark out there, so I will try and get some more later,.

Tomorrow I will make the mound for the compressor ( will be right behind the tank) and I will make a slash guard/skid plate for it. Where it is, it should never contact anything. I can hang on it ( Im 170 lbs but the unsupported side of the tank and it might flex 1/8" of an inch. its not going anywhere

Ill put up more pics tomorrow when the compressor is mounted

Justin



nice on board air setup



I was looking through your gallery, saw a BLACK truck too? Yours?



He had an xrunner before the white truck



My toyota truck history

84 SR5 Xtra Cab 4x4 ( Miss it the most) Marty Mcfly style - Sold in 2002



99 Tacoma Extended Cab 4x4 - Sold in 2007



2007 X-runner - Sold in 2010



and now the 2007 Dcab



Ive also had a 87 camry, 95 tercel, 96 corolla for DD and the wife drives a 2003 rav4

Here is it on the X rims



Toyota for life i think

Justin



Are you going to make the Shoe Creek trip this weekend??

G



I was thinking about it, but found on last week that I will be on my way to Italy for work on Saturday. I wont be back until the 2nd.

Are you taking your 4runner?

Shoe creek is somewhere that I really want to go

Justin



finished up the OBA mounting today



Added a mount for the compressor

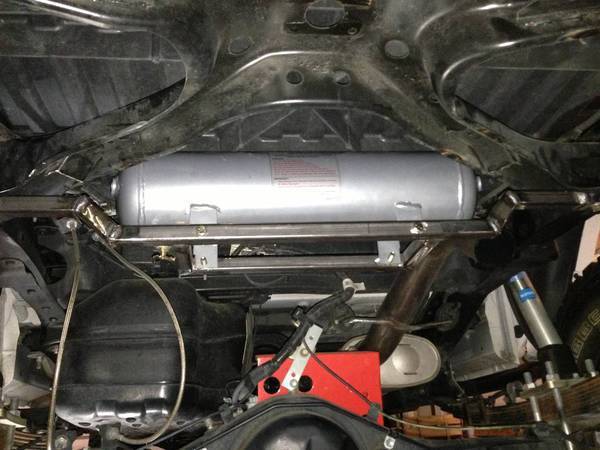

and tucked it up on the truck



I am going to remote mount the air intake for the compressor and build a splash guard around it.



It hangs down about 1.5" below the frame rails, alot less than the factory spare

Now to plumb the air lines ( changing to 3/8" line so I have it on order) and to wire it all up and paint the crossmember

Justin
