Nate's build

Discussion in '2nd Gen. Builds (2005-2015)' started by Nate87, Oct 2, 2014.

  1. Feb 7, 2016 at 12:15 PM
    #401
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR
    I don't have a straight answer for you. What I can tell you is that I can hook up the panel to my second battery that's an AGM battery and run lights, radio and fridge all day with no issues. I'm not certain how normal (flooded lead acid) batteries hold up to a constant charge of solar. I prefer to have them separate and not risk draining my starting battery.
    Right. Solar panel, charge controller then battery and you'll want to run a fuse between each item.

  2. Feb 9, 2016 at 5:25 PM
    #402
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR

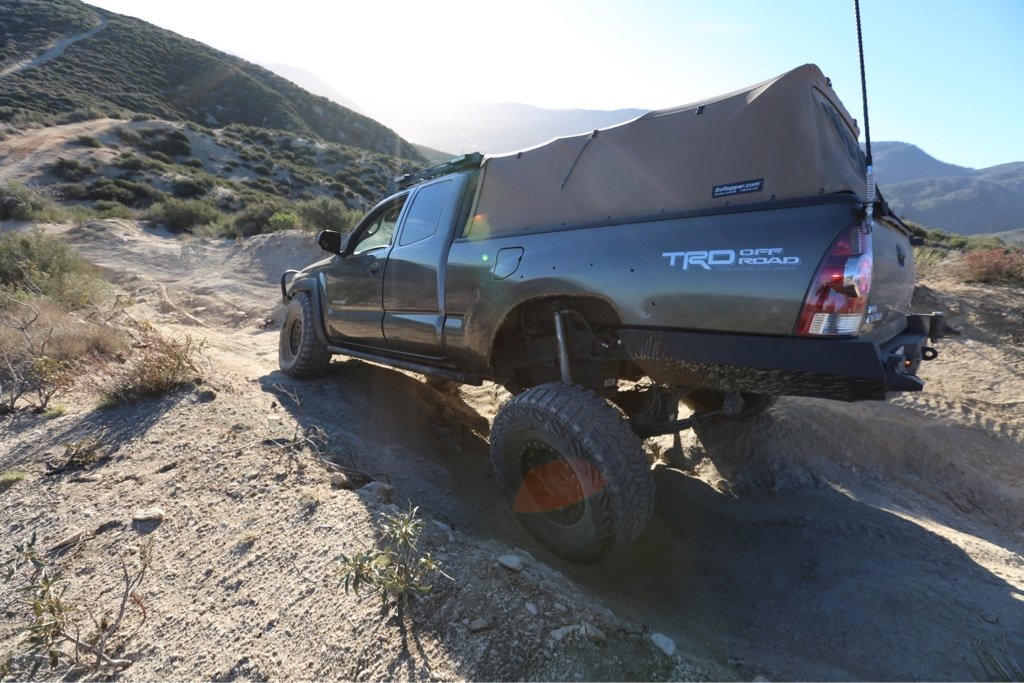

    Some from a Big Bear run we did and ran John Bull. It was the first time using the crawler box. We had a great time up there and go to see the dual cases in action.




    More on the solar panel and light install to come










    A few still shots from a video where I was "walking the dog" up the trail near the Gate Keeper. Put it in double compound low for shits and giggles to see it inch up the steep trail and steer form the outside as it crawled.




    It works great going down hill too! No need to ride the brakes.




    The @Pelfreybilt skids definitely took a beating that day as did the @RelentlessFab bolt on sliders. The mid skid is sitting about an inch higher than what it was before. :thumbsup:


    Being the only Taco in the group of Jeeps, I had to make sure I didn't give them a reason to talk trash. I like keeping the truck clean but don't have a problem beating on it and having fun! Keep the shiny side up and happy trails!

  3. Feb 9, 2016 at 5:28 PM
    #403
    RelentlessFab

    RelentlessFab Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,431
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    Looks like a fun trip!

  4. Feb 9, 2016 at 5:29 PM
    #404
    ChandlerDOOM

    ChandlerDOOM International tent trafficker

    Joined:
    Nov 4, 2013
    Member:
    #115943
    Messages:
    3,836
    Gender:
    Male
    First Name:
    Chandler
    STL
    Vehicle:
    Truck
    37s yo
    Looks like a good time, the mid skid sure takes most of the beatings :rofl: Looking forward to more solar

  5. Feb 9, 2016 at 5:32 PM
    #405
    velillen

    velillen Well-Known Member

    Joined:
    Dec 14, 2013
    Member:
    #118589
    Messages:
    5,433
    Gender:
    Male
    First Name:
    Nick
    Wyoming
    Vehicle:
    2011 Access Cab 4x4
    Looks fun! makes me want a crawl box

    TacoSTIG likes this.
  6. Feb 9, 2016 at 5:57 PM
    #406
    TacoSTIG

    TacoSTIG Untamed Member

    Joined:
    Jun 22, 2014
    Member:
    #132473
    Messages:
    1,141
    Gender:
    Male
    First Name:
    Jeremy
    WA, Issaquah
    Vehicle:
    2005 AC, TRD OR
    Curious, how much caster did your alignment guys net you?

    x2

    Last edited: Feb 9, 2016
  7. Feb 9, 2016 at 6:30 PM
    #407
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Watch Marlin's video carefully. Pay attention to what he does at time index 45-50. Ask yourself what could have happened had he tripped and fell? Just because he's doing it doesn't mean it's a good idea...

    Big Bear wheeling pics look good and fun. I have yet to make it up there...

    Nate87 [OP] and Acerwin like this.
  8. Feb 9, 2016 at 6:49 PM
    #408
    Acerwin

    Acerwin The unNORM NORM

    Joined:
    Nov 20, 2014
    Member:
    #142732
    Messages:
    32,739
    Gender:
    Male
    First Name:
    Andrew
    South Carolina
    Vehicle:
    Toyota Tundra
    Looks like an awesome trip

    Nate87 [OP] likes this.
  9. Feb 9, 2016 at 8:12 PM
    #409
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR
    I agree! Totally not necessary. I made sure to only try it with plenty of open space in front and no actual rock obstacles in the path. My ass remained planted in the seat with all the technical stuff.

    Crom likes this.
  10. Feb 9, 2016 at 8:14 PM
    #410
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR
    On the last one they got it around 3.0-3.3 left and right.

  11. Feb 16, 2016 at 3:56 PM
    #411
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR

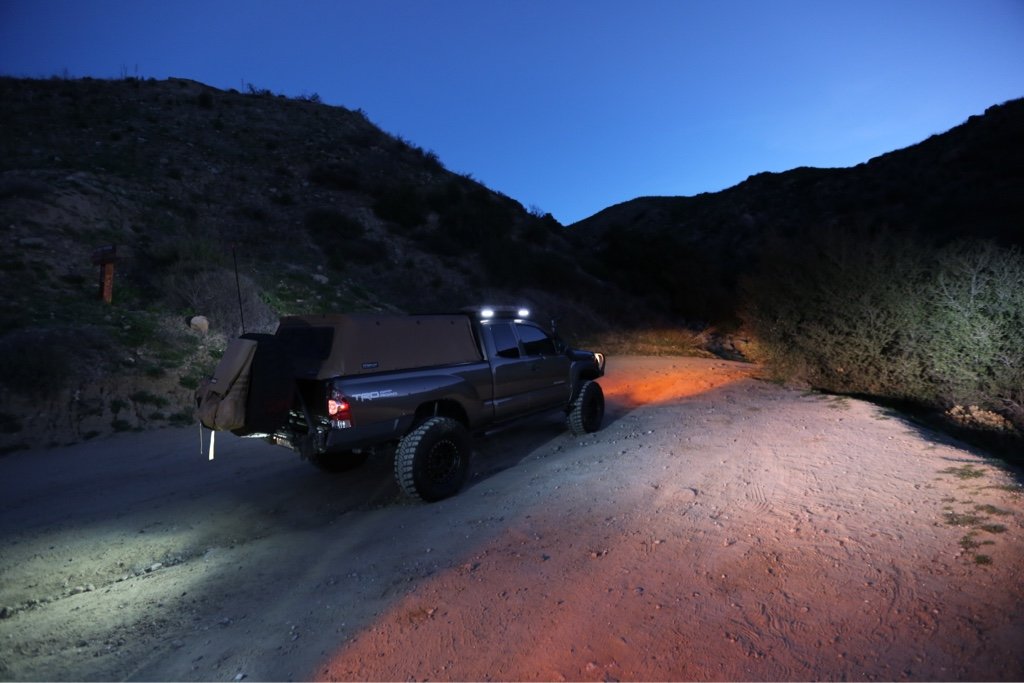

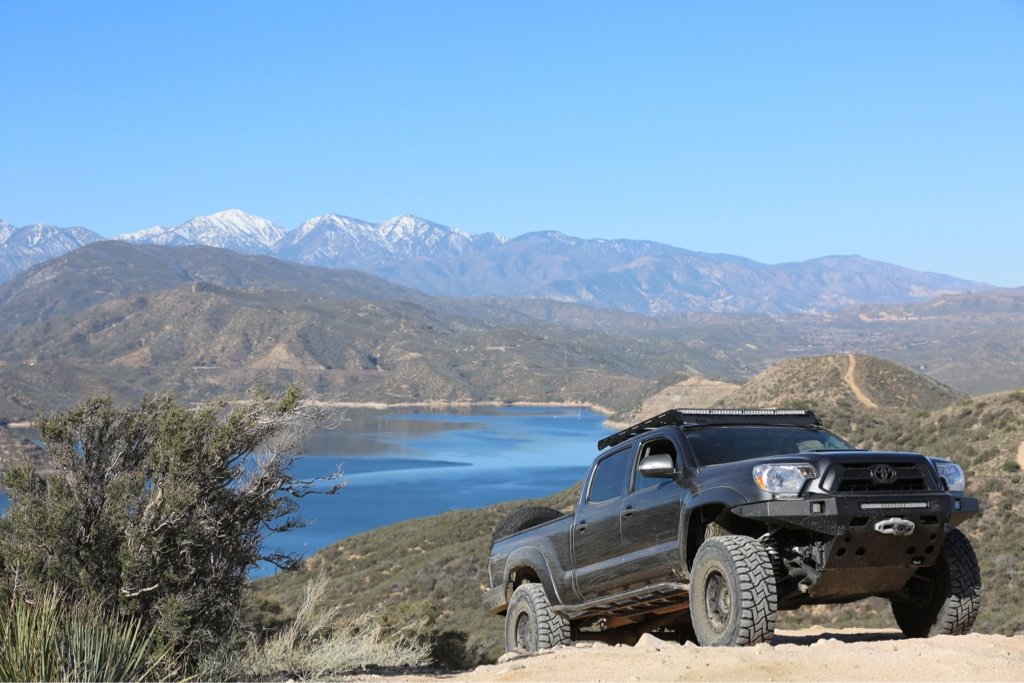

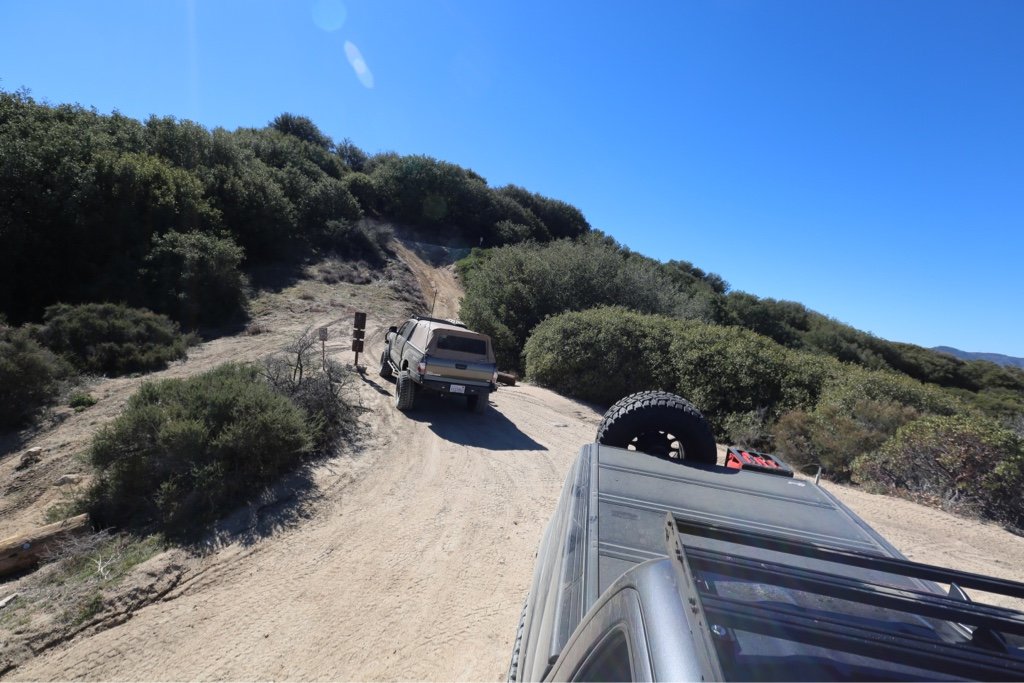

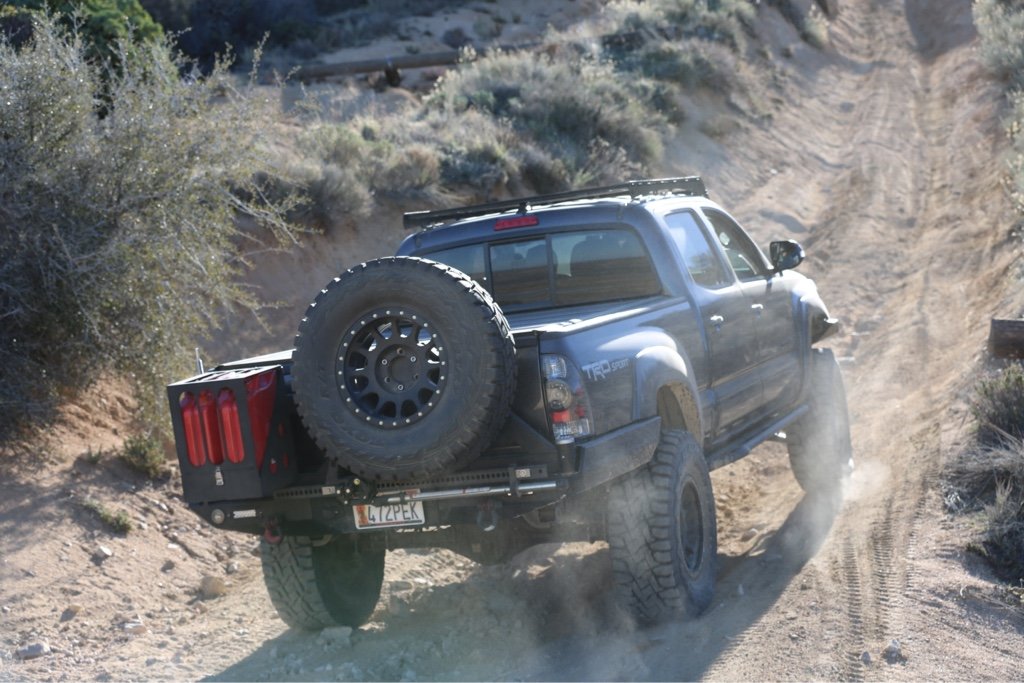

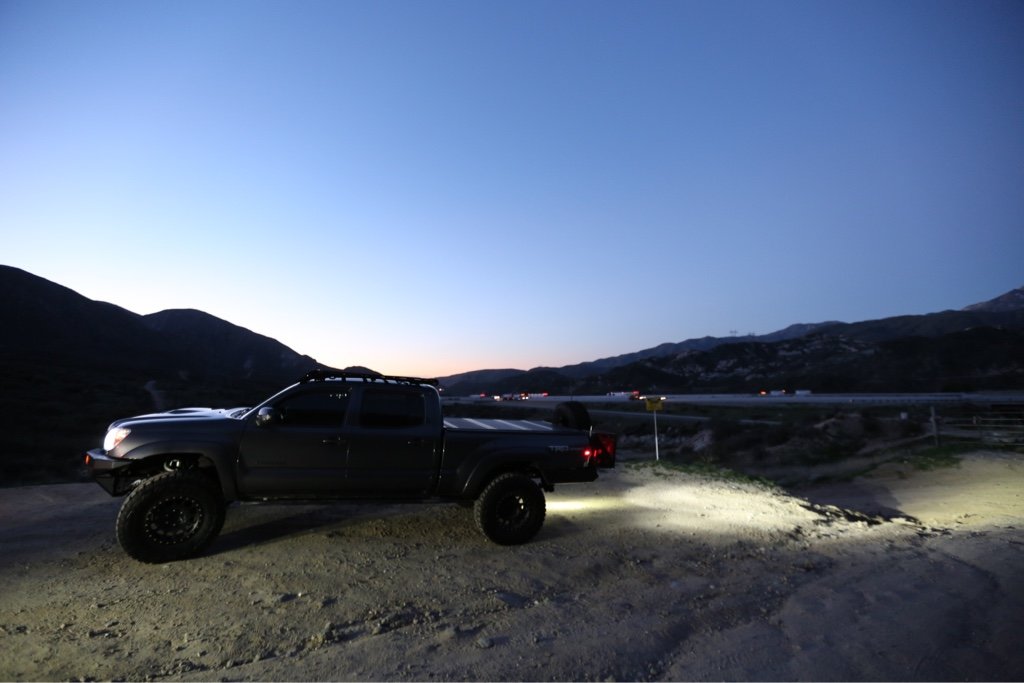

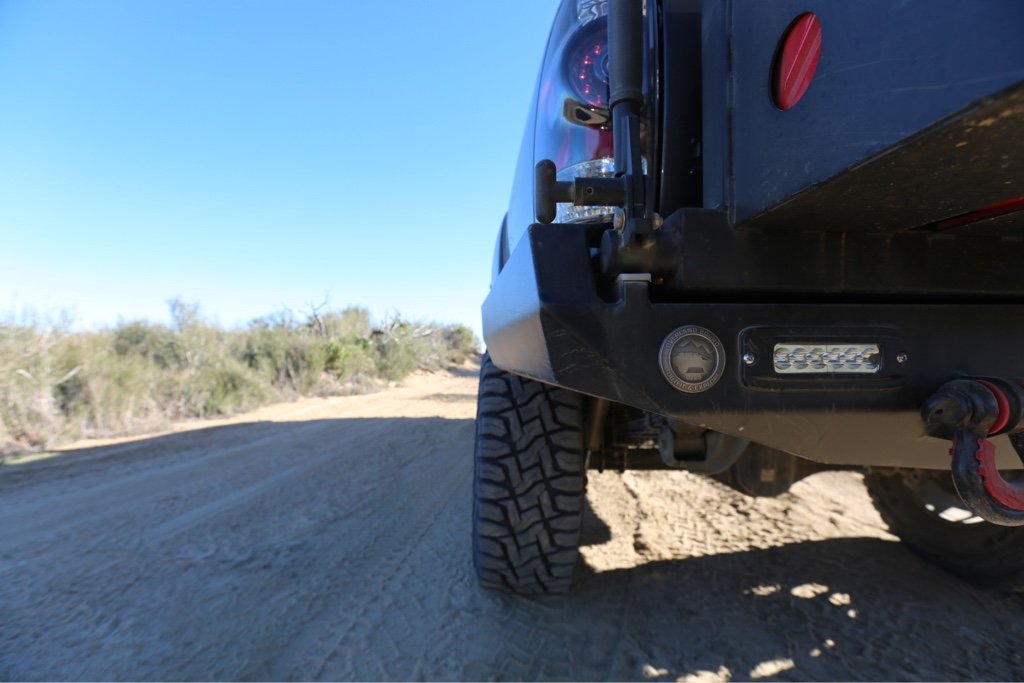

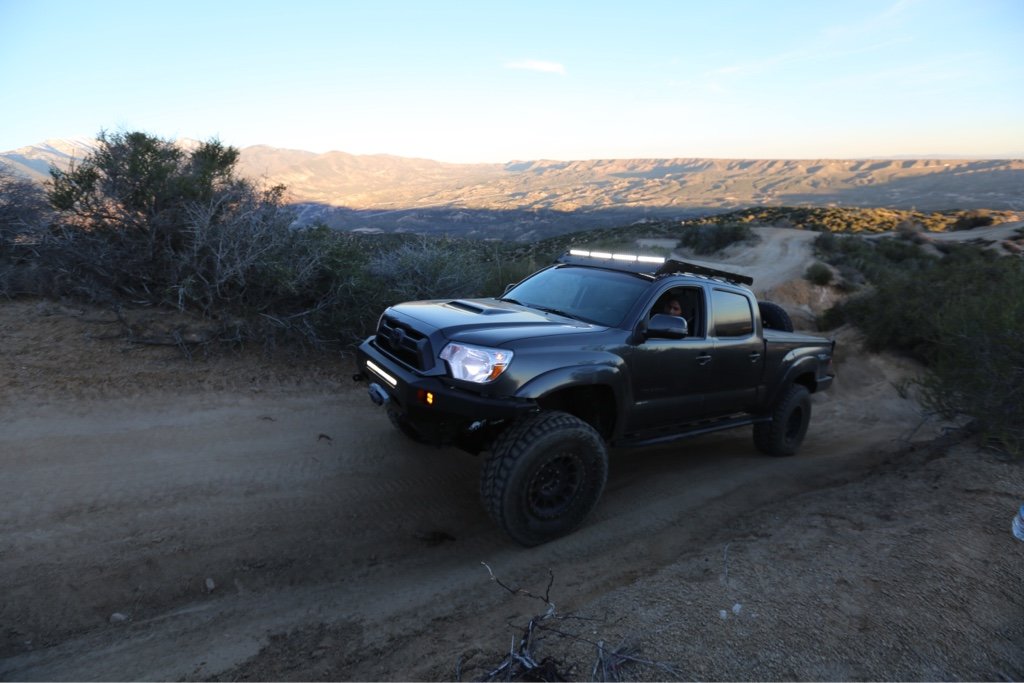

    Here are some recent shots from a trip this past weekend. Had a great time on the trails with fellow TW members @RileyLAFD (photo credit) and @bjs045.
    Cleghorn and Pilot Rock














    It was a great last minute trip up there. Had lots of fun!
    I'll have more from that trip up at a later time. Riley's photos solidified my decision to now budget for a nice camera.

    Crom, Jay619, bjs045 and 6 others like this.
  12. Feb 16, 2016 at 4:17 PM
    #412
    vrod671

    vrod671 The Okayest Member

    Joined:
    Nov 25, 2012
    Member:
    #91817
    Messages:
    15,584
    Gender:
    Male
    First Name:
    Brandon
    Guam
    Stock
    your truck is dope :thumbsup:

    Nate87 [OP] and RileyLAFD like this.
  13. Feb 16, 2016 at 4:29 PM
    #413
    ChandlerDOOM

    ChandlerDOOM International tent trafficker

    Joined:
    Nov 4, 2013
    Member:
    #115943
    Messages:
    3,836
    Gender:
    Male
    First Name:
    Chandler
    STL
    Vehicle:
    Truck
    37s yo
    yup, I keep saving money for a new camera and keep spending it on something else haha


    I love how those individual 10" light bars make up the whole light bar

    Nate87 [OP] and RileyLAFD like this.
  14. Feb 16, 2016 at 4:37 PM
    #414
    RileyLAFD

    RileyLAFD Well-Known Member

    Joined:
    Jun 7, 2014
    Member:
    #131487
    Messages:
    830
    Gender:
    Male
    First Name:
    Riley
    City of Angels
    Vehicle:
    '14 DCLB Magnetic Grey
    I guess I've got to start this very soon....





    Not sure if I shared these with you... Great trip, John Bull next!

    Crom, Jay619, bjs045 and 5 others like this.
  15. Feb 23, 2016 at 10:31 PM
    #415
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR
    On Board Air install.

    I tried to document the install as best I could and hope it'll help a few others out. Photo quality is crap as usual and mostly in the dark. If you have any questions or need anything cleared up don't hesitate to ask.

    I've been wanting to do an OBA setup even before I ever planned on building the truck. Being able to run certain air tools always appealed to me. And now that I go camping/off-roading all the time, OBA has become a necessity. I still have the Sanden AC compressor I converted to grease way back when and hope to one day finish that project for the ultimate OBA setup. For now it'll collect dust till time permits an install.



    Items used:
    ARB Twin compressor
    ARB manifold
    5 gallon AVS aluminum tank from Grunionfabrication
    Vair pressure regulator
    Miscellaneous fitting, 3/8 DOT air line, air line cutter and water trap from AccuAir
    Misc. fitting from local hardware store for quick connect air fittings/couplings
    Misc. Legris Push-To-Connect nickel plated brass air line fitting from Amazon


    Let's start with the tank. It has 6 ports. Two 1/2" ports and four 1/4" ports. One 1/2" and one 1/4" one each end of the tank and the other two clocked 90 degrees from each other in the center. My tank had brackets and was meant to be mounted right side up therefore the "drain" port is where the brackets are and the other 1/4" port 90 degrees from that. That's not going to work since the tank with be mounted upside down under the bed putting the drain port facing up.


    So the brackets needed to be cut off, rewelded and clocked correctly. While the brackets were off go ahead and measure the distance you need to mount the tank on the "low" channels of the bed. Find the correct spacing needed for you and weld them back on. As you can see mine were cut then moved in and also rechecked 90 degrees to orient the ports with one facing down for the drain and one facing forward so it can be easily reached. It's a tight squeeze under there so if the port is facing rear you may not be able to access it.




    Next you need to find where you want to mount the compressor. Again, being an access cab, space is limited so I got creative. I decided to bolt it under the bed, forward and off the the right. It is mounted above the exhaust. Now, before people start asking questions, let me explain. It's unused space and plenty of it. It puts the compressor closest to my second battery with a short run of wire. It is far enough from the exhaust to not heat it up and even if it did, the compressor gets pretty damn hot on its own when working. The exhaust also acts as a shield from water, rocks etc when driving even though it's resilient to water. It also puts it close to the 5 gallon tank I'll be running where the spare tire used to be.


    It was ALMOST a perfect fit. One of those circular pieces on the rib of the mold for the composite bed needed to be notched a little to make room for the wires. You could get away with not doing this and shifting the compressor over a bit to fit bet that's where I wanted it.
    vv About center of the frame is what I'm talking about.

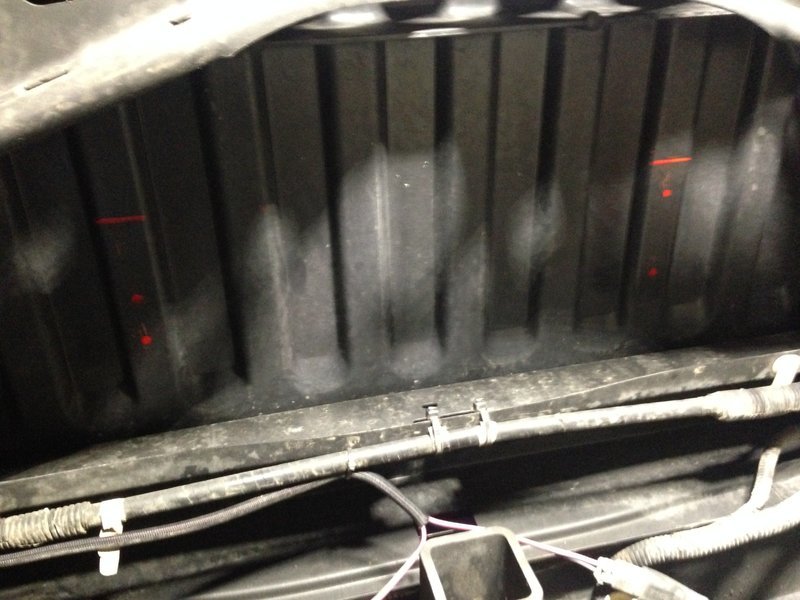

    From there I used a red painters pen and put a bunch on the ARB bracket where the bolts will be going into. The idea is to transfer that paint to the truck bed so you know where to drill the holes.


    Like so


    Then drill the holes through the bed. Start with a small bit and work your way up in bit size. I was able to get it so the bolts JUST fit through and had to be threaded through the bed even before threading into the compressor bracket. That keeps things nice and tight and less chance from water in the bed draining down onto your compressor. One thing to note is that the ARB bracket template that comes with he manual doesn't match up in real life. Don't know why :notsure: but double check before you go using that thing.




    Do the same for the manifold and connect your stainless hose. You can adjust and clock the port on the manifold to where you need it to line up. Also put in the solenoid for front air locker


    Air tank mounting was next. You can put the bolts and washers in and do the same painters pen trick again to see where drilling is needed.




    Again, I chose to mount the tank in the low channels of the bed


    Once everything is lined up drill the holes


    Drop/thread the bolts through




    I may have mentioned that it's a tight fit under there. Getting all the washers and nuts threaded onto the 4 bolts was a royal PITA! It was taking me FOREVER trying to figure out how to get them all on in such tight spacing. Then I got smart. I ended up putting a large magnet on the bolts up top in the bed. From there all the washers, lock washers and nuts stood in place and didn't have gravity fighting me the whole time. Lesson learned for future projects.
    These ratcheting wrenches also were a big help in the tight spaces


    Tank finally bolted in


    Profile view. Tucked in nice and tight with nothing hanging down below the bumper and frame




    You can see the side ports, bottom drain cock and forward facing pressure relief valve at 175 PSI. Tank is rated at 200 PSI working pressure


    I told you it was a tight fit. BARELY clears from hitting the ribs in the bed




    Here are some of the fittings that were used. Not all pictured were utilized.


    Daytime photos with tank in the rear




    Hole and grommet where wires will be ran


    Going into cab




    Harness and air locker line connected


    Water trap from AccuAir. I planned on running two water traps. One before the tank and one after going to rear regulator but the second cheap one shown a few photos up sucked so it was ditched and only used one before the tank.


    Next was finding a hidden location to mount the Viair regulator.


    I went with the storage cubby on the driver side. The regulator has two bolts to secure the bracket. You can see them drilled into the back of the cubby. The holes on the bottom will be for the fittings to go down into and run the air line.


    How it'll sit


    Perfect fit for the fittings to run air lines down


    Bolted in and mounted in the cubby


    Next was finding a spot to put the quick connect air fittings. One would go to the rear and the other to the front.


    A step drill bit was used. Again, go slowly and check so that the air fitting threads JUST make it through to have a tighter fit.


    Now the front. Thanks to @MrGrimm for this location idea.




    Unfortunately I don't have many photos of all the connections at the manifold going back to the tank so bear with me. I'll eventually draw the layout on Paint to show all the connections and fittings that were used. They were all installed using some of the liquid teflon sealant as well as teflon tape. Everything was wrenched down tight. These steps are important if you don't want any leaks in the system. Once it was all assembled, use a spray bottle with soap and water to test for leaks. Bubbling will show obvious leaks.


    One way check valve threaded to the in going side of the water trap then into one of the side 1/4" 90 degree fittings into the tank.






    Air lines going into side cubby where regulator is. The lines come from the out going 1/2" 90 degree fitting on the diver side of tank


    From there the air line runs to the rear bumper to quick connect fitting. 1/4" port on driver side is plugged.


    Ran all the air line along factory harness and secured with zip ties




    I tried to be creative and ran the air locker line and air line going forward through the frame and out the other end. Blue line was then routed through the crossmember behind the front differential and into the diff from there. Very little exposure to any heat or threat of getting snagged.


    Clearance with exhaust in place


    From side view in wheel well. 90 degree fitting from the manifold going to the rear


    Rear fitting. That plastic cap can be found at your local hardware stores. I found mine at Lowes in the the specialty furniture drawer in the nuts and bolt aisle. They are end caps for chairs/stools.


    Front fitting


    Air line then routed through holes in the core support bracing. Side note: don't mind the shiny rear diff and front undercarriage. @RileyLAFD told me about the Aerospace 303 stuff and how clean it makes your undercarriage look. Feel free to add any sheath in areas you feel might rub.
    It'll go from this:


    To this: :eek:


    Behind front bumper coupling


    That's it! For now... The actual install didn't take nearly as long as all the planning took. Good planning will make things go smoothly. There is still more to be done to the OBA setup which will be updated as they happen. Some things to come are a pressure gauge, additional fittings with ball valve in case of tank rupture so air locker can still be used and tires filled.

    The wiring will be logged in the future. But I did cut off the fuses built into the harness and tied the compressor into my custom relay/fuse panel on a "keyed" fuse block with two 40 amp fuses. A higher AMP relay will also be swapped in. I noticed things getting hot after a long compressor run time which is expected but I would like to build in a higher safety margin. From completely empty to 5 gallon tank filled at 150 psi it took 2 minutes and 3 seconds. Then we went wheeling shortly after install and I was able to air up all sorts of tires with little effort.

    Overall I am very pleased with the dual ARB compressor. The Viair pressure regulator is also well built. It's there to drop the pressure down if needed for air tools or whatever. I set it up so that the rear connector is the one with the regulator in line. Reason being was the two types of push to connect fittings that were used. The Legris push-to-connect and the AccuAir PTC fittings. The AccuAir fittings seem to be much better made than the Legris. They seem more sturdy and have DOT rated markings. But the Legris have better flow for the same size fitting. I'll try and get comparison photos of the two up. So all the stuff that might see more heat has the AccuAir fittings and the stuff I want to flow better has Legris fittings.

    Which brings me to the push to connect fittings. If you take the time and prep the fittings with sealant and tape then tighten everything down, you shouldn't have any leaks. Most complain about these fittings leaking but I don't have that issue. Maybe time will prove otherwise but if the tank is topped off at 150 psi, it'll stay there all week without any change in pressure.

    I know the OBA has been discussed with the following so here you guys go
    @Iggy. , @Crom , @ChandlerDOOM

    As always, thanks for watching and stay tuned.

    Nate

    Last edited: Feb 23, 2016
    tacomgee, SonnyBones, ERMB and 11 others like this.
  16. Feb 23, 2016 at 10:49 PM
    #416
    tacomgee

    tacomgee just ain't care....

    Joined:
    Aug 5, 2014
    Member:
    #135522
    Messages:
    4,785
    Gender:
    Male
    First Name:
    Blake
    NorCal - Santa Rosa
    Vehicle:
    2015 Supercharged Taco
    Mostly whatever sweet stuff I can find at Vatozone
    As always, great job! Absolutely love the detail and thought you put into all your installs. :thumbsup:

  17. Feb 23, 2016 at 11:19 PM
    #417
    Nate87

    Nate87 [OP] Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103748
    Messages:
    751
    Gender:
    Male
    First Name:
    Nate
    CONUS
    Vehicle:
    2013 AC TRD OR
    Thanks Blake! I appreciate it.

    One thing I will keep an eye out for is how wet that compressor gets when driving in the rain. So far it has remained dry even in all the rain we've received in SoCal but just in case i picked up some aluminum sheet to make a quick splash/heat/debris guard for even further protection.

  18. Feb 24, 2016 at 12:26 AM
    #418
    vrod671

    vrod671 The Okayest Member

    Joined:
    Nov 25, 2012
    Member:
    #91817
    Messages:
    15,584
    Gender:
    Male
    First Name:
    Brandon
    Guam
    Stock
  19. Feb 24, 2016 at 3:14 AM
    #419
    Acerwin

    Acerwin The unNORM NORM

    Joined:
    Nov 20, 2014
    Member:
    #142732
    Messages:
    32,739
    Gender:
    Male
    First Name:
    Andrew
    South Carolina
    Vehicle:
    Toyota Tundra
    @Nate87 does it not hurt for the air compressor to get wet? I would love to do something like this to mine

  20. Feb 24, 2016 at 6:22 AM
    #420
    MrGrimm

    MrGrimm Mall Crawler

    Joined:
    Oct 19, 2009
    Member:
    #24568
    Messages:
    2,809
    Gender:
    Male
    First Name:
    Dean
    Wisconsin
    Vehicle:
    2006 Toyota Tacoma 4WD w/TRD Sport Package
    See build page
    Clean install! :headbang:
