Nathan's Long Travel Build

Discussion in '1st Gen. Builds' started by Conman117, Apr 29, 2012.

  1. Jul 7, 2012 at 11:53 AM
    #21
    theduck911

    theduck911 Max's Canadian Twin

    Joined:
    Oct 28, 2010
    Member:
    #45374
    Messages:
    4,275
    Gender:
    Male
    First Name:
    Max
    Northwestern Ontario, Canada
    Vehicle:
    Locked and Geared!
    Interesting, starting off with a bare frame is definitely a nice way to go about it :thumbsup:

  2. Jul 7, 2012 at 11:53 AM
    #22
    stephen11ty7

    stephen11ty7 Well-Known Member

    Joined:
    Jun 5, 2011
    Member:
    #57798
    Messages:
    493
    Gender:
    Male
    First Name:
    Stephen
    Villa Park
    Vehicle:
    07 white taco
    Total Chaos 2" LT, Icon coilovers
  3. Jul 7, 2012 at 12:25 PM
    #23
    Conman117

    Conman117 [OP] AWESOME MEMBER

    Joined:
    Mar 10, 2012
    Member:
    #74659
    Messages:
    1,494
    Gender:
    Male
    First Name:
    Nathan
    BC, Canada
    Vehicle:
    98 Brap-coma
    Blue LED dash lights
    I think I'm on to a new build. You take your box and put it in front of your cab, and then put all your parts into your box. Also if you put your engine and transmission in front of all that, it seems to work better. I think this is gonna take off pretty soon.:p

    [​IMG]

    I don't know how it will ride though.

  4. Jul 9, 2012 at 6:58 PM
    #24
    Conman117

    Conman117 [OP] AWESOME MEMBER

    Joined:
    Mar 10, 2012
    Member:
    #74659
    Messages:
    1,494
    Gender:
    Male
    First Name:
    Nathan
    BC, Canada
    Vehicle:
    98 Brap-coma
    Blue LED dash lights
    More work.

    Rear axle setup is coming along.

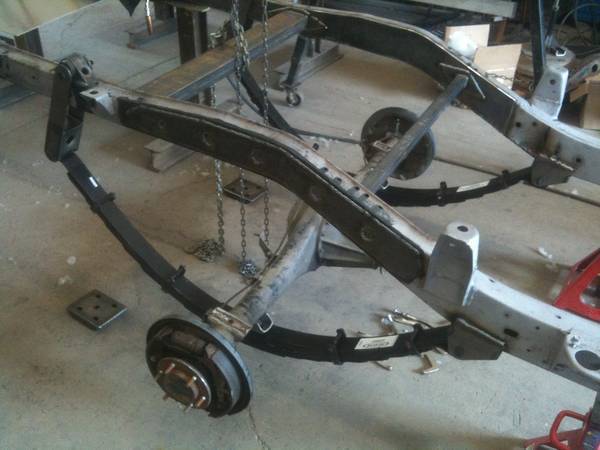

    [​IMG]

    New cross-members installed. The boxed frame is easier to see in these pics too.

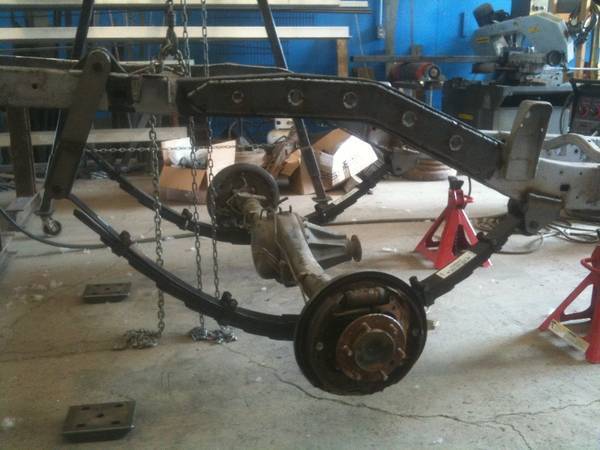

    [​IMG]

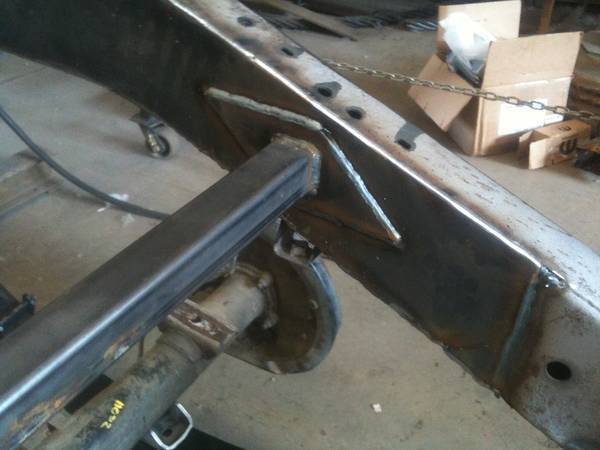

    [​IMG]

    Pretty happy with where it sits right now. I don't know what the ride height will be like, but it looks ok. Still have to cycle my leafs to make sure my shackles are set up right.

    [​IMG]

  5. Jul 9, 2012 at 7:10 PM
    #25
    taco52

    taco52 01 5 speed

    Joined:
    Apr 24, 2011
    Member:
    #55481
    Messages:
    492
    Gender:
    Male
    First Name:
    Trevor
    Bailey, Colorado
    Vehicle:
    01 SR5 v6 5speed 4x4
    Grey wire mod, De flapped,
    Looks really good.

  6. Jul 9, 2012 at 7:21 PM
    #26
    Conman117

    Conman117 [OP] AWESOME MEMBER

    Joined:
    Mar 10, 2012
    Member:
    #74659
    Messages:
    1,494
    Gender:
    Male
    First Name:
    Nathan
    BC, Canada
    Vehicle:
    98 Brap-coma
    Blue LED dash lights
    Thanks. I should have a couple days straight of truck only work, so I should make some decent headway. Maybe a rolling frame by the weekend. Hopefully the weather stays nice for painting.

  7. Jul 9, 2012 at 7:23 PM
    #27
    theduck911

    theduck911 Max's Canadian Twin

    Joined:
    Oct 28, 2010
    Member:
    #45374
    Messages:
    4,275
    Gender:
    Male
    First Name:
    Max
    Northwestern Ontario, Canada
    Vehicle:
    Locked and Geared!
    Looking good, Going with all Giant equipment I see, might want to look into gusseting their shackles as quite a few members on here have had issues with them bending (not shit talking, just looking out :cool:)

    As long as the distance between the eye of the spring hanger and the top shackle pivot is 52.5" (assuming a 12" shackle) it should cycle just fine:thumbsup:

  8. Jul 9, 2012 at 7:32 PM
    #28
    Conman117

    Conman117 [OP] AWESOME MEMBER

    Joined:
    Mar 10, 2012
    Member:
    #74659
    Messages:
    1,494
    Gender:
    Male
    First Name:
    Nathan
    BC, Canada
    Vehicle:
    98 Brap-coma
    Blue LED dash lights
    Ok. Thanks for the heads up. So just add an extra plate on the shackle? And please, anyone that has ANYTHING to say that will help my build, PLEASE DO SO:) I dont want to be 6 months down the road and have something go wrong and someone pipes up, "oh well you should have done this." Any suggestions/tips are very welcome. And yes, I triple measured the 52.5":cool:

  9. Jul 9, 2012 at 7:37 PM
    #29
    theduck911

    theduck911 Max's Canadian Twin

    Joined:
    Oct 28, 2010
    Member:
    #45374
    Messages:
    4,275
    Gender:
    Male
    First Name:
    Max
    Northwestern Ontario, Canada
    Vehicle:
    Locked and Geared!
    Two strip welded 90 degrees (spaced out accordingly) to the sides of the shackles with a cut tube welded around each of the bolt holes, this should add plenty of rigidity without over complicating it. Be careful not to weld to much on one side as to warp the shackles (do one piece at a time rotating sides)

    Trying to find a picture of what I'm talking about.

  10. Jul 9, 2012 at 7:54 PM
    #30
    Conman117

    Conman117 [OP] AWESOME MEMBER

    Joined:
    Mar 10, 2012
    Member:
    #74659
    Messages:
    1,494
    Gender:
    Male
    First Name:
    Nathan
    BC, Canada
    Vehicle:
    98 Brap-coma
    Blue LED dash lights
  11. Jul 9, 2012 at 8:14 PM
    #31
    theduck911

    theduck911 Max's Canadian Twin

    Joined:
    Oct 28, 2010
    Member:
    #45374
    Messages:
    4,275
    Gender:
    Male
    First Name:
    Max
    Northwestern Ontario, Canada
    Vehicle:
    Locked and Geared!
    That's exactly what I'm talking about, then you'll never have to worry about them bending :cool:

  12. Jul 9, 2012 at 8:38 PM
    #32
    Conman117

    Conman117 [OP] AWESOME MEMBER

    Joined:
    Mar 10, 2012
    Member:
    #74659
    Messages:
    1,494
    Gender:
    Male
    First Name:
    Nathan
    BC, Canada
    Vehicle:
    98 Brap-coma
    Blue LED dash lights
    Nice. I'll probably do that up tomorrow. Anybody have recommendations on pinion angle of the rear axle?

  13. Jul 10, 2012 at 7:59 PM
    #33
    Conman117

    Conman117 [OP] AWESOME MEMBER

    Joined:
    Mar 10, 2012
    Member:
    #74659
    Messages:
    1,494
    Gender:
    Male
    First Name:
    Nathan
    BC, Canada
    Vehicle:
    98 Brap-coma
    Blue LED dash lights

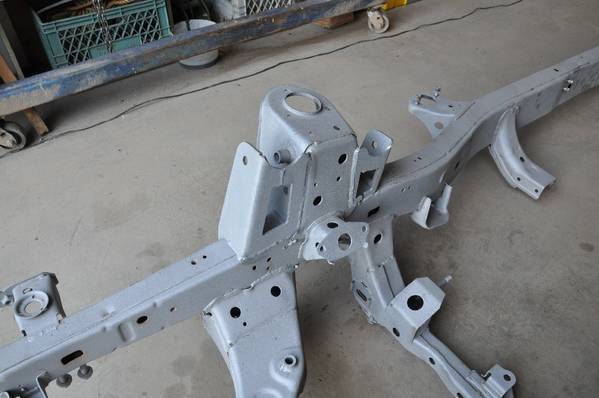

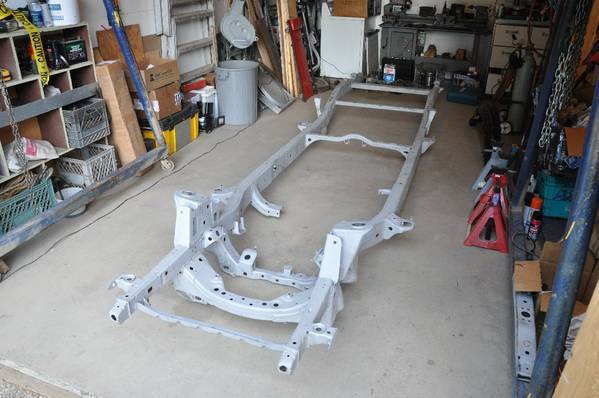

    Sandblasted the new pieces and welds. Paint tomorrow, then I can actually start putting things back on. :)

    [​IMG]

    [​IMG]

    AAAAAWWW YEAH

  14. Jul 10, 2012 at 8:05 PM
    #34
    theduck911

    theduck911 Max's Canadian Twin

    Joined:
    Oct 28, 2010
    Member:
    #45374
    Messages:
    4,275
    Gender:
    Male
    First Name:
    Max
    Northwestern Ontario, Canada
    Vehicle:
    Locked and Geared!
    What are you using as a frame coating?

  15. Jul 10, 2012 at 8:12 PM
    #35
    jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    13,798
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
    Sorry I just saw this...considering you're going for paint tomorrow. Glad to see you've done your research. Looking fantastic so far.

    However....since you're down to the frame, now is a good time to reinforce the motor mount perches. They are weak and its a lot easier to add material with no engine in the way. There's a couple routes you can go. You can either just wrap/gusset the shit out of them like cr250jumper did, or there's a guy on TTORA that sells whole new mounts that are 3/16th plate instead of sheet metal. Requires cutting the old ones off and welding the new ones in.

    Oh...and subbed for future fapping. :D

    Also I'm not sure what your grand plans are for offroading, but if you plan on flexing that rear axle, the giant shackles are kind of annoying. They end up scraping the frame when flexing. I had to grind down my frame some and they still rub. Eventually I gave up and got the TC shackles

  16. Jul 10, 2012 at 8:13 PM
    #36
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,849
    Gender:
    Male
    Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    hot damn! how have i missed this?

    you're going to be more than fine, but if i had my frame down to bare metal like that i would have plated every last square inch.

    it's kinda the popular thing to do around here right now if you have a 1st gen...you might want to hold off putting the truck back together so you can swap the motor mounts out to solid mounts and the tranny mount too.

    if you're a 5 speed, 4x innovations has a tranny mount, otherwise you can box the stock tranny mount like this.

    you can pick up the solid motor mounts from trail gear

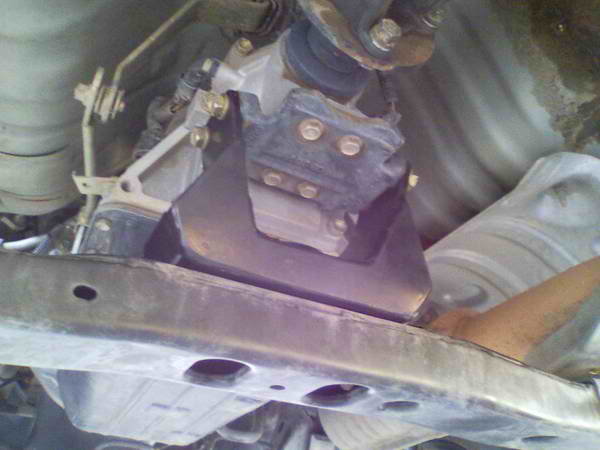

    [​IMG]

  17. Jul 10, 2012 at 8:14 PM
    #37
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,849
    Gender:
    Male
    Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    holy shit! i was 1 min late... lol

    great minds...

  18. Jul 10, 2012 at 8:25 PM
    #38
    jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    13,798
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
    :quickdraw:

    But yes...i learned from the master

    There's no cookie cutter number for pinion angle as it really depends on your travel numbers. Hell even adding a carrier bearing drop can effect your final pinion angle, so make sure you know what you're going to run before you weld it up.
    This is a good read to get you started: http://www.4xshaft.com/driveline101.html

  19. Jul 10, 2012 at 10:24 PM
    #39
    Conman117

    Conman117 [OP] AWESOME MEMBER

    Joined:
    Mar 10, 2012
    Member:
    #74659
    Messages:
    1,494
    Gender:
    Male
    First Name:
    Nathan
    BC, Canada
    Vehicle:
    98 Brap-coma
    Blue LED dash lights
    Ok, about the motor mounts. First off, are solid mounts any good for a DD? What do they do exactly?
    Because if I go solid then I may as well just cut mine off and make new ones that go from the frame right to the motor.
    And my grand plans for off-roading are inspired by you guys. Anything and everything. Though not for a year or two, still have to pay for school too.:D

    Why is 5-speed (which I have) different? And again pros/cons of solid mounts?
    It would be fun to plate more but I really want to drive my truck this year too;)

    I'll be using POR 15, hence all the blasting. Apparently it chips off smooth metal in bash-able zones. And a top coat of regular black paint.

    Also, since I'm in Canada, I can't get stuff from all the US manufacturers quickly/cheaply. All the stuff I get from the states is usually 2-4 week wait. Plus I can make most of the stuff I need, ie. solid mounts.

  20. Jul 11, 2012 at 12:20 AM
    #40
    Anthony250

    Anthony250 E-Fabber

    Joined:
    Sep 29, 2010
    Member:
    #44016
    Messages:
    3,096
    Gender:
    Male
    First Name:
    Anthony
    San Gabriel Ca
    Vehicle:
    99 Tacoma LT Prerunner
    Eagle Alloy's 058 on Goodyear BFG All Terrians . 265/75/16. Kenwood Stereo, 12" JL Audio Sub. Led Lighting interior. Led Turn Signals. Custom Bumper ,Total Chaos Long travel Sway away shocks, glassworks fenders, ,Spintech Super Pro street muffler, Hellas 500ff HID Converted, Window Tint,Black Emblems, Deckplate, , Deaver Prerunner Pack, Bilstein 7100's 12" SB's and Sway Away 2" Air Bumps
    Like Jberry and Nelson said gusset those motor mounts. Also good idea to make some coilbucket gussets, such as secondary shock mounts so your coil bucket doesnt bend up. I should have pics soon in my build thread on some that i made.
