ND4's Fog Light Anytime Mod... NO splicing, No Bending, 100% reversible

Discussion in '2nd Gen. Tacomas (2005-2015)' started by nd4spdbh, Jan 4, 2014.

Page 23 of 56
  1. May 18, 2015 at 9:24 PM
    #441
    k3v11n

    #441
    k3v11n Yeah? No!

    Joined:
    Mar 30, 2015
    Member:
    #152106
    Messages:
    1,285
    Gender:
    Male
    Oahu, Hawaii
    Vehicle:
    2015 SR PreRunner Oahu Edition
    PlastiDip
    I want to do this, but I'm not very good with wires.... :(

    k3v11n, May 18, 2015
    #441
    patbegley likes this.
  2. May 20, 2015 at 8:47 AM
    #442
    YanE30M3

    #442
    YanE30M3 GO PATS!

    Joined:
    Sep 26, 2014
    Member:
    #139118
    Messages:
    1,680
    Gender:
    Male
    First Name:
    Yan
    Woodbridge VA
    Vehicle:
    15 TRD Sport (DCLB-BRM) - 88 ///M3 (Zinnoberrot)
    OME 887/Dakars/NV305s/33" Duratracs/+
    Thanks to ND4 & Justin, I finally got this mod to work! now to get some bright fog light bulbs!

    YanE30M3, May 20, 2015
    #442
  3. May 20, 2015 at 9:54 AM
    #443
    JB

    #443
    JB ....................

    Joined:
    Dec 20, 2014
    Member:
    #144659
    Messages:
    8,631
    Gender:
    Male
    First Name:
    Justin
    CA
    Vehicle:
    2015 Off Road DCSB
    ICON Stage 2, SCS Wheels, Toyo R/T's, 6-Speed
    Sweet!!

    JB, May 20, 2015
    #443
  4. May 23, 2015 at 9:26 PM
    #444
    MCM78LC

    #444
    MCM78LC Well-Known Member

    Joined:
    Oct 18, 2011
    Member:
    #65442
    Messages:
    72
    Gender:
    Female
    Saint Paul, MN
    Vehicle:
    2021 Toyota Land Cruiser
    Sub'd.

    MCM78LC, May 23, 2015
    #444
  5. May 24, 2015 at 4:37 PM
    #445
    Nowayhilljay

    #445
    Nowayhilljay Member

    Joined:
    Apr 9, 2015
    Member:
    #152873
    Messages:
    15
    Gender:
    Male
    Ontario
    Supercharged...
    Just finished this mod on my truck. Love it!!!!


    So easy to do. Can't wait to get my LED fogs in to go with my retrofits. Thanks OP!

    Nowayhilljay, May 24, 2015
    #445
  6. May 30, 2015 at 7:47 PM
    #446
    YanE30M3

    #446
    YanE30M3 GO PATS!

    Joined:
    Sep 26, 2014
    Member:
    #139118
    Messages:
    1,680
    Gender:
    Male
    First Name:
    Yan
    Woodbridge VA
    Vehicle:
    15 TRD Sport (DCLB-BRM) - 88 ///M3 (Zinnoberrot)
    OME 887/Dakars/NV305s/33" Duratracs/+
    results of the work, again thanks to Justin and ND4

    [​IMG]

    YanE30M3, May 30, 2015
    #446
    JB likes this.
  7. May 30, 2015 at 8:01 PM
    #447
    JB

    #447
    JB ....................

    Joined:
    Dec 20, 2014
    Member:
    #144659
    Messages:
    8,631
    Gender:
    Male
    First Name:
    Justin
    CA
    Vehicle:
    2015 Off Road DCSB
    ICON Stage 2, SCS Wheels, Toyo R/T's, 6-Speed
    By the way, @YanE30M3 made me this just because I sent him some photos of the procedure. image.jpg So, help him out and he makes a cool image of your truck!!

    JB, May 30, 2015
    #447
    YanE30M3 likes this.
  8. May 31, 2015 at 1:33 PM
    #448
    scrubby510

    #448
    scrubby510 Well-Known Member

    Joined:
    Dec 7, 2014
    Member:
    #143858
    Messages:
    100
    Gender:
    Male
    Nor Cal
    Vehicle:
    S/C '12 DCSB OFF-ROAD
    TRD s/c, DT shorties, 6" Pro Comp Stage 2, 5034 Rockwells on 35s, skid plate, tint, Morimoto D2S retrofitted headlights, 6k HID, Switchback DTRL, Walbro 255 lph fuel pump, URD 2.85 pulley, URD MK3 catback exhaust, debadged, ND4's anytime foglight mod and more, extended billies and 6" Alcans coming soon!!

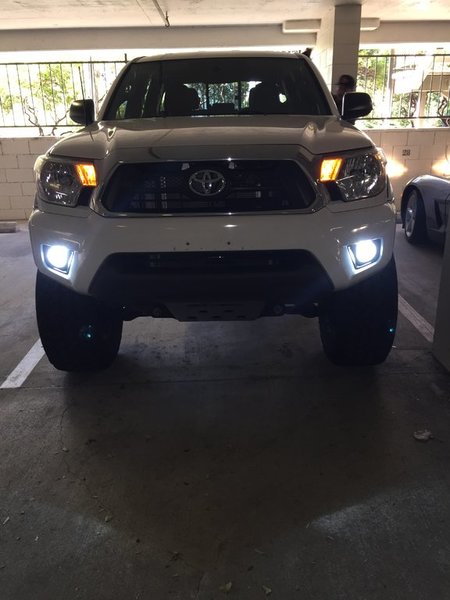

    ananytime foglight mod 1.jpg

    Finally got around to doing this yesterday!!! So happy with how it turned out! Thank You!!

    scrubby510, May 31, 2015
    #448
  9. May 31, 2015 at 3:26 PM
    #449
    nd4spdbh

    #449
    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    14,029
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    SWEEEET!!! glad it was easy for everyone to follow!

    nd4spdbh, May 31, 2015
    #449
  10. May 31, 2015 at 4:43 PM
    #450
    Caliyota

    #450
    Caliyota Member

    Joined:
    Sep 28, 2012
    Member:
    #87894
    Messages:
    21
    Gender:
    Male
    San Diego, CA
    Vehicle:
    '14 DCSB SR5 4x4
    sub'd

    Caliyota, May 31, 2015
    #450
  11. May 31, 2015 at 5:07 PM
    #451
    KSJ08

    #451
    KSJ08 Well-Known Member

    Joined:
    May 22, 2015
    Member:
    #155829
    Messages:
    113
    Gender:
    Male
    Vehicle:
    2015 White Access TRD Sport
    So what is everyone doing W/relay after this mod?? Letting lay in relay box?

    KSJ08, May 31, 2015
    #451
  12. May 31, 2015 at 5:24 PM
    #452
    JB

    #452
    JB ....................

    Joined:
    Dec 20, 2014
    Member:
    #144659
    Messages:
    8,631
    Gender:
    Male
    First Name:
    Justin
    CA
    Vehicle:
    2015 Off Road DCSB
    ICON Stage 2, SCS Wheels, Toyo R/T's, 6-Speed

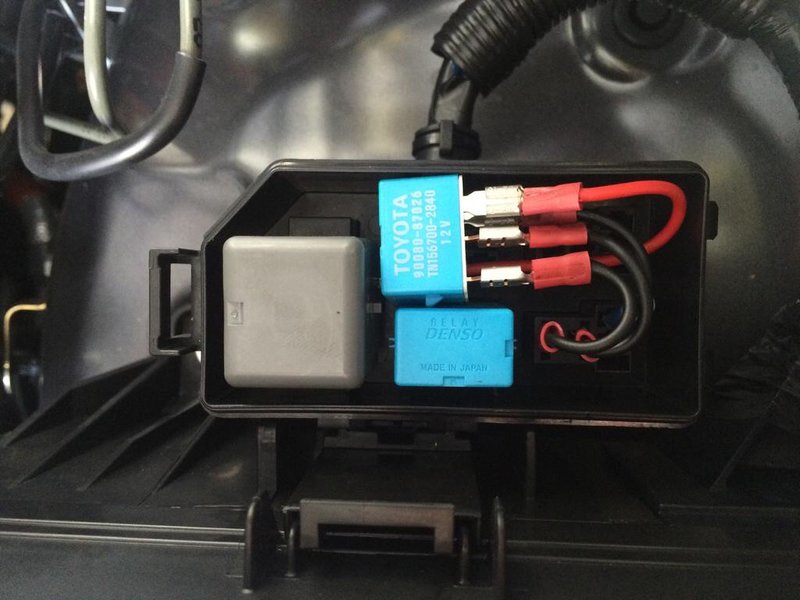

    Yes, just trim the wires to a length that will allow the relay to lay in the box with the cover on it. Also, recommend using insulated connects which are not shown in my photo.

    JB, May 31, 2015
    #452
  13. May 31, 2015 at 6:09 PM
    #453
    nd4spdbh

    #453
    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    14,029
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

    I did a couple wraps of electrical tape on mind so it wedges between the side of the box and another relay, Hasnt moved since i put it in place a long time ago.

    nd4spdbh, May 31, 2015
    #453
  14. May 31, 2015 at 6:20 PM
    #454
    KSJ08

    #454
    KSJ08 Well-Known Member

    Joined:
    May 22, 2015
    Member:
    #155829
    Messages:
    113
    Gender:
    Male
    Vehicle:
    2015 White Access TRD Sport
    Great will do this mod ! Thanks

    KSJ08, May 31, 2015
    #454
  15. Jun 5, 2015 at 5:50 PM
    #455
    Caliyota

    #455
    Caliyota Member

    Joined:
    Sep 28, 2012
    Member:
    #87894
    Messages:
    21
    Gender:
    Male
    San Diego, CA
    Vehicle:
    '14 DCSB SR5 4x4
    Just finished this mod. It's awesome to finally be able to have my fogs on with my brights!

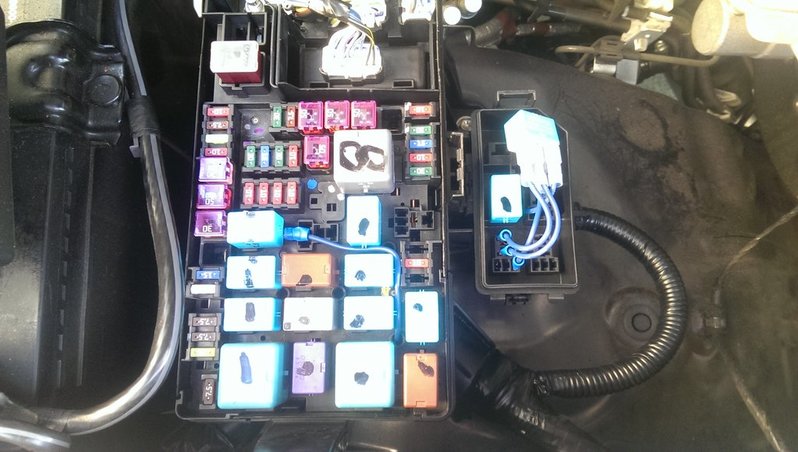

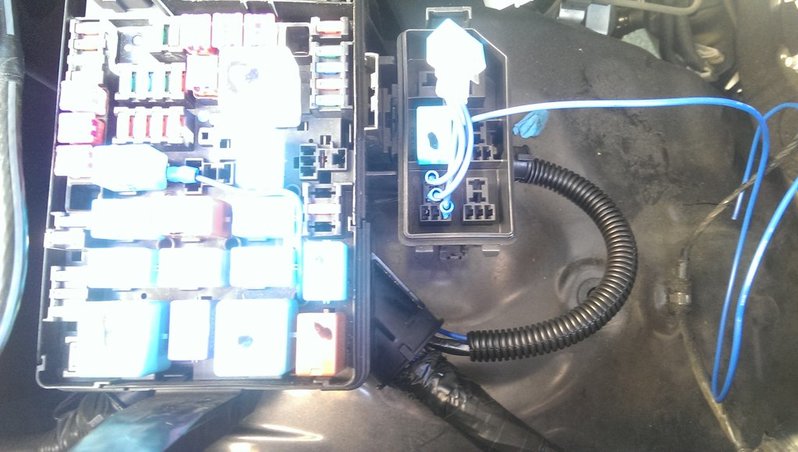

    My 2014 SR5 doesn't have the inverter ( :( ), and I liked Tatonka's idea of running it through the stock wiring harness.

    (Sorry for the crappy cell phone pic. The sun was half on half off the two fuse boxes and produced a glare)

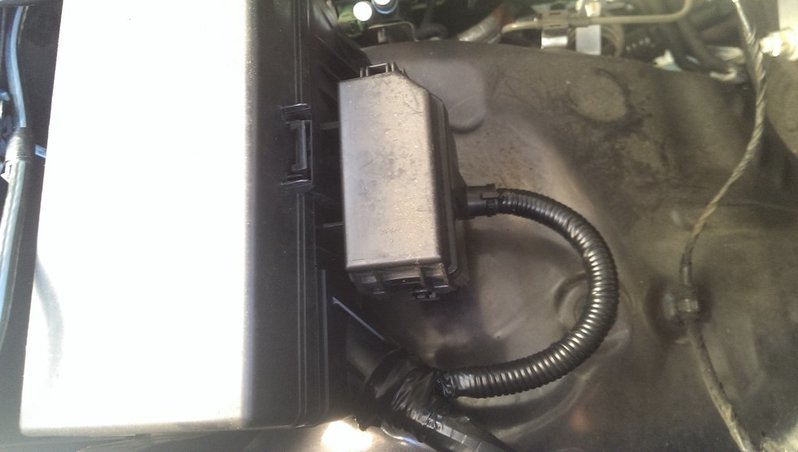

    I wanted to be able to pop the hood and not be able to tell anything had been done, so I ran the wire through the stock conduit and zip tied/taped it back up to factory appearance

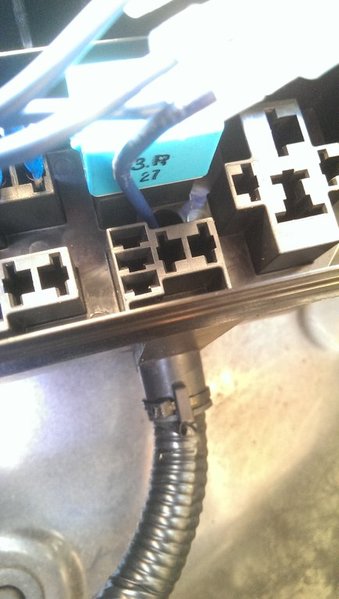

    Ran the wire through the bottom of the auxillary fuse box

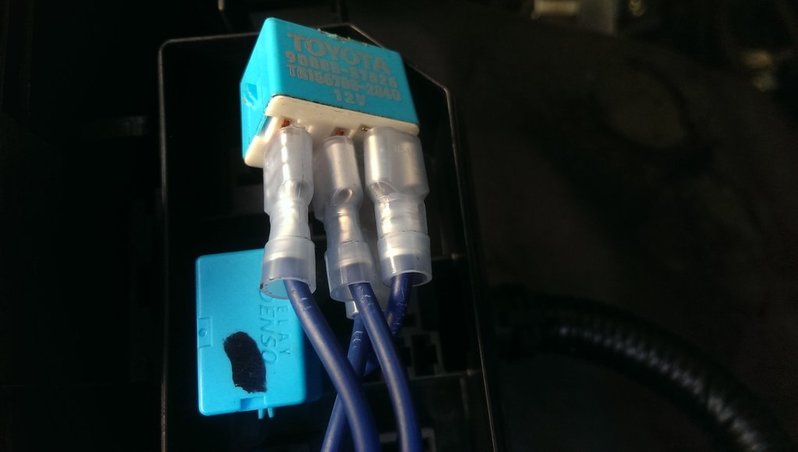

    Insulated connectors like many have suggested

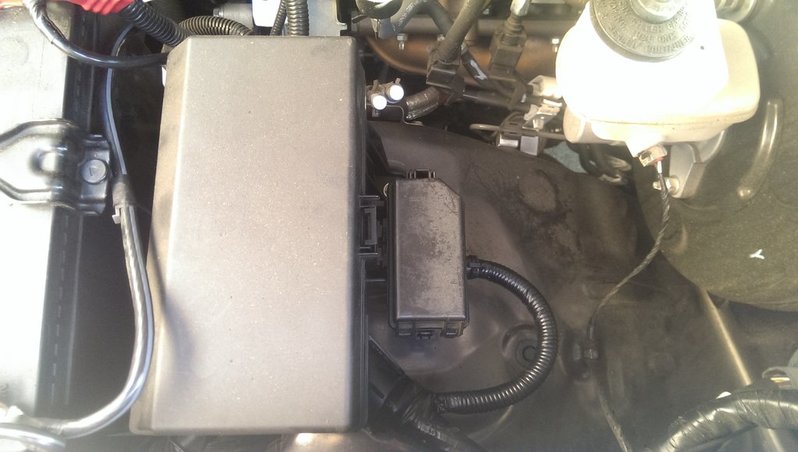

    And there it is! Completely stealth, unless someone decides to open the fuse boxes :D



    Caliyota, Jun 5, 2015
    #455
  16. Jun 5, 2015 at 6:00 PM
    #456
    nd4spdbh

    #456
    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    14,029
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    ^ Looks CLEAAAAN! i like it man, good job!

    nd4spdbh, Jun 5, 2015
    #456
  17. Jun 6, 2015 at 11:22 AM
    #457
    KSJ08

    #457
    KSJ08 Well-Known Member

    Joined:
    May 22, 2015
    Member:
    #155829
    Messages:
    113
    Gender:
    Male
    Vehicle:
    2015 White Access TRD Sport
    I did the mod like nd4spbh. Works as advertised. Had to trim the - blade down for the receptacle too wide.After I did it I read through the complete explanation :-0
    I was thinking of just rewiring the 12V input at the socket just run a jumper from the pwr relay that is used with the bent blade?

    Last edited: Jun 6, 2015
    KSJ08, Jun 6, 2015
    #457
  18. Jun 6, 2015 at 12:24 PM
    #458
    BLaPointe

    #458
    BLaPointe Well-Known Member

    Joined:
    Apr 10, 2015
    Member:
    #152891
    Messages:
    153
    Gender:
    Male
    First Name:
    Brandon
    Fairbanks, AK
    Vehicle:
    15 TRD Off-Road, White
    I will be completing this at some point in the near future. In conjunction with insulated connectors, I will also use heat shrink tubing just as an added layer for stabilization of connections as well as giving it a nice clean look. What gauge wire are people using to complete this?

    BLaPointe, Jun 6, 2015
    #458
  19. Jun 6, 2015 at 4:48 PM
    #459
    Jtaoj0

    #459
    Jtaoj0 Well-Known Member

    Joined:
    Feb 16, 2015
    Member:
    #148854
    Messages:
    186
    Gender:
    Male
    Add another successful install. 2015 dcsb trd or. Thought the switch off was lame as soon as I drove the truck home. OP you did a fantastic job of figuring this out and documenting. Many thanks.

    Jtaoj0, Jun 6, 2015
    #459
  20. Jun 6, 2015 at 5:35 PM
    #460
    nd4spdbh

    #460
    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    14,029
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    I wouldnt go smaller than 16awg for the two main power wires. (big blades)

    nd4spdbh, Jun 6, 2015
    #460
