  1. Aug 29, 2018 at 2:29 PM
    #781
    nd4spdbh

    #781
    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    14,520
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    12awg wire is fine, nothing with regards to wiresize is gonna be overkill.

    And no you wont have to turn the inverter on for it to work.

    nd4spdbh, Aug 29, 2018
    #781
  2. Aug 29, 2018 at 4:00 PM
    #782
    Schonher16

    #782
    Schonher16 Well-Known Member

    Joined:
    Jan 22, 2017
    Member:
    #208301
    Messages:
    207
    Gender:
    Male
    Gillett PA
    Vehicle:
    2014 TRD Off Road Spruce Mica
    ARMOR: Mobtown Offroad front bumper SUSPENSION: 3 inch OME and Dakars JBA Off-road UCAs LIGHTS: Cali Raised 3x2 pods
    Thanks! Got it all done! Looks great!

    Schonher16, Aug 29, 2018
    #782
  3. Sep 19, 2018 at 6:22 PM
    #783
    Tacoforever

    #783
    Tacoforever Well-Known Member

    Joined:
    Feb 4, 2017
    Member:
    #209605
    Messages:
    120
    Gender:
    Male
    First Name:
    Kenneth
    Northwest Indiana
    Vehicle:
    2007 Tacoma TRD Sport double cab 4x4
    Lifted, 3" Icon UCA's Icon coilovers and shocks. Custom leather interior LED light bar, LED fog lamps, oversized tires.
    That's an awesome write-up. Thanks for sharing

    Tacoforever, Sep 19, 2018
    #783
  4. Sep 19, 2018 at 6:25 PM
    #784
    308savage

    #784
    308savage Well-Known Member

    Joined:
    Mar 6, 2016
    Member:
    #180389
    Messages:
    4,858
    Gender:
    Male
    First Name:
    Adam
    East Tennessee
    Vehicle:
    2012 Tacoma TRD Sport DCSB
    Leveling kit, roll bar

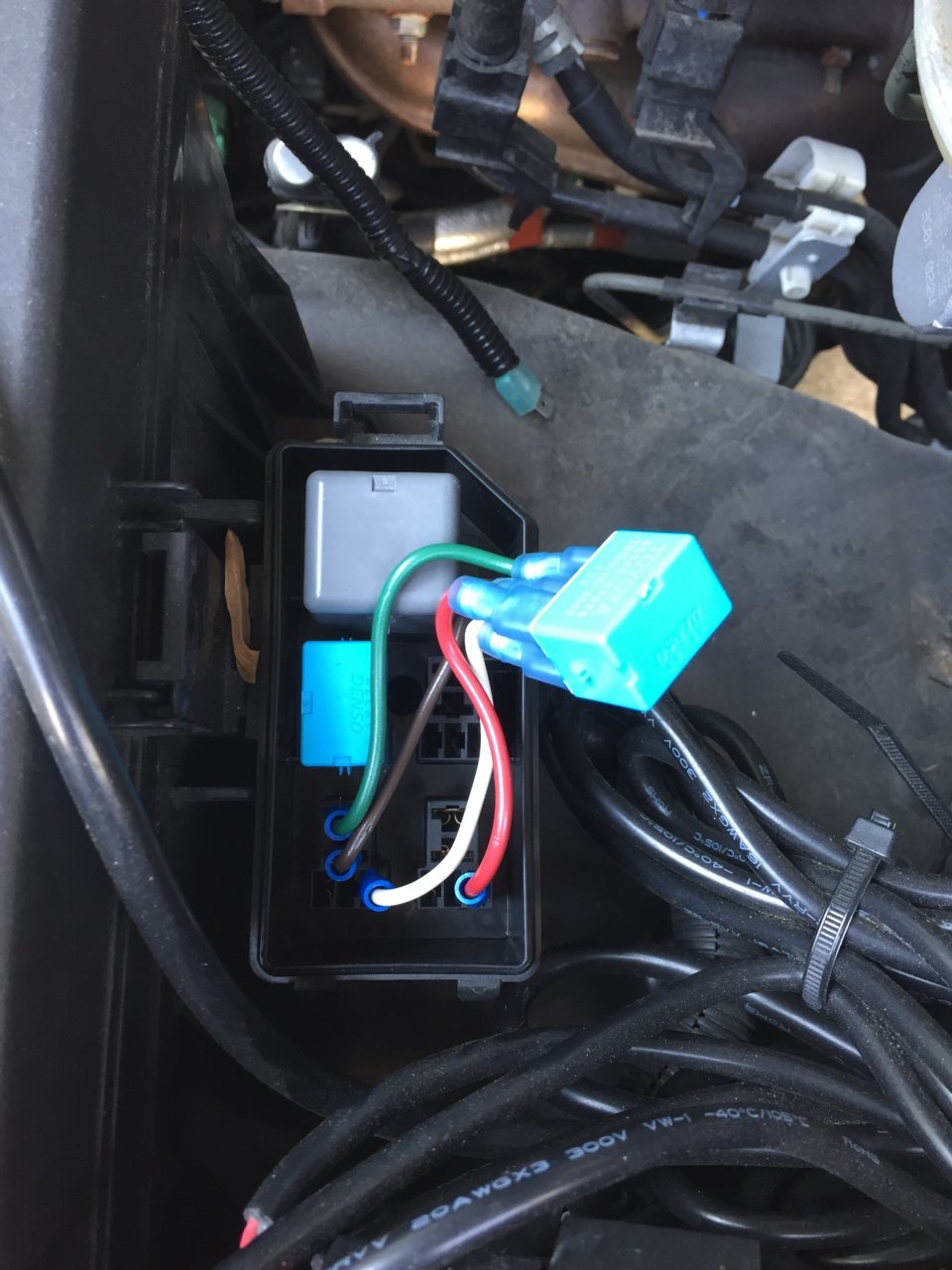

    I jumped power from the seat heater harness right beside the fog light relay. This was mine:


    Last edited: Sep 20, 2018
    308savage, Sep 19, 2018
    #784
    93yotasr5 likes this.
  5. Sep 19, 2018 at 6:30 PM
    #785
    Tacoforever

    #785
    Tacoforever Well-Known Member

    Joined:
    Feb 4, 2017
    Member:
    #209605
    Messages:
    120
    Gender:
    Male
    First Name:
    Kenneth
    Northwest Indiana
    Vehicle:
    2007 Tacoma TRD Sport double cab 4x4
    Lifted, 3" Icon UCA's Icon coilovers and shocks. Custom leather interior LED light bar, LED fog lamps, oversized tires.
    I'll have to check to see where my fog lamp relay is located. I believe it's in the main fuse box. mines a 2007 TRD sport.

    Tacoforever, Sep 19, 2018
    #785
  6. Nov 2, 2018 at 10:45 AM
    #786
    MikefromCT

    #786
    MikefromCT Well-Known Member

    Joined:
    Oct 23, 2018
    Member:
    #270327
    Messages:
    3,113
    Gender:
    Male
    First Name:
    Mike
    CT
    Vehicle:
    2013 TRD OR DCSB
    OME Bp-51; Relentless Armor

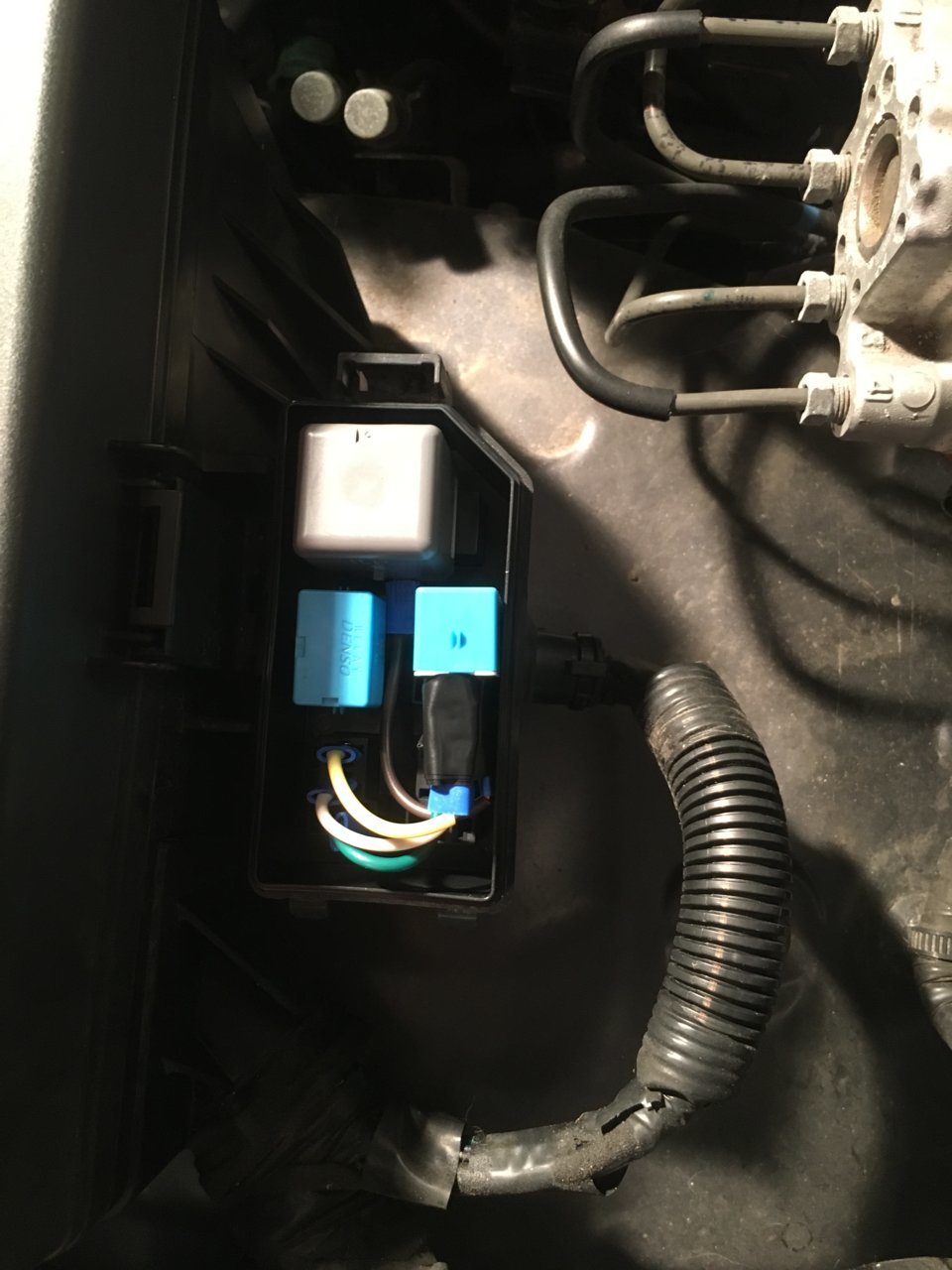

    Awesome write up man. Took care of this today. Thanks for posting this! C7A4A9AF-713F-4148-983B-1BA9881FDA84.jpgD8355370-8ACB-4882-A765-DD28F9596633.jpg

    MikefromCT, Nov 2, 2018
    #786
    Tacoforever likes this.
  7. Nov 2, 2018 at 6:22 PM
    #787
    Tacoforever

    #787
    Tacoforever Well-Known Member

    Joined:
    Feb 4, 2017
    Member:
    #209605
    Messages:
    120
    Gender:
    Male
    First Name:
    Kenneth
    Northwest Indiana
    Vehicle:
    2007 Tacoma TRD Sport double cab 4x4
    Lifted, 3" Icon UCA's Icon coilovers and shocks. Custom leather interior LED light bar, LED fog lamps, oversized tires.
    Nice job!

    Tacoforever, Nov 2, 2018
    #787
    MikefromCT likes this.
  8. Jan 5, 2019 at 4:46 PM
    #788
    258900

    #788
    258900 Well-Known Member

    Joined:
    Jul 10, 2018
    Member:
    #258900
    Messages:
    170
    Gender:
    Male
    First Name:
    Eddie
    BOSTON, MA
    Vehicle:
    2013 tacoma trd offroad
    debaged tailgate & doors, trd pro headlights, trd pro grille w/white surround, 4runner trd pro sema wheels, 265/70/17 pirelli a/t, morimoto fog light, klearz light smoked 3rd brake light cover, led lighting all around.

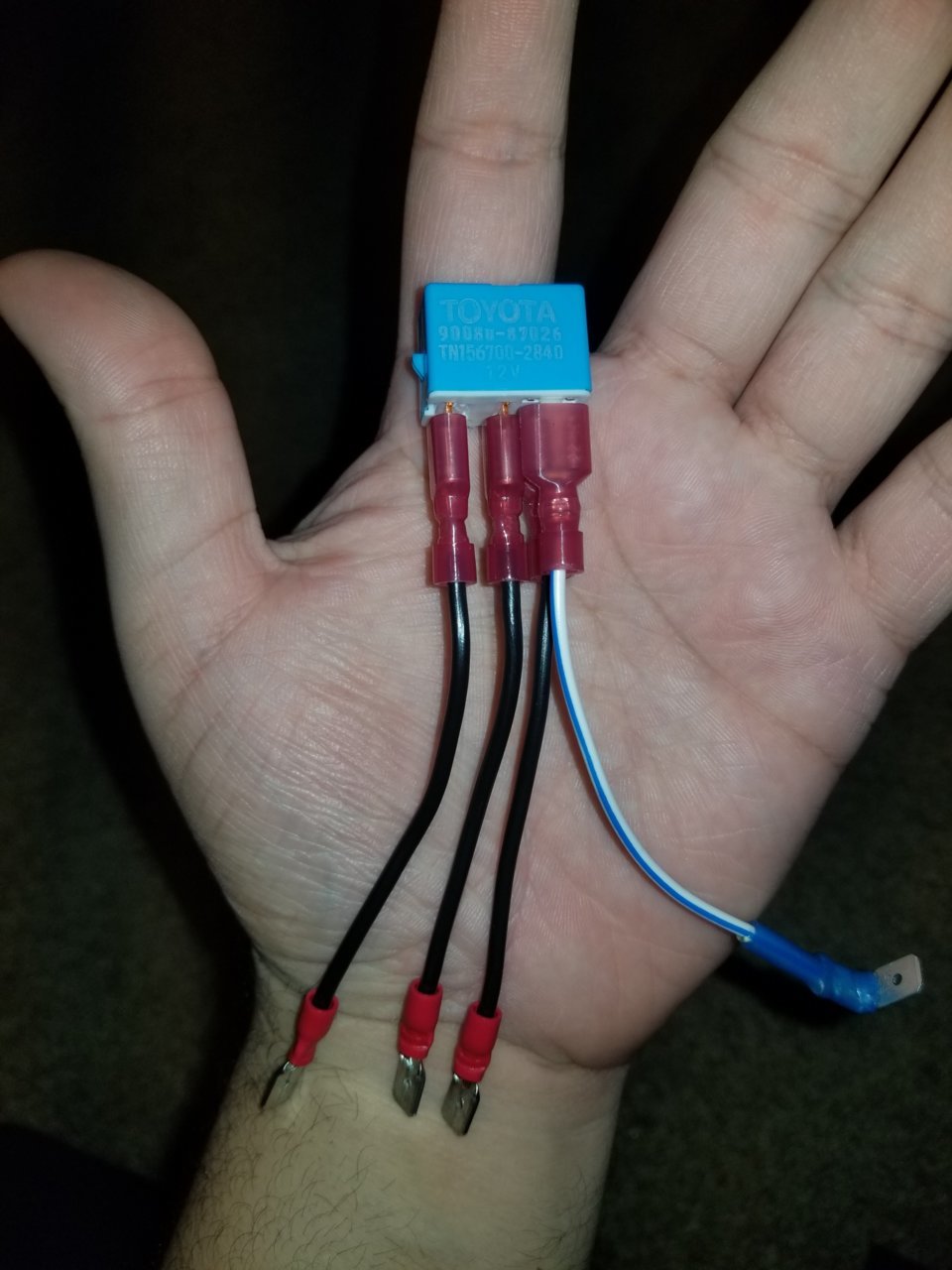

    Is this good ? Does the male blade need to be heat shrink?


    258900, Jan 5, 2019
    #788
    Norton and Tacoforever like this.
  9. Jan 5, 2019 at 5:04 PM
    #789
    nd4spdbh

    #789
    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    14,520
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    Looks good man. No need for extra shrink wrap, you want the blades exposed to make proper contact inside the terminals.

    nd4spdbh, Jan 5, 2019
    #789
    Tacoforever likes this.
  10. Jan 5, 2019 at 5:23 PM
    #790
    258900

    #790
    258900 Well-Known Member

    Joined:
    Jul 10, 2018
    Member:
    #258900
    Messages:
    170
    Gender:
    Male
    First Name:
    Eddie
    BOSTON, MA
    Vehicle:
    2013 tacoma trd offroad
    debaged tailgate & doors, trd pro headlights, trd pro grille w/white surround, 4runner trd pro sema wheels, 265/70/17 pirelli a/t, morimoto fog light, klearz light smoked 3rd brake light cover, led lighting all around.
    Sweet & and thanks for coming up with such a brilliant mod.

    258900, Jan 5, 2019
    #790
  11. Jan 6, 2019 at 7:27 AM
    #791
    258900

    #791
    258900 Well-Known Member

    Joined:
    Jul 10, 2018
    Member:
    #258900
    Messages:
    170
    Gender:
    Male
    First Name:
    Eddie
    BOSTON, MA
    Vehicle:
    2013 tacoma trd offroad
    debaged tailgate & doors, trd pro headlights, trd pro grille w/white surround, 4runner trd pro sema wheels, 265/70/17 pirelli a/t, morimoto fog light, klearz light smoked 3rd brake light cover, led lighting all around.

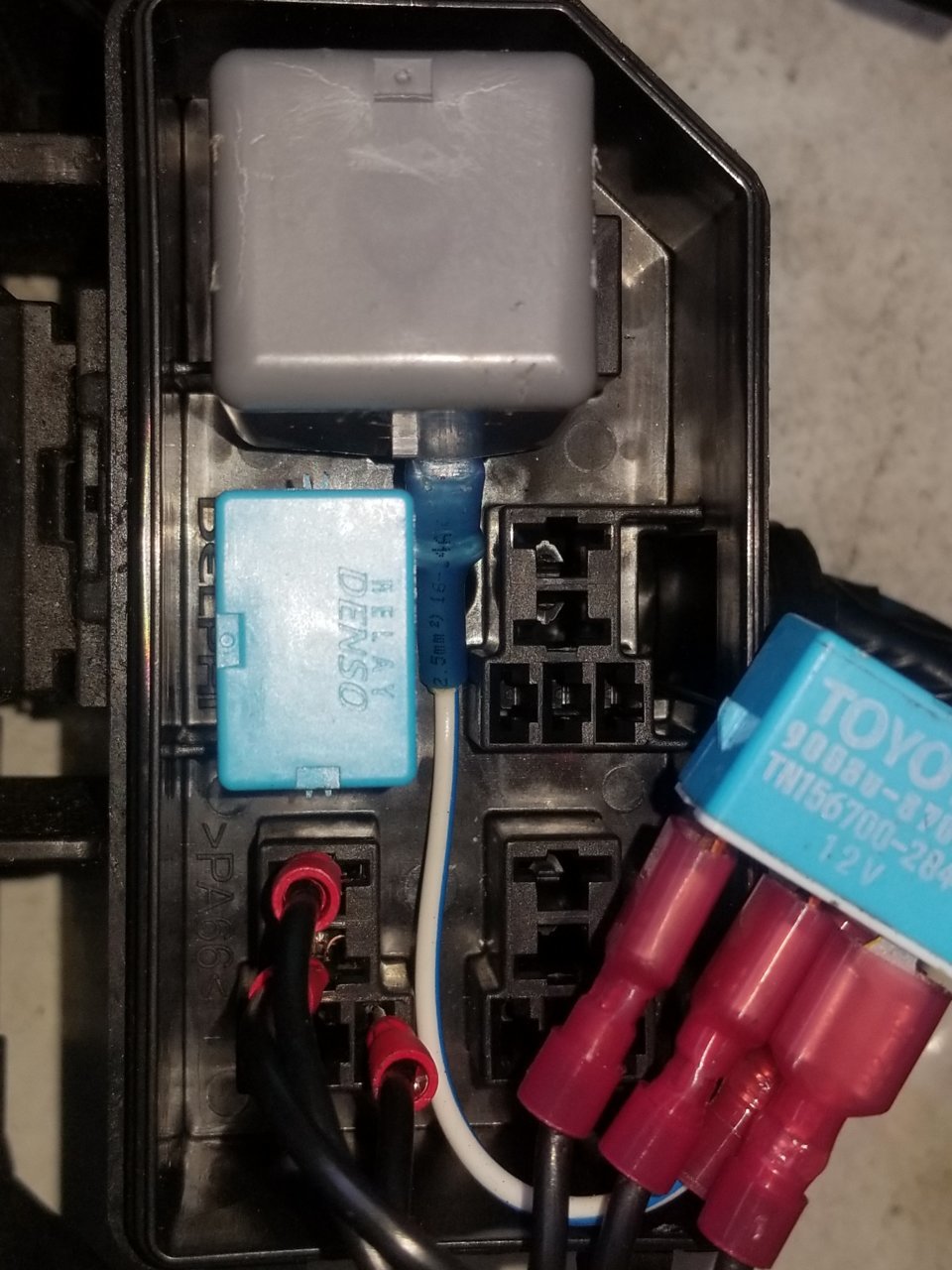

    Help not working for me


    258900, Jan 6, 2019
    #791
  12. Jan 6, 2019 at 8:37 AM
    #792
    nd4spdbh

    #792
    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    14,520
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

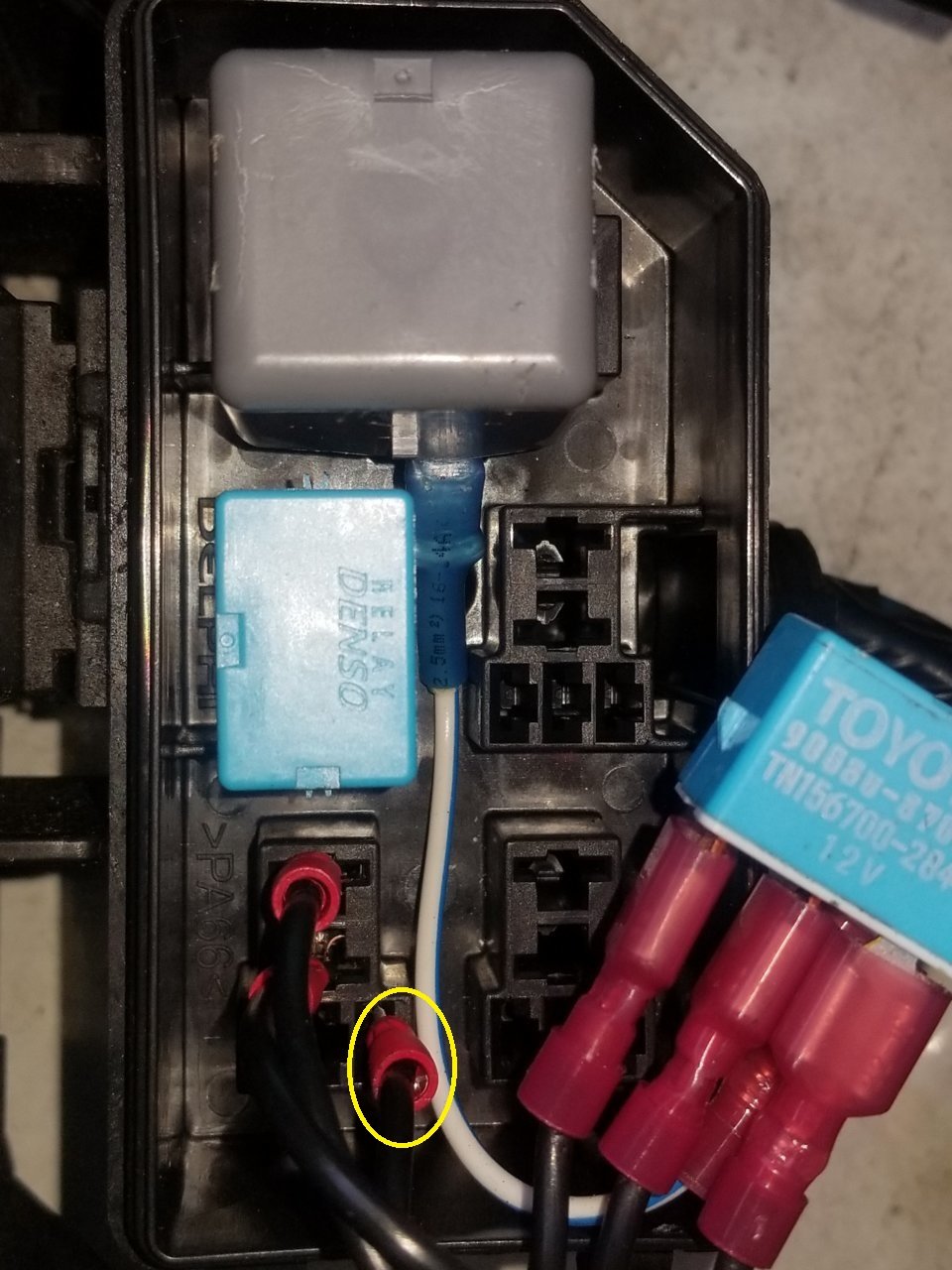

    Follow where you plugged in the wires. Looks like you got one in the wrong spot. Should go on the bottom left instead of the right. Or swap the two wires at the relay side so its like mine in the OP20190106_102655.jpg

    nd4spdbh, Jan 6, 2019
    #792
  13. Jan 6, 2019 at 8:39 AM
    #793
    258900

    #793
    258900 Well-Known Member

    Joined:
    Jul 10, 2018
    Member:
    #258900
    Messages:
    170
    Gender:
    Male
    First Name:
    Eddie
    BOSTON, MA
    Vehicle:
    2013 tacoma trd offroad
    debaged tailgate & doors, trd pro headlights, trd pro grille w/white surround, 4runner trd pro sema wheels, 265/70/17 pirelli a/t, morimoto fog light, klearz light smoked 3rd brake light cover, led lighting all around.
    Okay will try it again. Thanks

    258900, Jan 6, 2019
    #793
  14. Jan 7, 2019 at 4:51 AM
    #794
    258900

    #794
    258900 Well-Known Member

    Joined:
    Jul 10, 2018
    Member:
    #258900
    Messages:
    170
    Gender:
    Male
    First Name:
    Eddie
    BOSTON, MA
    Vehicle:
    2013 tacoma trd offroad
    debaged tailgate & doors, trd pro headlights, trd pro grille w/white surround, 4runner trd pro sema wheels, 265/70/17 pirelli a/t, morimoto fog light, klearz light smoked 3rd brake light cover, led lighting all around.
    i was just looking at yours, mines its just the same as yours on the bottom right.

    258900, Jan 7, 2019
    #794
  15. Jan 7, 2019 at 8:11 AM
    #795
    nd4spdbh

    #795
    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    14,520
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    Correct but look at where it goes to on the relay you have them flipped.

    nd4spdbh, Jan 7, 2019
    #795
  16. Jan 7, 2019 at 8:18 AM
    #796
    258900

    #796
    258900 Well-Known Member

    Joined:
    Jul 10, 2018
    Member:
    #258900
    Messages:
    170
    Gender:
    Male
    First Name:
    Eddie
    BOSTON, MA
    Vehicle:
    2013 tacoma trd offroad
    debaged tailgate & doors, trd pro headlights, trd pro grille w/white surround, 4runner trd pro sema wheels, 265/70/17 pirelli a/t, morimoto fog light, klearz light smoked 3rd brake light cover, led lighting all around.
    help me understand please. im a bit lost lol

    258900, Jan 7, 2019
    #796
  17. Jan 7, 2019 at 8:23 AM
    #797
    gotblika

    #797
    gotblika Well-Known Member

    Joined:
    Apr 28, 2011
    Member:
    #55716
    Messages:
    889
    Gender:
    Male
    Maui
    Vehicle:
    2015 DCLB Sport 4X4
    5100'S 887 SPC B110 EL096R
    The black and white wire next to each other at the relay, swap them. You had it the right way in your first picture you posted.

    gotblika, Jan 7, 2019
    #797
  18. Jan 7, 2019 at 8:24 AM
    #798
    nd4spdbh

    #798
    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    14,520
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

    From my OP, look where the brown wire goes and plugs into the relay vs your setup.


    [​IMG]

    nd4spdbh, Jan 7, 2019
    #798
    Norton likes this.
  19. Jan 7, 2019 at 8:32 AM
    #799
    258900

    #799
    258900 Well-Known Member

    Joined:
    Jul 10, 2018
    Member:
    #258900
    Messages:
    170
    Gender:
    Male
    First Name:
    Eddie
    BOSTON, MA
    Vehicle:
    2013 tacoma trd offroad
    debaged tailgate & doors, trd pro headlights, trd pro grille w/white surround, 4runner trd pro sema wheels, 265/70/17 pirelli a/t, morimoto fog light, klearz light smoked 3rd brake light cover, led lighting all around.
    ohh okay so i have to put the white/blue wire in the front how i first had it

    258900, Jan 7, 2019
    #799
  20. Jan 7, 2019 at 8:33 AM
    #800
    258900

    #800
    258900 Well-Known Member

    Joined:
    Jul 10, 2018
    Member:
    #258900
    Messages:
    170
    Gender:
    Male
    First Name:
    Eddie
    BOSTON, MA
    Vehicle:
    2013 tacoma trd offroad
    debaged tailgate & doors, trd pro headlights, trd pro grille w/white surround, 4runner trd pro sema wheels, 265/70/17 pirelli a/t, morimoto fog light, klearz light smoked 3rd brake light cover, led lighting all around.
    thanks i think i got it

    258900, Jan 7, 2019
    #800
