ND4's Fog Light Anytime Mod... NO splicing, No Bending, 100% reversible

Discussion in '2nd Gen. Tacomas (2005-2015)' started by nd4spdbh, Jan 4, 2014.

  1. Nov 21, 2020 at 1:29 PM
    #921
    Toywoodsguy82

    Toywoodsguy82 Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #227998
    Messages:
    2,261
    Gender:
    Male
    First Name:
    Patrick
    Oregon
    Vehicle:
    2007 Silver Tacoma TRD
    Body Armor front and rear bumpers
    Did mine a couple weeks ago... used the horn relay on my ‘07


    nd4spdbh [OP] likes this.
  2. Nov 21, 2020 at 4:01 PM
    #922
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,417
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    For that you should've gone with an add-a-fuse.:rofl:
    Horn 10A fuse always hot (ON)

    Last edited: Nov 21, 2020
    hmsailor likes this.
  3. Nov 21, 2020 at 5:33 PM
    #923
    Toywoodsguy82

    Toywoodsguy82 Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #227998
    Messages:
    2,261
    Gender:
    Male
    First Name:
    Patrick
    Oregon
    Vehicle:
    2007 Silver Tacoma TRD
    Body Armor front and rear bumpers
    In your opinion why should I have gone with an add a fuse?....

  4. Nov 21, 2020 at 7:30 PM
    #924
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,417
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Because you did the same thing by tapping the constant power of the Horn relay...

  5. Nov 21, 2020 at 7:36 PM
    #925
    Toywoodsguy82

    Toywoodsguy82 Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #227998
    Messages:
    2,261
    Gender:
    Male
    First Name:
    Patrick
    Oregon
    Vehicle:
    2007 Silver Tacoma TRD
    Body Armor front and rear bumpers
    not trying to be rude or anything I’m trying to figure out the specifics because I didn’t “tap” any wires just using a blade connector genuinely asking for information

  6. Nov 21, 2020 at 7:41 PM
    #926
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,417
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

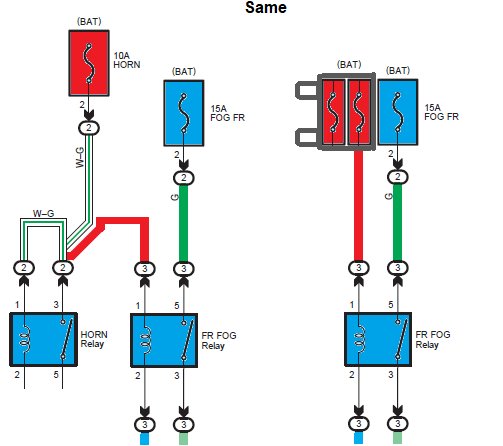

    Look at the drawing I posted. It shows the slots where the relay is inserted. Look at the white with green and you'll see that your blade connector is inserted in the same location, as in a fused constant source. That is what a add-a-fuse would do if inserted in a constant source also. (There is only one fuse in the engine room fuse/relay box that is an ignition sourced, but it's tied to the circuit that does the leak test after shutdown, which in turn would make any wire tapped to it hot/on for the time the test runs)

    hmsailor likes this.
  7. Nov 21, 2020 at 8:05 PM
    #927
    Toywoodsguy82

    Toywoodsguy82 Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #227998
    Messages:
    2,261
    Gender:
    Male
    First Name:
    Patrick
    Oregon
    Vehicle:
    2007 Silver Tacoma TRD
    Body Armor front and rear bumpers
    so what am I risking by not putting an add-a-fuse in there? So far everything has worked other then me leaving my fogs on one day and my roommate telling me that after I had been home for 2 hours.

  8. Nov 21, 2020 at 8:42 PM
    #928
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,417
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Just an easier tap than the wedge to the HORN relay slot...that's all and the fact that the circuit is always ON. (battery drain)

    hmsailor likes this.
  9. Nov 21, 2020 at 8:44 PM
    #929
    Toywoodsguy82

    Toywoodsguy82 Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #227998
    Messages:
    2,261
    Gender:
    Male
    First Name:
    Patrick
    Oregon
    Vehicle:
    2007 Silver Tacoma TRD
    Body Armor front and rear bumpers
    but if my fogs have an on/off switch how much am I drawing?

  10. Nov 21, 2020 at 8:45 PM
    #930
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,417
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    If you leave it ON...I meant...

    hmsailor likes this.
  11. Nov 21, 2020 at 9:11 PM
    #931
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,417
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

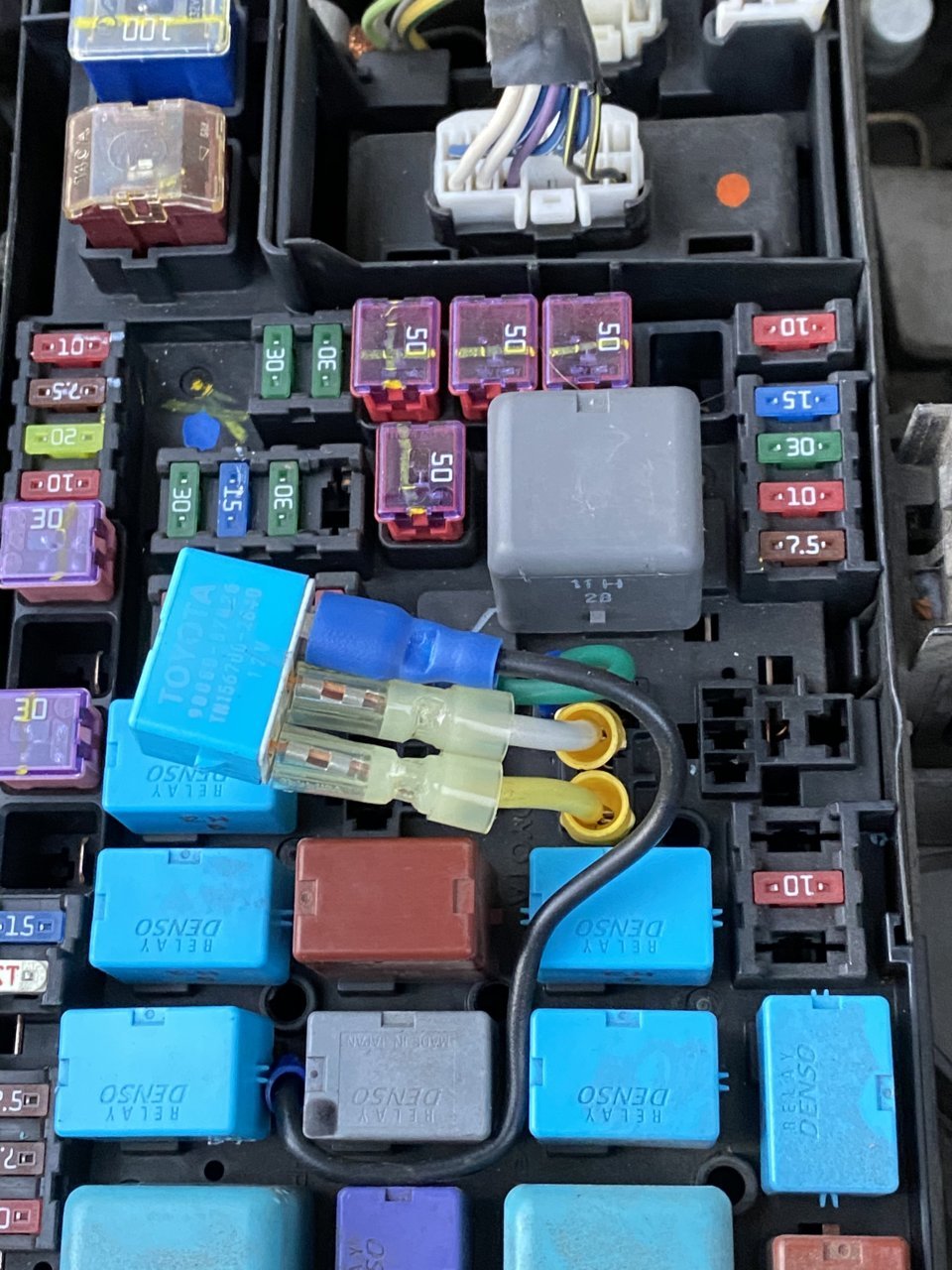

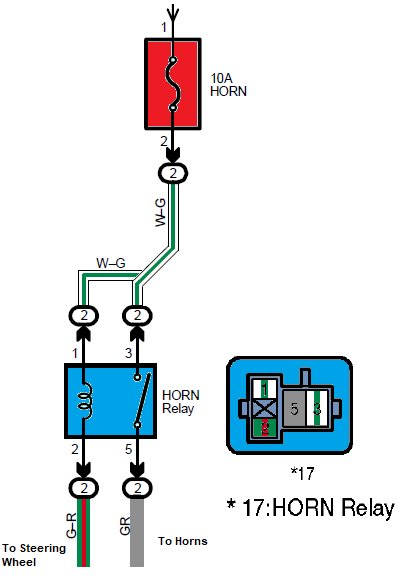

    Maybe this will be more visual:

  12. Nov 22, 2020 at 8:11 AM
    #932
    nd4spdbh

    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    10,938
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    Yeah horn relay would not be ideal given that you can leave foglights on with the key out.

    Tapped in or add a fuse doesnt do a damn difference though.

  13. Nov 22, 2020 at 9:13 AM
    #933
    Toywoodsguy82

    Toywoodsguy82 Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #227998
    Messages:
    2,261
    Gender:
    Male
    First Name:
    Patrick
    Oregon
    Vehicle:
    2007 Silver Tacoma TRD
    Body Armor front and rear bumpers
    but if I turn my fogs off what is my other worry if any

  14. Nov 22, 2020 at 9:17 AM
    #934
    Plain Jane Taco

    Plain Jane Taco I can't swim Clark. I know Eddie

    Joined:
    Apr 19, 2009
    Member:
    #16179
    Messages:
    23,109
    Gender:
    Male
    First Name:
    Bill
    USA
    Vehicle:
    2015 SW DCSB TRD Sport PR
    Has long as you remember to turn them off....nothing

  15. Nov 22, 2020 at 9:28 AM
    #935
    nd4spdbh

    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    10,938
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto

    Absolutely none.

    I can pretty much guarantee though you will end up forgetting the fogs at the worst time. Also if you wanted to do it this way, there would be no need to tap into another relay. You could simply grab the constant hot from the same socket as the fog light relay, run two wires out of one spade from the main constant hot.

  16. Nov 22, 2020 at 11:07 AM
    #936
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,417
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You are just re-enforcing the "mistake".:burp:

  17. Nov 22, 2020 at 11:51 AM
    #937
    nd4spdbh

    nd4spdbh [OP] Well-Known Member

    Joined:
    Oct 7, 2013
    Member:
    #114055
    Messages:
    10,938
    Gender:
    Male
    SoCal
    Vehicle:
    13 DCSB TRD OR v6 Auto
    To each their own really, I wouldnt do it this way thats for sure, i want all my lights to turn off when i turn the key off!

  18. Nov 24, 2020 at 6:42 PM
    #938
    gugman

    gugman analog

    Joined:
    Mar 26, 2016
    Member:
    #182370
    Messages:
    4,182
    Gender:
    Male
    First Name:
    bob
    Vermont
  19. Nov 24, 2020 at 6:47 PM
    #939
    Toywoodsguy82

    Toywoodsguy82 Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #227998
    Messages:
    2,261
    Gender:
    Male
    First Name:
    Patrick
    Oregon
    Vehicle:
    2007 Silver Tacoma TRD
    Body Armor front and rear bumpers
    So I have run into my first issue already when I first did this mod my horn worked now my horn does not work but my fog lights still work what in your guises opinion would be the best way to wire this up I am not very good with electric stuff so any step-by-step process would be great

  20. Nov 24, 2020 at 6:56 PM
    #940
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    4,417
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Swap the wire tap of the horn relay for an add-a-fuse and place in the EFI No.2 fuse.
    You'll be able to have the fogs ON after ignition without any other lights needing to be turned ON.
    Just remember that if you leave the fog switch ON, the fog lamps will turn on when the vehicle does the Leak Detection Pump test.(like 5 hours later for 2 mins)

    Last edited: Nov 24, 2020
