Need advice for connecting CB with add-a-circuit.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by EricGagne, Jun 18, 2011.

  1. Jun 18, 2011 at 9:41 AM
    #1
    EricGagne

    EricGagne [OP] Well-Known Member

    Joined:
    Aug 10, 2010
    Member:
    #41516
    Messages:
    136
    Gender:
    Male
    First Name:
    Eric
    Montreal
    Vehicle:
    2010 TRD Off Road
    Literider Tonneau Cover, RAM Mount Laptop Support. Uniden CB RTT and awning with self-designed custom rack Dual battery system - National Luna solenoid and monitor, Columbia Overland dual battery tray, 2 Odyssey PC1200 12 circuits Fuse block with 80A macro fuse block "breaker" OME suspension Replaced passenger area with a flat platform for my ARB fridge and camping clothes. Tiregate HG series
    Hi all,

    As the title says, I need advice for connecting my new CB, I think I know what I'm doing but the last time I had that feeling I ended up drilling a hole on the top of my gas tank :rolleyes:

    After reading this topic I wanted to use the 2nd slot on the 2nd row like in the other guy did but in my TRD Off Road it's already use for something called BKUP LP, I think it's the backup camera.

    So I tried all four empty ones and they're not powered so it looks like I'll have to share one and I'm thinking of using the ACC 7.5A one.

    Now what bothers me is that in the other topic, some said that the add-a-circuit is upside down in this picture but when I put it in with the wire going up my CB doesn't get power, for it to work I need to put the add-a-circuit with the wire going down.

    I'm not sure if I should put the original fuse in and install it this way or not.

    [​IMG]

  2. Jun 18, 2011 at 10:03 AM
    #2
    Rellik01

    Rellik01 Well-Known Member

    Joined:
    Apr 14, 2011
    Member:
    #54920
    Messages:
    835
    Gender:
    Male
    First Name:
    Craig
    Windermere, Florida
    Vehicle:
    2012 TRD Sport 4x4 White
    Bull Guard powder coated white, chrome aftermarket tail lights,Led interior lights, Factory roof rack, Bug deflector, Factory tow package, Garmin GPS, Viper 5901 alarm with auto start, Weather tech window wind deflectors, , 3" Tube steps powder coated white, CB Radio, Radio Scanner.
    I used the windshield washer circuit.

  3. Jun 18, 2011 at 12:04 PM
    #3
    tonyplanet

    tonyplanet Well-Known Member

    Joined:
    Feb 28, 2009
    Member:
    #14187
    Messages:
    210
    Gender:
    Male
    Glendora, CA
    Vehicle:
    09 Tacoma 4x4 TRD Off-Road
    enough to get me there
    I have my tied into my ACC. Only on when I have my key in the ignition and turned on.

    see attached pic.

    add a circuit.jpg

  4. Jun 18, 2011 at 12:25 PM
    #4
    EricGagne

    EricGagne [OP] Well-Known Member

    Joined:
    Aug 10, 2010
    Member:
    #41516
    Messages:
    136
    Gender:
    Male
    First Name:
    Eric
    Montreal
    Vehicle:
    2010 TRD Off Road
    Literider Tonneau Cover, RAM Mount Laptop Support. Uniden CB RTT and awning with self-designed custom rack Dual battery system - National Luna solenoid and monitor, Columbia Overland dual battery tray, 2 Odyssey PC1200 12 circuits Fuse block with 80A macro fuse block "breaker" OME suspension Replaced passenger area with a flat platform for my ARB fridge and camping clothes. Tiregate HG series
    I gave it some thought after posting and I think there's no options on which way the add-a-circuit goes in. If I have no power to the CB when I put it one way then it has to go in the other way around, regardless of whether I have the original fuse in already or not.

    What did you guys used for the ground ? On the left hand side of the fuse box and below it there's a metal bracket with a 10mm bolt. I was thinking of adding an eye connector to my ground wire and bolt it along with that bracket, does that make any sense ?

  5. Jun 18, 2011 at 12:58 PM
    #5
    tonyplanet

    tonyplanet Well-Known Member

    Joined:
    Feb 28, 2009
    Member:
    #14187
    Messages:
    210
    Gender:
    Male
    Glendora, CA
    Vehicle:
    09 Tacoma 4x4 TRD Off-Road
    enough to get me there
    Yup I grounded to that bolt.

  6. Jun 18, 2011 at 9:51 PM
    #6
    BenMara

    BenMara That Asian RedNeck

    Joined:
    Apr 14, 2011
    Member:
    #54903
    Messages:
    907
    Gender:
    Male
    First Name:
    Ben
    Duck's Ditch, SC
    Vehicle:
    2011 DCSB 4x4 SCed
    TRD Blower, Ham Radio

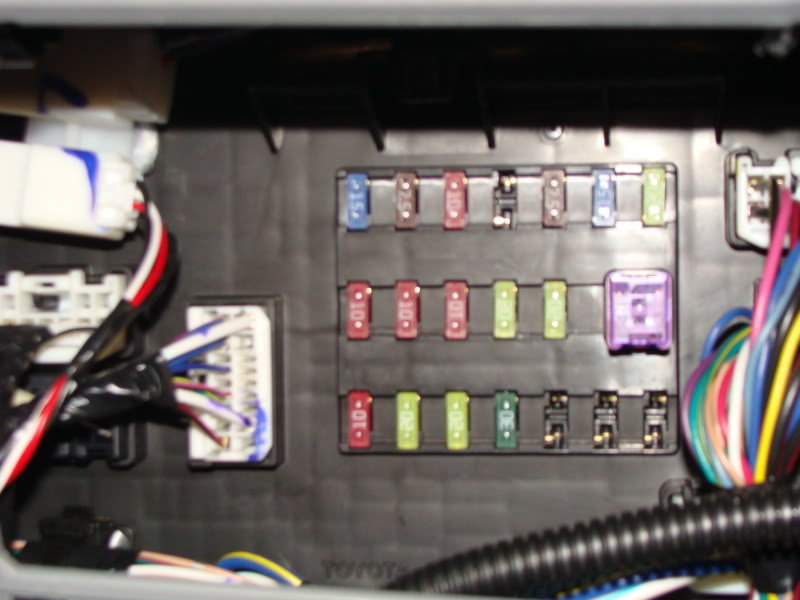

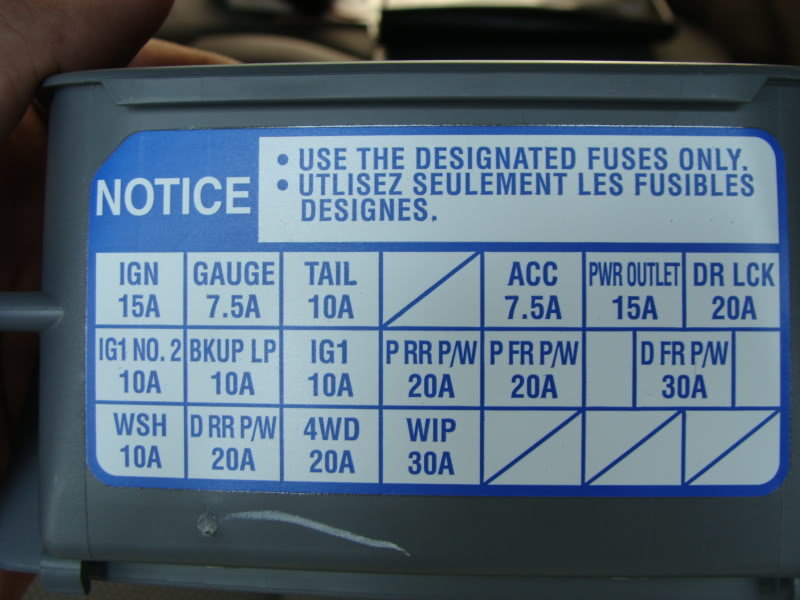

    i got no power what so ever on empty area for fuses
    [​IMG]
    [​IMG]
    With key in acc, - ing - Start no power on any of the empty

  7. Jun 18, 2011 at 10:09 PM
    #7
    BenMara

    BenMara That Asian RedNeck

    Joined:
    Apr 14, 2011
    Member:
    #54903
    Messages:
    907
    Gender:
    Male
    First Name:
    Ben
    Duck's Ditch, SC
    Vehicle:
    2011 DCSB 4x4 SCed
    TRD Blower, Ham Radio
    only on with ing, put 2 fuses in when i testing the empty slots NOTHING

  8. Jun 19, 2011 at 4:29 AM
    #8
    EricGagne

    EricGagne [OP] Well-Known Member

    Joined:
    Aug 10, 2010
    Member:
    #41516
    Messages:
    136
    Gender:
    Male
    First Name:
    Eric
    Montreal
    Vehicle:
    2010 TRD Off Road
    Literider Tonneau Cover, RAM Mount Laptop Support. Uniden CB RTT and awning with self-designed custom rack Dual battery system - National Luna solenoid and monitor, Columbia Overland dual battery tray, 2 Odyssey PC1200 12 circuits Fuse block with 80A macro fuse block "breaker" OME suspension Replaced passenger area with a flat platform for my ARB fridge and camping clothes. Tiregate HG series
    Your fuse box is just like mine BenMara, with the fuse for the backup camera. I wish Toyota had thought about us a bit and ran power to those 4 empty slots but I guess they don't want us to properly connect our aftermarket accessories.

    Make your life easy, just get a add-a-circuit at your local Canadian Tire, it makes things real clean and it's easy................even I can do it with this thing :)

  9. Jul 4, 2011 at 7:15 AM
    #9
    BenMara

    BenMara That Asian RedNeck

    Joined:
    Apr 14, 2011
    Member:
    #54903
    Messages:
    907
    Gender:
    Male
    First Name:
    Ben
    Duck's Ditch, SC
    Vehicle:
    2011 DCSB 4x4 SCed
    TRD Blower, Ham Radio
    Ended up tapping the Gauge fuse. for power on in ON and START positions only
