    Quick Links: DIY: Building Tube Doors for Access Cab Magnaflow Offroad Pro Series Exhaust Hey from Texas Gulf Coast....Rancho struts Front differential oil - does it need to be changed as frequently as the rear? Rust-Oleum Factor 4 Synthetic System Car Wax 2015 diff and transfer case oil and spark plug questions.

Need dimensions for TRD Pro Badges

Discussion in '2nd Gen. Tacomas (2005-2015)' started by armyofsquirrels, Jun 27, 2015.

  1. Jun 27, 2015 at 8:02 AM
    #1
    armyofsquirrels

    #1
    armyofsquirrels [OP] Embrace the Suck!

    Joined:
    Jul 17, 2012
    Member:
    #82809
    Messages:
    5,252
    Gender:
    Male
    First Name:
    Chip
    Sykesville MD
    Vehicle:
    2015 V6 6Spd Tacoma DCSB Offroad in Pyrite Mica
    See Build Page.
    I'm trying to get the dimensions for the TRD Pro Badges that are on the Pros. If it's a 4Runner on the Pillar I believe the Tacoma has one on the Tailgate. If anyone could measure height and width and depth of the badge that would be awesome. If you have the red one that would work as well. I'm only looking for the TRD part of the badge not the second "pro" badge. Any help would be greatly appreciated.

    armyofsquirrels, Jun 27, 2015
    #1
  2. Jun 27, 2015 at 8:39 AM
    #2
    taczilla

    #2
    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,484
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel

    The badge is 125 mm L x 25 mm H (the T and the D are 25 mm H)
    The R extends down another 10 mm for a total height of 35 mm

    The T and D are 3 mm thick at the top and 6 mm at the base (wedge).
    The R is convex, going from 3 mm to 6 mm in line with the T and D, and back to 3 mm at its base.

    Horizontal placement of the combined TRD PRO badging is 105 mm on a line along the base of the T and D from the bottom edge of the tailgate and the '0' is 35 mm in from the vertical edge of the tailgate.

    I hope this helps.

    Last edited: Jun 27, 2015
    taczilla, Jun 27, 2015
    #2
    steveh_2007, armyofsquirrels[OP] and T4RFTMFW like this.
  3. Jun 27, 2015 at 11:59 AM
    #3
    armyofsquirrels

    #3
    armyofsquirrels [OP] Embrace the Suck!

    Joined:
    Jul 17, 2012
    Member:
    #82809
    Messages:
    5,252
    Gender:
    Male
    First Name:
    Chip
    Sykesville MD
    Vehicle:
    2015 V6 6Spd Tacoma DCSB Offroad in Pyrite Mica
    See Build Page.
    Thank you!!! I couldnt believe the dealer didn't have the specs listed.

    armyofsquirrels, Jun 27, 2015
    #3
  4. Jun 28, 2015 at 6:20 AM
    #4
    taczilla

    #4
    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,484
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel

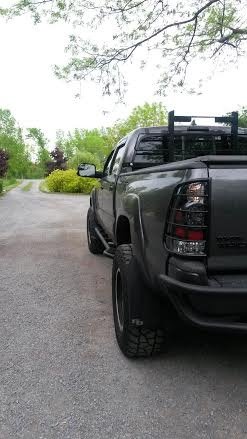

    No problem. I had my tailgate stolen, so I took the money from the insurance to buy the black OEM badging from the US, since it's not available in Canada.

    I then went to my local Toyota stealership, and like you, they had no idea of badge placement, so I measured three different Tacoma's on the lot to make sure of tailgate badge placement.

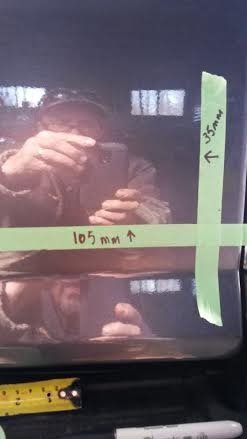

    I also did this during install on the tailgate:

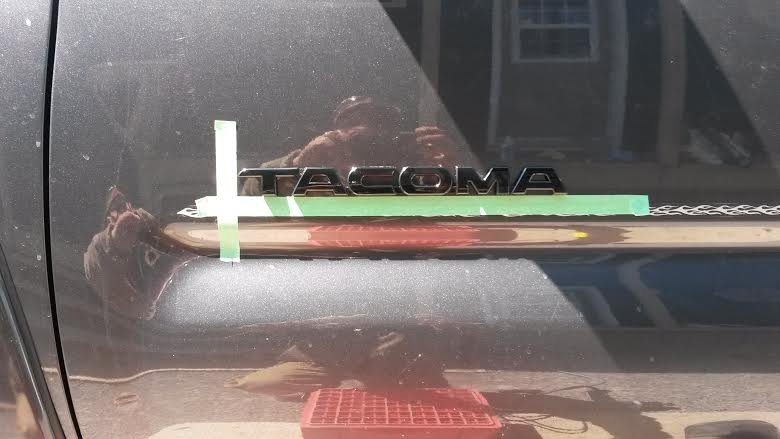

    ... and taped off the door badges first, fishing line removal next, heat gunned and thumb rolled the left over tape, then Gooped the glue residue, cleaned with Windex, and re-installed with the black badges.


    I also replaced the silver tribal flames with VHTF black tribal flames (Summit Racing has them.) Here's the final look on an MGM.



    It works for me.

    Last edited: Jun 28, 2015
    taczilla, Jun 28, 2015
    #4
    armyofsquirrels[OP] likes this.
  5. Jun 28, 2015 at 6:28 AM
    #5
    TXpro4X4

    #5
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    29,108
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    Why? If you don't own one?

    TXpro4X4, Jun 28, 2015
    #5
  6. Jun 28, 2015 at 6:34 AM
    #6
    armyofsquirrels

    #6
    armyofsquirrels [OP] Embrace the Suck!

    Joined:
    Jul 17, 2012
    Member:
    #82809
    Messages:
    5,252
    Gender:
    Male
    First Name:
    Chip
    Sykesville MD
    Vehicle:
    2015 V6 6Spd Tacoma DCSB Offroad in Pyrite Mica
    See Build Page.
    Long story short, I want to put the TRD badge on my tailgate in place of my V6 Emblem. The dealer wants $79 for the badge, it's not worth that for a 5 inch peice of plastic so I'm going to 3D print it instead.

    Last edited: Jun 28, 2015
    armyofsquirrels, Jun 28, 2015
    #6
  7. Jun 28, 2015 at 6:45 AM
    #7
    taczilla

    #7
    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,484
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel
    You can get it here for a lot less ($40), keep the TRD part and send me the PRO part (I'll pay shipping) ... and they are metal.

    http://www.ebay.com/itm/TOYOTA-OEM-...150-/161743420477?hash=item25a8a8bc3d&vxp=mtr

    Last edited: Jun 28, 2015
    This site contains affiliate links for which the site may be compensated.
    taczilla, Jun 28, 2015
    #7
  8. Jun 28, 2015 at 6:48 AM
    #8
    TXpro4X4

    #8
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    29,108
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    80 bucks! What a joke!

    TXpro4X4, Jun 28, 2015
    #8
  9. Jun 28, 2015 at 6:57 AM
    #9
    taczilla

    #9
    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,484
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel
    'Cause he can do whatever he wants with HIS truck... same as you.

    Yup, you're right. His stealership is trying to rip him off. That's why this community is here ... to help. They are only $40 on flea-bay for the TRD PRO set #
    $51 PT413-00150 TRD Badge
    PT413-00150

    See the link in my previous post.

    Last edited: Jun 28, 2015
    taczilla, Jun 28, 2015
    #9
  10. Jun 28, 2015 at 6:58 AM
    #10
    TXpro4X4

    #10
    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    29,108
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    Dont be a dick, was not insinuating anything

    TXpro4X4, Jun 28, 2015
    #10
  11. Jun 28, 2015 at 7:11 AM
    #11
    armyofsquirrels

    #11
    armyofsquirrels [OP] Embrace the Suck!

    Joined:
    Jul 17, 2012
    Member:
    #82809
    Messages:
    5,252
    Gender:
    Male
    First Name:
    Chip
    Sykesville MD
    Vehicle:
    2015 V6 6Spd Tacoma DCSB Offroad in Pyrite Mica
    See Build Page.
    No worries I didn't take it as an insult haha.

    armyofsquirrels, Jun 28, 2015
    #11
  12. Jun 28, 2015 at 7:13 AM
    #12
    armyofsquirrels

    #12
    armyofsquirrels [OP] Embrace the Suck!

    Joined:
    Jul 17, 2012
    Member:
    #82809
    Messages:
    5,252
    Gender:
    Male
    First Name:
    Chip
    Sykesville MD
    Vehicle:
    2015 V6 6Spd Tacoma DCSB Offroad in Pyrite Mica
    See Build Page.
    This site contains affiliate links for which the site may be compensated.
    armyofsquirrels, Jun 28, 2015
    #12
  13. Jun 28, 2015 at 7:26 AM
    #13
    taczilla

    #13
    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,484
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel
    The one that I linked to is free shipping in the US.

    It's cool that you can do the 3D printing. Might be a market here.

    As for the dick comment, it's all good. He must have woken up in a feisty mood. :pccoffee:

    Last edited: Jun 28, 2015
    taczilla, Jun 28, 2015
    #13
  14. Jun 28, 2015 at 7:59 AM
    #14
    OKJC

    #14
    OKJC Well-Known Member

    Joined:
    Jul 31, 2013
    Member:
    #109508
    Messages:
    546
    Gender:
    Male
    First Name:
    Justin
    NWArkansas
    Vehicle:
    '10 SC 4x4 TRD Sport
    I never would have known so many measurements went in to one little badge.

    OKJC, Jun 28, 2015
    #14
    armyofsquirrels[OP] likes this.
  15. Jun 28, 2015 at 9:25 AM
    #15
    littleblue81

    #15
    littleblue81 Well-Known Member

    Joined:
    Dec 25, 2010
    Member:
    #48196
    Messages:
    576
    Gender:
    Male

    What type of adhesive did you use when re-installing the badges?

    littleblue81, Jun 28, 2015
    #15
  16. Jun 28, 2015 at 9:31 AM
    #16
    Old School

    #16
    Old School You are ignoring covfefe by this member.

    Joined:
    Jan 21, 2015
    Member:
    #146896
    Messages:
    8,223
    Gender:
    Male
    Old School, Jun 28, 2015
    #16
  17. Jun 30, 2015 at 8:10 AM
    #17
    armyofsquirrels

    #17
    armyofsquirrels [OP] Embrace the Suck!

    Joined:
    Jul 17, 2012
    Member:
    #82809
    Messages:
    5,252
    Gender:
    Male
    First Name:
    Chip
    Sykesville MD
    Vehicle:
    2015 V6 6Spd Tacoma DCSB Offroad in Pyrite Mica
    See Build Page.
    armyofsquirrels, Jun 30, 2015
    #17
  18. Jun 30, 2015 at 12:08 PM
    #18
    Up2NoGood

    #18
    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB
    Do you happen to have part numbers still for all of the black badges?

    Up2NoGood, Jun 30, 2015
    #18
  19. Jul 1, 2015 at 8:55 AM
    #19
    taczilla

    #19
    taczilla I intend to live forever; so far.... so good!

    Joined:
    Jul 18, 2012
    Member:
    #82874
    Messages:
    8,484
    Gender:
    Male
    First Name:
    Marc
    PEC, Ontario, Canada
    Vehicle:
    2016 RAM Rebel
    2012 TRD Sport - STOLEN! / 2016 RAM Rebel
    I didn't use adhesive, as I replaced the original chrome badges with new OEM black badges.


    You can't get them in Canada (too expensive), but here is a link to fleabay items:

    http://www.ebay.com/itm/Toyota-Tacoma-Black-Emblems-Genuine-OEM-OE/301588369283?_trksid=p2047675.c100005.m1851&_trkparms=aid=222007&algo=SIC.MBE&ao=1&asc=29979&meid=a8f1ed79a3324ae4bfd75a310c2d9338&pid=100005&rk=1&rkt=6&sd=252005678234&rt=nc

    Just do a search for 'Tacoma black emblems' on fleabay.


    OEM Black Tacoma emblems x 3 PN: 75427-04020-C1
    OEM Toyota emblem PN: 75471-04040-C1
    OEM TRD Pro badge PN: PT413-00150

    Check my build thread:

    https://www.tacomaworld.com/threads/taczillas-build-nothing-fancy-just-a-work-limo.369851/

    Last edited: Jul 1, 2015
    This site contains affiliate links for which the site may be compensated.
    taczilla, Jul 1, 2015
    #19
    steveh_2007 and armyofsquirrels[OP] like this.
