Need Help: AAL Twisting inside spring pack

Discussion in 'Suspension' started by Sapper26, Apr 8, 2011.

  1. Apr 8, 2011 at 4:04 PM
    #1
    Sapper26

    Sapper26 [OP] Well-Known Member

    Joined:
    Oct 16, 2009
    Member:
    #24424
    Messages:
    87
    Gender:
    Male
    First Name:
    Will
    Columbus, GA
    Vehicle:
    99 Xtra Cab 4x4
    I need some assistance with an AAL I installed about 6 months ago. The AAL is a 1 1/2" lift from Wheelers OR. I installed it per the instructions, and ever since it looks like the AAL is trying to twist out of the spring pack. What brought it to my attention was a squeeking noise from the rear. I figured it was from the friction pads wearing out, but when I look at the rear springs the friction pads were fine and the AAL were sticking out of the spring pack at about a 10 degree angle. I was able to tap them back into alignment with a mallet and the squeeking stopped for about a week, but it started again yesterday and the AAL have started twisting out again. I tried using zip ties to hold the pack together, but they are cutting it.

    Sorry for not posting any pictures, but I am at work. If you can imagine when the AAL are aligned with the spring pack they are perpendicular to the rear axle. They are trying to twist to become parallel with the rear axle.

    Anybody else had this issue? Suggestions?

  2. Apr 8, 2011 at 5:35 PM
    #2
    ds46000

    ds46000 Well-Known Member

    Joined:
    Feb 15, 2011
    Member:
    #51206
    Messages:
    213
    Gender:
    Male
    Vehicle:
    07 PreRunner TRD Sport
    Are the AAL leafs not inside the retaining clip? I can't see how they'd move if you have the retaining clip on. Post up a picture.

  3. Apr 8, 2011 at 5:36 PM
    #3
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,180
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    Whack 'em back in line with a rubber mallet, check torque on your u-bolts, and buy some leaf brackets to hold 'em in line.

  4. Apr 8, 2011 at 5:48 PM
    #4
    BirdTRD

    BirdTRD Unsuspectingly striking from above

    Joined:
    Oct 30, 2009
    Member:
    #25166
    Messages:
    2,072
    Gender:
    Male
    First Name:
    Greg
    New Mexico
    Vehicle:
    TRD Off Road 4x4
    Front (2.75" total): 1.6" Eibach coils, Toytec 0.5" (L) & 0.25" (R) top plate spacers, 5100's @ 0.85", Built Right uniball UCA's, Differential drop, Removed sway bar Rear: TSB springs, Wheeler's 1.5" AAL, 5100's, 2* shims, Carrier bearing drop, F and R Spidertrax, 285/75-16 Goodyear Duratracs, Self-fabbed sliders, rear bumper, and skid plates, Cobra 75 CB, Bed lined slim lo-pro tool box, Bed Extender, Diff breather mod, Two tail gate security mods, Exhaust dumped behind axle, Can't leave shit alone so plenty more coming...

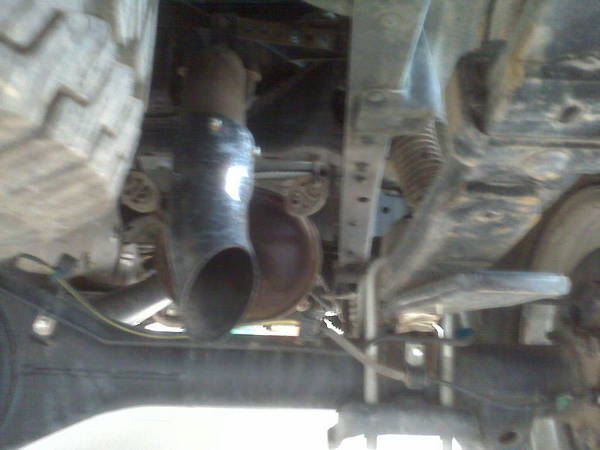

    Mine do it too. I have the wheelers aal and extended ubolts on tsb leaves. You can kind of see it in this picture. The aal (the one above the overload leaf) is twisted about a 1/2" inward in back. Up front, the twist is limited by the leaf brackets with the break lines mounted to them. The squeaking comes from the side of the leaf rubbing against that bracket. It bugs the crap out of me. I too bang it back over with a mallet but within a week or so, it works its way back over.
    [​IMG]

  5. Apr 8, 2011 at 5:57 PM
    #5
    BirdTRD

    BirdTRD Unsuspectingly striking from above

    Joined:
    Oct 30, 2009
    Member:
    #25166
    Messages:
    2,072
    Gender:
    Male
    First Name:
    Greg
    New Mexico
    Vehicle:
    TRD Off Road 4x4
    Front (2.75" total): 1.6" Eibach coils, Toytec 0.5" (L) & 0.25" (R) top plate spacers, 5100's @ 0.85", Built Right uniball UCA's, Differential drop, Removed sway bar Rear: TSB springs, Wheeler's 1.5" AAL, 5100's, 2* shims, Carrier bearing drop, F and R Spidertrax, 285/75-16 Goodyear Duratracs, Self-fabbed sliders, rear bumper, and skid plates, Cobra 75 CB, Bed lined slim lo-pro tool box, Bed Extender, Diff breather mod, Two tail gate security mods, Exhaust dumped behind axle, Can't leave shit alone so plenty more coming...
    Is that the 3 leaf pack? You like it?

  6. Apr 8, 2011 at 5:59 PM
    #6
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,153
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.

    Very few, if any, single leaf AALs' come with brackets. They are held in place py the propper torque of the U bolts.

  7. Apr 8, 2011 at 6:00 PM
    #7
    BirdTRD

    BirdTRD Unsuspectingly striking from above

    Joined:
    Oct 30, 2009
    Member:
    #25166
    Messages:
    2,072
    Gender:
    Male
    First Name:
    Greg
    New Mexico
    Vehicle:
    TRD Off Road 4x4
    Front (2.75" total): 1.6" Eibach coils, Toytec 0.5" (L) & 0.25" (R) top plate spacers, 5100's @ 0.85", Built Right uniball UCA's, Differential drop, Removed sway bar Rear: TSB springs, Wheeler's 1.5" AAL, 5100's, 2* shims, Carrier bearing drop, F and R Spidertrax, 285/75-16 Goodyear Duratracs, Self-fabbed sliders, rear bumper, and skid plates, Cobra 75 CB, Bed lined slim lo-pro tool box, Bed Extender, Diff breather mod, Two tail gate security mods, Exhaust dumped behind axle, Can't leave shit alone so plenty more coming...
    Well then I'd love to know what the proper torque is. I think I have them torqued at about 75 ft-lbs.

  8. Apr 8, 2011 at 6:01 PM
    #8
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,153
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Re check them. 75# is good, some go to 85#

  9. Apr 8, 2011 at 6:06 PM
    #9
    BirdTRD

    BirdTRD Unsuspectingly striking from above

    Joined:
    Oct 30, 2009
    Member:
    #25166
    Messages:
    2,072
    Gender:
    Male
    First Name:
    Greg
    New Mexico
    Vehicle:
    TRD Off Road 4x4
    Front (2.75" total): 1.6" Eibach coils, Toytec 0.5" (L) & 0.25" (R) top plate spacers, 5100's @ 0.85", Built Right uniball UCA's, Differential drop, Removed sway bar Rear: TSB springs, Wheeler's 1.5" AAL, 5100's, 2* shims, Carrier bearing drop, F and R Spidertrax, 285/75-16 Goodyear Duratracs, Self-fabbed sliders, rear bumper, and skid plates, Cobra 75 CB, Bed lined slim lo-pro tool box, Bed Extender, Diff breather mod, Two tail gate security mods, Exhaust dumped behind axle, Can't leave shit alone so plenty more coming...
    Hmm, interesting. I was thinking of just going to dakars but cheap is good! I've been meaning to flip the bolts too. I just need to buy some round u bolts and make some top plates. Super easy and cheap job. Just not at the top of the "what to do during shop time" list.

  10. Apr 8, 2011 at 6:16 PM
    #10
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,153
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    I wasnt aware of a company that put them on the singles anymore. Regardless, The singles I run dont have them, and have never been an issue.

  11. Apr 8, 2011 at 6:24 PM
    #11
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,153
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    You can hit them all you want. They shouldnt move much.

  12. Apr 8, 2011 at 6:25 PM
    #12
    P-Hill Tacoma

    P-Hill Tacoma Well-Known Member

    Joined:
    Oct 16, 2009
    Member:
    #24413
    Messages:
    77
    Gender:
    Male
    Missouri
    Vehicle:
    2010 DC Short Bed 4WD Off Road Barcelona Red
    Fr Bilsteins@1.75", Rr Bilsteins w/ 1.5" AAL & RideRite Airbags, Truxedo Lo-Pro Tonneau, Step Tubes, 1.25" Spidertrax
    Take a look at the aal install sticky under suspenions and lifts. That will show you what holds it in line

  13. Apr 8, 2011 at 6:47 PM
    #13
    BirdTRD

    BirdTRD Unsuspectingly striking from above

    Joined:
    Oct 30, 2009
    Member:
    #25166
    Messages:
    2,072
    Gender:
    Male
    First Name:
    Greg
    New Mexico
    Vehicle:
    TRD Off Road 4x4
    Front (2.75" total): 1.6" Eibach coils, Toytec 0.5" (L) & 0.25" (R) top plate spacers, 5100's @ 0.85", Built Right uniball UCA's, Differential drop, Removed sway bar Rear: TSB springs, Wheeler's 1.5" AAL, 5100's, 2* shims, Carrier bearing drop, F and R Spidertrax, 285/75-16 Goodyear Duratracs, Self-fabbed sliders, rear bumper, and skid plates, Cobra 75 CB, Bed lined slim lo-pro tool box, Bed Extender, Diff breather mod, Two tail gate security mods, Exhaust dumped behind axle, Can't leave shit alone so plenty more coming...

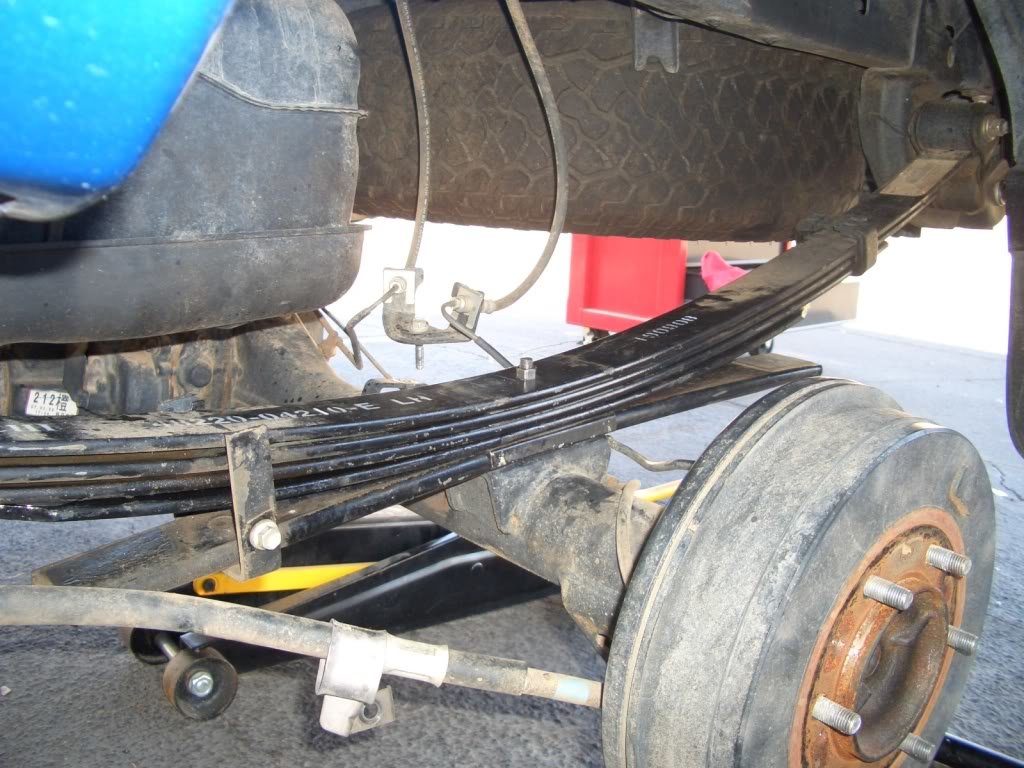

    No it doesn't. That's exactly how mine are installed. The bracket up front with the brake line mounts is what holds it in line, somewhat, but its also what the leaf twists against and rubs to cause the squeak.
    [​IMG]

  14. Apr 8, 2011 at 8:45 PM
    #14
    Sapper26

    Sapper26 [OP] Well-Known Member

    Joined:
    Oct 16, 2009
    Member:
    #24424
    Messages:
    87
    Gender:
    Male
    First Name:
    Will
    Columbus, GA
    Vehicle:
    99 Xtra Cab 4x4
    I could post some pics, but they would look just like BirdTRDs farther up the post. Is there anyone that makes the U bracket that I can bolt on somehow to keep them from moving? Otherwise I was going to try a hose clamp. The squeaking is driving me nuts.
