need help fj led fog light switch

anybody done this mod on their 2nd gen? need help on how to connect the two extra wires (purple and brown) from switch. tia.

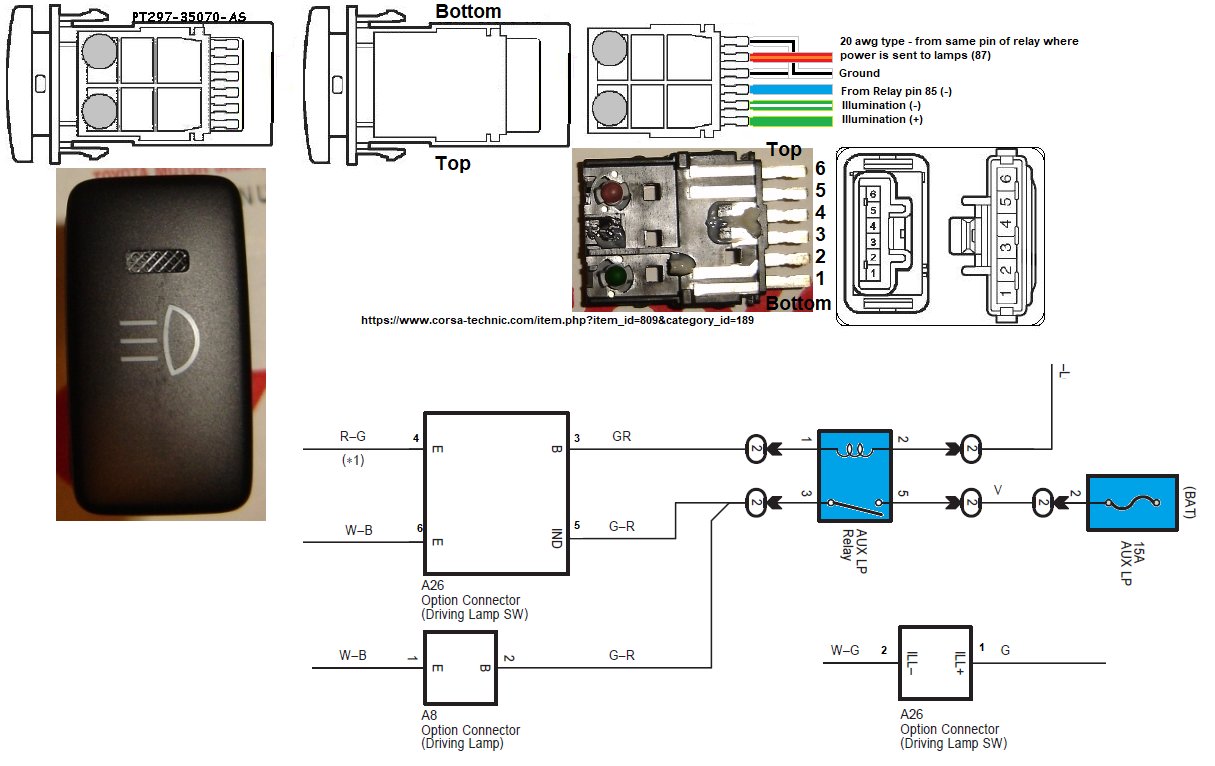

Going by you diagram.

Purple looks like it would connect to the dash lights (the ones that come on with the head lights)

Black looks like a Ground.

@caribe makaira



I’d bet my lunch money that a harness made for a FJ Cruiser won’t plug and play with a Taco.



Snip snip and it will



Do you have a link for that switch?



just use the part number



https://www.purefjcruiser.com/index.php?main_page=product_info&products_id=3820



i believe some of them have a green or orange back light



what about the extra red wire with a ring connector?



The wire looks black to me? The crimp is red. Is this what you are asking about?
And it looks like it goes back to the switch, the only black wire to the switch is Ground in your diagram.



Ok Thanks.



Has anyone compared the pinout from the FJ switch to our Gen 2 Tacoma fog light switches? It looks like pin 1/4 and then pin 6 could be showing that the normal panel illumination (6) and the "on" indicator (1 or 4) could be plug-and-play. That would be a nice bit of luck.



The Tacoma uses a 4 pin plug.
The FJ uses a 6 pin.
Like @Muddinfun said, they won’t work with each other.



Ah -- I missed that part! Pity... Coulda been so easy. Thanks for the direction.



I had an FJ switch on my 2013, worked fine with backlighting tied to my instrument panel and the LED indicator light. It does work.



De-pin them and they will...
Mine is been installed since 2005...with LED bulbs for switch illumination.



Did you depin as Mike said, or cut and splice?



I did neither, mine didn’t come pre-wired for fogs so I had to start from nothing. Toyota of McDonough used to sell the 2nd gen Tacoma OEM install kit and it came with an FJ switch. Only thing I tapped was for the backlight and LED indicator, IIRC.

This was in June 2013 or so, so I don’t recall intimate detail. @tacomgee helped me install. We didn’t de-pin or modify the OEM harness.

At one point I had the whole install documented with pics but that was in a thread that is no longer viewable.
