Need help from someone good with math or whatever this is lol

Discussion in 'Garage / Workshop' started by TCprerunner, Jul 17, 2013.

  1. Jul 17, 2013 at 10:14 PM
    #1
    TCprerunner

    TCprerunner [OP] Well-Known Member

    Joined:
    Mar 3, 2013
    Member:
    #98943
    Messages:
    992
    Gender:
    Male
    I know I'm not good at this kind of stuff and figures someone could help me get this right the first time I'm making a rack for my truck..

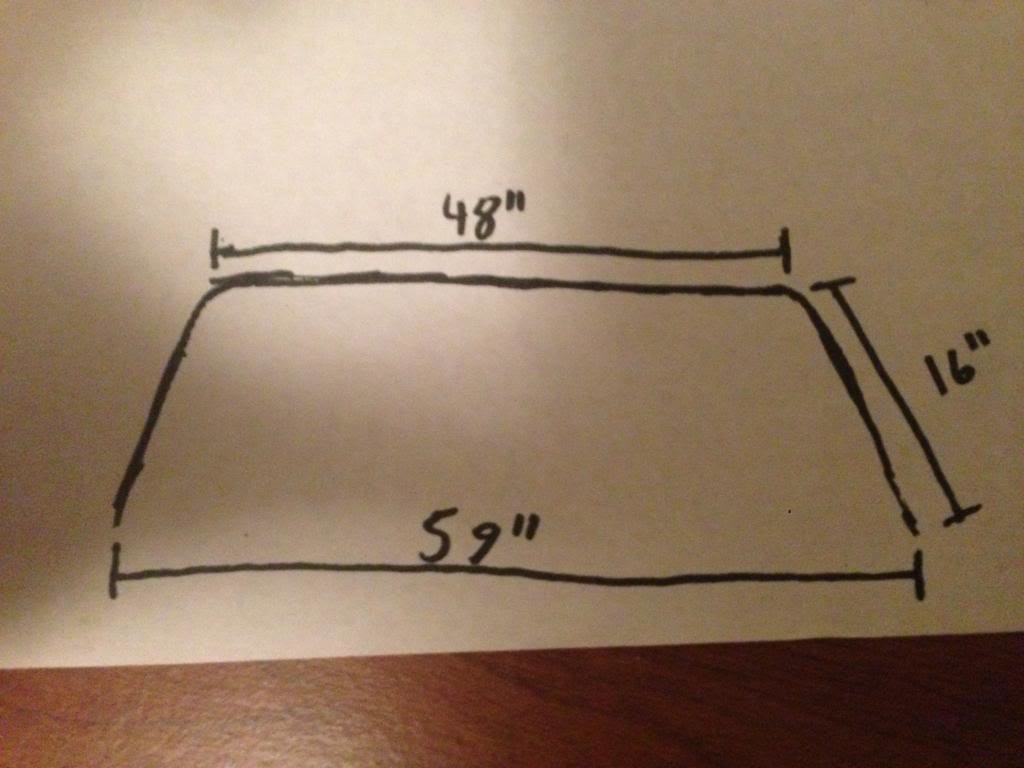

    Uprights are 16" the top span is 48" and the bottom needs to be 59" from end to end here is a bad picture to illustrate

    [​IMG]

    I want it bent and do not have a bender so going to drop it off at a friends and have to give him want angles how would I explain this to him and what angle would that be to get the measurements all where I need them? I could do this on my own if I was just welding it but I want bends and they are making me feel stupid cause I can't figure out how to explain this in a simple way..

  2. Jul 17, 2013 at 10:24 PM
    #2
    Btnewman

    Btnewman Benjamin Newman

    Joined:
    Apr 15, 2011
    Member:
    #54950
    Messages:
    2,080
    Gender:
    Male
    First Name:
    Benjamin
    Grand Junction co
    Vehicle:
    07 sport, ARB rear locker, leveling kit
    ARB rear locker Leveling Kit Custom Rear Bumper Tires and Rims Air tank fully plumbed into truck
    Find a drafting program, it will do the hard stuff for you

  3. Jul 18, 2013 at 7:15 AM
    #3
    Btnewman

    Btnewman Benjamin Newman

    Joined:
    Apr 15, 2011
    Member:
    #54950
    Messages:
    2,080
    Gender:
    Male
    First Name:
    Benjamin
    Grand Junction co
    Vehicle:
    07 sport, ARB rear locker, leveling kit
    ARB rear locker Leveling Kit Custom Rear Bumper Tires and Rims Air tank fully plumbed into truck
    If no one helps with this, I can see if I can whip something out for ya, also, are your measurement all from the inside of the tube? Which size tubing are you running? And any idea what radius his bender is?

  4. Jul 18, 2013 at 7:48 AM
    #4
    TCprerunner

    TCprerunner [OP] Well-Known Member

    Joined:
    Mar 3, 2013
    Member:
    #98943
    Messages:
    992
    Gender:
    Male
    I don't have a computer to run any program on.. Could not find one I could work on my phone the 16 " vertical is from my cut on the bottom to the middle the top 48" is from the middle of the bends and bottom is from middle to middle .. So middle? Lol
    Going to be using 1-1/4 sch 40 and no I do not know the radius of his bender

  5. Jul 18, 2013 at 7:53 AM
    #5
    Glueman

    Glueman Yersinia pestis

    Joined:
    Dec 27, 2012
    Member:
    #93882
    Messages:
    964
    Gender:
    Male
    Utah
    Vehicle:
    The Black Death
    6 inch PC Douche Bag lift...what else do I need?
    So you want the inside angles of the trapazoid you drew???

  6. Jul 18, 2013 at 7:55 AM
    #6
    TCprerunner

    TCprerunner [OP] Well-Known Member

    Joined:
    Mar 3, 2013
    Member:
    #98943
    Messages:
    992
    Gender:
    Male
    Yes? I think. I wish I paid attention in school now..

  7. Jul 18, 2013 at 8:08 AM
    #7
    guitarjamman

    guitarjamman Well-Known Member

    Joined:
    Jan 4, 2013
    Member:
    #94410
    Messages:
    769
    Gender:
    Male
    First Name:
    Zach
    MA
  8. Jul 18, 2013 at 8:16 AM
    #8
    TCprerunner

    TCprerunner [OP] Well-Known Member

    Joined:
    Mar 3, 2013
    Member:
    #98943
    Messages:
    992
    Gender:
    Male
    Thank you!

  9. Jul 18, 2013 at 8:21 AM
    #9
    Newby

    Newby Well-Known Member

    Joined:
    Mar 28, 2013
    Member:
    #100792
    Messages:
    139
    Gender:
    Male
    North Carolina
    Very good.

  10. Jul 19, 2013 at 10:48 AM
    #10
    Lumpskie

    Lumpskie Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,863
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking

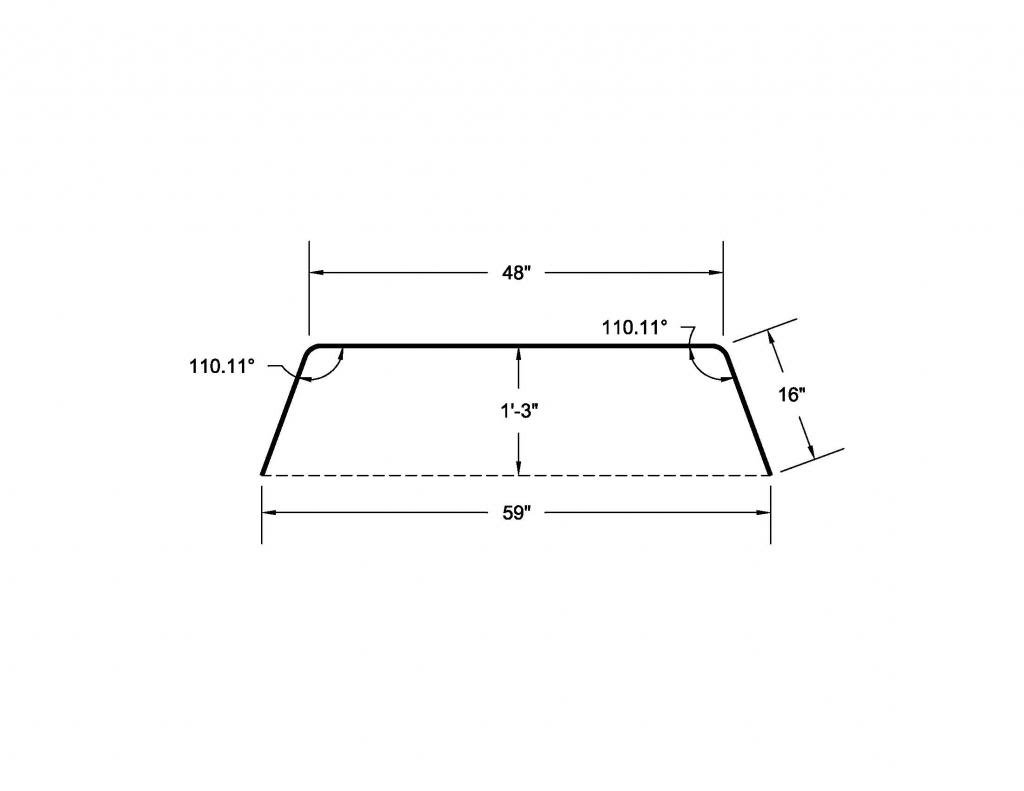

    Hey Guitarman, does your program take into account bend radius? I just did a quick calculation on a napkin and the 110 degree inner angle is a smaller angle than my quick geometry calculation.

    Here's what I did: (correct me if I went wrong!)

    Split the trapezoid into a rectangle and two right angle triangles (on either side). The base leg of the triangle is 11" (59-48), the hypotenuse is 16.

    To calculate the interior angle of the bend I set the sin of that angle equal to the opposite leg (11) over your hypotenuse (16). 11/16=.6875 so sin^-1 of .6875 equals 43.4 degrees. Finally I added that to the 90 interior angle of the rectangle coming up with 133.4 degrees.

    Looking at your 110 vs my 133, it would make sense to me that yours accounts for bend radius. How did you pick the radius to use?

  11. Jul 19, 2013 at 10:57 AM
    #11
    guitarjamman

    guitarjamman Well-Known Member

    Joined:
    Jan 4, 2013
    Member:
    #94410
    Messages:
    769
    Gender:
    Male
    First Name:
    Zach
    MA
    All looks well except for your base dimension, there are two triangles (one on each end) so you have to divide by 2:

    59"-48" = 11"
    11"/2 = 5.5"

    X =Sin ^-1 (5.5/16) = 110°

    My program doesn't account in for bending radii, I just assumed a 2" radius. These numbers are a little more precise than one could get bending a piece of 1-1/4" tubing so there should be no issues.

  12. Jul 19, 2013 at 11:32 AM
    #12
    Lumpskie

    Lumpskie Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,863
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    DOH! (I am officially an idiot) Man, I knew something just didn't seem right. Thanks for setting me straight!

  13. Jul 19, 2013 at 12:49 PM
    #13
    Btnewman

    Btnewman Benjamin Newman

    Joined:
    Apr 15, 2011
    Member:
    #54950
    Messages:
    2,080
    Gender:
    Male
    First Name:
    Benjamin
    Grand Junction co
    Vehicle:
    07 sport, ARB rear locker, leveling kit
    ARB rear locker Leveling Kit Custom Rear Bumper Tires and Rims Air tank fully plumbed into truck
    Thank god for prograns like solid works for stuff like that!

  14. Jul 19, 2013 at 12:51 PM
    #14
    Btnewman

    Btnewman Benjamin Newman

    Joined:
    Apr 15, 2011
    Member:
    #54950
    Messages:
    2,080
    Gender:
    Male
    First Name:
    Benjamin
    Grand Junction co
    Vehicle:
    07 sport, ARB rear locker, leveling kit
    ARB rear locker Leveling Kit Custom Rear Bumper Tires and Rims Air tank fully plumbed into truck
    And in real life, those degrees get you really close, then real life sets in...

  15. Jul 19, 2013 at 2:09 PM
    #15
    TCprerunner

    TCprerunner [OP] Well-Known Member

    Joined:
    Mar 3, 2013
    Member:
    #98943
    Messages:
    992
    Gender:
    Male
    Yeah I just needed close the bender can't be exact anyways thanks everyone for all the great help with your fancy math lol

  16. Jul 19, 2013 at 2:29 PM
    #16
    davidjmay

    davidjmay Well-Known Member

    Joined:
    Sep 2, 2012
    Member:
    #86090
    Messages:
    931
    Gender:
    Male
    First Name:
    David
    Orange County/Azusa
    Vehicle:
    '00 PreRunner
    Pioneer HU & door speakers, Alpine type R, Kicker dx1000.1, OME 883 lift, Wheelers 2" AAL, custom mesh grille, smoked LED taillights, LED light bar, Raptor exhaust dumped before axle, custom fabbed roll bar/light bar mount
    Just when I did all the math and figured it out....

  17. Jul 22, 2013 at 10:19 AM
    #17
    bmka87

    bmka87 Well-Known Member

    Joined:
    Jan 19, 2010
    Member:
    #29643
    Messages:
    130
    Gender:
    Male
    First Name:
    Josh
    Southern Maine
    Vehicle:
    97 Tacoma SR5

    good thing I decided to scroll down....almost did the math out on this one.

  18. Jul 22, 2013 at 10:30 AM
    #18
    guitarjamman

    guitarjamman Well-Known Member

    Joined:
    Jan 4, 2013
    Member:
    #94410
    Messages:
    769
    Gender:
    Male
    First Name:
    Zach
    MA
    Luckily the math isn't too intensive! I used AutoCAD and drafted it out in under a minute - double checked it with hand calculations. Can never be too sure and I sure as hell will NEVER 100% trust any answer the computer spits out.

  19. Jul 22, 2013 at 10:36 AM
    #19
    TCprerunner

    TCprerunner [OP] Well-Known Member

    Joined:
    Mar 3, 2013
    Member:
    #98943
    Messages:
    992
    Gender:
    Male
    You guys are awesome lol I will get pictures wed. When all 3 are bent... I can't wait to get this on my truck and add my Jerry cans hi-lift and spare tire mount... That will all be empty till I have money lol

  20. Jul 22, 2013 at 10:44 AM
    #20
    Caduceus

    Caduceus Well-Known Member

    Joined:
    Oct 6, 2009
    Member:
    #23889
    Messages:
    1,746
    Gender:
    Male
    the Lowcountry
    Vehicle:
    09 DCSB TRD 4x4
    Sadly, I looked at this and was like :annoyed:

    Even though I had college level (intro) calculus, and stats, and trig and crap, I stopped understanding math about the time we introduced letters. You know, like 7th grade.

    I firmly believe all the math I need to know for life stopped in 4th grade.
