Need help identifiying something integration relay

Discussion in '1st Gen. Tacomas (1995-2004)' started by Drewboto, Apr 15, 2011.

  1. Apr 15, 2011 at 1:23 PM
    #1
    Drewboto

    Drewboto [OP] Well-Known Member

    Joined:
    Mar 16, 2010
    Member:
    #33341
    Messages:
    420
    Gender:
    Male
    First Name:
    Drew
    Missouri
    Vehicle:
    Base model ಠ_ಠ
    17" Mustang wheels, Eclipse AVN 5435, Deck plate mod, vertical Maglite mount, K&N high-flow air filter, Delta gullwing box, amp, sub, 30 percent tint, floor lighting, tilt activated glove box lighting, lighting behind seat, engine bay lighting, SR5 grill surround, power windows, outside temp display
    So I want to tap into the positive side of my dome light circuit to power my new floor lights.

    I located the positive wire on my truck that i need to tap into at the dome light on the roof. It is a solid black wire which corresponds to the Haynes schematic for that circuit

    This specific wire runs to the Integration Relay located somewhere in the truck. I figure that it is under the dash somewhere. That would be perfect because my new lights will be placed under the dash.

    Upon searching TW, I find a link posted by 98Tacoma (http://www.ncttora.com/fsm/2000/Wiri...0Locations.pdf)
    that shows where the Integration Relay is physically located in the truck (Page two near the bottom left)

    The problem is that that picture lacks any detail.

    So I continue reading and find a more detailed picture of what it is supposed to look like
    http://www.ncttora.com/fsm/2000/Wiri...0Locations.pdf (Page 3, bottom circuit)

    Yay problem solved, I know what it looks like, now I can splice into that black wire attached to the integration relay. Nope. the actual thing looks very different from the picture


    [​IMG]

    It doesn't look exactly like the diagram, but it is similar in the fact that it has some wires attached below some fuses. Other than that, it is totally different. There is 1 black wire (what i'm looking for) but I'm not sure if that is actually the wire I need since I don't know if this is the integration relay.

    I looked behind that fuse box and saw a big mess. Lots of wires, at least 4 of them were black, all plugged into different things.

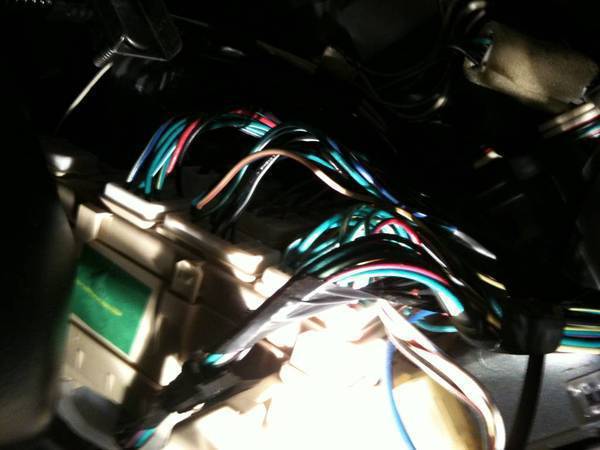

    [​IMG]

    This is on the backside of the object in the first picture. Only about a third of the wires are showing. the rest are hiding in the shadows.

    So can anybody know where the integration relay is?

    Thanks for any help

    Brie likes this.
  2. Apr 15, 2011 at 1:52 PM
    #2
    Drewboto

    Drewboto [OP] Well-Known Member

    Joined:
    Mar 16, 2010
    Member:
    #33341
    Messages:
    420
    Gender:
    Male
    First Name:
    Drew
    Missouri
    Vehicle:
    Base model ಠ_ಠ
    17" Mustang wheels, Eclipse AVN 5435, Deck plate mod, vertical Maglite mount, K&N high-flow air filter, Delta gullwing box, amp, sub, 30 percent tint, floor lighting, tilt activated glove box lighting, lighting behind seat, engine bay lighting, SR5 grill surround, power windows, outside temp display
    Edit, found a better way to wire the circuit.

  3. Aug 27, 2017 at 7:01 PM
    #3
    Brie

    Brie Well-Known Member

    Joined:
    May 4, 2015
    Member:
    #154576
    Messages:
    185
    Gender:
    Female
    First Name:
    Brieanna
    CA
    Vehicle:
    2001 Tacoma SAYS its a TRD, but has Prerunner parts (WTF?)
    Nooooooo! I need to know where this damn thing is and/or what it looks like! This looked so promising....... until i got to post 2 dammmmmmmnnnn (wheres the cry baby face when you need it?)

  4. Aug 27, 2017 at 7:12 PM
    #4
    Seagull233

    Seagull233 Well-Known Member

    Joined:
    May 4, 2017
    Member:
    #218149
    Messages:
    155
    Gender:
    Male
    First Name:
    Tom
    Upstate New York
    Vehicle:
    2004 DC 4x4 V6 automatic
    BMW seats, brush guard, LED light bars, Ham Radio, topper with roof rack added, stainless exhaust, 2nd battery, inverter, sound deadener
    What exactly are you looking for, the integration block? If so, it is located behind the little door on the left side of the dash.

  5. Aug 27, 2017 at 7:13 PM
    #5
    Brie

    Brie Well-Known Member

    Joined:
    May 4, 2015
    Member:
    #154576
    Messages:
    185
    Gender:
    Female
    First Name:
    Brieanna
    CA
    Vehicle:
    2001 Tacoma SAYS its a TRD, but has Prerunner parts (WTF?)
    its not just a relay? Its the whole fuse block?

  6. Aug 27, 2017 at 7:14 PM
    #6
    Brie

    Brie Well-Known Member

    Joined:
    May 4, 2015
    Member:
    #154576
    Messages:
    185
    Gender:
    Female
    First Name:
    Brieanna
    CA
    Vehicle:
    2001 Tacoma SAYS its a TRD, but has Prerunner parts (WTF?)
    The relay diagram page in the repair manual refers to it as a relay and points to a square by the fuse box .... Which cant be found!

  7. Aug 27, 2017 at 7:21 PM
    #7
    Brie

    Brie Well-Known Member

    Joined:
    May 4, 2015
    Member:
    #154576
    Messages:
    185
    Gender:
    Female
    First Name:
    Brieanna
    CA
    Vehicle:
    2001 Tacoma SAYS its a TRD, but has Prerunner parts (WTF?)
    Is there a way to check if its the relay thats bad? Or can I bypass relay altogether by wiring the PW and locks to other wires maybe? ...or something?

  8. Aug 27, 2017 at 10:22 PM
    #8
    BartMaster1234

    BartMaster1234 A whole new meaning to Taco Truck

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    2,874
    Gender:
    Male
    First Name:
    Tyler
    San Francisco Bay Area, California
    Vehicle:
    '98 Black Tacoma PreRunner Xtracab 2.7l Auto
    Power Door Retrofit K&N Hot Air Intake '01-'04 Console
    I know exactly what connector on your integration module controls the dome lights. It's a small two wire connector at the top left of the assembly, you can confirm by plugging and unplugging it with the dome lights on.

    Brie likes this.
  9. Aug 27, 2017 at 10:23 PM
    #9
    BartMaster1234

    BartMaster1234 A whole new meaning to Taco Truck

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    2,874
    Gender:
    Male
    First Name:
    Tyler
    San Francisco Bay Area, California
    Vehicle:
    '98 Black Tacoma PreRunner Xtracab 2.7l Auto
    Power Door Retrofit K&N Hot Air Intake '01-'04 Console
    Ignore the words on the diagram, I borrowed this image. See that 'T' shaped connector on the top righthand side? That's for the domelights. It's only two wires.

    back of intagration relay.jpg

    Brie and Dalandser like this.
  10. Aug 27, 2017 at 11:29 PM
    #10
    mechanicjon

    mechanicjon They call me "Jonny 9 Fingers"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    3,632
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    Depending on your style it's either the complete fuse box and the integration relay is inside it. Or it plugs into the fuse box just below the fuses were the wire harness plugs in to fuse box.

    Brie and Dalandser like this.
  11. Aug 27, 2017 at 11:34 PM
    #11
    mechanicjon

    mechanicjon They call me "Jonny 9 Fingers"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    3,632
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    Here's a pictire of a 4runner interg relay. It plugs in right below the fuses.20170827_233247.jpg

    Brie and Dalandser like this.
  12. Aug 29, 2017 at 7:09 PM
    #12
    Brie

    Brie Well-Known Member

    Joined:
    May 4, 2015
    Member:
    #154576
    Messages:
    185
    Gender:
    Female
    First Name:
    Brieanna
    CA
    Vehicle:
    2001 Tacoma SAYS its a TRD, but has Prerunner parts (WTF?)
    THANK YOU so much guys! Heaven was smiling upon everyone with Tacomas the day this forum was created!
