Need help wiring Baja Design S8 light bar to Switch Pro 9100

Discussion in 'Lighting' started by xB0WZ3Rx, May 18, 2022.

  1. May 18, 2022 at 10:51 PM
    #1
    xB0WZ3Rx

    xB0WZ3Rx [OP] Member

    Joined:
    May 26, 2021
    Member:
    #366818
    Messages:
    6
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 4Runner Pro
    Hey all,

    I’m trying to figure out how to wire my Baja Design S8 30” light bar to my Switch Pro 9100. I’m planning on using the BD wiring harness 640122 since I’d like to manually turn on/off the amber backlight function with one of 8 switches on the Switch Pro panel. Has anyone done this before?

    I’m also using a fuse block, bus bar, and terminal bar with my Switch Pro setup.

  2. May 20, 2022 at 7:07 AM
    #2
    vorkuta775

    vorkuta775 Well-Known Member

    Joined:
    Apr 6, 2020
    Member:
    #323954
    Messages:
    3,464
    Gender:
    Male
    Northern Nevada
    Vehicle:
    tesla truck
    SP9100 should have came with a booklet with a diagram showing you which of the colors of wires go to switches 1-6, its as simple as that man.

    xB0WZ3Rx[QUOTED][OP] likes this.
  3. May 20, 2022 at 7:14 AM
    #3
    aturk

    aturk Well-Known Member

    Joined:
    Jul 24, 2019
    Member:
    #300138
    Messages:
    1,438
    Gender:
    Male
    First Name:
    Tony
    Charlotte, NC
    You have 3 wires coming off of the light bar. One is ground, one is backlight 12v, and one is lightbar 12v. You will use one of the 8 switches for the backlight feature. you will use another switch to turn the lightbar on/off.

    The backlighting feature is very low draw, I have one BD light bar, a set of ditch lights, and a set of fog lights (all backlit), all running to one switch on my SwitchPros. I have that switch turning on at power on of the truck so I don't ever have to turn on or off my backlighting.

    Thorian and xB0WZ3Rx[QUOTED][OP] like this.
  4. May 20, 2022 at 7:14 AM
    #4
    NJOffRoad

    NJOffRoad Well-Known Member

    Joined:
    Dec 21, 2020
    Member:
    #350301
    Messages:
    219
    Gender:
    Male
    First Name:
    Anthony
    Pine Barrens, NJ
    Vehicle:
    2021 Cement TRD OR 4x4
    -Off-Grid Engineering Dual Battery system with Redarc BCDC1225D and Full Throttle Group 35 AGM -SPOD BantamX -Expedition Essentials 3TPAM -Spiker Engineering hood struts -Taco Vinyl raptor grill -Baja Designs Squadron Sport fogs -Baja Designs Squadron Pro ditch lights -KC Cyclones under-hood lights -ARB Twin Compressor -Mobtown Offroad Skids & Sliders -Diamondback Tonneau Cover
    Don't waste your money on that harness. Its essentially for the switches that you're going to need to remove anyway.

    You'll just need to use the extra waterproof connector that comes with the light bar to make a simple run of wire to your Switch Pros

    xB0WZ3Rx[OP] likes this.
  5. May 20, 2022 at 7:57 AM
    #5
    AtomAnt

    AtomAnt Well-Known Member

    Joined:
    Aug 5, 2019
    Member:
    #301343
    Messages:
    729
    Gender:
    Male
    First Name:
    Adam
    South Cackalacky
    Vehicle:
    2019 TRD Sport
    Baja designs also makes what they call an Upfitter Harness that you could use to connect the light bar to your SwitchPro. It’s just a length of wires with the correct connector for the light bar. Otherwise you’d be throwing away a large portion of their normal harness.

    xB0WZ3Rx[OP] likes this.
  6. May 20, 2022 at 5:35 PM
    #6
    xB0WZ3Rx

    xB0WZ3Rx [OP] Member

    Joined:
    May 26, 2021
    Member:
    #366818
    Messages:
    6
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 4Runner Pro
    I think I’m going to go this route (luckily I haven’t purchased the harness). I just finished wiring up my ditch lights and I it was pretty simple actually.

    Oh this is perfect! Would help me save some time making my own “harness”. Do you happen to have a link?

  7. May 20, 2022 at 5:38 PM
    #7
    xB0WZ3Rx

    xB0WZ3Rx [OP] Member

    Joined:
    May 26, 2021
    Member:
    #366818
    Messages:
    6
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 4Runner Pro
    Thanks for the walk-through! I didn’t know the backlight feature draws so little power. Im surprised you can connect multiple onto a single switch. I guess in theory it makes sense as long as you’re under the max for that switch. I may do this once I get some more BD lights.

    By the way, which set of ditch lights do you have? I didn’t know they have backlighting

  8. May 20, 2022 at 9:37 PM
    #8
    AtomAnt

    AtomAnt Well-Known Member

    Joined:
    Aug 5, 2019
    Member:
    #301343
    Messages:
    729
    Gender:
    Male
    First Name:
    Adam
    South Cackalacky
    Vehicle:
    2019 TRD Sport
  9. May 21, 2022 at 11:13 AM
    #9
    Jared8907

    Jared8907 txtaco07

    Joined:
    Feb 1, 2017
    Member:
    #209347
    Messages:
    477
    Texas
    Vehicle:
    2015 DCLB 4x4
    Weathertechs Tint Led Interior Method NV TRD Pro Bilstein Suspension Icon AAL CaliRaised sliders
    Could you wire the backlight wire to come on with the stock DRLs by tapping or adding a fuse? I’m doing the same thing S8 30” wired to switch pros. I’ll be out of switch slots but I’d like to use the DRL too since I already paid for it lol.

  10. May 23, 2022 at 7:21 AM
    #10
    AtomAnt

    AtomAnt Well-Known Member

    Joined:
    Aug 5, 2019
    Member:
    #301343
    Messages:
    729
    Gender:
    Male
    First Name:
    Adam
    South Cackalacky
    Vehicle:
    2019 TRD Sport

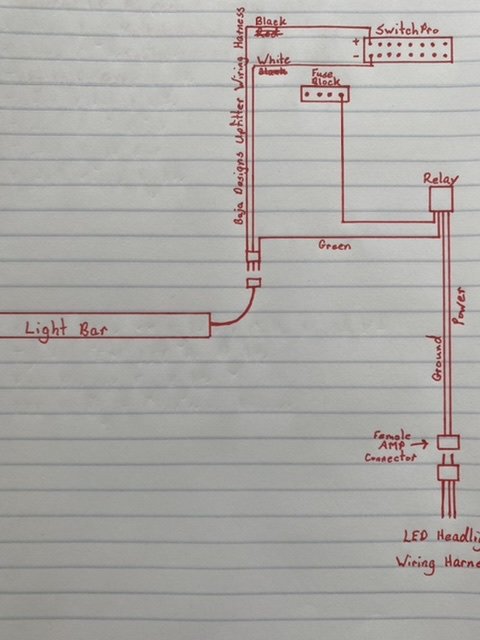

    Thats how mine is wired. I didn’t want to use up a switch for the backlights. I’m sure there are other ways to do it, but here’s a sketch I did when I was trying to figure it all out. The backlight draws .6 amps per 10” section, so for the 30” lightbar it’s drawing 1.8 amps. That’s enough that I decided to use a relay instead of just tapping into the factory wiring. I have a Switchpro and fuse block so making a harness was pretty simple. The AMP connector plugs into a T-harness that daveease makes for connecting raptor style grille lights. He makes them for halogen and LED lights. I’m no electrician and had zero wiring knowledge prior to doing this and it came out great. Ignore the black/white labels on my diagram. They are reversed, lol. Told you I’m not an electrician. I’m just glad nothing has caught fire yet!

    Jared8907[QUOTED] likes this.
  11. May 23, 2022 at 10:10 AM
    #11
    Jared8907

    Jared8907 txtaco07

    Joined:
    Feb 1, 2017
    Member:
    #209347
    Messages:
    477
    Texas
    Vehicle:
    2015 DCLB 4x4
    Weathertechs Tint Led Interior Method NV TRD Pro Bilstein Suspension Icon AAL CaliRaised sliders

    Thanks for the diagram, I will look into doing that.

  12. Jun 14, 2022 at 8:30 PM
    #12
    xB0WZ3Rx

    xB0WZ3Rx [OP] Member

    Joined:
    May 26, 2021
    Member:
    #366818
    Messages:
    6
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 4Runner Pro
    Does the Upfitter harness come with a green wire for the backlighting?

  13. Jun 14, 2022 at 10:53 PM
    #13
    AtomAnt

    AtomAnt Well-Known Member

    Joined:
    Aug 5, 2019
    Member:
    #301343
    Messages:
    729
    Gender:
    Male
    First Name:
    Adam
    South Cackalacky
    Vehicle:
    2019 TRD Sport
    Yes

  14. Jun 16, 2022 at 7:30 AM
    #14
    Jrunr619

    Jrunr619 Well-Known Member

    Joined:
    Apr 29, 2022
    Member:
    #396119
    Messages:
    64
    Gender:
    Male
    First Name:
    Jason
  15. Jun 22, 2022 at 12:29 PM
    #15
    TacoCop1125

    TacoCop1125 Member

    Joined:
    May 20, 2020
    Member:
    #328643
    Messages:
    13
    Gender:
    Male
    Vehicle:
    2018 LIMITED BR DCSB
    Any guidance would be appreciated.

    So im having issues with my light bar. I am running a BD 40" as a roofrack light bar. The main light wire goes to one of the higher amp positions on my switchpros 9100. The amber backlighting was run to an add a fuse connected to the low beam headlights with an 15 amp fuse (and the 10 amp for the low beams), i also ran the led Raptor style marker lights into this circuit but have severed that wire for the time being.

    With everything connected if i have my headlights activated, the main light on the lightbar will either flicker weakly or not come on at all. When I took out the add a fuse and replaced the standard fuse, i was able to run the headlights and my lightbar together.

    I noticed that on the diagram up top there was a relay that went between the backlight and the fuse, which i do not have. The switchpros has built in relays.
