Need Help with 2008 Tacoma Access Cab Power Pop and Lock Wiring

Discussion in '2nd Gen. Tacomas (2005-2015)' started by TravelingTacoma22, May 24, 2022.

  1. May 24, 2022 at 10:15 AM
    #1
    TravelingTacoma22

    TravelingTacoma22 [OP] Active Member

    Joined:
    Apr 14, 2022
    Member:
    #395019
    Messages:
    29
    Gender:
    Male

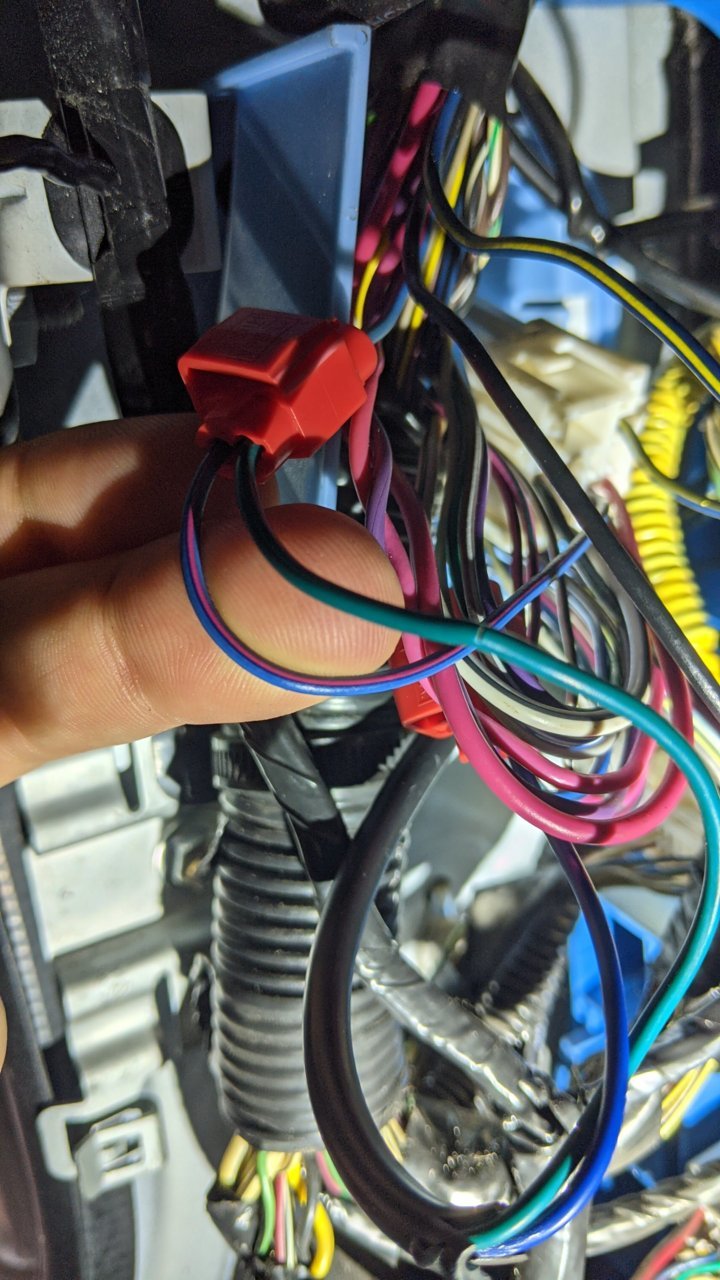

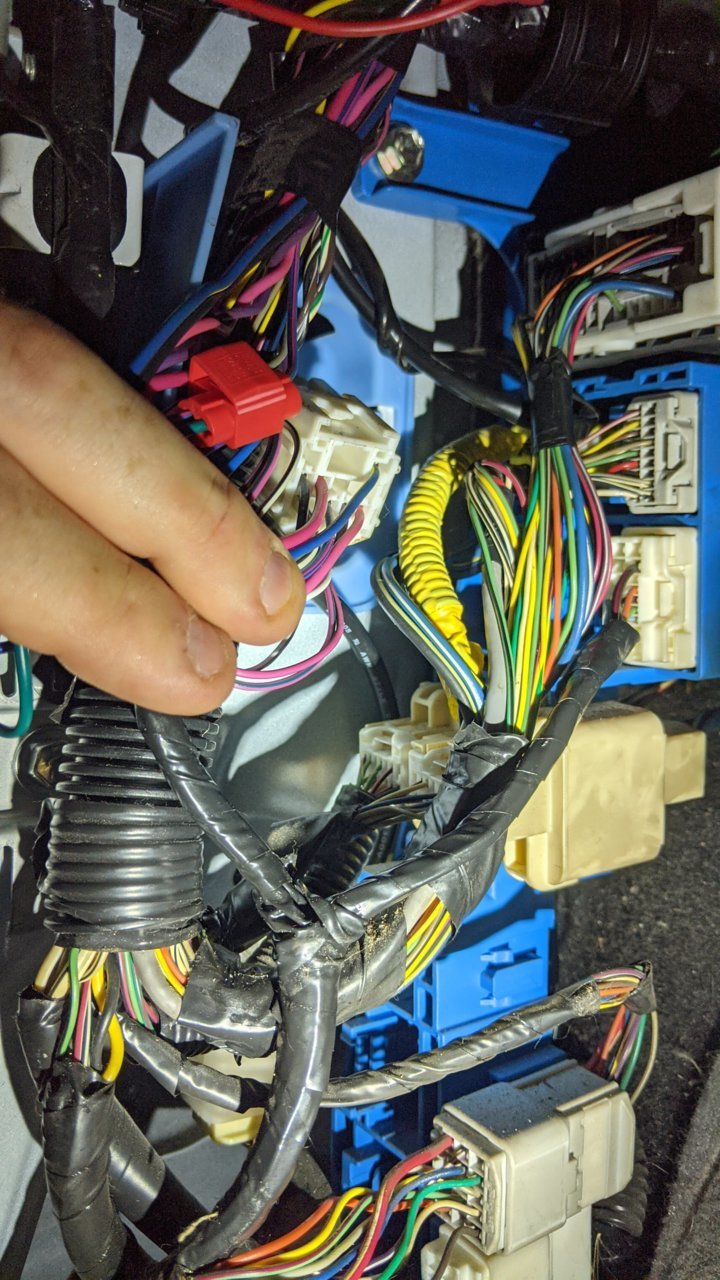

    Hi TW - I'm pretty close to losing my mind, and looking for some help. I just installed the Pop and Lock for my tacoma. I have a 2008 Access cab (2 door), and was told by the tech department that I need to locate the "Blue/Black" wire and "Blue/Red" wire in the kick panel. I've been working on this for like 3 days off/on as a beginner trying to figure it out. I just picked up a multimeter today, and checked the terminals of these two wires which I assumed were the right ones. They both lead to/from, through the boot in the side of the truck, leading to the door. This is why I thought I should be splicing into them....which I did. However, when I attempted to lock/unlock the truck, there was no power to the tailgate.

    I'm just pretty frustrated at this point after putting in all this work. The problem is I have a hard time reading the electric wiring manuals online.

    Is anyone able to guide me along this path to finding the door lock/unlock wires? I just need to know which pin set, area to be looking. It's overwhelming at this time. Like, should I be checking the door locking abilities with the key in the ignition? Also, I did already splice these two wires - Can I simply detach my attached blue and green wires without any problems to the wires that I've already spliced?

    Thanks in advance guys!


  2. May 24, 2022 at 12:24 PM
    #2
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,441
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Blue/Red and Blue/Black look to be the right colors according to my diagram.
    Depending on what button you push, there will either be 12v or Ground on EACH wire.
    Both wires are powered by the ECM, the ECM determines what wire is + or -.

    I’ll try to get you better pics with diagrams later. The drivers side goes through 2 different connectors.
    Which makes explaining where the wires are “harder”.
    (Because it is independent from the rest of the locks)

  3. May 24, 2022 at 12:41 PM
    #3
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,441
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    And yes, you should be able to just remove the splice connector. Tape up the are where the connector pierced the wire.

    Also, Those connectors are NOTORIOUS for making bad connections and causing future problems. I’d be sure you actually have a connection first.

  4. May 24, 2022 at 12:43 PM
    #4
    TACOMA2NDGEN

    TACOMA2NDGEN Well-Known Member

    Joined:
    Jan 24, 2018
    Member:
    #242230
    Messages:
    1,998
    Gender:
    Male
    First Name:
    ROLAND
    new jersey
    Vehicle:
    2010 dcsb silver sport trd
    baja squadron pros

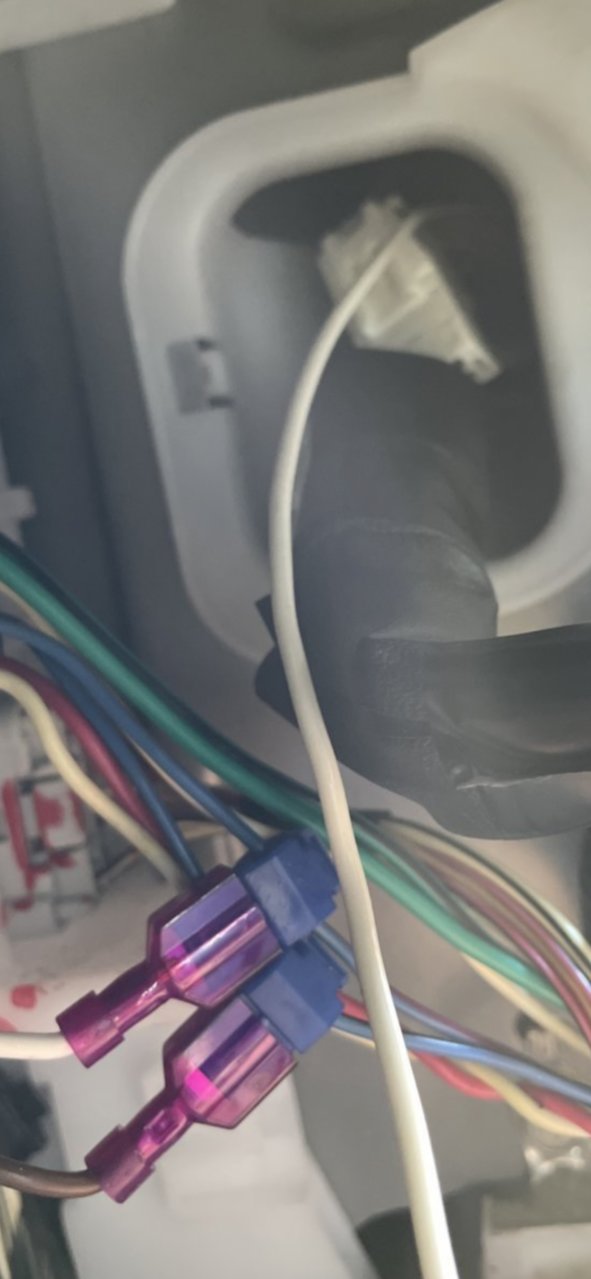

    I tapped my lock on the passenger side Kick panel

    Raylo and TnShooter like this.
  5. May 24, 2022 at 12:44 PM
    #5
    TACOMA2NDGEN

    TACOMA2NDGEN Well-Known Member

    Joined:
    Jan 24, 2018
    Member:
    #242230
    Messages:
    1,998
    Gender:
    Male
    First Name:
    ROLAND
    new jersey
    Vehicle:
    2010 dcsb silver sport trd
    baja squadron pros
  6. May 24, 2022 at 12:46 PM
    #6
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,441
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    I’m curious, when tapping in there do you need to press the unlock button 2x on the key FOB to unlock the tail gate? I believe that connection is for the passenger and rear doors. ( I would prefer it this way myself)

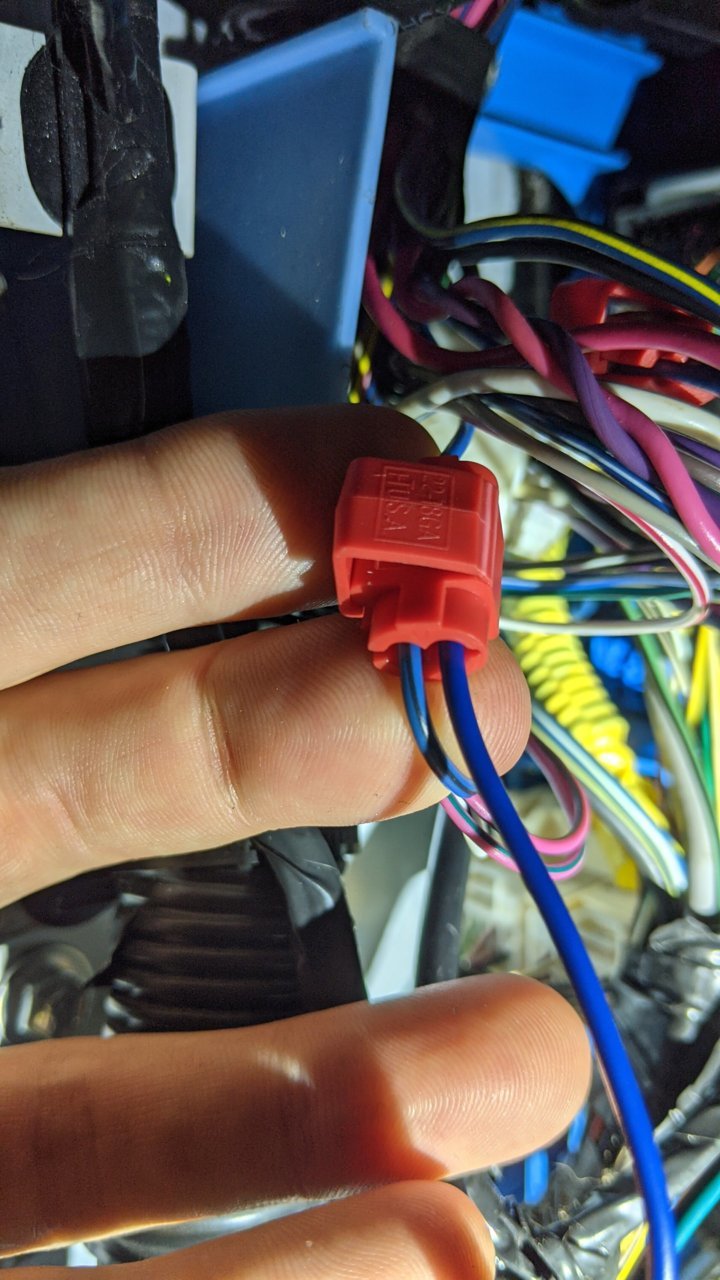

    And I see you used T-taps. Those are better. At least you can test the connection easily. :thumbsup:

  7. May 24, 2022 at 12:48 PM
    #7
    TACOMA2NDGEN

    TACOMA2NDGEN Well-Known Member

    Joined:
    Jan 24, 2018
    Member:
    #242230
    Messages:
    1,998
    Gender:
    Male
    First Name:
    ROLAND
    new jersey
    Vehicle:
    2010 dcsb silver sport trd
    baja squadron pros
    Yes twice to unlock the tailgate. I also used a pace edwards brand t-taps came with the kit.Read to many issues with the pop n lock

    TnShooter[QUOTED] likes this.
  8. May 24, 2022 at 6:07 PM
    #8
    TravelingTacoma22

    TravelingTacoma22 [OP] Active Member

    Joined:
    Apr 14, 2022
    Member:
    #395019
    Messages:
    29
    Gender:
    Male
    Cool thanks for all the information guys. I'll make some changes - I know these are the wires since I confirmed them with the multimeter so I'll just make some changes and use T-Taps, and try the passenger side. Much appreciated!

  9. May 24, 2022 at 6:26 PM
    #9
    STOCKTRD

    STOCKTRD Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62752
    Messages:
    1,319
    Gender:
    Male
    In Traffic
    Vehicle:
    CustomTacos Mafia!
    Nachos, Lemon Heads, My Truck Is Stock!
    Yes, I installed the PopNLock this way as well. Twice on the remote to unlock all the doors and the tailgate. The reasoning is that the tailgate actuator wont get used all the time and wear out faster.

    Also might want to check out this thread. Good info on how to make a manual release incase the actuator does fail. https://www.tacomaworld.com/threads...tall-2012-tacoma.214928/page-25#post-18293856

    Last edited: May 24, 2022
    TnShooter[QUOTED] likes this.
  10. May 24, 2022 at 6:51 PM
    #10
    TravelingTacoma22

    TravelingTacoma22 [OP] Active Member

    Joined:
    Apr 14, 2022
    Member:
    #395019
    Messages:
    29
    Gender:
    Male
    Good advice! Man, this platform is great. I just hopped on a couple months ago and have already saved hundreds in doing my own work since everything else has already been explained/addressed. I don't know how you found this thread from like 10 years ago but I just read through it. Thanks again everyone!

    TnShooter likes this.
  11. May 25, 2022 at 4:12 AM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,811
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

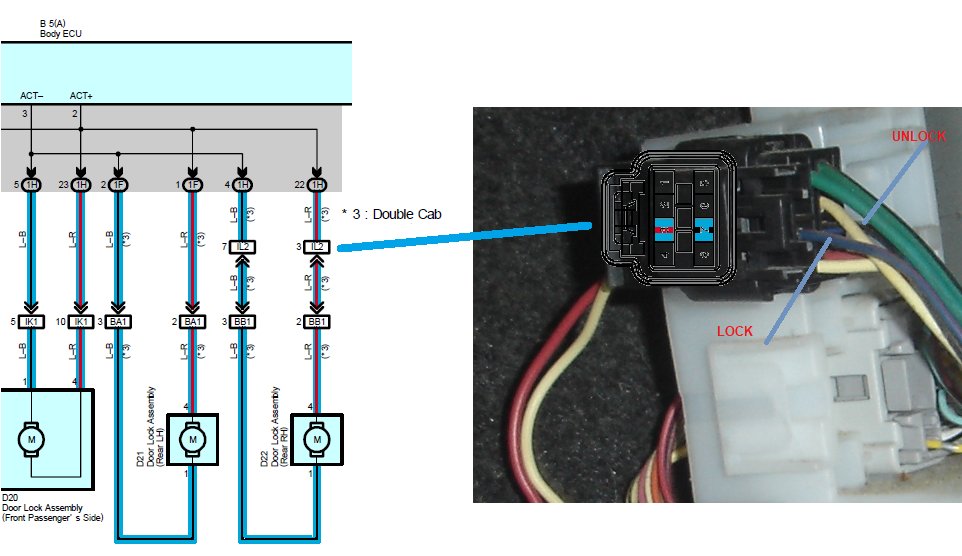

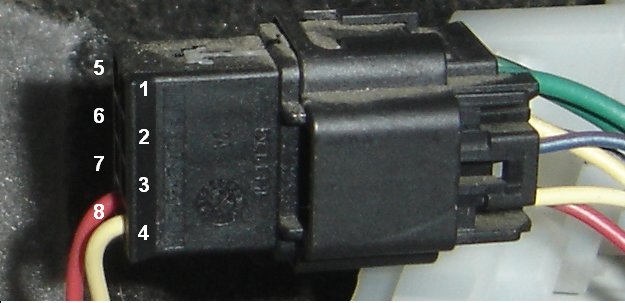

    OP, since you have an access cab, the connector to the rear doors locks is at the front passenger kick panel. The slots in the connector are vacant and can be "populated" with the missing terminals crimped to the pop & lock wires.
    there is also a 20 amp circuit to IL2 from the power window.

    Last edited: Jan 21, 2023
    TnShooter likes this.
  12. Jan 5, 2023 at 7:33 AM
    #12
    wildland89

    wildland89 Well-Known Member

    Joined:
    Oct 7, 2022
    Member:
    #407527
    Messages:
    79
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2013 Tacoma ACLB
    Picking up a little bit of an older thread here. Just found myself doing the same thing, also on an access cab. Tapped the same wires on the driver's side, and no luck. Passenger side it is. Did you just run the wires under/behind the dash to the passenger side kick panel, or re-do everything tailgate to cab on the passenger side?

  13. Jan 20, 2023 at 2:30 PM
    #13
    stonybrook

    stonybrook Well-Known Member

    Joined:
    Nov 14, 2020
    Member:
    #346751
    Messages:
    100
    Santa Fe, NM
    You have any luck? I'm similarly stuck on an '08 access cab. Trouble identifying which wires to tap into.

  14. Jan 21, 2023 at 11:29 AM
    #14
    wildland89

    wildland89 Well-Known Member

    Joined:
    Oct 7, 2022
    Member:
    #407527
    Messages:
    79
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2013 Tacoma ACLB
    I wired it into the passenger side of the truck, works great now. Ran the wiring along the frame, and there's a perfectly placed rubber grommet under the passenger seat. Once you pop the passenger side kick panel, just find the blue and black and blue and pink wires to tap.

    stonybrook[QUOTED] likes this.
