Need help with putting slip yoke back in!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by 757yotas, Jul 28, 2019.

Page 1 of 2
  1. Jul 28, 2019 at 12:09 PM
    #1
    757yotas

    #1
    757yotas [OP] Well-Known Member

    Joined:
    Feb 5, 2015
    Member:
    #147976
    Messages:
    2,105
    Gender:
    Male
    Virginia
    Vehicle:
    2007 TRD Sport
    ICI Magnum front bumer Rigid LED lighting OME lift 285/70 Nitto Exos 17" Fuel Hostage TRD Exhaust TonnauPro Cover Oil Catch Can Tint Pioneer Nav system Sound System LED lighting Euro headlights Paint

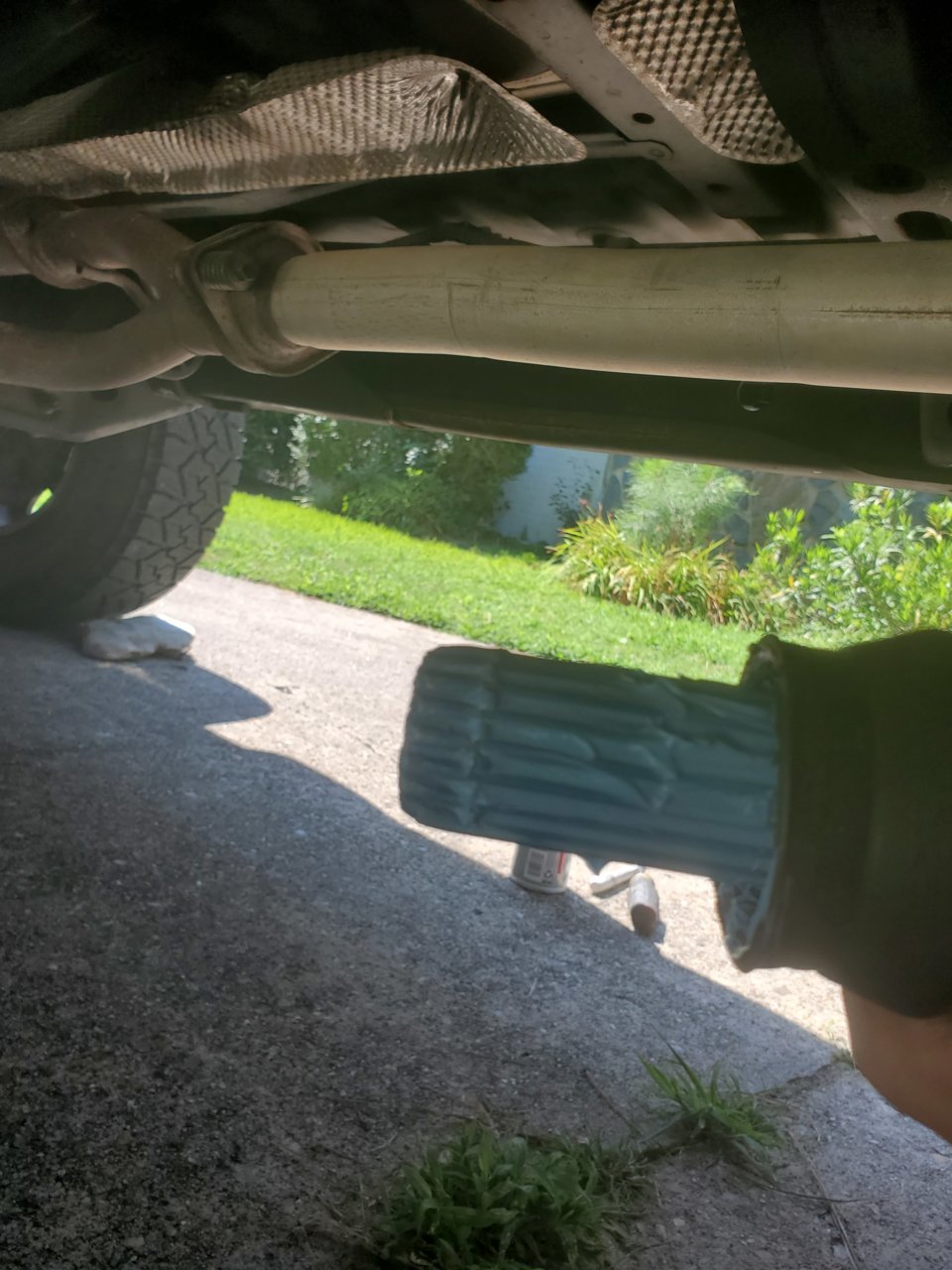

    Hey guys, so I pulled the slip yoke apart to apply
    $19 ford XG-8 PTFE lubricant - 3 oz.
    ford XG-8 grease for the common slip yoke thud. Everything went smooth but now I cant get the thing to slide back together for some reason. I made alignment marks with a paint pen before hand to make sure I aligned it back the same way it came apart. Anyone have any tips for getting it to slide back together? It only goes like 1/4" in and then stops and wont go any further.

    757yotas, Jul 28, 2019
    #1
  2. Jul 28, 2019 at 12:10 PM
    #2
    757yotas

    #2
    757yotas [OP] Well-Known Member

    Joined:
    Feb 5, 2015
    Member:
    #147976
    Messages:
    2,105
    Gender:
    Male
    Virginia
    Vehicle:
    2007 TRD Sport
    ICI Magnum front bumer Rigid LED lighting OME lift 285/70 Nitto Exos 17" Fuel Hostage TRD Exhaust TonnauPro Cover Oil Catch Can Tint Pioneer Nav system Sound System LED lighting Euro headlights Paint

    757yotas, Jul 28, 2019
    #2
  3. Jul 28, 2019 at 12:11 PM
    #3
    ovrlndkull

    #3
    ovrlndkull STUKASFK - HC4LIFE

    Joined:
    Jan 7, 2017
    Member:
    #206806
    Messages:
    37,785
    Gender:
    Male
    First Name:
    Skip
    Burlington, NC
    Vehicle:
    2005 DCLB Silver
    63s, XD Machete, Beat not Babied
    Nothing looks nicked or anything causing it to stop?

    ovrlndkull, Jul 28, 2019
    #3
  4. Jul 28, 2019 at 12:12 PM
    #4
    757yotas

    #4
    757yotas [OP] Well-Known Member

    Joined:
    Feb 5, 2015
    Member:
    #147976
    Messages:
    2,105
    Gender:
    Male
    Virginia
    Vehicle:
    2007 TRD Sport
    ICI Magnum front bumer Rigid LED lighting OME lift 285/70 Nitto Exos 17" Fuel Hostage TRD Exhaust TonnauPro Cover Oil Catch Can Tint Pioneer Nav system Sound System LED lighting Euro headlights Paint
    No I cleaned everything with brake parts cleaner and inspected everything very well. It came apart super easy

    757yotas, Jul 28, 2019
    #4
  5. Jul 28, 2019 at 12:14 PM
    #5
    ovrlndkull

    #5
    ovrlndkull STUKASFK - HC4LIFE

    Joined:
    Jan 7, 2017
    Member:
    #206806
    Messages:
    37,785
    Gender:
    Male
    First Name:
    Skip
    Burlington, NC
    Vehicle:
    2005 DCLB Silver
    63s, XD Machete, Beat not Babied
    Too much grease causing a seal and you are trying to compress the trapped air in the yoke or compress the grease????? That's all I got. Seems really random and weird, without hands on it really hard to say and give any good input as to a solution.

    ovrlndkull, Jul 28, 2019
    #5
  6. Jul 28, 2019 at 12:15 PM
    #6
    757yotas

    #6
    757yotas [OP] Well-Known Member

    Joined:
    Feb 5, 2015
    Member:
    #147976
    Messages:
    2,105
    Gender:
    Male
    Virginia
    Vehicle:
    2007 TRD Sport
    ICI Magnum front bumer Rigid LED lighting OME lift 285/70 Nitto Exos 17" Fuel Hostage TRD Exhaust TonnauPro Cover Oil Catch Can Tint Pioneer Nav system Sound System LED lighting Euro headlights Paint
    Ya I cant figure it out. I didnt notice a master spline but maybe there is one?

    757yotas, Jul 28, 2019
    #6
  7. Jul 28, 2019 at 12:15 PM
    #7
    ovrlndkull

    #7
    ovrlndkull STUKASFK - HC4LIFE

    Joined:
    Jan 7, 2017
    Member:
    #206806
    Messages:
    37,785
    Gender:
    Male
    First Name:
    Skip
    Burlington, NC
    Vehicle:
    2005 DCLB Silver
    63s, XD Machete, Beat not Babied
    Possibly I have never taken mine apart to know.

    ovrlndkull, Jul 28, 2019
    #7
  8. Jul 28, 2019 at 12:18 PM
    #8
    Shelf Life

    #8
    Shelf Life Well-Known Member

    Joined:
    Oct 3, 2014
    Member:
    #139592
    Messages:
    6,686
    Gender:
    Male
    First Name:
    Rob
    Central Oregon
    Vehicle:
    '06 ACC CAB 4x4 TRD OFF ROAD
    Look for the flat spot and line it up. I think it's called an index tooth? It only goes on one way . If all your markings were correct it should line up.

    Shelf Life, Jul 28, 2019
    #8
  9. Jul 28, 2019 at 12:21 PM
    #9
    757yotas

    #9
    757yotas [OP] Well-Known Member

    Joined:
    Feb 5, 2015
    Member:
    #147976
    Messages:
    2,105
    Gender:
    Male
    Virginia
    Vehicle:
    2007 TRD Sport
    ICI Magnum front bumer Rigid LED lighting OME lift 285/70 Nitto Exos 17" Fuel Hostage TRD Exhaust TonnauPro Cover Oil Catch Can Tint Pioneer Nav system Sound System LED lighting Euro headlights Paint
    Flat spot on the Male or female end?

    757yotas, Jul 28, 2019
    #9
  10. Jul 28, 2019 at 12:32 PM
    #10
    757yotas

    #10
    757yotas [OP] Well-Known Member

    Joined:
    Feb 5, 2015
    Member:
    #147976
    Messages:
    2,105
    Gender:
    Male
    Virginia
    Vehicle:
    2007 TRD Sport
    ICI Magnum front bumer Rigid LED lighting OME lift 285/70 Nitto Exos 17" Fuel Hostage TRD Exhaust TonnauPro Cover Oil Catch Can Tint Pioneer Nav system Sound System LED lighting Euro headlights Paint
    Nothing??

    757yotas, Jul 28, 2019
    #10
  11. Jul 28, 2019 at 12:35 PM
    #11
    Shelf Life

    #11
    Shelf Life Well-Known Member

    Joined:
    Oct 3, 2014
    Member:
    #139592
    Messages:
    6,686
    Gender:
    Male
    First Name:
    Rob
    Central Oregon
    Vehicle:
    '06 ACC CAB 4x4 TRD OFF ROAD



    Should be a groove that lines up on both parts.




    [​IMG]

    Last edited: Jul 28, 2019
    Shelf Life, Jul 28, 2019
    #11
    PzTank likes this.
  12. Jul 28, 2019 at 12:41 PM
    #12
    757yotas

    #12
    757yotas [OP] Well-Known Member

    Joined:
    Feb 5, 2015
    Member:
    #147976
    Messages:
    2,105
    Gender:
    Male
    Virginia
    Vehicle:
    2007 TRD Sport
    ICI Magnum front bumer Rigid LED lighting OME lift 285/70 Nitto Exos 17" Fuel Hostage TRD Exhaust TonnauPro Cover Oil Catch Can Tint Pioneer Nav system Sound System LED lighting Euro headlights Paint

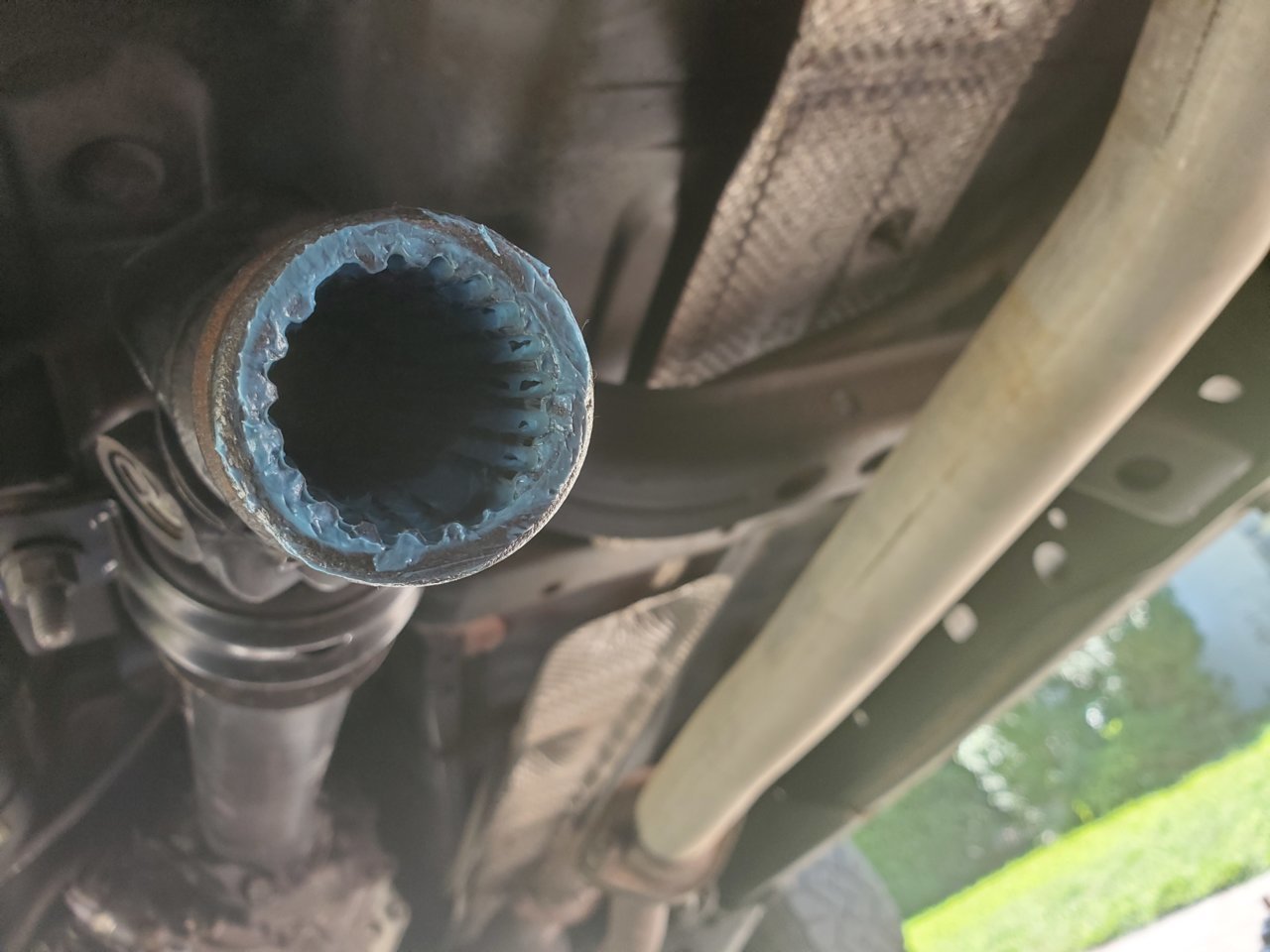

    There is no groove, even spaced splines on the shaft. The yoke has 2 wider grooves cut out 180 degrees from each other in the female end tho.

    757yotas, Jul 28, 2019
    #12
  13. Jul 28, 2019 at 12:45 PM
    #13
    757yotas

    #13
    757yotas [OP] Well-Known Member

    Joined:
    Feb 5, 2015
    Member:
    #147976
    Messages:
    2,105
    Gender:
    Male
    Virginia
    Vehicle:
    2007 TRD Sport
    ICI Magnum front bumer Rigid LED lighting OME lift 285/70 Nitto Exos 17" Fuel Hostage TRD Exhaust TonnauPro Cover Oil Catch Can Tint Pioneer Nav system Sound System LED lighting Euro headlights Paint
    You can see where it stops from the grease build up on the Male end


    757yotas, Jul 28, 2019
    #13
  14. Jul 28, 2019 at 12:48 PM
    #14
    Sharpish

    #14
    Sharpish Well-Known Member

    Joined:
    Jan 4, 2016
    Member:
    #173981
    Messages:
    3,826
    Gender:
    Male
    First Name:
    Brian
    Victoria, British Columbia, Canada
    Vehicle:
    2012 Tacoma TRD OR 4x4
    Too much grease? You might be trying to compress grease as it slides in.

    Sharpish, Jul 28, 2019
    #14
    gotoman1969 and Shelf Life like this.
  15. Jul 28, 2019 at 12:48 PM
    #15
    Shelf Life

    #15
    Shelf Life Well-Known Member

    Joined:
    Oct 3, 2014
    Member:
    #139592
    Messages:
    6,686
    Gender:
    Male
    First Name:
    Rob
    Central Oregon
    Vehicle:
    '06 ACC CAB 4x4 TRD OFF ROAD


    Your right, sorry about that. It's only on the female end. They can be touchy to line up. You just have to finesse it around until it slides in.

    Shelf Life, Jul 28, 2019
    #15
  16. Jul 28, 2019 at 12:54 PM
    #16
    757yotas

    #16
    757yotas [OP] Well-Known Member

    Joined:
    Feb 5, 2015
    Member:
    #147976
    Messages:
    2,105
    Gender:
    Male
    Virginia
    Vehicle:
    2007 TRD Sport
    ICI Magnum front bumer Rigid LED lighting OME lift 285/70 Nitto Exos 17" Fuel Hostage TRD Exhaust TonnauPro Cover Oil Catch Can Tint Pioneer Nav system Sound System LED lighting Euro headlights Paint
    I just got it. There is a small and I mean very small change in depth between 2 spline teeth that have to be lined up with the larger gap in the female end. No body online explains this so dont forget if you do yours. Could have saved me an hour

    757yotas, Jul 28, 2019
    #16
    spitdog and Shelf Life like this.
  17. Jul 28, 2019 at 1:09 PM
    #17
    Shelf Life

    #17
    Shelf Life Well-Known Member

    Joined:
    Oct 3, 2014
    Member:
    #139592
    Messages:
    6,686
    Gender:
    Male
    First Name:
    Rob
    Central Oregon
    Vehicle:
    '06 ACC CAB 4x4 TRD OFF ROAD


    :anonymous: I do know that Napa auto has those light weight crimp clamps for the boot. Toyota doesn't sell them.

    Shelf Life, Jul 28, 2019
    #17
  18. Jul 28, 2019 at 1:13 PM
    #18
    Sharpish

    #18
    Sharpish Well-Known Member

    Joined:
    Jan 4, 2016
    Member:
    #173981
    Messages:
    3,826
    Gender:
    Male
    First Name:
    Brian
    Victoria, British Columbia, Canada
    Vehicle:
    2012 Tacoma TRD OR 4x4
    How often should the slip joint be taken apart, cleaned, greased?

    I grease all the u joint zerks every oil change but haven't touched the slip joint.

    Sharpish, Jul 28, 2019
    #18
  19. Jul 28, 2019 at 1:20 PM
    #19
    Shelf Life

    #19
    Shelf Life Well-Known Member

    Joined:
    Oct 3, 2014
    Member:
    #139592
    Messages:
    6,686
    Gender:
    Male
    First Name:
    Rob
    Central Oregon
    Vehicle:
    '06 ACC CAB 4x4 TRD OFF ROAD



    No set maintenance on it. I did mine when I felt the clunk and knew everything else was lubed, around 70K. It's a crying shame there is no grease fitting on it. Toyota doesn't even have the proper lube, or the clamps to put back on the boot. Ya gotta use the stuff from Ford. The lifetime factory lubrication is a joke.

    Shelf Life, Jul 28, 2019
    #19
    spitdog likes this.
  20. Jul 28, 2019 at 1:25 PM
    #20
    Jason TRD OR

    #20
    Jason TRD OR SIBI BUILT LLC

    Joined:
    Feb 19, 2017
    Member:
    #211030
    Messages:
    1,363
    Gender:
    Male
    First Name:
    Jason
    Sibi Built LLC Placentia, CA
    Vehicle:
    16 Tacoma TRD Off Road 4X4
    King suspension w/ compression adjusters custom valving and 700# coils. Icon DJ uca. Icon RXT leafs Option #3. Durobumps. Demello rock sliders. Demello 30” Light Bar Baja Hoop bumper with Smittybuilt X2O winch w/ Amber baja design fogs w/ single row Baja Designs S8 amber light bar. Brute force Fab HC rear bumper. Behind Grille Light bar. TRD Pro Skid plate. Pelfrey Mid and Transfer case skid. TC spindle and cam tab gussets. Pop and lock. Method NV wheels 16”. SpiderTrax 1.25” wheel adapters. Yokohama Geolandar M/T (315/75/16). CMC. Radiator core reinforcement. Pro grille. Tailgate inlays. Baja Designs A pillar Ditch lights. Leer 100 XQ shell w/ power locks. In bed mounted spare. Blacked out emblems. Bed Mat. Bed Stiffeners. K&N air filter. Black Headlight Mod w/ LED projectors. Wrap Armor Anti glare hood and bedside decals. American flag decals. Northstar 24F AGM Pro battery. Differential breather relocate to rear tail light. Prinsu Designs Cabrack and Cap rack. OVTUNE Sibi Custom performance 4.88 91 fuel AGM . Nitro Gear 4:88 gears. Mountain hatch tailgate insert. In bed mounted Krazy Beaver shovel with Relentless quick fist bedrail mounts. MESO ultimate turn signals. AJT Designs Quicksand Key Fob. ECGS front needle bearing bushing replacement. Tepui LoPro 2 RTT.
    It only goes in one way just keep rotating it

    Jason TRD OR, Jul 28, 2019
    #20
