NEED info for headunit connector

Discussion in 'Audio & Video' started by elk218, May 4, 2024.

  1. May 4, 2024 at 7:57 AM
    #1
    elk218

    #1
    elk218 [OP] New Member

    Joined:
    Jan 3, 2022
    Member:
    #386242
    Messages:
    2
    Gender:
    Male
    Vehicle:
    2018 Silver Tacoma TRD Off-Road

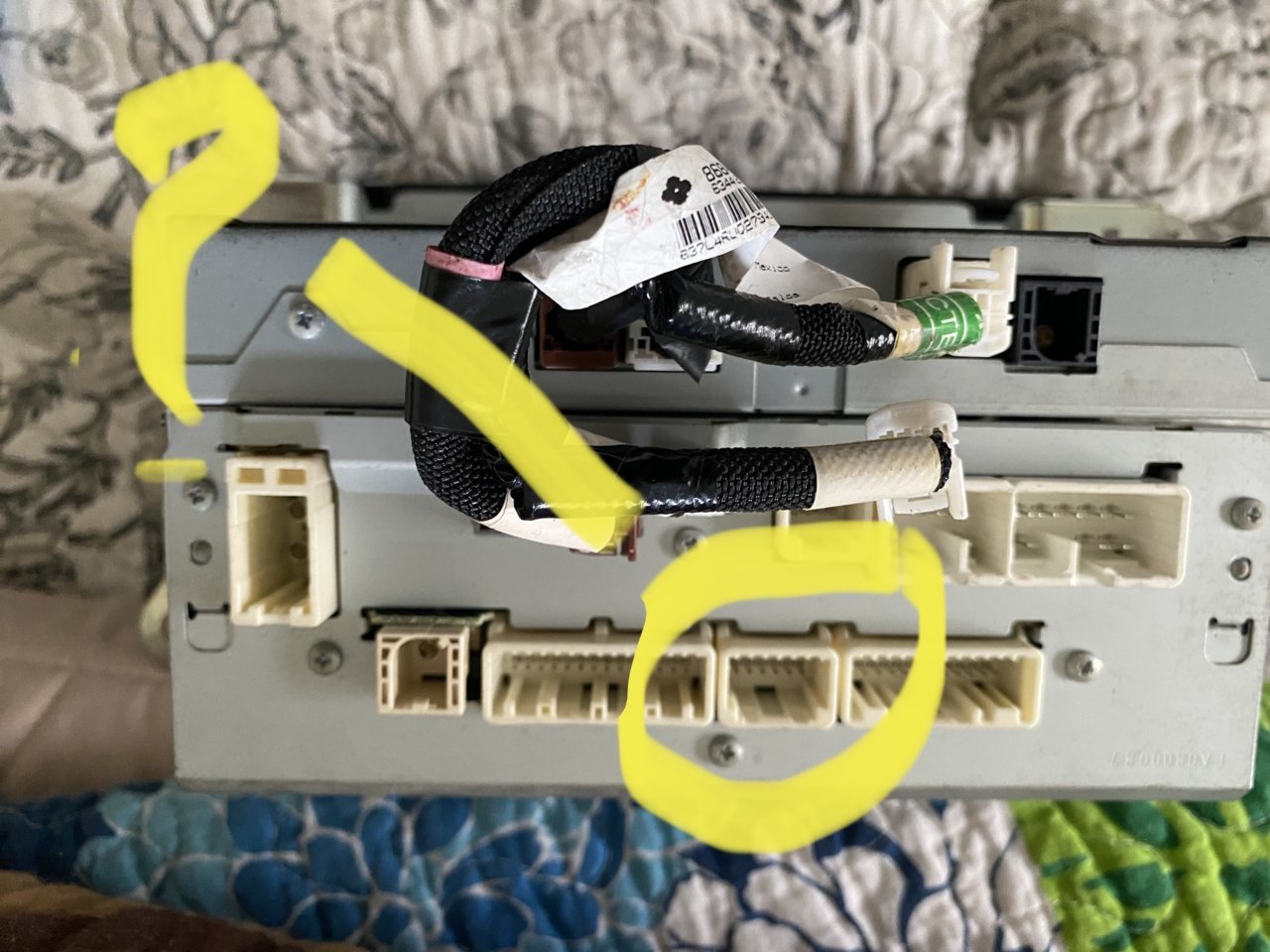

    Does anyone know what this connector for? What each pin is wired to? Any info would frig’n awesome!

    2018 Tacoma TRD Off-Road
    Entune w/ navigation
    w/o JBL

    thx…TcreW


    elk218, May 4, 2024
    #1
  2. May 4, 2024 at 8:20 AM
    #2
    rnish

    #2
    rnish Well-Known Member

    Joined:
    May 9, 2014
    Member:
    #129450
    Messages:
    8,548
    Gender:
    Male
    Peoples Republic of Maryland (USA)
    Vehicle:
    Tacoma 2nd gen
    King's, Camburg UCA, Dirt King LCA, armor
    Some more information what you are planning will be helpful. Aftermarket wire harness(s) are available and make custom wire jobs easier.

    rnish, May 4, 2024
