Needing help on wiring/electrical

Discussion in '3rd Gen. Tacomas (2016-2023)' started by notbryon, Feb 28, 2022.

  1. Feb 28, 2022 at 5:19 PM
    #1
    notbryon

    notbryon [OP] Well-Known Member

    Joined:
    Sep 17, 2020
    Member:
    #341121
    Messages:
    465
    Gender:
    Male
    First Name:
    Bryon
    Steelton, PA 17113
    Vehicle:
    2017 TRD Sport AC
    I am going to be running/wiring 3 different auxiliary lights very soon and plan on giving a try doing all the electrical myself rather than asking my friend to help.

    1. A-pillar ditch lights
    2. Rear bumper lights
    3. Hood scoop LED bar

    These are all gonna run dash switches in the cab. I guess my big questions are can all the ground wires be sandwiched on the positive terminal of my standard battery? Same question for the negative grounds can they all be grounded at the same spot? Where would I mount all 3 relays? And what is the best way to keep the wiring looking tidy in the engine bay aside from zip ties? Will this all be too much for my standard battery to support??

    **2017 Tacoma TRD Sport if that matters**

    Any help and feedback is appreciated!

  2. Feb 28, 2022 at 5:20 PM
    #2
    notbryon

    notbryon [OP] Well-Known Member

    Joined:
    Sep 17, 2020
    Member:
    #341121
    Messages:
    465
    Gender:
    Male
    First Name:
    Bryon
    Steelton, PA 17113
    Vehicle:
    2017 TRD Sport AC
    Posted this in the lighting forum also..just looking to get additional traction

  3. Feb 28, 2022 at 5:23 PM
    #3
    758_Moto

    758_Moto Well-Known Member

    Joined:
    May 1, 2020
    Member:
    #326496
    Messages:
    294
    Gender:
    Male
    Vehicle:
    2004 LT Taco, 2019 Taco
    2019: Icon Coilovers/UCA/AAL, 16x8 Methods/285 Duratracs, URD Spec-U Exhaust, Nexus +P Tune 2004: Chaos LT w/Kings/62" Deavers/12" TC Shackles, Glassworks hood/fenders/bedsides, TRD SC, URD fuel mods/lightweight flywheel/10psi Pulley, JBA Headers, TT Supra MAF
    Very easy install. If you go to caliraisedled.com they have instructional videos, which are essentially the same no matter what type of lights you're installing. You'll hook all 3 up.to the battery and it won't be an issue.

  4. Feb 28, 2022 at 7:14 PM
    #4
    ktbell444

    ktbell444 One who throws exceptions

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    2,969
    Gender:
    Male
    ᚺᛖᛚᚺᛖᛁᛗ
    Safest practice would be to have a low amperage circuit pass through the switch to close the relay. Battery power will be what passes through the relay at that point. That prevents high current going through the switch.
    This is fine. Or a good ground on the chassis.
    There is a relay mount that Cali Raised sells, which mounts on the driver's side in the engine bay.
    Wire loom or convolex tubing.
    Should be, especially if your taco has the tow package. But even if it doesn't, I can't imagine you would run into any issues if the engine is running.

  5. Feb 28, 2022 at 7:19 PM
    #5
    Superdave1.0

    Superdave1.0 Grandma Dave

    Joined:
    Dec 27, 2018
    Member:
    #277158
    Messages:
    5,966
    Gender:
    Male
    SoCal
    Vehicle:
    LX470

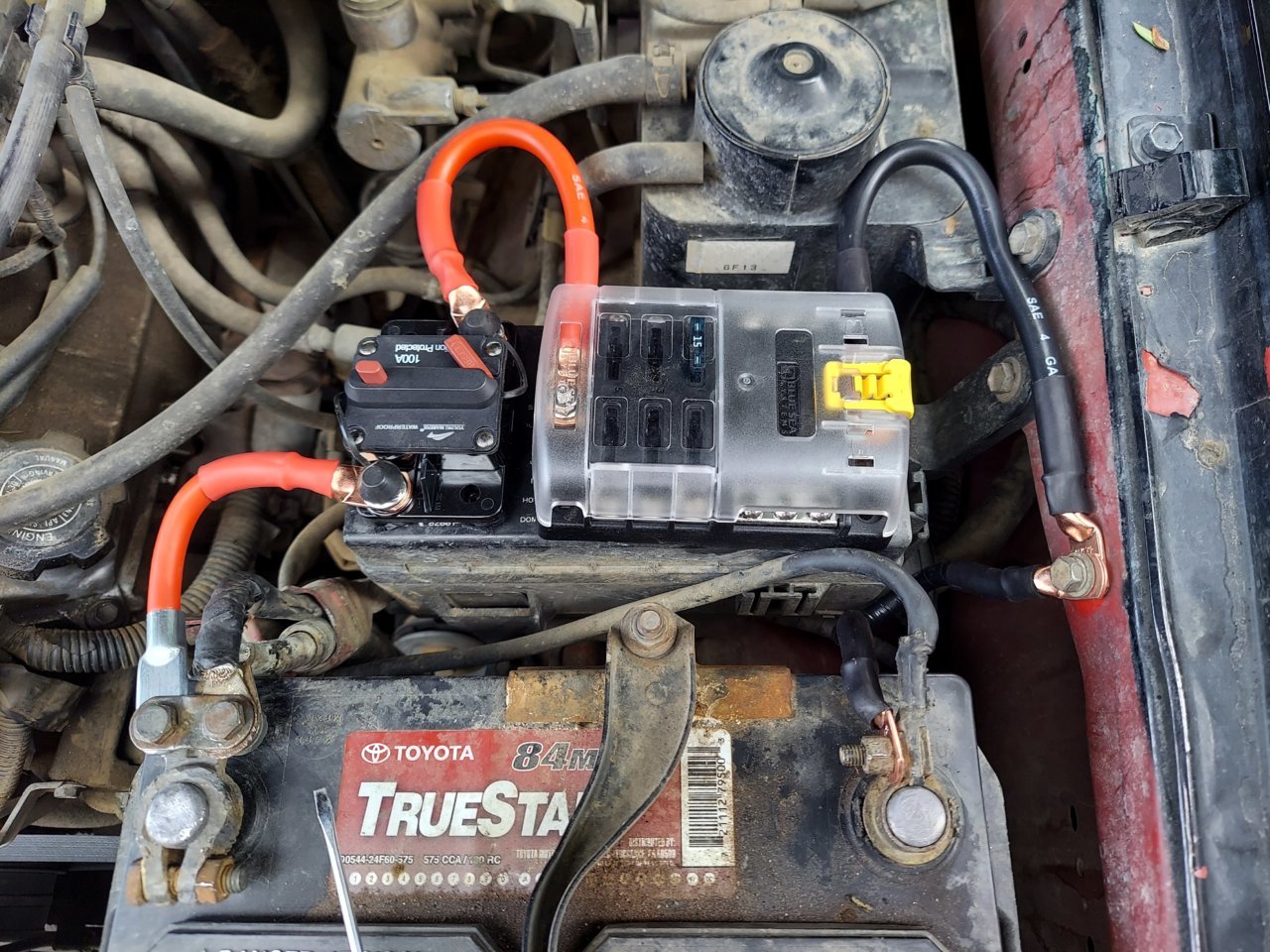

    I installed a couple fuse box set ups recently. Would be best to have an AUX fuse box like this one below from blue sea. Also a fuse in-between. Safer than going straight to the battery IMO.


  6. Feb 28, 2022 at 7:32 PM
    #6
    notbryon

    notbryon [OP] Well-Known Member

    Joined:
    Sep 17, 2020
    Member:
    #341121
    Messages:
    465
    Gender:
    Male
    First Name:
    Bryon
    Steelton, PA 17113
    Vehicle:
    2017 TRD Sport AC
    Thank you both @Superdave1.0 & @ktbell444 for the info…starting to understand more. I don’t mind having wired dash switches going thru the firewall into the engine. Beyond that I am looking for the layman setup for the wiring and relays without looking like a rats nest. Was going to ge this:
    https://overlandequipped.com/products/complete-auxiliary-power-kit-for-3rd-generation-toyota-tacoma-2016-present

    But then I still have to find a spot or mount 3 relays correct for each component, correct?

  7. Feb 28, 2022 at 7:48 PM
    #7
    Phil61s

    Phil61s Well-Known Member

    Joined:
    Apr 5, 2021
    Member:
    #361770
    Messages:
    72
    Gender:
    Male
    N PHX
    Vehicle:
    2021 Tacoma SR 4x4

    That is what I just received in the mail today, the "Overland kit". Will install this weekend:thumbsup:

  8. Feb 28, 2022 at 8:16 PM
    #8
    ktbell444

    ktbell444 One who throws exceptions

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    2,969
    Gender:
    Male
    ᚺᛖᛚᚺᛖᛁᛗ
  9. Feb 28, 2022 at 9:21 PM
    #9
    Coldies

    Coldies Well-Known Member

    Joined:
    Jan 2, 2022
    Member:
    #386176
    Messages:
    91
    Gender:
    Male
    First Name:
    Travis
    San Diego
    Vehicle:
    2020 TRD Off-road 4x4 DCSB
    So I’ve got two lights (light bar and ditch lights) on relays running on my positive and negative on the battery. Hard to explain unless you had the hood open , but I ran my wires from the battery to the access into truck through the rubber grommet/firewall behind the plastic valance that’s right next to the fender. The wires, if allowed, would fall into the fender well if not zip tied. My relays are tucked away as well. I’m gonna be adding chase lights as well and then be done! Ill grab a photo tomorrow if you need it.

  10. Mar 1, 2022 at 12:37 AM
    #10
    Absolut_Boost

    Absolut_Boost Well-Known Member

    Joined:
    Jun 23, 2021
    Member:
    #369355
    Messages:
    482
    Gender:
    Male
    Cincinnati, OH
    Vehicle:
    2021 Tacoma TRD OR DCSB Cement
    overkill for what you are planning, but a switch-pros sp-9100 offers arguably the cleanest wiring possible and eliminates the need for relays.

    ktbell444 likes this.
  11. Mar 1, 2022 at 3:29 AM
    #11
    ktbell444

    ktbell444 One who throws exceptions

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    2,969
    Gender:
    Male
    ᚺᛖᛚᚺᛖᛁᛗ
    I considered suggesting that, as I have one as well. Definitely beats cramming wires through the firewall every time I get something to add to a switch.

  12. Mar 1, 2022 at 4:20 AM
    #12
    notbryon

    notbryon [OP] Well-Known Member

    Joined:
    Sep 17, 2020
    Member:
    #341121
    Messages:
    465
    Gender:
    Male
    First Name:
    Bryon
    Steelton, PA 17113
    Vehicle:
    2017 TRD Sport AC
    I am thinking one of those might be the route to go as that looks to eliminate the need for relays. The switch pros is $600 which I not really budgeted for with all the lights I already bought. Is there a more budget friendly option that isn’t a total piece of crap?

    @ktbell444
    @Absolut_Boost

  13. Mar 1, 2022 at 8:51 AM
    #13
    ktbell444

    ktbell444 One who throws exceptions

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    2,969
    Gender:
    Male
    ᚺᛖᛚᚺᛖᛁᛗ
    I got my switch pro through @memario1214.

    See if he's got any. I got mine for a great price through him.

    memario1214 likes this.
  14. Mar 1, 2022 at 9:01 AM
    #14
    memario1214

    memario1214 Hotshot Offroad Moderator Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    20,006
    Gender:
    Male
    First Name:
    Colton
    Missoula, MT
    Vehicle:
    SOLD - 05 Dub Cab TRD Sport 4x4, CURRENT - '21 Tundra MGM Limited
    Appreciate the nod @ktbell444 :cheers:

    Hey @notbryon I think I MAY just have when you need. I have a new (but technically used since some wires have been bared) AAC Trigger 4 system sitting here. Might be just perfect for your use case. :notsure:
    Details on this unit here -
    https://triggercontroller.com/product/trigger-4-plus-controller/

    ktbell444[QUOTED] likes this.
  15. Mar 1, 2022 at 9:06 AM
    #15
    Froth

    Froth Well-Known Member

    Joined:
    Oct 17, 2015
    Member:
    #166886
    Messages:
    46
    Gender:
    Male
    First Name:
    fred
    Vehicle:
    2016 taco
    When your running the wires thru the firewall, you can add a drop of dish soap to the end, it helps reduce friction and makes pulling the wires a lot easier thru the rubber grommet...

    Travace and AmateurTaco1313 like this.
  16. Mar 1, 2022 at 9:20 AM
    #16
    Fletcher37

    Fletcher37 Well-Known Member

    Joined:
    Aug 28, 2019
    Member:
    #303607
    Messages:
    393
    PNW
    If the Trigger 4 doesn't fit your needs, I bought a VOSwitch unit. Takes up to 8 accessories. It is working out great. I have the ditch light, fog lights, rear lights, front camera, driving lights attached to it. May add the fridge once it is hard-wired.

    I like that I only had to run 1 to 2 wires into the firewall to control up to 8 accessories on the switch panel inside. There is no need for tmounting relays all over the place. The VOSwitch has them inside. Neat and tidy.

    I also mounted a busbar on the inside engine bay wall near the ground terminals. The busbar organizes my ground wires neatly.

    These guys offer a discount if you use their code on VOSwitch's site:
    https://www.youtube.com/watch?v=A5L7bFDlWOo

    discount code-- vos398768 on https://www.voswitch.com

    It was like 20% off when I tried it.

    The install was easy. I glued the VOSwitch unit to the top of my engine bay fuse box lid. (I had fabbed up a metal mount but it looked cluttered so I ditched it.).

  17. Mar 1, 2022 at 8:22 PM
    #17
    Absolut_Boost

    Absolut_Boost Well-Known Member

    Joined:
    Jun 23, 2021
    Member:
    #369355
    Messages:
    482
    Gender:
    Male
    Cincinnati, OH
    Vehicle:
    2021 Tacoma TRD OR DCSB Cement
    I'm the wrong person to ask that question, lol. I learned a long time ago when I bought my first AR to "buy once, cry once." I bought a stock DPMS and by the time I got finished changing everything I wanted to change, I was able to buy just a stripped lower and had my original rifle back together in addition to the one I had essentially built from scratch. I sucked it up and sprung for the SP-9100 rather than settle for something else, not be happy with it and then buy the switch-pros anyway.

    ktbell444 likes this.
  18. Mar 1, 2022 at 8:39 PM
    #18
    oostroma

    oostroma (Boomer)

    Joined:
    Aug 21, 2017
    Member:
    #227497
    Messages:
    4,169
    Gender:
    Male
    Ontario
    Vehicle:
    2017 TRD OR access cab- BBP colour
    TRD emblems, tinted windows, OEM running boards, AVS vent shades, RMAS upgrade, LED lights in front and rear, interior LED lighting upgrade, LED lighting in bed, touch control dash mount for LED lighting, auxillary 12v and USB jacks in bed, replace all speakers with Infinity, custom mod with Bose tweeters, TRD Pro illumination mod...
    I would suggest a relay kit if you are planning more than 2x aux lights. I put my relay kit in a project box fastened on top of the fuse box.


  19. Mar 1, 2022 at 9:35 PM
    #19
    Travace

    Travace Well-Known Member

    Joined:
    Jan 4, 2022
    Member:
    #386305
    Messages:
    246
    Gender:
    Male

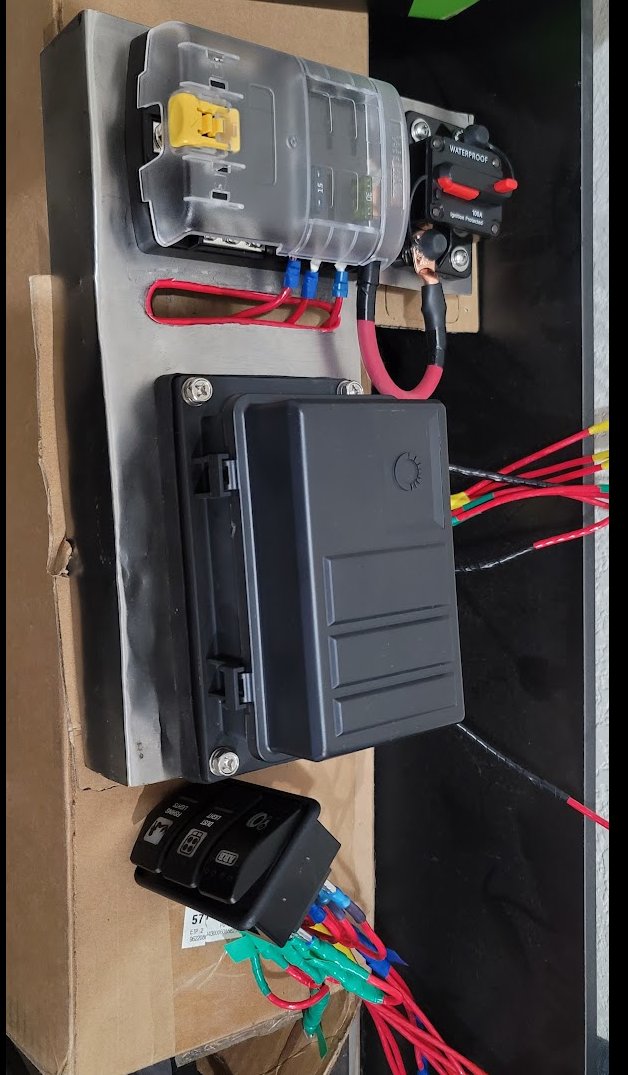

    im doing almost exactly this but with a added waterproof relay box. just need to install it all.

    Superdave1.0[QUOTED] likes this.
  20. Mar 1, 2022 at 10:08 PM
    #20
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,492
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    If you think these 3 lights are all you'll be hooking up, I would look into a GEP fuse/relay set up. FRH-A24 | GEP PP 24 Way Fuse Relay Holder (customconnectorkits.com) They are pretty small and can be configured any way you want. A lot of tray set-ups seem like overkill to me for 3 lights. A 24 position GEP could hold 3 relays, 3 fuses, and a buss for power. If you don't mind doubling a wire, you could even make a ground buss. Then you have one wire (like a 12 gauge should be more than enough) for positive and one wire for negative going back to the battery. You could get an inexpensive crimper and learn how to crimp easy enough. If you want the wires to look good running through the truck, split loom is a good choice. If you really want that OEM look, consider wrapping them in a friction tape AmazonSmile: Inline Tube 2 Rolls Factory Electrical Non Adhesive Wiring Harness Friction Tape OEM (J-10-9) : Automotive Don't use electrical tape for this though. It eventually shrinks back and leaves a stick mess. Feel free to PM me if you need a hand. I remember what it was like learning this stuff (I am still learning it after a lot of years), so I am always happy to help someone starting out.

    ktbell444 and notbryon[OP] like this.
