New and improved DTRL's, Parking light (LS1 Mod)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by arvizu9618, Aug 22, 2011.

  1. Aug 22, 2011 at 2:11 PM
    #1
    arvizu9618

    arvizu9618 [OP] Well-Known Member

    Joined:
    Aug 22, 2011
    Member:
    #62143
    Messages:
    92
    Gender:
    Male
    First Name:
    RT
    PHX AZ
    Vehicle:
    06 D-Cab SPORT SB
    Map/Dome Light on same time, Beep onLock, Anytime DTRL's, Fog Light on any time, Cockpit lights in footwells, night light in cup holder and rear of console, Radio ON w/ ignition off (off with timer), 3157 socket for rear turn signals (BRIGHTER), Reverse Light Mod, Tap light in console and engine bay, removed screen prior to MAP sensor, Blacked out lower valance, badges, center caps and door handles, Added door sill plates, JVC-KDHDR50 Head unit (HD Baby), Tinted exterior lights, Borla Exhaust.
    If you have an LS1 like I do, you probably know that the Parking lights turn on and stay on with the ignition ON, very cool look.

    To do this for our Tacos, heres all you've got to do:

    Parts needed:
    1 3M wire tap
    wire cutters
    electrical tape

    Steps:

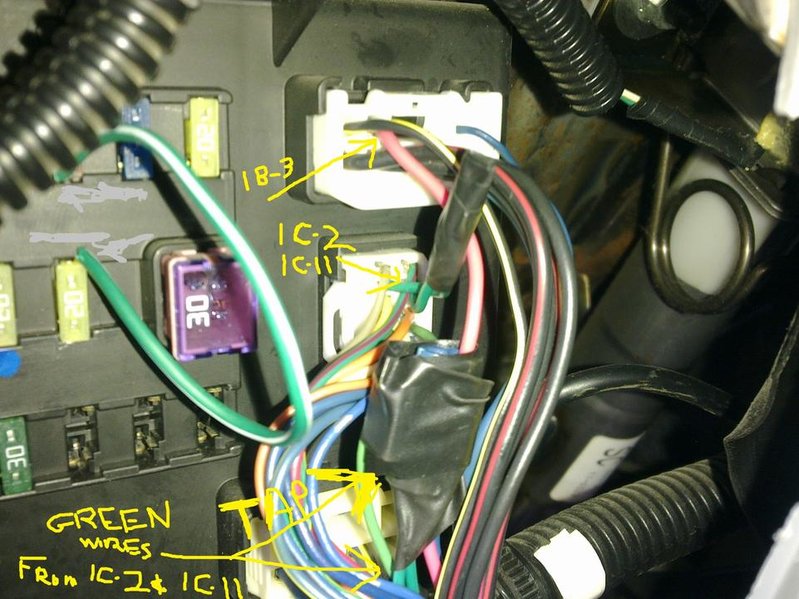

    1. Locate harness 1B and 1C at Driver Side J/B, Easier if you unplug 1B and 1C
    2. Cut green wires at 1C-2 and 1C-11, cover the cuts at plug side w/ tape
    3. Tap green wires to pink/reddish wire going to 1B-3 (IGN), tape if desired.
    4. Plug 1B and 1C back in, test


  2. Aug 22, 2011 at 2:16 PM
    #2
    98_Mud_bug

    98_Mud_bug 98_mud_bug

    Joined:
    Aug 9, 2008
    Member:
    #8431
    Messages:
    3,194
    Gender:
    Male
    lucedale Ms.
    Vehicle:
    98 tacoma sr5/ 06 x-runner
    3 inch suspension lift, night shades corner and blinkers projector headlights with halos and 3 led's 18 inch kmc xd rockstar wheels,275/65/18 kelly safari tsr's, bush whacker fender flares 7 inch touch screen, 2 kenwood 12's, Magnaflow exaust single in dual out,
  3. Aug 22, 2011 at 2:22 PM
    #3
    chadderkdawg

    chadderkdawg Don't ask questions you don't want the answer to..

    Joined:
    Apr 29, 2011
    Member:
    #55763
    Messages:
    8,163
    Gender:
    Male
    Des Moines, Iowa
    Vehicle:
    09 FX4 F150
    Yikes.... I like the other way better... hahaha

  4. Aug 22, 2011 at 8:08 PM
    #4
    arvizu9618

    arvizu9618 [OP] Well-Known Member

    Joined:
    Aug 22, 2011
    Member:
    #62143
    Messages:
    92
    Gender:
    Male
    First Name:
    RT
    PHX AZ
    Vehicle:
    06 D-Cab SPORT SB
    Map/Dome Light on same time, Beep onLock, Anytime DTRL's, Fog Light on any time, Cockpit lights in footwells, night light in cup holder and rear of console, Radio ON w/ ignition off (off with timer), 3157 socket for rear turn signals (BRIGHTER), Reverse Light Mod, Tap light in console and engine bay, removed screen prior to MAP sensor, Blacked out lower valance, badges, center caps and door handles, Added door sill plates, JVC-KDHDR50 Head unit (HD Baby), Tinted exterior lights, Borla Exhaust.
    To clarify, this mod is for the "Anytime Parking lights" to be on w/ ignition.

    The inner marker lamps will be on also if you have done that mod.

  5. Aug 25, 2011 at 2:08 AM
    #5
    arvizu9618

    arvizu9618 [OP] Well-Known Member

    Joined:
    Aug 22, 2011
    Member:
    #62143
    Messages:
    92
    Gender:
    Male
    First Name:
    RT
    PHX AZ
    Vehicle:
    06 D-Cab SPORT SB
    Map/Dome Light on same time, Beep onLock, Anytime DTRL's, Fog Light on any time, Cockpit lights in footwells, night light in cup holder and rear of console, Radio ON w/ ignition off (off with timer), 3157 socket for rear turn signals (BRIGHTER), Reverse Light Mod, Tap light in console and engine bay, removed screen prior to MAP sensor, Blacked out lower valance, badges, center caps and door handles, Added door sill plates, JVC-KDHDR50 Head unit (HD Baby), Tinted exterior lights, Borla Exhaust.
    I have a 2006 DC 2WD Sport, so this might be different for you 2TR-FE or 4x4 guys.

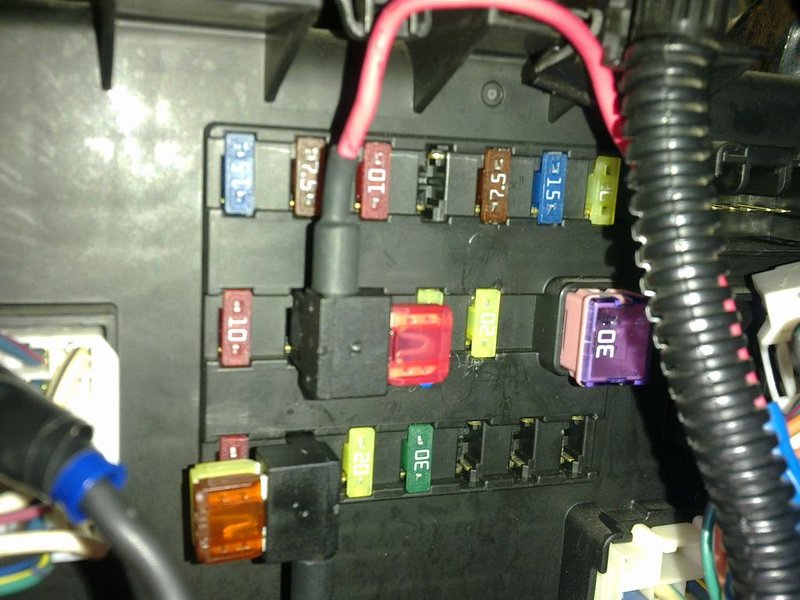

    I found an open fuse slot in between IG1 no.2 10A and IG 1 10A that is hot with ignition. (Attachment 1)

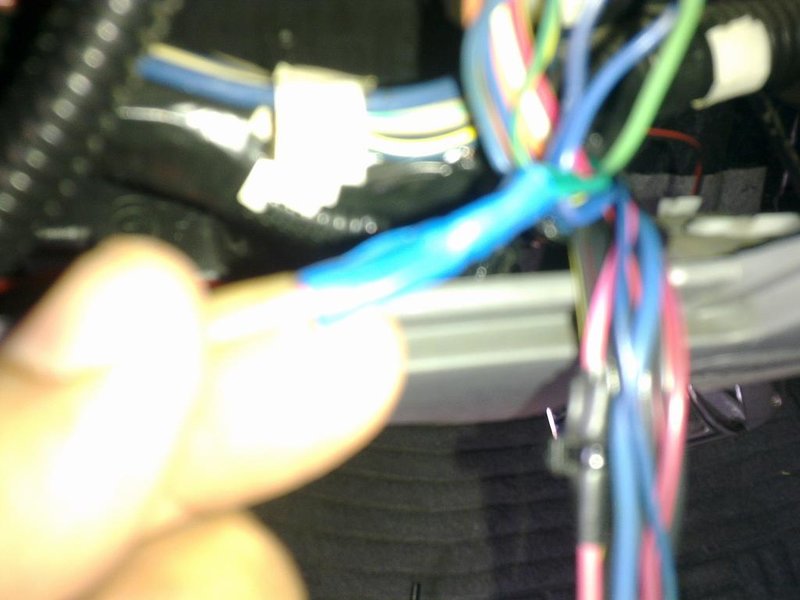

    I ran the add-a-ckt pigtail to green wires that were tapped to 1B-3. (Attachment 2)
