New APR Mods

Discussion in 'Performance and Tuning' started by XrunnIT, May 29, 2009.

  1. May 29, 2009 at 6:19 PM
    #1
    XrunnIT

    XrunnIT [OP] Well-Known Member

    Joined:
    Jul 6, 2008
    Member:
    #7770
    Messages:
    849
    Gender:
    Male
    Austin, TX
    Vehicle:
    1GR-GZE X-Runner
    Built Motor by LC Engineering Boosted by TRD
    APR Upgraded parts: 640cc 7th Injector (previously installed), 570cc Primary Injectors, 2.7" S/C Pulley

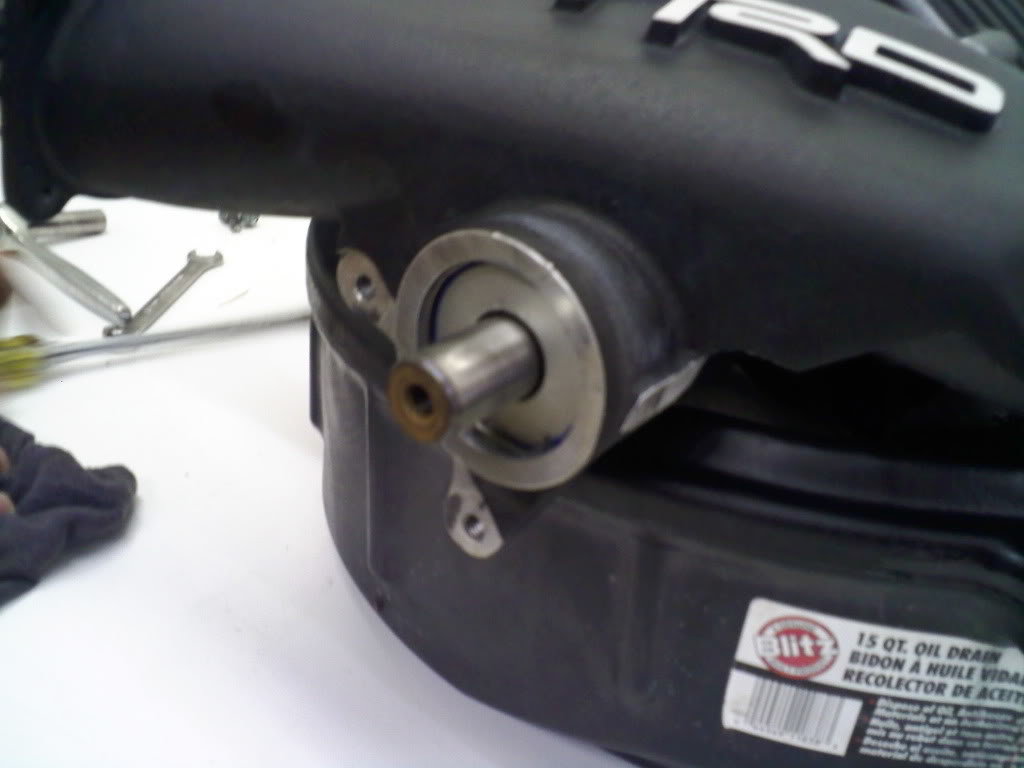

    Stock pulley removed.

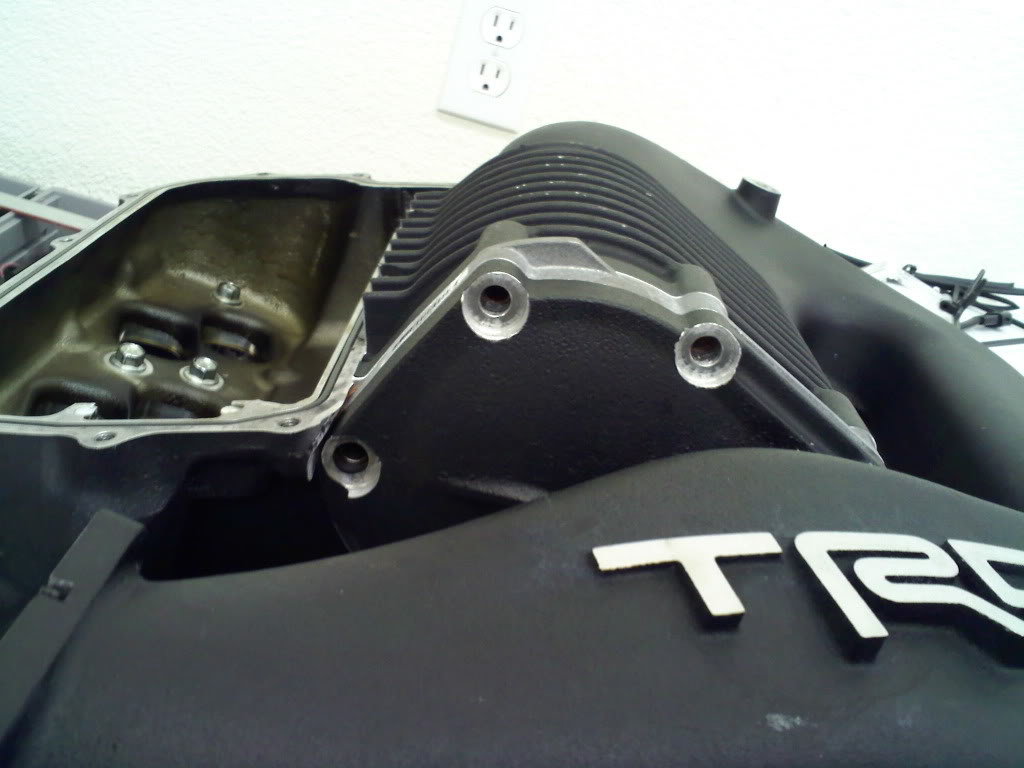

    Removed the top 3 bolts of the snout assembly

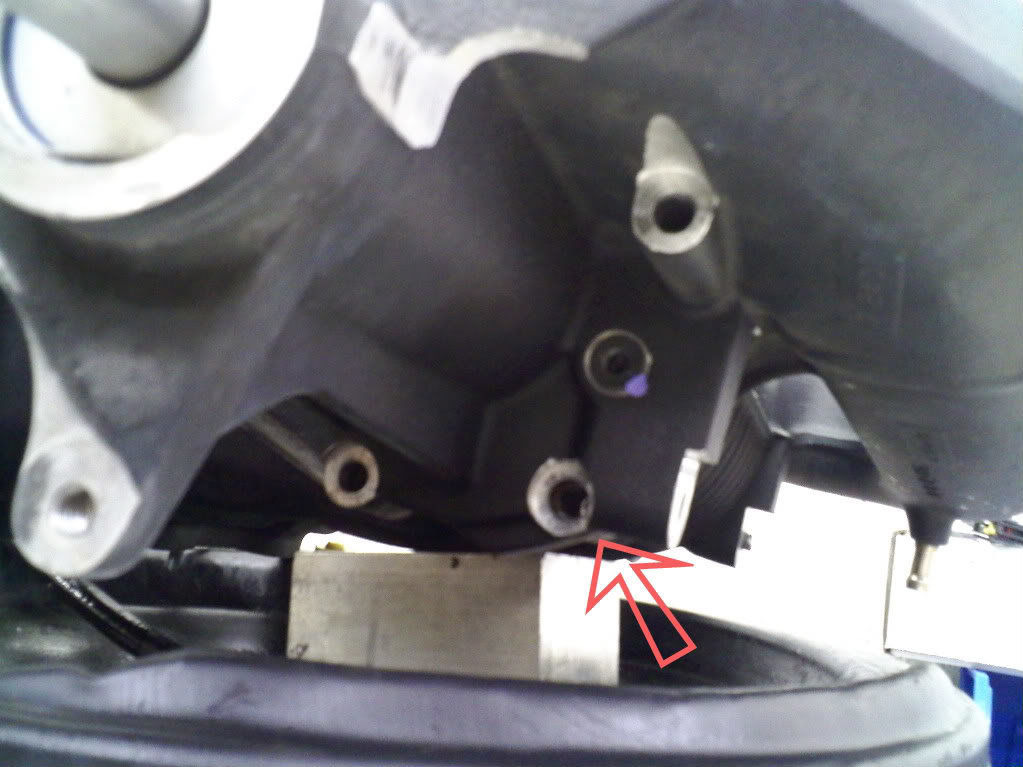

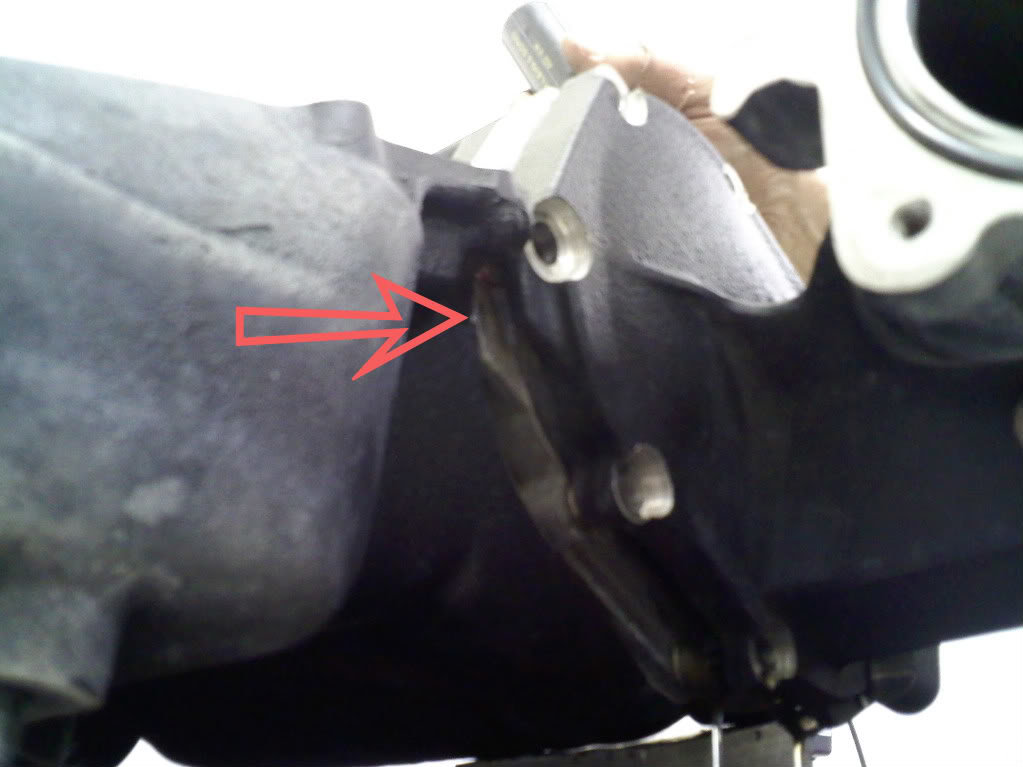

    Removed 3 of the bolts on the lower part. There was one more under the snout that you can't see. There is a dowel where the arrow is pointing.

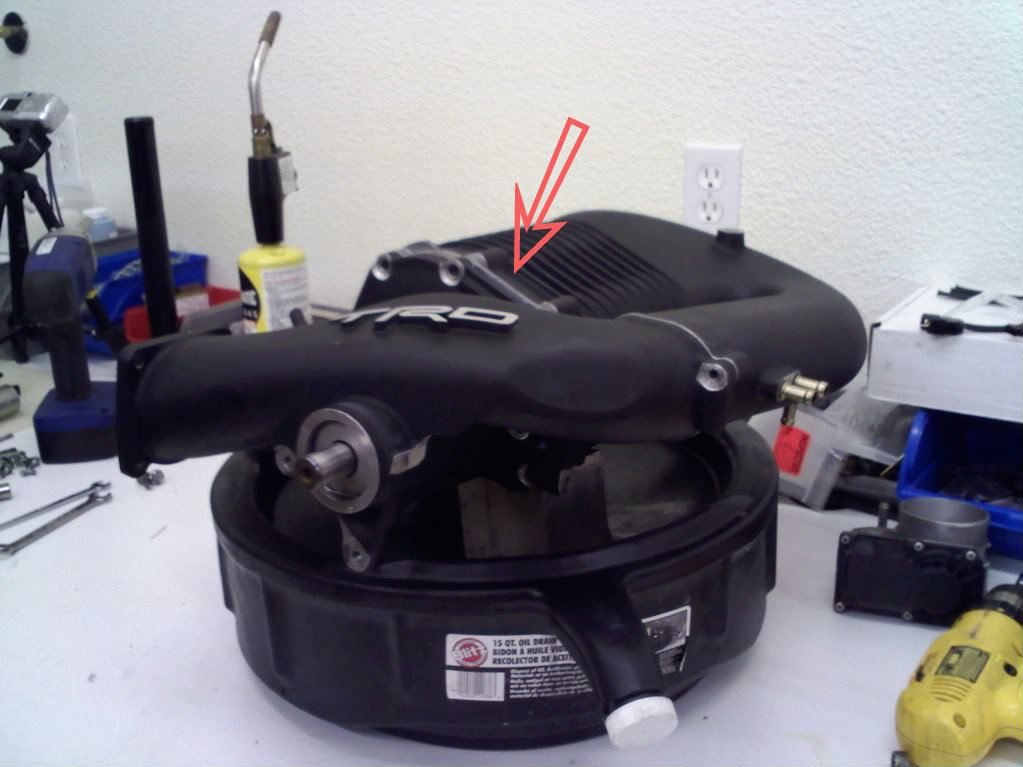

    Where the arrow is pointing is a great spot for a heavy duty screw driver to pry the snout off. Aside from the bolts, there is a silicone-type sealant holding the snout on.

    The only other spot recommended for prying. The bolt hole right next to that lip has a dowel as well and can make getting the snout off a bit tougher.

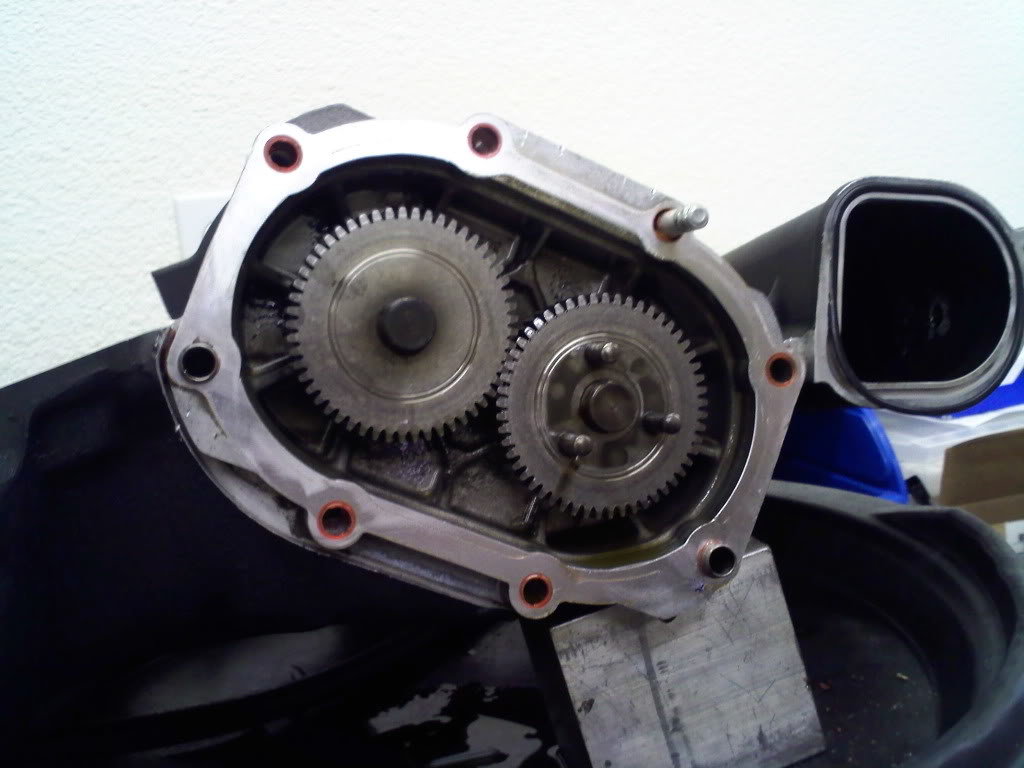

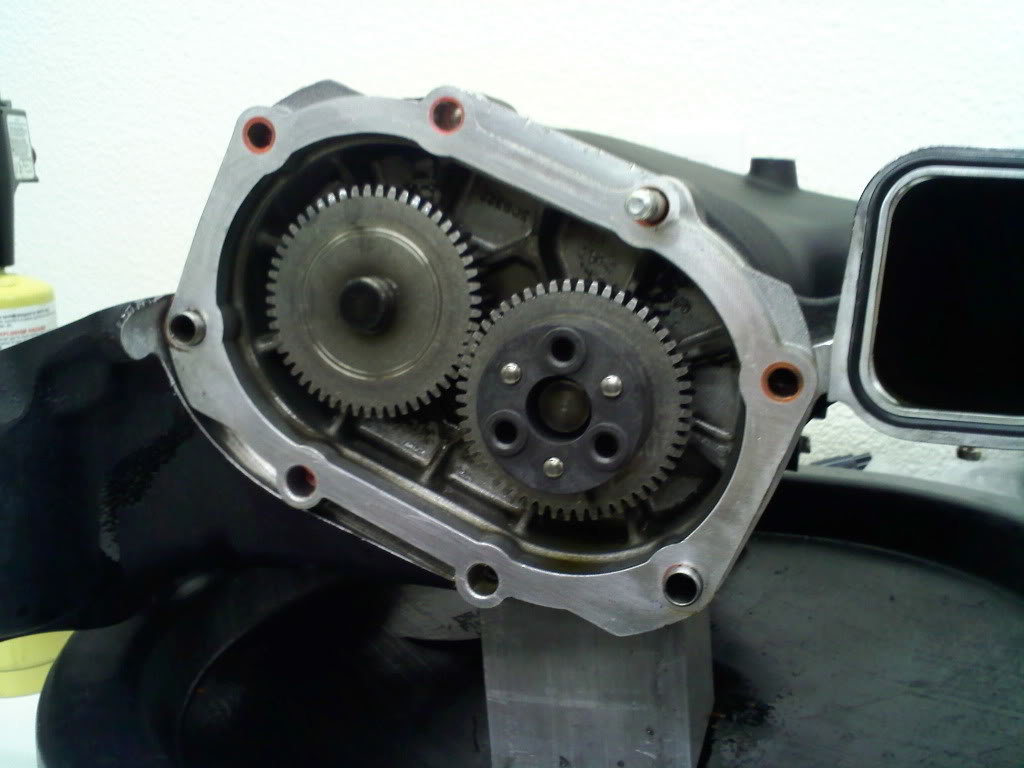

    With the snout off you can see the two dowels that were mentioned above as well as the two gears that spin the lobes of the blower.0528091100_65e52ecf0159b6aebb515ae915fe3dae72ada882.jpg

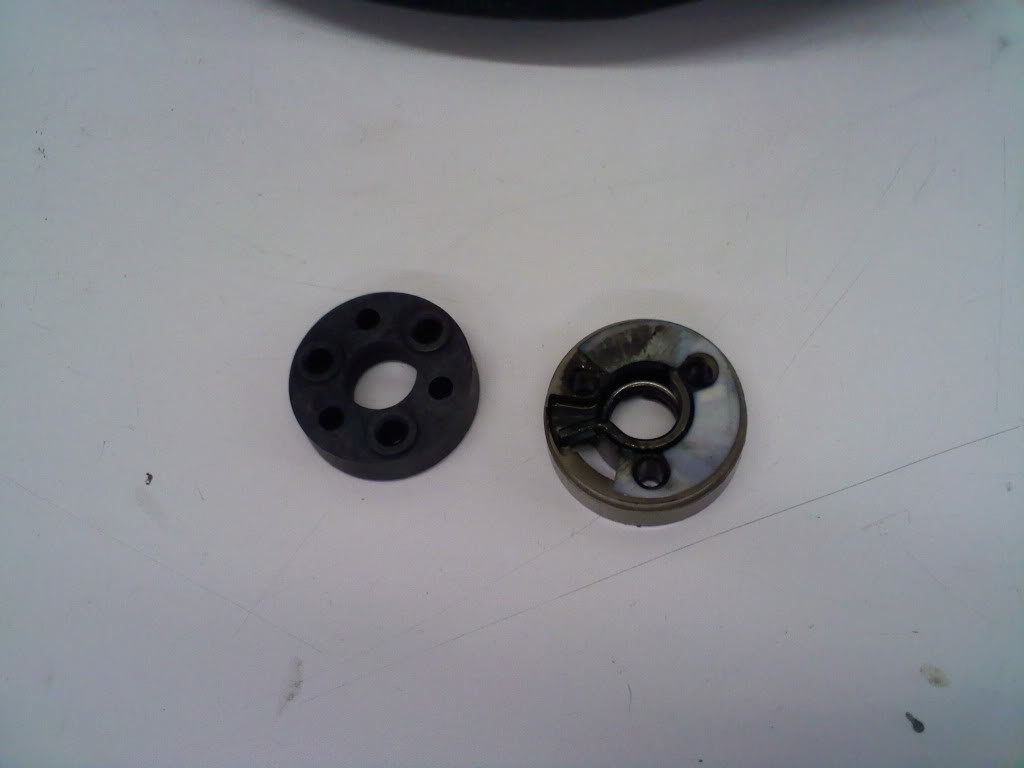

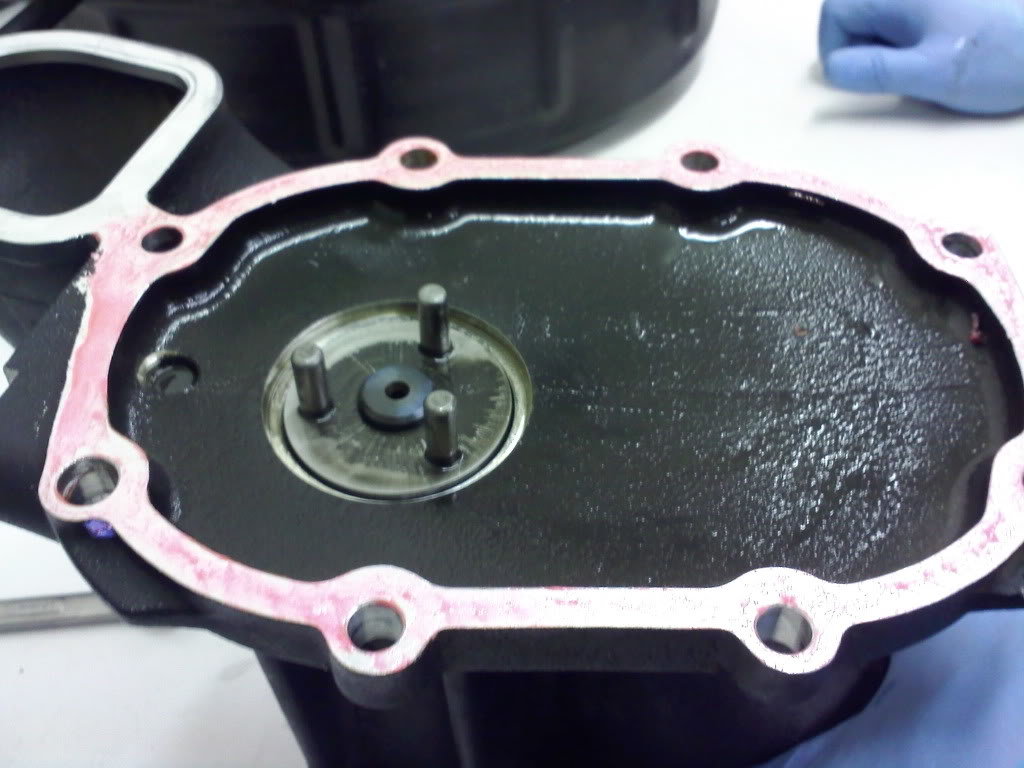

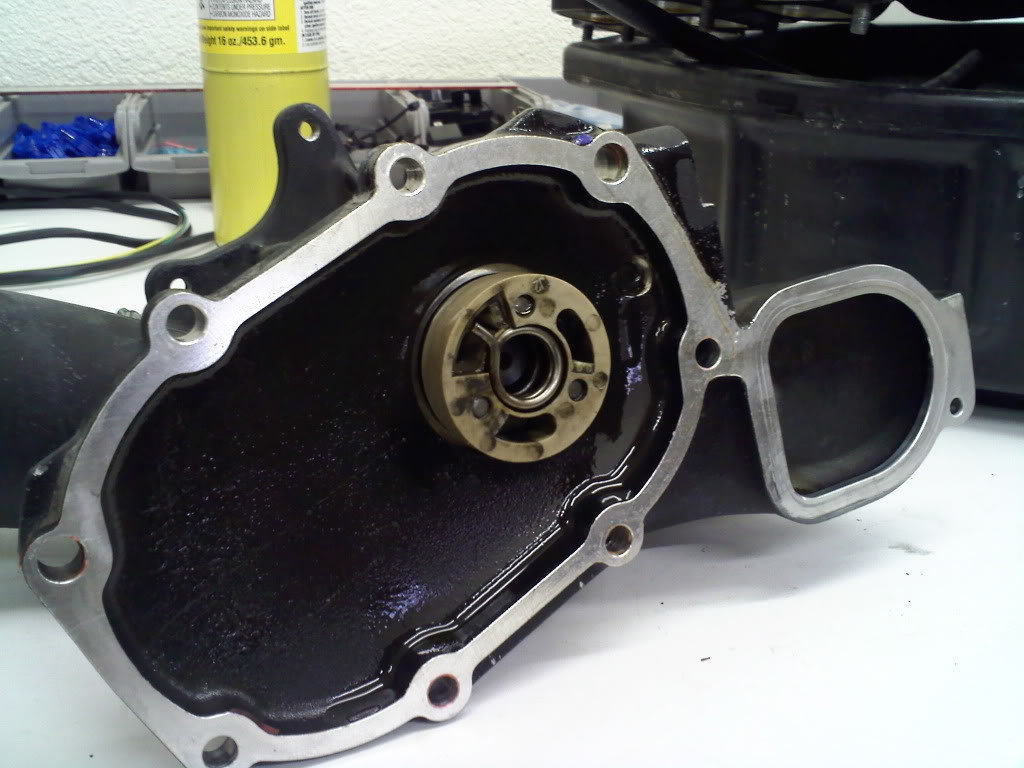

    Here you can see the OEM spring loaded drive coupler attached to the snout. This is removed and replaced with a solid drive coupler.

    Solid coupler attached. We attached it to the blower itself, but you can put it on either side. Just make sure its mounted correctly. Notice the bezels around the pin-holes, the bezels must be facing the flat surface of the holding pins.

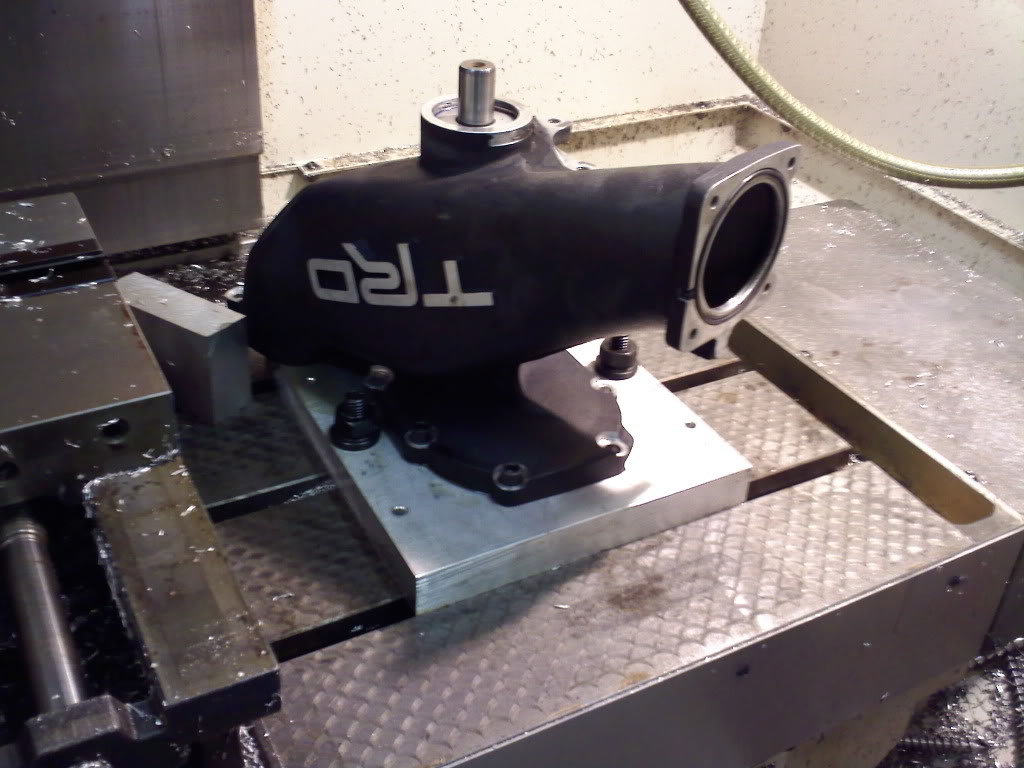

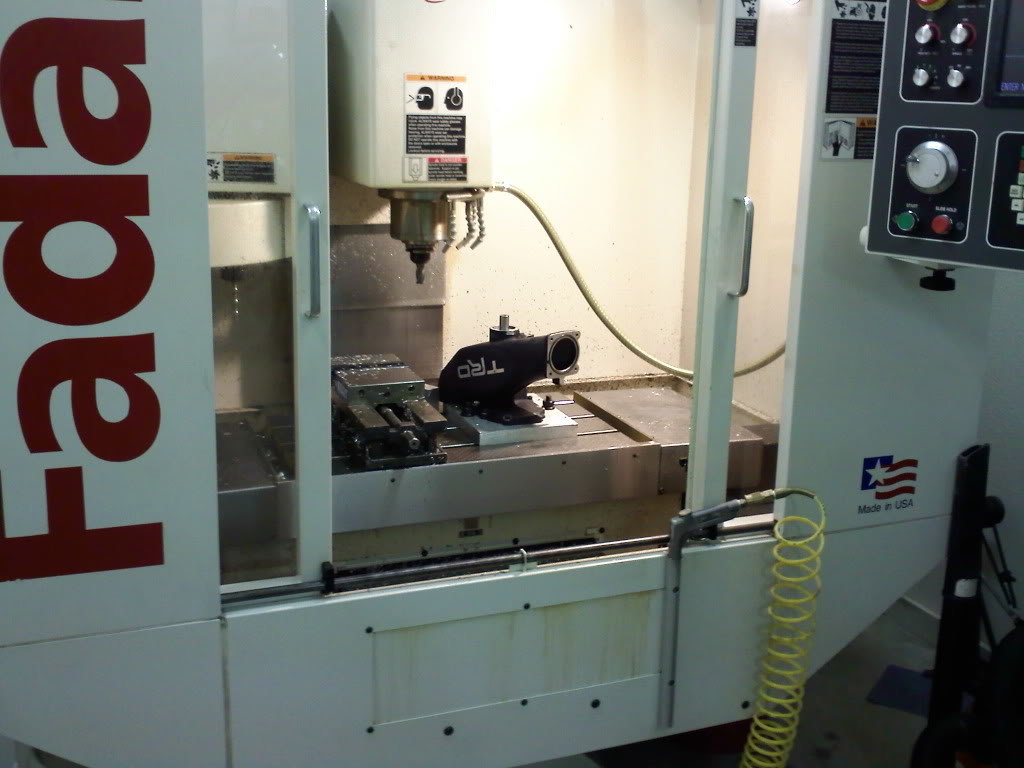

    The snout mounted to a custom made plate for the CNC machine.

    Video of the machining process.
    http://www.youtube.com/watch?v=ZUko4gkoLcM

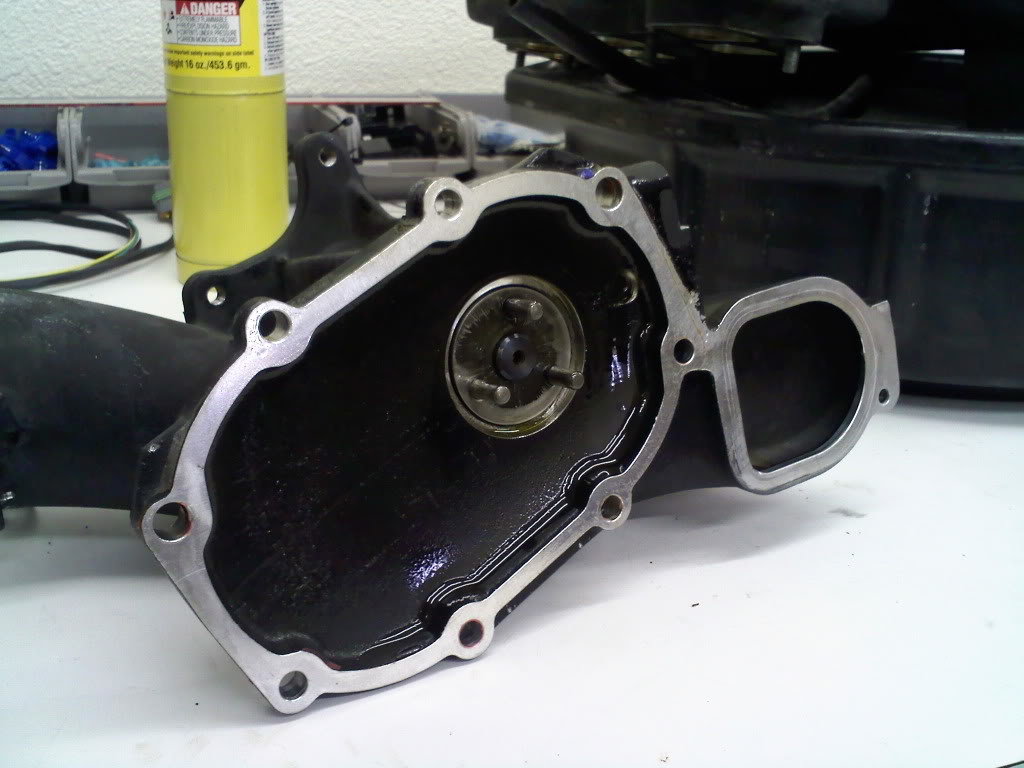

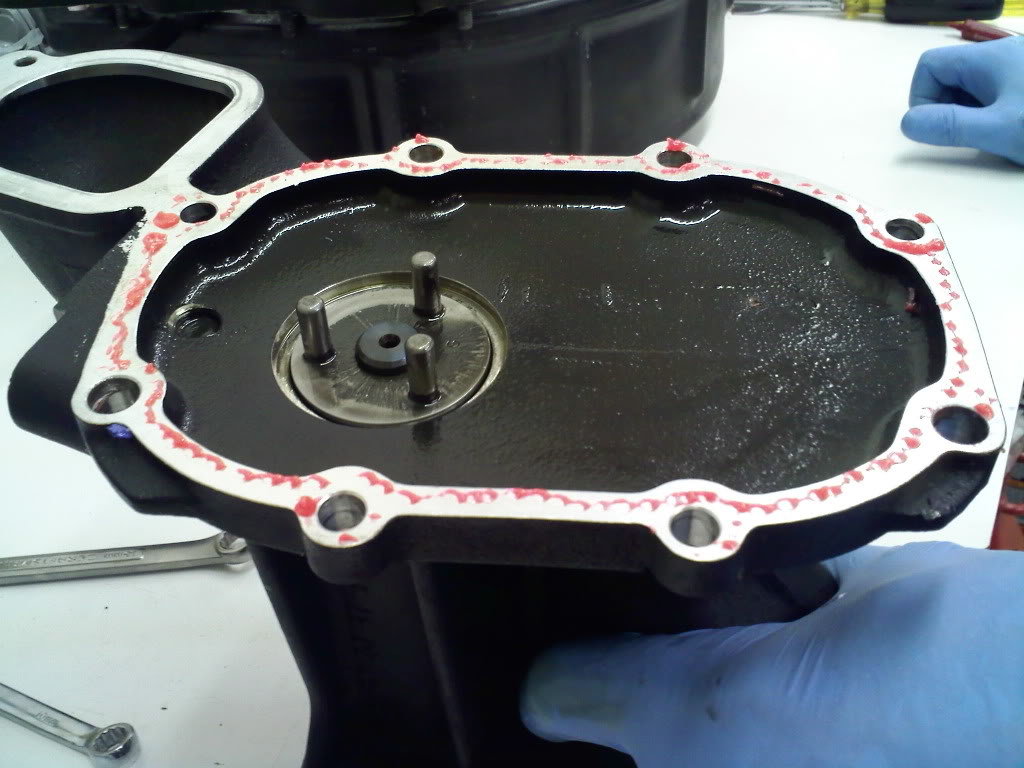

    Using the Eaton silicone-type seal (it wasn't an RTV silicone, but something similar more powerful, i can't recall what it was called).

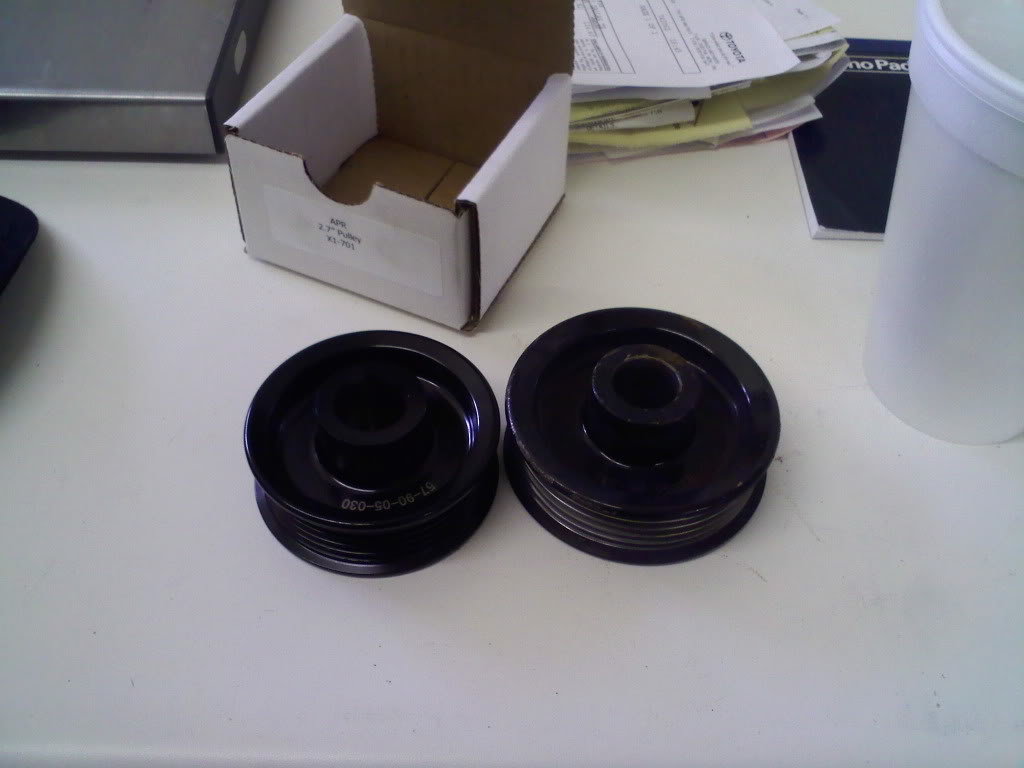

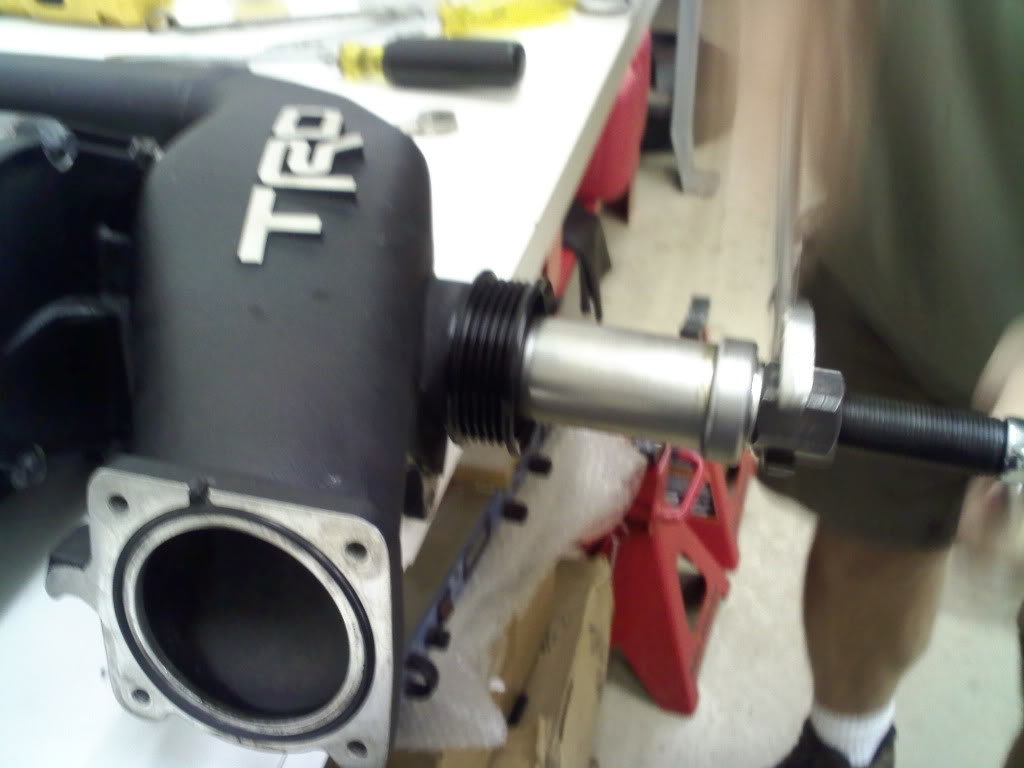

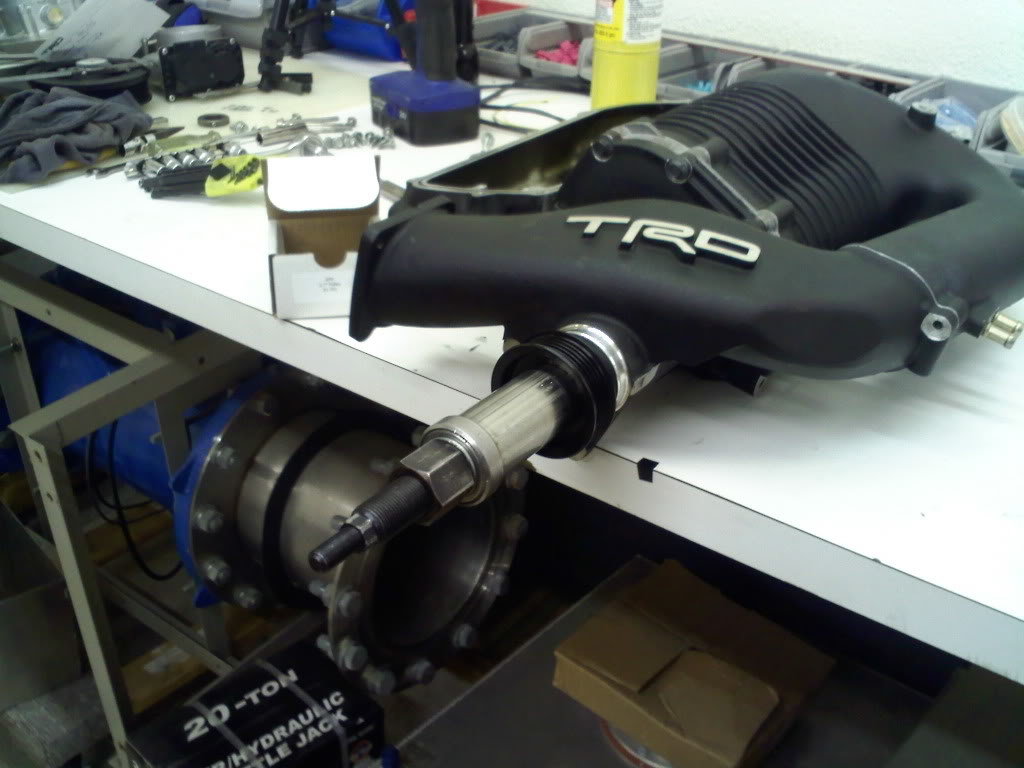

    New APR 2.7" pulley & install

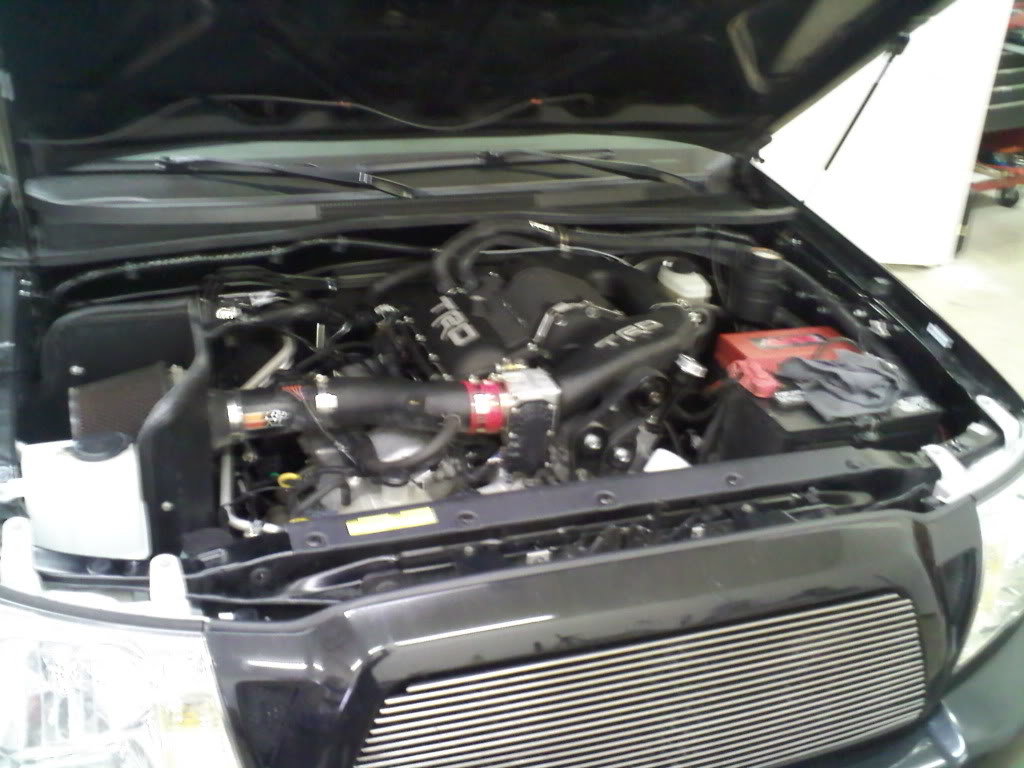

    Pulley installed with new primary injectors

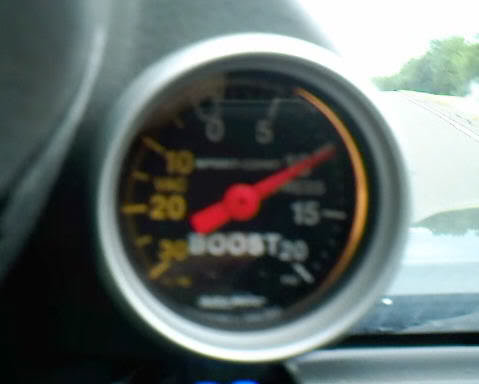

    Prior to this install I was peaking between 6.5 and 7psi of boost. Making a pull this morning. IAT was 76-78*.

    Video of 10psi pull.
    http://www.youtube.com/watch?v=Quc6lSlR_us

  2. May 29, 2009 at 6:45 PM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    107,950
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Is that your AFR at 15.......????

  3. May 29, 2009 at 7:15 PM
    #3
    rossk35

    rossk35 Do Work Son!

    Joined:
    Mar 26, 2009
    Member:
    #15197
    Messages:
    950
    Gender:
    Male
    hawaii
    Vehicle:
    07 TRD Sport Supercharged
    TRD S/C/TRD Intake/TRD Boost Gauge/DT Headers/OEM TL/ZKW retro/Pioneer DVD w/Ipod/Magnaflow/20% Tint/BHLM/JL 10" sub, JL VR components, JL 450/4 amp/Helwig Sway bar/Viper 791/ 18" limited 4runner rims
    Awesome jason! I'm waiting for my 2.85 pulley to come in the mail!

  4. May 29, 2009 at 8:05 PM
    #4
    XrunnIT

    XrunnIT [OP] Well-Known Member

    Joined:
    Jul 6, 2008
    Member:
    #7770
    Messages:
    849
    Gender:
    Male
    Austin, TX
    Vehicle:
    1GR-GZE X-Runner
    Built Motor by LC Engineering Boosted by TRD
    LEAN AND MEAN BABY!!!

    No, the wideband isn't connected to an o2 sensor at the moment. So its not working.

    Awesome!!! You gonna get the X-1 also?
