New aux fuse block recommendations

Discussion in '2nd Gen. Tacomas' started by ff.hogue, Jan 4, 2013.

  1. ff.hogue

    ff.hogue [OP] Well-Known Member

    Joined:
    Apr 29, 2012
    Member:
    #77834
    Messages:
    63
    Gender:
    Male
    Redwood City, Ca
    Vehicle:
    '11 DCLB 4x4 Sport
    and it begins...
    So now that I have my beautiful new bumpers, lights and winch, I need some help with the wiring. I want it all done correctly and clean, so I need some help with the type of fuse block to buy and from where. I will be wiring
    8k winch
    Led light bar
    4 led fog lights
    Compressor
    Cb
    power inverter (low watt, for cell phone charges, etc)
    I know how to run the wiring, I just prefer bolts to wire and figured the breadth of knowledge here could get me going in the right direction. Thanks a ton in advance!

  2. Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,498
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Blue Sea fuse block, an 80a marine breaker, and 4ga cable for the power feed.

  3. 2000GTacoma

    2000GTacoma Well-Known Member

    Joined:
    Jan 29, 2011
    Member:
    #50183
    Messages:
    2,183
    Gender:
    Male
    Snow Hill NC
    Vehicle:
    00 Tacoma Ext. 3.4L SR5
    x2 Thats what I have. Buy one bigger than you current needs though would be my suggestion. probably wouldn't run winch on fuse block just straight to battery. Maybe I'm wrong on that part.

  4. Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,498
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Agreed on the winch.

  5. Boost JuNkY

    Boost JuNkY Well-Known Member

    Joined:
    Apr 10, 2011
    Member:
    #54706
    Messages:
    349
    Gender:
    Male
    First Name:
    Billy
    Vancouver, BC
    Vehicle:
    2006 DC SPORT 6MT
    885's, OME Nitros, AP 3" leafs, DTLT's, Magnaflow Exhaust, TRD SS, AFE prodry S, URD Maf Cal, Exedy Clutch, URD TOB, Bhlm, AP winch bumper, Daystar 9" lights, OEM roof rack, Yakima fairing, Bed & rock lights, Sony Sub & Amp, 48" Hi Lift, 4X sliders,
    ^Agreed! Run the winch cable directly to the battery.
    Im running optifuse 100A max. I like it a lot. Pretty inexpensive too. Just have to build your own power cable.

  6. Desert Drifter

    Desert Drifter Well-Known Member

    Joined:
    Aug 23, 2012
    Member:
    #85385
    Messages:
    1,168
    Gender:
    Male
    First Name:
    Bill
    Central Arizona
    Vehicle:
    Tacoma 4x4, SR5
    Icon MT suspension, Pelfreybuilt front bumper, Relentless skids, Avid sliders, Avid custom rack. Pelfreybilt HC Rear bumper.
    If you fuse a winch you are going to need a 300 Amp fuse. I use a type ANL fuse for my winch and a custom build distribution center/fuse block. I use Mini ANL fuses for the little stuff. ANL fuses come in 100 Amp to about 500 Amp, the Mini ANL is available from 15 Amp to around 100 Amps. My Warn 8000 winch can draw 350 Amps if loaded down to capacity, but a light pull (stuck on kind of level ground not axles burried) can be accomplished with 100 Amp fuse. But Make sure you have extra fuses and the tools to swap a fuse!

    The Blue Sea fuse panels are nice for a few or a lot of moderate current items like lights, etc. They use the space efficient ATO (modern car type) fuses.

  7. ff.hogue

    ff.hogue [OP] Well-Known Member

    Joined:
    Apr 29, 2012
    Member:
    #77834
    Messages:
    63
    Gender:
    Male
    Redwood City, Ca
    Vehicle:
    '11 DCLB 4x4 Sport
    and it begins...
    And what is the benefit of the breaker? Sorry if I sound dense, but as I.said, wiring is not my forte

  8. Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,498
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    You need a breaker to protect the portion of the circuit between the battery and the fuses installed in the fuse block.

    On the truck, manufacturers use fusible links that are designed to burn open in a safe location that won't start a fire.

    A breaker is more convenient than a fuse because when it trips, you can reset it unless the overload was so severe as to damage it.

  9. ff.hogue

    ff.hogue [OP] Well-Known Member

    Joined:
    Apr 29, 2012
    Member:
    #77834
    Messages:
    63
    Gender:
    Male
    Redwood City, Ca
    Vehicle:
    '11 DCLB 4x4 Sport
    and it begins...
    Copy. Thanks for the direction. Looks like Amazon will be getting a few more dollars from me this evening

  10. thebaker

    thebaker Well-Known Member

    Joined:
    Feb 14, 2009
    Member:
    #13597
    Messages:
    890
    Gender:
    Male
    First Name:
    Byron
    NorCal
    Vehicle:
    2009 4x4 DC TRD Sport
    The only mod is a hole in my wallet!!!!!
    a little off topic but I have my mind set on a blue sea fuse panel and going to run it to a 100amp circuit breaker. My question is I've seen breakers running anywhere from $65 to $10...is there any difference between breakers beside the price?

  11. ponethousand

    ponethousand Well-Known Member

    Joined:
    Apr 5, 2011
    Member:
    #54384
    Messages:
    4,027
    Gender:
    Male
    First Name:
    Paul
    Virginia Beach
    Vehicle:
    04 trd dc limited
    regeared, locked, armor, and stuff
  12. Denk

    Denk Well-Known Member

    Joined:
    Oct 11, 2012
    Member:
    #88739
    Messages:
    187
    Gender:
    Male
    First Name:
    Nick
    Washington State
    Vehicle:
    Spruce Mica TRD Sport 4x4
    Cobra, ImMrYo, WeatherTech, ARE, FrontRunner, OME, BAMF, IlluminationSupply, Rigid, BruteForceFab, Tepui, SOSConcepts
    have had blue sea in all my past rigs. Here is the latest evolution.


  13. sgtpepper

    sgtpepper Active Member

    Joined:
    Mar 13, 2011
    Member:
    #52971
    Messages:
    36
    Gender:
    Male

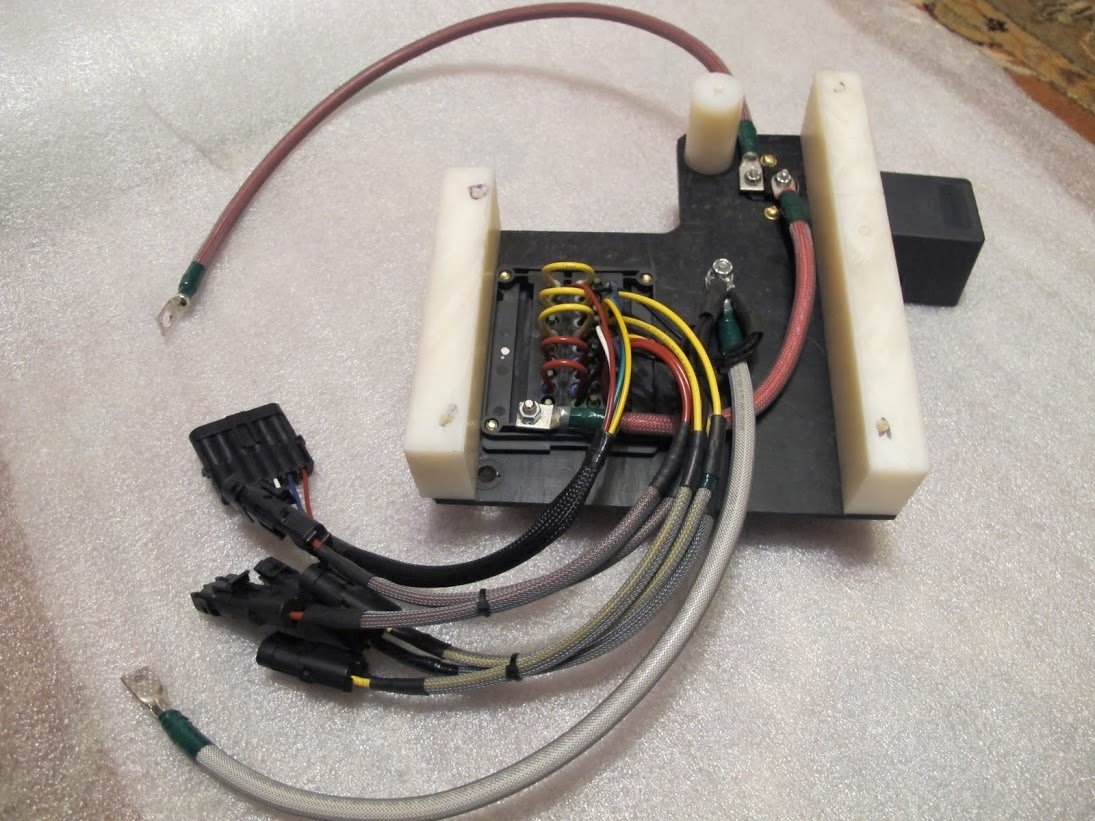

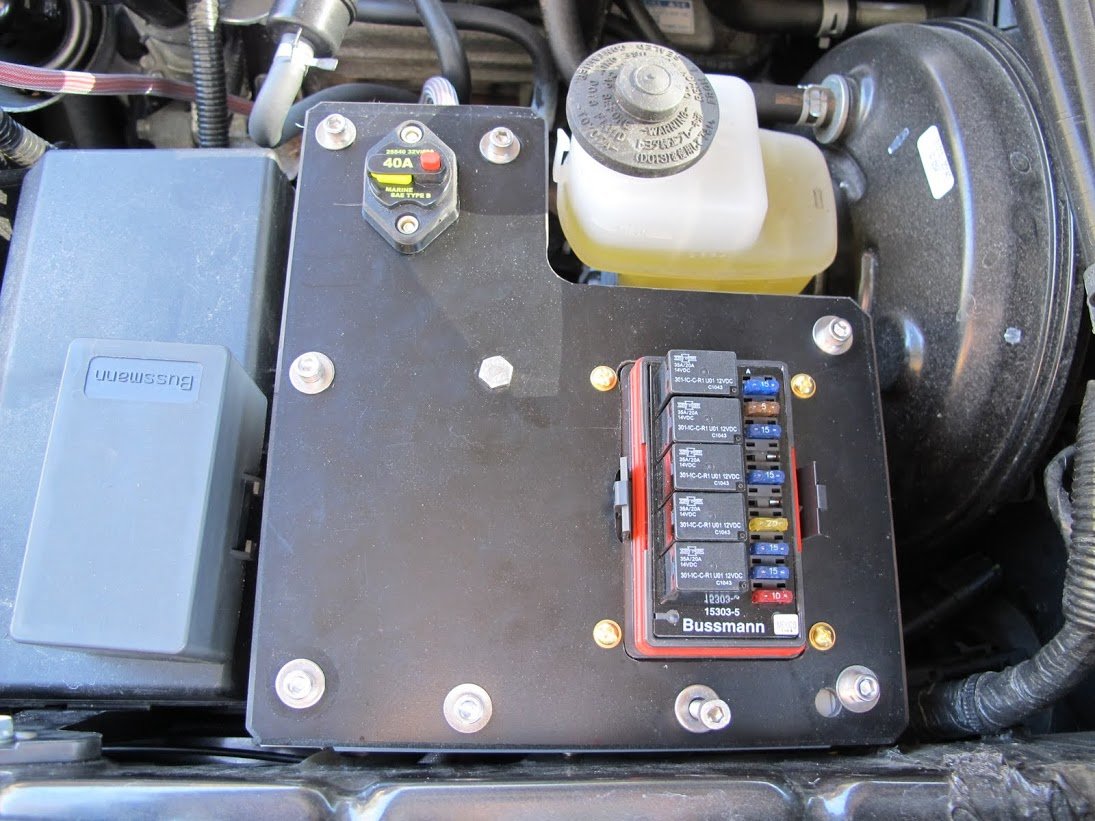

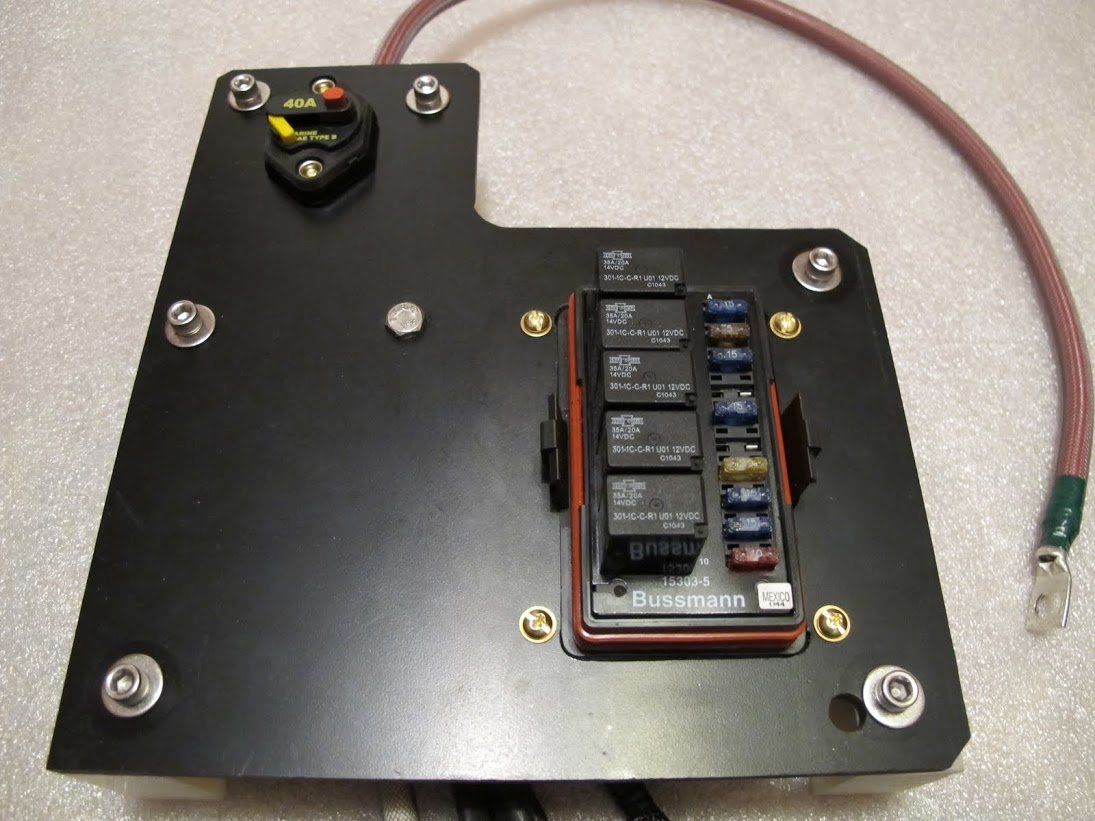

    Went through a similar dillema last year and decided on a combination of Bussman relay/fuse block for low power applications and high amp circuit breakers for the stuff with more current draw.

    The Blue Sea was also on the top of my list, but did not provide a relay bank I was looking for. The Bussman panel comes in several configurations (bussed, unbussed, etc) and is completely sealed from the weather. A bit pricey though when you add up all the parts.

    I'm about to add 2 more circuits to the panel - bed lights and the ARB compressor. Already pre-wired for 5 circuits each 10awg.

    [​IMG]

    [​IMG]

    [​IMG]

  14. 2006KJ

    2006KJ Well-Known Member

    Joined:
    Jun 1, 2012
    Member:
    #79907
    Messages:
    579
    Gender:
    Male
    this is an incredible aux fuse set up. expensive but it doesnt get any nicer then this.

    http://www.4x4spod.com/product_p/800-000-000.htm


    by buddy runs an spod in his 2013 4 door rubicon... it is incredibly clean and only 2 wires go into the cabin.

  15. Mach375

    Mach375 Habitual Violator of Wheeling Rule #2

    Joined:
    Sep 18, 2010
    Member:
    #43428
    Messages:
    1,378
    Gender:
    Male
    First Name:
    Sathington "Alowicious Devadander Abercrombie" Willoughby (but you can call me Mud)
    Worse than Hell (SoCal)
    Vehicle:
    '11 DCLB 4x4 TRD Sport
    Too much to list, but enough to get me in trouble. Repeatedly.
    I'm running a Delphi fuse box I pulled from a Saturn. 20 mini-blade fuses (9 of which are on a separate feed), 8 hi-amp blade fuses, and 6 solid-state relays. All for $30. And it's more weatherproof than the Delphi box that came in our trucks from the factory.
    I'd link my project thread here, but I'm on my phone. Just search "Saturn Blue Sea."

  16. ponethousand

    ponethousand Well-Known Member

    Joined:
    Apr 5, 2011
    Member:
    #54384
    Messages:
    4,027
    Gender:
    Male
    First Name:
    Paul
    Virginia Beach
    Vehicle:
    04 trd dc limited
    regeared, locked, armor, and stuff
    Everyone here seems to be pretty knowledgeable. I have some hella black magics, Jasper off road 3inch pods, cb, super winch, and, will be putting in an arb front locker with air compressor. Could you guys suggest a fuse block set up with part numbers and all material needed. I have no experience with wiring and want to do it right. Thanks in advance

  17. magnetic11

    magnetic11 Well-Known Member

    Joined:
    Feb 7, 2012
    Member:
    #72357
    Messages:
    573
    First Name:
    Matt
    "some nuke plant"
    Vehicle:
    11 trd sport
    Fab fours front and rear bumpers, B.A.M.F. weld on rock sliders, softopper, removed mud flaps and D-Badged everything. Icon 2.5 Extended Travel coil-overs, Total Chaos upppers, 2.0 Icon extended travel shocks with the resi's and Dekar Leaf packs.
  18. sgtpepper

    sgtpepper Active Member

    Joined:
    Mar 13, 2011
    Member:
    #52971
    Messages:
    36
    Gender:
    Male
    :eek::eek::eek: not sure what's more crazy about this rig .. how sweet it is or the price.


    You might wanna check out this writeup - far from plug and play though, i would rate this project a 4 on 5 pt scale.
    http://www.wranglerforum.com/f33/auxiliary-electrical-hookup-99032.html
