NEW BATCH! Custom Bracket - Vertical Install ARB Twin Compressor

Discussion in '3rd Gen. Tacomas (2016+)' started by MJ_PDX, Jun 23, 2017.

  1. Jun 23, 2017 at 5:13 PM
    #1
    MJ_PDX

    MJ_PDX [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175720
    Messages:
    65
    Gender:
    Male
    Vehicle:
    2016 TRD OR Access Cab Blazing Blue Pearl
    UPDATE: 1/3/19

    As of today I have 15 people on the list!

    I will be starting production process later today and it usually takes a couple weeks to complete, so I hope to have parts available by the end of the month.


    To those that saw my previous posts about installing the ARB twin compressor vertically using a Slee Offroad 2nd Gen (<2015) mount and custom bracket and inquired about replicating my set up.

    Just to be clear (because some people have misunderstood), This is NOT the entire compressor mount, it is just a custom bracket I made to replace the upper bracket in the Slee Offroad 2nd Gen. compressor mounting kit (http://www.sleeoffroad.com/products/products_air.htm #SOK001) to adapt it to work on the 3rd Gen. Tacoma.
    You will need to have/get the Slee kit for this to work. Installation is per Slee instructions until you get to upper bracket and then just use mine instead of theirs.


    I have had a small batch of brackets made up (laser cut, powder coated, Etc.) for any that are still interested.
    As they are a bit of a niche item and the small batch size, Cost will be $28 (including shipping) to cover my expenses.

    Let me know if you'd like to be added to the list.
    PM me for more information.

    Current Pre-Order list so far:
    1. @seattle_taco
    2. @chaotic_taco
    3. @Charlesp461
    4. @KanPanic
    5. @Tynan
    6. @johntoyota
    7. @Taco.Dan
    8. @CaboTom
    9. @NotBabyFace
    10. @scary_larry
    11. @PcBuilder14
    12. @mtrman86
    13. @taco7
    14. @VooDoo Fi
    15. @PNUT

    Last edited: Jan 3, 2019
  2. Jun 23, 2017 at 6:19 PM
    #2
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    30,056
    Gender:
    Male
    First Name:
    Tim
    Boone, NC\Garner, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    :gossip: maybe put "Custom Vertical Mount" in the title. I thought this was gonna be a thread asking if the compressor can be mounted vertically, which obviously it can.

  3. Jun 23, 2017 at 7:09 PM
    #3
    solscooter

    solscooter Sh!t Outta Luck

    Joined:
    Nov 8, 2015
    Member:
    #169056
    Messages:
    1,813
    Gender:
    Male
    First Name:
    Brian
    Minnesota
    Vehicle:
    2016 TRD OR DCSB 4x4
    Mobtown Offroad
    Hmmm. PM inbound

  4. Jun 25, 2017 at 1:21 PM
    #4
    solscooter

    solscooter Sh!t Outta Luck

    Joined:
    Nov 8, 2015
    Member:
    #169056
    Messages:
    1,813
    Gender:
    Male
    First Name:
    Brian
    Minnesota
    Vehicle:
    2016 TRD OR DCSB 4x4
    Mobtown Offroad
    Payment sent

  5. Jul 10, 2017 at 1:19 PM
    #5
    ShemRahBuck

    ShemRahBuck Well-Known Member

    Joined:
    Apr 11, 2017
    Member:
    #215970
    Messages:
    283
    First Name:
    Buck
    NOLA
    Vehicle:
    2017 TRD Pro
    Paid. Thanks

  6. Jul 10, 2017 at 7:22 PM
    #6
    Kennedyusmc

    Kennedyusmc Well-Known Member

    Joined:
    Sep 10, 2016
    Member:
    #196950
    Messages:
    1,495
    Gender:
    Male
    First Name:
    Christopher
    Vehicle:
    2017 Cement Pro
    Still waiting for it
    Got mine!
    Thanks!

  7. Aug 2, 2017 at 8:48 PM
    #7
    Istan

    Istan Leave it stock they said

    Joined:
    Jan 3, 2017
    Member:
    #206502
    Messages:
    2,218
    Gender:
    Male
    First Name:
    Stan
    Northern NV
    Vehicle:
    2016 Tacoma DCSB TRDOR
    Can a single mount using this bracket?

  8. Aug 2, 2017 at 8:56 PM
    #8
    MJ_PDX

    MJ_PDX [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175720
    Messages:
    65
    Gender:
    Male
    Vehicle:
    2016 TRD OR Access Cab Blazing Blue Pearl
    My custom bracket is NOT the whole mount kit. It is just the upper bracket to adapt the Slee Offroad 2nd Gen mounting kit to work on the 3rd Gen Tacoma.
    Also, the upper bracket is only necessary if you are using the twin ARB compressor.

    Having said that, if you really want/have to use a single compressor, Slee offers a 2nd Gen single compressor mount that does mount in this same location. From what I can tell it should work without modification.

    Tynan likes this.
  9. Aug 2, 2017 at 9:19 PM
    #9
    Lwood

    Lwood Well-Known Member

    Joined:
    Jun 12, 2017
    Member:
    #221368
    Messages:
    84
    Gender:
    Male
    First Name:
    Lynwood
    Vehicle:
    16' TRD Sport DCSB

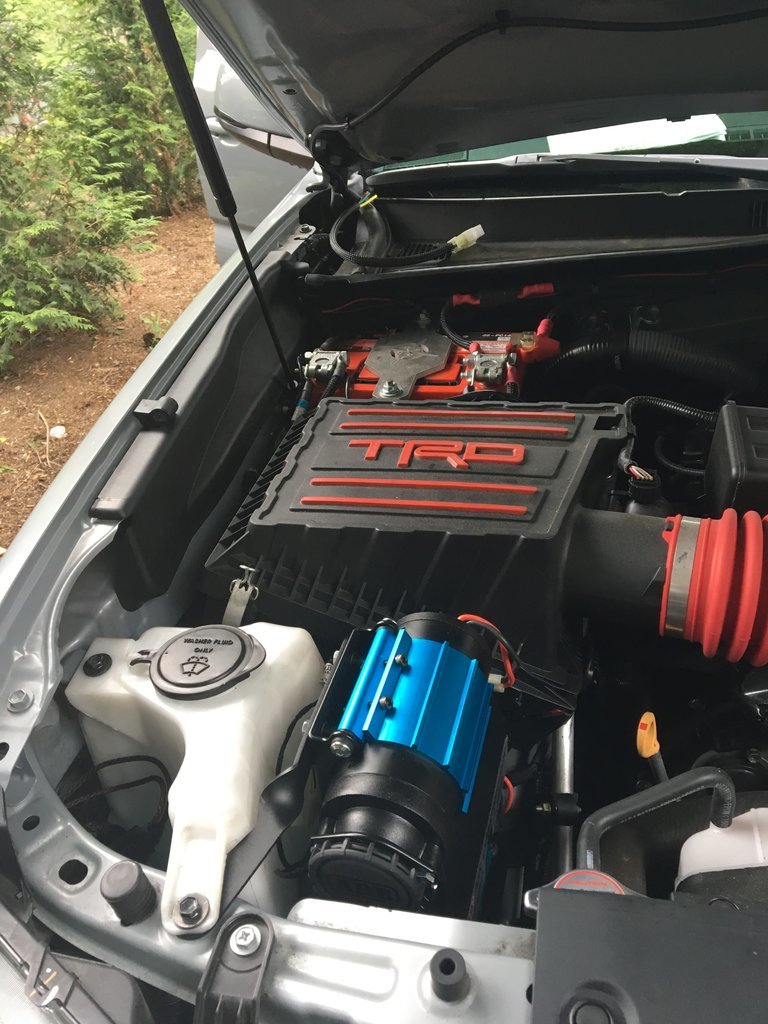

    What type of battery is that in the picture?

  10. Aug 2, 2017 at 10:23 PM
    #10
    JoeCOVA

    JoeCOVA Well-Known Member

    Joined:
    Nov 15, 2016
    Member:
    #202463
    Messages:
    4,453
    First Name:
    Joe
    Colorado Springs
    Vehicle:
    2017 DCSB TRD OR
    35" Trepadors w/ OMF Beadlocks, Kings, OBA, 5.29s etc
    Interested

  11. Aug 3, 2017 at 7:24 AM
    #11
    MJ_PDX

    MJ_PDX [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175720
    Messages:
    65
    Gender:
    Male
    Vehicle:
    2016 TRD OR Access Cab Blazing Blue Pearl
    That is an Odyssey battery in a Off-Grid Engineering dual battery mount/system.

    Lwood and Korndog1284 like this.
  12. Aug 3, 2017 at 6:51 PM
    #12
    CHG2016TRD

    CHG2016TRD ADVENTURE.OVRLND explore+live+experience

    Joined:
    Jul 26, 2016
    Member:
    #192970
    Messages:
    40
    Gender:
    Male
    First Name:
    CHASE GENTRY
    TEXAS
    Vehicle:
    2016 MGM TRD OFFROAD SB
    Adventure Ovrlnd Tacoma Build Sheet ARMOR: CBI Offroad Fabrication T3 High Clearance Rear Bumper w/ Dual Swing Outs & Tables CBI Offroad Fabrication T3 Aluminum Front Bumper CBI Offroad Fabrication T3 steel skid plates All-Pro Offroad HD Sliders FRONT SUSPENSION: King Shocks 2.5" Coilovers with Compression Adjusters set 2.65" over stock ride hight Pro Comp UCAs REAR SUSPENSION: Archive Garage mid / long travel Shock Relocation Tower kit Archive Garage Hammer Shackle Hangers Mid Travel SOA+SUA OME HD Dakar Rear leaf springs/ Constant Load 661 Lbs All Pro offroad U-Bolt Flip Kit with Timbren Bumpstops All Pro Extended SS Tacoma Brake Lines Bilsein 5160 25-242379 rear left Bilstein 5160 25-242539 rear right OVERLAND GEAR: Smittybilt Overlander Tent #2783 Arq4WD 270 drivers side awning Road Shower4 -- 7 Gallon Coleman Even-Temp™ Propane Stove ARB 50 qt Fridge Freezer RECOVERY: Smittybilt Gen2 XRC 9.5k Synthetic Line winch Factor 55 1" Hawse Fairlead Factor 55 Flatlink WHEELS/TIRES: 305/70R17 Falken Wildpeak A/T3W Method Race Wheels NVs / 16x8 / 6x5.5 / 0 offset / 4.5" BS LIGHTING: XenonDepot H11 HID KIT | Xtreme HID Rigid Industries SR-Pro 20” Driving/Spot Bumper Rigid Industries SR-Pro 30” Driving/Spot Roof 90W Side Shooter LED Pods Ditch lights MISC: CBI Offroad 3rd Gen Overland Bars Rago Fabrication Bed Channel Stiffners Rago Fabrication Hood Mounted Ditch Light Brackets BAMF CMC Cab Mount Chop Brackets Roto Pax 2 Gallon Gasoline Roto Pax 2 Gallon Water Energy Suspensions Cab Mount kit Expedition Essentials Toyota Tacoma Bedside Compressor Mount STEREO: ENGINE: INTERIOR: Weathertech Floorliners Expedition Essentials Toyota Tacoma 3rd Gen USB Powered Accessory Mount (TPAM) 4 Crawler 1" rear seat lift kit EXTRAS: Prinsu Designs Studio's Cab Rack Prinsu Designs Studio Awning Mounts Midland USA MicroMobile MXT275 Midland USA 6Ddb Gain Antenna MXTA11 Midland USA X-Talker T71VP3 Walkie Talkies Midland USA Magnet Mount MXTA12 Dual ODYSSEY Extreme Series Battery 34-PC1500 Genesis Offroad Tacoma Dual Battery Kit
    im interested!!

  13. Aug 3, 2017 at 9:41 PM
    #13
    MJ_PDX

    MJ_PDX [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175720
    Messages:
    65
    Gender:
    Male
    Vehicle:
    2016 TRD OR Access Cab Blazing Blue Pearl
    You're on the list.

  14. Aug 3, 2017 at 10:13 PM
    #14
    Istan

    Istan Leave it stock they said

    Joined:
    Jan 3, 2017
    Member:
    #206502
    Messages:
    2,218
    Gender:
    Male
    First Name:
    Stan
    Northern NV
    Vehicle:
    2016 Tacoma DCSB TRDOR
    Just ordered my twin. Which slow bracket do I need in addition to this?

  15. Aug 4, 2017 at 9:08 AM
    #15
    MJ_PDX

    MJ_PDX [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175720
    Messages:
    65
    Gender:
    Male
    Vehicle:
    2016 TRD OR Access Cab Blazing Blue Pearl
    http://www.sleeoffroad.com/products/products_air.htm
    You'll want their 2nd Gen Tacoma twin mount (SOK001). It has additional plates/brackets to support the larger twin compressor vertically. My bracket replaces the upper brace in this kit to make it work in 3rd Gen truck. This is what is in my truck.

    ShemRahBuck likes this.
  16. Aug 6, 2017 at 2:51 PM
    #16
    Kennedyusmc

    Kennedyusmc Well-Known Member

    Joined:
    Sep 10, 2016
    Member:
    #196950
    Messages:
    1,495
    Gender:
    Male
    First Name:
    Christopher
    Vehicle:
    2017 Cement Pro
    Still waiting for it
    Another clean install.
    Really helpful to just pull your cleaner tank and air box completely.
    Otherwise easy other than dropping shit into the skid plates...


  17. Aug 6, 2017 at 3:16 PM
    #17
    MJ_PDX

    MJ_PDX [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175720
    Messages:
    65
    Gender:
    Male
    Vehicle:
    2016 TRD OR Access Cab Blazing Blue Pearl
    Nice! Glad you like it. Looks like you have the same setup I do... compressor, off grid engineering dual battery, hood struts...

  18. Aug 6, 2017 at 3:26 PM
    #18
    Kennedyusmc

    Kennedyusmc Well-Known Member

    Joined:
    Sep 10, 2016
    Member:
    #196950
    Messages:
    1,495
    Gender:
    Male
    First Name:
    Christopher
    Vehicle:
    2017 Cement Pro
    Still waiting for it
    Yep-
    Any suggestions for ring terminals to get this guy on the battery?

  19. Aug 6, 2017 at 3:39 PM
    #19
    MJ_PDX

    MJ_PDX [OP] Well-Known Member

    Joined:
    Jan 22, 2016
    Member:
    #175720
    Messages:
    65
    Gender:
    Male
    Vehicle:
    2016 TRD OR Access Cab Blazing Blue Pearl
    I used some large 10 Ga. ring terminals (5/16) I had left over from building the RTMR I made. I got them from Waytek Wire.

  20. Aug 6, 2017 at 5:10 PM
    #20
    JoeCOVA

    JoeCOVA Well-Known Member

    Joined:
    Nov 15, 2016
    Member:
    #202463
    Messages:
    4,453
    First Name:
    Joe
    Colorado Springs
    Vehicle:
    2017 DCSB TRD OR
    35" Trepadors w/ OMF Beadlocks, Kings, OBA, 5.29s etc
    Did you install the dual battery system yourself?
