New Bike hitch bolt not long enough.

Discussion in '3rd Gen. Tacomas (2016+)' started by tokyotacoma, Apr 5, 2017.

  1. Apr 5, 2017 at 1:31 PM
    #1
    tokyotacoma

    tokyotacoma [OP] Member

    Joined:
    Mar 19, 2017
    Member:
    #213756
    Messages:
    15
    Gender:
    Male
    Anyone have any experience with this? Currently got a Swagman XTC Cross-Country 2-Bike Hitch Mount Rack and the bolt isnt long enough for me to put the pin into the other side.
    It's an anti-sway bolt so it is threaded and can be tightened, but for extra security I can't fit the pin.
    My Taco has the tow package. I don't plan on any long road trips, maybe 20-30 miles max at this time.

    Do you think if I tighten it up with a ratchet I should be good without using the pin?

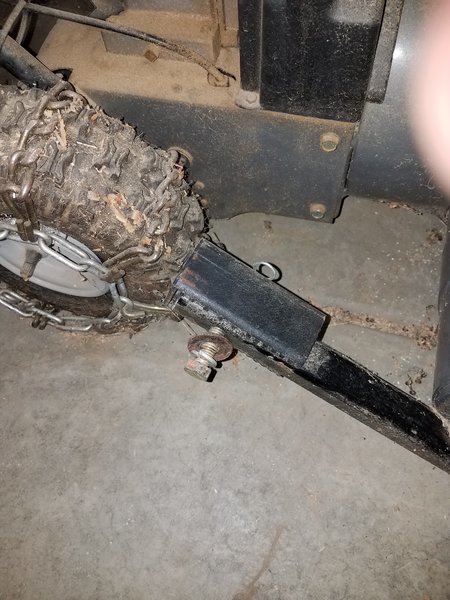

    locking pin.jpg

  2. Apr 5, 2017 at 1:33 PM
    #2
    Trucko

    Trucko Well-Known Member

    Joined:
    Sep 22, 2013
    Member:
    #113030
    Messages:
    1,164
    Gender:
    Male
    First Name:
    Matt
    Summit County Colorado
    Vehicle:
    2005 Tacoma
    arb bull bar Smittybulit 9.5 winch topper shell with yakima basket piaa lights toytec boss coilovers Dakar leaf pack with boss shocks 28/75/16 bfg at ko2 Midland CB Home made trailer with CVT Mount Rainer tent and max coupler hitch
    why risk your bike. Just go buy the right bolt or complain to the place you bought it from that the bolt is not long enough. pretty easy fix and with it being so easy i would not risk it.

    HutchJ likes this.
  3. Apr 5, 2017 at 1:35 PM
    #3
    cascadetaco

    cascadetaco Toyota Addict

    Joined:
    Jan 11, 2017
    Member:
    #207242
    Messages:
    376
    Gender:
    Male
    central oregon
    Vehicle:
    2017 SR 4cyl 4x4 5speed
    How close to fitting is it? Could you ditch a washer or something to give ya the extra space needed? I have a Thule hitch rack but its bolt is very long as you fit a lock on the end of it...maybe you get lucky and the thule bolt/lock will work in yours?

  4. Apr 5, 2017 at 1:39 PM
    #4
    tokyotacoma

    tokyotacoma [OP] Member

    Joined:
    Mar 19, 2017
    Member:
    #213756
    Messages:
    15
    Gender:
    Male
    There is a washer on the other side, I will check when I get a chance and see if it gives me more room to play.

  5. Apr 5, 2017 at 1:43 PM
    #5
    hookembevo

    hookembevo Well-Known Member

    Joined:
    Feb 11, 2016
    Member:
    #177856
    Messages:
    1,568
    Gender:
    Male
    Austin, TX
    Vehicle:
    2016 Tacoma DCSB with 6MT
    Snugtop Rebel with some options Body Armor Rock Steps Rhino Mats Weathertech Mudflaps Radar detector hardwired to rear view mirror. Stereo upgrade: Amp: Arc Audio XDI805 LOC: AudioConnect LC7i Front Speakers: Hybrid Audio Technologies Claris 6.5 Rear Speakers: Hybrid Audio Technologies Mirus 5.25 Sub: Pioneer TS-SW2502S4 Box: Pioneer Ud-SW250T Bilstein 5100s OME 885 Springs Single Add-A-Leaf BFG KO2 265/75/16
    You're supposed to snug those down pretty tight. Maybe if you get a couple of turns on it with a wrench you'll be able to get the pin in?

  6. Apr 5, 2017 at 1:44 PM
    #6
    Colton58D

    Colton58D Well-Known Member

    Joined:
    Apr 3, 2017
    Member:
    #215251
    Messages:
    272
    Gender:
    Male
    Vehicle:
    2017 Tacoma Trd Pro
    I wouldn't risk my bike. You can pick up a longer pin at a lot of places(Walmart, advanced, etc.) Or switch racks. That looks like a 1" stem with an adapter.

  7. Apr 5, 2017 at 1:44 PM
    #7
    Kysport

    Kysport Well-Known Member

    Joined:
    May 30, 2009
    Member:
    #17809
    Messages:
    230
    Gender:
    Male
    Louisville, Kentucky
    Vehicle:
    2020 Silver Sky Metallic Limited
    Don't use the pin. I use a small combination lock like you use on a suitcase. No key needed and a thief can't steal the bike rack.

  8. Apr 5, 2017 at 1:50 PM
    #8
    hookembevo

    hookembevo Well-Known Member

    Joined:
    Feb 11, 2016
    Member:
    #177856
    Messages:
    1,568
    Gender:
    Male
    Austin, TX
    Vehicle:
    2016 Tacoma DCSB with 6MT
    Snugtop Rebel with some options Body Armor Rock Steps Rhino Mats Weathertech Mudflaps Radar detector hardwired to rear view mirror. Stereo upgrade: Amp: Arc Audio XDI805 LOC: AudioConnect LC7i Front Speakers: Hybrid Audio Technologies Claris 6.5 Rear Speakers: Hybrid Audio Technologies Mirus 5.25 Sub: Pioneer TS-SW2502S4 Box: Pioneer Ud-SW250T Bilstein 5100s OME 885 Springs Single Add-A-Leaf BFG KO2 265/75/16
    DavesTaco68 likes this.
  9. Apr 5, 2017 at 2:06 PM
    #9
    -dustin

    -dustin Well-Known Member

    Joined:
    Aug 27, 2015
    Member:
    #162807
    Messages:
    3,433
    Gender:
    Male
    Leander, TX
    Vehicle:
    2020SWDCSBTRDPROFTW
    my T2 is from 2009, anti-sway. In the years since, it's been off my vehicle less than a week total, with close to 100,000mi. It has never loosened to the point of falling off. when it did loosen, the play was obvious.

    that said, call Swagman. They likely have longer hitch pins.

  10. Apr 5, 2017 at 2:07 PM
    #10
    -dustin

    -dustin Well-Known Member

    Joined:
    Aug 27, 2015
    Member:
    #162807
    Messages:
    3,433
    Gender:
    Male
    Leander, TX
    Vehicle:
    2020SWDCSBTRDPROFTW
  11. Apr 5, 2017 at 3:02 PM
    #11
    tokyotacoma

    tokyotacoma [OP] Member

    Joined:
    Mar 19, 2017
    Member:
    #213756
    Messages:
    15
    Gender:
    Male
    So according to them a longer bolt isn't available, unless you get the longer (pay more money) locking pin. But they also state it isn't needed if you tighten it down.

    I did try it without the washer, I was able to get the pin in one side, but not all the way through.

  12. Apr 5, 2017 at 3:12 PM
    #12
    Woodrow F Call

    Woodrow F Call Kindling crackles and the smoke curls up...

    Joined:
    Feb 23, 2016
    Member:
    #179160
    Messages:
    3,697
    Gender:
    Male
    Red Stick, Louisiana
    Vehicle:
    16 DCSB SR5 4X4 "ikea furniture haulers" edition.
    I bought a locking anti-rattle pin for mine and found that our receivers aren't standard dimensionally and the pin wasn't long enough to work. I tried lots of filing to get it to fit, but it never would. I ended up using some of the parts and making a pin.

  13. Apr 5, 2017 at 3:16 PM
    #13
    tokyotacoma

    tokyotacoma [OP] Member

    Joined:
    Mar 19, 2017
    Member:
    #213756
    Messages:
    15
    Gender:
    Male
    Yeah, I think I will just order the longer pin with lock. Kinda peed the contraption wasn't fully functional out of the box and I have to order more to get it to properly work.

  14. Apr 5, 2017 at 3:20 PM
    #14
    hookembevo

    hookembevo Well-Known Member

    Joined:
    Feb 11, 2016
    Member:
    #177856
    Messages:
    1,568
    Gender:
    Male
    Austin, TX
    Vehicle:
    2016 Tacoma DCSB with 6MT
    Snugtop Rebel with some options Body Armor Rock Steps Rhino Mats Weathertech Mudflaps Radar detector hardwired to rear view mirror. Stereo upgrade: Amp: Arc Audio XDI805 LOC: AudioConnect LC7i Front Speakers: Hybrid Audio Technologies Claris 6.5 Rear Speakers: Hybrid Audio Technologies Mirus 5.25 Sub: Pioneer TS-SW2502S4 Box: Pioneer Ud-SW250T Bilstein 5100s OME 885 Springs Single Add-A-Leaf BFG KO2 265/75/16
    Tacomas just have a beefy receiver. You run into the same problems with some regular trailer hitch pins/ locks. If you want to go cheap, just match the threads and buy a good bolt at a hardware store and be done with it.

  15. Apr 5, 2017 at 3:22 PM
    #15
    Skidog1

    Skidog1 Well-Known Member

    Joined:
    Jul 4, 2016
    Member:
    #191190
    Messages:
    623
    Gender:
    Male
    Chicagoland
    Vehicle:
    2016 Black TRD 4x4 Sport DCLB
    Can you get a small key ring on?

  16. Apr 5, 2017 at 3:23 PM
    #16
    hookembevo

    hookembevo Well-Known Member

    Joined:
    Feb 11, 2016
    Member:
    #177856
    Messages:
    1,568
    Gender:
    Male
    Austin, TX
    Vehicle:
    2016 Tacoma DCSB with 6MT
    Snugtop Rebel with some options Body Armor Rock Steps Rhino Mats Weathertech Mudflaps Radar detector hardwired to rear view mirror. Stereo upgrade: Amp: Arc Audio XDI805 LOC: AudioConnect LC7i Front Speakers: Hybrid Audio Technologies Claris 6.5 Rear Speakers: Hybrid Audio Technologies Mirus 5.25 Sub: Pioneer TS-SW2502S4 Box: Pioneer Ud-SW250T Bilstein 5100s OME 885 Springs Single Add-A-Leaf BFG KO2 265/75/16
    Yakima and Thule also sell this as an option and it's not included, if it makes you feel any better.

  17. Apr 5, 2017 at 3:31 PM
    #17
    Masterofnone

    Masterofnone 140.85

    Joined:
    Jan 14, 2017
    Member:
    #207536
    Messages:
    1,647
    Gender:
    Male
    First Name:
    Bobby
    Kansas
    Vehicle:
    2017 TRD Sport AC MT
    Okay I'm going to be "that guy." I have a similar set up. In my experience, the pin serves no purpose other than to annoy you when you forget to take it out. I use a lock washer and have NEVER had an issue with it coming loose... and I've driven from Wichita to Kansas City to Sioux Falls to Rapid City and back without an issue.

  18. Apr 5, 2017 at 3:32 PM
    #18
    Dawnpatrol

    Dawnpatrol Well-Known Member

    Joined:
    Dec 4, 2016
    Member:
    #204019
    Messages:
    133
    Gender:
    Male
    PNW
    Yep! Just discovered this myself when I went to put on my old hitch lock on ball. :mad: Went to Lowes and picked up a 3.5" pin/lock. I have an older Yakama bike rack that fits the hitch similar to yours. It has a locking pin and I bet it won't be long enough? :(

  19. Apr 5, 2017 at 3:36 PM
    #19
    Masterofnone

    Masterofnone 140.85

    Joined:
    Jan 14, 2017
    Member:
    #207536
    Messages:
    1,647
    Gender:
    Male
    First Name:
    Bobby
    Kansas
    Vehicle:
    2017 TRD Sport AC MT
    Just a bolt with a 3/4 head on it. Doesn't come loose. It won't stop theves from lifting the entire rack though.

  20. Apr 5, 2017 at 3:39 PM
    #20
    poopshute

    poopshute Well-Known Member

    Joined:
    Jul 7, 2009
    Member:
    #19385
    Messages:
    618
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Tacoma TRD Pro Storm Trooper
    Yes! Same issue I had with a threaded locking pin. It was too short. Fit fine on other hitch receivers but on my Tacoma the bin was too short. Don't have a fix to recommend other than recommending getting a new pin that fits but it is a little annoying for sure. I also tried to ratchet it up with a decent amount of torque but could never get the other end to attach. Definitely would not recommend using it w/out a pin. My threaded anti-rattle pin would come loose all the time. If it weren't or the pin/cap on the other side, the pin would've fallen out and bye-bye bike rack.
