New speakers in 3rd gen - capacitor on tweeters? Speakers ok?

Discussion in 'Audio & Video' started by 05 4x4, Apr 14, 2022.

  1. Apr 14, 2022 at 12:06 AM
    #1
    05 4x4

    05 4x4 [OP] Well-Known Member

    Joined:
    Feb 13, 2013
    Member:
    #97442
    Messages:
    330
    Gender:
    Male
    I have a 3rd gen non jbl stock audio system.

    I purchased Kicker 47KSC2704 tweeters and soldered the tweeter harness to the adaptor harness, without any capacitor. Update, I did notice that on the adaptor harness I bought, two wires were jumped in the connector.

    Question 1 - Will these tweeters require a capacitor? Will I hurt it if I run them tomorrow without one?

    I also got the Kicker 47KSC69304 6x9 speakers for the front doors. I soldered the adaptor harness to the factory speaker harness, after the ?crossover? (It’s shrink wrapped and I think that’s what it is).

    I just put the crossover on the door metal with double stick tape.

    Question 2 - the speakers say to make sure the source unit or amp is 4ohm. Is mine? Will it cause harm if I run it like this? (I have no amp).

    question 3 - I only finished both tweeters and one door speaker. Will it cause any harm to run it like this in the morning?

    As you can tell, I have absolutely no idea what I’m doing with car audio. Any help would be appreciated!!!! Thanks!

    Last edited: Apr 14, 2022
  2. Apr 14, 2022 at 8:39 AM
    #2
    RDW59565

    RDW59565 Well-Known Member

    Joined:
    Sep 3, 2021
    Member:
    #376136
    Messages:
    246
    Gender:
    Male
    Utah
    Vehicle:
    2022 TRD Pro M/T Mag Grey
    STOP!

    Your 47KSC2704 speakers absolutely need the capacitor. Add it to the + line. It is not directional, you cannot install it backwards. Personally, I think the Kicker supplied capacitor rolls off too low. I think that these capacitors are a better fit with those speakers. Either way, you will blow the speakers if you don't add the capacitors.

    https://www.crutchfield.com/p_007BB600/Crutchfield-Bass-Blockers-600-Hz-cut-off.html

    The factory head unit is 4 ohms. You are good there.

    soundman98 likes this.
  3. Apr 14, 2022 at 9:53 AM
    #3
    05 4x4

    05 4x4 [OP] Well-Known Member

    Joined:
    Feb 13, 2013
    Member:
    #97442
    Messages:
    330
    Gender:
    Male
    OK thank you. All I did was test it at a relatively low setting without any major music. Do you think it is still OK?

    RDW59565 likes this.
  4. Apr 14, 2022 at 12:45 PM
    #4
    05 4x4

    05 4x4 [OP] Well-Known Member

    Joined:
    Feb 13, 2013
    Member:
    #97442
    Messages:
    330
    Gender:
    Male

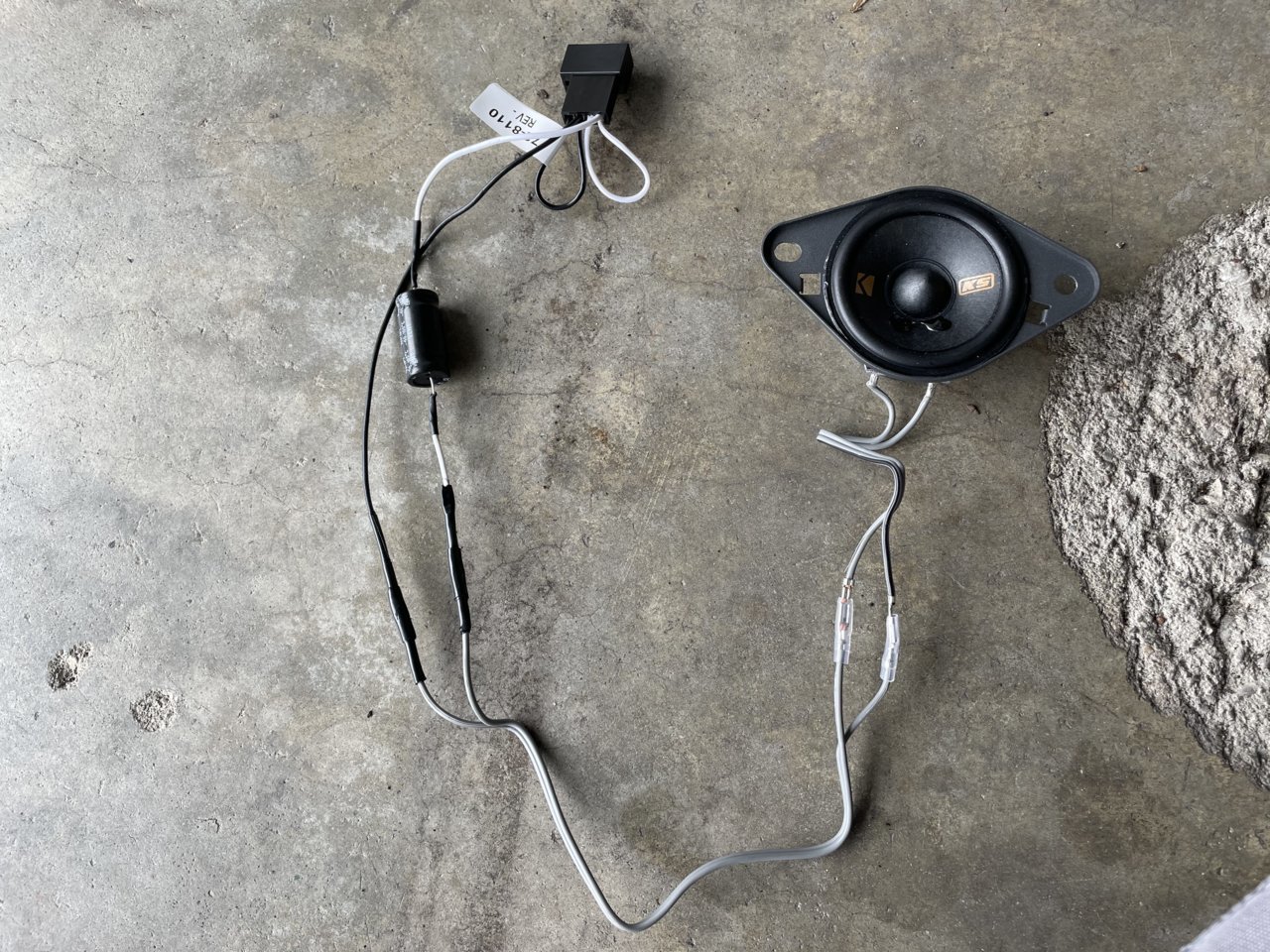

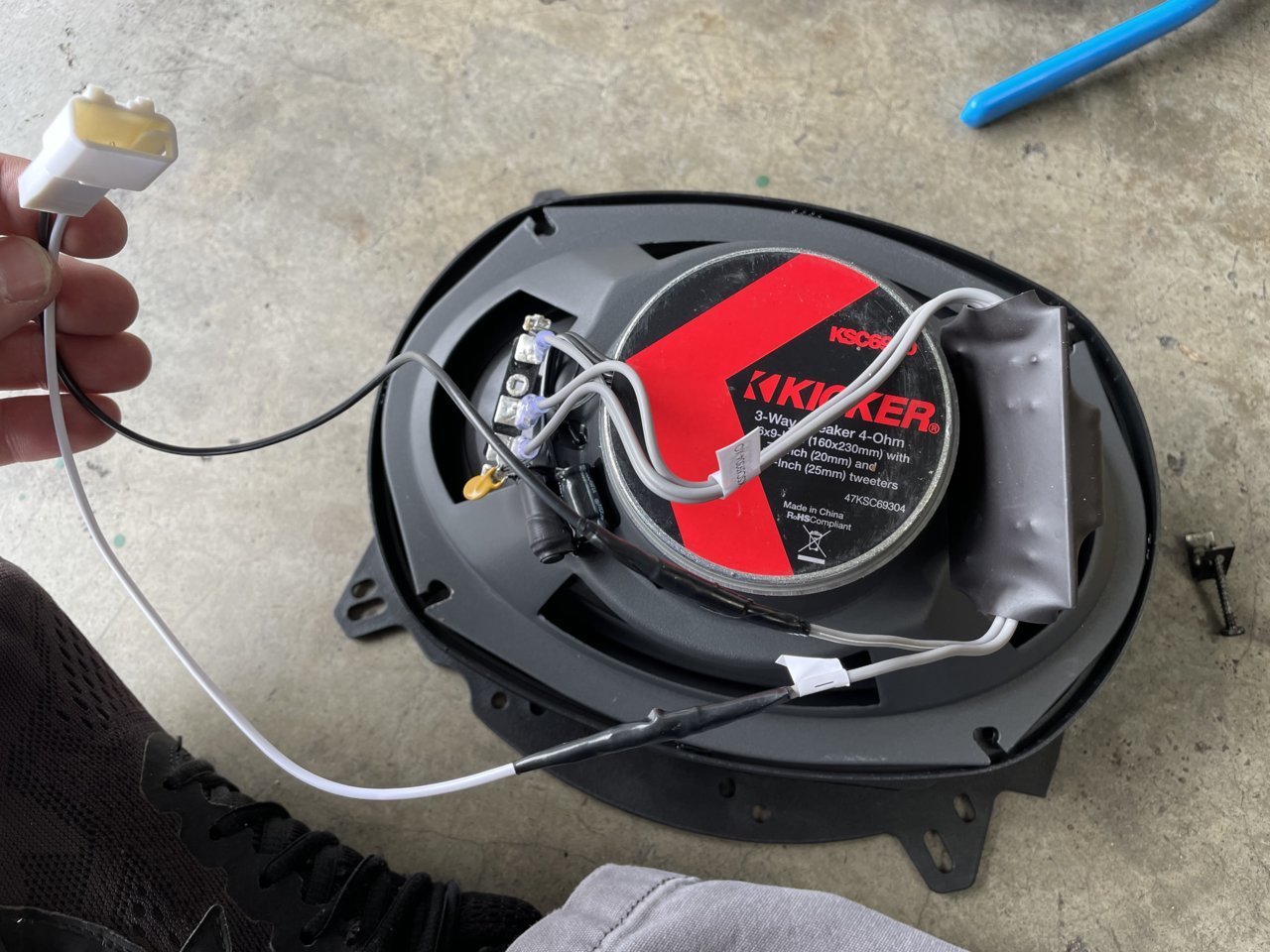

    Ok so this is what I have. All good? No need to worry about that capacitor and plastic assembly on the stock tweeters?

    thanks gents!


    Last edited: Apr 14, 2022
  5. Apr 14, 2022 at 1:17 PM
    #5
    RDW59565

    RDW59565 Well-Known Member

    Joined:
    Sep 3, 2021
    Member:
    #376136
    Messages:
    246
    Gender:
    Male
    Utah
    Vehicle:
    2022 TRD Pro M/T Mag Grey
    Very likely that everything is fine. You would have to have it turned up to blow the speaker.

    soundman98 likes this.
  6. Apr 14, 2022 at 1:23 PM
    #6
    05 4x4

    05 4x4 [OP] Well-Known Member

    Joined:
    Feb 13, 2013
    Member:
    #97442
    Messages:
    330
    Gender:
    Male
  7. Apr 14, 2022 at 7:39 PM
    #7
    soundman98

    soundman98 Well-Known Member

    Joined:
    May 31, 2021
    Member:
    #367288
    Messages:
    4,207
    Gender:
    Male
    NW Indiana
    Vehicle:
    '18 Taco Sport, '14 Ranger
    looks good

    05 4x4[OP] likes this.
  8. Apr 14, 2022 at 7:41 PM
    #8
    MGMDesertTaco

    MGMDesertTaco Come on, live a little...

    Joined:
    Jan 30, 2021
    Member:
    #354573
    Messages:
    7,219
    Gender:
    Male
  9. Apr 15, 2022 at 5:47 AM
    #9
    05 4x4

    05 4x4 [OP] Well-Known Member

    Joined:
    Feb 13, 2013
    Member:
    #97442
    Messages:
    330
    Gender:
    Male
    thanks! Never installed speakers before and thought they were going to be plug and play with the harnesses crutch field included....:rofl:

    got it all done yesterday and the sound is much better than stock. Stock wasn’t crisp at all and lacked any and all bass. Now I can actually hear the lyrics and there’s a tiny bit of bass. I’m very happy. I’ll look into an amp in the future.
