    Quick Links: Ko2 vs ko2dt TPMS stock wheels to Methods. need ideas Original Equipped Tires + Snow What tire to get? Wheel Locks BFGoodrich KM3: 255/85R16 in two load ranges?

New thread idea, post up your truck and info please!

Discussion in 'Wheels & Tires' started by RelentlessFab, Feb 27, 2009.

Page 2 of 4
  1. Feb 27, 2009 at 9:10 PM
    #21
    RelentlessFab

    #21
    RelentlessFab [OP] Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,808
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    I looked it up; looks like they are 16x8 w/ 4.25" Backspace


    Everyone keep posting! Were off to a fair start, keep um coming

    RelentlessFab, Feb 27, 2009
    #21
  2. Feb 28, 2009 at 2:04 AM
    #22
    FoxySandChick

    #22
    FoxySandChick Well-Known Member

    Joined:
    Sep 27, 2008
    Member:
    #9505
    Messages:
    2,956
    Gender:
    Female
    First Name:
    Kristin
    Henderson, NV
    Vehicle:
    07 DC 4x4 Base model V6 Impulse Red Pearl
    De-badged, limo tint, black wet okole's, weathertechs, extra d-rings, TSB bilsteins
    07 4x4 DC Base model with suspension TSB-Bilsteins all around
    Moto Metal 975B 17x9 4.5bs -12mm offset
    Nitto Terra Grapplers 265/70/17
    some minor trimming needed
    [​IMG]
    [​IMG]
    I need to take better pics ;)

    FoxySandChick, Feb 28, 2009
    #22
  3. Feb 28, 2009 at 4:21 AM
    #23
    Y0TA

    #23
    Y0TA Well-Known Member

    Joined:
    Jan 31, 2009
    Member:
    #13145
    Messages:
    613
    Gender:
    Male
    First Name:
    Zac
    Central MT
    Vehicle:
    05 BLK TRD Sport 4X4
    i like the idea of the thread and i am subscribed. more people need to put some more pics of their rides up though. i will once i do something to mine....maybe we can make it a sticky one day

    Y0TA, Feb 28, 2009
    #23
  4. Feb 28, 2009 at 4:34 AM
    #24
    cmfranks

    #24
    cmfranks Well-Known Member

    Joined:
    Dec 18, 2007
    Member:
    #3882
    Messages:
    304
    Gender:
    Male
    First Name:
    Craig
    Austin,TX
    Vehicle:

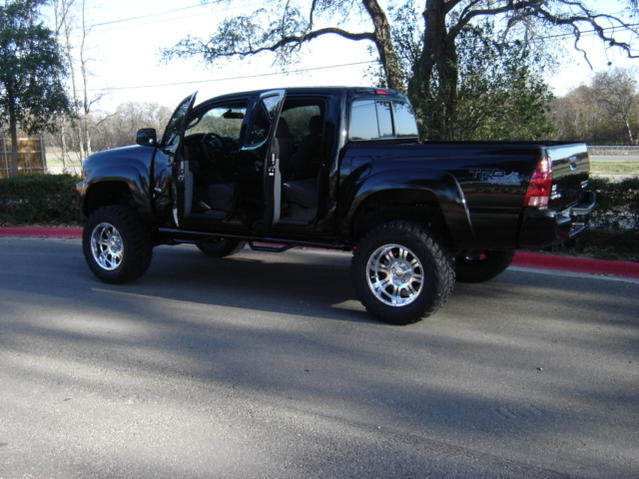

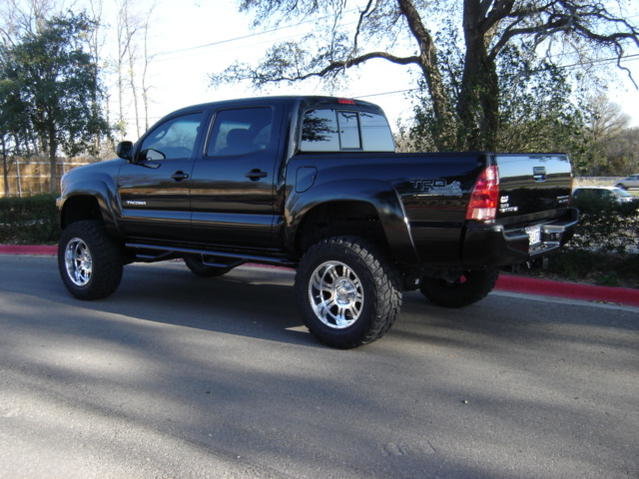

    08 DC Pre-Runner 6in Pro Comp Lift
    BHLM, Pro Comp Skid Plate, AFE Drop in Air Filter, Tint, Pioneer AVH 4000 DVD,Polk Audio 6.5 components, Polk 6.5 co-ax's, Polk Audio 400.1 amp, Polk Audio 500.1 amp, (2) Polk Audio 10 in Momo subs, Mr Marv sub box, Sockmonkey decals, Redline Elite hood struts, Bak Flip tonneau cover, N-Fab Nerf bars, Painted Center Console & Window/Door Lock Panels Black, Amber LED Dome/Map Lights

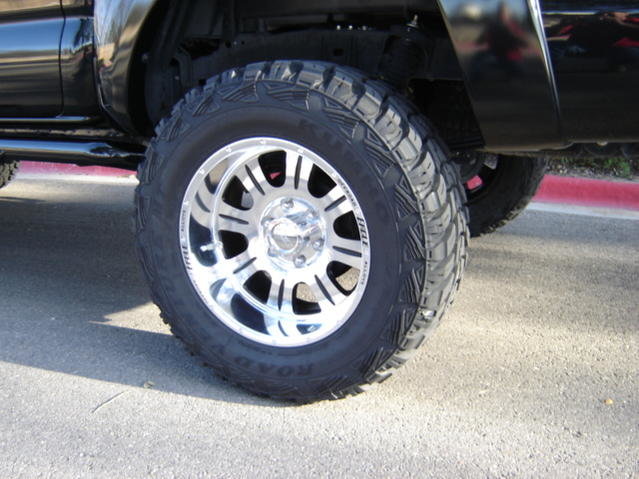

    33x12.50x18 Kumho M/T's
    18x10 Eagle Alloy series 140 in Superfinsh Black (4.5 BS)
    6 in Pro Comp Lift

    No rubbing or trimming needed. Rides pretty damn smooth, not very loud either:D


    cmfranks, Feb 28, 2009
    #24
  5. Feb 28, 2009 at 4:37 AM
    #25
    rick

    #25
    rick `

    Joined:
    Mar 1, 2007
    Member:
    #993
    Messages:
    2,498
    Gender:
    Male

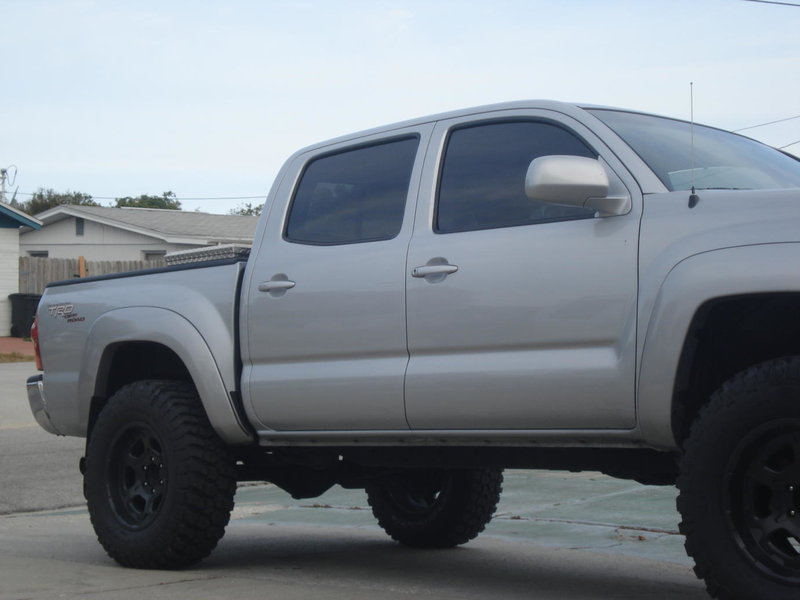

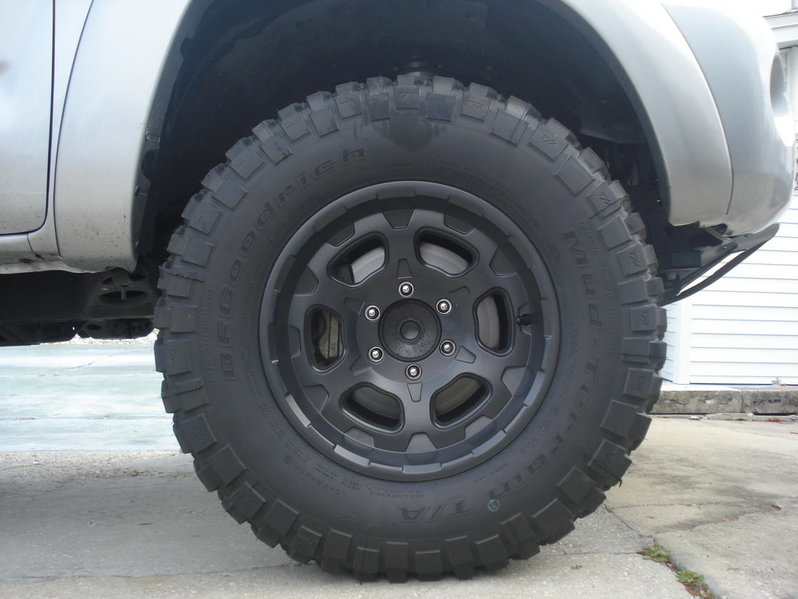

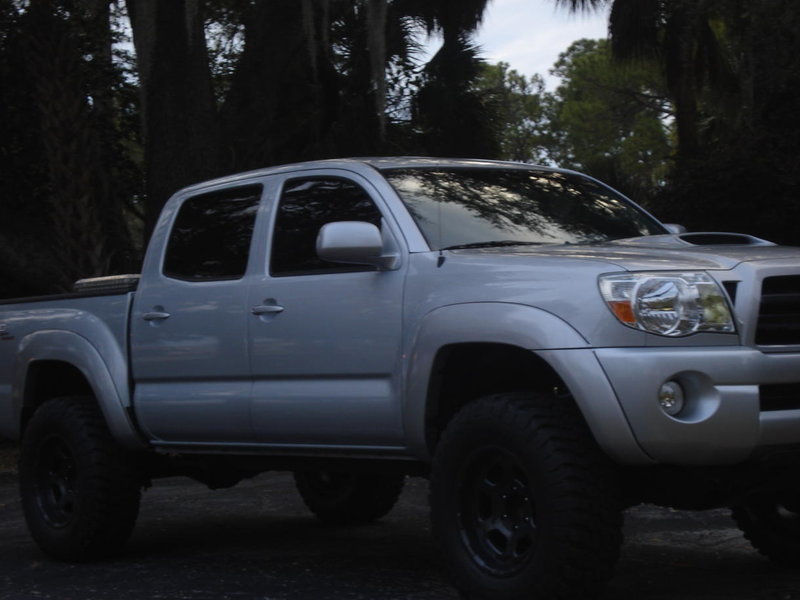

    07 d-cab
    17x9 atx chambers (black) 4.5" bs
    285/70 bfg km2's
    toytec co's w/ tc uca's
    rear leaf tsb w/ 1" block


    rick, Feb 28, 2009
    #25
  6. Feb 28, 2009 at 10:01 AM
    #26
    RelentlessFab

    #26
    RelentlessFab [OP] Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,808
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    bump for more pics/info guys!

    RelentlessFab, Feb 28, 2009
    #26
  7. Mar 2, 2009 at 5:10 AM
    #27
    FL Forester

    #27
    FL Forester Well-Known Member

    Joined:
    Aug 23, 2008
    Member:
    #8706
    Messages:
    1,132
    Gender:
    Male
    First Name:
    Jason
    Tallahassee, FL
    Vehicle:
    2016 4Runner
    This is a very helpful thread for those of us looking for aftermarket wheels. Thanks for all of the info that is being posted.

    FL Forester, Mar 2, 2009
    #27
  8. Mar 3, 2009 at 8:28 PM
    #28
    RelentlessFab

    #28
    RelentlessFab [OP] Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,808
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    Bump for some more info guys! Post up so we can keep this going!

    RelentlessFab, Mar 3, 2009
    #28
  9. Mar 5, 2009 at 12:27 AM
    #29
    Amo-cat3

    #29
    Amo-cat3 Wizard Sleeve Master

    Joined:
    Jan 26, 2009
    Member:
    #12980
    Messages:
    655
    Gender:
    Male
    Maui, Hawaii
    Vehicle:

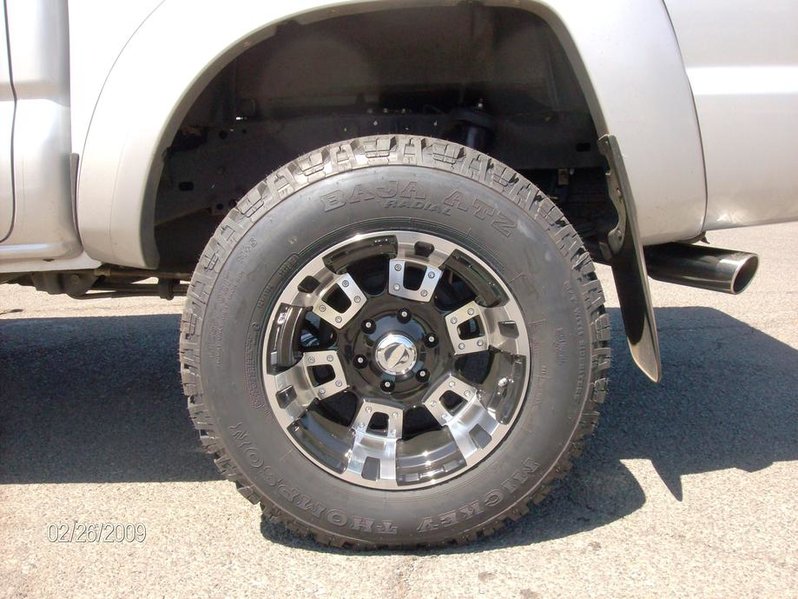

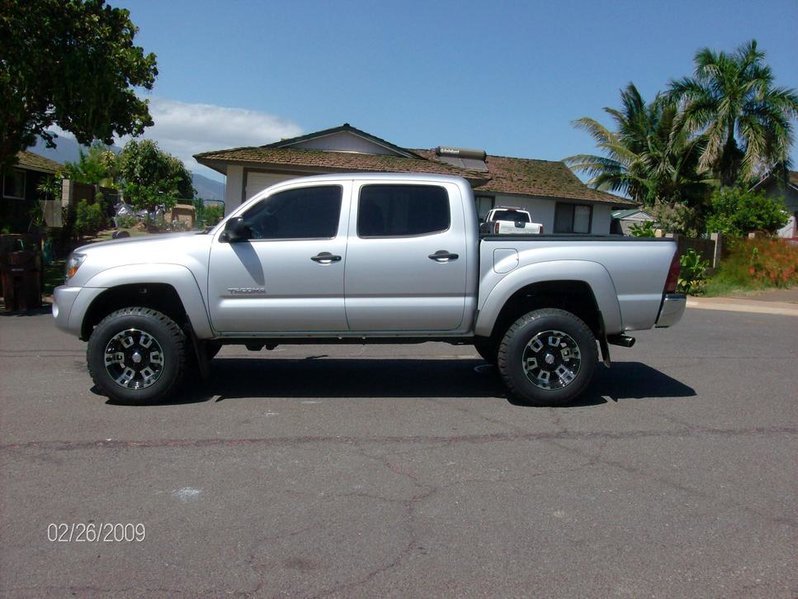

    07 TRD Blown dubcab
    TRD Supercharged 4.0 w/ 2.5" Quick change Pulley, UCON EMS, URD 7th injector, AFE Stage II intake, DT Longtubes, MBRP 2.5" dual exhaust w/ Vibrant Ultra resonator, URD Y-pipe w/ vibrant v-bands (Cat free), Walboro 255 fuel pump, SS Oil catch can, Aeroforce gauges, Icon CDC 2.5 coilover set at 3", 1.5" Wleelers Progressive aal, Light racing uca, 17x8.5 Fuel Anza 4.5" backspace/-6 mm offset, Kelly Safari a/t 265/70/17, scanguage 2, AMP electric steps, bed extender, Low-pro tonneau cover, 20% tinted windows/headlights/taillights, tacoma seat covers, Image dynamic sound system w/ Pinoneer avh3200 head, assrtd stickers................
    3" EZ lift spacer front
    2" Alcan AAL rear
    17x10 Diamo 17K wheels, 5" backsspace, -12mm offset
    Mickey Thompson ATZ 265/70/17
    Only rubbing is going reverse w/ almost full lock turn on front mud flaps. All else is all good. AAW-RRIIGHT!!


    Amo-cat3, Mar 5, 2009
    #29
  10. Dec 27, 2009 at 12:38 PM
    #30
    IrishPilot

    #30
    IrishPilot Well-Known Member

    Joined:
    Jun 30, 2009
    Member:
    #19104
    Messages:
    809
    Gender:
    Male
    MN
    Vehicle:
    09 TRD Off-Road 4x4 Double Cab
    bump.

    IrishPilot, Dec 27, 2009
    #30
  11. Dec 27, 2009 at 12:44 PM
    #31
    RelentlessFab

    #31
    RelentlessFab [OP] Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,808
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    holy thread revival, batman! :D :thumbsup:

    RelentlessFab, Dec 27, 2009
    #31
  12. Dec 28, 2009 at 8:25 AM
    #32
    TexasTacoma37

    #32
    TexasTacoma37 Well-Known Member

    Joined:
    Sep 3, 2009
    Member:
    #22227
    Messages:
    31,174
    Gender:
    Male
    I like the idea of this thread. This would have been very useful when I was buying wheels. Let's try to keep this going.

    18x9 BBS RW's, +10mm offset (~5.4" BS). 265/65/18 Hankook Dynapro ATM's.

    Stock suspension, no rubbing.

    [​IMG]

    [​IMG]

    TexasTacoma37, Dec 28, 2009
    #32
  13. Dec 28, 2009 at 8:33 AM
    #33
    Packman73

    #33
    Packman73 ^^^^ 3%er ^^^^

    Joined:
    Aug 24, 2008
    Member:
    #8741
    Messages:
    8,276
    Gender:
    Male
    First Name:
    Matt
    The free state of Arizona
    Vehicle:
    2007 TRD Off Road
    Bilstein 5100's (front set @ .85"), OME 885's, chris4x4 anti-Taco-lean spacer on driver's side, Total Chaos UCAs, Rear Leaf Spring TSB, Toytec AALs, Black FJ TT Wheels, BFG 285/75R 16 AT Tires, TRD Exhaust, Viper Alarm, Fog Light Mod, De-badged, Blue LED Dome Light, EZ Clamped Tailgate, Wet Okoles, Satoshi Grill, 5% Tint, Engine Tick Fix, Black Rear Bumper, Black Center Valence, Exhaust Cut At Axle, Thanks for all the help chris4x4!
    Updating...


    Bilstein 5100's, OME 885's, Total Chaos UCAs, Leveled, Rear Leaf Spring TSB, Toytec AALs, Moto Metal 950 16" Wheels, BFG 285/75R 16 AT Tires, TRD Exhaust, Viper Alarm, Fog Light Mod, De-badged, Blue LED Dome Light, EZ Clamped Tailgate, Wet Okoles, Satoshi Grill, 5% Tint, Engine Tick Fix, Black Rear Bumper, Black Center Valence,
    Thanks for all the help chris4x4!

    Packman73, Dec 28, 2009
    #33
  14. Dec 28, 2009 at 9:24 AM
    #34
    sockmonkey

    #34
    sockmonkey Well-Known Member

    Joined:
    Mar 13, 2008
    Member:
    #5245
    Messages:
    3,320
    Gender:
    Male
    First Name:
    Greg
    Benbrook, SW Fort Worth
    Vehicle:
    2007 White Dbl Cab Pre-Runner
    Volant Ram Air intake,URD MAF calibrator, Mr Marv 10" sub box, Alpine HU, Alpine Amp, fog light mod, scan gauge II, RAAMmat front and rear doors, Wet Okole seat covers, blacked out dash. blacked out front bumper. American Racing Mojave Teflons wrapped with 265/70/16 Pathfinder AT. NST Lite Pulleys

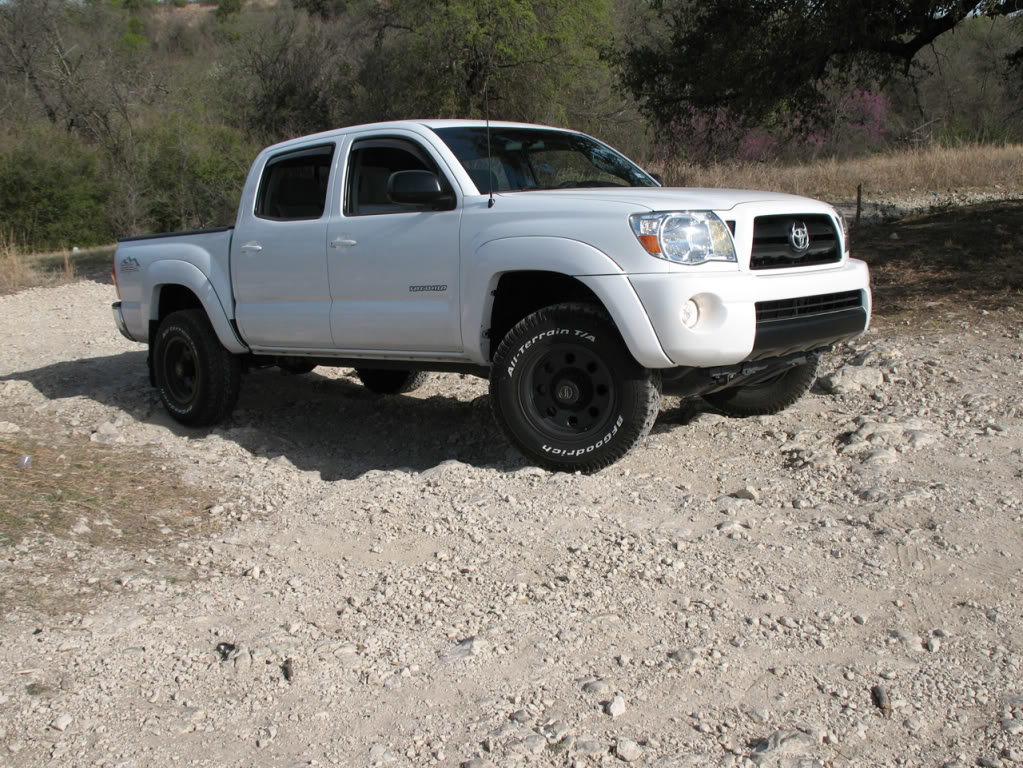

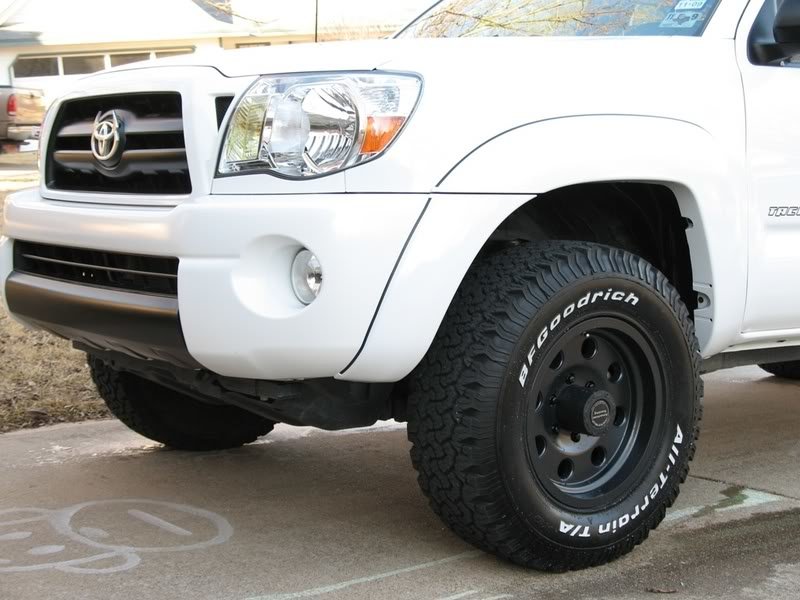

    some old pics, but...

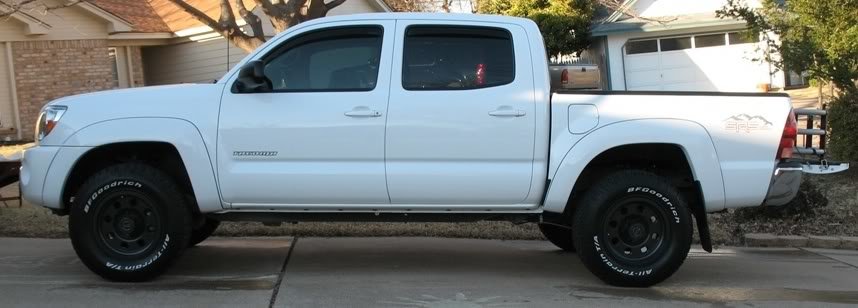

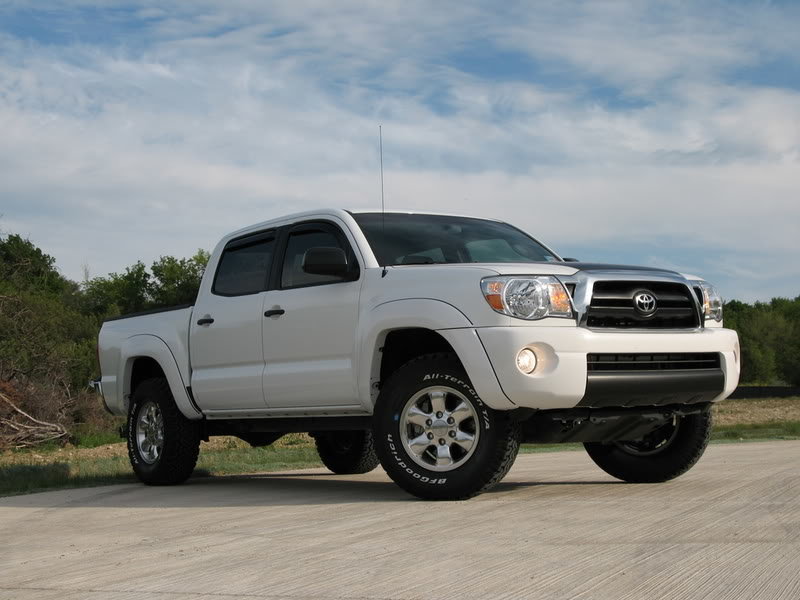

    my truck with stock 16" Gulf Coast wheel set and BFG AT KO tires (265/70/16)


    and with 16" American Racing Mojave Teflon and same BFG tires



    sockmonkey, Dec 28, 2009
    #34
  15. Dec 28, 2009 at 4:53 PM
    #35
    Drock42

    #35
    Drock42 Well-Known Member

    Joined:
    Aug 13, 2009
    Member:
    #21142
    Messages:
    78
    Gender:
    Male
    First Name:
    Derek
    Albuquerque, NM
    Vehicle:
    09 TRD Sport 4x4
    Toytec Coilovers, LR UCAs, OME Dakar leafpacks w/5100s, 18" 951s, 285/60 TGs (6ply), Grillcraft MX upper & lower, Wet Okole seat covers, Rec-rac bike racks
    285/60 Nitto Terra Grapplers on 18" Moto Metal 951s (4.53 Backspacing -12 Offset), Toytec Ultimate Lift Kit set at 2.5", Light Racing UCAs, Dakar Leaf Packs & 5100 rear shocks.





    [​IMG]

    [​IMG]

    Drock42, Dec 28, 2009
    #35
  16. Dec 28, 2009 at 6:20 PM
    #36
    RelentlessFab

    #36
    RelentlessFab [OP] Eric @Relentless Fab Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    15,808
    Gender:
    Male
    First Name:
    Eric
    Sparks, NV
    Vehicle:
    07 AC 6mt>03 SR5 >08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    great, guys! Keep it going! :)

    RelentlessFab, Dec 28, 2009
    #36
  17. Dec 28, 2009 at 6:29 PM
    #37
    cantac09

    #37
    cantac09 Official TW Igloo Builder

    Joined:
    Apr 27, 2009
    Member:
    #16501
    Messages:
    7,396
    Gender:
    Male
    First Name:
    Hugh Jass
    Saskatchewan
    Vehicle:
    tundra
    stock
    [​IMG]
    [​IMG]

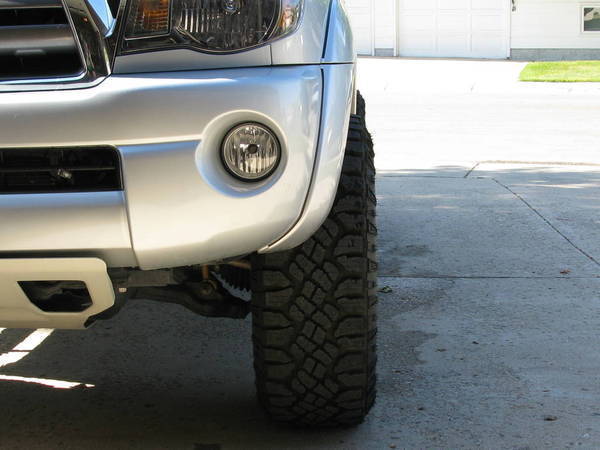

    17x9 moto metal 955's 4.54 inch backspacing
    285/70/17 goodyear duratracs
    3 inch revtek for now

    cantac09, Dec 28, 2009
    #37
  18. Dec 28, 2009 at 6:47 PM
    #38
    xodeuce

    #38
    xodeuce mmmmmmbourbon.

    Joined:
    Oct 16, 2009
    Member:
    #24427
    Messages:
    1,397
    Gender:
    Male
    Alabama
    Vehicle:
    2004 UZJ100
    Great thread, if there are enough responses this should be a sticky.

    Subscribed!

    xodeuce, Dec 28, 2009
    #38
  19. Dec 28, 2009 at 6:59 PM
    #39
    BeefTaco

    #39
    BeefTaco WESTern Alliance: NORCAL COAST

    Joined:
    May 8, 2008
    Member:
    #6481
    Messages:
    625
    Gender:
    Male
    Santa Cruz County Ca.

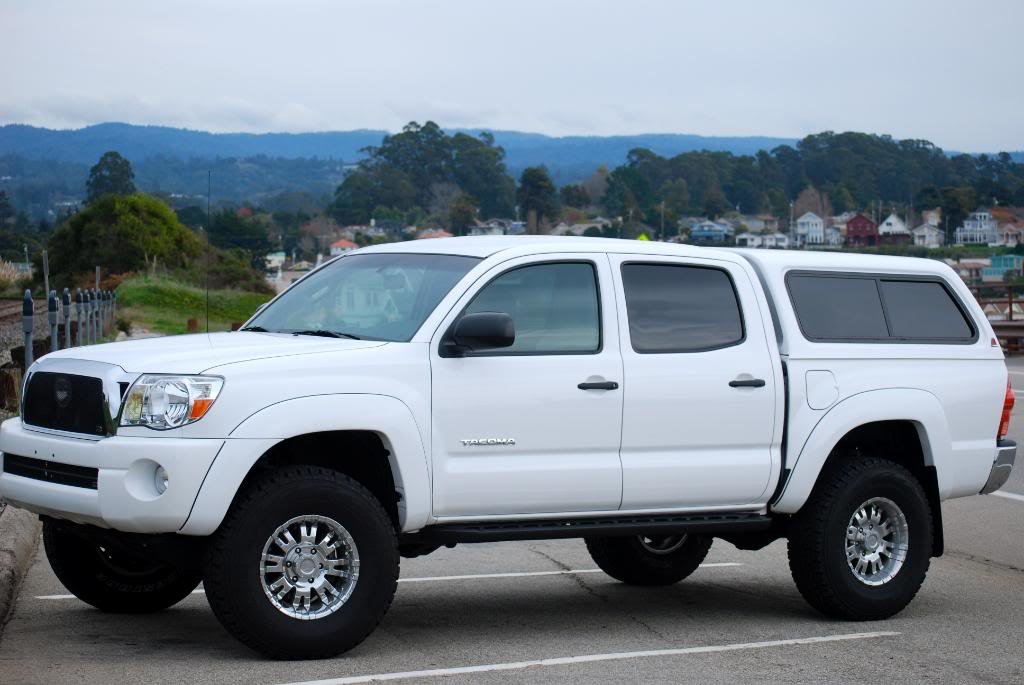

    ProComp 6001 16x8 Rims wrapped with brand new 285/75R16 Bridgestone Revo2's


    BeefTaco, Dec 28, 2009
    #39
  20. Dec 28, 2009 at 7:00 PM
    #40
    TRDguyKC

    #40
    TRDguyKC Well-Known Member

    Joined:
    Sep 18, 2008
    Member:
    #9316
    Messages:
    1,259
    Gender:
    Male
    First Name:
    Kris
    Sierra Vista, AZ
    subscribed. will post up as soon as i get my card reader to upload photos.

    TRDguyKC, Dec 28, 2009
    #40
Page 2 of 4

Products Discussed in

Air Intake Snorkel Kit Fit For 2005-2015 Toyota Tacoma With 4L Right Petrol intake air snorkel kit high performance system compatible kit Replacement black Rotational Molding (2005-2015)
$89.99
US Wheel 771BL Stealth Matte Black with Simulated Beadlock 17X8.5, 6X135, 4.75" Backspace, 2650lbs, Part #771-88565BL
$229.50
Bilstein (24-186728) 5100 Series Shock Absorber
$109.17
Schrader 34000 Aluminum Clamp-in Style Valve for TPMS Snap-in Sensor, 25 Count (Pack of 1)
$5.81
Milton S-684-4 1/4" MNPT Male Tank Valve, includes Protective Caps (Pack of 2)
$4.30
GODESON 88702 Smart Color Coded Tire Tread Depth Gauge 2 pieces(Pack of 1)
$5.97
Dorman 974-033 Tire Pressure Monitoring System (TPMS) Sensor Compatible with Select Models
$11.12
Toyota Genuine Lug Nut with Washer
$11.75
Air Pressure Switch 90-120 PSI 1/4"-18 NPT DC 24V 12V Air Compressor 90PSI 120PSI
$12.90
WHEEL CONNECT Hub Centric Rings 73.1 to 60.1, Aluminium Alloy Hubrings 60.1 to 73.1 Set of 4, O.D:73.1-I.D:60.1mm. A
$11.99
Adam's Polishes Block Applicator (6 Pack) Trim Dressing & Tire Shine Applicator Pad for Car Detailing | Reusable & Customizable Durafoam | for Use After Car Wash Wheel Cleaner
$11.99
Chemical Guys Durafoam Contoured Large Tire Dressing Applicator with Wonder Wave, 2 Pack
$6.99
M-D Building Products 3525 M-D 0 V-Flex Weather-Strip with Adhesive Back, 17 Ft L X 7/8 in W, Polypropylene, White
$8.13
Steelman Color Coded Tread Depth Gauge, Quickly Identifies Amount of Tread on Tires, Reads in MM and 32nds
$7.99
Super Lube-21030 Synthetic Multi-Purpose Grease, 3 Oz.
$8.57
Die Cut Subdued Matte Black American Flag Sticker 3" X 5" Tactical Military Flag USA Decal Great for Car, Hard Hat. Car Vinyl Window Bumper Decal Sticker (1 Pair)
$8.99
GASHER 2PCS 1/4" Brass Hose Barb, 4-Way Fitting with 8 Clamp Intersection/Liquid/Fuel/Air
$8.99
Milton S-448 Tire Tread Depth Gauge
$8.94
Tire Pressure Gauge for Cars (0-60 PSI, ANSI Certified) Premium Air Pressure Gauge for Tires - Easy to Read Automobile Analog Circular Dial Low PSI Checker Tester
$8.97
Dill 1100K Tire Pressure Monitor Sensor Service Kit
$8.94
Toolwiz Lock on Air Chuck Inflate Locking with Clip, 1/4" Brass Portable Tire Inflator Nozzle Presta Valve Adapter Tire Chucks Air Compressor Attatchments Hose End with Barb Connector,2pcs
$5.99
TEKTON 1/2" Drive x 17 mm Deep 6-Point Socket | SHD23117
$6.00
StanceMagic Small 6 Point Spline Drive Tuner Replacement Socket Key Tool for Aftermarket Six-Spline Wheel Lock Lug Nuts - 17.6mm Inner Diameter - 19mm 3/4 21mm 13/16 Hex Socket Wrench - Black
$6.89
Gorilla Automotive 1921SDKEY Standard Small Diameter Lug Nut Key
$7.59
Standard Motor Products TPM2012VK Tire Pressure Monitor System Valve
$7.73
Dorman 609-130 Tire Pressure Monitoring System Valve Stem Cap, 50 Pack Universal Fit
$18.84
Dr. Beasley's S31D12 Matte Wheel Seal - 12 oz., Designed for Matte Painted Wheels, Preserves Matte Appearance, Readily Biodegradable
$19.98
Lamin-x Custom Fit Yellow Fog Light Covers for Toyota Tacoma (05-11)
$19.95
Flexzilla Air Hose 1/4 in x 50', 1/4 in. MNPT Fittings, Heavy Duty, Lightweight, Hybrid, ZillaGreen - HFZ1450YW2
$19.75
Coyote Wheel Accessories 108-1060 Hub Centric Ring, Set of 4 (108mm OD to 106.00mm ID)
$13.95
Autrends Automatic Tire Deflator, 6-30 PSI Tyre Deflator Kit with Storage Bag for Car, Tires, Truck, Motorcycle, Jeep and ATV (4 Pack)
$13.99
Adam's Tire Shine 16oz - Easy to Use Spray Tire Dressing W/ SiO2 for Glossy Wet Tire Look w/No Sling | Works on Rubber, Vinyl & Plastic | USA Made
$14.44
SunplusTrade 2" x 50' Black Exhaust Heat Wrap Roll for Motorcycle Fiberglass Heat Shield Tape with Stainless Ties
$14.99
Gorilla Automotive 91137BCB Acorn Bulge Black Chrome Lug Nuts (12mm x 1.50 Thread Size)
$12.34
DCVAMOUS Alloy Aluminum Hub Centric Rings 110 to 106, Set of 4 - Performance Spigot Hubrings fit 106mm Vehicle Hub and 110mm Wheel Center Bore Compatible with Toyota 4-Runner Tacoma
$12.99
FANAUE Magnetic Car Mount compatible with RAM mount B size ball head, Magnetic car phone holder can be mounted on car dashboard, windshield and other car accessories, suitable for 4.7-7.5" smartphone.
$15.99
Gorilla Automotive 108-7810 Wheel Hub Centric Rings (108mm OD x 78.10mm ID) - Pack of 4
$17.98
MCGARD 64002 Chrome Cone Seat Style Lug Nuts (M12 x 1.5 Thread Size) - Set of 4
$18.10
Amazing Roll-Off Multi-Purpose Cleaner 32 oz.
$18.30
100 Psi Pressure Transducer Sensor Pressure Sensor 316 Stainless Steel Oil Pressure Transmitter for Oil Fuel Air Water, 1/8" NPT Thread (100PSI)
$17.87
Gorilla Automotive 71631NBC Acorn Black Chrome Wheel Locks (12mm x 1.50 Thread Size) Pack of 4
$17.48
Toyota Genuine Parts - Fj TRD Center Cap Sp (PTR20-35081)
$19.16
To Top
