Newbie Winch Wiring Question

Discussion in '3rd Gen. Tacomas (2016+)' started by IdeaMan, Jan 27, 2020.

  1. Jan 27, 2020 at 7:37 PM
    #41
    RyanDCLB

    RyanDCLB Smashing that "Like" button!

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    626
    Gender:
    Male
    Vehicle:
    19DCLBOR
  2. Jan 27, 2020 at 7:37 PM
    #42
    fatfurious2

    fatfurious2 EAF YO

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    36,007
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    I have my Smittybilt X2O wired exactly how OP and the instructions have it. Also have cb radio (fused), sPod, and something else (I forgot) wired directly to the battery. Winched several times, no issues. Its been at least 3 years.

    I am not an expert, but the fuses/relays are protecting your lights. If smittybilt says wire it directly, then dont stray from that.

    Stopmithering likes this.
  3. Jan 27, 2020 at 7:58 PM
    #43
    Gat_

    Gat_ Don’t be shattered.

    Joined:
    Dec 18, 2018
    Member:
    #276236
    Messages:
    478
    Bay Area, CA
    Vehicle:
    '19 Cement Tacoma TRD OR M/T
    Copy, thank you; I figured it would be that simple. Sometimes reading all these threads makes me think twice.

    fatfurious2 likes this.
  4. Jan 27, 2020 at 8:01 PM
    #44
    Gat_

    Gat_ Don’t be shattered.

    Joined:
    Dec 18, 2018
    Member:
    #276236
    Messages:
    478
    Bay Area, CA
    Vehicle:
    '19 Cement Tacoma TRD OR M/T
    What terminals and battery are you running?

  5. Jan 27, 2020 at 8:06 PM
    #45
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    4,221
    Gender:
    Male
    First Name:
    Nick
    Gilbert, AZ
    Vehicle:
    Black '17 OR

    Sdhq overpriced terminals and an X2 27F

  6. Jan 27, 2020 at 8:11 PM
    #46
    Shellshock

    Shellshock Guy who drives a lot

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    8,829
    Iowa
    Vehicle:
    2017 DCSB TRD OR MT QUICKSAND
    I love the SDHQ terminals. They are a bit spendy but make it way cleaner

  7. Jan 27, 2020 at 8:13 PM
    #47
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    4,221
    Gender:
    Male
    First Name:
    Nick
    Gilbert, AZ
    Vehicle:
    Black '17 OR

    I think these were like 150$. When he told me that I was like....for two terminals? They're literally a mile up the road from me too haha.

  8. Jan 27, 2020 at 8:16 PM
    #48
    Shellshock

    Shellshock Guy who drives a lot

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    8,829
    Iowa
    Vehicle:
    2017 DCSB TRD OR MT QUICKSAND
    I ordered mine off their site for $67 for the pair lol

  9. Jan 27, 2020 at 8:33 PM
    #49
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    4,221
    Gender:
    Male
    First Name:
    Nick
    Gilbert, AZ
    Vehicle:
    Black '17 OR

    Dude, maybe homeboy charged me twice. Wth!

  10. Jan 27, 2020 at 8:43 PM
    #50
    Shellshock

    Shellshock Guy who drives a lot

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    8,829
    Iowa
    Vehicle:
    2017 DCSB TRD OR MT QUICKSAND
  11. Jan 27, 2020 at 9:01 PM
    #51
    tacomarin

    tacomarin ig: @the_chubby_unicorn_trd

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    743
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack Tradesman Truck Shell LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Custom Bed Platform/Drawers 265/75-16 Cooper ST MAXX X-Bull Recovery Boards Front: OME888/Bilstein 5100 with Light Racing SPC UCA Rear: OME Dakar HD/Bilstein 5100, Wheelers 3 Degree Shims Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Ray 10 16x8" wheels, matte dark bronze
  12. Jan 27, 2020 at 9:11 PM
    #52
    RyanDCLB

    RyanDCLB Smashing that "Like" button!

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    626
    Gender:
    Male
    Vehicle:
    19DCLBOR
    Thanks! You may be right... I have the X-20 winch. Instructions/Amp on page 16 here. (a 10k lb max pull requires 415A)

    The one I was looking at had a working current of 300A, with an intermittent working current of 455A. :notsure:

    Last edited: Jan 27, 2020
  13. Jan 27, 2020 at 9:18 PM
    #53
    tacomarin

    tacomarin ig: @the_chubby_unicorn_trd

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    743
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack Tradesman Truck Shell LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Custom Bed Platform/Drawers 265/75-16 Cooper ST MAXX X-Bull Recovery Boards Front: OME888/Bilstein 5100 with Light Racing SPC UCA Rear: OME Dakar HD/Bilstein 5100, Wheelers 3 Degree Shims Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Ray 10 16x8" wheels, matte dark bronze
    Not sure what the rule of thumb is but I would hate to burn up a switch while winching. Here’s another thread on it that is probably more useful than this one :rofl:https://www.tacomaworld.com/threads/winch-power-disconnect-switch-ideas.421661/

    Skydvrr likes this.
  14. Jan 27, 2020 at 9:21 PM
    #54
    Skydvrr

    Skydvrr IG: @kalopsianick

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    4,221
    Gender:
    Male
    First Name:
    Nick
    Gilbert, AZ
    Vehicle:
    Black '17 OR
  15. Jan 27, 2020 at 9:34 PM
    #55
    Tacohumper13

    Tacohumper13 IG @_.mfa_

    Joined:
    Jan 21, 2008
    Member:
    #4369
    Messages:
    581
    Gender:
    Male
    Menifee
    Vehicle:
    2017 TRD Off-road DCSB 4x4
    6112/5160s w/ camburg UCAs 265/70/17 wildpeaks JP8 conversion kit

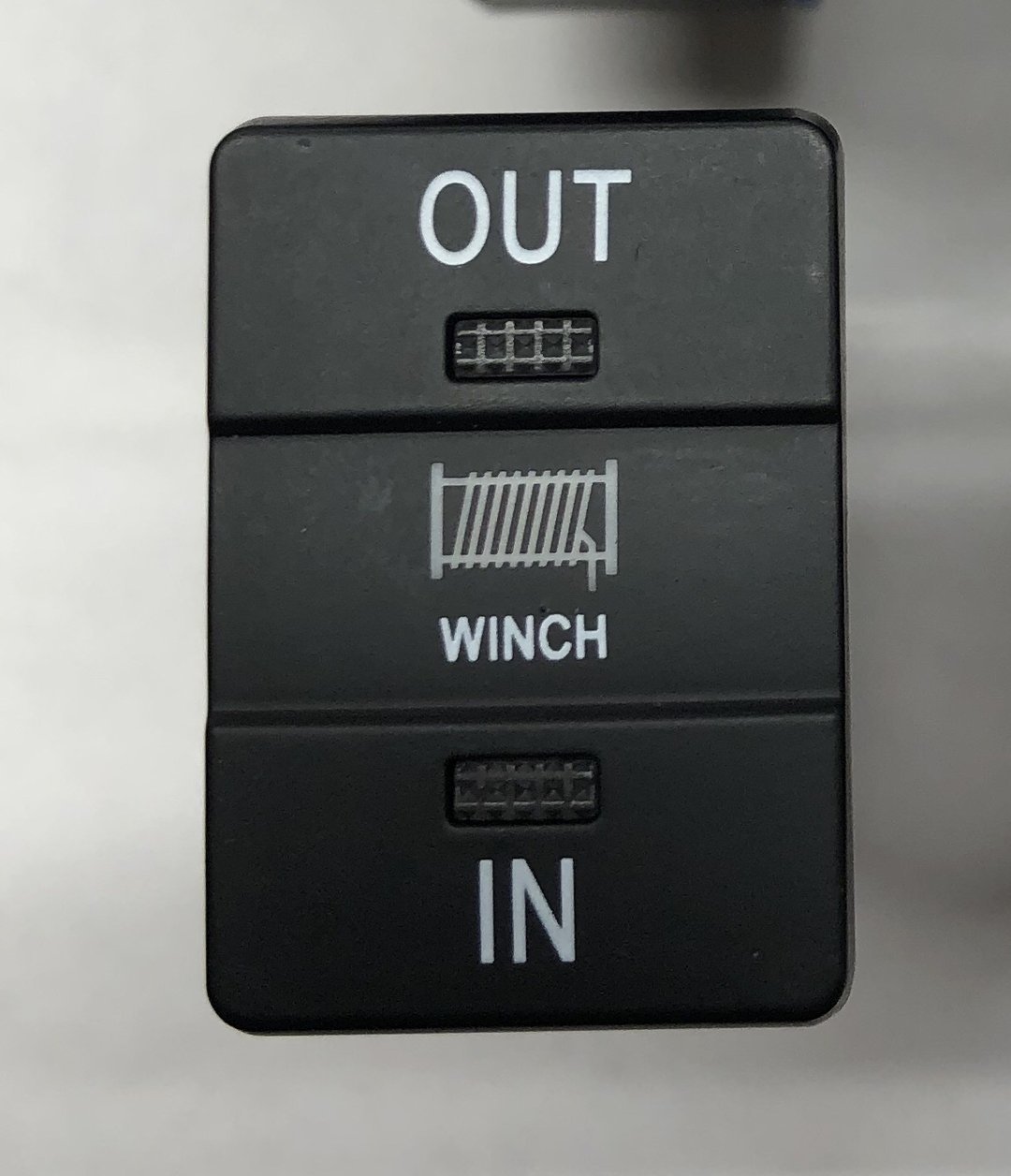

    Does anyone know how to wire this switch? Just bought a smittybilt xrc


  16. Jan 27, 2020 at 9:57 PM
    #56
    RyanDCLB

    RyanDCLB Smashing that "Like" button!

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    626
    Gender:
    Male
    Vehicle:
    19DCLBOR
    Thanks for the link!

    The switch I was looking at here might be okay as long as I don't max pull for more than 5 minutes: Rating 275A DC Continuous (1hr) , 455A DC Intermittent (5 min), 1250A DC Cranking (10 sec)

    The winch instructions recommend to work for 30 seconds on and then 30 seconds off anyway... :notsure: (10k lb max pull requires 415A)

    Problem I have with the Blue Sea Heavy Duty switch is the 1/2" lugs, compared to 3/8" connector on the winch wire. I'll need to drill out or cut and re-crimp the winch wire to accommodate the 1/2" HD lug, and then I'll need to go from a 1/2" lug connector to the battery's 3/8" terminal.

    Just not sure if the HD switch is absolutely necessary if I'm not running the winch for 5 minutes at a time. Well shit... All that work seems counter-productive considering my last winch went straight to the battery for 10+ years with no issues... :deadhorse:

    Edit: I ended up going for the Blue Sea regular switch in black here (winch reviews are spot-on) and longer 2' cable here.

    Bought the WirthCo switch here (as recommended by @Georgia Native) and protective covers here :thumbsup:

    Last edited: Jan 28, 2020
  17. Jan 28, 2020 at 8:26 AM
    #57
    tacomarin

    tacomarin ig: @the_chubby_unicorn_trd

    Joined:
    Sep 15, 2017
    Member:
    #230087
    Messages:
    743
    Gender:
    Male
    First Name:
    Steve
    Bay Area
    Vehicle:
    2018 DCLB TRD OR
    Prinsu Cab and Top Rack Tradesman Truck Shell LED Interior, License Plate, and Reverse Lights Huskyliner Weather Beater floor mats Salex Center Console Organizers 35% Front/15% Rear Tint Debadged and De-stickered Anytime Front and Rear Cameras Custom Bed Platform/Drawers 265/75-16 Cooper ST MAXX X-Bull Recovery Boards Front: OME888/Bilstein 5100 with Light Racing SPC UCA Rear: OME Dakar HD/Bilstein 5100, Wheelers 3 Degree Shims Stainless steel brake lines (+4 in rear) Wheeler's Offroad Superbumps Front and Rear Wheeler's Offroad U-bolt flip ECGS CV Axle Bushing SCS Ray 10 16x8" wheels, matte dark bronze
    Yeah I think that's going to be perfect for me too. I pulled up the specs here and it looks like 300A continuous, 600A for 5 min, and 1200A for 30 sec. My winch can draw up to 500ish A and max pull so that should be perfect for it.

    RyanDCLB likes this.
  18. Jan 28, 2020 at 9:02 AM
    #58
    Georgia Native

    Georgia Native Well-Known Member

    Joined:
    May 12, 2018
    Member:
    #253296
    Messages:
    185
    Vehicle:
    4x4 DCLB 2017 SR5
  19. Jan 28, 2020 at 9:23 AM
    #59
    RyanDCLB

    RyanDCLB Smashing that "Like" button!

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    626
    Gender:
    Male
    Vehicle:
    19DCLBOR
    You linked the 350 E series, whereas I went with the slightly smaller 300 M series because I liked the protective cover on the back. I'm confident both will be fine as these winches are designed for intermittent use. Interesting article over that explains the differences in winches here, but it doesn't go in depth about Amps. The winch controller "switch" activates the relays, but sometimes those relays can get stuck. So, besides protecting the wire from shorting out, the switch also helps if there is ever a "runaway winch" scenario. :thumbsup:

    Edit: Ended up going with the WirthCo switch here (as recommended by @Georgia Native) and protective covers here :thumbsup:

    Last edited: Jan 28, 2020
  20. Jan 28, 2020 at 9:35 AM
    #60
    RyanDCLB

    RyanDCLB Smashing that "Like" button!

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    626
    Gender:
    Male
    Vehicle:
    19DCLBOR
    Edit, confirmed this will work for the purpose of a winch disconnect and ended up buying it :thumbsup: It also has 3/8" lugs. WirthCo switch here and protective covers here

    Last edited: Jan 28, 2020
